USER MANUAL UNI_MC_01 Uniprodo

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description		Parameter value
Product name		Electric relaxing chair
Model		UNI_MC_01
	Massage motor
Voltage		12V DC
Power [W]		12
	Position motor
Voltage		29V DC
Power [W]		58
Protection class		IP20
Max load [kg]		150
Weight [kg]		35.4
Dimensions (LxWxH) [cm]		155.5 x 95 x 100.5

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.

(general warning sign)

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to: Electric relaxing chair

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
h) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
i) Before the first use, please check whether the main voltage type and current comply with the indicated data on the type plate..

2.2. Safety in the workplace

a) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
b) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
c) In case of fire, use a powder or carbon dioxide (CO _2 ) fire extinguisher (one intended for use on live electrical devices) to put it out.
d) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
e) Keep packaging elements and small assembly parts in a place not available to children.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.

b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
d) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not use the device if the “ON/OFF” switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the “ON/OFF” switch are hazardous, should not be operated and must be repaired.
b) Make sure the plug is disconnected from the socket before attempting any adjustments, accessory replacements or before putting the device aside. Such precautions will reduce the risk of accidentally activating the device.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
e) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
f) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
g) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
h) Do not move, adjust or rotate the device in the course of work.
i) Clean the device regularly to prevent stubborn grime from accumulating.
j) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
k) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
1) Keep the device away from sources of fire and heat.
m) Exceeding the maximum permissible user weight can damage the product.
n) Consult a doctor before using the device.
o) This device should not be used by: • People suffering from osteoporosis or heart problems • Pregnant or menstruating women • Injured or disabled people

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

This product provides full-body relaxation through multiple massage modes, heat therapy, zero-gravity positioning, and ergonomic features.

The product is intended for home use only!

The user is liable for any damage resulting from unintended use of the device.

3.1. Assembly instructions

The package contains the following parts:

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

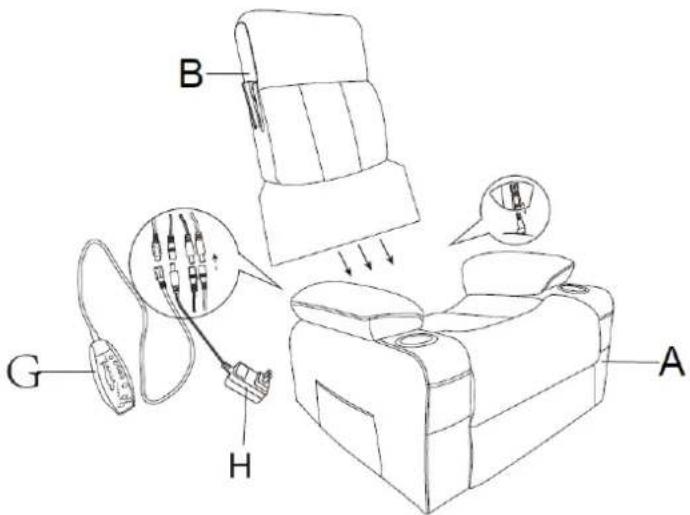

Follow these steps to assemble this product:

1

B G H A

5

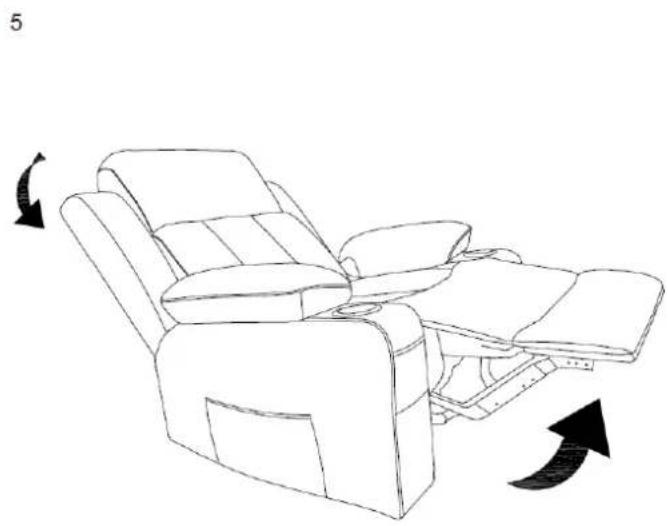

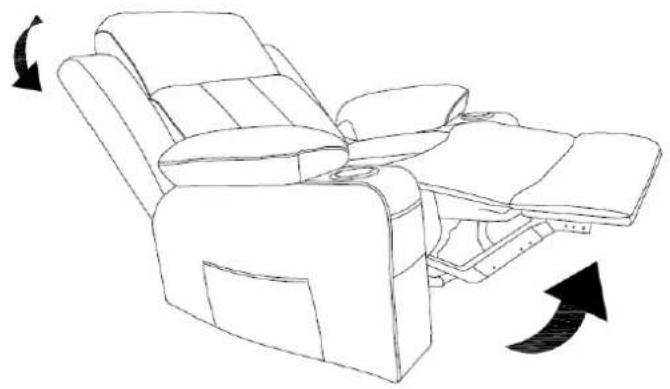

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

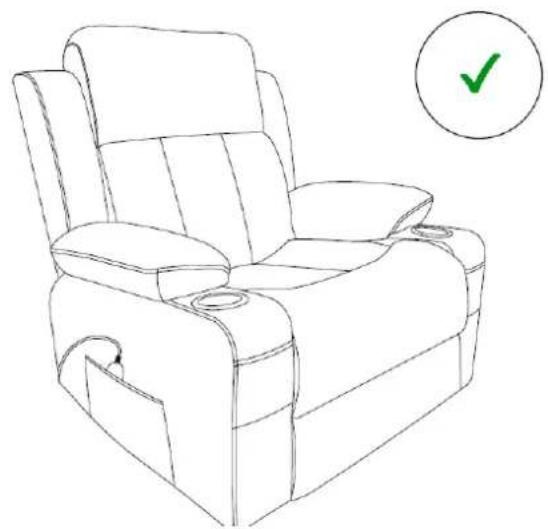

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

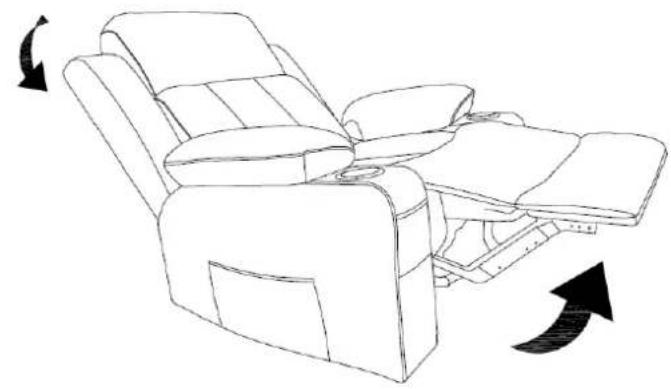

3.2. Lifting or reclining

Plug the direct current end of the cord into the AC adapter outlet, then insert the AC adapter plug into a wall outlet for power.

• Press the down button to recline the chair back and footrest.
• Press the up button to return the chair back and footrest to their original position.
• Press the up button for a second time to lift the entire chair.
• Press the down button to lower the chair and return it to the original position.

3.3. Assembling the device

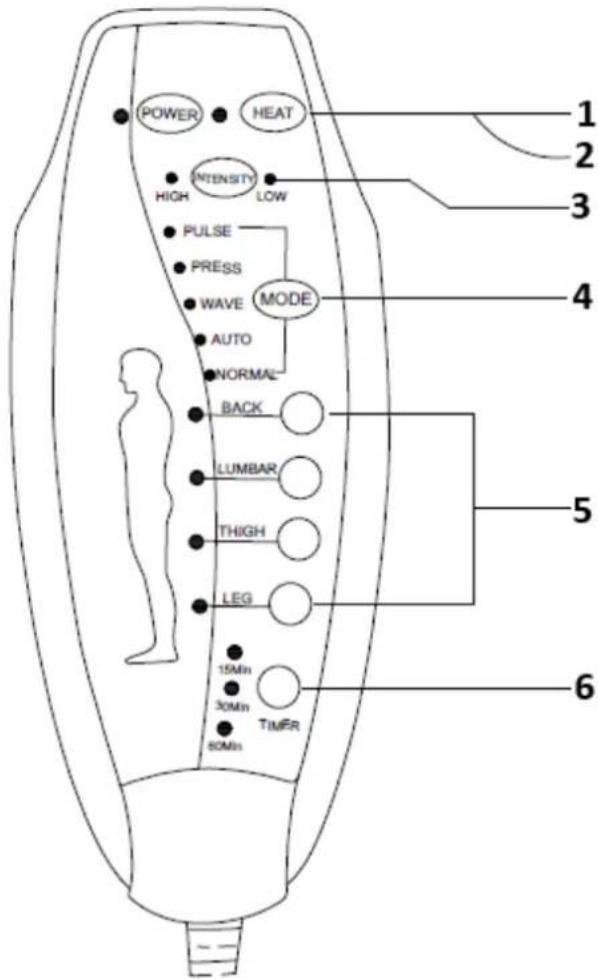

POWER HEAT INTENSITY HIGH LOW PULSE PRESS WAVE MODE AUTO NORMAL BACK LUMBAR THIGH LEG 15Min 30Min 60Min TIMFR 1 2 3 4 5 6

1: POWER:Tum on/off remote control
2: HEAT: Turn on/off heat function for lumbar part only
3: INTENSITY: Control massage function from low to high
4: MODE: Choose one massage mode you like (pulse, press, wave, auto, normal)
5: Select from 1 to 4 massage parts (back, lumbar, thighs, legs)
6: TIMER: 15/30/60 minutes

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

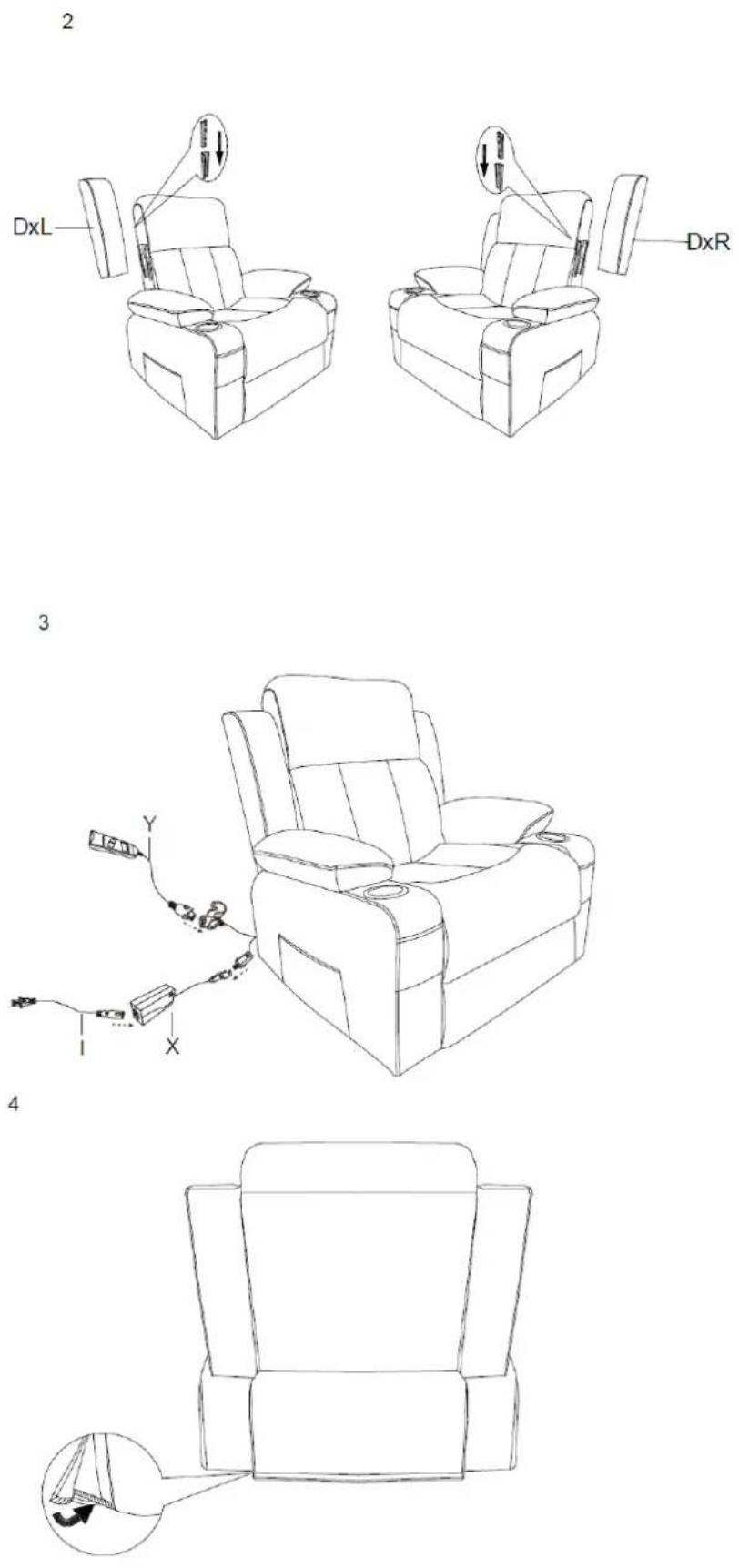

Technical diagram showing two views of an automotive playhouse with directional arrows and a green checkmark indicating selection.

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

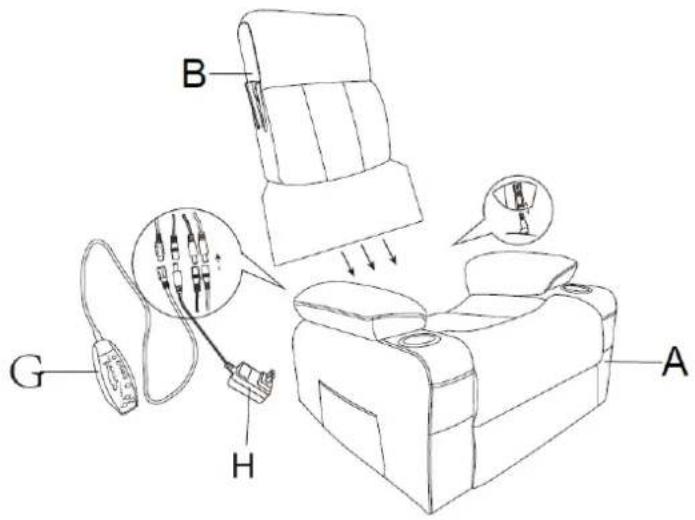

Line drawing of a modern massage chair with attached cables and connectors (no text or symbols)

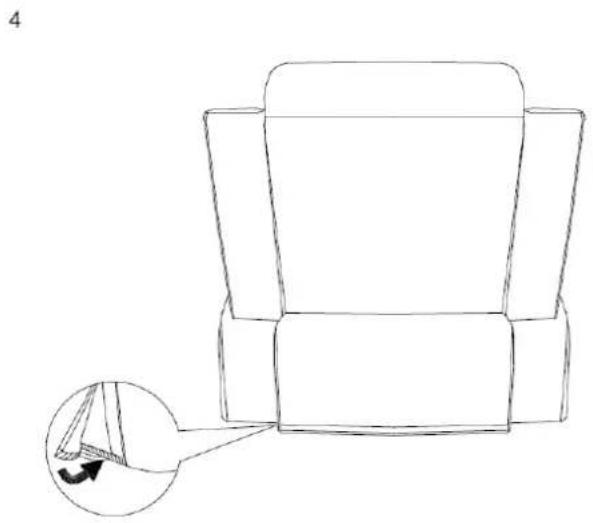

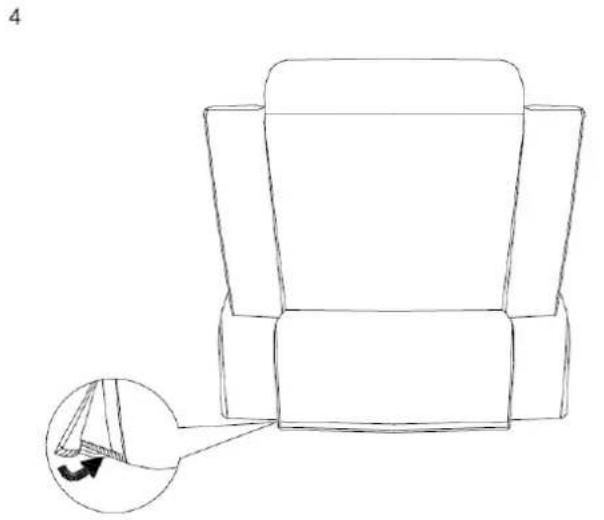

Line drawing of a chair with a magnified inset showing a folded seat (no text or symbols)

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

3.2. Nosto tai makuuasentoon

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

3.2. Tillen of achterover leunen

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Technical diagram showing two views of an automotive playhouse with directional arrows and a green checkmark indicating selection.

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Line drawing of a modern massage chair with directional arrows indicating rotation (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

Line drawing of a modern massage chair with attached cables and connectors (no text or symbols)

Line drawing of a chair with a magnified inset showing a folding fold (no text or symbols)

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

3.2. Повдигане или накланяне

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Line drawing of a modern massage chair with attached cables and connectors (no text or symbols)

Line drawing of a chair with a magnified inset showing a folded seat (no text or symbols)

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Slijedite ove korake za sastavljanje ovog proizvoda:

1

B G H A

5

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

3.2. Podizanje ili ležanje

Utaknite kraj kabela za istosmjernu struju u utičnicu AC adaptera, zatim umetnite utikač AC adaptera u zidnu utičnicu za napajanje.

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

3.2. Kélimas arba gulimas

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

Ax1	Gx1	Hx1
Ix1	Xx1	Yx1
Bx1	DxLx1(L)	DxRx1(R)

Za sestavljanje tega izdelka sledite tem korakom:

1

A B G H

5

Line drawing of a modern massage chair with directional arrows indicating motion (no text or symbols)

6

Line drawing of a modern movie theater chair with a green checkmark indicating selection (no text or symbols on the chair itself)

Our customers' satisfaction is our main goal!

Please contact us with questions AT:
