USER MANUAL SWG-EMP 30S180 Stamos

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Cordless electric hand lifter magnet
Model	SWG-EMP30L180	SWG-EMP30S180	SWG-EMP50L300	SWG-EMP50S300
Battery	DC 14.8V / 1500 mAh
Max lifting capacity [kg]	30		50
Pull-off force [kg]	172		284
Dimensions [width x depth x height; mm]	550 x 170 x70	170 x 230 x65	580 x 170 x70	250 x 170 x65
Weight [kg]	2	1.8	3	2.8

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

CE × × ! ▼ ▼ □

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

ATTENTION! Hand crush hazard!

Class II protection device with double insulation.

Only use indoors.

Wear protective goggles.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Cordless electric hand lifter magnet

2.1. Electrical safety

CAUTION: The rules of „electrical safety“ should be followed when the device is powered from the mains.

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.

b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.

c) Do not touch the device with wet or damp hands.

d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.

e) If working with the device outdoors, make sure to use an extension cord suitable for outdoor use. Using an extension cord suitable for outdoor use reduces the risk of electric shock.

f) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.

g) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.

h) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.

b) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.

c) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!

d) In case of fire, use a powder or carbon dioxide (CO _2 ) fire extinguisher (one intended for use on live electrical devices) to put it out.

e) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.

f) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.

g) Keep the device away from children and animals.

h) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) The device can be handled only by physically fit persons who are capable of handling it, properly trained, familiar with this manual and trained within the scope of occupational health and safety.
d) Use personal protective equipment as required for working with the device, specified in section 1 (Legend).
The use of correct and approved personal protective equipment reduces the risk of injury.
e) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.
f) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Make sure the device is turned off before attempting any adjustments, accessory replacements, cleaning and maintenance or before putting the device aside. Such precaution will reduce the risk of accidentally activating the device.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Keep the device in perfect technical condition.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) Do not work on two workpieces at the same time.
i) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
j) Keep the device away from sources of fire and heat.
k) Do not exceed the maximum lifting capacity.
I) The device works most effectively with a workpiece, which is flat, free from dirt, contains small amount of carbon and is made of steel plate thicker than 5 mm. Different properties of a workpiece affect the magnetic force. It is not recommended to work with painted or coated workpieces. Remember: the thicker metal plate, the stronger magnetic force.
m) Turn the device on only when it is in contact with a workpiece. Otherwise, a workpiece or different objects, which are in the distance, may cause injuries when being pulled by magnetic force.
n) Before turning the device off, prevent a workpiece from falling down and causing damages or injuries. Make sure a workpiece is on the surface.
o) The temperature of a workpiece to be lifted cannot exceed 80 °C. It is especially important when working with workpieces, which have been just welded or processed. Wait until a workpiece cools down. Do not use the device if the working temperature exceeds 80°C. High temperatures negatively affect the effectiveness of the device.
p) Keep all magnetic and electronic devices away from the device.
q) Do not interfere with the magnet inside the device.
r) Never use the device to lift objects overhead or above other people.
s) Always check magnetic force (lifting capacity) before starting operation.
t) Do not shake the device when it is in use.
u) The device cannot be used as an accessory of welding or electric machines.
v) Keep the magnet clean and smooth. Use sandpaper if necessary, but be careful not to leave any burrs.

w) Charge the device when the battery voltage drops to 15 %. During charging, the device should be turned off.
x) After each uplift, press the „OFF“ button twice in order to achieve the maximum magnetic force.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The device is intended for lifting, positioning, and moving metal objects. The user is liable for any damage resulting from unintended use of the device.

3.1. Device description

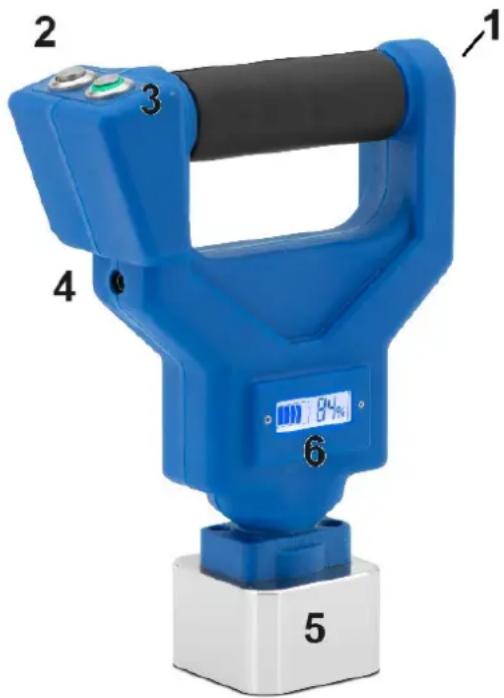

2 3 1 4 6 84% 5

1 - Power
2 - Red OFF button
3 - Green ON button
4 - Charging port
5 - Magnet
6 - Display

3.2. Device use

1. Use method: turn on the electricity of magnet (Power), then bring the magnet fully contact with steel, press the green "On" button and begin the lift/carry process, press the red "off" button twice quickly to turn off the magnet. Remember to turn off the electricity when you put it aside. (Green light On, the magnet is magnetized, Red light On, the magnet is demagnetized.)
2. Always test the connection before attempting to use it to ensure that it is capable of holding the material securely.
3. Numerous factors can negatively affect the strength of the magnetic force, like dirt, debris, oils and grease, painted surfaces and any gap between the magnets and the metal surface will decrease the magnetic force. Ensure that the metal is clean and free of these factors.
4. Thicker metals will be held more strongly than thinner metals.
5. If the workpiece is flat and clean low-carbon steel with a thickness greater than 5mm can

achieve the working load 30kg/50kg. Other materials or thinner workpieces may not achieve the working load.

1. Never exceed the rated capacity of the device 30kg/50kg and the Max Pull Off Force is tested at a static and vertical condition.

2. Avoid sudden jerking or shock force as this will cause the magnets to lose its hold.

3. This item is not designed as a magnetic welding clamp or as a part of an electrical circuit.

4. For safe operation, the bottom surface must always be flat and smooth. If necessary, it is possible to sand the magnet face smooth with sandpaper. Always file any burrs that would interfere with full contact.

5. Do not turn on unless in contact with metal, otherwise, there will be a great loss in magnetic force.

6. An electricity display on the magnet, please charge it when the electricity is less than 15%.

7. If the Green/Red light is still off after your press, it indicates the voltage is too low, please charge it or change the battery.

8. It is capable of exceptional break away force holding power and exceptionally strong in shear force as well. Prying force is the least powerful of the holding capabilities and great care must be used when attempting to use this device with pry force. See illustrations below.

2 3 4 5 6 1

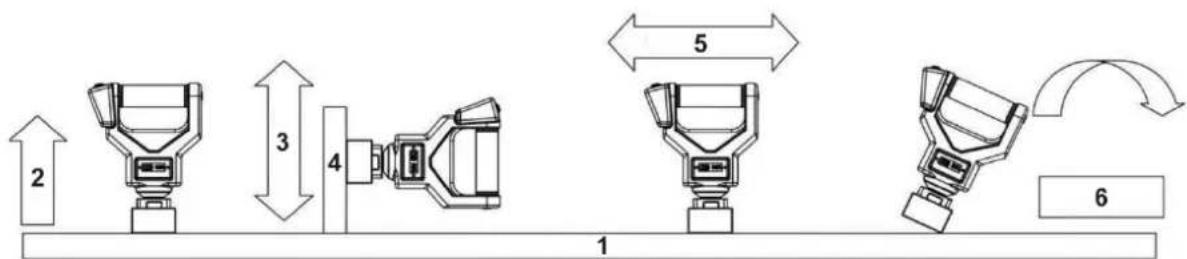

1.	Table Surface	2.	Pull up – most effective
3.	Sliding – less hold	4.	Steel target
5.	Sideways – less effective	6.	Pry Force – least effective

1. After each lift/carry process, press the red "off" button twice quickly because the magnetic pull force will be reduced after each lift/carry process. By the "off" and "on" process, it can re-magnetize the workpiece and get the max. magnetic pull force.

3.2.1. Charging

1. Battery packs are shipped in a low charge condition to prevent possible problems. Therefore, you should charge from them before first use. Please keep the magnet is in Off condition when charging it.

2. If the charger is not working, please return magnet with all the accessories back to manufacturer.

3. Make sure the normal household voltage is AC100-240V\~ 260mA.

4. Connect the charge with the plug in the magnet, after that, connect with the electricity.

5. Do not place the charger in an area of extreme heat or cold. It will work best at normal room temperature.
6. The charger may become slightly warm while charging. This is normal and does not indicate a problem. Charging time is about 2 hours.
7. When batteries become fully charged, the LED light will turn to Green, unplug the charger from the power supply.

3.3. Cleaning and maintenance

a) Always unplug the device before cleaning or putting it away.
b) Use only non-corrosive cleaners to clean the surface.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
e) Do not spray the device with a water jet or submerge it in water.
f) The device must be regularly inspected to check its technical efficiency and spot any damage.
g) Use a soft, damp cloth for cleaning.
h) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
i) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

SAFE REMOVAL OF BATTERIES AND RECHARGEABLE BATTERIES:

DC 14.8V / 1500 mAh batteries are installed in the devices.

Remove used batteries from the device using the same procedure by which you installed them.

Recycle batteries with the appropriate organisation or company.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.
