RC-C301 - Grill plate Royal Catering - Free user manual and instructions

Product type	Grill plate / Panini machine
Model	RC-C301
Brand	Royal Catering
Rated voltage	230 V ~ / 50 Hz
Rated power	2.2 kW
Temperature range	50 °C to 300 °C
Timer	0 to 60 minutes
Protection class	I
IP protection rating	IPX3
Dimensions (W x D x H)	435 x 365 x 240 mm
Weight	17 kg
Plate material	Metal with non-stick coating
Control panel	Digital with LED display, adjustment buttons
Main functions	Cooking, keep warm, precise temperature and time adjustment
Safety	RESET button, grounding, hot surfaces indicated, automatic shutdown in case of fault
Cleaning	Clean after each use with a damp cloth; do not immerse; mild detergents
Maintenance	Regularly check the condition of cables and ventilation openings
Intended use	Professional indoor use for cooking meat, fish, vegetables
Included accessories	Collection drawer, cooking plate, power cable
Country of origin	Germany (design), manufacturing not specified

Frequently Asked Questions - RC-C301 Royal Catering

What is the power of the RC-C301 grill plate?

The rated power is 2.2 kW, with a voltage of 230 V and a frequency of 50 Hz.

How to adjust the temperature on the Royal Catering RC-C301?

Press the Set button until the display flashes, then use the +/- buttons to adjust the temperature between 50 °C and 300 °C. The Heat LED lights up during heating.

How to use the timer?

Press the Timer button for about 2 seconds to enter setting mode. Use the +/- buttons to set the time (0-60 min). Press Timer briefly to start/stop the countdown. The Timer LED flashes when finished.

Can I use metal utensils on the plate?

No, it is forbidden to use cutting or metal objects. Use utensils made of plastic or wood to avoid scratching the non-stick surface.

How to clean the grill plate after use?

Unplug the device, let it cool completely, then clean with a damp cloth and mild detergent. Never immerse the device in water and avoid water entering through the ventilation openings.

What to do if the Fault LED lights up?

The Fault LED indicates a defect. Turn off the device, unplug it, and contact the manufacturer's customer service. Do not attempt to repair it yourself.

What are the dimensions and weight of the RC-C301?

The dimensions are 435 x 365 x 240 mm (W x D x H) and the weight is 17 kg.

Is the device suitable for outdoor use?

No, the device is designed for indoor use only, away from moisture and bad weather.

How to install the grill plate?

Place the device on a flat, stable, heat-resistant and non-flammable surface. Leave at least 50 cm of free space on each side for ventilation. Plug into a grounded outlet.

What to do in case of burns or contact with a hot surface?

In case of burns, immediately cool the affected area with cold water. Consult a doctor if necessary. To avoid burns, only touch the handles and use protective gloves.

USER MANUAL RC-C301 Royal Catering

Abstract line drawing of stylized mythical creatures or mythical creatures (no text or symbols)

PRODUKTNAME KONTAKTGRILLPRODUCT NAME CONTACT GRILLNAZWA PRODUKTU GRILL ELEKTRYCZNY KONTAKTOWYNÁZEV VÝROBKU KONTAKTNÍ GRILLNOM DU PRODUIT MACHINE À PANININOME DEL PRODOTTO PIASTRA PANININOMBRE DEL PRODUCTO PLANCHA GRILL
MODELLPRODUCT MODELMODEL PRODUKTUMODEL VÝROBKUMODÈLEMODELLOMODELO	RC-C501RC-C401RC-C301
IMPORTEURIMPORTERIMPORTERDOVOZCEIMPORTATEURIMPORTATOREIMPORTADOR	EXPONDO POLSKA SP. Z O.O. SP. K.
ADRESSE VON IMPORTEURIMPORTER ADDRESSADRES IMPORTERAADRESA DOVOZCEADRESSE DE L'IMPORTATEURINDIRIZZO DELL'IMPORTATOREDIRECCIÓN DEL IMPORTADOR	UL. NOWY KISIELIN-INNOWACYJNA 7, 66002 ZIELONA GÓRA | POLAND, EU

Technische Daten

Parameter Werte
Produktname	KONTAKTGRILL
Modell	RC-C501	RC-C401	RC-C301
Nennspannung [V~] / Frequenz [Hz]	230/50
Nennleistung [kW]	3,6	1,8	2,2.
Temperaturbereich [°C]	50-300
Timer [min]	0-60
Schutzklasse	I
Schutzart IP	IPX3
Abmessungen [Breite x Tiefe x Höhe; mm]	575x365x240	315x365x240	435x365x240
Gewicht [kg]	23,7	12	17

Labeled diagram of a commercial grating machine with seven numbered components

RC-C401, RC-C301

Labeled diagram of a commercial grating with numbered components for identification

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend
	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign)
	ATTENTION! Electric shock warning!
	Class I protection device.
	ATTENTION! Hot surface, risk of burns!
	Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

The original operation manual is written in German. Other language versions are translations from the German.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to CONTACT GRILL.

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Avoid touching earthed elements such as pipes, heaters, boilers and refrigerators. There is an increased risk of electric shock if the earthed device is exposed to rain, comes into direct contact with a wet surface or is operating in a damp environment. Water getting into the device increases the risk of damage to the device and of electric shock.
c) Do not touch the device with wet or damp hands.
d) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
e) If using the device in a damp environment cannot be avoided, a residual current device (RCD) should be applied. The use of an RCD reduces the risk of electric shock.
f) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
g) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
h) ATTENTION! DANGER TO LIFE! While cleaning, never immerse the device in water or other liquids.
i) Do not use in very humid environments or in the direct vicinity of water tanks.
j) Prevent the device from getting wet. Risk of electric shock!

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
c) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.
d) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Use the device in a well-ventilated space.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children.
i) Keep the device away from children and animals.
j) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The device is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the device.
c) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
d) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
e) Do not overestimate your abilities. When using the device, keep your balance and remain stable at all times. This will ensure better control over the device in unexpected situations.

f) The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
d) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
e) Keep the device out of the reach of children.
f) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
g) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
h) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
i) Do not move, adjust or rotate the device in the course of work.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
I) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
m) Keep the device away from sources of fire and heat.
n) Do not cover the ventilation openings!
o) When using the device, never touch the heating plate or its enclosure, as they constitute a scalding hazard. When opening hot device, remember that steam will be released.

p) During operation, the appliance reaches high temperatures. Do not place the appliance near flammable or easily melting surfaces or near flammable materials.
q) When operating, the device is hot. Take special care and grasp the device using handles only. Before maintenance, service or transport, let the device cool down.
r) NOTE: During operation, some elements of the device become very hot – burn hazard! Do not touch these elements with your bare hands! Take out cooked meals using tongs or other kitchenware.
s) Do not use this device for drying or heating objects.
t) Use kitchen utensils that are intended for use with food and that will not scratch the appliance. Do not use sharp and metal objects.
u) Regularly clean the tray to prevent permanent dirt deposits

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The device is designed for grilling food products, i.e. meat, fish, vegetables, etc. directly on the hob.

The user is liable for any damage resulting from unintended use of the device.

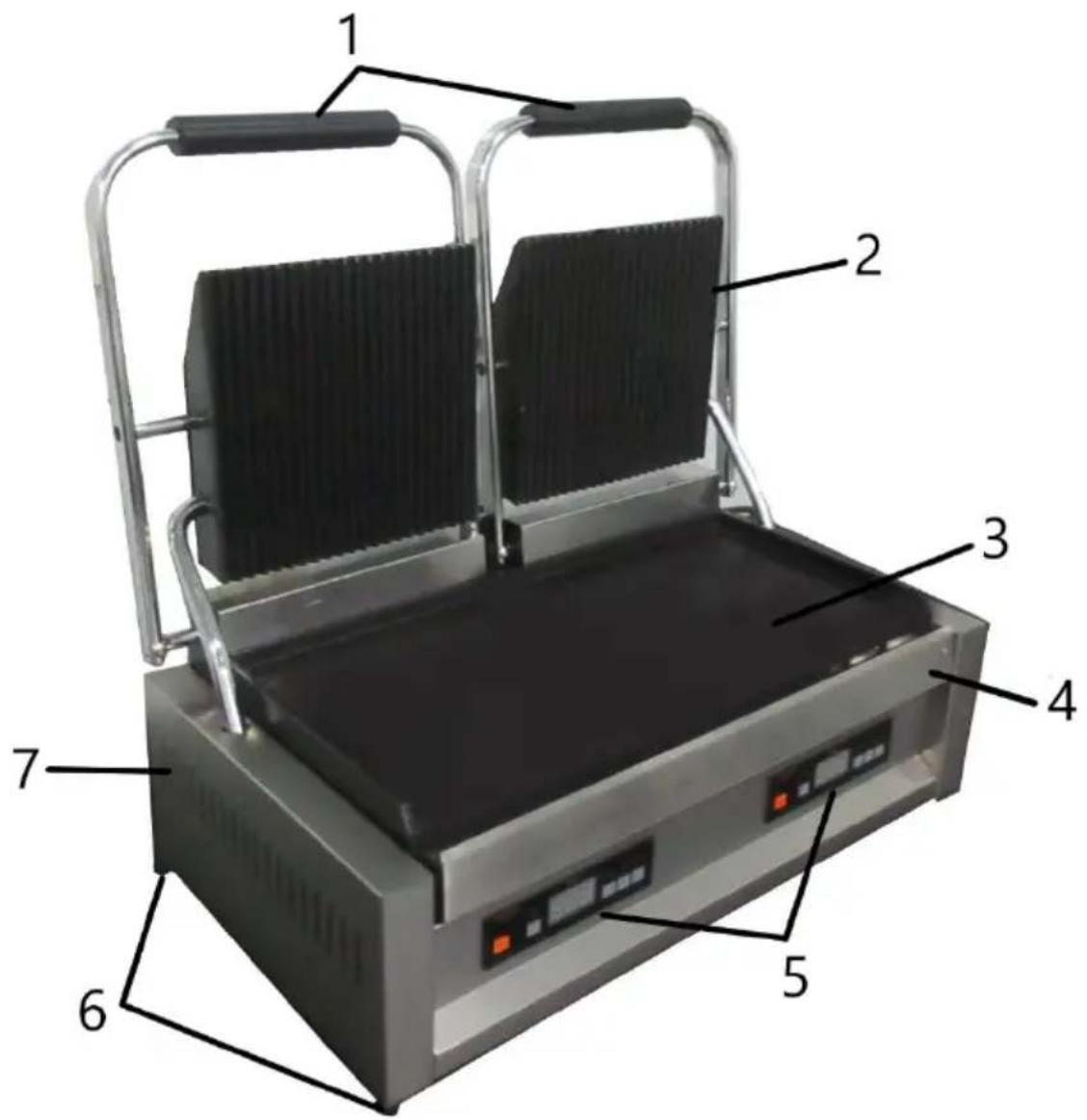

3.1. Device description RC-C501

Labeled diagram of a commercial grating machine with seven numbered components

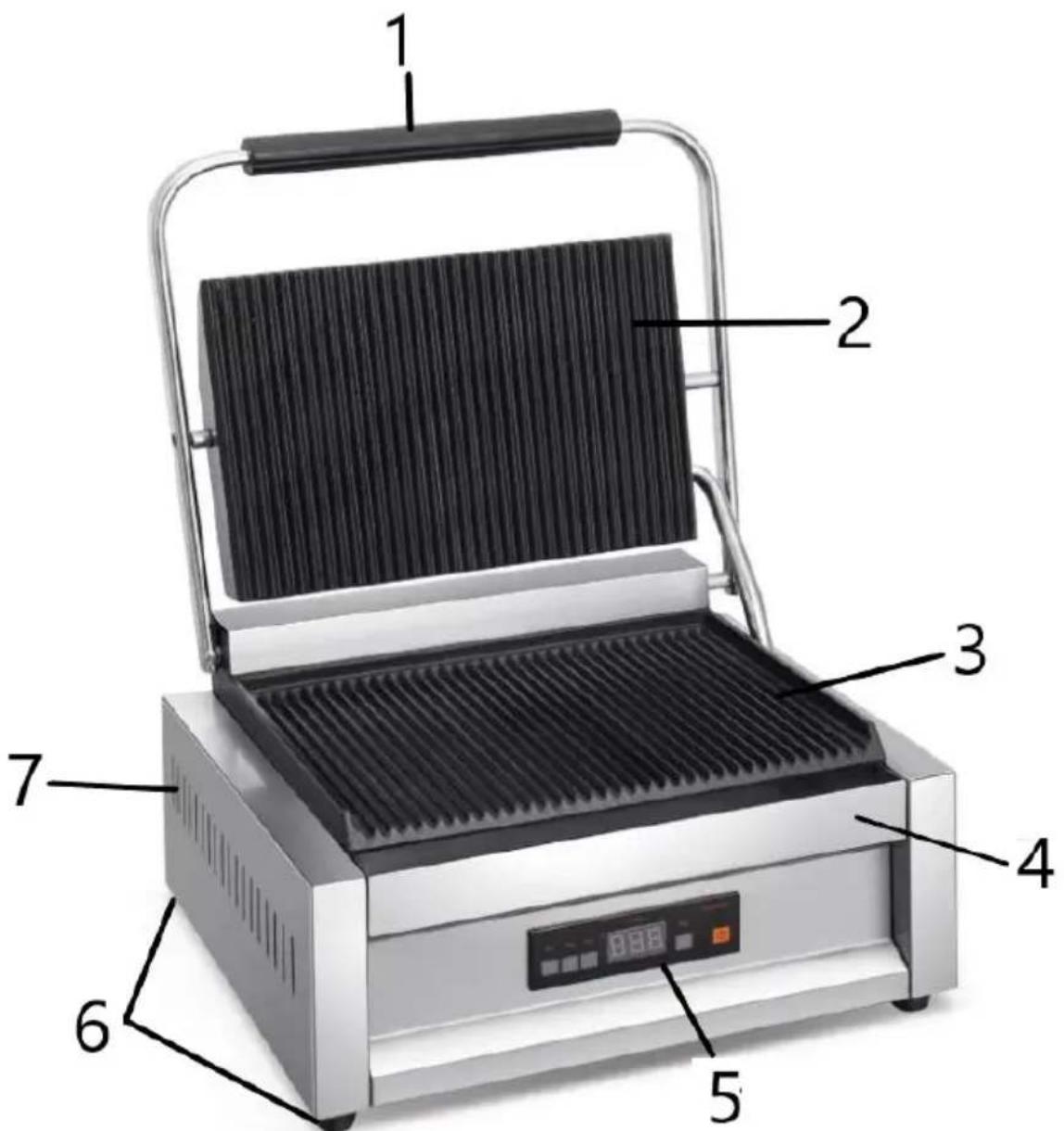

RC-C401, RC-C301

Labeled diagram of a commercial grating with numbered components for identification

1. Handle
2. Upper heating plate
3. Lower heating plate
4. Drawer
5. Control panel
6. Feet
7. Ventilation ports
8. Power cord
9. Earthing clamp
10. RESET button

Parts 8 to 10 are not visible in the figures above. They are located on the back of the casing.

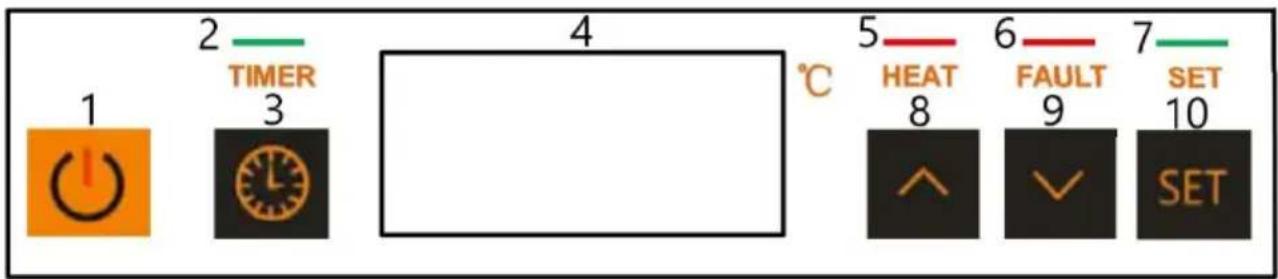

Description of the control panel

1 2 TIMER 3 4 °C 5 HEAT 8 6 FAULT 9 7 SET 10 SET

1. On / Off button
2. Timer LED
3. Timer button
4. Display
5. "Heat" LED
6. "Fault" LED
7. "Set" LED
8. Value increase button
9. Value decrease button
10. Set button

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 50 cm distance between each side of the device and the wall or other objects.

Place the unit on a heat resistant basis!

The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Only use the device in a horizontal position. Do not shake the device.

Disassemble the device and all its components and clean them before the first use.

3.3. Device use

1. Ground the device housing, use the grounding terminal located on the back of the griddle.

2. Connect the device to the power supply. The display will show "oFF".

3. Turn the device on with the On / Off button, the display will show the currently measured temperature.

4. Enter your preferred grill settings via the control panel (on a two hob grill: the left-hand panel is for the left-hand hub and the right-hand panel is for the right-hand hub):

a) Timer settings:

• Press and hold the "Timer" button for approx. 2 seconds to enter the time setting option. Then use the buttons (8) and (9) to set the preferred value. To save the settings, press the "Timer" button or wait about 10 seconds.
• Short presses of the "Timer" button will resume / stop the countdown.
• The "Timer" LED is lit when the time is counting down. After the countdown is complete, the LED flashes.
• After the countdown is complete, the device beeps.

NOTE: The countdown timer is for your information only. The device will continue to operate after the countdown is complete.

b) Temperature settings:

- Press the "Set" button until the display flashes. Use buttons (8) and (9) to set the preferred temperature. To save the settings, press the "Set" button or wait about 10s.

-The "Heat" LED is lit when heating is active on the unit. After reaching the set temperature or if a fault occurs, the LED is out.

Note: When used for the first time, the heating elements may emit a small amount of smoke.

c) The "Set" LED is on when you are entering parameter settings. After exiting the settings, the LED goes out.

d) The "Fault" LED is on when there is a fault in the device.

1. By pressing the (8) or (9) button, you can see the time countdown on the display. After 2 seconds, the display will automatically revert to the temperature.

2. Before placing food on the grill hob, grease it with cooking oil using something like a brush.

ATTENTION! Use appropriate utensils to put on and take off food to be grilled. Do not use metal utensils – these may damage the heating surface.

1. Regularly check the fill level of the collecting drawer to avoid overfilling it.

2. After using the device, turn it off with the On / Off button and disconnect it from the power source.

3.4. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
b) Use only mild, food-safe detergents to wash the device.
c) After cleaning the device, all parts should be dried completely before using it again.
d) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
e) Do not spray the device with a water jet or submerge it in water.
f) Do not allow water to get inside the device through vents in the housing of the device.
g) Clean the vents with a brush and compressed air.
h) The device must be regularly inspected to check its technical efficiency and spot any damage.
i) Use a soft, damp cloth for cleaning.
j) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
k) Clean the device regularly, preferably after each use.

Dane techniczne

Labeled diagram of a commercial grating machine with seven numbered components

RC-C401, RC-C301

Labeled diagram of a commercial grating with numbered components for identification

Labeled diagram of a commercial grating machine with seven numbered components

RC-C401, RC-C301

Labeled diagram of a commercial grating with numbered components for identification

Labeled diagram of a commercial grating machine with seven numbered components

RC-C401, RC-C301

Labeled diagram of a commercial grating with numbered components for identification

Labeled diagram of a commercial grating machine with seven numbered components

RC-C401, RC-C301

Labeled diagram of a commercial grating with numbered components for identification

Labeled diagram of a commercial grating machine with seven numbered components

RC-C401, RC-C301

Labeled diagram of a commercial grating with numbered components for identification

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
