USER MANUAL LCLEAN MINI L Ulsonix

MINI WASHING MACHINE

DE	Produktname	MINI WASCHMASCHINE
EN	Product name	MINI WASHING MACHINE
PL	Nazwa produktu	MINI PRALKA
CZ	Název výrobku	MINIPRAČKA
FR	Nom du produit	MINI MACHINE A LAVER
IT	Nome del prodotto	MINI LAVATRICE
ES	Nombre del producto	LAVADORA PORTÁTIL
HU	Termék neve	MINI MOSÓGÉP
DA	Produktnavn	MINI-VASKEMASKINE
FI	Tuotteen nimi	MINIPESUKONE
NL	Productnaam	MINI WASMACHINE
NO	Produktnavn	MINI VASKEMASKIN
SE	Produktnamn	PORTABEL TVÄTTMASKIN
PT	Nome do produto	MINI MÁQUINA DE LAVAR
SK	Názov produktu	MINI PRÁČKA
DE	Modell	LCLEAN MINI LLCLEAN MINI XLLCLEAN MINI S
EN	Product model
PL	Model produktu
CZ	Model výrobku
FR	Modèle
IT	Modello
ES	Modelo
HU	Modell
DA	Model
FI	Tuotteen malli
NL	Productmodel
NO	Produktmodell
SE	Produktmodell
PT	Modelo do produto
SK	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
FI	Valmistaja
NL	Producent
NO	Produsent
SE	Tillverkare
PT	Fabricante
SK	Výrobca
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse
FI	Valmistajan osoite
NL	Adres producent
NO	Produsentens adresse
SE	Tillverkarens adress
PT	Endereço do fabricante
SK	Adresa výrobcu

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Illustration of a hand holding a rolled-up sheet of paper (no text or symbols)

Simple line drawing of a container with a side arm and a curved handle, no text or symbols present.

Diagram showing a water tap installation process with labeled components and a close-up of the component being inserted.

Simple line drawing of a container with a handle and a small inset showing a document or device (no text or symbols)

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Simple line drawing of a device with two faucet heads and a base plate (no text or symbols)

Simple line drawing of a curved pipe or wheel with a circular base, no text or symbols present

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Sock Wash Kinse Spin Child Lock Delay No Drain My Cycles Quiet Power Program/My Cycles Water Level Delay/Adjust! Function Start/Pause 1 2 3 4 5 6 7

Diagram illustrating a three-step procedure for cleaning a container, showing hand holding a grid, pouring into a container, and using a pipette to clean water.

Simple line drawing of a kitchen appliance with a bowl and side legs (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a valve (no text or symbols)

Line drawing of a mechanical component being inserted into a bowl (no text or symbols)

Line drawing of a piston-cylinder engine inside a bowl, with no text or symbols present

Technical line drawing of a mechanical spring or worm component (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Mini washing machine
Model	LCLEAN MINI L	LCLEAN MINI XL	LCLEAN MINI S
Rated voltage [V~] / frequency [Hz]	230/50
Rated power [W]	300	400	230
Protection rating IP	IPX4	IPX4	IPX4
Dimensions [width x depth x height; mm]	420 x 450 x 780	490 x 480 x 880	450 x 430 x 760
Weight [kg]	19.2	23.3	17.8

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

The product satisfies the relevant safety standards.

Read instructions before use.

The product must be recycled.

WARNING! or CAUTION! or REMEMBER! Applicable to the given situation. (general warning sign)

ATTENTION! Electric shock warning!

Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to:

Mini washing machine

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
c) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service centre.
d) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surfaces.
e) Do not use in very humid environments or in the direct vicinity of water tanks.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If you are unsure about whether the product is operating correctly or if you find damage, please contact the manufacturer's service centre.
d) Only the manufacturer's service centre may make repairs to the product. Do not attempt to make repairs yourself!
e) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
f) Regularly inspect the condition of the safety labels. If the labels are illegible, they must be replaced.
g) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
h) Keep packaging elements and small assembly parts in a place not available to children.
i) If this device is used together with another equipment, the remaining instructions for use shall also be followed.

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

1. Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
2. The machine may be operated by physically fit persons who are able to handle the machine, are properly trained, who have reviewed this operating manual and have received training in occupational health and safety.
3. The machine is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the machine.
4. The device is not a toy. Children must be supervised to ensure that they do not play with the device.

2.4. Safe device use

a) Do not use the device if the ON/OFF switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
b) Disconnect the device from the power supply before commencement of adjustment, cleaning and maintenance. Such a preventive measure reduces the risk of accidental activation.
c) Keep the device in perfect technical condition. Before each use check for general damage and especially check for cracked parts or elements and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
d) Keep the device out of the reach of children.
e) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
f) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
g) When transporting and handling the device between the warehouse and the destination, observe the occupational health and safety principles for manual transport operations which apply in the country where the device will be used.
h) Do not move, adjust or rotate the device in the course of work.
i) Do not leave this appliance unattended while it is in use.
j) Clean the device regularly to prevent stubborn grime from accumulating.
k) The specified vibrations emission was measured using standard measurement methods. Vibrations emissions may change if the device is used in different surroundings.
I) If you notice a leak from the device or hoses, immediately disconnect the supply and resolve the defects.
m) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
n) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
o) Keep the device away from sources of fire and heat.
p) Do not overload the device.
q) Do not cover the ventilation openings!

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The product is a small and light device that allows you to do laundry quickly and easily in almost any place.

The product is intended for home use only.

The user is liable for any damage resulting from unintended use of the device.

3.1. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

3.2. Assembling the device / Work with the device

Remove package.

EN

• Remove package and take out the bottom board of the cabinet on the foam cover.
• Open the lid of washer's door and take out accessories.
  • A trial operation or washing on the foamed cushion is strictly forbidden.

Installation of the washer

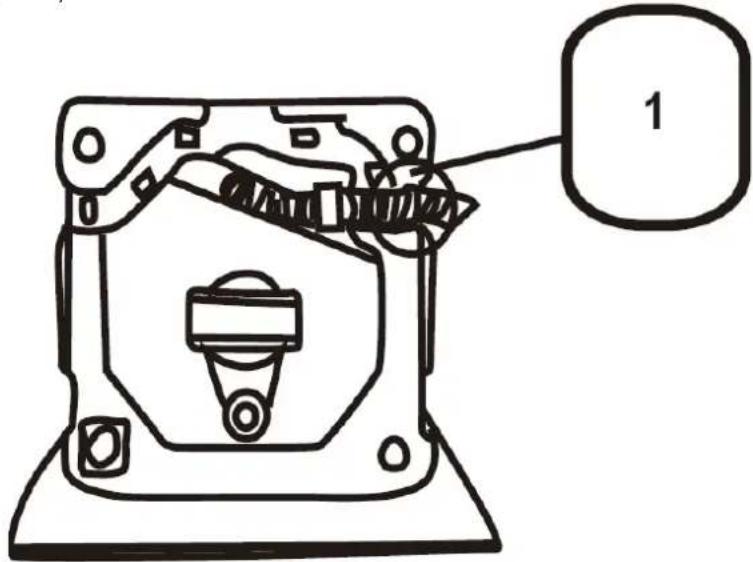

How to change the direction of the drain hose

1. Pre-lay a soft mat on the ground and put the washing machine down.

1 – Cover with soft things like blankets to prevent scratches.

1. Remove the drainpipe from the groove:

1 - Do not remove the fixation

2 – Hose support

1. Remove the drainpipe and insert it into the drainpipe support position of the base as shown in the figure below. (Note that it must be clamped in place, the drainpipe must not be twisted or rubbed against the ground)

1

1 - The drain hose is embedded in the hose support.

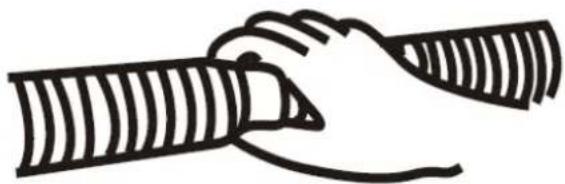

Illustration of a hand holding a rolled-up sheet of paper (no text or symbols)

As shown in the figure above, pinch the hose with your hand to avoid damage to the hose when embedding.

1. Re-right the washing machine. Check whether the drainpipe touches the ground.
2. Arrange the drainpipe. If the drainpipe is too long, shorten the drain pipe.

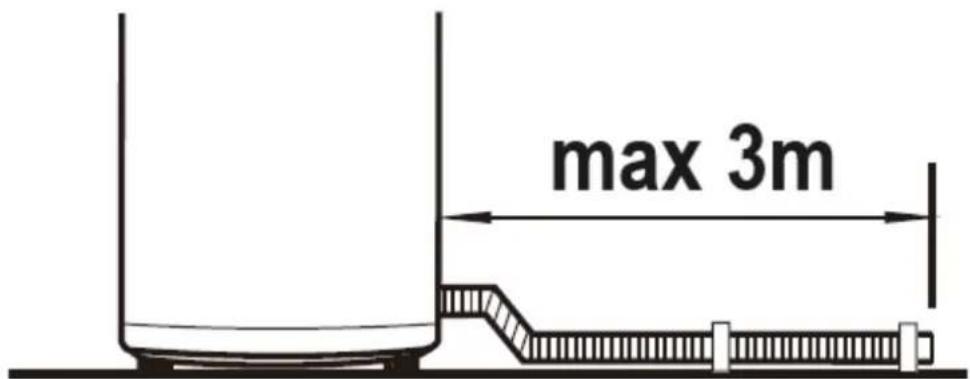

Placement of water drain hose:

max 3m

If the water drain hose shall be extended, its length shall not exceed 3 meters, otherwise it will affect the water discharging time.

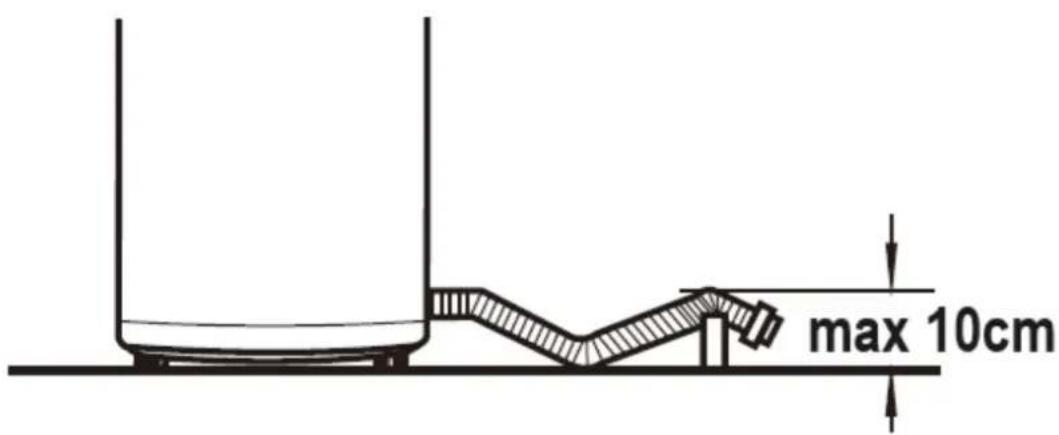

max 10cm

The placed height of water drain hose shall not exceed 10cm.

Simple line drawing of a container with a side arm and a curved handle, no text or symbols present.

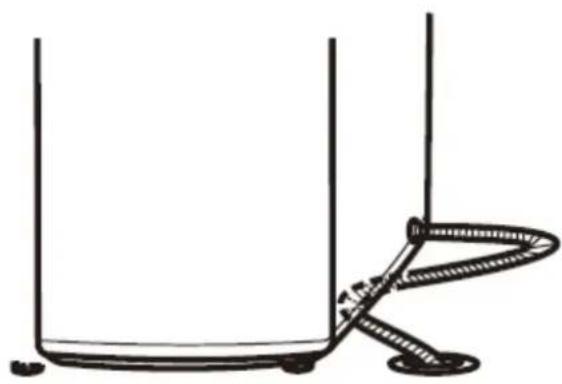

Do not bend the water drain hose and place it under the washer.

Installation of water inlet pipe

• Put the water inlet pipe (which has metallic filtering bag) screw on to the tap.
• Tightly screw another end of water inlet hose on water inlet valve. (with rubber seal ring inside). Note: When tightening the clamping nut, evenly apply the force and do not twist the water inlet valve to avoid breaking of water inlet valve joint.

Diagram showing a water tap installation process with labeled components and a close-up of the component being inserted.

1 - Water inlet hose
2 - Clamping nut

Preparation before washing.

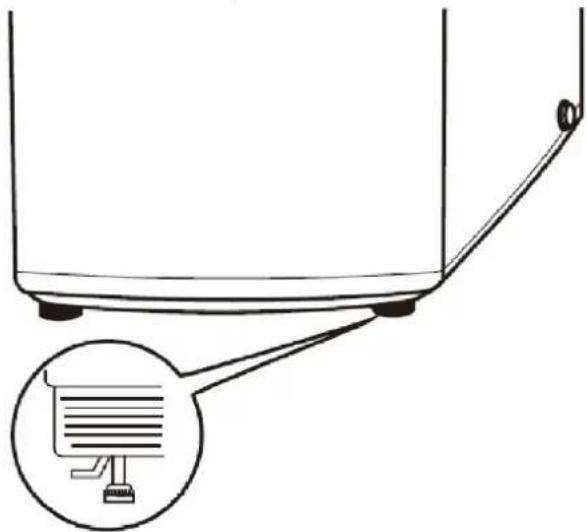

1. Adjust the feet to make the washer be placed stable.

Adjustable foot (extend when clockwise rotating and shorten when counterclockwise rotating) (Slightly incline the washer first and loosen the adjustable foot knob. Adjust the adjustable foot to ensure four corners of washer be steadily contacted with the ground. Then tighten the adjustable foot knob and lock it. If the ground is obviously not flat, correction should be made on the ground surface, otherwise the washer barrel will incline and knock the cabinet).

Simple line drawing of a container with a handle and a small inset showing a monitor or printer (no text or symbols)

1. Install the water inlet hose.

Line drawing of a faucet mounted on a base plate (no text or symbols)

1 - For one inlet hose

2 - For two inlet hoses

Simple line drawing of a faucet with two arms and a base, labeled '2' (no text or symbols on the diagram itself)

1. Connect to the power source.
2. Turn on the water supply.
3. Put down the drain hose.

Simple line drawing of a curved pipe or wheel with a circular base (no text or symbols)

1. Put in clothes and suitable amount of washing powder.

NOTICE! Before washing, please do take out coins, keys and other hard goods, and zip up clothes tightly to prevent them and barrel from damage.

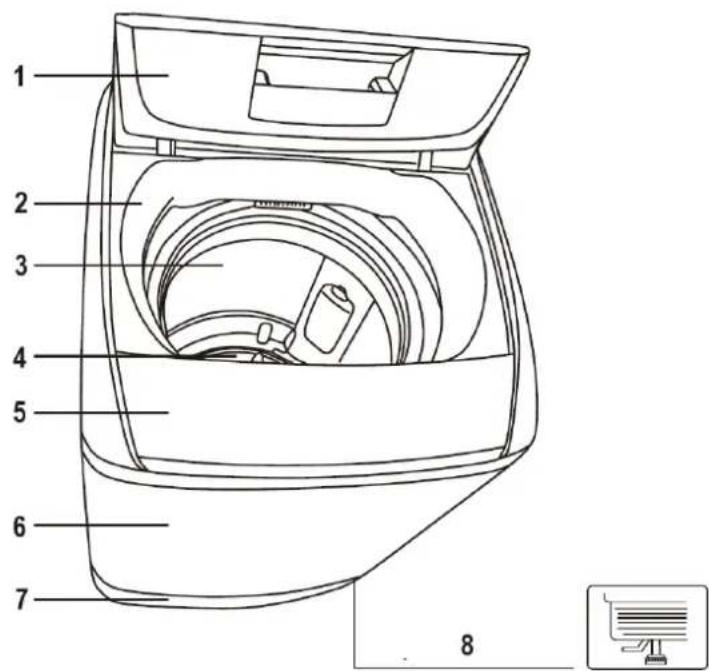

1 2 3 4 5 6 7 8

9 10 11

1 - Top cover

2 - Frame

3 - Drum

4-Pulsator

5 - Control panel

6 - Cabinet

7-Base

8 - Adjustable foot knob

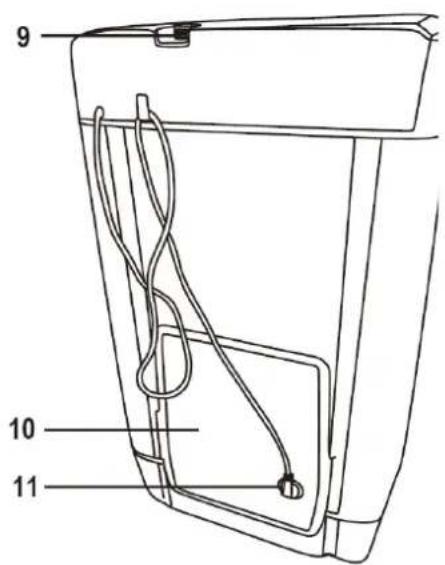

9 - Water valve

10 - Back cover

11 - Power cord

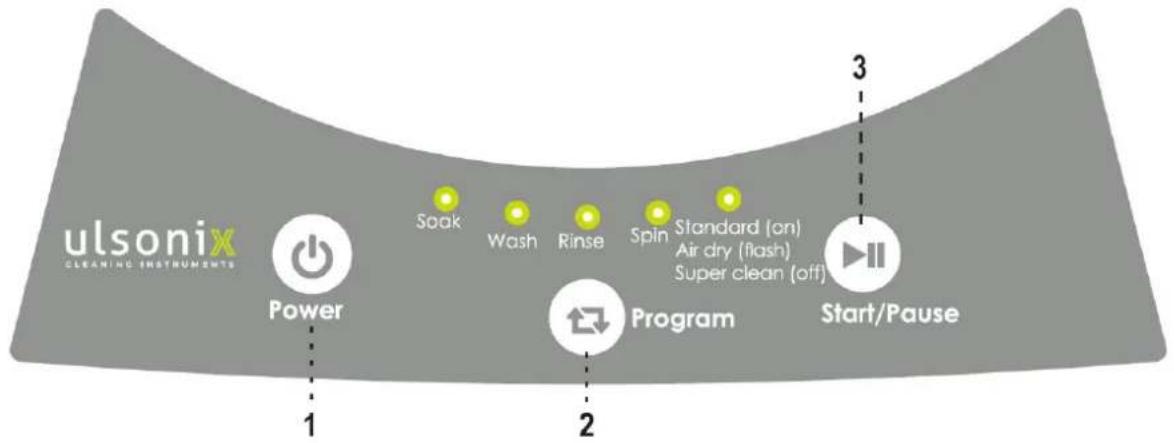

LCLEAN MINI S

1 - Power - On/Off power.
2 – Program – Press this button to select the "Soak, Wash, Rinse, Spin, Super clean, Standard, Air Dry" programs in sequence.
3 – Start / Pause - Press the button to start after select the water level and program. press the button to pause when the machine running.

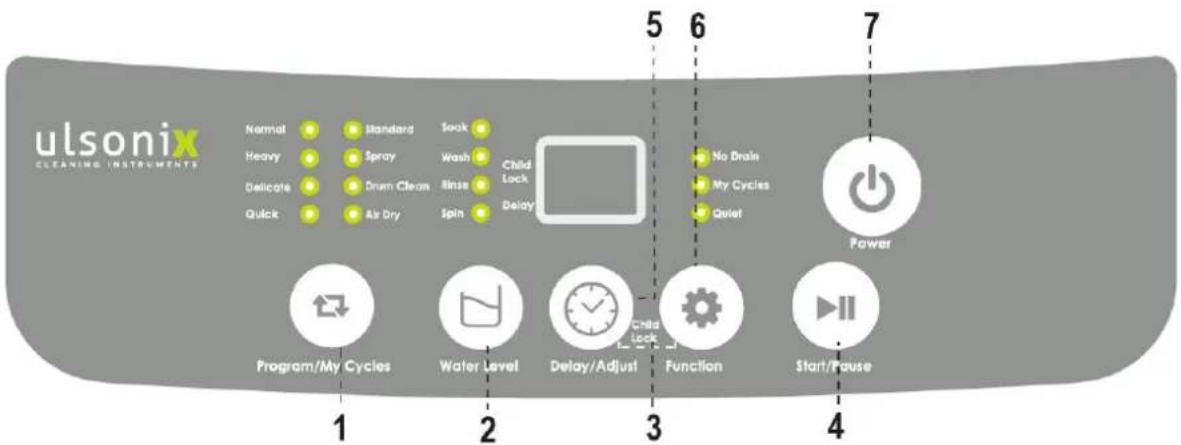

LCLEAN MINI L

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Suck Wash Rinse Spin Child Lock Delay No Drain My Cycles Quiet Power Program/My Cycles Water Level Delay/Adjust Function Start/Pause 1 2 3 4 5 6 7

1 – Program/My Cycles: Press this button to select the programs in sequence from "Normal, Standard, Heavy, Spray, Delicate, Drum clean, Quick, Air dry". In the "My Cycles" state, press this button to define the self-programming program, and adjust the defined program with the "Adjust" button.
2 – Water Level: Press this key to select different water levels.
3 – Child Lock: Press the "Delay/Adjust" and "Function" at the same time to lock buttons on control panel, press two buttons at the same time again to unlock buttons.
4 - START/Pause: Press the button to start after select the water level and program. press the button to pause when the machine running.
5 – Dealy/Adjust: Press this button to select the delay time from 1-24 hours, it's the time from the start to the completion of the laundry. In the "my cycles" state, Press this key to adjust various combinations of process and time.
6 – Function: Press this button to select "No drain, My Cycles, Quiet" in sequence.
7 – Power: On & Off power

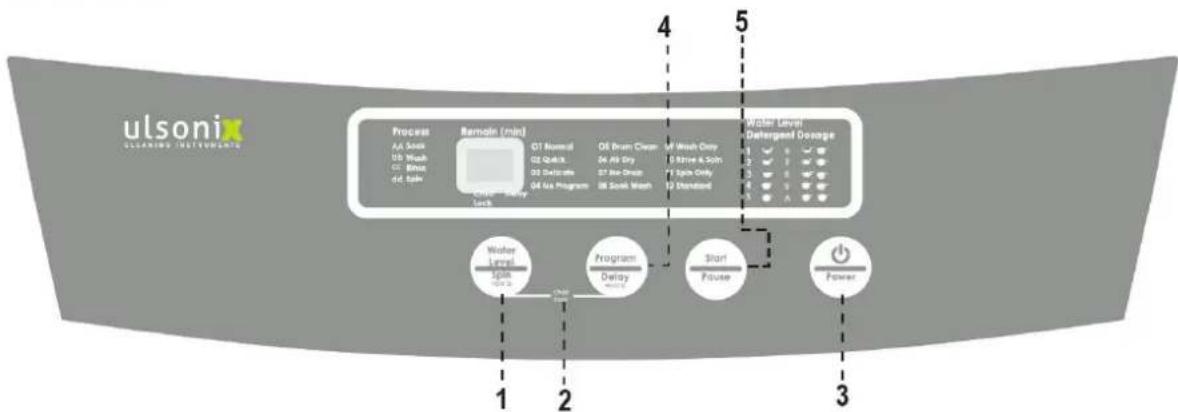

LCLEAN MINI XL

ulsoniX CLANARS INTEVEMENTS Process A/U Wash U/B Wash CF/ Wash cd/ Spin Remain (min) 01 Nominal 02 Quick 03 Sistricate 04 Na Program Order Delay Leach 05 Drum Clean 06 Air Dry 07 Air Shock 08 Sink Wash Water Level Detergent Dosage 1 2 3 4 5 Washer Level Light Energy One Programm Delay Energy Start Power Power

1 – Water Level /Spin (Hold 3s): Press this button to set the water level of the program from 1-A. Hold the button 3s to spin.
2 – Child Lock: Press the "Water Level" and "Program" at the same time to lock buttons on control panel, press two buttons at the same time again to unlock buttons.
3 – Power: On & Off power
4 – Program/Delay (Hold 3s): Press this button can select frequently 12 programs, 01...12 are displayed in the display window in turn. The program name corresponding to each program code is printed on the panel. Hold 3s to Delay: Press the program button for 3s and the washing machine will enter the delay state.
5 - START/Pause: Press the button to start after select the water level and program. press the button to pause when the machine running.

Program Description

Drum clean: Used to clean the inner tube. Choose the "Drum Clean" program, the water level can't be selected, and the program can't be selected after startup. The washing machine performs water intake, rinsing, and spin according to the set program.

No drain: The washing machine runs to the end of the last rinsing process without draining water, waiting for the user to treat the water. After the user presses the "Start/Pause" button, the washing machine enters the drainage and dehydration process, and the user can recycle the water. If the user does not do anything within the specified time, the washing machine will automatically power off. This function can be selected only after the selected program or process includes rinsing and spin-drying or washing and spinning processes.

Air dry: The air-dry program is further dehydration to reduce the moisture content of the clothes. Select the "Air dry" program, the program, water level, and delay can't be selected. If there is water, drain and spin first, and then continue spin until the end.

Child Lock: If this function is selected, all buttons are locked. If the top cover is opened after the washing machine is started, the washing machine will stop working, beep an alarm, and the indicator light will flash. If it closes within 5 seconds, the washing machine will automatically cancel the alarm and work normally; if the door is not closed after 5 seconds, the washing machine will automatically drain water while alarming until finished.

Program selection.

1. Press the POWER button.
2. Select the proper wate level and other attached functions.
3. Press the start/stop button.

The wash stops.

1. When the wash stops, the buzzer will buzz continuously for 6 times and then the power will be automatically cut off.
2. Turn off the water tap.
3. Although the power can be cut off automatically, the power plug must be pulled out for the safety.

Normal program.

1. Normal wash program is the easiest, most convenient and most common washing program. When the user presses the power switch and then press Start/Pause button, the normal washing program will start to work.
2. When the washer starts to work, the digital tube shows the remaining time. Time indicator light which stands for remaining time is flickering.

NOTE!

1. Close the lid of the door when machine is running, otherwise it will automatically stops working during spin process and send out abnormal warning.
2. The washer will not work when the filled water does not reach the set water level.

Function of automatic power shut off.

1. If the appliance does not start operating within 10 minutes of being switched on, it will switch off automatically.
2. When the unit has finished working, it will emit 6 beeps and switch off automatically.

Function of adjusting for unbalance.

1. Uneven alignment of the laundry before spinning can cause vibrations during spinning. The washing machine has an unbalance adjustment function. During operation, the washing machine always automatically checks the operating status. If the vibration during spinning is too high, the washing machine automatically starts the unbalance adjustment programme.
2. The washing machine can adjust the unbalance twice. If the adjustment does not work, an alarm will sound.

End of program.

1. The washing machine will send off the special sound at the end of any program operation to remind you to take out the laundry or operate it again.
2. After the sound, the washing machine returns to its power-off state with no display and all lights off.
3. Please shut off the tap, pull out the plug when not in use to avoid water leakage or the fire accidents.

Maintenance.

Use gentle clothing to wipe off the water and dirt on the surface each time after using the washing machine. Detergent and other chemicals are not allowed to use to avoid any damage to the plastic accessories.

Clean the water inlet.

After long time use, the water inlet mesh bag may be blocked, and should be cleaned according to the following steps:

1. Switch on the power, followed by shutting off the tap.
2. Let the washer works for 5 seconds so that water flows into the tub through the water inlet hose. Then turn off the power.
3. Unload the water inlet hose and clean the mesh bag, then restore the water inlet assembly.

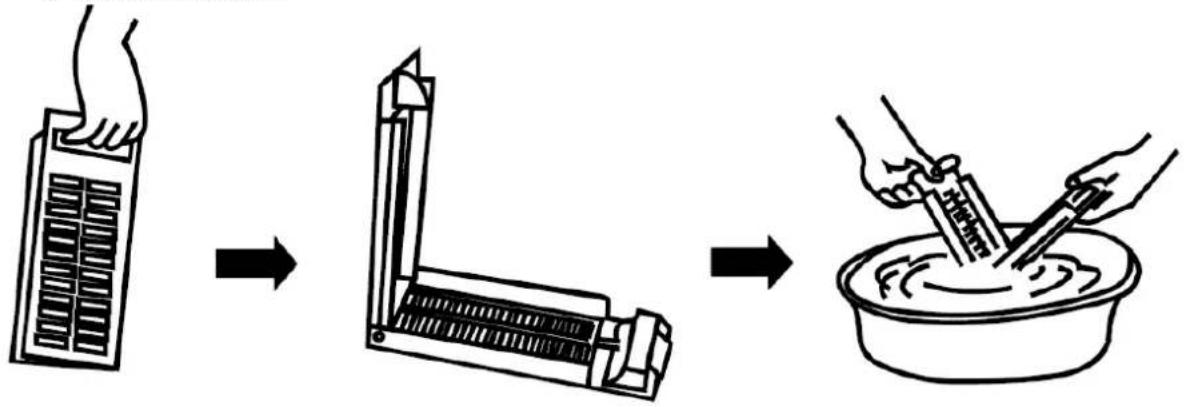

Clean Of the filter – various models.

After using the washing machine for a period, please clean it according to the following steps:

1. Take out the lint filter.

2. Open the filter and wash it clean in the water.

3. Restore it and fix it.

Diagram illustrating a three-step process of a device handling, with steps from holding a grid to pouring liquid into a basin.

After using the washing machine for some time, please clean it according to the following steps:

1. Take off the lint filter.
2. Turn over the mesh bag and wash it with clean water.
3. Restore and fix it.


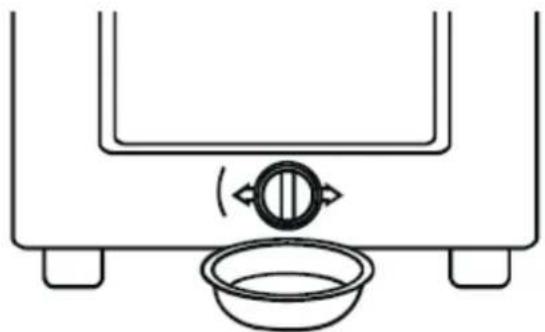

Clean the lint filter in the drain pump (only for having drain filter).

1. Drain the water from the pump under which the collection container is located.

Simple line drawing of a kitchen sink with a bowl and a circular vent (no text or symbols)

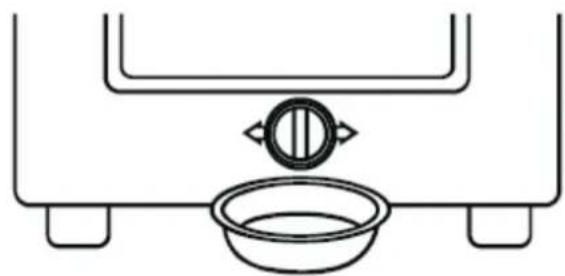

1. Loosen the pump cover counterclockwise.

Simple line drawing of a kitchen sink with a bowl and a side sink (no text or symbols)

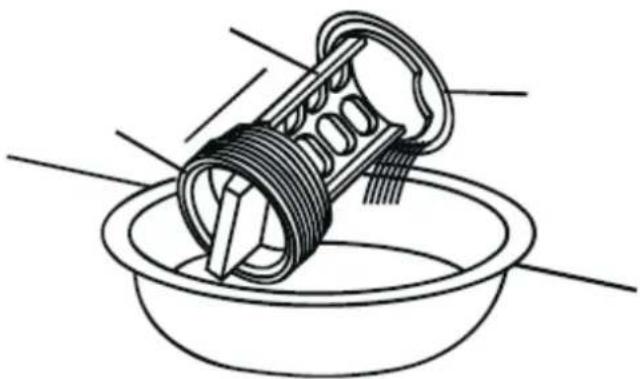

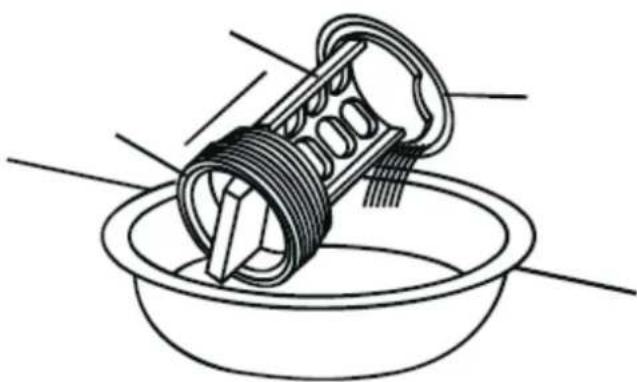

1. Take out the lint filter.

Line drawing of a mechanical component being inserted into a bowl (no text or symbols)

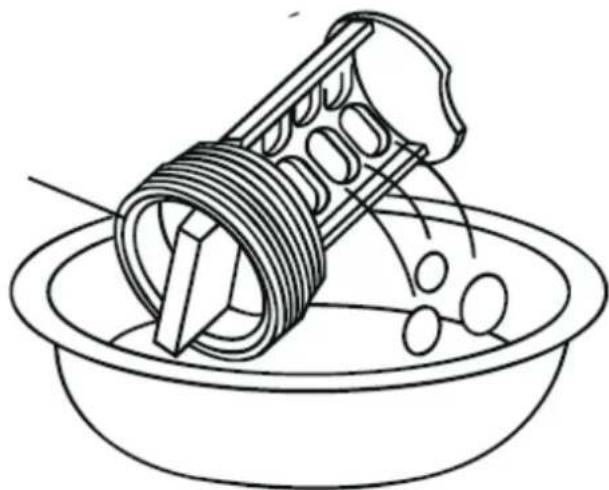

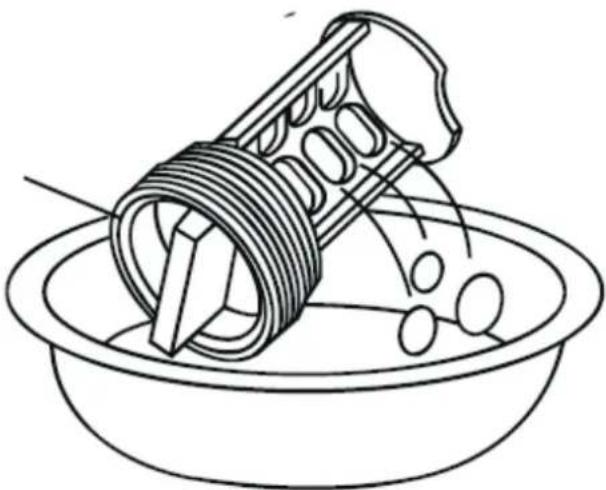

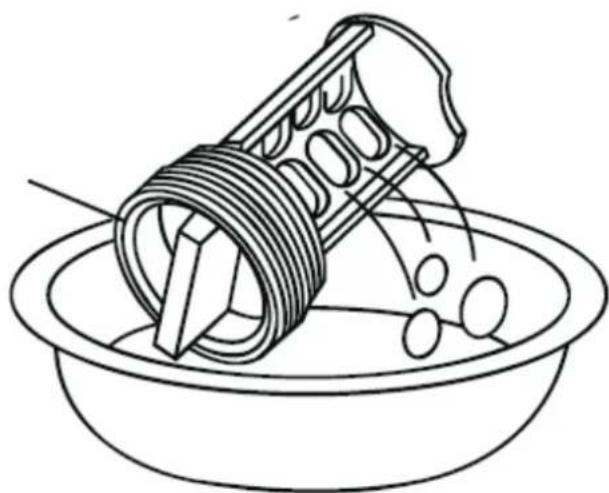

1. Clean the filter.

Line drawing of a piston-cylinder engine inside a bowl, with no text or symbols present

1. Restore and adjust the convex place to align at the pump hole.

Technical line drawing of a mechanical component with threaded end and internal spring (no text or symbols)

1. Tighten the pump cover clockwise.

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

NOTICE: If the drain filter is not cleaned properly (every 10 times of use), drain problem could occur.

3.3. Cleaning and maintenance

a) Unplug the mains plug and allow the device to cool completely before each cleaning, adjustment or replacement of accessories, or if the device is not being used.
• Wait for the rotating elements to stop.
b) Use only non-corrosive cleaners to clean the surface.
c) Store the unit in a dry, cool place, free from moisture and direct exposure to sunlight.
d) Do not spray the device with a water jet or submerge it in water.
e) Do not allow water to get inside the device through vents in the housing of the device.
f) Clean the vents with a brush and compressed air.
g) The device must be regularly inspected to check its technical efficiency and spot any damage.
h) Use a soft, damp cloth for cleaning.
i) Do not use sharp and/or metal objects for cleaning (e.g. a wire brush or a metal spatula) because they may damage the surface material of the appliance.
j) Do not clean the device with an acidic substance, agents of medical purposes, thinners, fuel, oils or other chemical substances because it may damage the device.

DISPOSING OF USED DEVICES:

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

TROUBLESHOOTING:

In the event of a malfunction of the washing machine, contact the nearest authorised service centre of our company. The customer should not dismantle the appliance without authorisation.

If the washing machine cannot operate normally or abnormalities or alarms appear, check and repair as follows.

Faults	Inspection
No water flows in	Check if the power is off or the fuse is burned out.Check if the water supply is cut off or the water pressure is too low.Check if the inlet hose is properly connected and the water tap is opened.Check if the filtering screen of inlet valve is blocked by dirt.Check if the coil of inlet valve is damaged. (The slight electromagnetic sound is normal phenomenon when the inlet valve is switched on)Check if the "Start / Pause" button is pressed after the power switch is pressed.
No washing	Check if the power is off or the fuse is burned out.Check if the power supply voltage is too low.Check if the water amount reaches to the required water level. (The washer will not work if the water amount does not reach the required water level)Check if the "Delay" washing mode is set. (It will only start to work until the reservation time reached)
Abnormal draining	Check if the water drain hose is placed very high.Check if the end of water drain hose is sealed.Check if the internal rubber ring of drain valve is blocked by dirt.
Abnormal spin	Check if the door lid is closed.Check if the all clothing piled largely at one side of barrel or the clothing is excessively placed.Check if the washer is not placed in stable condition or it is placed in inclination state. (The ground is not flat).Check if the motor belt is loosened.

NOTICE: During the spinning process, if the laundry is placed on one side of the spinning drum, this will cause an imbalance that will cause a bump. The computer inside the washing machine will detect this and automatically correct it by filling it with water.

However, if there is still an imbalance after two continuous corrections, which means that the computer cannot solve the problem, the user must manually and evenly place the clothes in the drum.

Malfunction display and solutions.

Fault	Cause of fault	Indication	Troubleshooting
Alarm for water inlet.	Water injection for about 20 minutes.Water valve fault.	E1	Press "Start/Pause" button.
Water level sensor fault.	Water level sensor loose.	E2	Re-install the water level sensor.
Alarm for opening cover.	Open the cover when the washer is spinning or in delay state.	E3 Close the cover.
Alarm for spinning.	The imbalance was checked for the third time.	E4	Open the cover and shake off the clothes.Close the cover.
Drain alarm.	Water drain time out 5 minutes.	E5 Open and close the lid one time.
Child Lock.	Open the cover when entering the child lock state.	E8	Close the cover within 30 seconds or cancel child lock function.

• Open and close the cover or press the start/pause button to access the fault information after the fault has occurred. If the fault is still not cleared after the fault information has been removed, the same problem may occur again in the next process.
• If the voltage is too low, the washing machine may not operate normally. It can only be used when the voltage is restored to normal.

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Illustration of a hand holding a cylindrical object with striped pattern (no text or symbols)

Simple line drawing of a container with a curved handle attached to a stand (no text or symbols)

Diagram showing a water tap installation process with labeled components and a close-up of the pipe fitting.

Simple line drawing of a container with a handle and a small inset showing a document or scroll (no text or symbols)

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Simple line drawing of a device with two faucet heads and a base plate (no text or symbols)

Simple line drawing of a curved pipe or tube mounted on a vertical support, with a circular base and a small hole at the end (no text or symbols)

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Sock Wash Rinse Spin Child Lock Delay No Drain My Cycles Quiet Program/My Cycles Water Level Delay/Adjust Function Start/Pause 5 6 7 1 2 3 4

Diagram illustrating a three-step process of cleaning a container, showing hand holding a grid, pouring into a pen, and pouring into a basin.

Simple line drawing of a kitchen sink with a bowl and a side table (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and handle (no text or symbols)

1. Wyjąć filtr.

Line drawing of a mechanical component inserted into a bowl, showing internal threading and shaft (no text or symbols)

1. Wyczyścić filtr.

Line drawing of a mechanical component inside a bowl, showing internal threading and shafts (no text or symbols)

Technical line drawing of a mechanical component with threaded end and central hub (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

ROZWIĄZYWANIE PROBLEMÓW:

Technical line drawing of a mechanical device with attached components and a label '1' (no text or symbols on the diagram itself)

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Illustration of a hand holding a rolled-up sheet of paper (no text or symbols)

Simple line drawing of a container with a curved handle attached to a stand (no text or symbols)

Diagram showing a water tap installation process with labeled components and a device connection

Simple line drawing of a container with a handle and a small inset showing a document or device (no text or symbols)

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Simple line drawing of a faucet with two arms raised, no text or symbols present

Simple line drawing of a curved pipe or wheel with a circular base, no text or symbols present

Diagram illustrating a three-step procedure for cleaning a container, showing hand holding a grid, pouring into a measuring device, and pouring into a basin.

Simple line drawing of a kitchen appliance with a bowl and side legs (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a side sink (no text or symbols)

Line drawing of a mechanical component being inserted into a bowl (no text or symbols)

1. Vyčistěte filtr.

Line drawing of a piston-cylinder engine inside a bowl, with no text or symbols present

Technical line drawing of a mechanical component with threaded end and central hub (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with attached components and a label '1' (no text or symbols on the diagram itself)

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Illustration of a hand holding a rolled-up sheet of paper (no text or symbols)

Simple line drawing of a container with a curved handle attached to a stand (no text or symbols)

Diagram showing a water tap installation process with labeled components and a device connected to a pipe.

Simple line drawing of a container with a handle and a small inset showing a document or device (no text or symbols)

Simple line drawing of a faucet mounted on a base, no text or symbols present

Simple line drawing of a device with two faucet heads and a base plate (no text or symbols)

Simple line drawing of a curved pipe or wheel with a circular base, no text or symbols present

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Suck Wash Rinse Spin Child Lock Delay No Drain My Cycles Quiet Power Program/My Cycles Water Level Delay/Adjust Function Start/Pause 1 2 3 4 5 6 7

Diagram illustrating a three-step procedure for cleaning a container, showing hand holding a grid, pouring into a pen, and pouring into a basin with syringe.

Simple line drawing of a kitchen appliance with a bowl and side legs (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a side sink (no text or symbols)

Line drawing of a mechanical component being inserted into a bowl (no text or symbols)

1. Nettoyez le filtre.

Line drawing of a piston-cylinder engine inside a bowl, with no text or symbols present

Technical line drawing of a mechanical component with threaded end and internal spring (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Illustration of a hand holding a rolled-up sheet of paper (no text or symbols)

Simple line drawing of a container with a side arm and a curved handle, no text or symbols present.

Diagram showing a water tap installation process with labeled components and a close-up of the pipe fitting.

Simple line drawing of a container with a handle and a small inset showing a document or device (no text or symbols)

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Simple line drawing of a device with two faucet heads and a base plate (no text or symbols)

Simple line drawing of a curved pipe or wheel with a circular base, no text or symbols present

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Suck Wash Rinse Spin Child Lock Delay No Drain My Cycles Quiet Power Program/My Cycles Water Level Delay/Adjust Function Start/Pause 1 2 3 4 5 6 7

Simple line drawing of a kitchen appliance with a bowl and side legs (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a side sink (no text or symbols)

Line drawing of a mechanical component being inserted into a bowl (no text or symbols)

1. Pulire il filtro.

Line drawing of a piston-cylinder engine inside a bowl, with no text or symbols present

Technical line drawing of a mechanical component with threaded end and internal spring (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Illustration of a hand holding a rolled-up sheet of paper (no text or symbols)

Simple line drawing of a container with a curved handle attached to a stand (no text or symbols)

Diagram illustrating a water tap installation process with labeled components and a device connection.

Simple line drawing of a container with a handle and a small inset showing a document or device (no text or symbols)

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Simple line drawing of a faucet with two arms raised, labeled '2' (no text or symbols on the diagram itself)

Simple line drawing of a curved pipe or wheel with a circular base, no text or symbols present

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Suck Wash Rinse Spin Child Lock Delay No Drain My Cycles Quiet Program/My Cycles Water Level Delay/Adjust Function Start/Pause Power

Simple line drawing of a kitchen appliance with a bowl and side legs (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a side sink (no text or symbols)

Line drawing of a mechanical component being inserted into a bowl (no text or symbols)

1. Limpiar el filtro.

Line drawing of a piston-cylinder engine inside a bowl, with no text or symbols present

Technical line drawing of a mechanical component with threaded end and internal spring (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Illustration of a hand holding a rolled-up sheet of paper (no text or symbols)

Simple line drawing of a container with a curved handle attached to a stand (no text or symbols)

Diagram showing a water tap installation process with labeled components and a close-up of the component being inserted.

Simple line drawing of a container with a handle and a small inset image showing a monitor (no text or symbols)

Line drawing of a faucet mounted on a base, labeled with number 1 (no text or symbols on the diagram itself)

Simple line drawing of a faucet with two arms raised above a rectangular base (no text or symbols)

Simple line drawing of a curved pipe or wheel with a circular base, no text or symbols present

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Suck Wash Rinse Spin Child Lock Delay No Drain My Cycles Quiet Program/My Cycles Water Level Delay/Adjust Function Start/Pause Power

Diagram illustrating a three-step procedure for cleaning a container, showing hand holding a grid, pouring into a pen, and pouring into a basin.

Simple line drawing of a kitchen sink with a bowl and a double-bell plate (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a side sink (no text or symbols)

Line drawing of a mechanical component being inserted into a bowl (no text or symbols)

Line drawing of a piston-cylinder engine inside a bowl, with no text or symbols present

Technical line drawing of a mechanical component with threaded end and internal spring (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

APPARATETS PLACERING

Illustration of a hand gripping a cylindrical object (no text or symbols)

Simple line drawing of a container with a curved handle attached to a stand (no text or symbols)

Diagram showing a water tap installation process with labeled components and a device connection

Simple line drawing of a container with a handle and a small inset showing a document or device (no text or symbols)

Line drawing of a faucet mounted on a base, labeled with number 1 (no text or symbols on the diagram itself)

Simple line drawing of a device with two faucet heads and a base, labeled '2' (no text or symbols on the diagram itself)

Simple line drawing of a curved pipe or wheel with a circular base, no text or symbols present

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Suck Wash Rinse Spin Child Lock Delay No Drain My Cycles Quiet Power Program/My Cycles Water Level Delay/Adjust Function Start/Pause 1 2 3 4 5 6 7

Diagram illustrating a three-step procedure for cleaning a container, showing hand holding a grid, pouring into a spring, and pouring into a basin.

Simple line drawing of a kitchen appliance with a bowl and side legs (no text or symbols)

Technical line drawing of a mechanical component with threaded end and internal spring (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical component with labeled parts 1 and 2

Illustration of a hand gripping a cylindrical object (no text or symbols)

Simple line drawing of a container with a side arm and a curved handle, no text or symbols present.

Diagram showing a water tap setup with labeled components and a magnified view of the pipe connection.

1 - Veden tuloletku
2 - Kiristysmutteri

Simple line drawing of a container with a handle and a small inset image showing a monitor (no text or symbols)

2. Asenna veden tuloletku.

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Simple line drawing of a faucet with two arms raised, labeled '2' (no text or symbols on the diagram itself)

Simple line drawing of a curved pipe or wheel with a circular base, no text or symbols present

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Suck Wash Rinse Spin Child Lock Delay No Drain My Cycles Quiet Power Program/My Cycles Water Level Delay/Adjust Function Start/Pause 1 2 3 4 5 6 7

Diagram illustrating a three-step procedure for cleaning a container, showing hand holding a grid, pouring into a spring, and pouring into a basin.

Simple line drawing of a kitchen appliance with a bowl and side legs (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a side sink (no text or symbols)

Line drawing of a mechanical component being inserted into a bowl (no text or symbols)

1. Puhdista suodatin.

Line drawing of a piston-cylinder engine inside a bowl, with no text or symbols present

Technical line drawing of a mechanical component with threaded end and internal spring (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

PLAATS VAN HET APPARAAT

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Illustration of a hand holding a rolled-up sheet of paper (no text or symbols)

Simple line drawing of a container with a curved handle attached to a stand (no text or symbols)

Diagram showing a water tap installation process with labeled components and a close-up of the component being inserted.

1 - Watertoevoerslang
2 - Klemmoer

Simple line drawing of a container with a handle and a small inset showing a monitor (no text or symbols)

Line drawing of a faucet mounted on a base, labeled with number 1 (no text or symbols on the diagram itself)

Simple line drawing of a faucet with two valves above a tray (no text or symbols)

Simple line drawing of a curved pipe or wheel with a circular base (no text or symbols)

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Suck Wash Rinse Spin Child Lock Delay No Drain My Cycles Quiet Power Program/My Cycles Water Level Delay/Adjust Function Start/Pause 1 2 3 4 5 6 7

Diagram illustrating a three-step procedure for cleaning a container, showing hand holding a grid device, pouring into a spring, and adding liquid into a basin.

Simple line drawing of a kitchen appliance with a bowl and side legs (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a side sink (no text or symbols)

Line drawing of a mechanical component being inserted into a bowl (no text or symbols)

Line drawing of a piston-cylinder engine inside a bowl, with no text or symbols present

Technical line drawing of a mechanical component with threaded end and internal spring (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Illustration of a hand gripping a cylindrical object (no text or symbols)

Simple line drawing of a container with a curved handle attached to a stand (no text or symbols)

Diagram showing a water tap installation process with labeled components and a device connection diagram.

1 – Vanninntaksslange
2 - Klemmutter

Simple line drawing of a container with a handle and a small inset image showing a monitor (no text or symbols)

1. Installer vanninntaksslangen.

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Simple line drawing of a faucet with two arms raised, labeled '2' (no text or symbols on the diagram itself)

Simple line drawing of a curved pipe or wheel with a circular base, no text or symbols present

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Suck Wash Rinse Spin Child Lock Delay No Drain My Cycles Quiet Power Program/My Cycles Water Level Delay/Adjust Function Start/Pause 1 2 3 4 5 6 7

Diagram illustrating a three-step procedure for cleaning a container, showing hand holding a grid, pouring into a spring, and pouring into a basin.

Simple line drawing of a kitchen appliance with a bowl and side legs (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a side table, no text or symbols present.

1. Ta ut lofilteret.

Line drawing of a mechanical component being inserted into a bowl (no text or symbols)

1. Rengjør filteret.

Line drawing of a piston-cylinder engine inside a bowl, with no text or symbols present

Technical line drawing of a mechanical component with threaded end and internal spring (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

APPARATENS PLACERING

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Illustration of a hand gripping a cylindrical object (no text or symbols)

Simple line drawing of a container with a curved handle attached to a stand (no text or symbols)

Diagram showing a water tap installation process with labeled components and a close-up of the component being inserted.

1 - Vatteninloppsslang
2 – Spännmutter

Simple line drawing of a container with a handle and a small inset image showing a monitor (no text or symbols)

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Simple line drawing of a faucet with two arms raised, labeled '2' (no text or symbols on the diagram itself)

Simple line drawing of a curved pipe or wheel with a circular base, no text or symbols present

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Suck Wash Rinse Spin Child Lock Delay No Drain My Cycles Quiet Power Program/My Cycles Water Level Delay/Adjust Function Start/Pause 1 2 3 4 5 6 7

Diagram illustrating a three-step procedure for cleaning a container, showing hand holding a grid, pouring into a spring, and pouring into a basin.

Simple line drawing of a kitchen sink with a bowl and double inlet (no text or symbols)

1. Lossa pumpkåpan moturs.

Simple line drawing of a kitchen sink with a bowl and a side sink (no text or symbols)

1. Ta ut luddfiltret.

Line drawing of a mechanical component being inserted into a bowl (no text or symbols)

1. Rengör filtret.

Line drawing of a piston-cylinder engine inside a bowl, with no text or symbols present

Technical line drawing of a mechanical component with threaded end and internal spring (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Illustration of a hand holding a rolled-up sheet of paper (no text or symbols)

Simple line drawing of a container with a curved handle attached to a stand (no text or symbols)

Diagram illustrating a water tap installation process with labeled components and a device connection.

Simple line drawing of a container with a handle and a small inset image showing a tray with a ruler (no text or symbols)

Line drawing of a mechanical device with a lever and base plate (no text or symbols)

Simple line drawing of a faucet with two valves above a tray (no text or symbols)

Simple line drawing of a curved pipe or wheel with a circular base, no text or symbols present

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Suck Wash Rinse Spin Child Lock Delay No Drain My Cycles Quiet Program/My Cycles Water Level Delay/Adjust Function Start/Pause Power

Simple line drawing of a kitchen appliance with a bowl and side legs (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a side table, no text or symbols present.

Line drawing of a mechanical component being inserted into a bowl (no text or symbols)

1. Limpe o filtro.

Line drawing of a piston-cylinder engine inside a bowl, with no text or symbols present

Technical line drawing of a mechanical component with threaded ends and a central hub (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical assembly with labeled parts 1 and 2

Illustration of a hand holding a rolled-up sheet of paper (no text or symbols)

Simple line drawing of a container with a curved handle attached to a stand (no text or symbols)

Diagram showing a water tap installation process with labeled components and a close-up of the component being inserted.

Simple line drawing of a container with a handle and a small inset showing a document or device (no text or symbols)

Line drawing of a faucet mounted on a base plate (no text or symbols)

Simple line drawing of a faucet with two arms and a base, labeled '2' (no text or symbols on the diagram itself)

1. Pripojte k zdroju napájania.
2. Zapnite prívod vody.
3. Dajte dole vypúštaciu hadicu.

Simple line drawing of a curved pipe or wheel with a circular base (no text or symbols)

ulsonix CLEANING INSTRUMENTS Normal Heavy Delicate Quick Standard Spray Drum Clean Air Dry Sock Wash Rinse Spin Child Lock Delay No Drain My Cycles Quiet Program/My Cycles Water Level Delay/Adjust Function Start/Pause 5 6 7 1 2 3 4

Diagram illustrating a three-step procedure for cleaning a container, showing hand holding a grid, pouring into a spring, and pouring into a basin.

Simple line drawing of a kitchen sink with a bowl and a double-bone outlet (no text or symbols)

Simple line drawing of a kitchen sink with a bowl and a side sink (no text or symbols)

1. Vyberte filter na vlákna.

Line drawing of a mechanical component being inserted into a bowl (no text or symbols)

1. Vyčistite filter.

Line drawing of a piston-cylinder engine inside a bowl, with no text or symbols present

Technical line drawing of a mechanical component with threaded end and internal spring (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

For the disposal of the device please consider and act according to the national and local rules and regulations.

CONTACT

expondo Polska sp. z o.o. sp. k.
