USER MANUAL UNI_MW_01 Uniprodo

MINI WASHING MACHINE

DE	Produktname	MINI WASCHMASCHINE
EN	Product name	MINI WASHING MACHINE
PL	Nazwa produktu	MINIPRALKA
CZ	Název výrobku	MINI PRAČKA
FR	Nom du produit	MINI-MACHINE A LAVER
IT	Nome del prodotto	MINI LAVATRICE
ES	Nombre del producto	MINI LAVADORA
HU	Termék neve	MINI MOSÓGÉP
DA	Produktnavn	MINI VASKEMASKINE
FI	Tuotteen nimi	MINIPESUKONE
NL	Productnaam	MINI-WASMACHINE
NO	Produktnavn	MINI VASKEMASKIN
SE	Produktnamn	PORTABEL TVÄTTMASKIN
PT	Nome do produto	MINI MÁQUINA DE LAVAR ROUPA
SK	Názov produktu	MINI PRÁČKA
DE	Modell	UNI_MW_01
EN	Product model
PL	Model produktu
CZ	Model výrobku
FR	Modèle
IT	Modello
ES	Modelo
HU	Modell
DA	Model
FI	Tuotteen malli
NL	Productmodel
NO	Produktmodell
SE	Produktmodell
PT	Modelo do produto
SK	Model
DE	Hersteller	expondo Polska sp. z o.o. sp. k.
EN	Manufacturer
PL	Producent
CZ	Výrobce
FR	Fabricant
IT	Produttore
ES	Fabricante
HU	Termelő
DA	Producent
FI	Valmistaja
NL	Producent
NO	Produsent
SE	Tillverkare
PT	Fabricante
SK	Výrobca
DE	Anschrift des Herstellers	ul. Nowy Kisielin – Innowacyjna 7, 66-002 Zielona Góra | Poland, EU
EN	Manufacturer Address
PL	Adres producenta
CZ	Adresa výrobce
FR	Adresse du fabricant
IT	Indirizzo del produttore
ES	Dirección del fabricante
HU	A gyártó címe
DA	Producentens adresse
FI	Valmistajan osoite
NL	Adres producent
NO	Produsentens adresse
SE	Tillverkarens adress
PT	Endereço do fabricante
SK	Adresa výrobcu

A B C D E F G

H I

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Mini washing machine
Model	UNI_MW_01
Rated voltage [V~] / Frequency [Hz]	230/50
Rated power [W]	135
Protection class	1
Protection rating IP	IPX4
Dimensions open [Width x Depth x Height; mm]	360x360x380
Dimensions fold [Width x Depth x Height; mm]	360x360x185
Weight [kg]	5
Wash capacity [kg]	1

1. General description

The user manual is designed to assist in the safe and trouble-free use of the device. The product is designed and manufactured in accordance with strict technical guidelines, using state-of-the-art technologies and components. Additionally, it is produced in compliance with the most stringent quality standards.

DO NOT USE THE DEVICE UNLESS YOU HAVE THOROUGHLY READ AND UNDERSTOOD THIS USER MANUAL.

To increase the product life of the device and to ensure trouble-free operation, use it in accordance with this user manual and regularly perform maintenance tasks. The technical data and specifications in this user manual are up to date. The manufacturer reserves the right to make changes associated with quality improvement. The device is designed to reduce noise emission risks to a minimum, taking into account technological progress and noise reduction opportunities.

Legend

	The product satisfies the relevant safety standards.
	Read instructions before use.
	The product must be recycled.
	WARNING! or CAUTION! or REMEMBER! Applicable to the given situation.(general warning sign)
	ATTENTION! Electric shock warning!
	WARNING! Toxic substances, danger of poisoning!
	Only use indoors.

PLEASE NOTE! Drawings in this manual are for illustration purposes only and in some details may differ from the actual product.

2. Usage safety

ATTENTION! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury or even death.

The terms "device" or "product" are used in the warnings and instructions to refer to the: Mini washing machine

2.1. Electrical safety

a) The plug must fit the socket. Do not modify the plug in any way. Using original plugs and matching sockets reduces the risk of electric shock.
b) Use the cable only for its designated use. Never use it to carry the device or to pull the plug out of a socket. Keep the cable away from heat sources, oil, sharp edges or moving parts. Damaged or tangled cables increase the risk of electric shock.
c) Do not use the device if the power cord is damaged or shows obvious signs of wear. A damaged power cord should be replaced by a qualified electrician or the manufacturer's service center
d) To avoid electric shock, do not immerse the cord, plug or device in water or other liquids. Do not use the device on wet surface
e) Do not use in very humid environments or in the direct vicinity of water tanks
f) Before the first use, please check whether the main voltage type and current comply with the indicated data on the type plate.

2.2. Safety in the workplace

a) Make sure the workplace is clean and well lit. A messy or poorly lit workplace may lead to accidents. Try to think ahead, observe what is going on and use common sense when working with the device.
b) Do not use the device in a potentially explosive environment, for example in the presence of flammable liquids, gases or dust. The device generates sparks which may ignite dust or fumes.
c) If you discover damage or irregular operation, immediately switch the device off and report it to a supervisor without delay.
d) If there are any doubts as to the correct operation of the device, contact the manufacturer's support service.

e) Only the manufacturer's service point may repair the device. Do not attempt any repairs independently!
f) In case of fire, use a powder or carbon dioxide (CO2) fire extinguisher (one intended for use on live electrical devices) to put it out.
g) Children or unauthorised persons are forbidden to enter a work station. A distraction may result in loss of control over the device
h) Use the device in a well-ventilated space
i) Please keep this manual available for future reference. If this device is passed on to a third party, the manual must be passed on with it.
j) Keep packaging elements and small assembly parts in a place not available to children
k) Keep the device away from children and animals
1) If this device is used together with another equipment, the remaining instructions for use shall also be followed

Remember! When using the device, protect children and other bystanders.

2.3. Personal safety

a) Do not use the device when tired, ill or under the influence of alcohol, narcotics or medication which can significantly impair the ability to operate the device.
b) The machine may be operated by physically fit persons who are able to handle the machine, are properly trained, who have reviewed this operating manual and have received training in occupational health and safety.
c) The machine is not designed to be handled by persons (including children) with limited mental and sensory functions or persons lacking relevant experience and/or knowledge unless they are supervised by a person responsible for their safety or they have received instruction on how to operate the machine.
d) When working with the device, use common sense and stay alert. Temporary loss of concentration while using the device may lead to serious injuries.
e) To prevent the device from accidentally switching on, make sure the switch is on the OFF position before connecting to a power source.
f) The device is not a toy. Children must be supervised to ensure that they do not play with the device.
g) Do not put your hands or other items inside the device while it is in use!

2.4. Safe device use

a) Do not overload the device. Use the appropriate tools for the given task. A correctly-selected device will perform the task for which it was designed better and in a safer manner.
b) Do not use the device if the "ON/OFF" switch does not function properly (does not switch the device on and off). Devices which cannot be switched on and off using the ON/OFF switch are hazardous, should not be operated and must be repaired.
c) Make sure the plug is disconnected from the socket before attempting any adjustments, accessory replacements or before putting the device aside. Such precautions will reduce the risk of accidentally activating the device
d) When not in use, store in a safe place, away from children and people not familiar with the device who have not read the user manual. The device may pose a hazard in the hands of inexperienced users.
e) Keep the device in perfect technical condition. Before each use check for general damage, especially check moving components for cracked parts or elements, and for any other conditions which may impact the safe operation of the device. If damage is discovered, hand over the device for repair before use.
f) Keep the device out of the reach of children
g) Device repair or maintenance should be carried out by qualified persons, only using original spare parts. This will ensure safe use.
h) To ensure the operational integrity of the device, do not remove factory-fitted guards and do not loosen any screws.
i) Avoid situations where the device stops working during use due to excessive loading. This may result in overheating of the drive elements and damage to the device.
j) Do not touch articulated parts or accessories unless the device has been disconnected from the power source.
k) It is prohibited to move, adjust, tilt or rotate the device while in operation.
I) Do not leave this appliance unattended while it is in use.
m) Clean the device regularly to prevent stubborn grime from accumulating.
n) Before each use ensure the nozzle is correctly installed in the device and that the hose is correctly attached and undamaged.
o) The device is not a toy. Cleaning and maintenance may not be carried out by children without supervision by an adult person.
p) Do not run the device when empty.
q) Do not allow the device to operate dry (without water)
r) It is forbidden to interfere with the structure of the device in order to change its parameters or construction.
s) Keep the device away from sources of fire and heat.
t) Do not cover the ventilation openings!
u) The device should be descaled regularly.

v) Do not use the device in an environment with a temperature below 5^ C
w) Do not pour water warmer than 60^ C into the device.
x) Do not exceed the maximum permissible water level.
y) Do not wash clothes contaminated with gasoline, paint, corrosive substances or acid-base chemicals.
z) Before putting clothes into the wash, remove large, loose dirt such as soil, sand, fibers, etc.

ATTENTION! Despite the safe design of the device and its protective features, and despite the use of additional elements protecting the operator, there is still a slight risk of accident or injury when using the device. Stay alert and use common sense when using the device.

3. Use guidelines

The device is designed for washing small loads of laundry conveniently. Its foldable design makes it perfect for travel, small living spaces, or dorm rooms. It offers a compact and portable solution for keeping clothes clean without the need for a full-sized washing machine. Ideal for delicate items and quick washes, it saves time and space.

The product is intended for home use only!

The user is liable for any damage resulting from unintended use of the device.

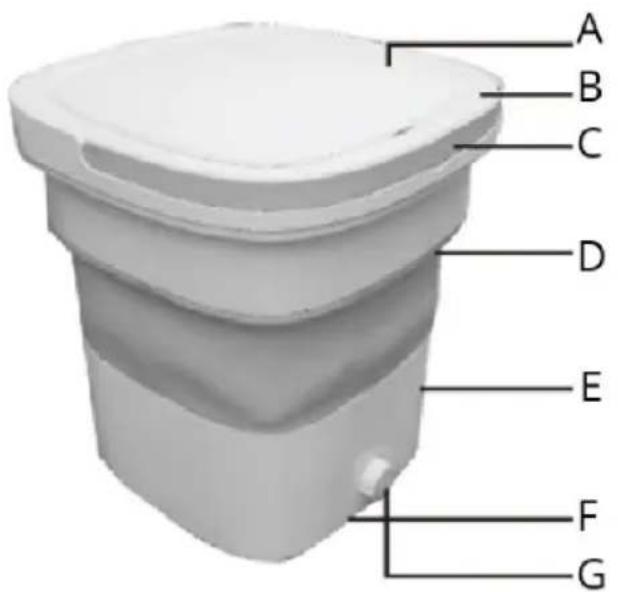

3.1. Device description

A B C D E F G

H I

A. Bucket lid

B. Barrel frame
C. Handle
D. Folding bucket
E. Drain
F. Base
G. Knob

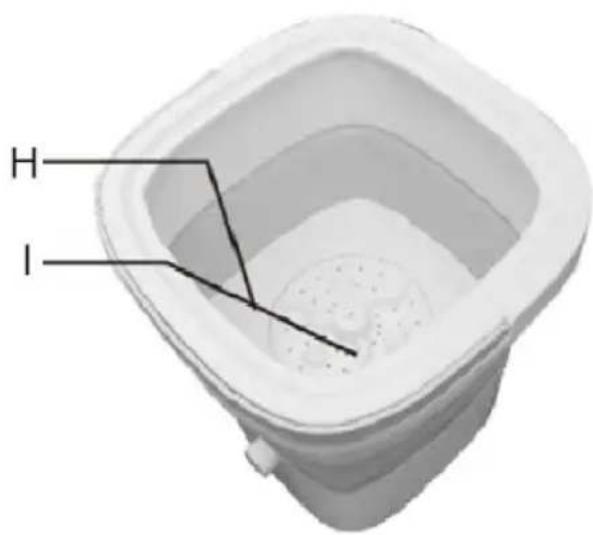

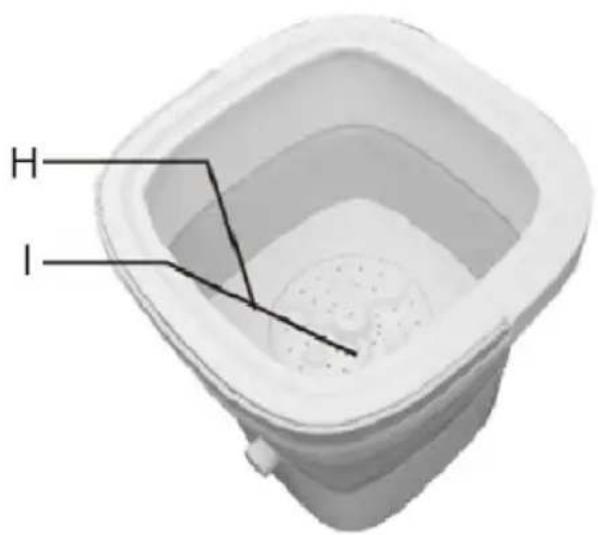

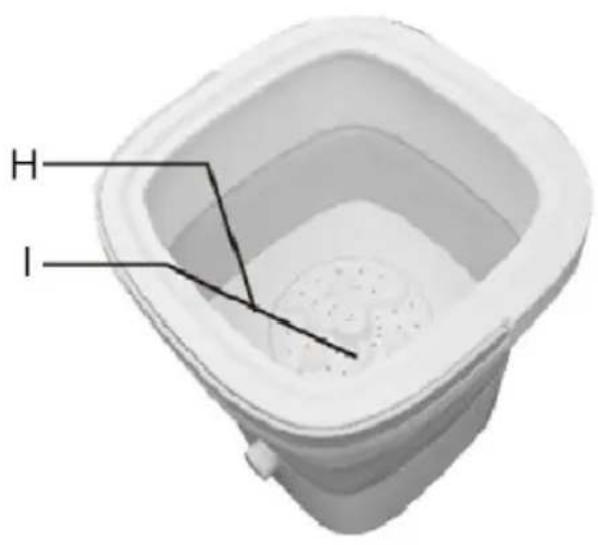

H. Bucket bottom
I. Pulsator

3.2. Preparing for use

APPLIANCE LOCATION

The temperature of environment must not be higher than 40^ C and the relative humidity should be less than 85%. Ensure good ventilation in the room in which the device is being used. There should be at least 10 cm distance between each side of the device and the wall or other objects. The device should always be used when positioned on an even, stable, clean, fireproof and dry surface, and be out of the reach of children and persons with limited mental and sensory functions. Position the device such that you always have access to the power plug. The power cord connected to the appliance must be properly grounded and correspond to the technical details on the product label.

Disassemble the device and all its components and clean them before the first use.

Water Intel

Please pour clean water into the tub of washing machine directly and the water level can not exceed the highest water level "H".

Power Line Connection

Power electric voltage and rate must be consistent with the data plate on the machine.

Please follow below steps when removing washing machine connection:

a) Disconnect the power and socket
b) Drain off water in the tub
c) Wipe the washing machine and keep it clean

Unfolding

a) Take out the lid
b) Lift the handle with one hand
c) Hold the bottom of the bucket with the other hand and pull the handle upward
d) Complete the operation after fully expanding the folding bucket

Folding

a) Press down on the upper frame with both hands
b) When the folding bucket cannot be pressed in place in one step, press the folding edge of the folding bucket inwards by hand to ensure that the folding bucket is in place
c) After folding the bucket in place, put the lid on it

3.3. Device use

a) Put the clothes into the washer tub, then pour proper amount of detergent.

b) Pour some water (water can cover the clothes completely and better 3-5cm higher than clothes)

c) Put the cover plate on the tub, turn on the washer timer, switch it to "15min" position, then the machine begins to work automatically.

d) After the program is over, the timer resets automatically and the machine stops working.

e) Take out the clothes in washer tub.

f) Disconnect the machine's power line and the socket.

g) Choose proper way of drainage, draining off water from the washing machine.

h) Wipe the machine.

Detergent

a) It can effectively reduce the adhesion between stains and clothing, and enhance the washing
b) Selection of detergent: It is recommended to use low-foam or non-foam soap powder on the market.
c) Add detergent method: When adding detergent, please put the detergent directly into the washing tub.

Laundry

a) Washing Clothing: Weight less than 1.8KG, such as: underwear, socks, etc.;
b) Since the washing machine is a single washing machine, after the washing process is completed, please take out the clothes manually to wring it out or put it in the dehydration machine for dehydration.

3.4. Cleaning and maintenance

After washing

a) When washing program is over, please drain off all the water in the tub in order to avoid the water quality changes after long time of laying up.

When taking out

a) Please wipe the machine clean, fold the washing machine and put the cover plate on the top.

DISPOSING OF USED DEVICES

Do not dispose of this device in municipal waste systems. Hand it over to an electric and electrical device recycling and collection point. Check the symbol on the product, instruction manual and packaging. The plastics used to construct the device can be recycled in accordance with their markings. By choosing to recycle you are making a significant contribution to the protection of our environment.

Contact local authorities for information on your local recycling facility.

TROUBLESHOOTING

Problem	Possible cause	Solution
There is still water after drainage	Water not drained completely	Wipe it dry
There is water spilling over the upper marginal part of the machine washing	Water level is too high	Reduce water, lower the water level and make sure water won’t spill over.
The machine stops working	Power Cut. Poor contact between power line and socket or got loose. Did not switch the timer.	Check if there is power cut. Check the socket carefully. Switch the timer to proper working time
The clothes did no spin	Clothes are too heavy. Voltage is too low.	Reduce clothes amount. Use it when voltage is normal

A B C D E F G

H I

A B C D E F G

H I

A B C D E F G

H I

A B C D E F G

H I

A B C D E F G

H I

A. Tapa del cubo

B. Marco de barril

C. Agarradero

D. cubo plegable

E. Drenar

F. Base del aparato

G. Pomo

H. Fondo del cubo

I. Pulsador

A B C D E F G

H I

A B C D E F G

H I

APPARATETS PLACERING

A B C D E F G

H I

A B C D E F G

H I

A. Emmer deksel
B. Vatframe
C. Handvat
D. Opvouwbare emmer
E. Droogleggen
F. Basis
G. Knop
H. Emmer bodem
I. Pulsator

PLAATS VAN HET APPARAAT

A B C D E F G

H I

A B C D E F G

H I

A. Hinklock
B. fatram
C. Handtag
D. Fällbar hink
E. Dränera
F. Bas
G. Knopp
H. Hinkbotten
I. Pulsator

APPARATENS PLACERING

A B C D E F G

H I

A. Tampa do balde

B. Moldura de barril

C. Pega

D. Balde dobrável

E. Ralo

F. Base

G. Botão

H. Fundo do balde

I. Pulsador

A B C D E F G

H I

A. Veko vedra
B. Rám hlavne
C. Rukovät'
D. Skladacie vedierko
E. Vypustit'
F. Základňa
G. Gombík
H. Dno vedra

I. Pulzátor

For the disposal of the device please consider and act according to the national and local rules and regulations.
