USER MANUAL KHB 83422 Koenic

Product diagram of a blender with labeled parts including brush, blender, and blender blade assembly

Technical diagram showing a multi-step assembly of a kitchen sink with labeled parts and directional arrows indicating process flow.

Sicherheitshinweise

- This product is only suitable for private household use and it is not designed for commercial purpose.

- Danger of electric shock! Do not attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

- Warning! Do not immerse the electrical parts of the product in water or other liquids. Never hold the product under running water.

- This product shall not be used by children. Keep the product and its cord out of reach of children.

- This product can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are under supervision or have been given instruction concerning the use of the product in a safe way and if they understand the hazards involved.

• Children shall not play with the product.

- Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a danger or injury.

- Danger of injury! Care shall be taken when handling the sharp cutting blades, emptying the bowls and during cleaning.

• Always disconnect the product from the mains if it is left unattended and before assembling, disassembling or cleaning.

- Switch off the product and disconnect it from the mains before changing accessories or approaching parts that move in use.

- Never use accessories which are not recommended by the manufacturer. They could pose a safety risk to the user and might damage the product. Only use original parts and accessories.

English

Safety Instructions

• Do not continuously operate the product for too long to avoid overheating the motor. The continuous operation time must not exceed the processing guide given in the instruction manual. Let the product cool down if the product housing becomes too hot.
• Never add ingredients to the container while the product is operating.
• Do not touch the blade, blade guard and moving parts. Keep fingers, hair, clothing and utensils away from all moving parts.
• Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards and cause injuries.
• Clean the product and all other accessories after each use.
• Follow the instructions in the chapter Cleaning and care.

Safety Instructions

• Observe all safety instructions to avoid damage through improper use!
• Keep this instruction manual for future use. Should this product be passed on to a third party, then this instruction manual must be included.
• Before connecting the product to the power supply, make sure that the power supply voltage and current rating corresponds with the power supply details shown on the product rating label.
• Never use a damaged product!
  Disconnect the product from the electrical outlet and contact your retailer if it is damaged.
• To avoid damaging the cord, do not squeeze, bend or chafe it on sharp edges. Keep it away from hot surfaces and open flames as well. Do not let the rotating blades touch the power cord.
• Lay out the cord in such a way that no unintentional pulling or tripping over it is possible.
• If an extension cord is used, its capacity needs to be suitable for the power consumed by the product.
• Do not operate the product with wet hands or while standing on a wet floor. Do not touch the power plug with wet hands.
• Do not open the product casing under any circumstances. Do not insert any foreign objects into the inside of the casing.
• Do not place any objects on top of the product. Do not place objects with open flames, e.g. candles, on top of or beside the product. Do not place objects filled with water, e.g. cooking pots, on or near the product.
• Do not pull the power plug out of the electrical outlet by the power cord and do not wrap the power cord around the product.

- Connect the power plug to an easily reachable electrical outlet so that in case of an emergency the product can be unplugged immediately. Pull the power plug out of the electrical outlet to completely switch off the product. Use the power plug as the disconnection device.

- Disconnect the power plug from the electrical outlet when not in use and before cleaning.

- If the power cord should overheat, stop using the product and disconnect the product from the electrical outlet.

- Do not place the product on hot plates (gas, electric, coal cooking range, etc.). Keep the product away from hot surfaces and open flames. Always operate the product on a level, stable, clean, heat-resistant and dry surface.

- Never leave the product unattended during use.

- Dry the product and all accessories before connecting it to the power supply.

- Important! Check to ensure that the product is in a serviceable condition before use. The product shall not be used if it shows any signs of damage or if it's suspected to be defect.

English

Congratulations

Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference.

Intended use

The appliance is exclusively intended to mix and blend foodstuffs. This product is only suitable for private household use and it is not designed for commercial purpose. Every other type of use can lead to damage to the product or injury.

Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

Before first time use

Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

After unpacking, please refer to chapter

Cleaning and care.

Content

1 x Motor unit
1 x Hand blender attachment
1 x Measuring cup
1 × Lid
1 x Chopping unit
1 x Whisk attachment
1 x Instruction manual
1 x Warranty card

Controls and components

A Power cord with plug
B Speed control (MIN - MAX)
c Operation button
D Turbo button T
Motor unit
F Lid
G Measuring cup
H Hand blender attachment
Blade
J Chopper with blade and cup
K Whisk

Technical data

Rated voltage: 220 - 240 V\~, 50/60 Hz

Rated power: 800 W

Speed: about 16400 min -1

(± 15 %) without loading

(Motor unit)

Short operation time : 45 sec. /Pause 3 Min.

(refer to processing guide

in this user manual)

Protection class : II

English

Attention

• Always ensure the appliance is disconnected from the power supply before it is fully and correctly assembled!
- Danger of hand injury! Handle the blade with care as it is very sharp!
- Never use your hands to reach into the food container. Always use wooden or plastic spatulas, and only when the hand blender is not running.
- Do not use this appliance for processing ice, hot liquids, heavy batter/dough, or hard foods.
- Pre-cut the food into small and even pieces

Note:

When pureeing food, make sure to use enough liquid (juice, milk, etc.) to obtain a smooth mixture. Adjust the consistency of the mixture by adding more liquid or soft solids. The ratio between food and liquids should be 1:1.

Speed settings

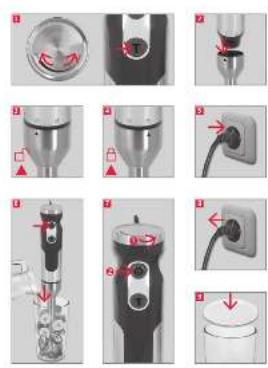

Fig. 1 The processing speed corresponds to the setting of the speed control. Rotate the stepless speed control to adjust the speed. The higher the setting, the faster the blending results. Maximum speed can be achieved by pressing the turbo button T.

Blending

Suitable for: Blending juices and shakes, mixing soft ingredients, pureeing cooked ingredients.

Fig. 2 Mount the blender attachment on the motor unit.

Fig. 3 To do so, align the motor unit's icon with the blender's icon.

Fig. 4 Rotate the blender counter-clockwise until it clicks in place (now and icons are aligned).

Fig. 5 Connect the plug to a suitable outlet.

Fig. 6 Fill foodstuff into the measuring cup. Observe the maximum marking on the measuring cup. Dip the blender bar as deeply as possible into the ingredients. Work through the ingredients by moving the appliance gently up and down. Hold the blender vertically. Tilting it might lead to splashing foodstuff.

Fig. 7 Set the desired speed selection. Press and hold the operation button ⏻ The turbo function can be activated by pressing and holding the turbo button T.

Fig. 8 After use: Release the operation or turbo button and disconnect the plug.

Fig. 9 Use the lid to cover the measuring cup when storing it in a fridge for a short time.

Note:

Not suitable for long-term storage of food

Processing guide

Caution

The continuous operation time must not exceed the values of the processing guide below.

English

Food Max.	weight	max. operating time (in sec.) / Speed settings (MIN/MAX)	Food Preparation
Carrot 100 g 25	/ MAX		1 - 2 cm
Onions *1	100 g	15 / MAX	1 - 2 cm
Compote	80 g	8 / MIN	/
Garlic	80 g	15 / MAX	/
Cheese	50 g	15 / MIN	1 - 2 cm
Eggs	3 Dotter	10 / MIN	Boiled
Ham	70 g	20 / MIN	Sliced
Liquid *2	400 ml	30 / MIN	/

* Onions: Peeled
*2 Liquid: Soup, milk, water, etc.

Chopping

Assembly

Fig. 10 Place the blade hub on the axle in the container. The knife must be at the bottom.
Fig. 1.1 Put the food in the container. Note the MAX mark on the container.
Fig. 12 Place the chopper lid in the correct position on the container and turn it clockwise until it clicks into place.
Fig. 13 Mount the motor unit on the cover. To do this, align ▲ and □ with each other. Rotate the motor unit clockwise until it clicks (▲ and 🔒 are aligned).
Fig. 14 Connect the plug to a suitable socket outlet. Press the turbo button T and hold the device while shredding. After you have finished chopping, pull out the mains plug. Turn the motor unit counter-clockwise to remove it from the cover. Turn the cap counter-clockwise to remove it. Remove the blade by its hub.

Follow the table below:

Food	Max. weight in g	Max. size of food	Max. operating time (in sec.) / speed settings ( ⊕ / T)
Carrot 300 Cube, each 1,5 cm 20/ T (MAX)
Pork 300 Cube, each 2 cm 30/ T (MAX)
Beef 300 Cube, each 2 cm 30/ T (MAX)
Nuts 300 Unprocessed, no shell!		30/ T (MAX)
Cucumber 300 Cube, each 1,5 cm 20/ MIN
Cooked potato 300 Cube, each 2,5 cm 20/ T (MAX)
Onion 300 Geviertelt 20/ MIN
Pumpkin 300 Cube, each 1,5 cm 20/ T (MAX)
Apple 300 Cube, each 2 cm 20/ T (MAX)
Leaf vegetables 300 Cube, each 3 cm 20/ MIN

Note: Always add enough fluids, at a ratio of approx. 1:1.

Whisk

Attach the whisk to the motor unit.

Fig. 15 Align ▲ and □ each other. Turn the whisk counter-clockwise until it clicks ▲ and □ are aligned).

Fig. 16 Immerse the whisk in the container and only then switch on the device. The whisk is suitable for beating whipped cream, egg whites, etc.

Fig. 17 After use: Release the power or turbo button and pull out the mains plug.

Cleaning and care

Warning

Before cleaning, always switch off the appliance and disconnect the plug from power supply.

Fig. 18 Cleaning the motor unit: Use a soft, slightly damp cloth.

Warning

• Make sure that no moisture is entering the appliance during cleaning.
- Never immerse the motor unit in water or other liquids.

Fig. 19 Cleaning the measuring cup, lid and chopper with container and blades: Use warm water and a mild cleaning agent for cleaning.

Warning

The blades are sharp. Do not touch them. Only hold the hub above the blades.

Fig. 20 Cleaning the hand blender and whisk attachment: Wash the blender or whisk attachment under running water. Make sure that no liquid enters the hollow shaft. Dry thoroughly.

• Wash all other parts in warm soapy water, then rinse and dry thoroughly.
• Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp implements to clean your appliance.
  • Dry the appliance thoroughly after cleaning.
• Store the appliance in a cool, dry location, away from children and pets.

Troubleshooting

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your sales agent.

Problem Possible causes Solution
Product does not work	Interrupted power supply.Product is overheated.	Check the power supply.The product is not suitable for continuous operation. Unplug and let the product cool down for approx, 20 minutes.
Blade does not turn or turns with difficulty	Blockage due to food that is too large or too hard.No / insufficient amount of liquids added.	Unplug the product and remove the blockage or cut the food into smaller pieces. Add sufficient amount of liquids.
Product feels warm/hot during operation	No / Insufficient amount of liquids added.Blockage due to food that is too large or too hard.Continuous operation.	Unplug the product and remove the blockage or cut the food into smaller pieces. Add sufficient amount of liquids.The product is not suitable for continuous operation. Unplug and let the product cool down in order to avoid overheating.
