CC-500-130 - Leisure vehicle accessory MSW - Free user manual and instructions

Product type	Caravan protective cover
Brand	MSW
Model	MSW-CC-500-130
Use	Outdoor and indoor protection against rain, snow, UV, dust, leaves, and bird droppings
Dimensions (L x W x H)	250 cm x 450-500 cm x 220 cm
Weight	7.3 kg
Material	SFS 3-layer non-woven fabric, 130 g/m²
Water resistance	Yes
UV protection	Yes
Air permeability	Yes (breathable fabric)
Reinforced seams	Yes
Zippers	Yes, in corners for access to walls
Straps	Yes, lateral straps to pass under the caravan
Transport bag	Included
Number of persons required for installation	At least 2
Compatibility	Caravans with max width 250 cm, max length 500 cm, max height 220 cm
Cleaning	Soft brush and warm water; dry after cleaning
Maintenance	Store clean and dry, away from heat sources
Safety	Do not use while towing; read the instructions before use
Repairability	Repairs only by the manufacturer's after-sales service
Spare parts	Only use original parts
Power supply	No power supply

Frequently Asked Questions - CC-500-130 MSW

How to install the cover on my caravan?

Installation requires at least two people. Start at the front of the caravan (hitch side). Open the zippers in the corners if needed. Place the cover on the caravan, then pass the side straps under the caravan and fasten them on the opposite side. Tighten moderately for a firm fit without over-tightening.

Can I use the cover while towing the caravan?

No, it is strictly forbidden to tow the caravan with the cover on. The cover is designed only for stationary use.

How to clean the cover?

Use a soft brush or sponge with warm water. Do not machine wash or dry clean. After cleaning, thoroughly dry the cover before storing.

Is the cover waterproof?

Yes, the SFS 3-layer non-woven fabric is water-resistant. However, it does not offer complete protection under all weather conditions, as it is also breathable to prevent condensation.

What are the maximum compatible caravan dimensions?

This model (MSW-CC-500-130) is suitable for caravans not exceeding 250 cm width, 500 cm length, and 220 cm height.

Can I use the cover in winter?

Yes, the cover protects against snow and bad weather. However, make sure the caravan is clean and dry before installation, and that heat sources are turned off to avoid condensation.

How to store the cover?

Before storing, the cover must be clean and dry. Place it in the provided carry bag and store it in a dry place away from heat sources.

Does the cover protect against UV?

Yes, the SFS 3-layer non-woven material provides UV protection, which helps prevent fading and sun damage.

What to do if the cover is damaged?

Do not attempt to repair yourself. Contact the manufacturer's after-sales service for any repairs. Only use original spare parts.

Is it possible to access the caravan doors with the cover installed?

Yes, thanks to the zippers located in the corners, you can open the cover walls to access the doors and sides of the caravan without removing the entire cover.

USER MANUAL CC-500-130 MSW

Two fabric pieces: a plain sack and a rolled-up fabric with visible folds (no text or symbols)

Side view of a white van with a red warning sign and electric vehicle on wheels (no visible text or symbols)

White fabric cover with four vertical black lines, no text or symbols visible

1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,

To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

Please read the instructions before use.

CAUTION! The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

The original instruction manual is in the German language version. Other language versions are translations from German.

2. Safety of use

CAUTION! Read all safety warnings and all instructions. Failure to follow warnings and instructions could result in serious injury or even death.

The term "unit" or "product" in the warnings and in the description of the instructions refers to the CARAVAN COVER

2.1. Safety in the workplace

a) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.

b) Only the manufacturer's service department may repair the product. Do not carry out repairs yourself!
c) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.
d) Keep the packaging and small assembly parts out of the reach of children.

2.2. Personal safety

a) The unit is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the unit.

2.3. Safe use of the unit

a) Keep the unit in good working condition.
b) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
c) Clean the unit regularly to prevent permanent dirt build-up.
d) Do not tamper with the unit to alter its performance or design.
e) Keep the unit away from sources of fire and heat.
f) Use the cover only while the trailer is parked - do not tow the trailer with the cover on!

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. You are advised to use caution and common sense when using this product.

3. Rules of use

This product is designed to protect caravans from external influences (rain, snow, sunshine, dust, leaves, bird droppings, etc.) - it can be used both for caravans parked outdoors and indoors.

The special "breathable" fabric prevents the collection of moisture and the formation of mold under the cover, but in certain weather conditions the cover will not provide 100% watertightness - this is not a defect of the product and is

due to the specifics of the material used!

The user is responsible for any damage resulting from misuse.

3.1. Description

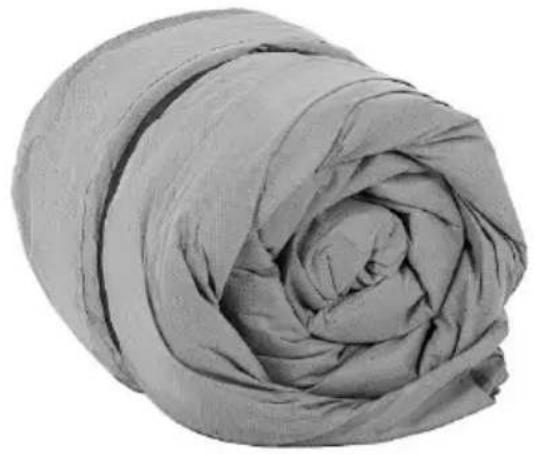

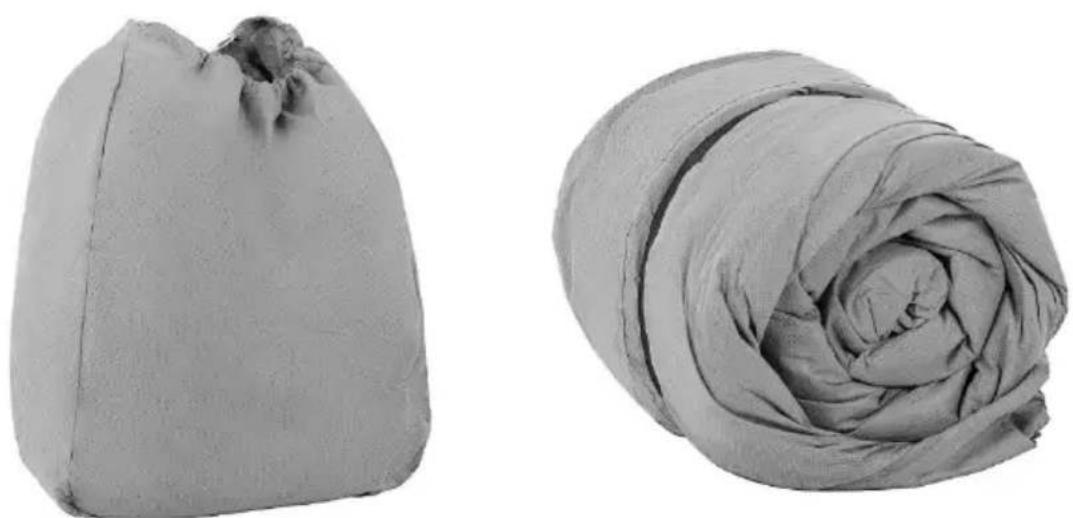

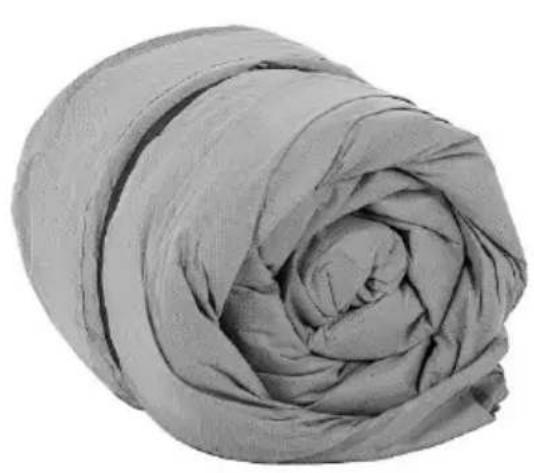

Two fabric pieces: a plain sack and a rolled-up fabric with visible folds (no text or symbols)

For convenient transport the product is packed in a bag. The bag itself is secured for transport with an additional strap.

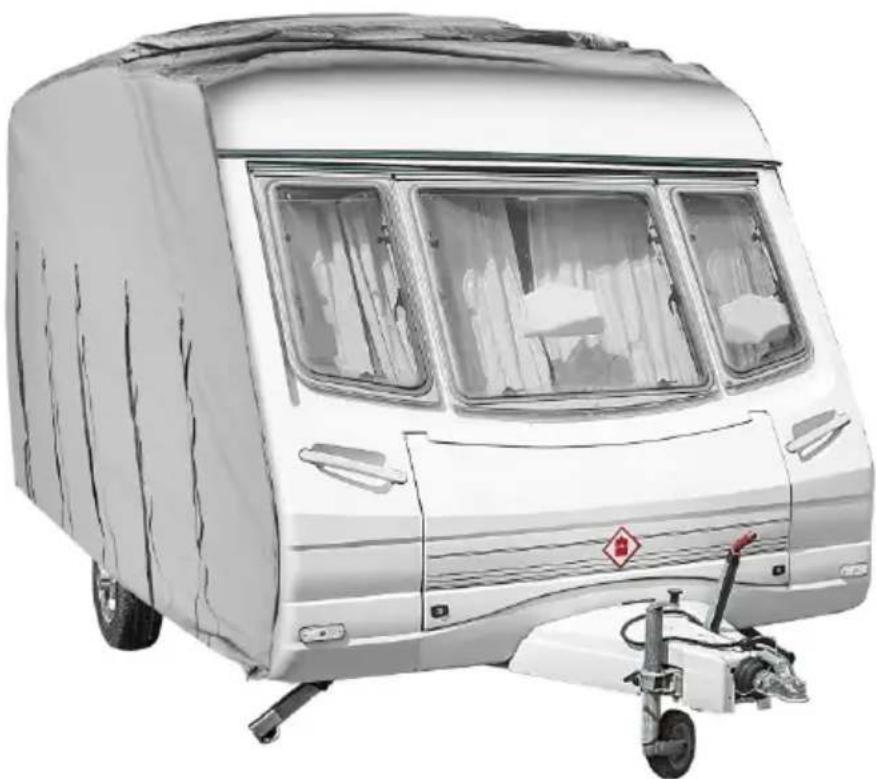

Side view of a white van with a covered cover and a small electric scooter nearby (no visible text or symbols)

There are zippers on the corner of the cover - they enable access to each of the walls of the trailer without the necessity of taking off the entire cover.

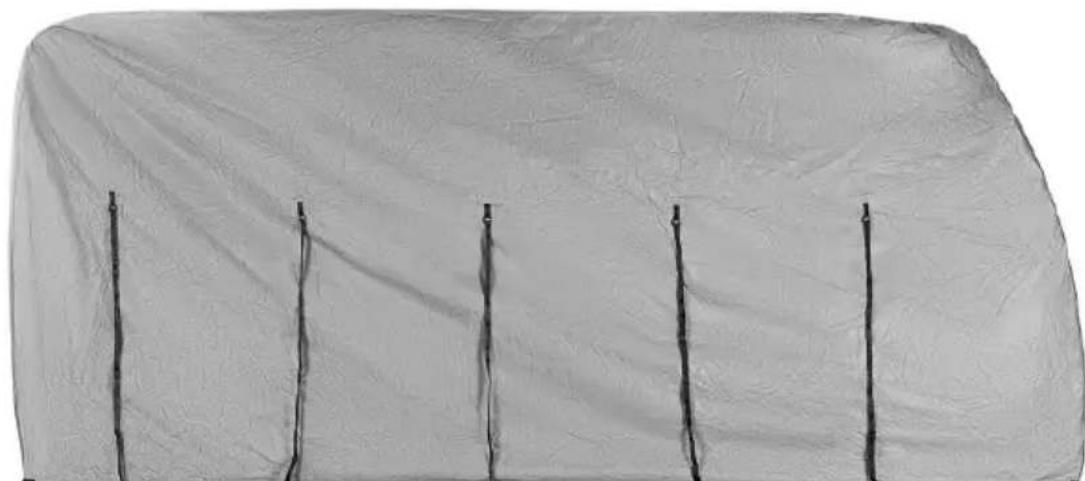

Striped white fabric or material with four vertical black lines, no visible text or symbols

Special straps on the side walls (to be pulled under the bottom of the trailer) serve to secure the cover and prevent it from being blown away by the wind.

3.2. Preparation

BEFORE PUTTING ON THE COVER:

• the trailer should be as clean and dry as possible.
- The wheels of the trailer must be immobilized (parking brake applied) and stabilizer bars placed on the corners of the trailer.
- Make sure all windows are closed, internal heaters and refrigerators are turned off, and there are no loose and/or protruding objects such as antennas on the surface of the trailer.
- Be aware of any protruding and/or sharp edges, especially metal edges, that could potentially damage the cover.

At least 2 people are required to put the cover on and the use of a ladder or platform os recommended.

The cover should be pulled over the trailer starting from the front of the trailer, i.e. the side with the hitch to the vehicle.

To make the process easier you can unzip the zippers at the ends of the cover. After pulling the cover over the entire trailer, pull the straps located on one of the side walls of the cover underneath the trailer.

Attach their prongs to the corresponding slots on the other, parallel side of the cover. Tighten the straps so that the cover fits snugly against the side walls of the trailer, but do not overtighten to prevent damage to the cover itself.

Assemble the cover in the reverse order of putting it on.

IMPORTANT: Before folding the unused cover into a bag, make sure it is free of debris and most importantly dry.

Store in a dry area away from direct heat sources.

3.3. Cleaning and maintenance

a) T o clean the surface, use a soft brush or warm water with a soft sponge.
b) Dry the product well after each cleaning with water before reusing it or storing it.
c) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) for cleaning, as these may damage the surface of the material which the product is made of.
d) Do not wash or dry clean!

Dane techniczne

Side view of a white van with a covered cover and a small electric scooter nearby (no visible text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols

Side view of a white van with a covered cover and a small electric scooter nearby (no visible text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols

Two fabric pieces: a plain sack and a rolled-up bundle, both with no visible text or symbols.

Side view of a white van with a covered cover and a small electric scooter nearby (no visible text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols

A gray, textured, oval-shaped object with a small protrusion at the top (no visible text or symbols)

Folded fabric with a spiral pattern, no text or symbols visible

Side view of a white van with a covered cover and a small electric scooter nearby (no visible text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols

Side view of a white van with a covered cover and visible fuel tank (no text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols

A gray, textured, oval-shaped object with a small protrusion at the top (no visible text or symbols)

Folded gray fabric with a spiral texture, no text or symbols visible

Side view of a white van with a covered cover and a small electric scooter nearby (no visible text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols

Two fabric pieces: a plain sack and a rolled-up bundle, both with no visible text or symbols.

Side view of a white van with a covered cover and visible fuel tank (no text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols
