CC-600-130 - Leisure vehicle accessory MSW - Free user manual and instructions

Product type	Caravan protective cover
Brand	MSW
Model	CC-600-130
Dimensions (L x W x H)	550-600 x 250 x 220 cm
Weight	8.2 kg
Material	Non-woven SFS 3 layers, water and UV resistant, breathable
Material weight	130 g/m²
Intended use	Outdoor and indoor protection of caravans against weather, dust, leaves, bird droppings
Recommended number of people for installation	2 people
Included accessories	Carrying bag, side fixing straps, zipper closures at corners
Safety features	Do not use during towing; do not modify the structure; keep children away from packaging parts
Maintenance	Clean with a soft brush and warm water; dry thoroughly before storage
Cleaning prohibitions	Do not machine wash, do not dry clean, do not use metal objects
Storage	In a dry place, away from heat sources
Repairability	Repairs only by the manufacturer's after-sales service
Spare parts	Original parts only, available from the manufacturer
Power supply	None (non-electric product)
Protection rating	Not rated (cover)
Manual available in	French, German, English, Spanish, Italian, etc.

Frequently Asked Questions - CC-600-130 MSW

How to install the MSW CC-600-130 protective cover?

Installation requires at least two people. Start from the front of the caravan (hitch side). Open the zipper closures at the corners to make installation easier. Pass the side straps under the caravan and attach them on the opposite side. Tighten firmly without over-tightening. Ensure the caravan is clean, dry, and all windows are closed.

Can the cover be used while towing the caravan?

No, it is not allowed to tow the caravan with the cover. The cover should only be used when the caravan is stationary.

How to clean the MSW CC-600-130 cover?

Use a soft brush or sponge with warm water. Never machine wash, dry clean, or use metal objects. After cleaning, thoroughly dry the cover before storing.

What are the exact dimensions of the cover for model CC-600-130?

The dimensions are suitable for a caravan not exceeding 250 cm width, 550 to 600 cm length, and 220 cm height.

Does the cover provide complete protection from moisture?

The non-woven SFS 3 layers material is water resistant and breathable, which reduces condensation, but it does not offer total protection in all weather conditions.

How to store the cover after use?

Ensure the cover is clean and dry, then fold it into the provided carrying bag. Store it in a dry place, away from heat sources.

Is the cover UV resistant?

Yes, the non-woven SFS 3 layers material is UV resistant, protecting the caravan from sunlight.

What to do if the cover is damaged?

Do not attempt to repair it yourself. Contact the manufacturer's after-sales service for repair by qualified personnel using original parts.

Can the cover be used for a motorhome or other caravan?

This cover is designed for caravans with dimensions not exceeding 250 x 600 x 220 cm. For other dimensions, choose the corresponding MSW model.

Does the cover come with a warranty?

The warranty is provided by the manufacturer MSW. Consult the manual for detailed conditions. In case of issues, contact customer service.

USER MANUAL CC-600-130 MSW

PRODUKTNAME WOHNMOBIL ABDECKPLANE

PRODUCT NAME CARAVAN COVER

NAZWA PRODUKTU POKROWIEC NA PRZYCZEPE KEMPINGOWA

NÁZEV VÝROBKU PLACHTA NA OBYTNÝ AUTOMOBIL

NOM DU PRODUIT HOUSSE POUR CAMPING -CAR

NOME DEL PRODOTTO TELO DI COPERTURA PER CAMPER

Side view of a white van with a red warning sign and electric vehicle on wheels (no visible text or symbols)

White fabric cover with four vertical black lines, no text or symbols visible

1. General Description

The instruction manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

PLEASE CAREFULLY READ AND UNDERSTAND THIS INSTRUCTION MANUAL BEFORE OPERATION,

To ensure long and reliable operation of the unit, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications contained in this instruction manual are up to date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

Please read the instructions before use.

CAUTION! The illustrations in this instruction manual are for reference only and may differ from the actual product in some details.

The original instruction manual is in the German language version. Other language versions are translations from German.

2. Safety of use

CAUTION! Read all safety warnings and all instructions. Failure to follow warnings and instructions could result in serious injury or even death.

The term "unit" or "product" in the warnings and in the description of the instructions refers to the CARAVAN COVER

2.1. Safety in the workplace

a) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department.

b) Only the manufacturer's service department may repair the product. Do not carry out repairs yourself!
c) Keep these instructions for use for future reference. If the unit is to be passed on to a third party, the operating instructions must also be handed over together with the unit.
d) Keep the packaging and small assembly parts out of the reach of children.

2.2. Personal safety

a) The unit is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the unit.

2.3. Safe use of the unit

a) Keep the unit in good working condition.
b) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
c) Clean the unit regularly to prevent permanent dirt build-up.
d) Do not tamper with the unit to alter its performance or design.
e) Keep the unit away from sources of fire and heat.
f) Use the cover only while the trailer is parked - do not tow the trailer with the cover on!

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. You are advised to use caution and common sense when using this product.

3. Rules of use

This product is designed to protect caravans from external influences (rain, snow, sunshine, dust, leaves, bird droppings, etc.) - it can be used both for caravans parked outdoors and indoors.

The special "breathable" fabric prevents the collection of moisture and the formation of mold under the cover, but in certain weather conditions the cover will not provide 100% watertightness - this is not a defect of the product and is

due to the specifics of the material used!

The user is responsible for any damage resulting from misuse.

3.1. Description

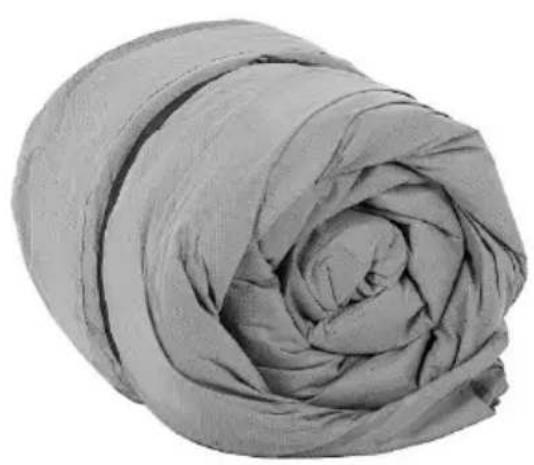

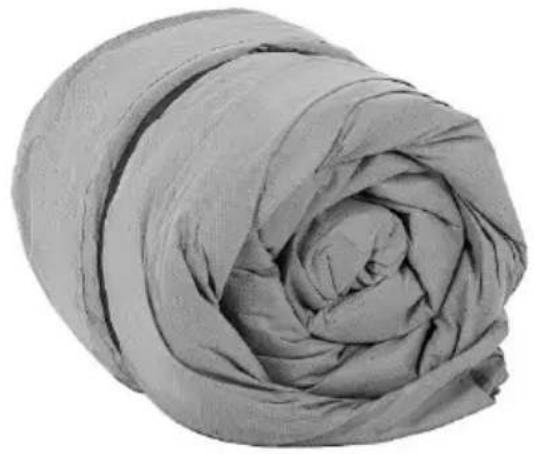

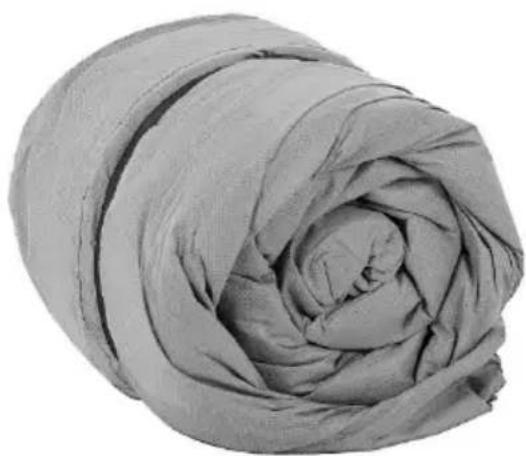

For convenient transport the product is packed in a bag. The bag itself is secured for transport with an additional strap.

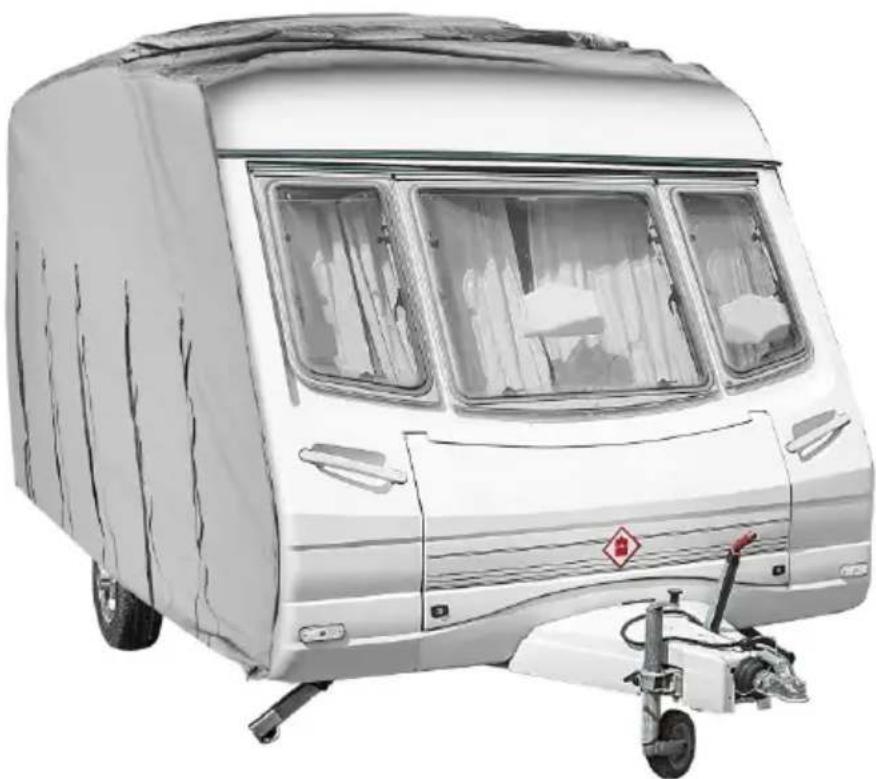

Side view of a white van with a covered cover and a small electric scooter nearby (no visible text or symbols)

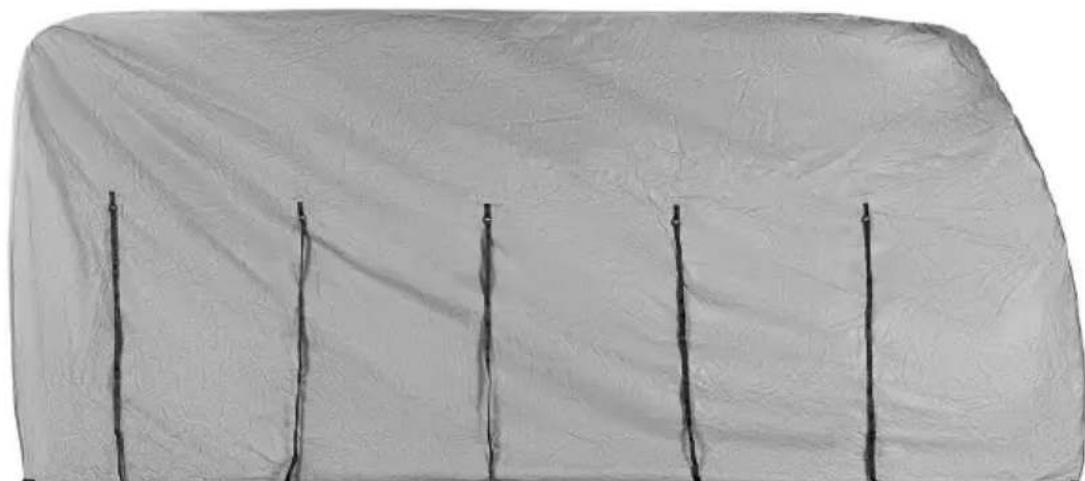

There are zippers on the corner of the cover - they enable access to each of the walls of the trailer without the necessity of taking off the entire cover.

Striped white fabric or material with four vertical black lines, no visible text or symbols

Special straps on the side walls (to be pulled under the bottom of the trailer) serve to secure the cover and prevent it from being blown away by the wind.

3.2. Preparation

BEFORE PUTTING ON THE COVER:

• the trailer should be as clean and dry as possible.
- The wheels of the trailer must be immobilized (parking brake applied) and stabilizer bars placed on the corners of the trailer.
- Make sure all windows are closed, internal heaters and refrigerators are turned off, and there are no loose and/or protruding objects such as antennas on the surface of the trailer.
- Be aware of any protruding and/or sharp edges, especially metal edges, that could potentially damage the cover.

At least 2 people are required to put the cover on and the use of a ladder or platform os recommended.

The cover should be pulled over the trailer starting from the front of the trailer, i.e. the side with the hitch to the vehicle.

To make the process easier you can unzip the zippers at the ends of the cover. After pulling the cover over the entire trailer, pull the straps located on one of the side walls of the cover underneath the trailer.

Attach their prongs to the corresponding slots on the other, parallel side of the cover. Tighten the straps so that the cover fits snugly against the side walls of the trailer, but do not overtighten to prevent damage to the cover itself.

Assemble the cover in the reverse order of putting it on.

IMPORTANT: Before folding the unused cover into a bag, make sure it is free of debris and most importantly dry.

Store in a dry area away from direct heat sources.

3.3. Cleaning and maintenance

a) T o clean the surface, use a soft brush or warm water with a soft sponge.
b) Dry the product well after each cleaning with water before reusing it or storing it.
c) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) for cleaning, as these may damage the surface of the material which the product is made of.
d) Do not wash or dry clean!

Dane techniczne

Side view of a white van with a covered cover and a small electric scooter nearby (no visible text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols

Side view of a white van with a covered cover and a small electric scooter nearby (no visible text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols

Two fabric pieces: a plain sack and a rolled-up bundle, both with no visible text or symbols.

Side view of a white van with a covered cover and a small electric scooter nearby (no visible text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols

A gray, textured, oval-shaped object with a small protrusion at the top (no visible text or symbols)

Folded fabric with a spiral pattern, no text or symbols visible

Side view of a white van with a covered cover and a small electric scooter nearby (no visible text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols

Side view of a white van with a covered cover and visible fuel tank (no text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols

A gray, textured, oval-shaped object with a small protrusion at the top (no visible text or symbols)

Folded fabric with a spiral pattern, no text or symbols visible

Side view of a white van with a covered cover and a small electric scooter nearby (no visible text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols

A gray, textured, sack-like object with a small protrusion at the top (no visible text or symbols)

Folded gray fabric with visible folds and texture (no text or symbols)

Side view of a white van with a covered cover and visible fuel tank (no text or symbols)

Striped white fabric or material with four vertical black lines, no visible text or symbols
