USER MANUAL Bolero DressCode Dry 7200V C CECOTEC

Top-down view of a black circular mechanical component with a central hole (no text or symbols visible)

bolero

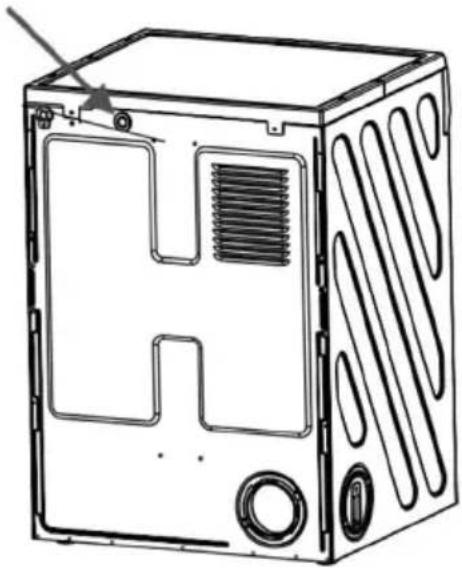

Safety instructions 15

1. Parts and components 118
2. Before use 118
3. Installation 119
4. Laundry preparation 121
5. Operation 123
6. Cleaning and maintenance 128
7. Troubleshooting 128
8. Technical specifications 130
9. Disposal of old electrical and electronic appliances 130
10. Technical support and warranty 131
11. Copyright 131

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• This user manual contains information on safety and important instructions related to the use and maintenance of the device. Take all the time you need to read this user manual before using the device and keep it in case you need to check it in the future or for new users.
• Each dryer has been tested by a quality control before commercialisation, guaranteeing its conditions of use.
• The warnings contained in this instruction manual do not cover all possible risks that may occur. Caution and care must be exercised during installation, maintenance and operation of the dryer.
• Comply at all times with the advice and warnings contained in this manual.
• Children under 3 years old must stay away, unless they are supervised.
• This dryer is suitable for indoor domestic use only. In case of commercial use, the warranty will be void.
• Do not install nor store the dryer outdoors.
• Use this product only for clothes whose care label specifies they are suitable for dryer.
• Cecotec is not responsible for damage caused by incorrect transport or use.
• Do not allow floor coverings to obstruct ventilation openings.
• Installation and repair of the appliance must only be carried out by Cecotec or an authorised repair agent.
• Cecotec is not liable for damage caused by repairs by unauthorised personnel.

• WARNING: never spray or pour water inside the dryer to clean it. There is a risk of electric shock.

• Leave at least 3 cm of space between the side and rear panels of the product and above the product if the appliance is placed under a worktop.

• If assembly/disassembly of the installation under a worktop is necessary, this must be carried out by an authorised service technician.
• Before installation, check the product for visible damage. Never install nor operate a damaged product.
• Do not let any animal near the dryer.
• Fabric softeners or similar products should be used according to the manufacturer instructions.
• Remove all the objects from the pockets: lighters, matches, etc.
• The appliance should not be installed behind a lockable door, a sliding door or a hinged door on the opposite side of the dryer door in such a way as to prevent the dryer door from being fully opened.
• WARNING: keep the ventilation openings in the housing of the appliance or in the built-in structure free of obstructions.
• Before contacting the local authorised service provider for the installation of the dryer, check the information in the user manual to make sure that the electrical installation and water connection are available. If they are not, you can call a qualified electrician and plumber to make the necessary adjustments.
• The preparation of the dryer location is the responsibility of the customer, as well as the electrical and sewage installation. Before installation, check the dryer for any damage. If it is damaged, do not install it. Damaged products may be a risk for your health.

• Install the dryer on a flat and stable surface.

• Run the dryer in an environment free from dust with good air ventilation.

• You should not reduce the space between the dryer and the floor with objects like carpets, wood or cloths.
• Do not block the ventilation grids on the base of the dryer.
• Once the dryer is installed, the connections must remain intact. When installing the dryer, make sure that the rear surface is not resting on something (a tap, a socket, etc.).
• The operating temperature of the dryer ranges from 5 °C to 35 °C. When operating at temperatures outside this range, the operation may be adversely affected, and the appliance may be damaged.
• If the room temperature is below 0 °C, the dryer may be damaged by freezing.
• Be careful when transporting the appliance, as it is really heavy. Always wear safety gloves.
• Always install the appliance against a wall.
• The rear part of the appliance must be installed against a wall.
• If the appliance is placed on a stable surface, use a spirit level to check it is completely stable. If it is not stable enough, adjust the feet until it is firm. Repeat the same process every time you relocate the appliance.
• Do not place the dryer on the power cable.
• Do not place hot and heavy objects on top of the dryer.
• Use the provided hoses, do not reuse old hoses.
• Do not misuse it, do not stand, sit or place any heavy object on the door of the dryer.
• Do not attempt to open the door while the dryer is in operation as there is a risk of burns. Do not leave the door open, as it could cause accidents.

• The tumble dryer door can only be opened after the drying programme has been completed.

• Do not force the controls.

• The dryer must only be used for its intended purpose as described in this manual.
• Do not use the tumble dryer if any parts are missing or broken or if any protections or panel have been removed.
• This section contains safety instructions to help protect you against the risk of personal injury or property damage. Failure to follow these instructions will void the warranty.
• Read these instructions carefully before assembling or using the appliance, as they contain important information that will help you get the best out of your equipment.
• It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.
• The appliance should not be powered by an external switching device, such as a timer. It should not be connected to a circuit that is regularly switched on and off by some kind of drive.
• Always use an approved socket outlet that is capable of carrying a current greater than 10A.
• Do not touch the plug with your hands wet. Always pull the plug to disconnect the appliance, otherwise you may suffer an electric shock.
• Do not use the dryer with wet hands or wet bare feet.
• Connect the dryer to a grounded, fuse-protected outlet. The installation of an earthed socket must be carried out by a qualified electrician. Cecotec is not responsible for any damage or loss resulting from the use of the dryer without grounding as required by local regulations.
• The voltage and admitted fuse protection are indicated on the type label (for the type label, see General information).

• The voltage and frequency values indicated on the type label must be the same as those in your house.

• Unplug the dryer if it will not be used for a considerable period of time and during installation, maintenance, cleaning and repair work. Otherwise, it could damage the dryer.

• The socket must be accessible at all times after the installation.
• For safety reasons, it is recommended to disconnect the plug after the programme has finished.
• Check the power cord regularly for visible damage.
• A damaged cord/plug may cause a fire or electric shock. When damaged, they must be replaced. This should only be carried out by qualified personnel, Cecotec or the after-sales service, in order to avoid danger.
• To prevent any risk of fire or electric shock, do not use extension leads, multi-socket adapters or adapters to connect the dryer to the mains.
• When the dryer is in operation, do not unplug the power cable. When not in use, it is advisable to disconnect the plug, do not pull the power cable. Do not touch the power cable or plug with wet hands.

Children safety

• This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance of this appliance should not be carried out by children without supervision.
• Do not let unattended children come near the machine.

• Children could get trapped inside the device, which could lead to death.

• Do not allow children to touch the machine while it is running. The surface becomes extremely hot and could cause damage in the skin.

• Keep the packaging material out of the reach of children.
• If detergent or cleaning materials are swallowed or come into contact with your skin or eyes, poisoning and irritation may occur.
• Keep the cleaning material out of the reach of children. Electric products are dangerous for children.
• Keep children away from the machine while in use.
• To prevent children from interrupting the drying cycle, you can activate the child lock to prevent any changes to the programme in progress.
• Do not allow children to seat or climb on or inside the product.

Product safety

• Due to the risk of fire, NEVER introduce in the dryer the following garments:
• Do not introduce unwashed clothes in the dryer.
• Garments that have been stained with substances such as cooking oil, acetone, alcohol, petrol, paraffin, stain removers, turpentine, waxes or wax removers should be washed with hot water and an extra amount of detergent before drying in the dryer.
• Cleaning cloths and mats containing residues of flammable cleaning agents, acetone, gases, petrol, gasoline, stain removers, turpentine, waxes, wax removers, dry cleaning solvents or chemicals.
• Garments with traces of hairspray, nail polish remover and similar substances.

• Garments that have been used for cleaning with industrial chemicals (as in chemical cleaning).

• Garments containing parts or accessories with any type of foam, sponge, rubber or rubber-like material, such as latex foam sponges, shower caps, waterproof fabrics, custom-made clothing and foam pillows.

• Garments with padding or damaged parts (pillows or jackets). Foam released from these garments could cause a fire during the drying process.
• Using the dryer in environments containing flour or coal dust may cause an explosion.
• Wet laundry may be dried in the tumble dryer only after dehydration, i.e. no water should drip onto the electrical parts and damage the tumble dryer causing a potential hazard.
• When the tumble dryer is in operation, do not use flammable sprays nearby. If a gas leak occurs, do not connect or disconnect the plug or switch on the appliance.
• Do not store cigarettes, lighters, dry ice or other flammable and/or explosive materials inside the tumble dryer.
• ATTENTION: underwear with metal reinforcements should not be put in the dryer. Damage to the dryer may occur if the metal reinforcements become detached or lost during drying.
• FIRE: R290
• Risk of fire and damage! This appliance contains environmentally friendly but flammable R290 refrigerant gas. Keep open flames and sources of fire away from the appliance.
• Refrigerant must be disposed of professionally, as it may cause eye injury or ignition. Make sure the refrigeration-circuit pipes are not damaged before disposing of them correctly. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose to flame.

Correct use

• ATTENTION: never stop the dryer before the end of the drying cycle unless all items are quickly removed and spread out to dissipate the heat.
• ATTENTION: make sure that no animals enter the dryer. Check the interior of the dryer before use.
• ATTENTION: overheating of the laundry inside the dryer may occur if you cancel the programme or in case of an electrical failure during the operation of the dryer. This concentration of heat can cause combustion, so be sure to activate the ventilation programme to cool it down or quickly remove the laundry from the dryer to hang it out to dissipate the heat.
• Use the dryer only for domestic use and for drying fabrics labelled as suitable for drying. Any use other than that for which it is intended is prohibited.
• In case of commercial use, the warranty will be void.
• This appliance is intended for indoor use only and should be placed on a flat and stable surface.
• Do not lean or sit on the dryer door. The dryer could tip over.
• In order to maintain a temperature that does not damage the laundry (e.g. to prevent the laundry from burning), a cooling process is started after the drying process. The programme ends after it. Always remove the laundry immediately at the end of the programme.
• ATTENTION: never use the dryer without the lint filter or with damaged lint filter.
• You must clean the lint filters after every use as indicated in the 'Lint filter cleaning' section.
• The lint filters must be dried every time you clean them with water. Wet filters can cause a malfunction during the drying process.

- You should not allow lint to accumulate around the dryer (not applicable to those appliances for outdoor ventilation of the building).

- IMPORTANT: you should not reduce the space between the dryer and the floor with objects such as carpets, wood or panelling, otherwise it will not be possible to ensure sufficient air inlet to the appliance.

- Do not install the dryer in rooms with a risk of freezing. Freezing temperatures adversely affect the performance of the dryer. Condensed water freezing in the pump and hose can cause damage.

- ATTENTION: you cannot install a washing machine on the dryer. Pay attention to the following warnings to place the dryer on the washing machine.

- ATTENTION: the dryer can only be placed on washing machines with the same or higher capacity.

- To use the dryer on top of a washing machine, you must place a fixing element between the two appliances (NOT INCLUDED). The fixing element must be placed by an authorised service provider.

- Place the products on a stable floor with this load capacity.

INSTRUCTIONS DE SÉCURITÉ

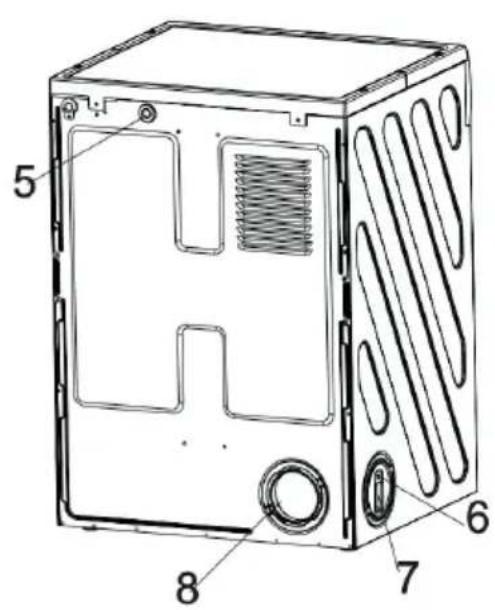

1. Control panel
2. Door
3. Appliance body
4. Adjustable feet
5. Thermostat reset button
6. Side ventilation outlet
7. Ventilation hose cover
8. Rear ventilation outlet

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the device if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Make sure that the electrical connections comply with the installation instructions.
• Remove the polystyrene protection parts and any other packaging material from the drum.
• Before using the dryer for the first time, it is recommended to put some damp cloths inside the drum and set a drying cycle of 30 minutes. This process will help to remove any dust or dirt that may be inside the dryer.

Box content

• Dryer
• Extraction tube
• Instruction manual

3. INSTALLATION

• Do not place the dryer on the power cable.
• The electrical installation of this appliance must be carried out by a professional electrician or qualified technician.
• If the dryer has to be moved, transport it vertically.
• Remove all packaging before starting the dryer.
• Open the bag with the accessories and check that none are missing.

Warning:

This tumble dryer is not suitable for use as a built-in appliance.

Suitable location for installation

• For convenience, it is recommended to install the dryer next to or near the washing machine.
• During the drying cycle, it is normal for the dryer to emit a certain amount of warm, moist air, which should be exhausted from the room as soon as possible to prevent condensation from forming. This can usually be achieved organically by installing the dryer in a well-ventilated room or near an open window. However, it is advisable to exhaust the air inside the dryer to the outside using the vent hose supplied with the appliance. The hose can be led outside through a window or permanently connected to a wall vent.
• Avoid installing the driver in a place where dirt tends to accumulate.
• Make sure that no objects or materials obstruct the air inlet grilles at the rear of the dryer.
• To minimise vibration and noise during use, the dryer should be placed on a stable and level surface.

Note: if the floor is uneven, adjust the adjustable feet. Do not place wood pegs or other supports under the base of the feet.

Level adjustment

• If the dryer is not properly levelled, vibrations may occur.
• To check that the appliance is stable, stick it to a corner or wall and push it towards it slightly. If you notice that the appliance moves, it is not level, and you will need to readjust the feet.

NOTE: do not place objects that may reduce the space between the dryer and the floor, such as carpets or wood, as this may cause heat to build up and affect the proper functioning of the appliance.

Warning

The hot air emitted by the dryer can reach temperatures up to 60 °C . Therefore, avoid installing it on floors that are not resistant to high temperatures.

ENGLISH

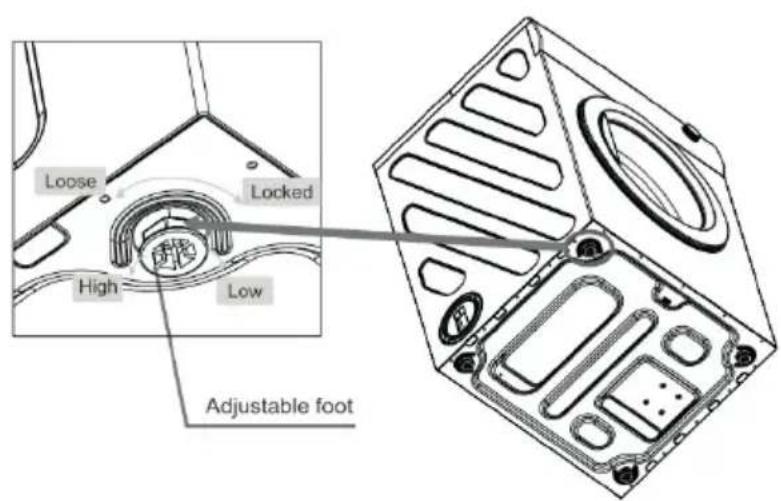

Adjustable feet

Turn the feet to the right and left until the dryer is level and the feet are firmly placed on the floor. Fig. 2

Do not remove the feet under any circumstances.

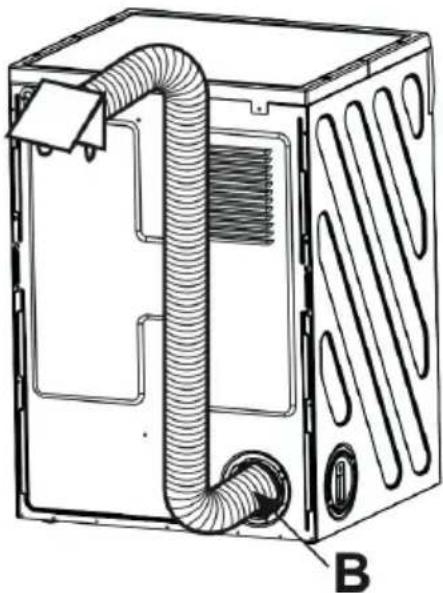

Connecting the vent hose. Fig. 3

Note: to facilitate the installation of the ventilation hose, the dryer has two vent outlets: one at the rear and one on the left side.

1. Connect the ventilation hose to the vent outlet of your choice.

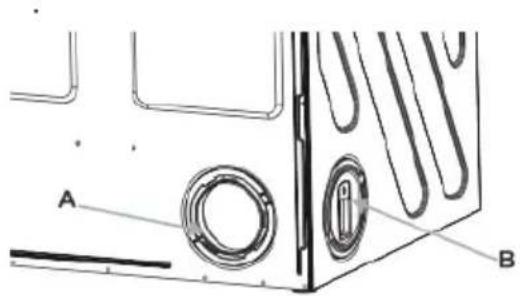

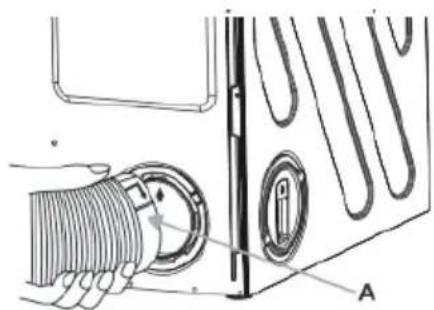

2. To connect to the rear vent outlet, pull the nozzle (A) from the outlet and align the arrows on the hose with the arrows on the nozzle.
3. Thread the hose in the direction of the arrow and push it firmly until it clicks into place.
4. Then, seal the unused vent outlet with the supplied vent hose cover (B).

Tips

• If the ventilation hose is too long and the room temperature is low, moisture may condense inside the hose. This is a normal phenomenon.

• To prevent waste water from collecting in the hose or flowing back into the dryer, it is recommended to drill a small hole ( 3 mm) in the bottom of the hose and place a container just below to collect the condensed water.

• Once connected to the dryer, route the vent hose to the desired outdoor outlet.

NOTE: avoid kinking the hose as much as possible.

1. If you choose to connect the hose to a fixed wall vent, contact a qualified technician for installation.

Warning

• Do not connect the vent hose to a hood, chimney or flue that is designed to exhaust fumes from other combustion appliances.
• To avoid condensation problems, it is essential that the dryer is equipped with a flexible hose that allows the hot air from the appliance to be channelled to the outside.
• To prevent the appliance from overheating, it is important that the vent outlet is not obstructed.
• If the dryer is installed next to other kitchen units, make sure that they do not crush the vent hose. If the hose is slightly crushed, the drying efficiency will be reduced, which will prolong the drying time and increase energy consumption. If the hose is fully crushed, the dryer's safety circuit breakers may be activated.

Electric connection

The electrical installation of this appliance must be carried out by a professional electrician or qualified technician.

Warning

- The appliance must be connected to an earthed socket.

• The manufacturer disclaims any liability in the event of non-compliance with this safety measure.
• Before starting the dryer, make sure that the mains voltage values correspond to those indicated on the rating plate of the appliance.

4. LAUNDRY PREPARATION

Practical tips on drying clothes

It is recommended not to dry particularly delicate fabrics such as net curtains, wool, silk, garments with metal trim, nylon stockings, bulky materials such as anoraks, blankets, duvets, sleeping bags, down-filled quilts and any items made of foam rubber or similar materials.

Follow the drying instructions on the garment labels.

Tumble dry

Normal drying

Delicate drying

Do not tumble dry

• Close bed linen covers and pillowcases to prevent smaller items of clothing from getting rolled up inside them.
• Close zips, fasten brackets and hooks, fasten buttons on shirts, knot or tie fabric belts and apron strings, etc. To achieve uniform drying, sort the garments according to the type of fabric and the desired level of drying.
• Do not over-dry clothes, this will prevent creasing and save energy.
• It is recommended to separate dark clothes from lighter coloured or lint-loving clothes such as towels.
• Spin the laundry thoroughly before drying.
• Garments that require less care, such as shirts, should be spun briefly before drying.
• Knitted fabrics, such as underwear or lingerie, may shrink slightly during the drying cycle. Do not over-dry this type of garment. When buying garments made from this type of fabric, be aware that they tend to shrink when tumble-dried, so it is advisable to choose one size larger.
• Starched garments can also be put in the dryer. To achieve the desired starched effect, select the iron dry programme. To remove starch residues, wipe the inside of the drum after the drying cycle with a damp cloth and dry it thoroughly.
• To avoid the appearance of static electricity at the end of the drying cycle, use a suitable fabric softener when washing the laundry or a specific product for dryers.
• When the drying cycle is finished, remove the laundry from the dryer.

ENGLISH

• If the laundry is still damp after drying, you can programme a post-drying cycle lasting at least 30 minutes. This will be necessary especially in the case of multi-layered garments, such as shirt collars, pockets, etc.
• Remove all metal objects from pockets (such as hairpins or clips, etc.).
• To prevent tangling or snagging of garments, close zips and duvet covers, tie drawstrings or ties on aprons, etc.
• Before tumble drying, turn double-layered garments, such as quilted anoraks, inside out to prevent damage. In this way, they will dry better.
• Remove all the objects from the pockets such as lighters and matches.

Maximum load capacity

The maximum recommended load capacities for each programme can be found in the section "Drying programmes".

Practical advice

• Cotton and linen: fill the drum to the maximum but do not overload it.
• Synthetic fabrics: fill the drum only half full.
• Delicate fabrics and wool: fill the drum less than half full.
• Try to use the maximum recommended load capacity to save energy.

Dry load weight

The following load weights are indicative:

Laundry Dry load weight (g)	Laundry Dry load weight (g)
Bathrobes 1200 g Dresses 200 g
Handkerchiefs 100 g Women's underwear 100 g
Duvet covers 700 g Work clothes 600 g
Bed sheets 500 g Shirts 200 g
Pillowcases 200 g Pyjamas 500 g
Cloth tablecloths 250 g Blouses 100 g
Towels 200 g Men's underwear 100 g
Tea towels 100 g

5. OPERATION

Control panel

Fig. 5

1. Start/pause button
2. Anti crease function button
3. Delay start button
4. Drying type button
5. Buzzer button
6. Programme knob

Daily use

Loading the dryer

1. Open the door.
2. Separate and unfold the laundry and put it in the dryer.
3. Close the door. Make sure that no clothes are jammed between the door and the seal.

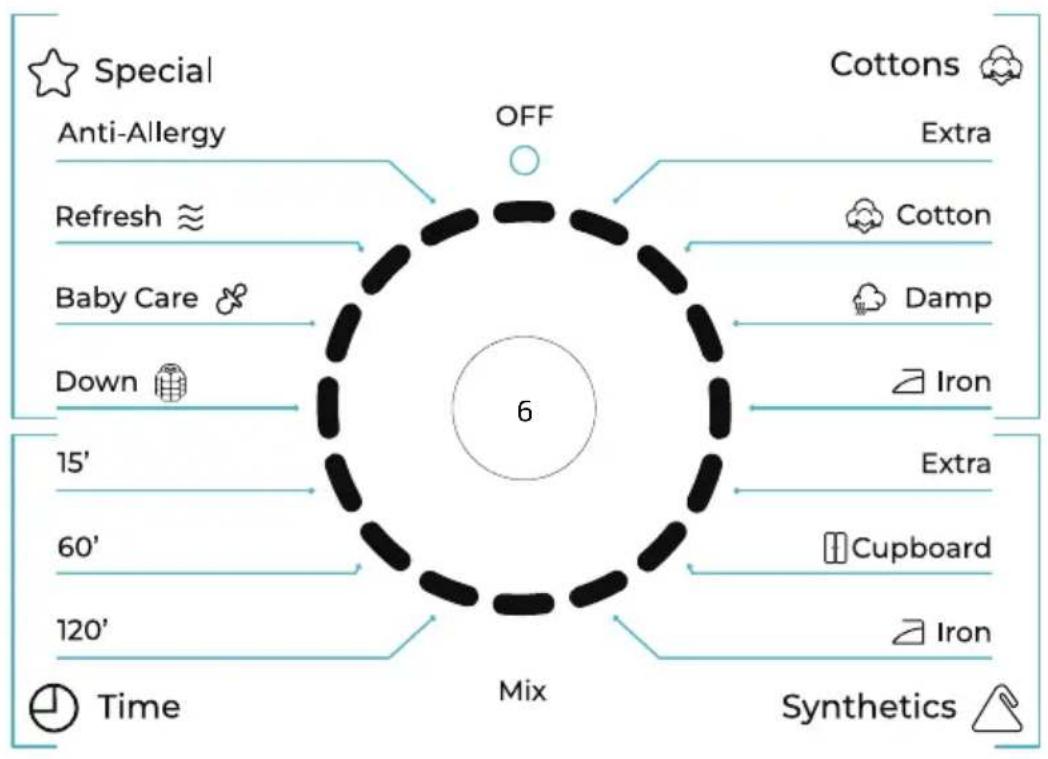

Selecting the drying programme

1. Turn the programme knob to select the desired programme. The indicator light of the selected programme will light up.

NOTE: the programme will be cancelled if no button is pressed within 10 minutes.

Note:

Cotton refers to the standard programme for cotton. This programme is suitable for drying cotton clothes with normal humidity and is the most efficient for this purpose from an energy consumption point of view.

Humidity sensor

The dryer is equipped with a humidity sensor which detects the remaining moisture content of the load and therefore automatically adjusts the drying time.

1. Select the drying programme according to the type of fabric of the laundry.
2. This system is automatically activated in the programmes Cottons, Synthetics, Baby Care and Down.

Setting the drying time

If the laundry is still wet after the end of the programme, you can adjust the drying time of the programme.

1. Select the 60 or 120 minutes programme for drying cotton garments and the 15 minutes programme for synthetic fabrics.
2. To cancel an ongoing programme, turn the programme knob to the OFF position.
3. Switch off the appliance before removing the laundry. To do this, turn the knob to the OFF position ○

ENGLISH

Additional functions

Some additional functions are available depending on the selected programme. These functions must be selected after selecting the desired drying programme and before pressing the start/pause button ▷ ◇

When you press to activate one of the functions, the corresponding indicator light will light up. If you press it again, the indicator light will switch off.

Start/pause button

1. After selecting the programme and drying functions, press the start/pause button to start the dryer.
2. The drying cycle will stop if you press the button again or if you open the door while the programme is in operation.
3. While the dryer is paused, you cannot select any programme or function, except for the buzzer and the anti crease function.
4. Press the start/pause button again to resume the programme.

Selecting the anti crease function

1. The anti crease function is automatically activated at the end of the drying programme. However, you can also increase the duration of this function while the programme is in standby mode or in progress.

2. To activate it, press the icon.

Activating the delay start function

This function allows you to delay the start time of the programme by a maximum of 24 hours.

1. Each time the ▶ icon is pressed, the time value will increase by 1 hour.
2. This function must be selected after selecting the desired drying programme and before pressing the start/pause button ▷ ◇
3. The countdown will start when you press the start/pause button ▷ and the corresponding indicator light will light up.
4. All other indicator lights will switch off.

Selecting the type of drying

This indicator light lights up when the drying programme is selected according to the spin speed of the dryer.

Activating/deactivating the beeping

The beeping can be activated or deactivated during the drying cycle.

1. To deactivate the beeping, press the 📁 × icon, the indicator light will turn off.
2. If you wish to activate it, press the icon again, the indicator light will turn on.

NOTE: the dryer will beep.

Display

The display shows the following information:

- The duration of the selected programme (in hours and minutes).

NOTE: it is automatically calculated according to the maximum load allowed for each type of fabric and the level of drying required.

- When the programme starts, the remaining drying time will appear on the display.

Delay start

- If you have enabled the delay start function ▶, the remaining time until the programme start time will be shown on the display.

- To activate the delay start, press the start/pause button . ▷ ◊

- If you want to check the selected programme, press the delay start button ▶ again. This will display the duration of the previously selected programme.

Wrong selection of functions

If you select an incorrect option or an option that is not compatible with the selected programme, the dryer will beep to warn of the error.

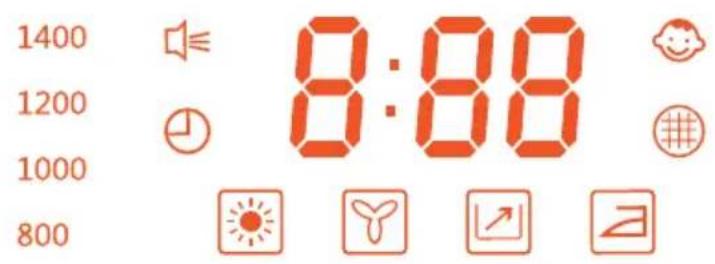

Indicator lights

- The indicator lights correspond to the following functions:

- Drying . This lindicator light shows that the dryer is in the drying phase.

- Cooling 📋. This lindicator light shows that the dryer is in the cooling phase. At the end of the drying cycle, an automatic cooling phase is activated for 5 to 10 minutes to dissipate the heat from the laundry.

- End of programme . This indicator light lights up when the cooling phase is over.

- Anti crease . This indicator light lights up when the anti crease function is selected.

- Lint filter 📋. This indicator light lights up after each drying cycle to remind you to clean the lint filter.

- Child lock . This indicator light indicates that the buttons on the dryer are locked.

- Buzzer . This indicator light lights up when the beeping is activated.

- Delay start . This indicator light lights up when the delay start function is selected.

Revolutions per minute indicator lights: these indicator lights light up when the drying programme is selected according to the spin speed of the dryer.

Thermostat reset

- If the heating element does not work during operation, the manual thermostat may have been activated.

- To restart, first turn the programme knob to the Synthetics position and press the start/pause button ▶ ◇

- After 20 minutes, press the thermostat reset button as shown in figure 6.

ENGLISH

End of programme

• All drying programmes end with a cooling phase lasting between 5 and 10 minutes.
• If the laundry is not removed at the end of the drying cycle, the anti crease function will be activated automatically (duration: maximum 10 minutes).
• If you continue without removing the laundry after the anti crease phase is over, the dryer will stop automatically. The dryer will beep for 15 seconds (if the function is activated) and END will appear on the display.
• To finish, turn off the dryer by turning the programme knob to the OFF position .

Warning

If the door is opened while the programme is in operation, you must first close the door and then press the start/pause button ▷ again to resume the programme from the point where it was interrupted.

After each use

Clean the lint filter.

Modifying the programme

1. To modify an ongoing programme, first cancel it by turning the programme knob to the OFF position

2. Select the new programme and press the start/pause button .

Warning

The dryer will enter standby mode in the following cases:

• After 10 minutes of inactivity, the appliance will enter standby mode and the display will show the symbol “- - -”.
• After 5 minutes of inactivity, the appliance will enter standby mode and the display will show the word "END".

Drying programmes

Programme Option Maximum		load (kg)	Description
Cottons Extra [ST56]	(Extra dry)Extra	7 kg For drying bathrobes, bath towels, jeans, work clothes, etc.
	Cotton 7 kg For drying bathrobes, bath towels, jeans, work clothes, etc.
	Damp (Damp)	7 kg For drying shirts, T-shirts, cotton trousers, etc.
	Iron (Iron dry)	7 kg For drying knitted garments, cotton shirts, etc.
Synthetics Extra	Extra (Extra dry)Extra	3.5 kg For drying sheets, bed linen, table linen, starched garments, etc.
	Cupboard dry (Dry for storage)	3.5 kg For drying sheets, table linen, synthetic fabrics, etc.
	Iron (Iron dry)	3.5 kg For drying synthetic fabrics.
Mix (Mixed)	Mix (Mixed)Mix	3.5 kg For drying knitted garments, shirts, etc.
Time (Drying time)	15', 60', 120' 7 kg For drying thick or multi-layered fabrics, especially plush. Ideal for loose garments or small loads of laundry.
Special	Down	4 kg For drying feather-filled garments.
	Baby Care	3.5 kg For drying baby clothes.
	Refresh [BH3C]	1.5 kg Allows to cool or ventilate clothes.
	Anti-Allergy 2 kg For drying underwear, shirts etc.

ENGLISH

Note: if the dry weight of the laundry does not exceed 1 kg, it is recommended that you select the Time programme.

6. CLEANING AND MAINTENANCE

Before cleaning the appliance or performing any maintenance task, make sure that it is unplugged from the mains.

Cleaning the surface of the dryer

To clean the outside of the dryer, use a cloth lightly dampened with soap and dry it thoroughly. Do not use methylated spirits, solvents or similar cleaning agents.

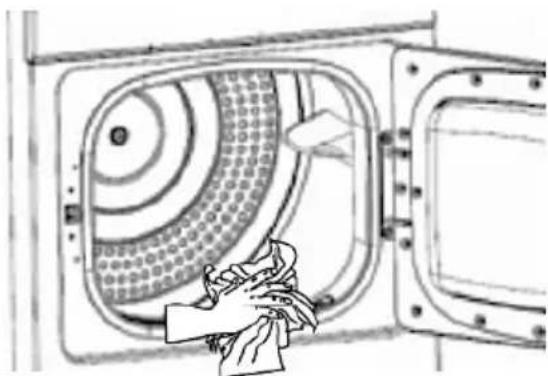

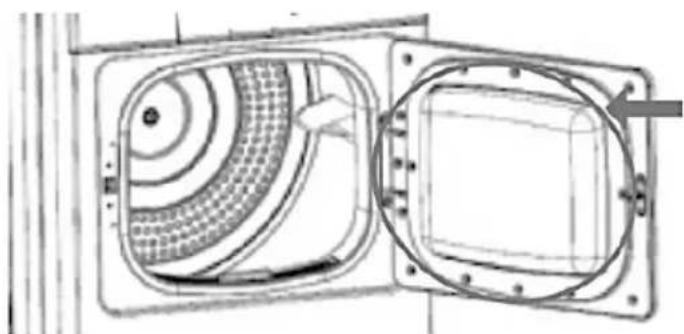

Cleaning the door

Regularly clean the inside of the door to remove lint. Thorough cleaning ensures that the dryer functions properly. Fig. 7

Lint filter cleaning

- After each drying cycle, the display will indicate that the programme has finished by showing "END", and the lint filter indicator light will light up to remind you to clean it. Fig. 8

- To clean the filter, remove it from its compartment.

WARNING: do not use the dryer without the filter in place.

7. TROUBLESHOOTING

- Some problems are due to lack of regular maintenance or neglect, which can easily be solved without calling a technician. Before contacting the official Cecotec Technical Support Service, please refer to the following section.

- When the dryer is switched on, the start/pause icon may flash to indicate that the appliance is not working. Once the problem is solved, press the start/pause button ▷ again to restart the programme. If, after performing the following checks the problem persists, contact the official Cecotec Technical Support Service.

Problem Possible causes Solutions
The dryer does not work	The plug is not plugged in. The door is open.Make sure that you have pressed the start/pause button ▷◇	Plug the power cord into the outlet. Close the door.Press the start/pause button ▷◇ again.
The laundry does not dry properly	The selected programme is not the right one.The filter is clogged.The laundry load is inadequate.	Select a different drying programme the next time you start the dryer (see section “Drying programmes”). Clean the lint filter.Observe the maximum recommended load capacity.
The light inside the drum does not switch on (depending on the model)	The light bulb has blown. Replace the light bulb.
The drying cycle is interrupted or terminated shortly after the start of the programme. “END” appears on the display	Not enough laundry has been loaded or the laundry is too dry for the selected programme.	Increase the drying level (e.g. from "Extra (Extra dry)" to "Damp").
The drying cycle takes too long	The dryer is overloaded with laundry.	Do not overload the dryer.

Note: if you are unable to identify or solve the problem, contact the official Cecotec Technical Support Service. When you do so, the Technical Support Service will ask you to indicate the model, serial number and date of purchase of the appliance, as this information will facilitate the identification of the problem.

In the event of contacting a professional technician to repair the fault, whether it is one of those mentioned above, or caused by incorrect use or installation, the cost of the service will be paid by the user, even if the appliance is under warranty.

ENGLISH

8. TECHNICAL SPECIFICATIONS

Product reference: 02158
Name: Bolero DressCode Dry 7200V C
Rated voltage 220~240 V
Rated frequency 50 Hz
Load capacity (max.) 7 kg
Full power 2350 W
Power (on) (W) 0.48
Power (off) (W) 0.21
Full load power consumption (kWh) 4.29
Programme duration at full load (min) 160
Degree of waterproofing IPX4
Dimensions (W x D x H) (mm) 595 X 555 X 850

Note: all values given in the table have been obtained in the laboratory from tests carried out using the standard programme for cotton in accordance with European Standard EN 61121:2013. These values may vary depending on the type of fabric, residual humidity, ambient conditions and fluctuations in the mains voltage.

*Altering appliance specifications or attempting to modify the appliance in any way may be dangerous.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

The image contains only a stylistic horizontal line, which must be ignored according to Rule 2. No text or placeholder characters should be output.

Nem sensörü

The image contains two horizontal lines, each containing a series of rectangular blocks. The top line is outlined with three vertical tick marks and the bottom line is outlined with four vertical tick marks. There are no text or symbols present in the image. Therefore, the correct OCR output must reflect the absence of any textual content.

[EMPTY]

1. 2.

Technical diagram of a front-loading washing machine with labeled parts including door, vent, and side panels

5 6 7 8

Fig./Img./Abb./Afb./Rys.1

Loose Locked High Low Adjustable foot

Fig./Img./Abb./Afb./Rys.2

A B

Diagram of a hand holding a coiled hose next to a device with circular components and labeled point A (no text or symbols beyond labels)

Fig./Img./Abb./Afb./Rys.3

Technical line drawing of a microwave oven with coiled insulation and ventilation duct (no text or symbols)

Fig./Img./Abb./Afb./Rys. 4

1400 1200 1000 800 8:00

12345 × ≡ ▶ ▶ ◇

Fig./Img./Abb./Afb./Rys. 5

Technical line drawing of a mechanical device casing with internal components and mounting holes (no text or symbols)

Fig./Img./Abb./Afb./Rys. 6

Technical line drawing of a mechanical component with internal layered structure (no text or symbols)

Fig./Img./Abb./Afb./Rys. 7

Diagram of a hand cleaning a large window with patterned panels (no text or symbols)

Fig./Img./Abb./Afb./Rys. 8

www.cecotec.es
