Product type	Medical device for relieving insect bites
Brand	Medel
Model	Stick (MEDEL STICK)
Dimensions (L x W x H)	98.3 x 35.9 x 20 mm
Weight (with batteries)	47 g
Power supply	2 AAA 1.5 V LR03 batteries
Treatment temperature	50 °C ± 2 °C
Duration of use	3 seconds or 6 seconds
Expected number of uses	Approximately 300
Cleaning method	Soft dry cloth; disinfect the heating disc with a cloth moistened with alcohol
Protection rating	IP (protected against solid objects ≥ 1 mm and falling water drops at an angle)
Warranty	5 years
Package contents	1x Stick, 2x AAA batteries, 1x instruction manual
Intended use	Alleviate itching and swelling from insect bites/stings by local hyperthermia
Contraindications	Diabetes, children under 3 years, damaged or sensitive skin, etc. (see manual)
Repairability	Do not open, repair only by authorized customer service
Functions	Two heating durations (3s/6s), automatic shut-off, sound signal, LED indicator
Batteries	Use only AAA batteries, replace both at the same time

Frequently Asked Questions - Stick Medel

How to use the Medel Stick for an insect bite?

After removing the stinger, turn on the device by sliding the switch to ON. Place the heating disc on the bite. Press the activation button once for 3 seconds (sensitive skin) or twice for 6 seconds (normal skin). A sound signal indicates the end of the treatment. The device turns off automatically.

What are the contraindications of the Medel Stick?

Do not use the device in case of diabetes, on children under 3 years, on damaged, burned, irritated or scarred skin, in case of fever or sensitivity disorders. Consult a doctor if in doubt.

How long does a treatment session last?

Two durations are available: 3 seconds (first use or sensitive skin) and 6 seconds (regular use). Do not exceed 5 applications per hour on the same area.

What to do if the device does not turn on?

Check that the switch is in the ON position (symbol I). If the indicator does not light up, the batteries may be empty: replace both AAA batteries with new ones. If the problem persists, contact customer service.

How to clean the Medel Stick?

Turn off the device, remove the batteries and let it cool. Clean with a soft dry cloth. To disinfect the heating disc, use a cloth moistened with alcohol. Never use harsh detergent and do not immerse the device in water.

Can I use the Medel Stick on a child?

The device can be used on children over 12 years without supervision. For children 3 to 12 years, adult supervision is required. It is prohibited on children under 3 years.

When should I see a doctor after a bite?

Consult a doctor immediately if symptoms persist or worsen, in case of tick bite, or if signs of allergic reaction appear: generalized itching, dizziness, nausea, difficulty breathing.

How to replace the batteries of the Medel Stick?

Open the battery compartment cover by sliding it. Remove the used batteries and insert two new AAA 1.5 V LR03 batteries, respecting polarity (+/-). Close the cover until it clicks.

What to do if the device gets too hot or causes irritation?

If the heat seems too intense, stop using the device immediately. The temperature may cause slight redness. In case of persistent irritation, stop using the device and consult a doctor.

What is the warranty of the Medel Stick?

The device has a 5-year warranty against material or manufacturing defects from the date of purchase. The warranty does not cover accessories or normal wear. Keep your receipt.

USER MANUAL Stick Medel

White remote control device with blue circular button and red 'model' logo (no text or symbols on body)

CE0483

EN Insect bite healer Instructions for use......21

Read these instructions for use carefully and keep them for later use, be sure to

make them accessible to other users and observe the information they contain.

Dear customer,

Thank you for choosing one of our products. Our name stands for high-quality, thoroughly tested products for applications in the areas of weight, blood pressure, body temperature, pulse, electrostimulation, beauty and air.

With kind regards,

Your Medel team

Table of contents

1. Included in delivery .....22

2. Signs and symbols ......22

3. Proper use ....24

4. Warnings and safety notes......25

5. Device description .....29

6. Initial use ....30

7. Usage ......30

8. Cleaning and maintenance .....32

9. What if there are problems? .....33

10.Disposal 35

1. Technical specifications .....36

12.Warranty/service ....37

1. Included in delivery

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. In case of any doubt, do not use the device, and contact your retailer or the specified Customer Service address.

1 x Medel Stick
2 x batteries, type AAA (LR03 1.5 V)
1 x instructions for use

2. Signs and symbols

The following symbols are used on the device, in these instructions for use, on the packaging and on the type plate for the device:

	WARNINGWarning notice indicating a risk of injury or damage to health
	IMPORTANTSafety note indicating possible damage to the device/accessory
	Product informationNote on important information
	Observe the instructionsRead the instructions before starting work and/or operating devices or machines
	Application part, type BF
	On
	Off
	Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE
	Do not dispose of batteries containing harmful substances with household waste
	Manufacturer
	Dispose of packaging in an environmentally friendly manner
	Serial number
IP 42	IP classDevice protected against solid foreign objects ≥ 1 mm and against water dripping at an angle
Storage/Transport	Permissible storage and transport temperature and humidity
	Permissible operating temperature and humidity
CE0483	This product satisfies the requirements of the applicable European and national directives.

3. Properuse

Intended use

The insect bite healer is intended for relieving itching and swelling caused by insect bites or stings by applying heat (local hyperthermia).

Target group

Only use the insect bite healer to treat insect bites or stings. The insect bite healer is intended for domestic/private use only, not for commercial use.

Indication/clinical benefits

Many insect bites and stings result in painful and swollen sting and bite marks. These bites/stings often cause severe itching. Itching and swelling can be alleviated by the targeted effect of heat on the affected area.

4. Warnings and safety notes

Contraindications

• Do not use the device if you suffer from diabetes. Sensitivity to pain could, in certain circumstances, be reduced and diabetics may burn themselves.
• Do not use the device on people with disabilities, children under 3 years old or people with reduced sensitivity to heat. This includes people with skin alterations due to illness or scarred tissue in the application area, after taking pain relief medication, drinking alcohol or taking drugs.
• Do not use the device on acutely or chronically diseased (injured or irritated) skin (e.g. inflamed skin, whether painful or not, reddened skin, rashes, (e.g. allergies), burns, frostbite, bruises, swellings, both open and healing wounds, and post-operative scars where the healing process could be affected).
• Do not use the device if you are suffering from a fever.
• Do not use the device on sensitive areas of skin.
• Do not use the device if you have any sensory impairment that reduces the feeling of pain (e.g. metabolic disorders).
• Do not use the device if you are using lotions, creams and gels locally at the same time.
• Do not use the device if you suffer from persistently irritated skin due to long-term heat application on the same area of skin.

General warnings

• Any person using it on themselves must be over 12 years old. The product should only be used on children under 12 years old if supervised or assisted by an adult.
• Before using the device, consult your doctor if you have any skin conditions, serious illness (in particular if you have a propensity to thromboembolic conditions or recurrent malignant growths), unexplained chronic pain in any part of the body.
• Seek medical advice immediately if the symptoms persist despite using the insect bite healer and stop using it.
• Seek medical advice immediately if the symptoms worsen whilst or after using the insect bite healer and stop using it.
• Seek medical advice immediately if it is a tick bite. The bite may result in transmission of pathogens such as tick-borne encephalitis (TBE) or borreliosis.
• Seek medical advice immediately if the first signs of increased itching, skin redness, swelling, dizziness, nausea, shortness of breath, formation of wheals or a drop or increase in blood pressure occur.
• Do not use near to the eyes, on the eyelids, mouth or on mucous membranes.
• Do not allow children to play with the device.
• Store the device out of the reach of children and pets.
• Keep packaging material away from children (risk of suffocation).

• Please note the general hygiene measures when using the insect bite healer.

• The device is not a substitute for medical consultation and treatment. Always consult your doctor if you are experiencing any pain or are suffering from an illness.

• If the device does not work properly, or if you feel unwell or experience pain, stop using it immediately.

General precautions

• Do not touch the device with wet hands. Do not allow water to spray onto the device. Only operate the device if it is completely dry.
• Do not use any detergents or solvents to clean and maintain the device. If liquid penetrates the device this could cause damage to the electronics or other device parts and lead to a malfunction.
• The device should only be used by one person; use by multiple people is not recommended.
• Protect the device against direct sunlight and store in a dry place.
• Protect the device from impacts, moisture, dust, chemicals, marked temperature fluctuations and nearby sources of heat (ovens, heaters).
• Ensure that no water enters the device. If this should happen, remove the batteries and only use the device again when it is completely dry.
• If you store the device, no heavy objects should be placed on top of it.
• Before use, ensure that there is no visible damage to the device or accessories. In case of any doubt, do not use the device, and contact your retailer or the specified Customer Service address.
• Store the device in a location protected against climatic influences. The device must be stored in the environmental conditions specified.

- Do not leave the device unattended while in use. If the device malfunctions, switch it off and stop using it.

Measures for handling batteries

• If your skin or eyes come into contact with battery fluid, rinse the affected areas with water and seek medical assistance.
• Choking hazard! Small children may swallow and choke on batteries. Therefore, store batteries out of the reach of small children.
• Risk of explosion! Do not throw batteries into a fire.
• If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.
• Do not disassemble, open or crush the batteries.

• Observe the plus (+) and minus (-) polarity signs.
• Protect the batteries from excessive heat.
• Do not charge or short-circuit batteries.
• If the device is not to be used for a relatively long period, take the batteries out of the battery compartment.
• Use identical or equivalent battery types only.
• Always replace all batteries at the same time.
• Do not use rechargeable batteries!

Note on electromagnetic compatibility

- The device is suitable for use in all environments listed in these instructions for use, including domestic environments.

• The use of the device may be limited in the presence of electromagnetic disturbances. This could result in issues such as error messages or the failure of the device.
• Avoid using this device directly next to other devices or stacked on top of other devices, as this could lead to faulty operation. If, however, it is necessary to use the device in the manner stated above, this device as well as the other devices must be monitored to ensure they are working properly.
• The use of accessories other than those specified or provided by the manufacturer of this device can lead to an increase in electromagnetic emissions or a decrease in the device's electromagnetic immunity; this can result in faulty operation.
• Failure to comply with the above can impair the performance of the device.

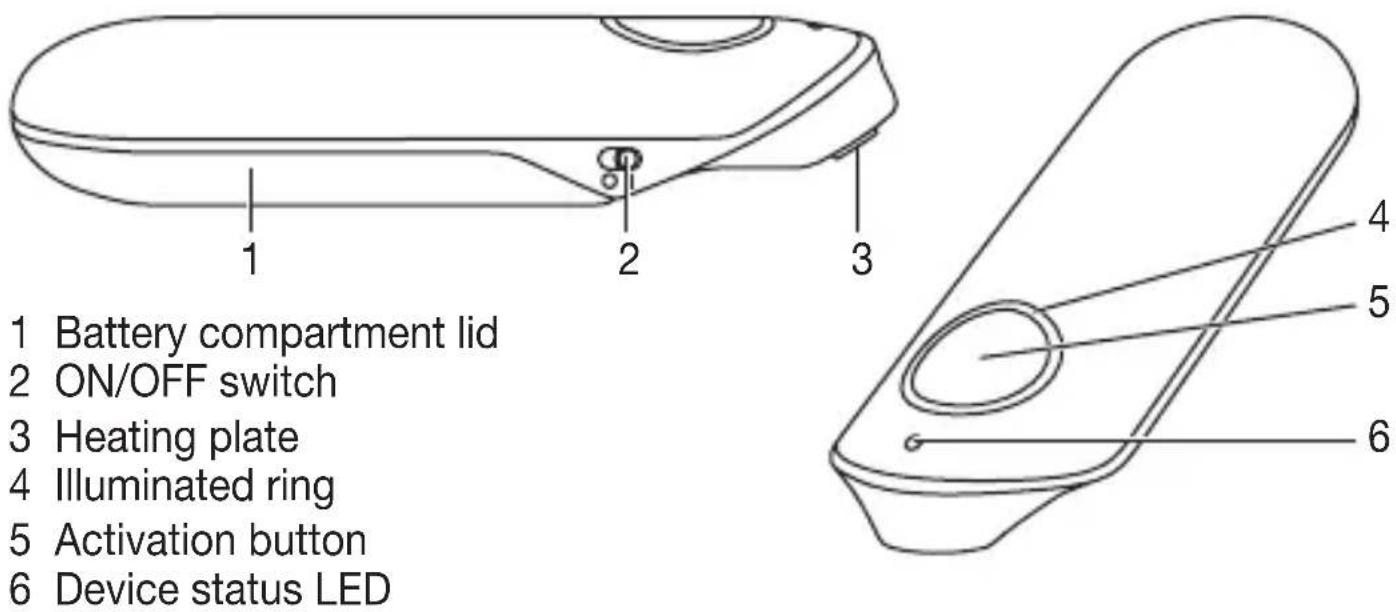

5. Device description

1 Battery compartment lid 2 ON/OFF switch 3 Heating plate 4 Illuminated ring 5 Activation button 6 Device status LED

6. Initialuse

Inserting the batteries

1. Push open the battery compartment lid (1).
2. Insert the batteries included in delivery into the battery compartment as shown inside the battery compartment. When inserting the batteries, ensure that the correct polarity (+/-) is observed.
3. Slide the battery compartment lid (1) closed until you feel and hear it click into place.

7. Usage

WARNING

Before use, make sure that there is no insect sting remaining in the area that was stung. Remove the sting carefully before use. Use immediately after the insect bite or sting achieves the best results. If you wait too long to treat the area that has been stung or bitten and itching and swelling have already started, the insect bite healer can only have a limited effect. Nevertheless, treat the area with the insect bite healer. Usually, itching can be relieved and healing can be sped up.

1. Slide the ON/OFF switch (2) towards the heating plate (3) with the symbol "I" for ON. The device status LED (6) lights up in blue and indicates to you that the device is ready to use.
2. You have the option to choose between 2 different application times, depending on how sensitive your skin is:
3. Place the heating plate (3) of the device on the area that has been stung or bitten.

- For a 3-second application, press the activation button (5) once. Half of the illuminated ring (4) lighting up blue indicates that the application is starting. This short application time is recommended for first use or use on sensitive skin.

- For a 6-second application, press the activation button (5) twice in quick succession. The blue illuminated ring (4) is completely lit up here and indicates that the treatment is starting. This application time is recommended for regular use on normal skin.

1. After the end of the application, an acoustic signal sounds, heating of the heating plate (3) is automatically stopped and the blue illuminated ring (4) goes out. Remove the heating plate (3) from the area of skin once the signal sounds.

IMPORTANT

Depending on the sensitivity of the person using the device and of the area of skin, the treatment temperature may feel unpleasant and cause slight skin redness and, in rare cases, irritated skin. If the heat function feels too hot, stop treatment immediately.

1. If required, you can use the heat function of the insect bite healer on the sting/bite again after a break of 2 minutes or also use it immediately on another sting/bite in a different area. The maximum number of 5 applications per hour on the same treatment area must not be exceeded.

2. If the device is no longer required, set it to "OFF" again using the ON/OFF switch (2). This is indicated by the "O" symbol. The blue device status LED (6) turns off.

3. Before storing, make sure that the device is switched off and the heating plate (3) has cooled down.

Battery warning

Before the battery level becomes too low for other applications, the device status LED (6) starts to flash 3x and an acoustic signal sounds 3x. Replace both batteries soon, as described in section 6.

8. Cleaning and maintenance

Observe the following hygiene instructions to avoid health risks:

• The device is intended for multiple uses.
• It is recommended that the device is cleaned before first use and each additional use.
• The device must be switched off, allowed to cool down and the batteries removed each time before cleaning.
• Use only soft, dry cloths for cleaning.
• Never use any substances for cleaning that could potentially be toxic if they came into contact with the skin or mucous membranes, or if they were swallowed or inhaled. Do not use any abrasive cleaning products and never submerge the device in water.
• Do not clean the device or accessories in the dishwasher.
• Avoid mechanical cleaning with brushes or similar, as this could result in irreparable damage.

- When using the device on multiple areas that have been stung and bitten, it is recommended that you clean the heating plate each time. This reduces the possibility of germs and bacteria being transferred from one area of skin to the next. Use a commercially available alcohol disinfection wipe to disinfect the heating plate.

1. What if there are problems?

Problem Possible cause	Solution
The device does not switch on.	The ON/OFF switch (2) is in the OFF position.	Slide the ON/OFF switch (2) into the ON position.
	The batteries are flat.	Replace both batteries as described in these instructions for use.
The device no longer gets hot enough.	The battery level is too low.	Replace both batteries as described in these instructions for use.
Device outputs 3 acoustic signals/ the device status LED (6) flashes – even after switching the device OFF and ON again.	Battery level is too low, meaning that the device may no longer be able to be operated.	Replace both batteries as described in these instructions for use.
Application cannot be started, even though the ON/OFF switch (2) is set to ON.	The device has switched off automatically, as the activation button (5) was accidentally pressed for longer than 2 seconds.	First switch the device to OFF using the ON/OFF switch (2) and then switch it on again as usual.
The device does not switch on, even though the batteries have been replaced and the ON/OFF switch (2) has been set to ON.	The device may be faulty.	Please contact Customer Services.
Device outputs 5 acoustic signals and the illuminated ring (4) flashes.	This indicates a potential malfunction.	Switch the device off and repeat the application again after 10 minutes.Please contact Customer Services if the fault occurs again.

10. Disposal

Repairing and disposing of the device

• Do not repair or adjust the device yourself. Proper operation can no longer be guaranteed in this case.
• Do not open the device. Failure to comply with this instruction will void the warranty.
• Repairs must only be carried out by Customer Services or authorised retailers. Before making a claim, please check the batteries first and replace them if necessary.
• For environmental reasons, do not dispose of the device in the household
  waste at the end of its useful life. Dispose of the device at a suitable local collection or recycling point in your country. Dispose of the device in accordance with EC Directive – WEEE (Waste Electri-
  cal and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal.

Disposing of the batteries

- Batteries must not be disposed of in the household waste. They may contain poisonous heavy metals and are subject to special refuse treatment.

- The codes below are printed on batteries containing harmful substances:

Pb = Battery contains lead,

Cd = Battery contains cadmium,

Hg = Battery contains mercury.

Pb Cd Hg

11. Technical specifications

Type BR 60
Model MEDEL STICK
Dimensions (L x W x H) 98.3 x 35.9 x 20 mm
Weight (with batteries) 47 g
Power supply 2 x 1.5 V AAA LR03 batteries
Max. temperature	50°C ±2°C (122°F ±3.6°F)
Functions 2 time settings (3s/6s)
Expected operating duration Approx. 300 applications
Permissible storage and transport temperature and humidity	-10 °C to 50 °C, relative humidity30% to 85%
Permissible operating temperature and humidity	10 °C to 40 °C, relative humidity30% to 85%

The serial number is located on the device or in the battery compartment. Subject to technical changes.

The device complies with the EU Medical Devices Directive 93/42/EE, the German Medical Devices Act (Medizinproduktgesetz) and the European standard EN 60601-1-2 (in accordance with CISPR 11, CISPR 14-1, CISPR-32, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11) and is subject to particular precautions with regard to electromagnetic compatibility.

12. Warranty/service

• The device is guaranteed for 5 years from the date of purchase against any defectsoriginating in materials or workmanship.
• The warranty consists of free replacement of defective components at the origin.
• The warranty does not cover accessories supplied and parts subject to normal wear and tear.
• The shipping costs of the appliance are borne by the user.
• The warranty shall lapse if the appliance has been tampered with, if the defect is caused by improper use or if the damage is not attributable to the manufacturer (accidental fall, improper transport, etc.).
• The warranty does not imply any compensation for damages, either direct or indirect, of any kind, to people or property during the period in which the product cannot be used.
• The warranty is valid from the date of purchase of the product certified by the receipt or the purchase invoice.

Assistenza [phone]

DEUTSCH

Mesures relatives aux piles

• The device is guaranteed for 5 years from the date of purchase against any defectsoriginating in materials or workmanship.
• The warranty consists of free replacement of defective components at the origin.
• The warranty does not cover accessories supplied and parts subject to normal wear and tear.
• The shipping costs of the appliance are borne by the user.
• The warranty shall lapse if the appliance has been tampered with, if the defect is caused by improper use or if the damage is not attributable to the manufacturer (accidental fall, improper transport, etc.).
• The warranty does not imply any compensation for damages, either direct or indirect, of any kind, to people or property during the period in which the product cannot be used.
• The warranty is valid from the date of purchase of the product certified by the receipt or the purchase invoice.

Assistenza [phone]

ROMÂNĂ

IEC ,ε-ε-71··· IEC ,γ-ε-71··· IEC ,γ-ε-71··· IEC ,γ-γ-71··· IEC ,γ-γ-71···

(11-ε-71··· IEC,Λ-ε-71··· IEC,7-ε-71··· IEC,0-ε-71···

The image contains a single, continuous horizontal line with rounded rectangular shapes and tick marks. There is no text or punctuation to extract. Therefore, the correct OCR output is an empty string.

The image contains only a stylistic horizontal line, which must be ignored according to the rules. According to Rule 2, such lines must be ignored and not represented by underscores or any other character in the OCR output.

Therefore, the corrected OCR text is:

[Empty String]

[Non-Text]

□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□□

•

Assistenza

0283451194 +39

Manufacturer:

BEURER GmbH • Söflinger Str. 218 • 89077 Ulm (Germany)

www.beurer.com • www.beurer-gesundheitsratgeber.com

www.beurer-healthguide.com

Distributed by:

Medel International Srl

Via Villapizzone 26 - 20156 Milano / Italy

www.medelinternational.it

CE0483
