USER MANUAL MRK-23 MPM

EN We wish you satisfaction from using the product and invite you to check a wide range of other MPM/ appliances

Modern kitchen mixer with stainless steel bowl and control panel (no visible text or symbols)

NAVOD K OBSLUZE 3

Labeled diagram of a kitchen mixer with numbered parts for identification

Product photo showing kitchen utensils including a wire mixer, hook, bowl, and stand mixer (no text or labels visible)

STAINLESS SWEER & BOW 7.0 L WITH A MIDDLE + STAINLESS STEEL & BOW 7.0 L WITH OUT SUBSIBLES + TURBO 2400 W WHIP FORCE BELOWING BOW 1500'S ACCESSORIES WHIP FORCE BELOWING BOW TO PROTECT ONLY CLOSING ACCESSORIES

BEZPEČNOSTNÍ INSTRUKCE

INDIVIDUAALSETE MANUSTE KASUTAMINE

• Read the instructions carefully before use.
• Take special care when children are near the device.
• Do not use the device for purposes other than those for which it was intended.
• Use of accessories not recommended by the manufacturer may cause damage to the device or personal injury.
• Do not immerse the device, cable or charger in water or other liquids.
• Do not leave the device unattended during operation.
• Disconnect the device from the power supply each time when the device is left unattended and before any assembling, disassembling, or cleaning works.
• Never use a damaged device, including one with a damaged cord or plug, in which case have it repaired at an authorised service centre.
• Do not use the device outdoors.
• Do not hang the power cable on sharp edges or allow it to come into contact with hot surfaces.
• Do not let the power cord hang over the edge of the table/counter.
• Do not touch the device with wet hands.
• The device is intended for domestic use only.
• Remember to keep a safe distance from rotating parts of the appliance during operation. Contact with them may result in personal injury or (i) damage to property, e.g. by pulling out loosely hanging items of clothing / jewellery etc.
  -Clean the device, in particular parts being in direct contact with food, before first use, immediately after finishing work and if the device has not been used for a long time. The procedure is described in details in the “CLEANING AND MAINTENANCE” section.
  -Before cleaning the stirrers and hook, they must first be removed from the device!
• Do not place the device near other electric cookers, burners, ovens, etc.
• Always ensure that all parts of the device are correctly fitted before starting work.

• Do not place the device on a hot surface.

• The device may be used by people with reduced physical, sensory or mental abilities, as well as those without prior knowledge or experience in using such types of device, provided that they either are supervised or have been instructed and fully understood the training content.
  -Children are not allowed to perform cleaning and maintenance tasks.

• The device must be kept away from children. Keep the device and cable out of the reach of children.
• Children shall not play with the appliance.

• Disconnect the device from the power supply each time when the device is left unattended and before any assembling, disassembling, or cleaning works.

• Turn off the device before making any changes in equipment or before approaching any moving parts during use.

• Do not connect the plug to the power socket with wet hands.

• Do not pull the plug out of the power socket by pulling the cord.

• Use the device on a smooth and stable surface.
  -For the safety of children, please do not leave freely accessible parts of the packaging (plastic bags, cardboard boxes, polystyrene, etc.).

• WARNING! Do not allow children to play with the film. Danger of suffocation!

DEVICE DESCRIPTION

1. Tiltable head
2. Speed control knob
3. Drive shaft with pin (attachment mounting location)
4. stainless steel bowl with handle, 7.0 L capacity
5. Stainless steel bowl, 7.0 L capacity

6. Head lock lever

7. Base with a place to attach the bowl

8. Anti-splash cover
9. A stirrer with a silicone finish
10. Stirrer for beating light masses
11. Stirrer for multi-component masses (hook)
12. Spatula

PREPARATION FOR WORK - GENERAL REMARKS

1. Remove the device from the packaging, remove all foil bags, labels, polystyrene fillers and transport locks.
2. Before using the device for the first time, thoroughly wash all accessories that might come into contact with food
3. Remember to assemble/disassemble accessories (bowl, stirrer, etc.) only when the device is not connected to the power source.
4. Before connecting the device to the power source, make sure that the speed control knob (2) is in the "0" position.

ASSEMBLY OF ACCESSORIES

STEP 1 - BOWL ASSEMBLY

1. Release the tillable head (1) by pressing the head lock lever (6) to the right, then gently lift the tilting head until a click (the sound of the lock triggering) can be heard. After the lock is engaged, the arm of the head lock lever (6) will be directed downwards.
2. Place the bowl (4;5) in the base (7), then turn it (4;5) clockwise so that the protrusions on the bowl engage with the latches on the base (7).

STEP 2 - MOUNTING THE ANTI-SPLASH COVER

1. Slide the anti-slash cover (8) over the edge of the housing covering the drive shaft with the pin (3). Please note if the opening for adding ingredients is facing outwards so that the tillable head (1) does not hinder access to the opening.

STEP 3 - ATTACHING THE STIRRERS

1. Push (until a resistance can be felt) one of the three dedicated stirrers (9, 10, 11) onto the drive shaft pin (3). Make sure that the spline on the pin fits into the mounting hole of the stirrer. Then turn the stirrer counterclockwise until the tab locks against the edge of the stirrer mounting hole.

WORKING WITH THE DEVICE

After attaching the stirrers (9, 10, 11), the device is ready for operation. Turn the head lock lever (6) clockwise and gently lower the tillable head (1) until a click can be

heard (signalling the lock being triggered). Make sure the tilt head is properly locked; the head lock lever arm (6) will then point downwards. Then place the food in the bowl (4;5) through the hole in the anti-splash cover (8), connect the device to the power supply and set the desired speed with the speed control knob (2).

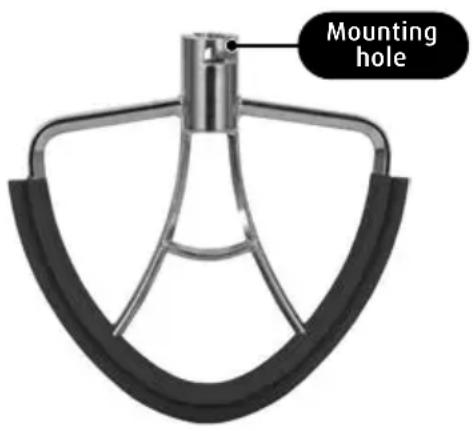

Mounting hole

CAUTION! In the case of the TURBO (P) function, the speed control knob (2) must be held down. After releasing the knob (2), it automatically returns from the TURBO (P) position to the "0" position, which turns the device off.

CAUTION! Do not move the head lock lever (6) during the operation of the robot!

After work is finished, set the speed control knob (2) to the "0" position and disconnect the device from the power source.

REMOVING ACCESSORIES

The accessories can be dismantled after the tillable head (1) has been inseminated. The accessories are released from the latches when turned counterclockwise. Before turning, the stirrers (9, 10, 11) must first be released from the lock, i.e. pushed deeper onto the drive shaft pin until resistance is felt. After dismantling the mixers (9, 10, 11) is finished, the anti-splash cover (8) should be removed (9, 10, 11).

USING THE FOOD PROCESSOR

APPLICATION OF INDIVIDUAL ATTACHMENTS

A stirrer with a silicone finish (9)	Mixing light and heavier masses, such as: dough, shortcrust pastry, minced meat and fish masses, butter and pudding creams, cheese masses, mashed potatoes as well as other vegetables, bases for cakes and loose cake ingredients.
Stirrer for beating light masses (10)	Whipping products that must be well aerated, such as: eggs, egg whites, sponge cake, whipped cream, meringues, creams, mayonnaise.
Stirrer for multi-component masses (hook) (11)	Kneading dough, especially yeast dough and kneading such as: bread, rolls, cakes, pancakes, pizza, choux pastry, pasta, breaded stripes.

CAUTION! Do not leave knives, metal spoons, forks, etc. in the bowl while the appliance is operating.

CAUTION! The maximum operating time of the device is 5 minutes, while the minimum rest time between two mixing cycles is 15 minutes. When kneading yeast dough, it is recommended to set the regulator on low speed and increase the speed after a while.

PLANETARY MOVEMENT OF THE SNAP-INS

During the operation of the planetary mixer, the stirrer rotates in a complex motion: around its axis and at the same time around the circumference of the bowl. Thanks to this, during one full round, the stirrer works thoroughly inside the bowl, which shortens the working time and ensures greater efficiency of mixing. Therefore, the mixing time given in most recipes should be shortened.

The shape of the bowl and attachments has been designed in a way ensuring no need of constant scraping and pushing the ingredients from the walls of the bowl during the work of the robot. It is fully sufficient to clean the walls of the bowl once or twice during one mixing cycle. Disconnect the robot from the power supply before attempting such an action!

The robot may become warm during operation. Under heavy loads and after a long mixing cycle, the top of the robot head can become very warm. It's a fully normal occurrence.

CLEANING AND MAINTENANCE

1. Make sure that the speed control knob (2) is in the "0" position.
2. Disconnect the device from the power source.
3. The tillable head (1) may become hot during prolonged use. Allow the device to cool down before working.
4. Clean the housing of the device with a damp cloth.
5. Clean the stirrers (9, 10, 11) and spatula under running water and with a detergent.
   It is recommended to clean the accessories immediately after the operation is done. This ensures removal of any leftovers, preventing them from drying out, which makes washing more effective and easier as well as ensures the lesser chance of bacteria infestation.

CAUTION! All accessories are dishwasher safe.

OPERATION OF THE DEVICE AT INDIVIDUAL SPEED RANGE

The robot has speed regulation in the range of 1-6 and the TURBO function, used for short-term operation at maximum speed.

Work speed	Work type Application
1 Pre-mixing		Slow pre-mixing, mixing all types of dough and dry ingredients. In this speed range, add flour and dry dough products as well as liquid ingredients until the mass is dry. Do not mix or knead yeast dough at this speed.
2 Slow mixing		For mixing at slow pace. This speed is ideal for kneading yeast, shortbread and pound cakes. Also to be used in the first phase of mashing potatoes and other vegetables as well as during adding liquid fat or flour to the dough.
3 Mixing, whipping		Used for kneading medium-heavy doughs, like shortbread dough. Speed range ideal for adding sugar and white to the meringues. This is the average speed of mixing masses, e.g. minced meat, pâtés and cakes.
4 Whipping		Medium-fast whipping, good for the initial phase of mayonnaise preparation, adding the ingredients of the custard cream. It is used to finish lighter masses that require aeration.
5 Fast whipping		Whipping creams and foam out of whites.
6 Very fast whipping		Whipping egg whites, whole eggs and whipped cream, used in the final phase of preparing mashed potatoes.
P TURBO		Short-term mixing at maximum speed.

USING THE ROBOT FOR OWN RECIPES

This manual contains some general, practical advice on the specifics of working with the robot, which may be useful when preparing own recipes. However, to achieve a perfect effect and to develop the appropriate mixing procedure user's own observations and experience are necessary. Control the mixing process and stop exactly when the consistency required in the recipe is reached (e.g. "smooth and elastic dough").

CULINARY TIPS

1. Refrigerated ingredients, such as butter or eggs, need to come to room temperature before being blended. Therefore, they should be removed from the refrigerator earlier.
2. To avoid eggshells or bad eggs inside the mixture, it's best to pop them into a separate container before adding to the rest of ingredients.
3. Excessive whipping may adversely affect the final product. Be sure to follow the mixing time specified in the recipe.
4. Changes in temperature, texture of food products (e.g. resulting from fluctuations in ambient temperature) may shorten/extend the process of mixing ingredients as well as affects the final result of mixing.
5. Always start mixing at low speeds and gradually increase the speed to the recipe's requirements.

SUGGESTED SETTINGS ON INDIVIDUAL ACCESSORIES FOR 2.0 KG OF INGREDIENTS

accessories Speed		Time (min.)	Maximum amount of products in a bowl	Job Description
Heavy Duty Mixer (Hook) (11)	1 – 3 3 – 5	1300 g flour + 700 g water		speed 1 for 30 sec., speed 2 for 30 sec., then speed 3 for 2-4 min.
Mixer with silicone finish (9)	2 - 4 3 – 10		660 g of flour + 840 g of water	speed 2 for 20 sec., speed 4 for 2 min. 40 sec.
Stirrer for beating light masses	5 – 6	3 – 10	3 egg whites (minimum)	speed 5-6 for 3 min.

RECIPES

A SIMPLE TWO-EGG PANCAKE

√ 2 cups of sifted flour
√ 1 and 1/4 cup of table sugar
√ 2 and 12 tablespoon of baking powder
√ 3/4 tablespoon of salt
√ 12 cup of soft confectionery fat
√ 3/4 cup of milk
√ 1 and 1/4 teaspoon of vanilla
√ 2 eggs

PREPARATION:

1) Put the flour, baking powder, sugar and salt into a large bowl. Add confectionery fat; pour milk and add vanilla.
2) Knead up to 5 minutes. on the lowest speed until the ingredients are completely mixed.
3) Then mix it at medium speed for 2 minutes.
4) Stop the robot, scrape off any leftover mixture from the sides and bottom of the bowl.
5) Add eggs, knead for another 1.5 minutes on highest speed.

MASHED POTATOES

√ 1kg of potatoes
√ 1/2 cup of hot milk
√ 2 teaspoons of butter
√ 1 tablespoon of salt

PREPARATION:

1) Peel and cook the potatoes in salted water, be careful not to make them too soft.

2) When they become floury, start kneading in the appropriate bowl or transfer the doughs to the robot. Then, knead the potatoes prepared in this way at medium speed for about 1 minute.
3) When finished, scrape any potatoes that have stuck to the sides of the bowl.
4) Mix hot milk, butter and salt together. Add potatoes and knead on highest speed for 1 min.

OATMEAL COOKIES

√ 2 cups of sifted flour
√ 1 tablespoon of baking soda
√ 1 tablespoon of salt
√ 1 and 12 tablespoon of cinnamon
√ 2 cups of instant oatmeal
√ 1 cup of confectionery fat or butter
√ 1/2 cup of table sugar
√ 3/4 cup of brown sugar
√ 2 whole eggs
√ 1-1/2 teaspoon of vanilla
√ 1/3 cup of milk
√ 1 cup of chocolate flakes
√ 3/4 cup of crushed nuts
√ 1 tablespoon of baking soda
√ 1 tablespoon of salt
√ 1 or 12 tablespoon of cinnamon

PREPARATION:

1) Mix the flour, baking soda, salt and cinnamon; then add the flakes and set aside.

2) Mix the butter, sugar, eggs and vanilla in the bowl of a robot.
3) Beat on highest speed for 2 minutes until creamy. When finished, scrape off any mixture that has stuck to the sides of the bowl.
4) Add the milk and half of the previously set aside flour as well as other ingredients, mix everything slowly, shifting the mix, then knead the mixture at the highest speed for 1 minute.
5) Add the other half of the mixture of flour and other ingredients and repeat the proce -

dure. When finished, scrape off any mixture that has stuck to the sides of the bowl. 6) Add chocolate flakes and nuts, knead on highest speed for 1 min.

WHISKING EGG WHITES

√ 2 eggs

PREPARATION:

[Non-Text]

1) Put the egg whites into the bowls
2) Whip them at maximum speed.

TECHNICAL DATA

Technical specifications are given on the product nameplate Length of mains cable: 1.05 m

This manual has been translated by a professional translator. In case of any doubts, please read its English version.

CAUTION! MPM agd S.A. reserves the right to technical changes!

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health. Used equipment should

be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.

INSTRUCCIONES DE USO

APPLICATION D'ACCESSOIRES INDIVIDUELS

BISCUITS AUX FLOCONS D'AVOINE

BESCHRIJVING VAN HET APPARAAT

WERKEN MET HET APPARAAT

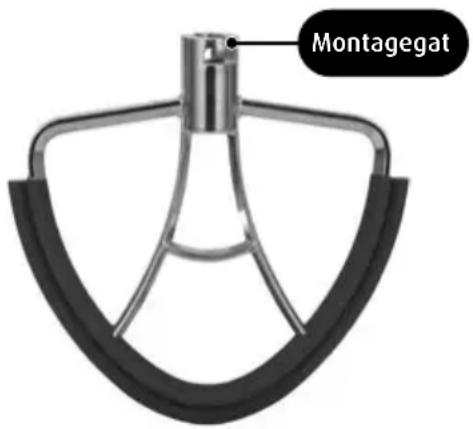

Montagegat
