USER MANUAL P32A2S2 Titan Army

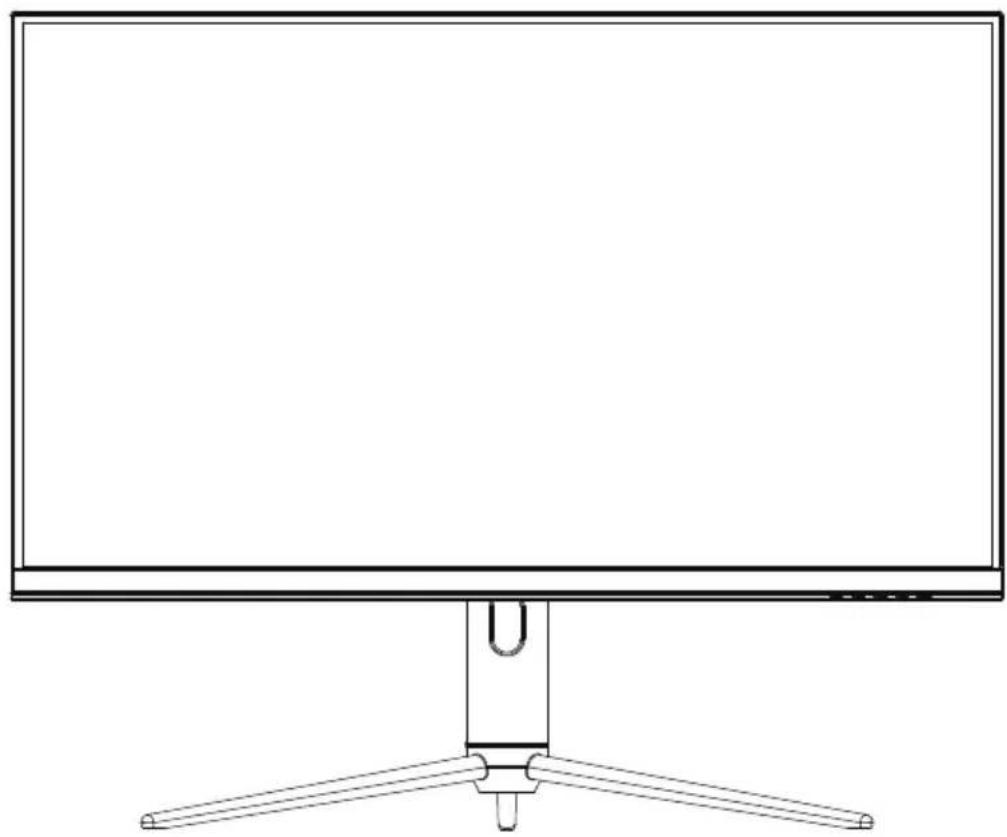

USER MANUAL FOR MONITOR

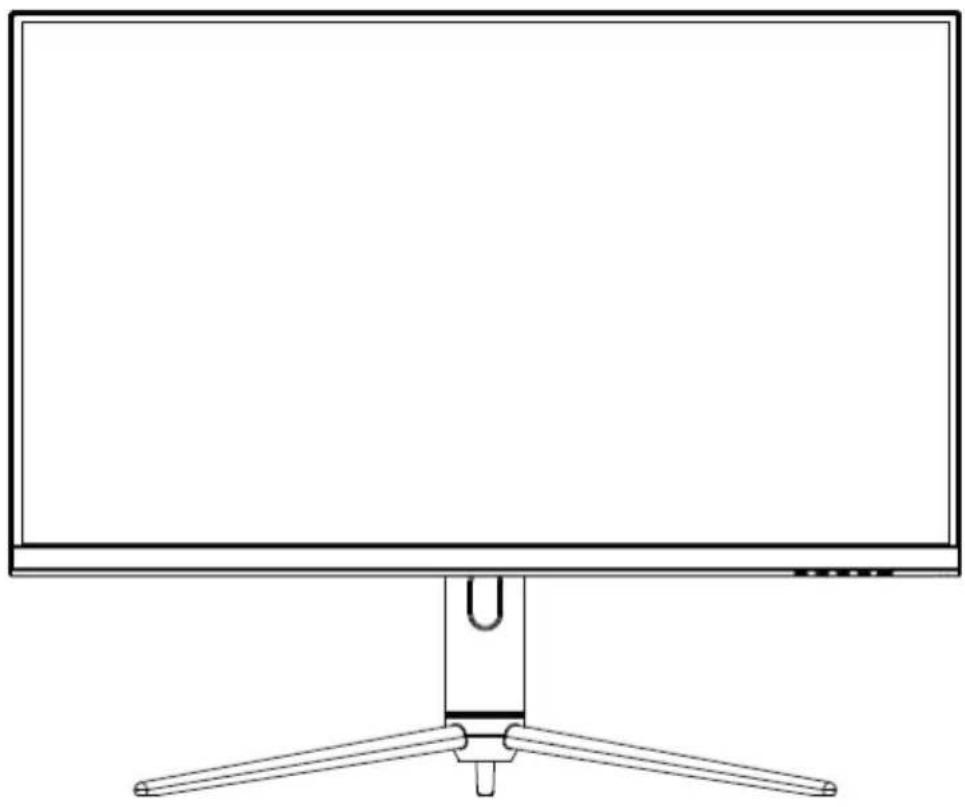

Line drawing of a flat-screen monitor with three tripod legs (no text or symbols)

P32A2S2

Precautions

• Keep the monitor away from water sources or damp places, such as bath rooms, kitchens, basements and swimming pools.
• Make sure the monitor is placed on a flat surface. If the monitor falls down, it may cause human injury or device damage.
• Store and use the monitor in a cool, dry and well ventilated place, and keep it away from emission and heat sources.
• Do not cover or block the vent hole in the rear casing, and do not use the product on a bed, sofa, blanket or similar objects.
• The range of the supply voltage of the monitor is printed on the label on the rear casing. If it is impossible to determine the supply voltage, please consult the distributor or local power company.
• If the monitor will not be used for a long period, please cut off the power supply to avoid electric shock in rainy days and damage due to abnormal supply voltage.
• Please use a reliable grounded socket, Do not overload the socket, or it may cause fire or electric shock.
• Do not put foreign matters into the monitor, or it may cause short circuits resulting fire or electric shock.
• Do not disassemble or repair this product by self to avoid electric shock. If faults occur, please contact the after-sales service directly.
• Do not pull or twist the power cable forcedly.
• There is a polarizer layer (not a protective film) on the surface of the screen. Do not peel it off, or the product may be damaged and the warranty will be invalid.

Package Content

Packing list

• Please check that the package of the monitor contains all parts. If any part is lost, please contact the distributor.
• The color and shape of parts may vary with models. Figures in this User Manual are for reference only.
• Wires supplied may vary with purchased products. Figures in this User Manual are for reference only.

Empty white rectangle with black border (no text or symbols)

Display screen

Stand stem

Base

Mount hexagon irons Screws

Pure diagram of two USB connectors without any text or symbols

DP Cable

Line drawing of a cable connector with no text or symbols

Power cable

Simple line drawing of a medical or laboratory device with a vertical tube and tubing (no text or symbols)

Adapter

Empty white rectangle with a thin gray border (no text or symbols)

User Manual

- The extra screws can be used as spare screws.

Installation

Installation of base

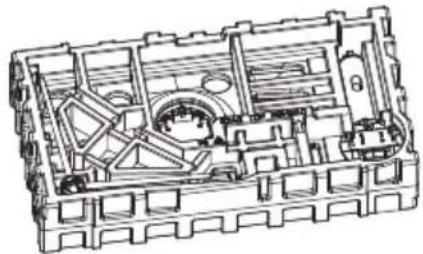

1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table.

Technical line drawing of a mechanical assembly (no text or symbols visible)

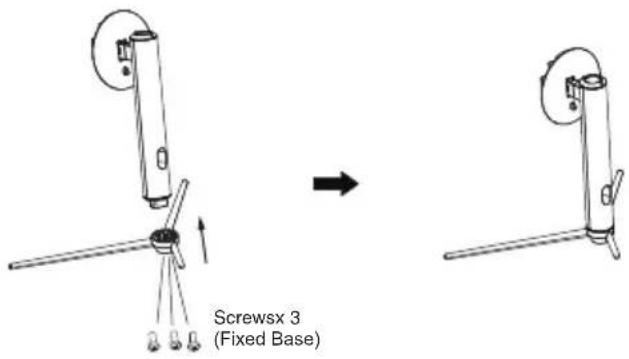

1. Take out the stand stem and base. As pictures shows, use screws to fasten stand stem and base together.

Screwsx 3 (Fixed Base)

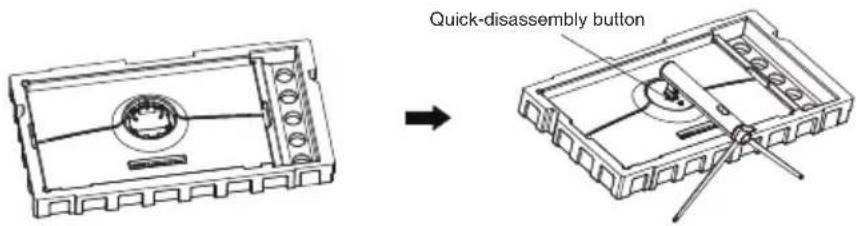

1. Put the assembled base assembly into the corresponding slot of the back cover. Press lightly on the bracket to lock the shaft assembly in place. (Note: Slide the quick disassembly button up with fingers to take out the base and stand components)

Quick-disassembly button

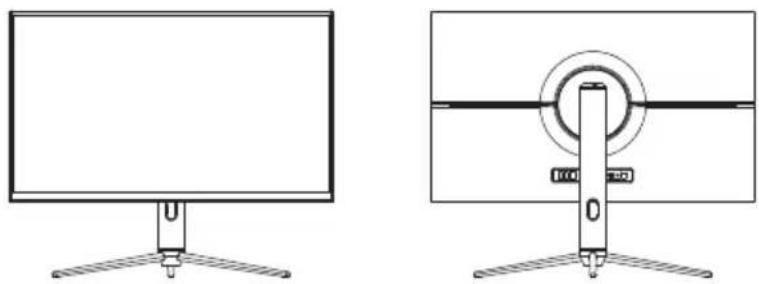

1. Simply hold the stand with hand to stand the monitor upright.

Technical line drawings of a monitor and its side-mounted screen (no text or symbols)

Note: During standing of the monitor, do not take out the monitor from foams, and do not pinch the liquid crystal screen with hand to avoid damage to the screen.

Installation of mount

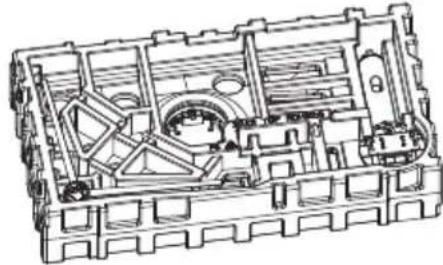

1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table.

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

1. Take out all accessories from foams and take out the upper foam. First, remove four screws locking the rear casing with a screwdriver. (During disassembly of screws, do not take the screen out from the foam to avoid damage to the screen)

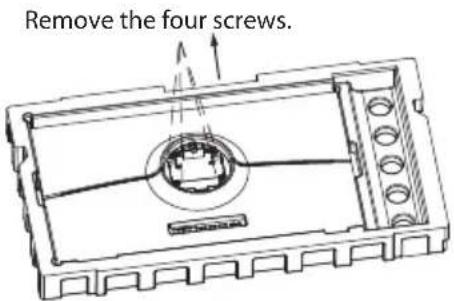

Remove the four screws.

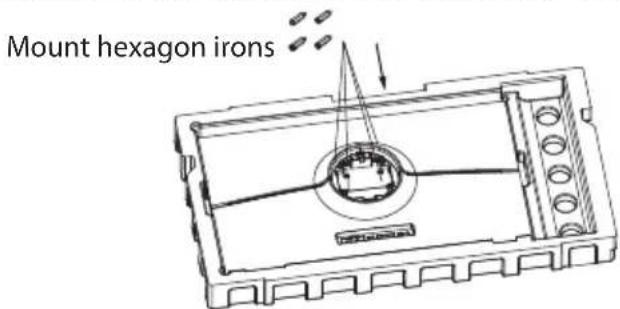

1. Take out four mount hexagon irons from the accessory bag to and lock them on the rear casing. (Do not take the screen out from the foam to avoid damage to the screen)

Mount hexagon irons

1. During hanging of the product, do not pinch the screen with hand to avoid damage to the screen. Tips: The mounting hole distance of the mount for the product is 100x100mm.

Mount (not supplied)

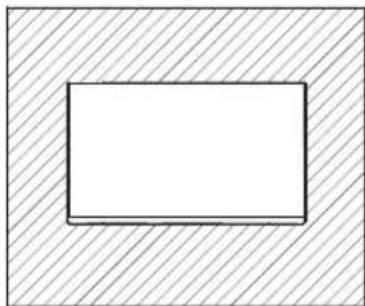

Simple geometric diagram with a rectangle inside a square, no text or symbols present.

Notes: To prevent the monitor on the mount from failing, please install it firmly and protect it fully. Do not place or hang any object on the mount, and the using height of the mount should be less than 2 meters.

Diagram of a mechanical or optical setup with intersecting beams and a central rotating element (no text or symbols)

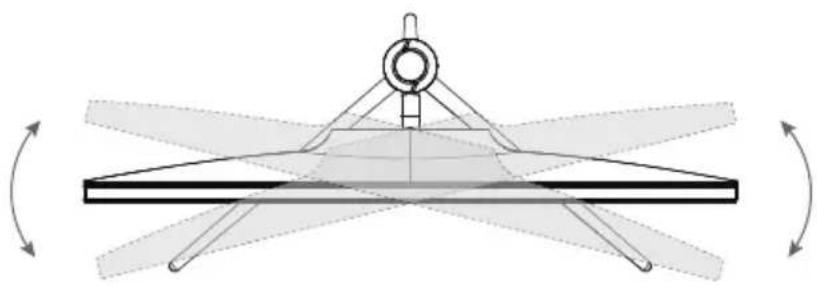

Rotation angle:

$$ 1 5 ^ {\circ} (\pm 2 ^ {\circ}) $$

-5° +15°

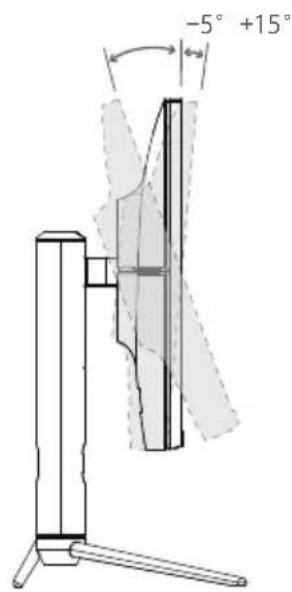

Tilting angle:

$$ - 5 ^ {\circ} (\pm 2 ^ {\circ}) \sim + 1 5 ^ {\circ} (\pm 2 ^ {\circ}) $$

95mm

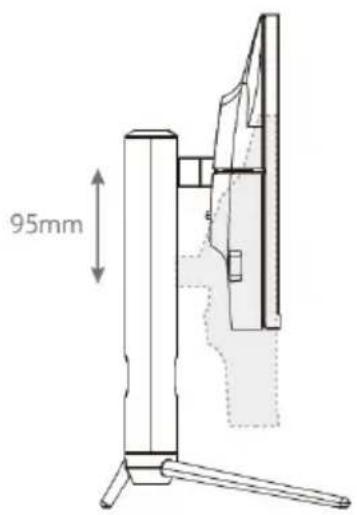

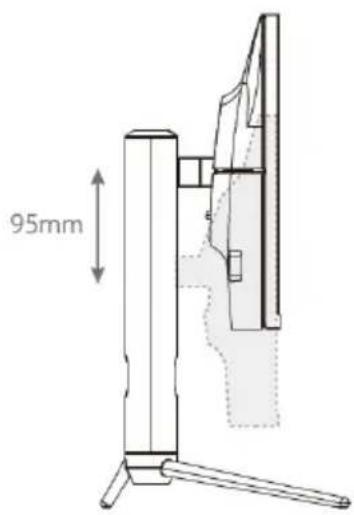

Height adjustment:

$$ 9 5 \mathrm{mm} (\pm 5. 0 \mathrm{mm}) $$

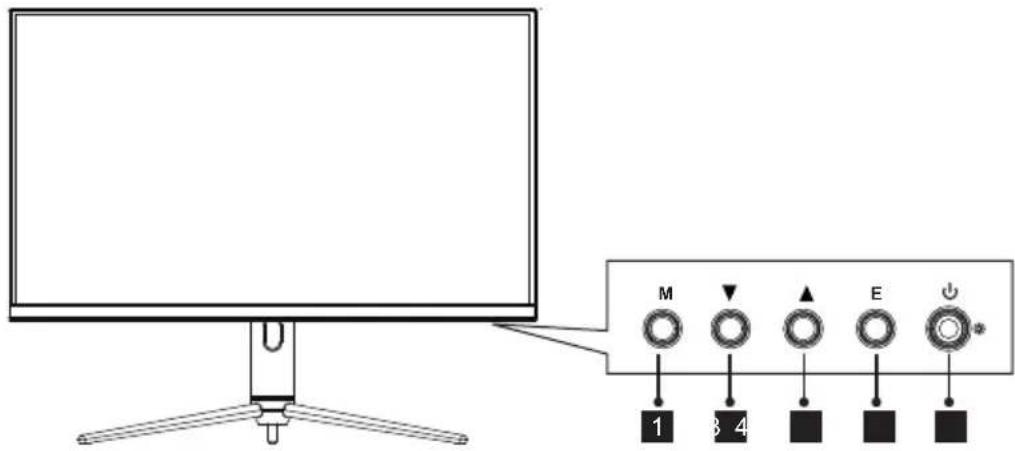

Description of buttons

M 1 3 4 E ↓*

Button Function
1	Menu button: Press to enter sub-menus/ quickly enter the main menu
2	Down button: Press to move down in the menu/quickly adjust the brightness
3	Up button: Press to move up in the menu/quickly switch input signals of the port
4	Exit: Press to return to the previous menu
5	Power button: Press to turn on/off the monitor

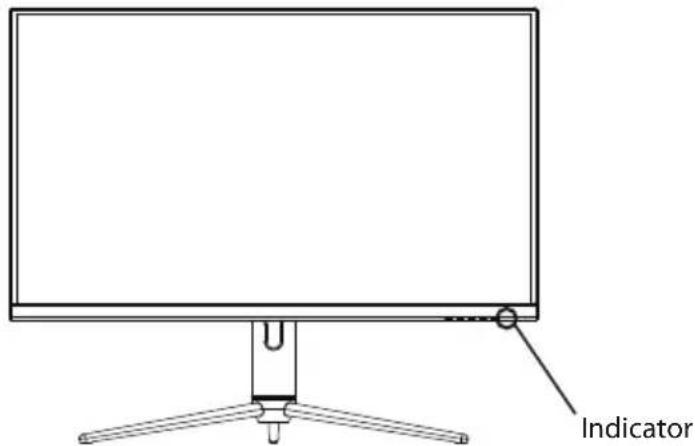

Explanation of indicators

Indicator

Steady blue light indicates the power is on and the monitor runs normally. Red light indicates no horizontal or vertical synchronous signal detected or no video input signal, and that the monitor is in standby status. Please make sure your computer is turned on and operates normally and check that all video cables are fully plugged in and/or connected to the monitor.

Cable connection

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

* The bottom interface configuration at the back of the monitor varies with products. * Note: If the power cable or signal cable is damaged, you must replace it with special soft cables or special components purchased from the manufacture or maintenance department.

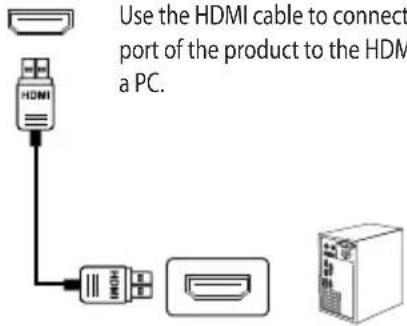

HDMI interface

Use the HDMI cable to connect port of the product to the HDM a PC.

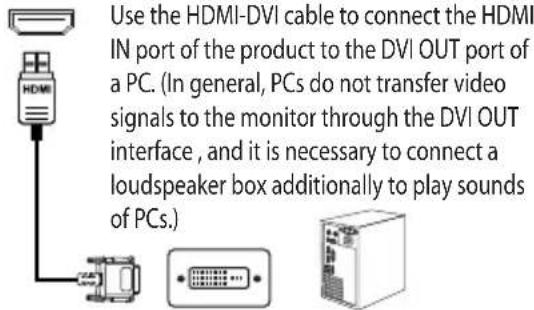

Use the HDMI-DVI cable to connect the HDMI IN port of the product to the DVI OUT port of a PC. (In general, PCs do not transfer video signals to the monitor through the DVI OUT interface, and it is necessary to connect a loudspeaker box additionally to play sounds of PCs.)

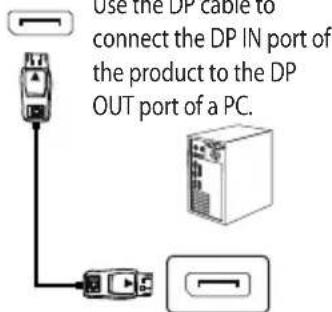

DP Port AUDIO OUT

Use the DP cable to connect the DP IN port of the product to the DP OUT port of a PC.

conned device to the

DC interface

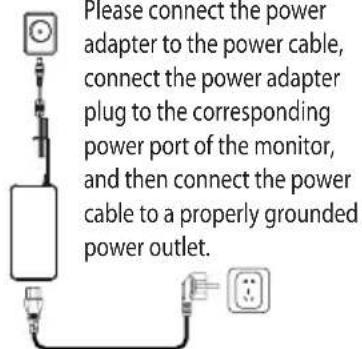

Please connect the power adapter to the power cable, connect the power adapter plug to the corresponding power port of the monitor, and then connect the power cable to a properly grounded power outlet.

OSD Menu

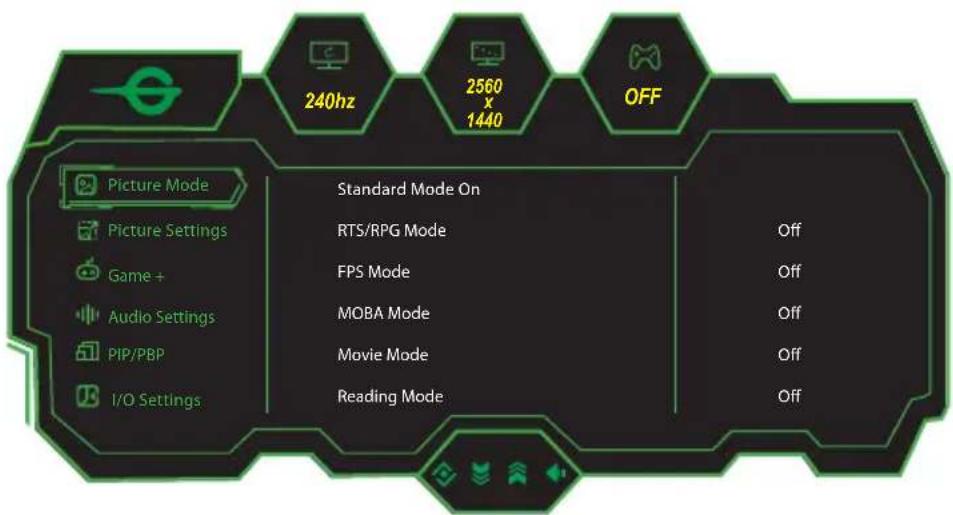

Menu description

* The color and shape of the OSD menu of the actual monitor may be slightly different from them shown in the figure.
* Specifications of the OSD menu may change with improvements of functions without prior notice.
* The on-screen display (OSD) menu can be used to adjust the settings of the monitor and is displayed on the screen after turning on the monitor and pressing the M button.

Enter Menu

1. Press the buttons M to enter the OSD screen.

240hz 2560 x 1440 OFF Picture Mode Picture Settings Game + Audio Settings PIP/PBP I/O Settings Standard Mode On RTS/RPG Mode FPS Mode MOBA Mode Movie Mode Reading Mode Off Off Off Off

1. Press ▼ or ▲ to browse through the functions.

-Select the desired function, then press the M button to enter the submenu.
-Press ▼ or ▲ to browse the sub-menus, and then press the M key to confirm the selection of the desired function.
-Press▼ or ▲ to select an option, then press M to confirm the setting and exit the current menu.

1. Press E to exit the menu interface。

Product Name		LCD Monitor
Product model		P32A2S2
Screen Size		32 inch
Aspect Ratio		16:9
Viewing Angle		178°(H) / 178°(V)
Pixel pitch		0.2767 (H) × 0.2767 (V)
Contrast ratio		1000:1
Color		16.7M
Resolution		2560×1440
Refresh Rate		240 Hz
Power Input		19V--- 4.74AThe standard voltage and power supply may vary with countries,please refer to the label at the back of the product.
Product Dimentions	Without base	726.2 x 80.8 x 430.5mm
	With base	726.2 x 286.8 x599.0mm
Tilting angle		Forward titling: 5°±2°; Backward tilting: 15°±2°
Height range		95±5mm
Rotation angle		15°(±2°)
Vertical angle		N/A
Environmental conditions	Action	Temperature: 0°C~ 40°C (32°F ~ 104°F)Humidity: 10%~90% RH (non-condensing)
	Storage	Temperature: -20°~ 60° (-4°F ~ 140°F)Humidity: 5%~95% RH (non-condensing)

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

TITAN ARMY

BENUTZERHANDBUCH FÜR MONITOR

Line drawing of a flat-screen monitor with three tripod legs (no text or symbols)

P32A2S2

Empty white rectangle with black border (no text or symbols)

Anzeigebildschirm

Ständer

Sockel

Line drawing of a cable or wire connector with no visible text or symbols

Stromkabel

Simple line drawing of a medical or laboratory device with a vertical tube and connected tubing (no text or symbols)

Adapter

Blank white image with a thin gray border (no text, symbols, or markings)

Benutzerhandbuch

Technical line drawing of a mechanical assembly (no text or symbols visible)

Two technical line drawings of a monitor and its side view showing front and top views (no text or symbols)

Technical line drawing of a mechanical component with internal cavities and mounting holes (no text or symbols)

Diagram of a mechanical or structural assembly with intersecting beams and a central circular component, shown with rotational arrows (no text or symbols)

Drehwinkel:
15^(± 2^)

+15° -5°

Neigungswinkel:
-5^(± 2^) +15^(± 2^)

95mm

M 1 2 3 E 4 5

Indicator

Simple line drawing of a monitor with a circular dial and pointer, no text or symbols present

Illustration of a server unit with ports and an external connector (no text or symbols)

Pure mechanical diagram showing a bracket and two circular components connected by a line (no text or symbols)

AUDIO AUS

Line drawing of a flat-screen monitor with three tripod legs (no text or symbols)

P32A2S2

Précautions

Empty white rectangle with a thin black border (no text or symbols)

Écran d'affichage

Tige de support

Base

Line drawing of a cable or connector with no visible text or symbols

Simple line drawing of a medical or laboratory device with a vertical tube and connected tubing (no text or symbols)

Adaptateur

Blank white image with a thin border (no text, symbols, or markings)

Technical line drawing of a mechanical assembly (no text or symbols visible)

Line drawings of a desktop monitor and its rear-mounted screen (no text or symbols)

Technical line drawing of a mechanical assembly (no text or symbols visible)

Support (non fourni)

Pure mechanical diagram showing a lever and pivot mechanism without any text or symbols

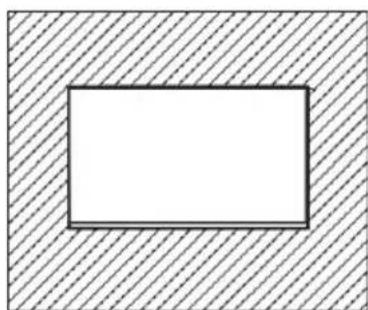

Simple geometric diagram with a rectangle and diagonal hatching, no text or symbols present.

Diagram of a mechanical or structural assembly with intersecting beams and a central circular component, shown with rotational arrows (no text or symbols)

Angle de rotation : 15^(±2^)

+15° -5°

M 1 2 3 E 4 5

Pure technical diagram of a mechanical component with no text or symbols

Diagram showing connections between a device with ports and an external server unit (no text or symbols present)

SORTIE AUDIO

Connectez despé riphé riques de sortie audio tels que des é couteursau port AUDIO OUT.

Simple line drawing of a right-angle corner with a connector and earbell (no text or symbols)

Interface CC

Line drawing of a flat-screen monitor with three tripod legs (no text or symbols)

P32A2S2

Precauciones

Empty white rectangle with black border (no text or symbols)

Line drawing of a cable or wire connector with no visible text or symbols

Simple line drawing of a medical or laboratory device with a vertical tube and connected tubing (no text or symbols)

Adaptador

Blank white image with a thin border (no text, symbols, or markings)

Manual de Usuario

Technical line drawing of a mechanical assembly (no text or symbols visible)

Line drawings of a desktop monitor and its rear-mounted screen (no text or symbols)

Technical line drawing of a mechanical assembly (no text or symbols visible)

Simple geometric diagram with diagonal hatching and a rectangle (no text or symbols)

Pure mechanical diagram showing a lever system with rotating arrows, no text or symbols present

M 1 2 3 E 4 5

Simple line drawing of a monitor with a circular dial and pointer, no text or symbols present

Pure electrical circuit lines without any symbols

Line drawing of a flat-screen monitor with three tripod legs (no text or symbols)

P32A2S2

Precauzioni

Empty white rectangle with a thin black border (no text or symbols)

Display Schermo

Supporto

Base

Line drawing of a cable or connector with no visible text or symbols

Simple line drawing of a medical or laboratory device with a vertical tube and connected tubing (no text or symbols)

Adattatore

Blank white image with a thin gray border (no text, symbols, or markings)

Manuale dell'utente

Technical line drawing of a mechanical assembly (no text or symbols visible)

Two technical line drawings of a monitor and its side view showing front and top views (no text or symbols)

Technical line drawing of a mechanical assembly (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical or structural assembly with intersecting beams and a central circular component, shown with rotational arrows (no text or symbols)

M 1 2 3 E 4 5

Simple line drawing of a monitor with a circular dial and pointer, no text or symbols present

Pure electrical circuit lines without any symbols

Interfaccia DC

Line drawing of a flat-screen monitor with three tripod legs (no text or symbols)

P32A2S2

Empty white rectangle with black border (no text or symbols)

Ekran wyświetlacza

Trzon stojaka

Podstawa

Line drawing of a cable with a connector and plug (no text or symbols)

Przewód zasilający

Simple line drawing of a medical or laboratory device with a vertical tube and connected tubing (no text or symbols)

Adapter

Blank white image with a thin border (no text, symbols, or markings)

Instrukcja Obsługi

Technical line drawing of a mechanical assembly (no text or symbols visible)

Line drawings of a desktop monitor and its rear view showing front, top, and side views (no text or symbols)

Technical line drawing of a mechanical assembly with internal components (no text or symbols)

Simple geometric diagram with a rectangle and diagonal hatching, no text or symbols present.

Diagram of a mechanical or structural assembly with intersecting beams and a central circular component, shown with rotational arrows (no text or symbols)

Kąt obrotu:
15^(± 2^)

+15° -5°

Kąt pochylenia:
-5^(± 2^) +15^(± 2^)

95mm

M 1 2 3 E 4 5

Pure diagram of a vertical rod labeled '0' mounted on a tripod base, without any text, numbers, or symbols.

Pure electrical circuit lines without any symbols

WYJŚCIE AUDIO

Pure electrical circuit lines without any symbols

Interfejs DC
