USER MANUAL 304627 Aplic

Thank you for choosing an aplic product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Barcode scanner
• RJ45 to USB charging cable
• User manual
• Bracket

2. Technical data

Power supply DC 5V (via USB)
Frequency range 2402-2480 MHz
Transmitting power -1.12dBm
Battery capacity 2000 mAh
Scanning modes	• Manual scanning • Automatic scanning • Continuous scanning
Shock resistance Falling height from 1 m onto solid surfaces
Operating temperature -20°C to +60°C / 5% to 95% humidity
Compatible barcodes	CODABAR, Code93, Code 11,Code39, Code39 full ASCII, Code128, EAN8, EAN13, EAN128, UCC-14, UPC-A, UPC-E, EAN14, Code32, MSI, Interleaved 2of5, Industrial 2of5, GS1

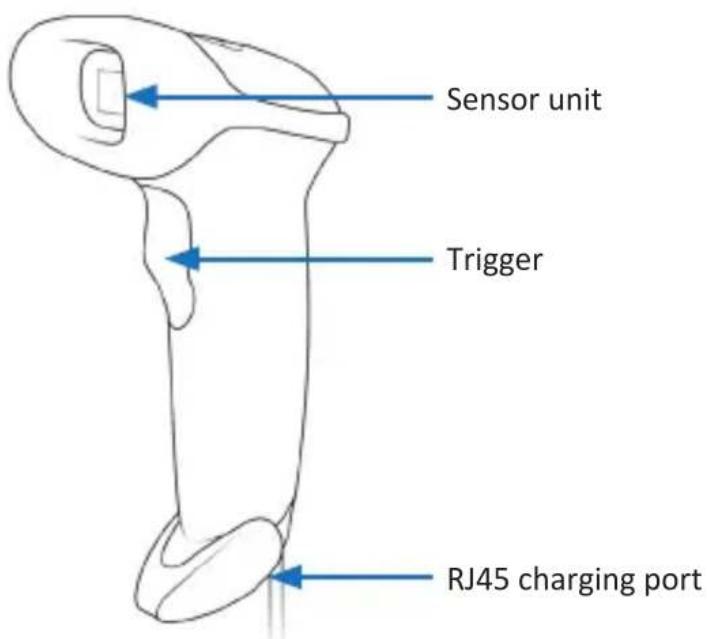

3. Product details

4. Initial use

Take the device and the accessories out of the package and remove all packaging material. Charge the barcode scanner fully before using it for the first time. Please connect the RJ45 to the USB cable via the RJ-45 connector with the barcode scanner and plug the USB connector into a free USB port of your computer or into a 5 V USB power adapter. To remove the cable at the bottom of the barcode scanner, press the latch of the RJ-45 connector downwards and disconnect the cable. To start using the device, you need to pair an appropriate Bluetooth-enabled device with the barcode scanner. For more information, see chapter 5 under "Establishing a Bluetooth connection". Please scan the following code:

The driver is installed automatically. The device is now ready to be used. For advanced settings, continue with chapter "10 Advanced Settings".

Note: Note: If you want to use the device with a cable, plug the supplied cable into an available USB port on your computer and into the barcode scanner. If you decide to use the wireless function again after this, scan the ,pairing' barcode in the following chapter.

5. Establishing a Bluetooth connection

Scan the following code if you want to start the HID (Human Interface Device / (Input - Taken from the USB specification)) pairing mode:

Scan the following code if you want to start the SPP (Serial Port Profile /(Serial Data Transfer)) pairing mode:

The status LED of the barcode scanner flashes rapidly. Now take your desired device (e.g. smartphone or laptop) and scan for the barcode scanner in the Bluetooth search. The pairing name of the barcode scanner is: "aplic-304627".

7. Resetting to factory settings

To reset the barcode scanner to factory settings, you need to scan the following code. After scanning the code, select the desired connection method (Wireless Mode or Wired Mode) as explained at the beginning of the user manual:

8. Input language

The following barcodes can be scanned to set the input language.

English German

French Italian

Spanish

9. Enabling / disabling barcodes

The following barcodes can be scanned to enable / disable the commonly used barcodes:

Read all codes - Switching on

Read all codes - Switching off

10. Advanced settings

10.1 Mode selection

10.2 Scanner settings

The barcode scanner has a Normal mode and an Inventory mode.

• In the Normal mode, the scanned barcode is transferred to another device in realtime, e.g., a computer, notebook or tablet. If the receiver is out of transmission range, the code is saved in the internal memory.
• In the Inventory mode, you can use the internal memory of the barcode scanner. The barcode scanner saves the read barcodes.
• "not lost mode": In the "not lost mode", the speed of data upload is slowed to ensure that data is not lost during the upload process. Because the speed and the correct rate are inversely proportional, data can sometimes be missed if the data upload speed is too high.

10.3. Scanning modes

The following barcodes can be scanned to activate the various scanning modes.

Manual scanning

Continuous scanning

Automatic scanning

10.4. Upload speed

Fast Medium

Slow

10.5.Data

Read data All the data

Delete

10.6. Switching off the device

Scan the following code to switch off the device:

Switch off

10.7. Sleep function

The device goes into sleep mode after a configured time. To do this, scan the following barcode ("Sleep setting mode") and then the barcode with the desired time:

Sleep setting mode

20 seconds 1 minute

5 minutes no sleep

11.Status LEDs

Red light:

Glows continuously while charging

Green light

• Flashes during the pairing process
• Glows as soon as the device is connected.

12. Cleaning and Care

Before cleaning ensure that the barcode scanner is not connected to any USB port and is switched off. Use a soft dry cloth to clean and wipe the barcode scanner carefully. For cleaning, never immerse the device in water!

13. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.

14. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be recycled or disposed of separately, because toxic and hazardous components can damage the environment permanently if disposed of improperly. As a consumer, you are obliged to return electrical and electronic equipment free of charge to the manufacturer, the point of sale or to public collection points set up for this purpose at the end of their lifetime as defined by the Electrical and Electronic Equipment Act (ElektroG). The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

15. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive: 2012/19/EU
