USER MANUAL S3MT-30KWR480V Tripp Lite

S3MT-Series 3-Phase Input and Output Transformers: 480V-208V and 208V-480V

Models: S3MT-30KWR480V, S3MT-60KWR480V

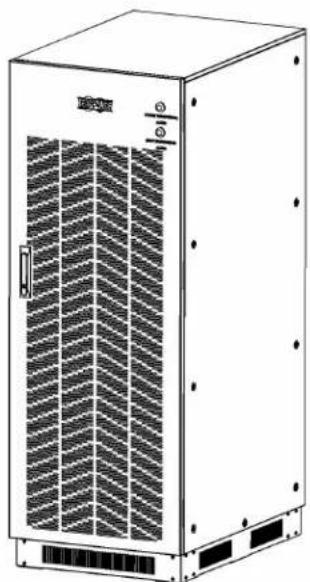

Line drawing of a white industrial server cabinet with ventilation grilles and cooling fins (no text or symbols)

Español 21 • Français 41

WARRANTY REGISTRATION

Register your product today and be automatically entered to win an ISOBAR ^® surge protector in our monthly drawing!

tripplite.com/warranty

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Copyright © 2021 Tripp Lite. All rights reserved.

Table of Contents

1. Introduction ...... 3
2. Important Safety Warnings....5
3. Installation 6

3.1 Mechanical Data....6

3.2 Package Inspection ....7

3.3 Unpacking the UPS 7

3.4 Package Contents....9

3.5 Cabinet Overview....9

3.6 Power Cables 11

3.7 Input and Output Transformer-to-UPS Connection Line Diagram......12

3.8 Multiple Transformer Connections....13

3.8.1 S3MT-30KWR480V Connections for 20kVA to 30kVA 208V UPS Systems ...13

3.8.2 S3MT-60KWR480V Connections for 50kVA or 60kVA UPS Systems .....14

1. Operation.... 15
   4.1 Over-Temperature Protection....15
   4.1.1 Over-Temperature Warning LED Light 15
   4.1.2 Over-Temperature Protection Relay and Thermal Switch.... 15
2. Specifications.... 15
3. Storage....19
4. Warranty and Regulatory Compliance....19

1. Introduction

Tripp Lite's S3MT-30KWR480V and S3MT-60KWR480V are 480V wrap-around models that include two transformers in one enclosure: a 480V (Delta) to 208V (Wye) input isolation step-down transformer and a 208V (Wye) to 480V (Wye) output auto step-up transformer.

The input isolation transformer mitigates utility line surges and spikes, while protecting the UPS. The output auto transformer is designed to support 480V (Wye) IT loads. These models have built-in circuit breakers to prevent dangerous circuit overloads. Four ball-bearing fans for S3MT-30KWR480V and eight ball-bearing fans for S3MT-60KWR480V maintain quiet operation and help to dissipate transformer heat. An overheat-sensing relay and thermal switch, combined with an LED light in the front panel, provide over-temperature warning and overheating protection. The UPS system's small footprint and quiet acoustic profile enable installations with minimal space and noise impact. All transformer models feature stainless steel housings with front panels similar to the S3M-Series 208V 3-Phase UPS line.

UPS Model Series Number	Capacity Description
S3MT-30KWR480V(Not compatible with SUT20K or SUT30K UPS)	AG-0511 30kW		Input Transformer: 480V to 208V IsolationStep-Down TransformerOutput Transformer: 208V to 480V AutoStep-Up Transformer
S3MT-60KWR480V(Not compatible with SUT40K or SUT60K UPS)	AG-0512 60kW		Input Transformer: 480V to 208V IsolationStep-Down TransformerOutput Transformer: 208V to 480V AutoStep-Up Transformer

Typical applications

4-Wire (3Ph+N+PE) IT equipment loads in government, manufacturing, hospitals, industrial settings and corporate settings that have 480V electrical mains and 480V IT loads.

Key Features

• The input step-down transformer provides 480V (Delta) to 208V/120V (Wye) isolation protection to the UPS input
• The output auto transformer provides 208V (Wye) to 480V (Wye) step-up to support 480V IT loads
• Circuit Breakers at the output of the input transformer and the input of the output transformer
  • Overheating warning and protection
  • 95.2% to 97.5% efficiency
• Wide input voltage and frequency operating range: Voltage: -20% to +25% @ 100% load and 40-70 Hz
  • Insulation class: 180°C material
• Reliability-tested according to ISTA-3B for vibration, shock, drop (tip test)
  • UL and CSA TUV certifications
• Rugged stainless steel housing shipped ready for installation
• 2-year warranty

1. Introduction

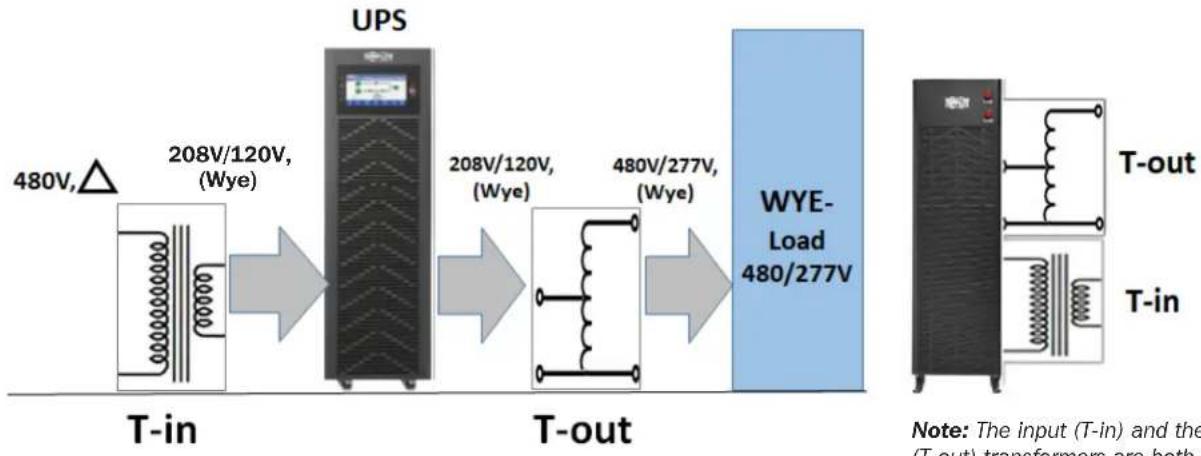

Typical Configurations

The 480V Wrap-Around (WR) Transformer includes both the input (T-in) and output (T-out) transformers in one enclosure.

Note: The input (T-in) and the output (T-out) transformers are both inside one cabinet, as shown above.

These 480V Transformers may be purchased separately or as part of kit model with a Tripp Lite S3M Series 3-Phase UPS:

Wrap-AroundTransformer Models		MaximumConstant Load	Compatible with208V 3Ph UPS	Kit Models: UPS + Transformer
				Kit Models Kit Models Include
480V	S3MT-30KWR480V 30kW		20-30kW UPS(Not compatible with SUT20K or SUT30K)	S3M30K-30KWR4T	S3M30K UPS +S3MT-30KWR480V
	S3MT-60KWR480V 60kW		50-60kW UPS(Not compatible with SUT40K or SUT60K)	S3M50K-60KWR4T	S3M50K UPS +S3MT-60KWR480V
				S3M60K-60KWR4T	S3M60K UPS +S3MT-60KWR480V

2. Important Safety Warnings

SAVE THESE INSTRUCTIONS

This manual contains important instructions for models S3MT-30KWR480V and S3MT-60KWR480V that should be followed during installation and maintenance of the transformer and UPS.

⚠️ CAUTION! Risk of electrical shock! Hazardous live parts inside this unit are energized from the transformer even when the breaker is turned off.
⚠ WARNING! The unit intended for installation in a controlled environment.
CAUTION! A transformer can present a risk of electric shock and high short circuit current. The following precaution should be observed when working on the transformer:
- Remove watches, rings or other metal objects.
- Use tools with insulated handles.

To reduce the risk of electric shock, disconnect the transformer and UPS from the mains supply before performing maintenance or service.

Servicing of the 3-phase transformer and UPS should be performed by Tripp Lite certified personnel with knowledge of the 3-phase transformer and UPS and all required precautions.

The transformer is extremely heavy. Caution should be taken in moving and positioning equipment. The instructions contained within this manual are important and should be closely followed at all times during installation and follow-up maintenance of the 3-phase transformer and UPS.

CAUTION!

The transformer has a dangerous level of heat. If the transformer's front-panel red LED indicator is on, the unit's outlets may have a dangerous level of heat.

All servicing on this equipment must be carried out by Tripp Lite-certified service personnel.

Before conducting any maintenance, repair or shipment, first ensure everything is turned off completely and disconnected.

Special Symbols – The following symbols are used on the transformer to warn you of precautions:

RISK OF ELECTRIC SHOCK - Observe the warning that a risk of electric shock is present.

CAUTION - REFER TO OWNER'S MANUAL for information regarding important operating and maintenance instructions.

SAFE GROUNDING TERMINAL - Indicates THE primary safe ground.

3. Installation

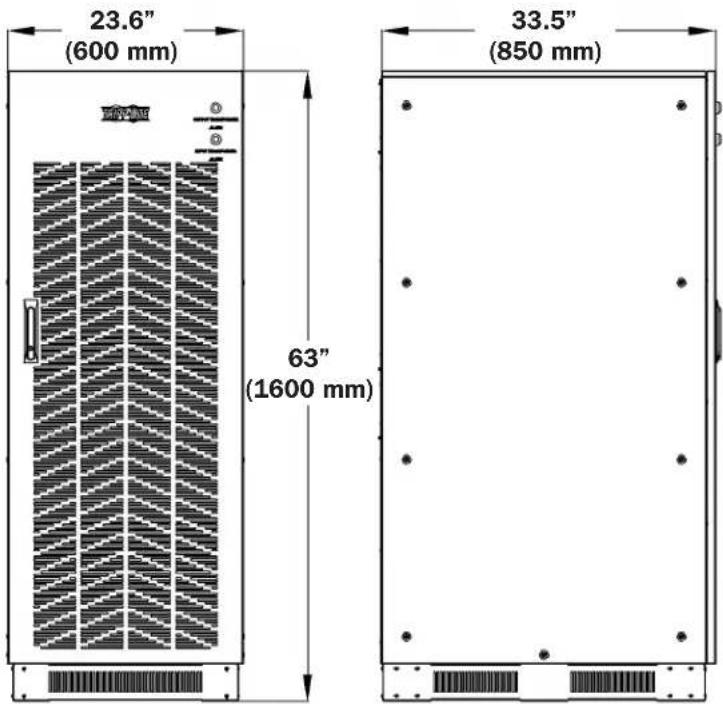

3.1 Mechanical Data

23.6" (600 mm) 63" (1600 mm) 33.5" (850 mm)

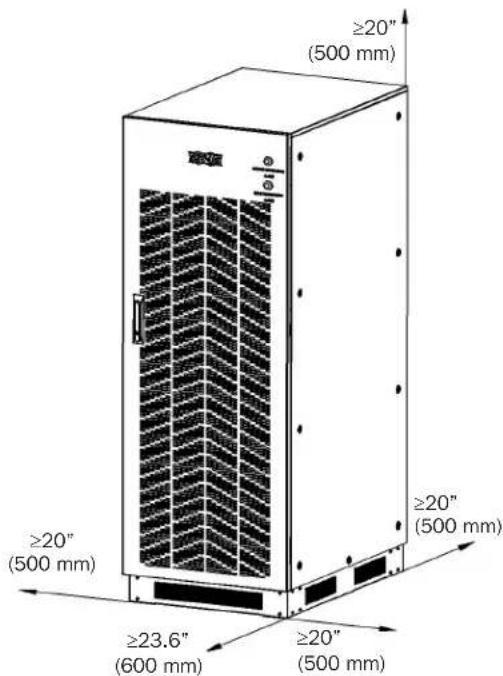

Physical Requirements

Leave space around the cabinet for operation and ventilation (Figure 3-1):

1. Leave at least 23.6 in. (600 mm) space in the front for ventilation
2. Leave at least 20 in. (500 mm) space at the right and left for operation
3. Leave at least 20 in. (500 mm) space at the back for ventilation

≥20" (500 mm) ≥20" (500 mm) ≥23.6" (600 mm) ≥20" (500 mm)

Figure 3-1

3. Installation

3.2 Package Inspection

1. Don't lean the transformer cabinet when removing it from the packaging.
2. Check the appearance to see if the transformer cabinet was damaged during transport. Do not power on the transformer cabinet if any damage is found. Contact the dealer immediately.
3. Check the accessories against the packing list and contact the dealer in case of missing parts.

3.3 Unpacking the UPS

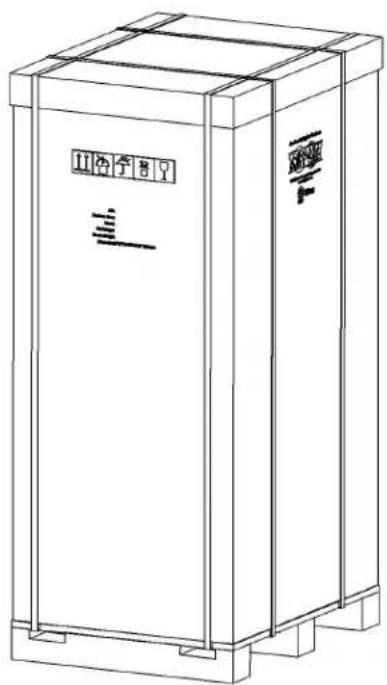

1. Hold the sliding plate steady. Cut and remove the binding straps (Figure 3-2).

Ⅲ告字号 三

Figure 3-2

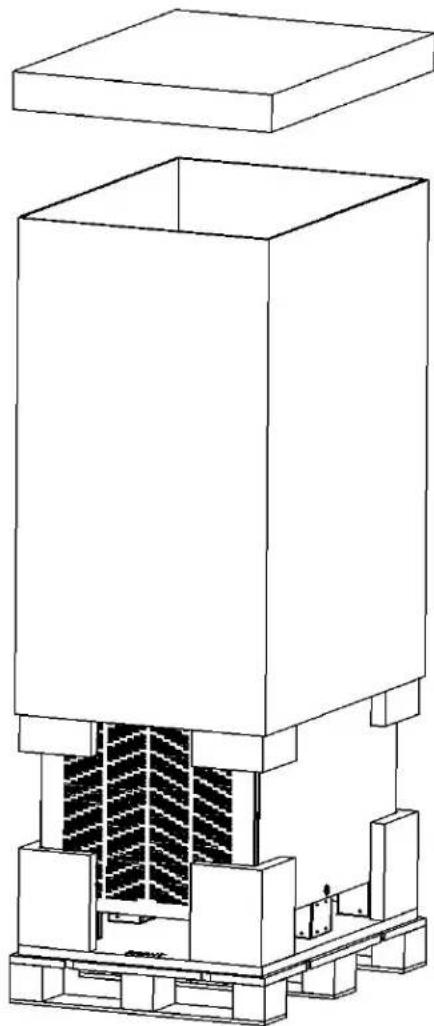

1. Remove the plastic bag and the outer carton (Figure 3-3).

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Figure 3-3

3. Installation

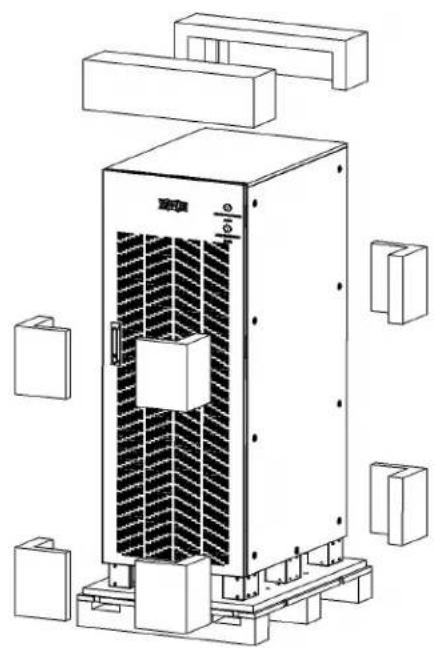

1. Remove the foam packing material and the beveled pallet (Figure 3-4).

Technical line drawing of a mechanical or electrical enclosure with internal components and mounting brackets (no text or symbols)

Figure 3-4

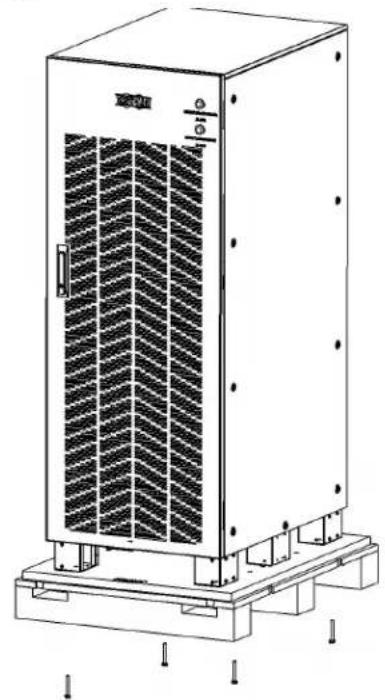

1. Remove the screws securing the cabinet to the pallet (Figure 3-5).

Technical line drawing of a server rack unit with cooling fins and mounting base (no text or symbols)

Figure 3-5

1. Lift the cabinet with a forklift and remove the packing pallets (Figure 3-6).

Line drawing of a forklift and industrial equipment unit (no text or symbols)

Figure 3-6

3. Installation

3.4 Package Contents

Contents TL P/N S3MT-30KWR480V S3MT-60KWR480V
Input and Output Transfers in One Cabinet 1 1
Owner's Manual 933D04 1 1
Bottom Skirts 103922A 2 2
Bottom Skirts 103923A 2 2
Screws for Skirts	3011C3 24	24

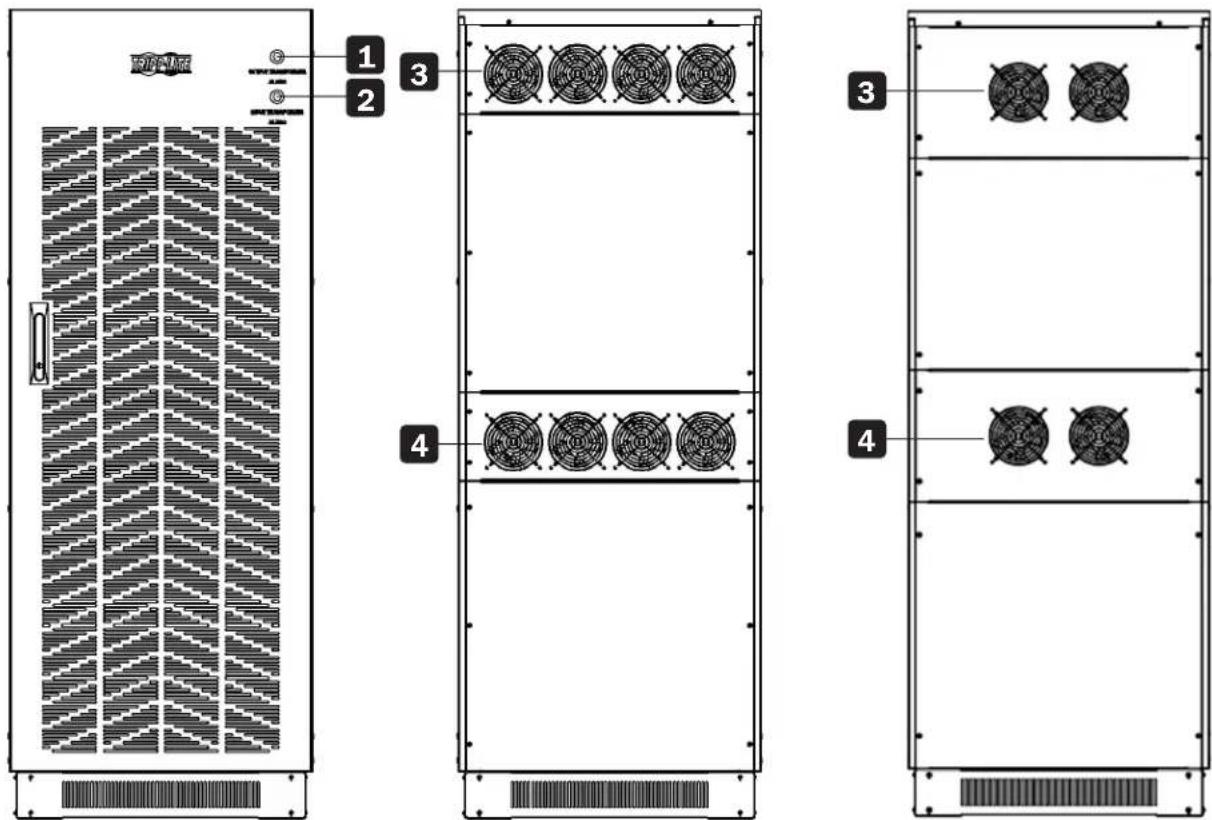

3.5 Cabinet Overview

1 Output Transformer Over-Temperature Alarm LED
2 Input Transformer Over-Temperature Alarm LED
3 Output Transformer Cooling Fans
4 Input Transformer Cooling Fans
5 Input Transformer Breaker with Trip

6 Output Transformer Breaker with Trip
7 Input Transformer Cabling Terminal
8 Output Transformer Cabling Terminal
9 Bottom Entry Knockouts (for Power Cable Entry and Exit)

Technical diagram of a server rack with labeled components and fan arrangements

Rear View, S3MT-60KWR480V Rear View, S3MT-30KWR480V Front View

3. Installation

5 6 7 8 9

Pure electrical circuit lines without any symbols

Top-down schematic of a multi-panel electronic device layout with no text or symbols

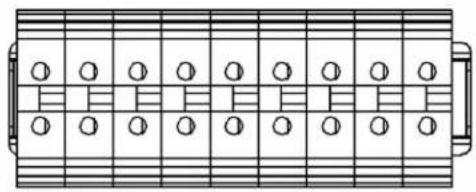

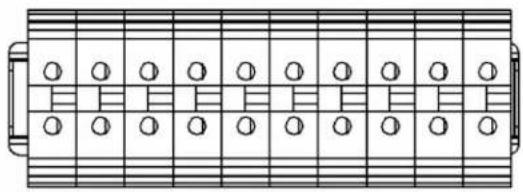

INPUT TRANSFORMER
INPUT				OUTPUT
+	L1	L2	L3	N	L1	L2	L3	+

OUTPUT TRANSFORMER
INPUT					OUTPUT
+	L1	L2	L3	N	N	L1	L2	L3	+

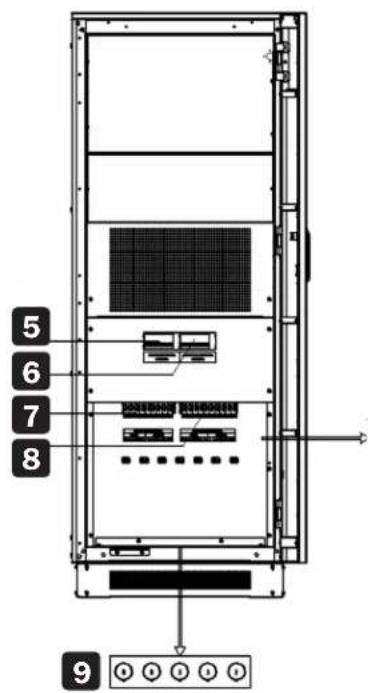

Front View (Terminals with Door Open), Model S3MT-30WR480V

5 6 7 8 9

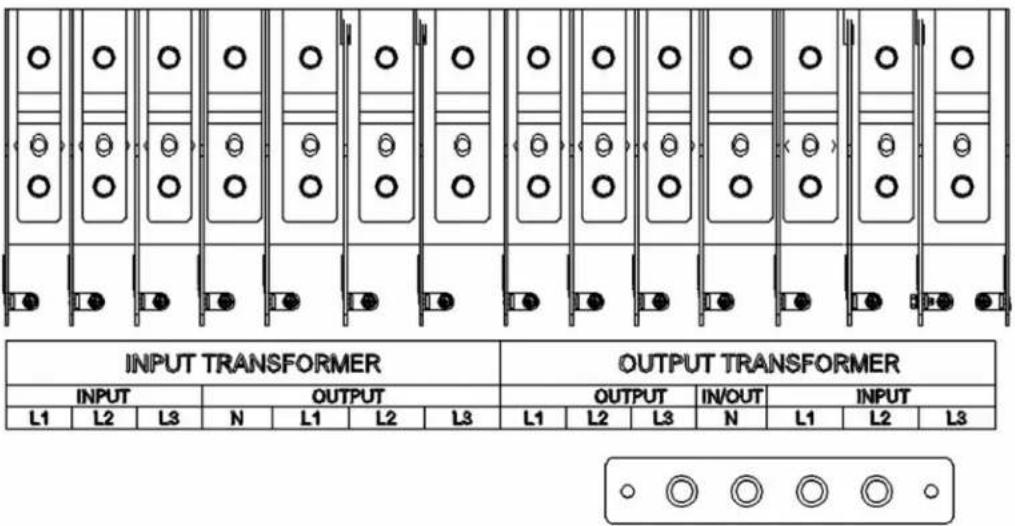

INPUT TRANSFORMER OUTPUT TRANSFORMER INPUT OUTPUT OUTPUT INPUT L1 L2 L3 N L1 L2 L3 L1 L2 L3 N L1 L2 L3

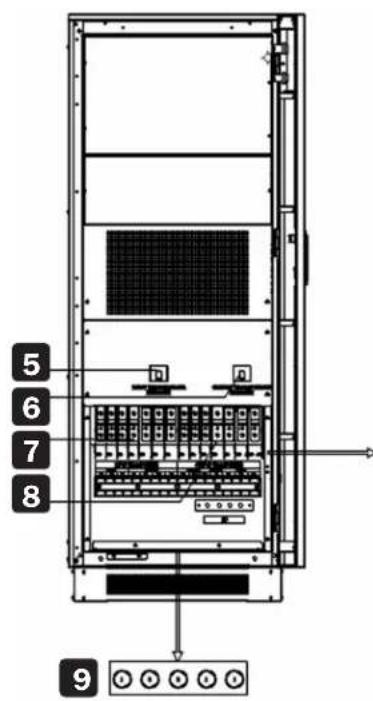

Front View (Terminal Block without Cover), Model S3MT-60WR480V

3. Installation

3.6 Power Cables

The cable design shall comply with the voltages and currents provided in this section, and in accordance with local electrical codes.

WARNING!

UPON STARTUP, ENSURE YOU ARE AWARE OF THE LOCATION AND OPERATION OF THE EXTERNAL ISOLATORS CONNECTED TO THE UPS INPUT/BYPASS SUPPLY OF THE UTILITY DISTRIBUTION PANEL.

ENSURE THESE SUPPLIES ARE ELECTRICALLY ISOLATED AND POST ANY NECESSARY WARNING SIGNS TO PREVENT INADVERTENT OPERATION.

Cable Sizes

UPS Model	Cable Sizes (THHW wiring at 75°C)
	AC Input AC Output Neutral Grounding
	Gauge Torque Gauge Torque Gauge Torque Gauge Torque
S3MT-30KWR480V	Input transformer
	6AWGMax.3 AWG	6.5N•m	3 AWGMax.3 AWG	6.5N•m	3 AWGMax.3 AWG	6.5N•m	3 AWGMax.3 AWG	6.5N•m
	Output transformer
	6AWGMax.3 AWG	6.5N•m	3 AWGMax.3 AWG	6.5N•m	3 AWGMax.3 AWG	6.5N•m	3 AWGMax.3 AWG	6.5N•m

UPS Model	Cable Sizes (THHW wiring at 75°C)
	AC Input AC Output		ut Neutral Grounding Lug
	Gauge Torque Gauge Torque Gauge Torque Gauge Torque
S3MT-60KWR480V	Input transformer
	50mm^2 Max. 50mm^2x2	25N·m	50mm^2 x2 Max. 50mm^2 x2	25N·m	70mm^2x2 Max. 70mm^2x2	25N·m	50mm^2 Max. 50mm^2 x2	25N·m M8
	Output transformer
	50mm^2 Max. 50mm^2x2	25N·m	50mm^2 x2 Max. 50mm^2 x2	25N·m	70mm^2x2 Max. 70mm^2x2	25N·m	50mm^2 Max. 50 mm2 x2	25N·m M8

3. Installation

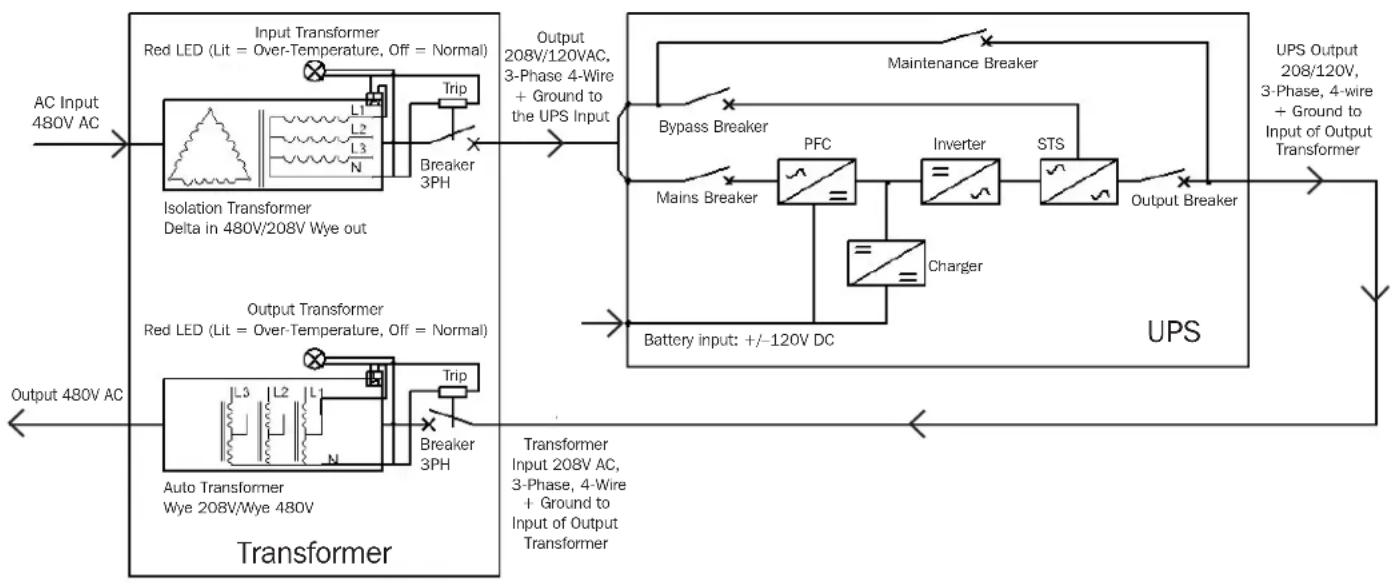

3.7 Input and Output Transformer-to-UPS Connection Line Diagram

Connections are shown below for the cabinet with built-in input isolator transformer, output auto transformer and breakers with trip and fault LED.

Figure 3-7: Connection Line Diagram

3. Installation

3.8 Multiple Transformer Connections

WARNING:

The input transformer (T-in) output neutral is not bonded to chassis ground. Please provide a means to connect the transformer chassis ground to the transformer output neutral.

Note: The transformer chassis ground must be connected to earth ground.

IMPORTANT: You may view and/or download this manual from the tripplite.com website to view the cable connections in colors.

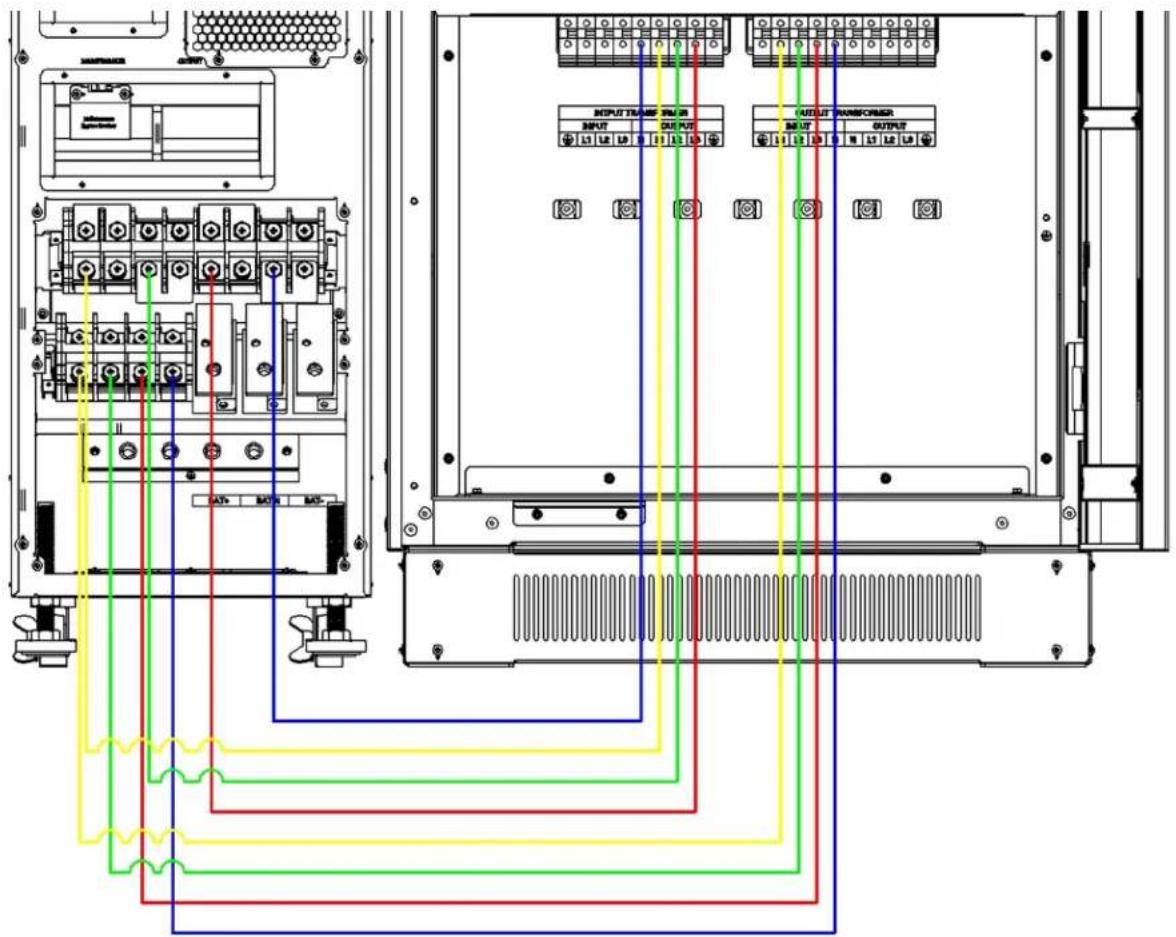

3.8.1 S3MT-30KWR480V Connections for 20kVA to 30kVA 208V UPS Systems

Note: This transformer is not compatible with SUT20K and SUT30K UPS models.

INPUT TRANSFER PAN OUTPUT TRANSFORMER S1 L2 L3 S F1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 S17 S18 S19 S20 S21 S22 S23 S24 S25 S26 S27 S28 S29 S30 S31 S32 S33 S34 S35 S36 S37 S38 S39 S40 S41 S42 S43 S44 S45 S46 S47 S48 S49 S50 S51 S52 S53 S54 S55 S56 S57 S58 S59 S60 S61 S62 S63 S64 S65 S66 S67 S68 S69 S70 S71 S72 S73 S74 S75 S76 S77 S78 S79 S80 S81 S82 S83 S84 S85 S86 S87 S88 S89 S90 S91 S92 S93 S94 S95 S96 S97 S98 S99 AAT BAN BAC

Figure 3-8: UPS
Transformer Cabinet

Note: Transformer input is Delta 3-Wire (3Ph + Ground) and output transformer is Wye 4-Wire (3Ph + N + Ground).

3. Installation

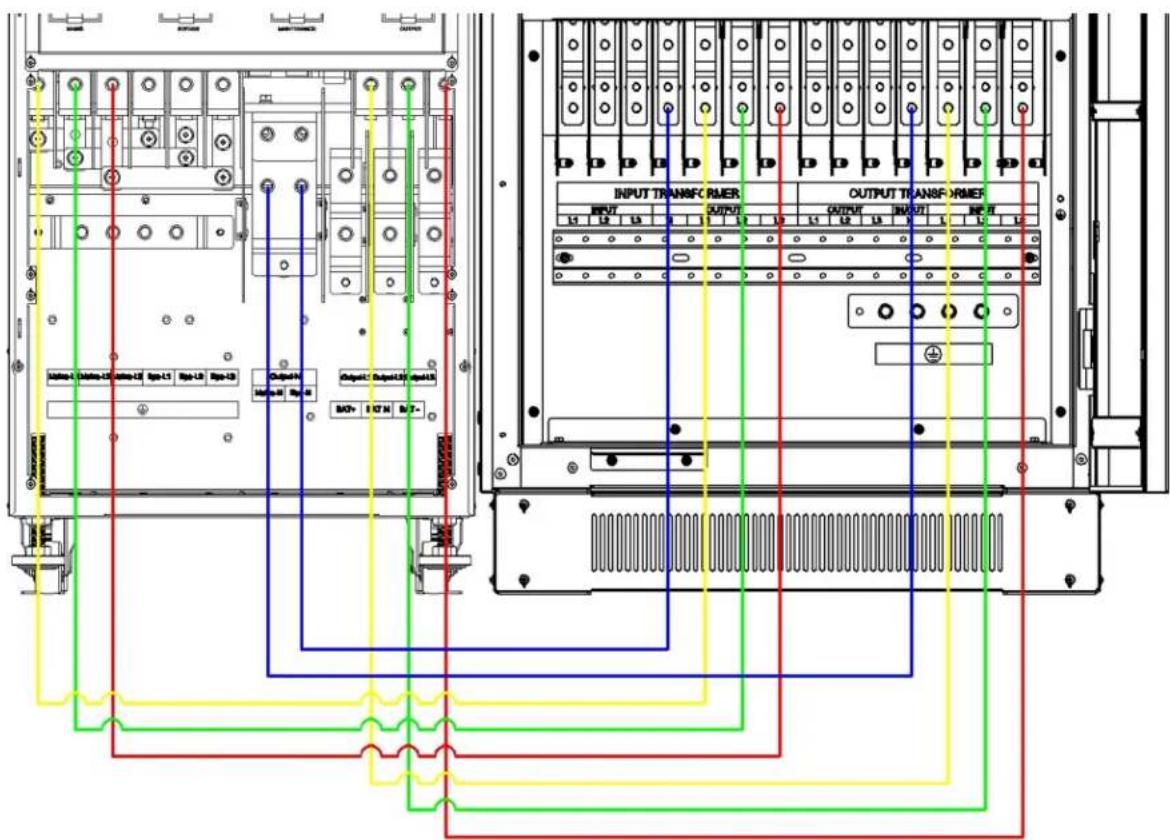

3.8.2 S3MT-60KWR480V Connections for 50kVA or 60kVA UPS Systems

Note: This transformer is not compatible with SUT40K and SUT60K UPS models.

WARNING:

The input transformer (T-in) output neutral is not bonded to chassis ground. Please provide a means to connect the transformer chassis ground to the transformer output neutral.

Note: The transformer chassis ground must be connected to earth ground.

IMPORTANT: You may view and/or download this manual from the tripplite.com website to view the cable connections in colors.

INPUT TRANSFORMER OUTPUT TRANSFORMER L1 L2 L3 L1 L2 L3 Output L1 L2 L3 Output L1 L2 L3 Output L1 L2 L3 Output L1 L2 L3 Output L1 L2 L3 Output L1 L2 L3 Output L1 L2 L3 Output L1 L2 L3 Output L1 L2 L3 Output L1 L2 L3 Output L1 L2 L3 Output

Figure 3-9: UPS
Transformer Cabinet

Note: Transformer input is Delta 3-Wire (3Ph + Ground)

and output transformer is Wye 4-Wire (3Ph + N + Ground).

4. Operation

WARNING: It is not advised to connect two UPS in parallel when using individual transformers for each UPS.

4.1 Over-Temperature Protection

4.1.1 Over-Temperature Warning LED Light (Red)

The transformer includes two warning LED lights on the top portion of the front panel: one light for the input transformer and one light for the output transformer. The corresponding warning light will turn ON when the secondary side of the input (T-in) or when primary side of the output (T-out) transformer reaches a temperature of 160^ ± 5^ , i.e. a range of 155^ to 165^ ( 311^ to 329^ ). The warning light turns OFF when the transformer cools to a temperature of 125^ ± 5^ , i.e. a range of 120^ to 130^ ( 248^ to 266^ ).

4.1.2 Over-Temperature Protection Relay and Thermal Switch

The transformers include an over-temperature protection relay and thermal switch on the secondary sides of the input (T-in) and on the primary side of the output (T-out) transformer to protect the transformer from overheating.

• Input Transformers (T-in): If the secondary side of the (T-in) input transformer reaches temperatures of 160^ ± 5^ , i.e. a range of 155^ to 165^ ( 311^ to 329^ ), an over-temperature protection relay and thermal switch will activate and will open the breaker on the secondary side of the transformer. Once the transformer temperature has cooled down to 125^ ± 5^ , i.e. a range of 120^ to 130^ ( 248^ to 266^ ) the warning LED light will turn OFF, and you may manually re-activate (close) the output breaker on the transformer to restart normal operation.

• Output Transformers (T-out): If the primary side of the (T-out) output transformer reaches temperatures of 160^ ± 5^ , i.e. a range of 155^ to 165^ ( 311^ to 329^ ), an over-temperature protection relay and thermal switch will activate and will open the breaker on the primary side of the transformer. Once the transformer temperature has cooled down to 125^ ± 5^ , i.e. a range of 120^ to 130^ ( 248^ to 266^ ), the warning LED light will turn OFF, and you may manually re-activate (close) the input breaker on the transformer to restart normal operation.

• Specifications

Models S3MT-30KWR480V S3MT-60KWR480V
	Description	Two 30kW Transformer in one Cabinet: Input Isolation Transformer (T-In) 480V Input (Delta) to 208V Output (Wye) Transformer, and Output Auto Transformer (T-Out) 208V (Wye) Input to 480V (Wye) output	Two 60kW Transformer in one Cabinet: Input IsolationTransformer (T-In) 480V Input (Delta) to 208V Output (Wye) Transformer, and Output Auto Transformer (T-Out) 208V (Wye) Input to 480V (Wye) output
	KVA/kW Ratings for Input (T-in) and Output (T-out) Transformers	30kVA/30kW 60kVA/30kW
	Transformer Type Dry-Type
INPUT SPECS of BOTH TRANSFORMERS
Input Transformer (T-In)	T-in Input Voltage 480V 480V
	T-in Input Voltage Range	-45%,+25%) for 40 % load (-20%,+25%) for 100 % load	(-45%,+25%) for 40 % load (-20%,+25%) for 100 % load
	T-in Input Amp(s) 51A 101A
	T-in Input No. Of Phases 3PH 3 PH
	T-in Input Connections 3-Wire (L1, L2, L3 + PE) 3-Wire (L1, L2, L3 + PE)
	T-in AC Input Configuration Delta Delta
	T-in Iput Connection Type	Copper Bar	Copper Bar
	T-in AC Input Frequency	50/60	50/60
	T-in Frequency Range	40/70 Hz	40/70 Hz
	T-in Voltage Selection	N/A	N/A
	Voltage Drop Ratio: Output with no load to output with Full Load	≤3%
	T-In Input Isolation	Yes
	T-in Input Inrush Current	≤1010A (10 ms)	≤920A (10 ms)
Output Transformer (T-Out)	T-out Input Voltage Range (-45%,+25%) for 40 % load (-20%,+25%) for 100 % load
	T-out Input Voltage	208V
	T-out Input Amp(s)	87A 173A
	T-out No. Of Phases	3PH	3PH
	T-out Input Connections	4-Wire (L1, L2, L3 + N + PE)
	T-out AC Input Configuration	WYE
	T-out Input connection type	Copper Bar	Copper Bar
	T-out AC Input Frequency	50/60	50/60
	T-out Frequency Range	40/70 Hz	40-70 Hz
	T-out Voltage Selection	N/A	N/A
	T-out Input Isolation	No
	T-out Input Inrush Current	≤1010A (10 ms)	≤2020A (10 ms)

5. Specifications

Models S3MT-30KWR480V S3MT-60KWR480V
T-out Input Isolation
Input Transformer (T-In)	T-in AC Output Voltage (V) 208V 208V
	T-in AC Output Amps 113A 225A
	T-in Output No. Of Phases 3PH 3PH
	T-in Output Connections 4-Wire (L1, L2, L3 +N + PE)
	T-in AC Output Configuration Wye	Wye
	T-in Connection Type Copper Bar Copper Bar
	T-in Output Breaker Rating 125A 250A
Output Transformer (T-Out)	T-out AC Output Amps 36A 72A
	T-out output No. Of Phases	3PH 3PH
	T-Out Output Connections	4-Wire (L1, L2, L3 + N + PE)
	T-out AC Output Configuration	Wye Wye
	T-out Connection Type	Copper Bar Copper Bar
	T-in Output Breaker Rating 125A 250A
Operation
	Over-Temperature Warning LED Light (Red)	Turns ON at 160°C±5°C (155°C/311°F to 165°C/329°F) and turns OFF at 125°C ±5°C (120°C/248°F to 130°C/266°F)
	Over-Temperature Protection Reset Device	T-in: Input Transfomer• Transformer output/ secondary will be OFF (Breaker opens) at 160°C ±5°C (155°C/311°F to 165°C/329°F).• You may turn ON (close) output breaker manually when the LED Light turns OFF.• The warning Light will turn off at 125°C ±5°C (120°C/248°F to 130°C/ 266°F), at which time you may close the breaker manually to re-start operations.T-out: Output Transformer• Transformer input/primary will be OFF (Breaker opens) at temperatures of 160°C ±5°C (155°C/311°F to 165°C/329°F).• You may turn ON (close) input breaker manually when the LED light turns OFF.• The Warning LED Light will turn off at 125°C ±5°C (120°C/248°F to 130°C/ 266°F), at which time you may close the breaker manually to re-start operations.
	Insulation Class	180°C
	Temperature Rise	125°C
	T-in Efficiency @ Full Load	95.20%	96.50%
	T-in Efficiency @ Half Load	97.50%	97.50%
	T-out Efficiency @ Full Load	95.20%	96.5%
	T-out Efficiency @ Half Load	97.50%	97.50%

5. Specifications

Models S3MT-30KWR480V S3MT-60KWR480V
Physical Information
	Unit Height (Inches/cm) 63/160
	Unit Width (Inches/cm) 23.6/60
	Unit Depth (Inches/cm) 33.5/85.1
	Unit Weight (Lbs./Kg) 961/436 1398/634
	Floor Loading 855 kg/m^2 1243 kg/m^2
	Unit Carton Height (Inches/cm) 70.9/180.1
	Unit Carton Width (Inches/cm) 27.6/70.1
	Unit Carton Depth (Inches/cm) 37.8/96
	Unit Carton Weight (Lbs./Kg) 1058/479.9 1510/684.9
	Tip-n-Tell Label Required (Y/N) Yes
	Audible Noise (ENG)	65dB max
	RH Humidity, Non-Condensing	95%
	Online Thermal Dissipation at Full Load, (Btu/Hr)	9829	7167
	Storage Temperature (ENG)	-15 ~ 60C
	Operating Temperature (ENG)	0°C ~ 40 °C
	Operating Elevation	<1000 meters for nominal power (over 100 m,the power de-rating is 1% per 100 m)
Mechanical
	Transformer Winding	Aluminum
	Cabinet Material	Cold Rolled Galvanized Steel (SGCC)
	Cabinet Color	RAL 9011
	Fan (Type / Quantity)	4x Ball Bearing,120 mm (576 total CFM)	8x Ball Bearing,120 mm (1152 total CFM)
Reliability
	Vibration	ISTA-3B
	Shock	ISTA-3B
	Drop	ISTA-3B (Tip Test)
Agency Approvals
	Approving Agency	cTUVs
	Agency Standard Tested	UL 1778 5th Edition
	Canadian Approvals	CSA 22.2-107.3-14
	CE Approvals	N/A
	EMI Approvals	N/A
	RoHS/REACH	Yes

6. Storage

Before storing the isolation transformer, ensure all connections have been disconnected and all breakers are turned OFF. Replace all input or output access covers to avoid damaging any contacts.

The transformer must be stored in a clean, secure environment with temperatures between 5^ F to 140^ F ( -15^ C to 60^ C) and relative humidity less than 90% (non-condensing).

Store the transformer in its original shipping container, if possible.

WARNING: The transformer(s) is/are very heavy. Before storing the transformer, make sure to take into account the floor loading (kg/m ^2 ) requirements listed in section 5. Specifications under “Physical Info” to store safely.

7. Warranty and Regulatory Compliance

Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 2 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this Warranty includes parts only. International customers should contact Tripp Lite support at [e-mail]. Continental USA customers should contact Tripp Lite Customer Service at 773-869-1234 or visit tripplite.com/support/help

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights, which vary from jurisdiction to jurisdiction.)

Tripp Lite; 1111 W. 35th Street; Chicago IL 60609; USA

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit tripplite.com/warranty today to register your new Tripp Lite product. You will be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)
• Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

20 08 283 93 3004 RevA

Line drawing of a server rack unit with ventilation grilles and cooling fins (no text or symbols)

English 1 • Français 41

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609, EE. UU. • tripplite.com/support

599 mm [23.6"] 1600 mm [63"] 850 mm [33.5"]

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Figura 3-3

3. Instalación

Technical line drawing of a mechanical or electrical enclosure with internal components and mounting brackets (no text or symbols)

Figura 3-4

Technical line drawing of a large industrial cooling unit with heat exchangers and mounting base (no text or symbols)

Figura 3-5

Line drawing of a forklift and industrial control unit (no text or symbols)

Figura 3-6

3. Instalación

Technical diagram of a server rack with labeled components and fan arrangements

Vista Posterior, S3MT-60KWR480V Vista Posterior, S3MT-30KWR480VVista Fronta

3. Instalación

5 6 7 8 9

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

INPUT TRANSFORMER
INPUT				OUTPUT
+	L1	L2	L3	N	L1	L2	L3	+

OUTPUT TRANSFORMER
INPUT					OUTPUT
±	L1	L2	L3	N	N	L1	L2	L3	±

INPUT TRANSFORMER OUTPUT TRANSFORMER L1 L2 L3 L1 L2 L3 L1 L2 L3 Output BND+ Output+ Output+ Input+ BND- OUTPUT TRANSFER INPUT TRANSFER OUTPUT TRANSFER INPUT TRANSFER OUTPUT TRANSFER INPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER OUTPUT TRANSFER Output Output+ Output+ Input+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ Output+ output

Line drawing of a server rack unit with ventilation grilles and cooling fins (no text or symbols)

English 1 • Español 21

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

T-out T-in

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Figure 3-3

3. Installation

Technical line drawing of a mechanical or electrical enclosure with internal components and mounting brackets (no text or symbols)

Figure 3-4

Technical line drawing of a server rack unit with ventilation grilles and mounting base (no text or symbols)

Figure 3-5

Line drawing of a forklift and industrial equipment unit (no text or symbols)

Figure 3-6

3. Installation

Technical diagram of a server rack with labeled components and fan arrangements

Pure electrical circuit lines without any symbols

Top-down schematic of a multi-panel electronic device layout with no text or symbols

INPUT TRANSFORMER
INPUT				OUTPUT
+	L1	L2	L3	N	L1	L2	L3	+

OUTPUT TRANSFORMER
INPUT					OUTPUT
±	L1	L2	L3	N	N	L1	L2	L3	±

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

20 08 283 93 3004 RevA
