1. Introduction

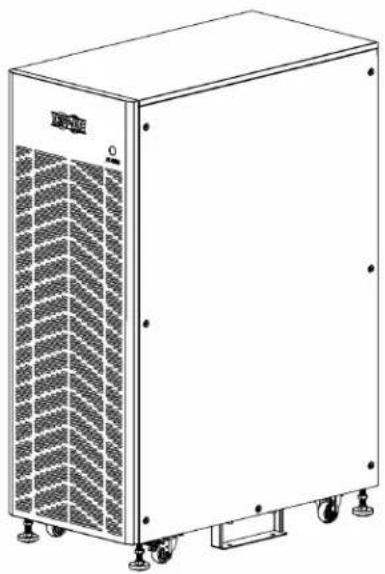

Tripp Lite's S3MT-20K480V and S3MT-30K480V Input isolation transformers provide 480V (Delta) to 208V (Wye) step-down and isolation protection to the connected UPS and its load.

The transformer has input isolation to mitigate utility line surges and spikes, while protecting the UPS. The transformer includes a built in breaker at the transformer output side for protection. Two ball-bearing fans maintain quiet operation. An overheat-sensing relay and switch combine with a warning light to provide over-temperature warning and overheating protection. The UPS system's small footprint and quiet acoustic profile enable installations with minimal space and noise impact. All transformer models feature rugged stainless steel housings with front panels similar to the S3M-Series 208V 3-Phase UPS line.

UPS Model Series Number Capacity Description
S3MT-20K480V AG-05	0B 20kW 480V to 208V	Input Isolation Transformer
S3MT-30K480V AG-05	0C 30kW 480V to 208V	Input Isolation Transformer

Typical applications

4-Wire (3Ph+N+PE) IT equipment loads in government, manufacturing, hospitals, industrial settings and corporate settings that have a 480V electrical feed and 208V/120V IT Loads.

Key Features

• Isolation protection to the UPS input, with stepped-down input from 480V (Delta) to 208V/120V (Wye)
• Circuit breaker and overheating protection
  • 95% to 97.5% efficiency
• Wide input voltage and frequency operating range Voltage: -20% to +25% @ 100% load and 40-70 Hz
  • Insulation class: 180°C material
• Reliability-tested according to ISTA-3B for vibration, shock, drop (tip test)
  • UL and CSA TUV certifications
• Rugged stainless steel housing shipped ready for installation
• 2-year warranty

1. Introduction

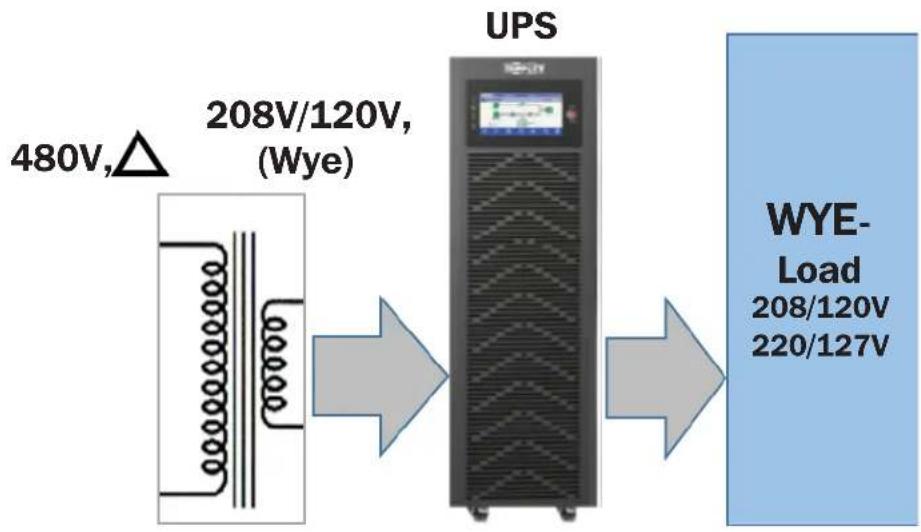

Typical Configuration

These 480V Input Transformers may be purchased separately or as part of kit model with a Tripp Lite S3M Series 3-Phase UPS:

InputTransformer Models		MaximumConstant Load	Compatible with208V 3Ph UPS	Kit Models: UPS + Transformer
				Kit Models Kit Models Include
480V	S3MT-20K480V 20kW 10-20kW UPS	$3M20K-20K4T			S3MT-20K480V + S3M20K3B UPS
	S3MT-30K480V 30kW 20-30kW UPS			S3M25K-30K4T	S3MT-30K480V + S3M25K UPS
				S3M30K-30K4T	S3MT-30K480V + S3M30K UPS

2. Important Safety Warnings

SAVE THESE INSTRUCTIONS

This manual contains important instructions for models S3MT-20K480V and S3MT-30K480V that should be followed during installation and maintenance of the transformer and UPS.

⚠️ CAUTION! Risk of electrical shock! Hazardous live parts inside this unit are energized from the transformer even when the breaker is turned off.
⚠ WARNING! The unit intended for installation in a controlled environment.
CAUTION! A transformer can present a risk of electric shock and high short circuit current. The following precaution should be observed when working on the transformer:
- Remove watches, rings or other metal objects.
- Use tools with insulated handles.

To reduce the risk of electric shock, disconnect the transformer and UPS from the mains supply before performing maintenance or service.

Servicing of the 3-phase transformer and UPS should be performed by Tripp Lite certified personnel with knowledge of the 3-phase transformer and UPS and all required precautions.

The transformer is extremely heavy. Caution should be taken in moving and positioning equipment. The instructions contained within this manual are important and should be closely followed at all times during installation and follow-up maintenance of the 3-phase transformer and UPS.

CAUTION!

The transformer has a dangerous level of heat. If the transformer's front-panel red LED indicator is on, the unit's outlets may have a dangerous level of heat.

All servicing on this equipment must be carried out by Tripp Lite-certified service personnel.

Before conducting any maintenance, repair or shipment, first ensure everything is turned off completely and disconnected.

Special Symbols – The following symbols are used on the transformer to warn you of precautions:

RISK OF ELECTRIC SHOCK - Observe the warning that a risk of electric shock is present.

CAUTION - REFER TO THE OWNER'S MANUAL for information regarding important operating and maintenance instructions.

SAFE GROUNDING TERMINAL - Indicates THE primary safe ground.

3. Installation

3.1 Mechanical Data

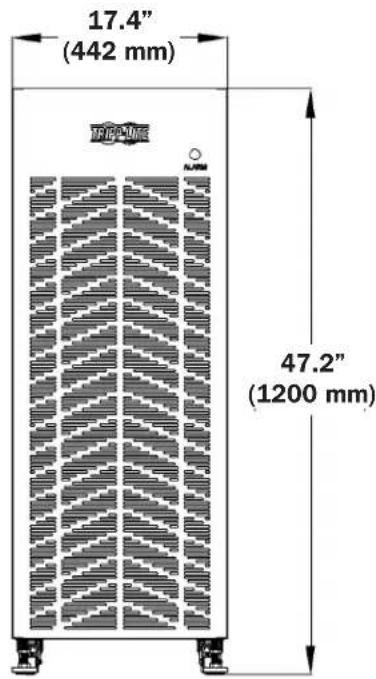

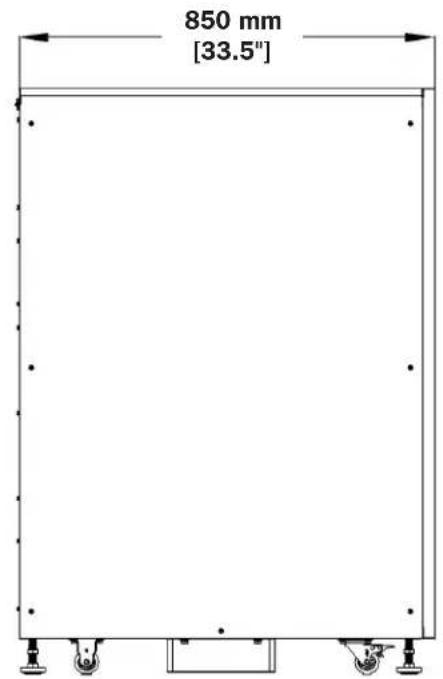

17.4" (442 mm) 47.2" (1200 mm)

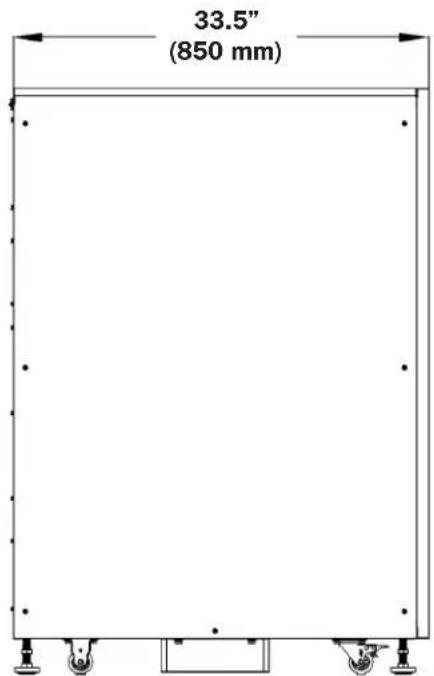

33.5" (850 mm)

Physical Requirements

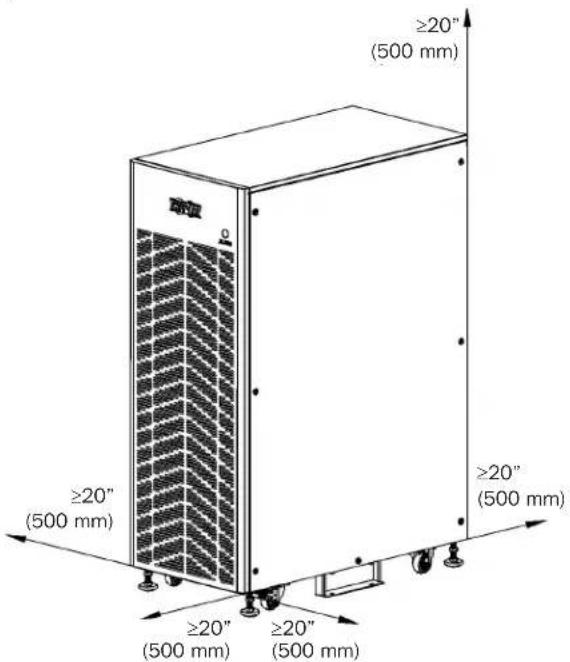

Leave space around the cabinet for operation and ventilation (Figure 3-1):

1. Leave at least 20 in. (500 mm) space in the front for ventilation
2. Leave at least 20 in. (500 mm) space at the right and left for operation
3. Leave at least 20 in. (500 mm) space at the back for ventilation

≥20" (500 mm) ≥20" (500 mm) ≥20" (500 mm) ≥20" (500 mm) ≥20" (500 mm)

Figure 3-1

3. Installation

3.2 Package Inspection

1. Don't lean the transformer cabinet when removing it from the packaging.
2. Check the appearance to see if the transformer cabinet was damaged during transport. Do not power on the transformer cabinet if any damage is found. Contact the dealer immediately.
3. Check the accessories against the packing list and contact the dealer in case of missing parts.

3.3 Unpacking the UPS

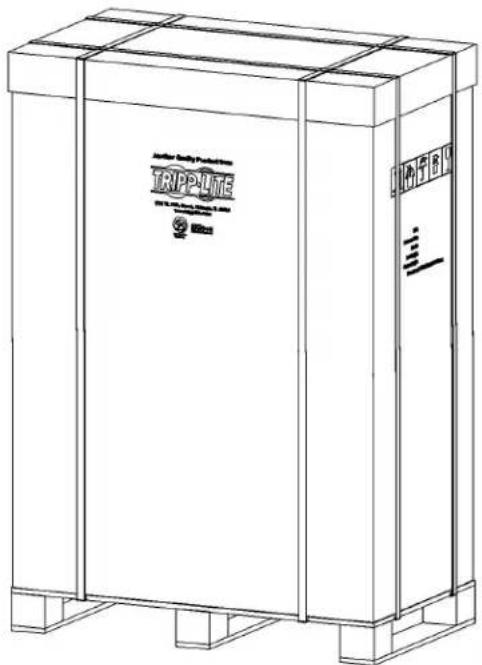

1. Hold the sliding plate steady. Cut and remove the binding straps (Figure 3-2).

Trippullite 105/6/24

Figure 3-2

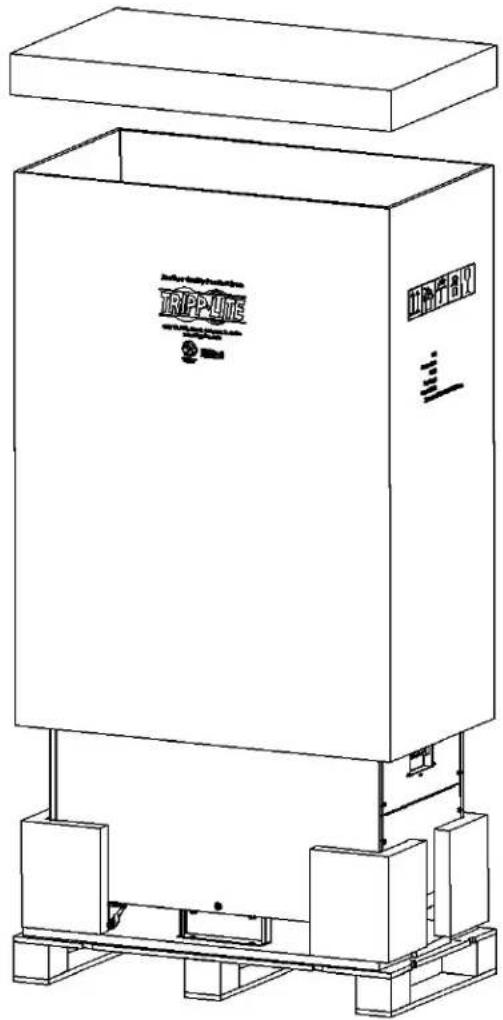

1. Remove the plastic bag and the outer carton (Figure 3-3).

Technical line drawing of a trippure electrical enclosure with mounting base (no text or symbols)

Figure 3-3

3. Installation

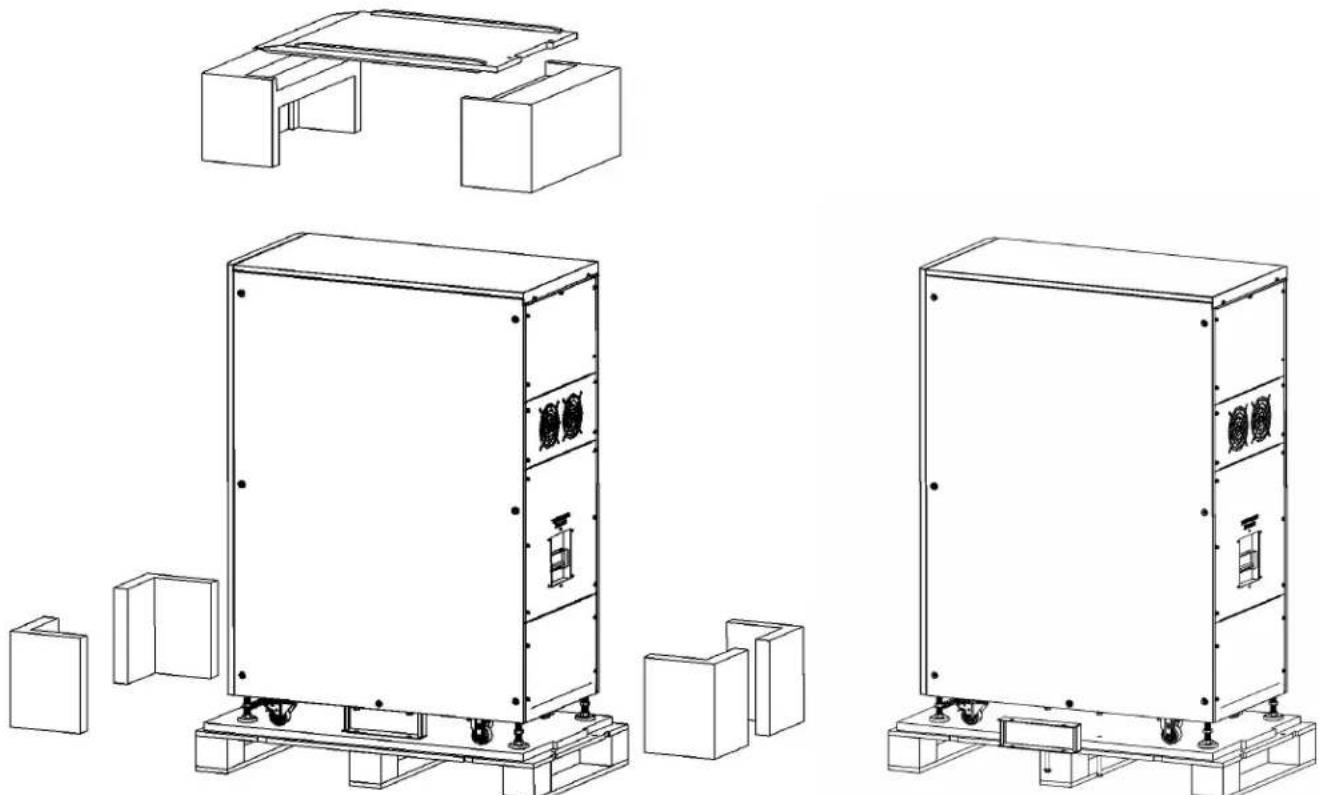

1. Remove the foam packing material and the beveled pallet (Figure 3-4).

2. Unfasten the screws and remove the sheet metal affixed to the cabinet (Figure 3-5).

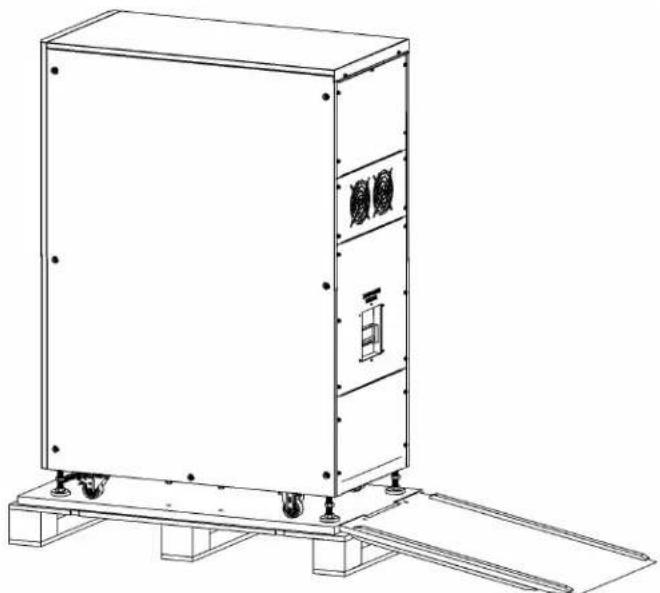

Figure 3-4

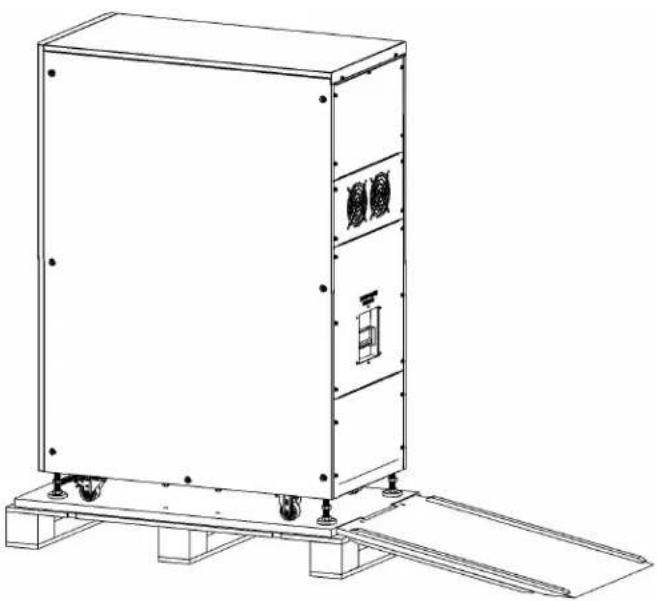

Figure 3-5

1. Slowly slide the unit from the pallet (Figures 3-6A and 3-6B).

Technical line drawing of a rectangular industrial machine with mounting base and control panel (no text or symbols)

Figure 3-6A

Technical line drawing of a rectangular industrial machine with mounting base and control panel (no text or symbols)

Figure 3-6B

3. Installation

3.4 Package Contents

Contents TL P/N S3MT-20K4	80V S3MT-30K480V
Input Transformer 1 1
Owners Manual 933D03 1 1

3.5 Cabinet Overview

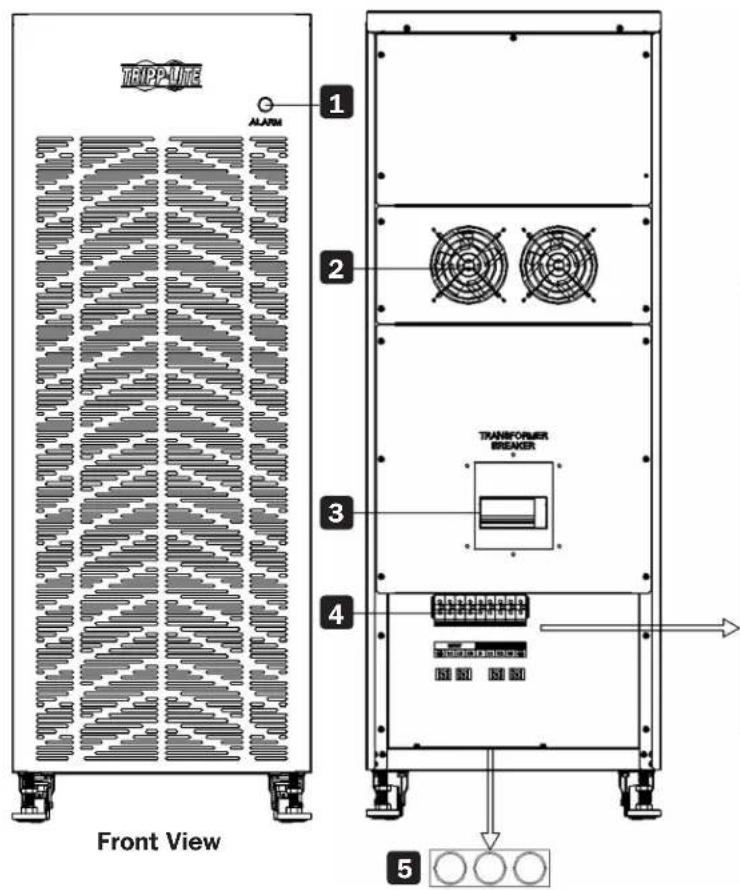

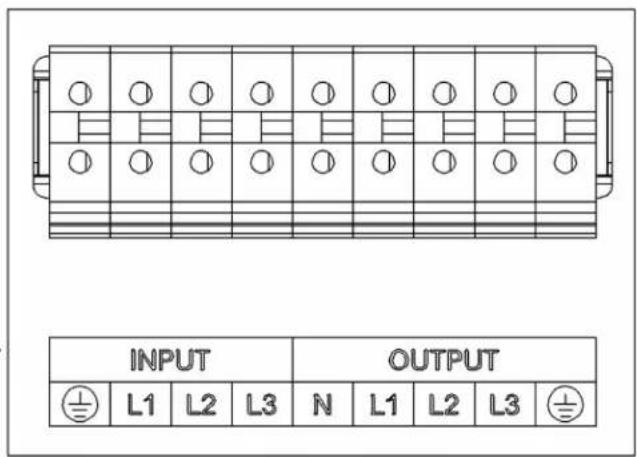

TBI2VNE 1 ALARM 2 TRANSFORMER BREAKER 3 4 5 Front View

INPUT OUTPUT L1 L2 L3 N L1 L2 L3

Rear View (terminal block without cover)

1 Over-Temperature Alarm LED
2 Cooling Fans
3 Breaker with Trip
4 Cabling Terminals
5 Bottom Entry Knockouts (for Power Cable Entry and Exit)

3. Installation

3.6 Power Cables

The cable design shall comply with the voltages and currents provided in this section, and in accordance with local electrical codes.

WARNING!

UPON STARTUP, ENSURE YOU ARE AWARE OF THE LOCATION AND OPERATION OF THE EXTERNAL ISOLATORS CONNECTED TO THE UPS INPUT/BYPASS SUPPLY OF THE UTILITY DISTRIBUTION PANEL.

ENSURE THESE SUPPLIES ARE ELECTRICALLY ISOLATED AND POST ANY NECESSARY WARNING SIGNS TO PREVENT INADVERTENT OPERATION.

Cable Sizes

UPS Model	Cable Sizes (THHW wiring at 75°C)
	AC Input AC Output Neutral Grounding
	Gauge Torque Gauge Torque Gauge Torque Gauge Torque
S3MT-20K480V	10 AWGMax.4 AWG	6.5 N•m	4 AWGMax.4 AWG	6.5 N•m	4 AWGMax.4 AWG	6.5 N•m	4 AWGMax.4 AWG	6.5 N•m
S3MT-30K480V	6 AWGMax.3 AWG	6.5 N•m	3 AWGMax.3 AWG	6.5 N•m	3 AWGMax.3 AWG	6.5 N•m	3 AWGMax.3 AWG	6.5 N•m

3. Installation

3.7 Transformer-to-UPS Connection Line Diagram

Connections are shown below for the cabinet with built-in input isolator transformer, breakers and the red over-temperature LED.


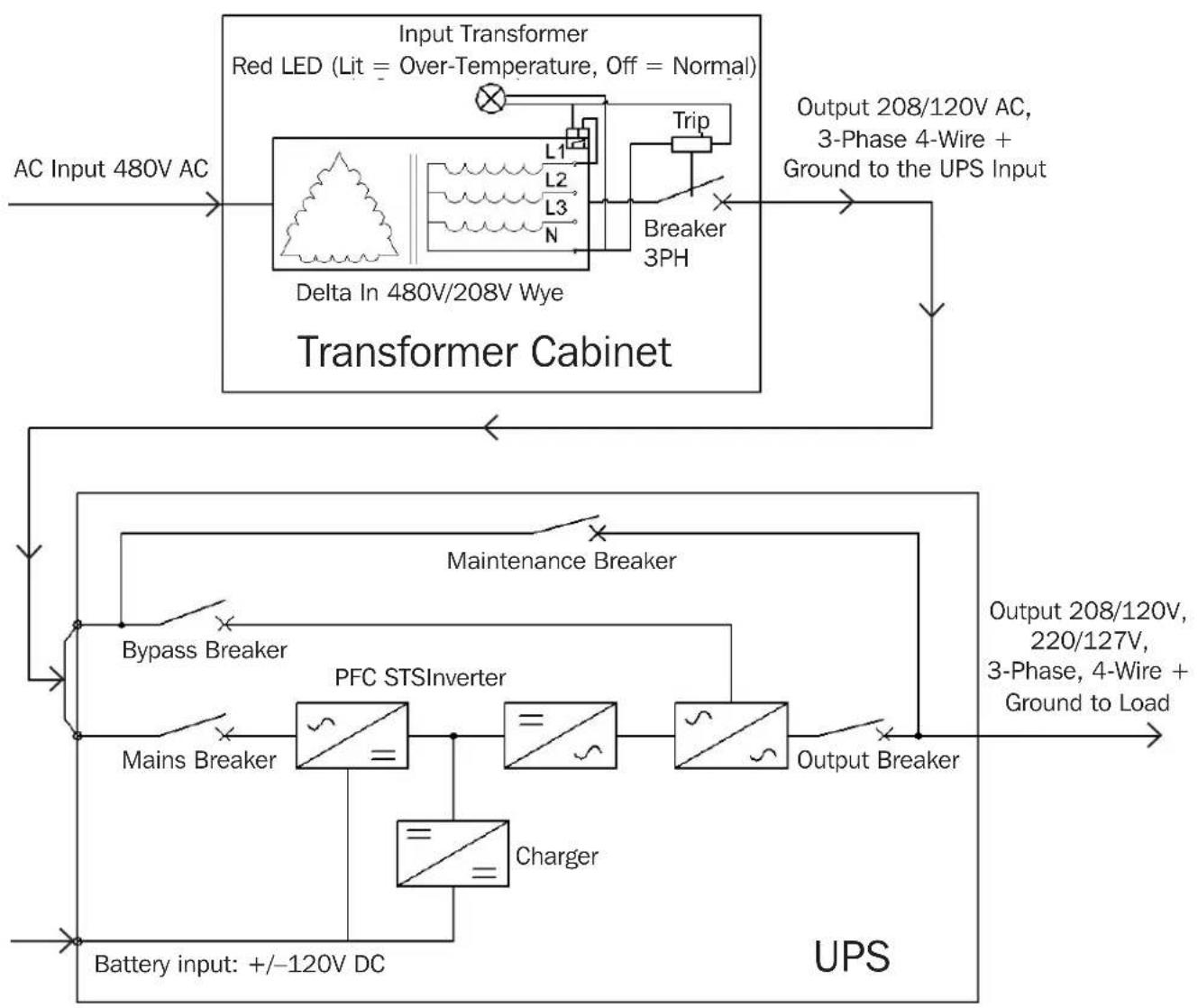

Figure 3-7: Connection Line Diagram for S3MT-20K480V / S3MT-30K480V

3. Installation

3.8 Transformer-to-UPS Connections

WARNING: The transformer output neutral is not bonded to chassis ground. Please provide a means to connect the transformer chassis ground to the transformer output neutral.

Note: The transformer chassis ground must be connected to earth ground.

IMPORTANT: You may view and/or download this manual from the tripplite.com website to view the cable connections in colors.

3.8.1 Connection for S3MT-20K480V to S3M20K3B UPS

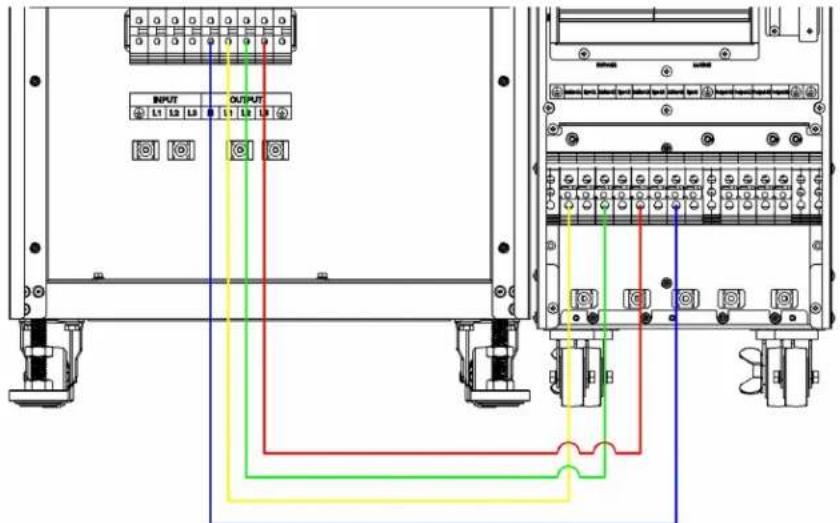

Transformer input is Delta 3-Wire (3Ph + Ground). Transformer output is Wye 4-Wire (3Ph + N + Ground).

INPUT OUTPUT L1 L2 L3 B 1.1 L3 L4

Figure 3-8: Transformer cabinet (Rear view)
UPS (Rear view)

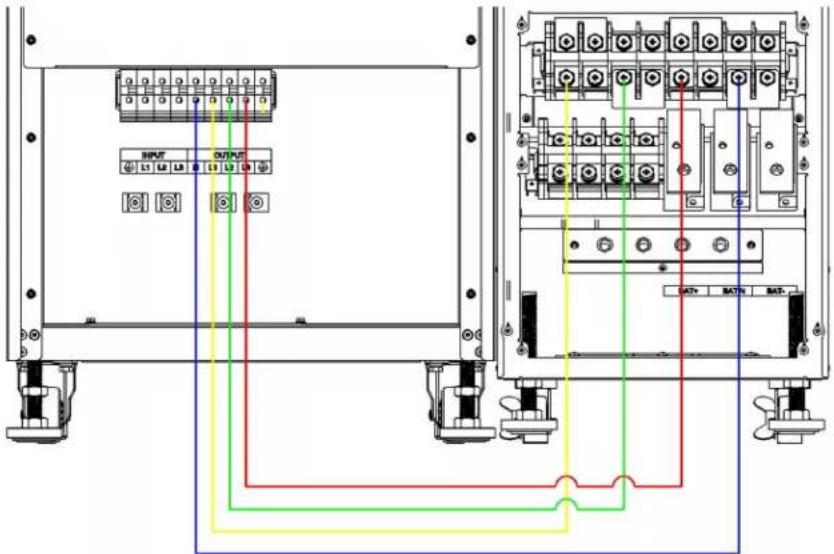

3.8.2 Connection for S3MT-30K480V to S3M25K or S3M30K UPS

Transformer input is Delta 3-Wire (3Ph + Ground). Transformer output is Wye 4-Wire (3Ph + N + Ground).

INPUT OUTPUT L1 L2 L3 B L4 L5 B BAT+ BATN BAT-

Figure 3-9: Transformer cabinet (Rear view)
UPS (Rear view)

4. Operation

WARNING: It is not advised to connect two UPS in parallel when using individual transformers for each UPS.

4.1 Over-Temperature Protection

4.1.1 Over-Temperature Red Warning LED

The transformer includes a warning LED light on the top portion of the front panel. The light turns ON when the transformer reaches a temperature of 160^ C ±5^ C, i.e. a range of 155^ C to 165^ C ( 311^ F to 329^ F). The light turns OFF when the transformer cools to a temperature of 125^ C ±5^ C, i.e. a range of 120^ C to 130^ C ( 248^ F to 266^ F).

4.1.2 Over-Temperature Protection Relay and Thermal Switch

The transformer includes an over-temperature protection relay and thermal switch to protect the transformer from overheating. At temperatures of 160^ C ±5^ C, i.e. a range of 155^ C to 165^ C ( 311^ F to 329^ F), an over-temperature protection relay and thermal switch will activate and will open the output beaker of the transformer. Once the transformer temperature has cooled down and the warning LED light has turned OFF, you may manually re-activate (close) the output breaker to restart normal operation.

1. Specifications

Models S3MT-20K480V S3MT-30K480V
Description	3-Phase 20k Input IsolationTransformer, Delta 480V/208V Wye	3-Phase 30k Input IsolationTransformer, Delta 480V/208V Wye
Transformer Type Dry-Type
Input
Input Voltage 480V
Input Voltage Operational Range and De-Rating	-45%, +25% at 40 % load-20%, +25% at 100 % load
Input Amps 35A 51A
Input Connections 3-Wire (L1, L2, L3 + PE)
Input Configuration Delta
Input Connection Type Terminal Block
Rated AC Input Frequency 50/60 Hz
Frequency Range and Derating 40~70 Hz
Voltage Selection No
Voltage Drop: Ratio Output, No Load to Full Load ≤ 3%
Inrush Current	≤300A (10 ms)	≤1010A (10 ms)
Input Isolation Yes
Output
VA Rating	20kVA	30kVA
Transformer Output Voltage	208/120V, (3-Phase, 4-Wire)
Output Amps	75A 83A
Transformer Output Breaker Rating	80A	125A
Output Watts Detailed	20,000W	30,000W
Output Connections	4-Wire (L1, L2, L3, +N, +PE)
Output Connection Type	Terminal Block
Output Configuration	Wye
Input Tranformer, Output Isolation	Yes
Operation
Over-Temperature Warning LED Light (Red)	Tums ON at 160°C ±5°C,i.e. a range of 155°C to 165°C (311°F to 329°F)Turns OFF at 125°C ±5°C,i.e. a range of 248°F to 266°F (120°C to 130°C)
Over-Temperature Protection Reset Device	Transformer output turns OFF at temperatures of 160°C ±5°C, i.e.a range of 155°C to 165°C (311°F to 329°F).The transformer output breaker can be turned ON manually whenthe warning light turns OFF.
Insulation Class	180°C
Temperature Rise	125°C
Full Load Efficiency	95.00%	95.20%
Half Load Efficiency	96.50%	97.50%
Physical Info
Unit Height	47.2 in. (1200 mm)
Unit Width	17.4 in. (442 mm)
Unit Depth	33.5 in. (850 mm)
Unit Weight	430 lb. (195 kg)	617 lb. (280 kg)

5. Specifications

Models S3MT-20K480V S3MT-30K480V
Floor Loading 519 (kg/m2) 745 (kg/m2)
Unit Carton Height 55.6 in. (1411 mm) 55.6 in. (1411 mm)
Unit Carton Width 22.2 in. (563 mm) 22.2 in. (563 mm)
Unit Carton Depth 38.2 in. (970 mm) 38.2 in. (970 mm)
Unit Carton Weight 485 lb. (220 kg) 712 lb. (323 kg)
Tip-n-Tell Label Included on Overpack Box Yes
Environment
Audible Noise at 1 m 65 dB max.
RH Humidity, Non-Condensing 95%
Online Thermal Dissipation, Full Load ( BTU/hr)	3413	4915
Storage Temperature	5°F to 140°F (-15°C to 60°C)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Operating Elevation	<1000 m for nominal power(over 1000 m, the power de-rating is 1% per 100 m)
Mechanical
Transformer Windings	Aluminum
Cabinet Material	Cold Rolled Galvanized Steel (SGCC)
Cabinet Color	RAL 9011
Fan (Type/Quantity)	2x Ball Bearing, 120 mm (288 total CFM)
Reliability
Vibration	ISTA - 3B
Shock	ISTA - 3B
Drop	ISTA - 3B (Tip Test)
Agency Approvals
Approving Agency	cTUVs
Agency Standard Tested	UL 1778 5th Edition
Canadian Approvals	CSA 22.2-107.3-14
CE Approvals	N/A
EMI Approvals	N/A
RoHS/REACH	Yes	Yes

6. Storage

Before storing the isolation transformer, ensure all connections have been disconnected and all breakers are turned OFF. Replace all input or output access covers to avoid damaging any contacts.

The transformer must be stored in a clean, secure environment with temperatures between 5^ F to 140^ F (-15°C to 60^ C) and relative humidity less than 90% (non-condensing).

Store the transformer in its original shipping container, if possible.

WARNING: The transformer(s) is/are very heavy. Before storing the transformer, make sure to take into account the floor loading (kg/m ^2 ) requirements listed in section 5. Specifications under “Physical Info” to store safely.

7. Warranty and Regulatory Compliance

Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects in material and workmanship for a period of 2 years from the date of initial purchase. If the product should prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole discretion. Service under this Warranty includes parts only. International customers should contact Tripp Lite support at [e-mail]. Continental USA customers should contact Tripp Lite Customer Service at 773-869-1234 or visit tripplite.com/support/help

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights, which vary from jurisdiction to jurisdiction.)

Tripp Lite; 1111 W. 35th Street; Chicago IL 60609; USA

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes no representation or warranty as to the suitability or fitness of these devices for any specific application.

Product Registration

Visit triplite.com/warranty today to register your new Tripp Lite product. You will be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

- Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country)

- Send the new equipment back for recycling when this ultimately becomes waste

Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.

Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Photos and illustrations may differ slightly from actual products.

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

20-08 281 93 3D03_RovA

Line drawing of a large industrial control cabinet with cooling fins and wheels (no text or symbols)

English 1 • Français 33

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 EE. UU. • tripplite.com/support

442 mm [17.4"] 1199 mm [47.2]

850 mm [33.5"]

Technical line drawing of a rectangular industrial enclosure with mounting base and support frame (no text or symbols)

Figura 3-6A

Technical line drawing of a rectangular industrial enclosure with wheels and mounting base (no text or symbols)

Figura 3-6B

3. Instalación

Line drawing of a large industrial control cabinet with cooling fins and wheels (no text or symbols)

English 1 • Español 17

TRIPP·LITE

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Figure 3-4
Figure 3-5

Technical line drawing of a rectangular industrial enclosure with mounting base and support frame (no text or symbols)

Figure 3-6A

Technical line drawing of a rectangular industrial enclosure with wheels and mounting base (no text or symbols)

Figure 3-6B

3. Installation

OUTPUT L1 L2 L3 0 L1 L2 0 BAT+ BAY- BAY-

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

20-08 281.93 3D03_RovA
