USER MANUAL Bolero CoolMarket 4D 454 Inox CECOTEC

Two modern refrigerators displayed side by side against a dark background (no text or symbols visible)

cecòtec

Safety instructions 10

1. Parts and components 72

2. Before use 73

3. Installation 73

4. Control panel 74

5. Operation 76

6. Suggestions and useful tips 79

7. Cleaning and maintenance 80

8. Troubleshooting 82

9. Technical specifications 84

10. Disposal of old electrical appliances 85

11. Technical support and warranty 85

12. Copyright 85

SOMMAIRE

Read the following instructions carefully and keep this instruction manual for future reference or new users.

• It is important to make sure all users are familiar with its operation and safety features to prevent faults and unnecessary accidents.
• Make sure that the mains voltage in your house matches the voltage stated on the rating label of the product.
• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children should not play with the refrigerator. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Keep the packaging material away from children, as there is a risk of suffocation.
• WARNING: if the interior light is damaged, contact Cecotec Technical Support Service. Do not try to repair it on your own.
• When positioning the appliance, make sure the power cord is not trapped or damaged. A crushed or damaged connector may heat up and cause a fire.
• Make sure you can access the refrigerator main connector after the installation.
• If you wish to unplug the refrigerator, do not pull the cord, pull the plug.
• Do not place hot items near the plastic components of the device.

• Do not place food directly against the air outlet on the rear wall.

• Store pre-frozen food following the food manufacturer instructions.

• Keep the ventilation openings clear from obstructions.
• Do not place carbonated or fizzy drinks in the freezer as this creates pressure in the container and could explode and damage the appliance.
• WARNING: do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by Cecotec.
• WARNING: do not damage the refrigeration circuit.
• If the cable is damaged, it must be replaced by the manufacturer, the supplier or qualified personnel in order to avoid a hazard.
• WARNING: do not use electrical appliances inside the refrigerator.
• We recommend you check the power cord regularly to detect any sign of possible damage, do not use the device if the cord is damaged.
• To avoid injuries or death because of an electric shock, do not use the device with your hands wet, nor over a wet surface.
• You should never use this refrigerator with an extension cord or a multiple connector. Make sure the device is plugged in directly to a power supply.
• When installing the appliance, make sure that there is a free space in the rear part, as this is the main heat outlet. This will allow for adequate ventilation.
• Do not place hot food or drinks in the refrigerator, allow them to cool down to room temperature before.
• Keep the device away from any heat source or from direct sunlight.

• Do not place any other appliance on the refrigerator and do not wet it.

• Do not store explosive substances such as aerosols or flammable propellants in this appliance.

• This device is intended for household use only. Do not use this unit outdoors or in damp environments.
• WARNING: to avoid any risk due to the instability of the refrigerator, you must install it according to the instructions.
• This device has a built-in earthed plug. Make sure the power supply in your house is properly grounded.
• Wait for 5 minutes after a power failure before restoring power. Otherwise, the compressor may be damaged.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Make sure the refrigerator is unplugged before cleaning it.
• Always handle the device carefully to avoid any damage on it.
• The refrigerator must be paced on a horizontal floor and its ventilation must be kept clear. Do not try to substitute or repair any part on your own.
• Frozen food can cause ice burns if it is consumed right after removing it from the freezer.
• Do not remove or touch freezer items with your hands wet, as it could cause skin abrasions or frost/freeze burns.
• Never use the base, drawers or door as support.
• Frozen food should not be frozen again when it has been defrosted.
• Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the device.
• The refrigeration compartment should not be used as a built-in appliance.

• WARNING: do not attach multi-plug power strips or multiple power supplies to the rear of the device.

• The two-star compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

• Compartments with one, two or three stars are not suitable for freezing fresh food.
• Before carrying out any maintenance task, turn off the device and unplug it from the mains supply.
• Do not clean the device with metallic objects, steam cleaners, ethereal oils, organic solvents or abrasive cleaners.
• Do not use sharp objects to remove frost from the device. Use a plastic scraper.
• It is advisable to wait for at least four hours before connecting the device to allow oil to flow through the compressor.
• Air must flow around the device: lack of air leads to overheating. To achieve a good ventilation, follow the installation instructions.
• Whenever possible, the rear part of the product should not be too close to the wall to prevent it from touching or reaching the hot parts (compressor, condenser). To avoid risk of fire, follow the installation instructions.
• Make sure the power cord is accessible after the device installation.
• All electrical work required to maintain this appliance must be carried out by a qualified electrician.
• Opening the door for long periods of time can significantly increase the temperature of the refrigerator compartments.
• Clean the surfaces that come into contact with food and with the accessible draining systems regularly.
• Store fresh meat and fish in suitable containers in the refrigerator so that they do not drip or touch other food.

Refrigerant

• Isobutane refrigerant (R600a) is contained within the refrigeration circuit of the appliance; it is a natural gas with a high level of environmental compatibility, however, it is flammable. Make sure that no components of the refrigeration circuit have been damaged during the transport and installation of the appliance.
• WARNING: the refrigerant and the insulator gas are flammable. When disposing of the device, only dispose of it at an authorised waste disposal facility. Do not expose it to flames.
• WARNING: refrigerators contain refrigerant and gases in the insulation. The refrigerator and gases must be disposed of professionally as they may cause injuries to eyes or ignition. Make sure the refrigeration circuit pipe is not damaged before disposing of it correctly.

• WARNING: risk of fire. If the refrigeration circuit is damaged:

• Avoid open flames and sources of ignition.

• Completely air the room where the device is located.

INSTRUCTIONS DE SÉCURITÉ

My Fresh Choice

Compartimento congelador

Super Cool

A. Refrigerator compartment
B. Freezer compartment
C. 'My Fresh Choice' compartment (2 stars)

1. Door shelf
2. Door shelf
3. Draught excluder
4. Door shelf
5. LED light
6. Freezer upper drawer
7. Freezer middle drawer
8. Freezer lower drawer
9. Control panel
10. Egg tray (plastic bag)
11. LED light
12. Fridge shelves
13. Lower shelf
14. Crisper drawer
15. Freezer upper drawer
16. Adjustable feet

Fig. 2

Control panel

1. On/off
2. Zone
3. Temperature
4. Mode

Notes:

• The graphics in this manual are schematic representations and may not exactly match the product.
• To obtain more space in the freezer, you can pull out the drawers (except the bottom drawer).
• To make the most out of the refrigerator in terms of energy, place all the shelves and drawers in their original position, that is, as shown in figure 1.

2. BEFORE USE

• This product includes a packaging designed to protect it during transport. Take the refrigerator out of the box. You can keep the original box and other elements in a safe place, this will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the Technical Support Service of Cecotec.

Box contents:

• Bolero CoolMarket 4D 454 Inox/Dark refrigerator
• Instruction manual

3. INSTALLATION

Before using the refrigerator for the first time, you must read these tips.

Warning

For proper installation, the refrigerator must be placed on a level surface of hard material that is at the same height as the rest of the floor. This surface must be strong enough to withstand the completely loaded refrigerator.

Refrigerator ventilation

• To improve the refrigerator system and save energy, it is necessary to ensure a proper ventilation around the refrigerator to dissipate the heat. For this reason, you should leave enough free space around the refrigerator.
• It is advisable to leave at least 50-70 mm of free space from the rear part of the refrigerator to the wall, at least 300 mm space from the surface to the ceiling, at least 200 mm from the side to the wall and a free space in the front part to be able to open the door at 135°. Check figure 3 for reference.

Note

This refrigerator operates properly in the climate classes SN to T shown in the following table. If the room temperature is below or above the range for which the refrigerator was designed, this will not operate properly.

ENGLISH

Climate class Room temperature
SN + 10°C a	+ 32°C
N + 16°C a	+ 32°C
ST + 16°C a	+ 38°C
T + 16°C a	+ 43°C

• Place the refrigerator in a dry place to prevent moisture damage.
• Keep the refrigerator away from direct sunlight, rain or frost. Keep the refrigerator away from heat sources, like cookers, fires or heaters.

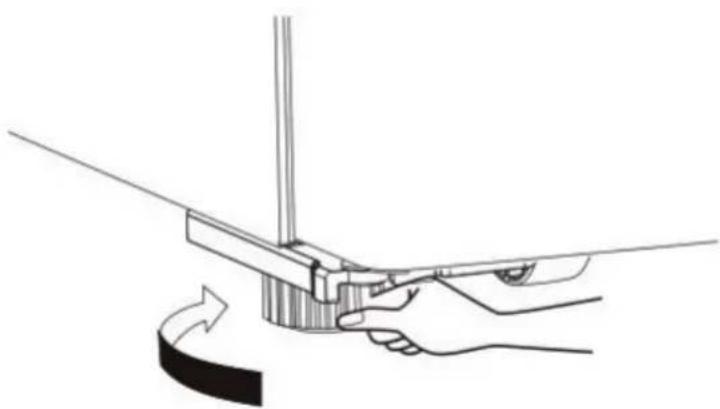

Refrigerator levelling

• For sufficient stabilisation and air circulation at the lower rear part of the refrigerator, it may be necessary to adjust the feet. You can adjust them manually or using a suitable spanner. Fig. 4

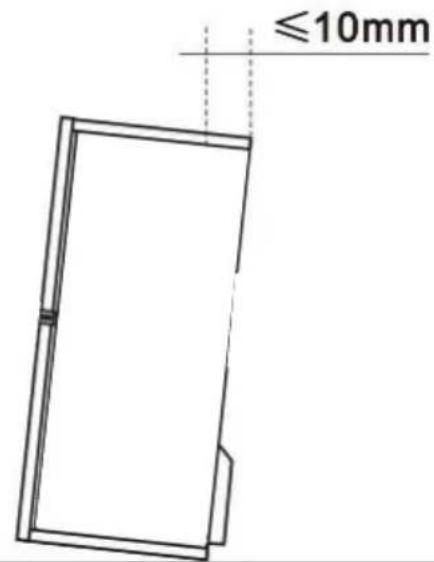

• To allow the doors to close automatically, tilt the upper part back by about 10 mm. Fig. 5

4. CONTROL PANEL

Fig. 2

When turning the refrigerator on for the first time, the backlighting of the icons on the control panel display will start to operate. If you do not press any button and the doors are closed, the backlighting will turn off.

Temperature control

For an optimum preservation of food, we advise you that, when you turn on the refrigerator for the first time, set the temperature at 4^ C in the refrigerator compartment, the My Fresh Choice compartment at -12^ C and the freezer compartment at -18^ C. If you wish to modify the temperature, follow the instructions below.

Warning

When you set the temperature, there will be an average temperature established in the whole refrigerator compartment. The temperature in each compartment can be different to the temperature values shown on the panel, depending on the amount of stored food and how it is placed. The room temperature can also affect the interior temperature of the appliance.

Refrigerator compartment

• Press ZONE repeatedly until the Fridge icon lights up (refrigerator compartment).
• Then, press TEMP repeatedly to establish the desired temperature for the refrigerator

compartment between 2^ C and 8^ C, the temperature will decrease 1^ C every time you press TEMP and the temperature indicator will show the corresponding value following this sequence.

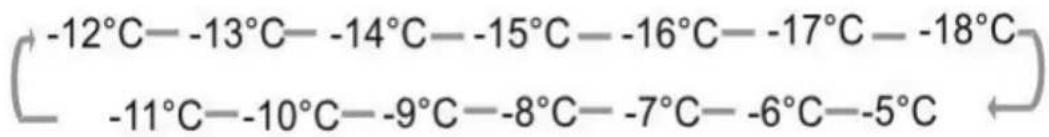

My Fresh Choice

- Press ZONE repeatedly until the My Fresh Choice icon lights up .

- Then, press TEMP repeatedly to establish the desired temperature for the My Fresh Choice compartment between -5^ and -18^ , the temperature indicator will show the corresponding value following this sequence.

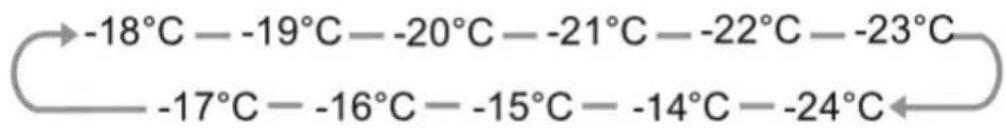

Freezer compartment

- Press ZONE repeatedly until the Freezer icon turns on.

- Then, press TEMP repeatedly to establish the desired temperature for the freezer compartment between -14^ and -24^ , the temperature indicator will show the corresponding value following this sequence.

Super Cool

- The Super Cool mode will allow you to cool food faster to keep it fresh for longer.

- To activate this mode, press MODE until the Super Cool icon lights up, the temperature indicator will show 2°C.

- This mode will be automatically deactivated after 3 hours. You can also deactivate it by pressing MODE, then the temperature indicator will return to the previous setting.

Super Freeze

- The Super Freeze mode decreases the temperature quickly in the freezer compartment so food is quickly frozen. This keeps the nutrients and vitamins in the fresh food and keeps them fresh for longer.

ENGLISH

• Use this mode to pre-freeze and quickly freeze food in the freezer compartment.
• To activate this mode, press MODE until the Super Freeze icon lights up, then the temperature indicator will show -24°C.
• This mode will be automatically deactivated after 52 hours. You can also deactivate it by pressing MODE, then the temperature indicator will return to the previous setting.

Note

When you select this mode, you must make sure there are no canned drinks or bottles (specially carbonated drinks) in the freezer compartment. Bottles and cans may explode.

Holiday

• When this function is active, the refrigerator compartment temperature will automatically change to 15°C to minimise energy consumption.
• To activate this mode, press MODE until the Holiday icon lights up.
• To deactivate this mode, press MODE, then the temperature will return to the previous setting.

Important

You should not store food in the refrigerator when the Holiday mode is active.

On/off

Turn the refrigerator on and off by pressing this button.

Hold down (for 3 seconds to turn on the refrigerator and hold it down for 3 seconds to turn it off.

Door warning

If you leave the refrigerator door open for more than 2 minutes, the door warning will be activated and the control panel will show dr. The alarm will sound 3 times per minute and will stop automatically after 8 minutes or if you close the door.

To save energy, avoid leaving the door open for a long time when using the refrigerator.

5. OPERATION

The refrigerator is fitted with the accessories mentioned in the 'Parts and components' section, and with the following instructions you will learn how to use them properly.

Door shelves

• They are ideal to store eggs, canned liquids, bottles, packed food, etc. Do not place too many heavy items on these shelves.

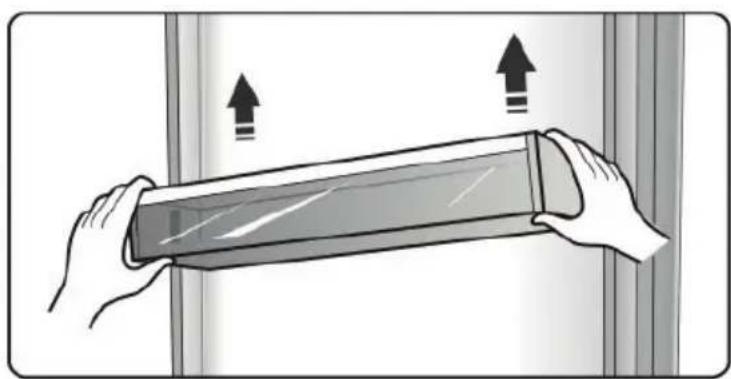

• The door middle shelves can be placed at different heights if needed. Please, remove food

from the shelves before lifting them to change their position. Fig. 6

- All the door shelves are removable for cleaning.

Refrigerator shelves

• There are three glass shelves in the refrigerator compartment. They can be set at different heights if needed.

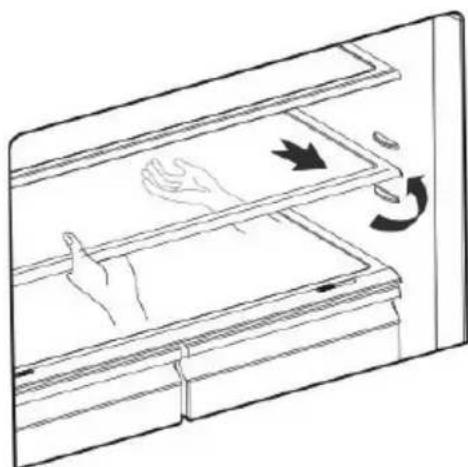

• To remove the shelves, pull them carefully forward until they come out of their guides. Fig. 7
• When you place the shelves back, make sure there are no obstacles behind and push them carefully in place. Fig. 8

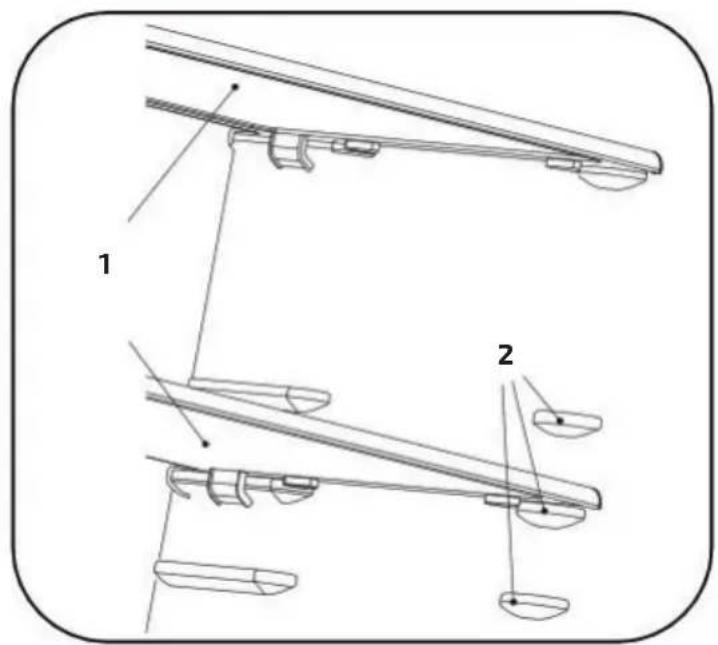

Fig. 8

1. Refrigerator shelf
2. Adjustable position

Crisper drawer

• This drawer is ideal to store fruits and vegetables as you can control the drawer moisture, which allows fruits and vegetables to remain moist. You can set the moisture inside the drawer by sliding part in the lower shelf of the refrigerator compartment. Fig. 9

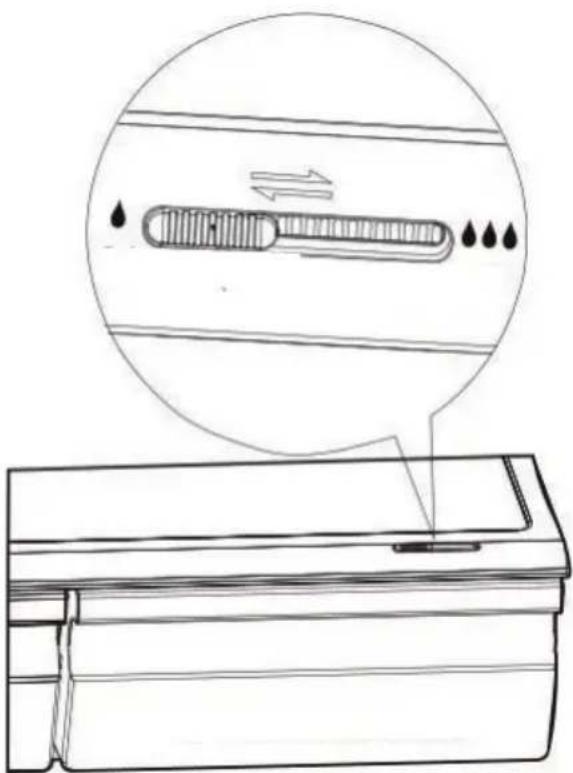

• The moisture control adjusts the air flow in the crisper drawer; the higher the air flow, the lower the moisture. Slide the moisture sliding part right to increase moisture.
• It is recommended to use a high setting for vegetables, whereas the lower settings are suitable to store fruits.

Freezer drawers

The freezer drawers are suitable to store food which needs to be frozen, like meet, ice-creams, etc.

Warning

• Make sure there are no bottles in the freezer compartment, as they could break.
• Never close the doors with the shelves and/or the drawers are fully retracted. This could damage the refrigerator.

Order Compartment type	Ideal preservation temperature (°C)	Suitable food
1 Refrigerator + 2 ~ + 8 Eggs, cooked food, packed food, fruits and vegetables, dairy products, cakes, drinks and other food which are not suitable for freezing.

2 (***)*	- Freezer ≤ -18 Su	table for fresh frozen	food, like seafood (fish, shrimp, shellfish), freshwater products and meat (recommended for 3 months, the longer it is stored, the worse the flavour and nutrients will be).
3 ***-Freezer ≤ -18 Not su	suitable for fresh frozen food, like seafood (fish, shrimp, shellfish), freshwater products and meat (recommended for 3 months, the longer it is stored, the worse the flavour and nutrients will be).
4 **-Freezer ≤ -12 Not su	table for fresh frozen food, like seafood (fish, shrimp, shellfish), freshwater products and meat (recommended for 2 months, the longer it is stored, the worse the flavour and nutrients will be).
5 *-Freezer ≤ -6 Not suitable for fresh frozen food, like seafood (fish, shrimp, shellfish), freshwater products and meat (recommended for 3 months, the longer it is stored, the worse the flavour and nutrients will be).
6 0 stars -6 ~ 0 Fresh pork, beef, fish, chicken, some packed processed foods, etc. (recommended to be consumed that same day, preferably no more than 3 days).Partially encapsulated processed food (non-frozen food)
7	Fresh	- 2 ~ + 3	Fresh/frozen pork, beef, chicken, some freshwater products, etc. (7 days below 0°C, recommended to be preserved at a temperature above 0°C to be consumed that same day, preferably no more than 2 days). Seafood (less than 0°C for 15 days, not recommended to be preserved at a temperature above 0°C).
8	Fresh food	0 ~ + 4	Fresh pork, beef, fish, chicken, cooked food, etc. (recommended to be consumed that same day, preferably no more than 3 days).
9	Wine	+ 5 ~ + 20	Red wine, white wine, sparkling wine, etc.

Note

• Preserve different food according to the ideal compartment or temperature of the food.
• If the refrigerator is empty for long periods of time, unplug it, defrost it, clean it, dry it and leave the door open to prevent the formation of mould inside the refrigerator.

6. SUGGESTIONS AND USEFUL TIPS

Tips on energy saving

• Try to avoid keeping the door open for a long period of time to save energy.
• Keep the refrigerator away from heat sources (direct sunlight, electric ovens or cookers, etc.).
• Do not set the temperature colder than necessary.
• Do not store hot food or evaporated liquid in the refrigerator.
• Place the refrigerator in a well ventilated room and free from moisture.
• If the refrigerator has the correct combination of crisper drawers, do not modify it, as it has been designed to offer the most efficient energetic setting.

Tips for cooling fresh food

• Do not place hot food directly in the refrigerator, as the interior temperature will increase, so the compressor will operate at a higher level and will spend more energy.
• Cover or wrap food, especially if it has a strong smell.
• Place food correctly so air can flow freely around it.

Refrigeration tips

• Wrap meet and place it in the lower shelf, above the crisper drawer. Always respect storage time and consume it according to the recommended expiration date.
• Cooked food, cool dishes, etc. must always be covered and can be placed on any shelf.
• Fruits and vegetables must be preserved in the crisper drawer.
• Butter and cheese must be wrapped in airtight plastic or plastic film.
• Milk bottles must have a cap and must be preserved in the door shelves.

Freezing tips

• When turning the refrigerator on for the first time or if you use it after a long period of time, leave the refrigerator work for at least 2 hours with the highest settings before storing any food.
• Prepare food in small portions so they are frozen evenly and quickly, so that you can also defrost just the necessary amount.
• Do not allow defrosted fresh food to come in contact with already frozen food to avoid the temperature of the latter to increase.
• If food is consumed immediately after removing it from the freezer, it may cause ice burns to the skin.

ENGLISH

- It is recommended to label and place a date in each frozen food to keep track of the storage time.

Tips for preserving frozen food

Once defrosted, food will deteriorate quickly and should not be frozen again. Do not exceed the storage time indicated in food packages.

Turning off the refrigerator

If it was necessary to turn off the refrigerator for a long period of time, you should follow these steps to prevent fungus formation in the refrigerator.

1. Remove all the food.
2. Unplug the device from the mains supply.
3. Clean and dry the interior completely.
4. Make sure all doors are slightly open to allow air flow.

7. CLEANING AND MAINTENANCE

For hygienic reasons, the refrigerator (as well as the exterior and interior accessories) should be cleaned regularly at least every two months.

Warning

The refrigerator cannot be connected to the mains during cleaning, as there is a risk of electric shock. Before cleaning it, turn off the refrigerator and unplug it from the mains.

Exterior cleaning

• To keep your refrigerator in good condition, you should clean it regularly.
• Clean the control panel with a soft and clean cloth.
• Spray water on a cleaning cloth instead of spraying it directly on the refrigerator surface. This will help distribute moisture evenly over the surface.
• Clean the doors and surfaces of the refrigerator with a soft detergent and then dry them with a soft cloth.

Warning

• Do not use sharp objects, as they could scratch the surface.
• Do not use thinner, car detergent, chlorine-containing detergents, ethereal oil, abrasive cleaners or organic solvents such as benzene for cleaning. They could damage the surface of the refrigerator and cause a fire.

Interior cleaning

- You must clean the interior of the refrigerator periodically.

- Clean the interior of the refrigerator with a weak solution of baking soda and then rinse it with warm water using a wrung-out cloth or sponge. Dry it completely before placing the shelves and the crisper drawers back. Dry all the surfaces and the detachable parts thoroughly before placing them back in place.

Defrost

Even if the refrigerator has an automatic defrost function, there could be a layer of frost in the interior of the freezer compartment if the door has been frequently open or if it has been open for a long period of time. If the frost is too thick, follow these steps:

1. Remove the food and the crisper drawers, unplug the refrigerator from the mains and leave the doors open. Ventilate the room well to speed up the defrosting process.
2. When it has been completely defrosted, clean the refrigerator following the process described.

Warning

• Do not use sharp objects to remove frost.
• You should only plug and turn on the refrigerator when the interior is completely dry.

Cleaning the gasket of the doors

Try to keep the gasket of the doors clean. Sticky food and drinks can cause the gaskets to stick to the structure of the refrigerator and break when the door is opened. Wash the gasket with a soft detergent and warm water. Rinse it and dry it thoroughly after cleaning it.

Warning

You must only turn the refrigerator on after the gaskets of the door are completely dry.

Substitution of the LED light

Warning

The LED light can only be substituted by authorised personnel. If the LED light is damaged, contact the official Customer Service of Cecotec for assistance.

To replace the LED light, follow these steps:

1. Unplug the refrigerator.
2. Remove the light cover by pressing it upwards and outwards.
3. Hold the LED light cover with a hand and pull with the other while you press the connector.
4. Substitute the LED light and place it correctly in place.

ENGLISH

8. TROUBLESHOOTING

If you experience any problem with the refrigerator or you think it does not work properly, you can carry out a few simple checks before calling the official Cecotec Customer Service.

Warning

Do not try to repair the refrigerator on your own. If the problem persists after the checks explained below, contact a qualified electrician, authorised personnel, the store where you purchased the product or the official Customer Service of Cecotec.

Problem Possible cause and solution
The refrigerator does not work properly Check if the cord is plugged in correctly in the mains supply.
The refrigerator makes some noise The noises described next are usual:- Compressor operation noise.- Air flow noise of the small fan motor in the freezer compartment or the other compartments.- Dripping sound similar to boiling water.- Knocking sound during automatic defrosting.- Clicking sound before the compressor starts.
Other unusual noises may be caused by the situations described next and you may need to check them and take action:- The refrigerator is not levelled.- The rear part of the refrigerator is in contact with the wall.- The bottles or containers hit each other.
The motor does not work continuously It is usual to hear the motor noise frequently, it will work more intensely in the following situations:- The temperature setting is colder than necessary.- You have recently stored a great amount of hot food inside the refrigerator.- The room temperature is too high.- The doors have been opened for a long period of time or they are frequently open.
There is a layer of frost Check the air outlets are not blocked by food and make sure the food is placed inside the refrigerator in a manner which allows enough ventilation. Make sure the door is properly closed. To remove frost, read the 'Cleaning and maintenance' section.

ENGLISH

The interior temperature is too high You may have left the doors open too long or opened them too often, an obstacle may have kept them open, or the refrigerator may have too little space on the sides, back and top.

The interior temperature is too low Increase the temperature according to the 'Control panel' section.

The doors cannot be easily open Check if the refrigerator is tilted back 10 mm to allow the doors to close on their own or if there is something inside which prevents the doors from closing.

There is water leaking The water tray (located at the bottom rear of the refrigerator) may not be levelled properly, or the drain line (located below the top of the compressor tank) may not be positioned properly to guide water into the water tray, or the water line is blocked. You may need to keep the refrigerator away from the wall to check the tray and the line.

The light does not work. The light bulb is damaged.

9. TECHNICAL SPECIFICATIONS

You can access the product database where the information for this model is stored by scanning the QR code (and the energy label as well).

Reference: 02372 02373
Model Bolero CoolMarket	4D 454 Inox Bolero CoolMarket	4D 454 Dark
QR code
Voltage 220-240V ~
Rated frequency 50 Hz
Rated current 1,9 A
Climate class SN, N, ST, T
Refrigerant R600a (78 g)
Insulating foam Cyclopentane

This product features a light source with an energy efficiency grade G.

(*) Refrigerating appliance intended for use at room temperatures between 10°C and 43°C.

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

10. DISPOSAL OF OLD ELECTRICAL APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information

concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help to protect the environment.

11. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

12. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

My Fresh Choice

Congélateur

Super Cool

My Fresh Choice

Gefrierfach

Super Cool

My Fresh Choice

Super Cool

My Fresh Choice

Compartimento congelador

Super Cool

My Fresh Choice

Diepvriesvak

Super Cool

8. PROBLEEMOPLOSSING

My Fresh Choice

Super Cool

My Fresh Choice

Oddíl s mrazničkou

Super Cool

790mm 600mm 709mm 135° 135° 1384mm

Fig. / Img. / Rys. / Obr. 3

Line drawing of a hand holding a tool with a rotating arrow indicating rotation (no text or symbols)

Fig. / Img. / Rys. / Obr. 4

≤10mm

Fig. / Img. / Rys. / Obr. 5

Illustration of hands holding a flexible electronic device with upward arrows indicating motion (no text or symbols)

Fig. / Img. / Rys. / Obr. 6

Line drawing of a refrigerator interior with hand gestures and hanging leaves (no text or symbols)

Fig. / Img. / Rys. / Obr. 7

1 2

Fig. / Img. / Rys. / Obr. 8

Diagram illustrating fluid flow around a device with labeled components and directional arrows

Fig. / Img. / Rys. / Obr. 9

www.cecotec.es

Quart de Poblet, Valencia (Spain)

YV01220209
