USER MANUAL DEH-S400DAB PIONEER

REPRODUCTOR DE CD CON RECEPTOR RDS

CD RDS-EMPFÄNGER

CD RDS-ONTVANGER

Spotify

Made for

iPod iPhone

DEH-S400DAB

Owner's Manual

Mode d'emploi

Digital Audio Broadcasting (DAB) 6

Radio. 6

CD/USB/iPod/AUX. 7

App Mode. 8

Spotify 9

Using Pioneer ARC APP 10

Settings 10

FUNCTION settings 11

AUDIO settings. 12

SYSTEM settings 12

ILLUMINATION settings. 13

Connections/Installation. 14

Additional Information. 16

About this manual:

• In the following instructions, a USB memory or USB audio player are referred to as "USB device".
• In this manual, iPod and iPhone are referred to as "iPod".

Declaration of Conformity with regard to the Radio Equipment Directive 2014/53/EU

Manufacturer:

Pioneer Corporation

28-8, Honkomagome 2-chome, Bunkyo-ku, Tsubu 113-02910

Tokyo 113-0021, Japan

[°] DEH-S400DAB

English: Hereshu Pianerde declares that the radio equipment type
[1] Is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is
available at the following internet address: http://
www.pioneer-car.eu/compliance

EU Representative's & Importer:

Pioneer Europe NV

Haven 1087, Keetberglaan 1, 9120 Melsele,Belgium

http://www.pioneer-car.eu

Italiano:

www.pioneer-urban.com/pianfance

www.pioneer-car.eu/compliance

estina:

Timo Pioneer prohajiuse, ze typ radioveho zaifzeni [] je

v souladussemnici 2014/53/EU.

Uplne zneni EU prohlasei o shode je k dispozici na teto

Interneotve aorese:http://ww.pioneer-car.eu/

estri.

Kaesolevaga deklareerib Pioneer, et kaesolev

raadoseadme tUp [°] vastab direktiv 2014/53/EL

nouetele.

LIOUHIN TENG TKT HU ECNAPALIPHTA 3a CHOTBETCTT MOPHE DA CE HAMERPA HCNJHUN INTEPHET Apec: http://www.pioneer-car.eu/ compliance.

Polski:

Thank you for purchasing this PIONEER product.

To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe WARNINGs and CAUTIONs in this manual. Please keep the manual in a safe and accessible place for future reference.

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

WARNING

• Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without training and experience in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards.

• Do not attempt to operate the unit while driving. Make sure to pull off the road and park your vehicle. In a safe location before attempting to use the controls on the device.

CAUTION

• Do not allow this unit to come into contact with moisture and/or liquids. Electrical shock could result.
• Also, damage to this unit, smoke, and overheating could result from contact with liquids.
• Always keep the volume low enough to hear outside sounds.
• The Pioneer CarStereo-Pass is for use only in Germany.
• This product is evaluated in moderate and tropical climate conditions under the Audio, video and similar electronic apparatus - Safety requirements, IEC 60065.

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007

CLASS 1 LASER PRODUCT

If you experience problems

Should this unit fail to work properly, please contact your dealer or nearest authorized PIONEER Service Station.

Getting Started

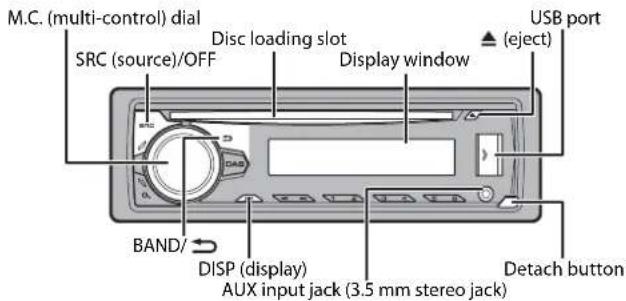

Basic operation

DEH-S400DAB

Frequently used operations

Purpose Operation
Turn on the power* Press SR	C/OFF to turn on the power. Press and hold SRC/OFF to turn off the power.
Adjust the volume Turn the M.	C. dial.
Select a source Press SR	C/OFF repeatedly.
Change the display information Press DIS	P repeatedly.
Return to the previous display/list	Press BAND/
Return to the normal display from the menu	Press and hold BAND/

• When this unit's blue/white lead is connected to the vehicle's auto-antenna relay control terminal, the vehicle's antenna extends when this unit's source is turned on. To retract the antenna, turn the source off.

Display indication

Indication Description
» Appears when a lower tier of the menu or folder exists.
P	Appears when the button is pressed.
LOC	Appears when the local seek tuning function is set (page 11).
TP	Appears when a traffic program is received.
TA	Appears when the TA (traffic announcements) function is set (page 11).
SRTN	Appears when the sound retriever function is set (page 11).
XX	Appears when random/shuffle play is set.
←	Appears when repeat play is set.
@	Appears when the iPod control function is set (page 8).

Detaching the front panel

Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it.

Detach

Important

• Avoid subjecting the front panel to excessive shock.
• Keep the front panel out of direct sunlight and high temperatures.
  Always store the detached front panel in a protective case or bag

Setup menu

When you turn the ignition switch to ON after installation, [SET UP:YES] appears in the display.

1 Press the M.C. dial.

The setup menu disappears after 30 seconds of no operation. If you prefer not to set at this time, turn the M.C. dial to select [NO], then press to confirm.

2 Turn the M.C. dial to select the options, then press to confirm.

To proceed to the next menu option, you need to confirm your selection.

Menu Item Description
LANGUAGE Select the language to display the text information from a compressed audio file.
[ENG](English), [PVC](Russian), [TUR](Turkish)
CLOCK SET Set the clock.
FM STEP Select the FM tuning step from 100 kHz or 50 kHz.
[100], [50]
DAB ANT PW Supply power per to a DAB antenna. Select this when using the optional DAB antenna (AN-DAB1, sold separately) with the unit.
[ON]
[OFF] No power is supplied to a DAB antenna. Select this when using a passive antenna with no booster.

3[QUT:YES] appears when all the settings have been made.

To return to the first item of the setup menu, turn the M.C. dial to select [QUIT:NO], then press to confirm.

4 Press the M.C. dial to confirm the settings.

When [DAB ANT PW] is set to [ON], [UPDATING LIST] appears in the display and the service list will be updated.

NOTES

• You can cancel the menu setting by pressing SRC/OFF.

• These settings can be made at any time from the SYSTEM settings (page 12) and INITIAL settings (page 5).

Canceling the demonstration display (DEMO OFF)

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [SYSTEM], then press to confirm.
3 Turn the M.C. dial to select [DEMO OFF], then press to confirm.
4 Turn the M.C. dial to select [YES], then press to confirm.

INITIAL settings

1 Press and hold SRC/OFF until the unit turns off.
2 Press and hold SRC/OFF to display the main menu.
3 Turn the M.C. dial to select [INITIAL], then press to confirm.
4 Turn the M.C. dial to select an option, then press to confirm.

Menu Item Description
FM STEP Select the FM [100], [50]	tuning step from 100 kHz or 50 kHz.
SP-P/O MODE Select with [REAR/SUB.W]	when there is a full-range speaker connected to the rear speaker output leads and there is a subwoofer connected to the RCA output.
[SUB.W/SUB.W] Select	when there is a passive subwoofer connected directly to the rear speaker output leads and there is a subwoofer connected to the RCA output.
[REAR/REAR] Select	when there are full-range speakers connected to the rear speaker output leads and RCA output. If there is a full-range speaker connected to the rear speaker output leads, and the RCA output is not used, you may select either [REAR/SUB.W] or [REAR/REAR].
S/W UPDATE Select to [SYSTEM INFO]	confirm the latest system information on the unit.
[SYSTEM UPDATE]	Select to update the unit to the latest software and initialize the unit settings. For details on the latest software and updating, visit our website.
DAB ANT PW Supply power [ON]	power to a DAB antenna. Select this when using the optional DAB antenna (AN-DAB1, sold separately) with the unit.
[OFF] No power is supplied to a DAB antenna. Select this when using a passive antenna with no booster.
SYSTEM RESET [YES], [NO]	Select [YES] to initialize the unit settings. The unit will be restarted automatically. (Some of the settings may be retained even after resetting the unit.)

Digital Audio Broadcasting (DAB)

To receive DAB signals, connect a DAB antenna (AN-DAB1) (sold separately) to the unit.

Seeking a service component/station

1 Press SRC/OFF to select [DIGITAL RADIO].
2 Press BAND/ to select the band from [D1], [D2] or [D3].
3 Press 一 / to select a service component/station.

NOTE

Press and hold then release to seek an available service. Scanning stops when the unit receives a service.

To select service component/station from service lists

1 During DAB reception, press.
Displays the list of all service components/stations. Press again to search for a service component/station alphabetically.
2 Select a service component/station from the list you selected, then press the M.C. dial to confirm.

NOTE

You can update the service list by pressing and holding Q . To cancel updating, press and hold Q again.

Presetting service components/stations

To store service components/stations

1 While receiving the service component/station you want to store, press and hold one of the number buttons (1 / to 6 / 一 ) until it stops flashing.

To retrieve stored service components/stations

1 Select the band, then press a number button (1/ A to 6/ -).

Radio

The tune frequencies on this unit are allocated for use in Western Europe, Asia, the Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS (radio data system) function only works in areas that broadcast RDS signals for FM stations.

Receiving preset stations

1 Press SRC/OFF to select [RADIO].
2 Press BAND/ to select the band from [FM1], [FM2], [FM3], [MW] or [LW].
3 Press a number button (1/ to 6/).

TIP

The buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the FUNCTION settings (page 11).

Best stations memory (BSM)

The six strongest stations are stored on the number buttons (1/ to 6/).

1 After selecting the band, press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [FUNCTION], then press to confirm.
3 Turn the M.C. dial to select [BSM], then press to confirm.

To seek a station manually

1 After selecting the band, press to select a station.
Press and hold / then release to seek an available station. Scanning stops when the unit receives a station. To cancel seek tuning, press

NOTE

[SEEK] needs to be set to [MAN] in the FUNCTION settings (page 11).

To store stations manually

1 While receiving the station you want to store, press and hold one of the number buttons (1 / to 6 / 2) until it stops flashing.

Using PTY functions

The unit searches for a station by PTY (program type) information.

1Press dQing FM reception.
2 Tum the M.C. dial to select a program type from [NEWS/INFO], [POPULAR], [CLASSICS] or [OTHERS].
3 Press the M.C. dial.

The unit begins to search for a station. When it is found, its program service name is displayed.

NOTES

To cancel the search, press the M.C. dial.
The program of some stations may differ from that indicated by the transmitted PTY.
- If no station is broadcasting the type of program you searched for, [NOT FOUND] is displayed for about two seconds and then the tuner returns to the original station.

CD/USB/iPod/AUX

Playing back

Disconnect headphones from the device before connecting it to the unit.

CD

1 Insert a disc into the disc loading slot with the label side up.

To eject a disc, stop playback first then press

USB devices (including Android™)/iPod

1 Open the USB port cover.
2 Plug in the USB device/IPod using an appropriate cable.

NOTE

To automatically switch to [USB] source when a USB device/IPod is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 13).

CAUTION

Use an optional Pioneer USB cable (CD-U50E) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.

Before removing the device, stop playback.

AOA connections

For details on AOA connection, see page 10.

MTP connection

A device installed with Android OS 4.0 or later can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device and the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV file formats.

NOTE

If you use an MTP connection, [ANDROID WIRED] needs to be set to [MEMORY] in the SYSTEM settings (page 13).

AUX

1 Insert the stereo miniI plug Into the AUX Input Jack.
2 Press SRC/OFF to select [AUX] as the source.

NOTE

If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 12).

Operations

You can make various adjustments in the FUNCTION settings (page 11).

Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself.

Purpose Operation
Select a folder/album*1	Press 1/ ▲ or 2/ √.
Select a track/song (chapter)	Press ▲ or ▲.
Fast forward or reverse*2	Press and hold ▲ or ▲.
Search for a file from a list	1 Press □ to display the list. 2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts.
View a list of the files in the selected folder/ category*1	Press the M.C. dial when a folder/category is selected.
Play a song in the selected folder/ category*1	Press and hold the M.C. dial when a folder/ category is selected.
Purpose	Operation
Alphabetical search (iPod only)	1 Press to display the list.2Tu m the M.C. dial to select the desired category list, then press enter the alphabetical search mode.(Turning the M.C. dial twice also enters the alphabetical search mode.)3Tu m the M.C. dial to select a letter, then press to display the alphabetical list.To cancel alphabetical search, press BAND/
Repeat play Press 6/.
Random/shuffle play Press 5/.
Shuffle all play (iPod only)	Press and hold 5/
Pause/resume playback	Press 4/PAUSE.
Sound retriever*1	Press 3/S.Rtrv. [1]: Effective for low compression rates [2]: Effective for high compression rates
Return to root folder (CD/USB only)*1	Press and hold .
Switch between compressed audio and CD-DA (CD only)	Press BAND/
Change drives in USB device(Devices that support the USB mass storage device class protocol only)	Press BAND/

1 Compressed audio files only
2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct.

Useful functions for iPod

Link play mode

You can access songs based on the artist, album, or genre currently playing.

1 While listening to a song, press and hold to enter the link play mode.
2 Turn the M.C. dial to select the mode ([ARTIST], [ALBUM], [GENRE]), then press to confirm.

The selected song/album will be played after the currently playing song.

NOTE

The selected song/album may be canceled if you use functions other than those from the link play mode (e.g. fast forward and reverse).

iPod control

You can control the unit via a connected iPod.

The following iPod models are not compatible with this function.

• iPod nano 1st generation, iPod with video

1 Press BAND/ during playback, then select the control mode.

[CONTROL iPod]: The unit's iPod function can be operated from the connected iPod.

[CONTROL AUDIO]: The unit's iPod function can only be operated by the buttons on

the unit. In this mode, the connected iPod cannot be turned on or off.

NOTES

• Switching the control mode to [CONTROL.iPod] pauses song playback. Use the connected iPod to resume playback.
  The following operations are still accessible from the unit, even if the control mode is set to
  [CONTROL iPod]
• Pause, fast forward/reverse, song/chapter selection
  The volume can only be adjusted from the unit.

App Mode

You can enjoy listening to an application on an iPhone via the unit. In some cases, you can control an application by using the unit.

For details on compatible devices, visit our website.

Important

Use of third party apps may involve or require the provision of personally identifiable information, whether through the creation of a user account or otherwise, and for certain applications, the provision of geolocation data.

ALL THIRD PARTY APPS ARE THE SOLE RESPONSIBILITY OF THE PROVIDERS, INCLUDING WITHOUT LIMITATION COLLECTION AND SECURITY OF USER DATA AND PRIVACY PRACTICES. BY ACCESSING THIRD PARTY APPS, YOU AGREE TO REVIEW THE TERMS OF SERVICE AND PRIVACY POLICIES OF THE PROVIDERS. IF YOU DO NOT AGREE WITH THE TERMS OR POLICIES OF ANY PROVIDER OR DO NOT

CONSENT TO THE USE OF GEOLOCATION DATA WHERE APPLICABLE, DO NOT USE THAT THIRD PARTY APP.

For iPhone users

This function is compatible with iPhones and iPod touches installed with iOS 5.0 or later.

NOTE

PIONEER IS NOT LIABLE FOR ANY THIRD PARTY APPS OR CONTENT, INCLUDING WITHOUT LIMITATION THEIR ACCURACY OR COMPLETENESS. THE CONTENT AND FUNCTIONALITY OF SUCH APPS ARE THE SOLE RESPONSIBILITY OF THE APP PROVIDER.

Playback of an application via the unit

1Connect this unit with the mobile device.
- iPhone via USB (page 7)
2 Press SRC/OFF to select [APP].
3Operate the mobile device to start up the application.

Basic operations

You can make various adjustments in the FUNCTION settings (page 11).

Purpose Operation
Select a track Press or .	| | | | |
Fast forward or reverse	Press and hold | | or | |.
Pause/resume playback Press BA	ND/ | |

Spotify®

(DEH-S400DAB is only compatible with Spotify installed on iPhone.)

Spotify is a music streaming distribution service not affiliated with Pioneer. More information is available at http://www.spotify.com.

The Spotify application is available for compatible smartphones, please visit https:// support).(https://

To enjoy Spotify as you drive, first download the Spotify app to your iPhone. You can download it on the iTunes App Store. Choose a free account or a paid Premium account, either in the app or at Spotify.com. A Premium account gives you more features, like offline listening.

Important

• This product incorporates Spotify software which is subject to 3rd party licenses found here: www).(https://www))(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)(https://www)
• For information on the countries and regions where Spotify can be used, take a look at https://www.spotify.com/us/select-your-country/.

Listening to Spotify

Update the firmware of the Spotify application to the latest version before use.
1Connect this unit with the mobile device.

• iPhone via USB (page 7)

2 Press SRC/OFF to select [SPOTIFY].
3Launch the Spotify application on the mobile device and start playback.

Basic operations

You can make various adjustments in the FUNCTION settings (page 11).

NOTE

The available operations may vary according to the type of contents (track/album/artist/playlist/radio) you want to play.

Purpose Operation
Skip a track Press or .	1 Press (list) to display the list.2Tu m the M.C. dial to select the desired category, then press to confirm.3Tu m the M.C. dial to select the desired file, then press to confirm.Playback starts.
Search for a track from a list	1 Press (list) to display the list.2Tu m the M.C. dial to select the desired category, then press to confirm.3Tu m the M.C. dial to select the desired file, then press to confirm.Playback starts.
Pause/resume playback Press 4/	PAUSE.
Thumbs Up (Only for radio)	Press 1/▲.
Thumbs Down (Only for radio)	Press 2/▼.
Random play (Only for track/album/artist/playlist)	Press 5/××
Repeat play (Only for track/album/artist/playlist)	Press 6/←.
Start a radio channel based on the song currently being played.	1 Press and hold (list) to start a radio.2Pr ess the M.C. dial.• This function may not be available depending on the selected song.
Store the information about the song currently being played.Remove the song information stored.	1Pr ess and hold 3/S.Rtrv.[SAVE]/[UNSAVE] appears.2Pr ess the M.C. dial.

NOTE

Some functions of Spotify may not be operated from the unit.

Using Pioneer ARC APP

You can operate the unit from Pioneer ARC APP installed on an iPhone/Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit.

For details on what operations are available on the application, see the application's help section.

WARNING

Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.

For iPhone users

This function is compatible with iPhones (iPhone 5 or later) and iPod touches installed with iOS 8.0 or later.

You can download Pioneer ARC APP on iTunes App Store.

For Android device users

This function is compatible with devices that have Android OS 4.1 or later installed and also support AOA (Android Open Accessory) 2.0.

You can download Pioneer ARC APP on Google Play.

NOTE

Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version.

Making a connection with Pioneer ARC APP

1Connect this unit with the mobile device.

• iPhone/Android device via USB (page 7)

Proceed to step 6 if you select the USB connection for iPhone.

2 Press the M.C. dial to display the main menu.
3 Turn the M.C. dial to select [SYSTEM], then press to confirm.
4 Turn the M.C. dial to select [ANDROID WIRED], then press to confirm.
5 Turn the M.C. dial to select [APP CONTROL] for an Android device connected via USB.

If [ON] is selected in [P,APP AUTO ON] (page 13), Pioneer ARC APP on the Android device starts automatically, and all the steps are finished.

NOTE

If Pioneer ARC APP has not been installed on your Android device yet, a message that prompts you to install the application will appear on your Android device. Select [OFF] in [P.APP AUTO ON] to clear the message (page 13).

6 Press SRC/OFF to select any source.
7Launch Pioneer ARC APP on the mobile device.

NOTE

You can also launch the application by pressing and holding the M.C. dial for iPhone.

Listening to music on Android

1 Press SRC/OFF to select [ANDROID].

Basic operations

Purpose Operation
Select a track Press or .	▶▶▶
Fast forward or reverse	Press and hold▶or▶.
Pause/resume playback	Press 4/PAUSE
Sound retriever	Press 3/$Rtrv. [1]: Effective for low compression rates [2]: Effective for high compression rates

Settings

You can adjust various settings in the main menu.

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select one of the categories below, then press to confirm.

FUNCTION settings (page 11)
- AUDIO settings (page 12)
SYSTEM settings (page 12)
ILLUMINATION settings (page 13)

3 Turn the M.C. dial to select the options, then press to confirm.

FUNCTION settings

The menu items vary according to the source.

Menu Item Description

S.FOLLOW DAB

[ON], [OFF] Search for another ensemble that supports the

same service component/station with better reception. If no alternative service component/ station can be found or reception remains poor, the unit will automatically switch to an identical FM broadcast.

SOFTLINK*1*2 DAB

[ON], [OFF] If the reception of the service component/

station being received becomes poor, the unit will automatically switch to a station with a similar broadcast.

PROGRAM TYPE DAB

[NEWSINFO], [POPULAR],[CLASSES],[OTHERS]

Displays the program type information.

ENSEMBLE DAB

Displays the list of relevant ensembles.

FM SETTING RADIO

[TALK], [STANDARD], [MUSIC] Match the sound quality level with the broadcast signal conditions of the FM band signal. (Available only when FM band is selected.)

BSM RADIO

Store the six strongest stations on the number buttons (1 / 空 to 6 / 空) automatically.

REGIONAL RADIO

[ON], [OFF] Limit the reception to the specific regional programs when AF (alternative frequencies search) is selected. (Available only when FM band is selected.)

LOCAL RADIO

FM: [OFF], [LV1], [LV2], [LV3], [LV4] Restrict the tuning station according to the MW/LW: [CF], [LV1], [LV2] signal strength.

Menu Item Description

TA DAB RADIO

[DAB+RDS TA] Receive current traffic information for DAB and

RDS (DAB has priority) if available.

[RDS TA ONLY] Receive current traffic information for only RDS if available.

[TA OFF] Disables this function.

AF RADIO

[ON], [OFF] Allow the unit to retune to a different frequency

providing the same station. (Available only when FM band is selected.)

NEWS RADIO

[ON], [OFF] Interrupt the currently selected source with

news programs. (Available only when FM band is selected.)

SEEK RADIO

[AN], [PCH]

Assignor buttons to seek the stations one by one (manual tuning) or select a station from the preset channels.

SAVE SPOTIFY

Store the information about the song currently being played to your music list on Spotify.

UNSAVE SPOTIFY

Remove the song information stored in [SAVE].

S.RTRV

USB

证

ad

APP

ANDR

[1] (effective for low compression rates),

Enhance compressed audio and restore rich sound.

[2] (effective for high compression rates), [OFF]

Not available when CD-DA/CD-TEXT is played back.

AUDIO BOOK

iPod

[FASTER], [NORMAL], [SLOWER] Change the playback speed. (Not available when [CONTROL iPod] is selected in the control mode.)

PAUSE APP

Pause or resume playback.

*1 Only available in areas where [SOFTLINK] function is supported.

*2 Not available when [S.FOLLOW] function is turned off.

AUDIO settings

Menu Item Description
FADER*1	Adjust the front and rear speaker balance.
BALANCE	Adjust the left and right speaker balance.
EQ SETTING
[SUPER BASS], [POWERFUL], [NATURAL], [VOCAL], [CUSTOM1], [CUSTOM2], [FLAT]	Select or customise the equalizer curve. [CUSTOM1] can be set separately for each source. However, each of the below combinations are set to the same setting automatically. • USB, iPod, ANDROID, SPOTIFY, and APP (iPhone) [CUSTOM2] is a shared setting used for all sources.
Select an equalizer band and level for further customising. Equalizer band: [80HZ], [250HZ], [800HZ], [2.5KHZ], [8KHZ] Equalizer level: [+6] to [-6]
LOUDNESS
[OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume.
SUB.W*2
[NOR], [REV], [OFF] Select the subwoofer phase.
SUB.W CTRL*2*3
Cut-off frequency: [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Output level: [-24] to [+6] Slope level: [-12], [-24]	Only frequencies lower than those in the selected range are output from the subwoofer.
BASS BOOST
[0] to [+6] Select the bass boost level.
HPF SETTING
Cut-off frequency: [OFF], [50HZ], [63HZ], [80HZ], [100HZ], [125HZ], [160HZ], [200HZ] Slope level: [-12], [-24]	Only frequencies higher than the high-pass filter (HPF) cutoff are output from the speakers.

Menu Item Description

SLA [+4] to [-4] Adjust the volume level for each source except FM. Each of the below combinations are set to the same setting automatically. • USB, iPod, ANDROID, SPOTIFY, and APP (iPhone)

*1 Not available when [SUB.W/SUB.W] is selected in [SP-P/O MODE] in the INITIAL settings (page 5). *2 Not available when [REAR/REAR] is selected in [SP-P/O MODE] in the INITIAL settings (page 5). *3 Not available when [OFF] is selected in [SUB.W].

SYSTEM settings

You can also access to these menus when the unit is turned off.

Menu Item Description

LANGUAGE [ENG](English), [PYC](Russian), [TUR](Turkish) Select the language to display the text information from a compressed audio file.

CLOCK SET Set the clock (page 5).

12H/24H [12H], [24H] Select the time notation.

AUTO PI [ON], [OFF] Search for a different station with the same programming, even if using a preset station.

AUX [ON], [OFF] Set to [ON] when using an auxiliary device connected to the unit.

SPOTIFY [ON], [OFF] Set to [ON] when using the Spotify function.

MUTE MODE [MUTE], [20dB ATT], [10dB ATT] Mute or attenuate sound automatically when a signal from equipment with a mute function is received.

Menu Item Description

PW SAVE

[ON], [OFF] Reduce the battery power consumption.

Turning on the source is the only operation

allowed when this function is on.

ANDROID WIRED

[MEMORY], [APP CONTROL] Select the appropriate connection method for an

Android device.

PAPP AUTOON

[ON], [OFF]

Select [ON] to automatically launch Pioneer ARC

APP when an Android device is connected to the

unit via AOA. (Not available when [MEMORY] is

selected in [ANDROID WIRED].)

USB AUTO

[ON], [OFF] Select [ON] to automatically switch to [USB]

source when a USB device/iPod is connected to

the unit.

Select [OFF] when a USB device/iPod is being

connected to the unit just for charging.

• [PW SAVE] is canceled if the vehicle battery is disconnected and will need to be turned back on once the battery is reconnected. When [PW SAVE] is off, depending on connection methods, the unit may continue to draw power from the battery if your vehicle's ignition does not have an ACC (accessory) position.

ILLUMINATION settings

Menu Item Description

COLOUR

[KEY COLOUR], [DISP COLOUR],

[Both COLOUR]

Select colour for the keys/display of the unit from

12 preset colours, [SCAN] or [CUSTOM]*.

• [SCAN]: Cycle through a variety of colours

automatically.

[CUSTOM]*:

1P reess and hold the M.C. dial until the colour setting display appears.

25 et the primary colour (R (red)/G (green)/B (blue)) and brightness level ([0] to [60]).

You cannot select a level below 10 for all three

of B (red), G (green), B (blue) at the same time.

You can also customise the preset colours. Select

one of the preset colours, then press and hold

the M.C. dial until the colour setting display

appears.

• The CUSTOM setting is only available for [KEY]

COLOUR] and [DISP COLOUR]

DIM SETTING

[SYNCILLUMI],[SYNC CLOCK]

[MANUAL]

Change the display brightness.

BRIGHTNESS

[KEY], [DISP] Select the brightness for the keys/display of the

unit from [1] to [10].

The available setting ranges differ depending on

[DIM SETTING]

ILLUMI FX

[ON], [OFF] The illumination effect can be seen when a CD is

in serted/ejected.

The illumination effect will activate when the

ACC power is turned on/off regardless of this

setting.

Connections/Installation

Connections

Important

• When installing this unit in a vehicle without an ACC (accessory) position on the ignition switch, failure to connect the red cable to the terminal that detects operation of the ignition key may result in battery drain.
  ACC position No ACC position
• Use of this unit in conditions other than the following could result in fire or malfunction.
  -Vehicles with a 12-volt battery and negative grounding.
  -When speaker output is used by 4 channels, use speakers over 50 W (maximum input power) and between 4 Ω to 8 Ω (impedance value). Do not use 1 Ω to 3 Ω speakers for this unit.
• When rear speaker output is used by 2
  Ω of subwoofer, use speakers over 70 W (maximum input power).

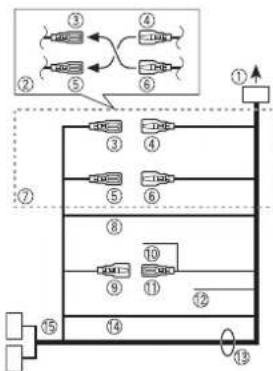

• Please refer to connections for a connection method.
  To prevent a short-circuit, overheating or malfunction, be sure to follow the directions below.
  -Disconnect the negative terminal of the battery before installation.
• Secure the wiring with cable clamps or adhesive tape. Wrap adhesive tape around wiring that comes into contact with metal parts to protect the wiring.

• Place all cables away from moving parts, such as the shift lever and seat rails.

• Place all cables away from hot places, such as near the heater outlet.
  -Do not connect the yellow cable to the battery by passing it through the hole to the engine compartment.

• Cover any disconnected cable connectors with insulating tape.
  -Do not shorten any cables.
• Never cut the insulation of the power cable of this unit in order to share the power with other devices. The current capacity of the cable is limited.
  -Use a fuse of the rating prescribed.

• Never wire the negative speaker cable directly to ground.
  -Never band together negative cables of multiple speakers.

• When this unit is on, control signals are sent through the blue/white cable. Connect this cable to the system remote control of an external power amp or the vehicle's auto-antenna relay control terminal (max. 300mA 12 V DC). If the vehicle is equipped with a glass antenna, connect it to the antenna booster power supply terminal.

• Never connect the blue/white cable to the power terminal of an external power amp. Also, never connect it to the power terminal of the auto antenna. Doing so may result in battery drain or a malfunction.
• The black cable is ground. Ground cables for this unit and other equipment (especially, high-current products such as power amps) must be wired separately. If they are not, an accidental detachment may result in a fire or malfunction.
• The graphical symbol 指 ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ 指 on the product means direct current.

This unit

① DAB antenna input

To receive DAB signals, connect a DAB antenna (AN-DAB1) (sold separately) to the unit.

② Power cord input
Rear output or subwoofer output
④ Front output
Antenna input
Fuse (10 A)

Wired remote input Hard-wired remote control adapter can be connected (sold separately).

Power cord

① To power cord input
② Depending on the kind of vehicle, the function of and may be different. In this case, be sure to connect to and to . 3

③ Yellow
Back-up (or accessory)
④ Yellow
Connect to the constant 12V supply terminal.
⑤ Red
Accessory (or back-up)
6 Red
Connect to terminal controlled by the ignition switch (12 V DC).
⑦ Connect leads of the same colour to each other.
Black (chassis ground)
Blue/white

The pin position of the ISO connector will differ depending on the type of vehicle. Connect and when Pin 5 is an antenna control type. In another type of vehicle, never connect and

Blue/white

Connect to the system control terminal of the power amp (max. 300mA12V DC).

① Blue/white

Connect to the auto-antenna relay control terminal (max. 300 mA 12 V DC)

Yellow/black

If you use equipment with a Mute function, wire this lead to the Audio Mute lead on that equipment. If not, keep the Audio Mute lead free of any connections.

Speaker leads

White:Front left

White/black:Front left

Gray:Front right

Gray/black:Front right

Green: Rear left or subwoofer

Green/black:Rear left or subwoofer

Violet: Rear right or subwoofer

Violet/black: Rear right or subwoofer

Orange/white

Connect to a car's illumination signal.

ISO connector

In some vehicles, the ISO connector may be divided into two. In this case, be sure to connect to both connectors.

NOTES

• Change the initial menu of this unit. Refer to [SP-P/O MODE] (page 5). The subwoofer output of this unit is monaural.
• When using a subwoofer of 2 , be sure to connect the subwoofer to the violet and violet/black leads of this unit. Do not connect anything to the green and green/black leads.

Power amp (sold separately)

Perform these connections when using the optional amplifier.

① System remote control Connect to blue/white
② Power amp (sold separately)
③ Connect with RCA cables (sold separately)
To front output
Front speaker
To rear output or subwoofer output
Rear speaker or subwoofer

Installation

Important

• Check all connections and systems before final installation.

• Do not use unauthorized parts as this may cause malfunctions.

• Consult your dealer if installation requires drilling of holes or other modifications to the vehicle.

• Do not install this unit where:
• it may interfere with operation of the vehicle.
• it may cause injury to a passenger as a result of a sudden stop.
• The semiconductor laser will be damaged if it overheats. Install this unit away from hot places such as near the heater outlet.
  Optimum performance is obtained when the unit is installed at an angle of less than 60^ .
• When installing, to ensure proper heat dispersal when using this unit, make sure you leave ample space behind the rear panel and wrap any loose cables so they are not blocking the vents.

DIN mount installation

1 Insert the supplied mounting sleeve into the dashboard.
2 Secure the mounting sleeve by using a screwdriver to bend the metal tabs (90^) into place.

① Dashboard
② Mounting sleeve

Make sure that the unit is installed securely in place. An unstable installation may cause skipping or other malfunctions.

When not using the supplied mounting sleeve

1 Determine the appropriate position where the holes on the bracket and the side of the unit match.

2 Tighten two screws on each side.

① Tapping screw 5mm× 9mm not supplied with product
2 Mounting bracket
③ Dashboard or console

Removing the unit (Installed with the supplied mounting sleeve)

1 Remove the trim ring.

① Trim ring
Notched tab
- Rele asing the front panel allows easier access to the trim ring.
- Wh en reattaching the trim ring, point the side with the notched tab down.

2 Insert the supplied extraction keys into both sides of the unit until they click into place.

3 Pull the unit out of the dashboard.

Additional Information

Troubleshooting

The display automatically returns to the normal display.
No operations have been made for about 30 seconds.
Perform an operation.

The repeat play range changes unexpectedly.

Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing.
- Select the repeat play range again.

A subfolder is not played back.

Subflowers cannot be played when [FLD] (folder repeat) is selected.
- Select another repeat play range.

The sound is intermittent.
You are using a device, such as a cellular phone, that may cause audible interference.
- Move electrical devices that may be causing the interference away from the unit.

Error messages

Common

AMP ERROR

This unit fails to operate or the speaker connection is incorrect.
→The protective circuit is activated.

• Check the speaker connection.
• Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.

NO XXXX (NO TITLE, for example)
There is no embedded text information. - Switch the display or play another track/file.

DABtuner

ANTENNA ERROR

The antenna connection is incorrect. Check the antenna connection.
Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.

CD player

ERROR-07,11,12,17,30

→The disc is dirty.
Clean the disc.
→ The disc is scratched.
-Replace the disc.

ERROR-07,10,11,12,15,17,30,A0

There is an electrical or mechanical error.
- Turn the ignition switch OFF and back to ON, or switch to a different source, then back to the CD player.

ERROR-15

→The inserted disc is blank.

Replace the disc.

ERROR-23

Unsupported CD format. Replace the disc.

FORMATREAD

→ Sometimes there is a delay between the start of playback and when you start to hear any sound.
- Wait until the message disappears and you hear sound.

NO AUDIO

→ The inserted disc does not contain any.
playable files.. Replace the disc.

SKIPPED

• The inserted disc contains DRM protected files.
• The protected files are skipped.

PROTECT

All the files on the inserted disc are embedded with DRM. Replace the disc.

USB device/iPod

FORMATREAD

→ Sometimes there is a delay between the start of playback and when you start to hear any sound.
- Wait until the message disappears and you hear sound.

NO AUDIO

There are no songs. Transfer the audio files to the USB device and connect.
The connected USB device has security enabled.
- Follow the USB device instructions to disable the security.

SKIPPED

The connected USB device contains DRM protected files. The protected files are skipped.

PROTECT

All the files on the connected USB device are embedded with DRM. Replace the USB device.

N/A USB

The connected USB device is not supported by this unit. Disconnect your device and replace it with a compatible USB device.

HUB ERROR

The USB device connected via a USB hub is not supported by this unit. Connect the USB device directly to this unit using a USB cable.

CHECK USB

→ The USB connector or USB cable has short-circuited.
- Check that the USB connector or U cable is not caught in something o damaged.
The connected USB device consumes more than maximum allowable current. - Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices.
→ The iPod operates correctly but does not charge.

-Make sure the connection cable for the iPod has not shorted out (e.g., not caught in metal objects). After checking, turn the ignition switch OFF and back to ON, or disconnect the iPod and reconnect.

ERROR-19

Communication failed.
Perform one of the following operations, then return to the USB source.

• Turn the ignition switch OFF and back to ON.
• Disconnect the USB device.

• Change to a different source. iPod failure.

• Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it.

ERROR-23

USB device was not formatted properly. -Format the USB device with FAT12, FAT16 or FAT32.

ERROR-16

The iPod firmware version is old. Update the iPod version.
iPod failure.

• Disconnect the cable from the iPod. Once the iPod's main menu is displayed, reconnect the iPod and reset it.

STOP

There are no songs in the current list. Select a list that contains songs.

NOT FOUND

→No related songs.

• Transfer songs to the iPod.

APP

STARTUPAPP

The application has not started running yet.

• Operate the mobile device to start up the application.

Spotify

CHECKAPP

Connection to the Spotify application failed.

Follow the instructions that appear on the screen.

Handling guidelines

Discs and player

• Use only discs that feature either of the following two logos.

• Use 12-cm discs.

• Use only conventional, fully circular discs.

The following types of discs cannot be used with this unit:

-DualDiscs
- 8-cm discs: Attempts to use such discs with an adaptor may cause the unit to malfunction.
- Oddly shaped discs
Discs other than CDs
- Damaged discs, including discs that are cracked, chipped or warped
- CD-R/RW discs that have not been finalized
- Do not write on or apply chemicals to the surface of the discs.
- To clean a CD, wipe the disc with a soft cloth outward from the center.

Condensation may temporarily impair the player's performance. Let it rest for about one hour to adjust to a warmer temperature. Also, wipe any damp discs off with a soft cloth.

When using discs that can be printed on label surfaces, check the instructions and the warnings of the discs. Depending on the discs, inserting and ejecting may not be possible. Using such discs may result in damage to this equipment.
Do not attach commercially available labels or other materials to the discs.
- The discs may warp making the disc unplayable.
The labels may come off during playback and prevent ejection of the discs, which may result in damage to the equipment.

USB storage device

• Connections via USB hubs are not supported.
• Firmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.
• Depending on the USB storage device, the following problems may occur.

-Operations may vary.
- The storage device may not be recognized.
-Files may not be played back properly.
The device may cause audible interference when you are listening to the radio.

iPod

• Do not leave the iPod in places with high temperatures.
• Firmly secure the iPod when driving. Do not let the iPod fall onto the floor, where it may become jammed under the brake or accelerator pedal.
  The settings of the iPod such as the equalizer and repeat play are changed automatically when the iPod is connected to the unit. Once the iPod is disconnected, those settings will return to the original settings.
• Incompatible text saved on the iPod will not be displayed by the unit.

Compressed audio compatibility

Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.
- The unit may not work properly depending on the application used to encode WMA files.
There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a USB device with numerous folder hierarchies.
- Russian text to be displayed on this unit should be encoded in one of the following character sets:
-Unicode (UTF-8, UTF-16)
-A character set other than Unicode that is used in a Windows environment and

is set to Russian in the multi-language setting

CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.
• Do not leave discs or a USB storage device in any place that is subject to high temperatures.

WMA files

File extension .wma
Bit rate 48 kbps to 320	kbps (CBR), 48 kbps to 384 kbps (VBR)
Sampling frequency 32	kHz, 44.1 kHz, 48 kHz
Windows MediaTM Audio Professional, Lossless, Voice/DRM Stream/Stream with video	Not compatible

MP3 files

File extension.mp3
Bit rate 8 kbps to 320 kbps (CBR), VBR
Sampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)
Compatible ID3 tag version	1.0, 1.1, 2.2, 2.3, 2.4 (ID3 tag Version 2.x is given priority over Version 1.x.)
M3u playlist Not compatible
MP3I (MP3 interactive), mp3 PRO	Not compatible

WAV files

WAV file formats cannot be connected via MTP.

File extension .wav
Quantization bits 8 and	16 (LPCM), 4 (MSADPCM)
Sampling frequency 16	Hz to 48 kHz (LPCM), 22.05 kHz and 44.1 kHz (MS ADPCM)

AAC files

Compatible format AAC	encoded by iTunes
File extension .m4a
Sampling frequency 11.625 kHz to 48 kHz
Transmission rate 16 kbps to 320 kbps, VBR
Apple Lossless Not compatible
AAC file bought from the iTunes Store (.m4p file extension)	Not compatible

Disc

• Regardless of the length of the blank section between the songs from the original recording, compressed audio discs play with a short pause between songs.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 99
Playable files Up to 999
File system ISO 9660 Level 1 and 2, Romeo, Joliet
Multi-session playback	Compatible
Packet write data transfer	Not compatible

USB device

• There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 500
Playable files Up to 1500
Playback of copyright-protected files	Not compatible
Partitioned USB device	Only the first partition can be played.

iPod compatibility

This unit supports only the following iPod models. Supported iPod software versions are shown below. Older versions may not be supported.

Made for

-iPod touch (1st through 6th generation)
-iPod classic
- iPod with video
-iPod nano (1st through 7th generation)
-iPhone 6s
iPhone 6s Plus
-iPhone6
iPhone 6 Plus
-iPhone 5s
-iPhone 5c
iPhone5
iPhone 4
-iPhone4
-iPhone 3GS
iPhone 3G
-iPhone

• Operations may vary depending on the generation and/or software version of the iPod.

• Users of iPod with the Lightning Connector should use the Lightning to USB Cable (supplied with iPod).

• Users of iPod with the Dock Connector should use the CD-IU51. For details, consult your dealer.
  Refer to the iPod manuals for information about the file/format compatibility.
  A audiobook, Podcast: Compatible

CAUTION

Pioneer accepts no responsibility for data lost on the iPod, even if that data is lost while this unit is used.

Sequence of audio files

The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device. Note that the hidden files in a USB device cannot be played back.

Example of a hierarchy

Level 1 Level 2 Level 3 Level 4

01 to 05: Folder number

① to ⑥: Playback sequence

Russian character chart

D: C	D: C	D: C
R:A	B:B	B:B
F:Γ	J:D	E:E,E
Z:X	J:3	H:N,I
K:K	I:N	M:M
H:H	Ω:O	Π:Π
P:P	C:C	T:T
Y:Y	Φ:Φ	X:X
U:U	Y:Y	W:W, U
β:b	H:bl	b:b
β:θ	H:HO	η:η

D:Display C:Character

Copyright and trademark

iTunes

Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

WMA

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

IPod & iPhone

iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. Lightning is a trademark of Apple Inc. "Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

Android & Google Play

Android, Google Play, and the Google Play logo are trademarks of Google Inc.

Spotify®

SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. Compatible mobile digital devices and premium subscription required, where available, see https://www.spotify.com.

Specifications

General

Power source: 14.4 V DC (10.8 V to 15.1 V allowable)

Grounding system: Negative type Maximum current consumption: 10.0 A

Dimensions (W× H× D) DIN

Chassis: 178mm× 50mm× 165mm Nose: 188mm× 58mm× 17mm

D

Chassis: 178mm× 50mm× 165mm Nose: 170mm× 46mm× 17mm

Weight: 1 kg

Audio

Maximum power output: 50W× 4ch / 4 (for no subwoofer)

• 50W× 2ch / 4 +70W× 1ch / 2 (for subwoofer)

Continuous power output:

22 W × 4 (50 Hz to 15 000 Hz, 5 % THD, 4 Ω load, both channels drive

Load impedance: 4 (4Ω to 8Ω allowable)

Preout maximum output level: 2.0V

Loudness contour: +10 dB (100 Hz), +6.5 dB (10 kHz) (volume: -30 dB)

Equalizer (5-Band Graphic Equalizer): Frequency: 80Hz / 250Hz / 800Hz / 2.5 kHz/8 kHz Equalization range: ± 12 dB (2 dB step)

Subwoofer (mono): Frequency: 50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz

Slope: -12 dB/oct, -24 dB/oct

Gain: +6 dB to -24 dB

Phase: Normal/Re

CD player

System: Compact disc audio system
Usable discs: Compact disc

Signal-to-noise ratio: 94 dB (1 kHz) (IEC-A network)

Number of channels: 2 (stereo)

MP3 decoding format: MPEG-1 & 2 Audio Layer 3

WMA decoding format:Ver.7,8,9,9.1,9.2 (2 ch audio)

AAC decoding format: MPEG-4 AAC (iTunes encoded only) (Ver. 10.6 and earlier)

WAV signal format: Linear PCM & MS ADPCM (Non-compressed)

USB

USB standard specification: USB 2.0 full speed

Maximum current supply: 1 A USB Protocol:

MSC (Mass Storage Class)
MTP (Media Transfer Protocol)
AOA (Android Open Accessory

AAC decoding format: MPEG-4 AAC (iTunes encoded only) (Ver. 10.6 and earlier)

WAV signal format: Linear PCM & MS ADPCM (Non-compressed)

FMtuner

Frequency range: 87.5 MHz to 108.0 MHz
Usable sensitivity: 12 dBf (1.0 μV/75 Ω, mono, S/N: 30 dB)

Signal-to-noise ratio: 72 dB (IEC-A network)

MWtuner

Frequency range: 531 kHz to 1 602 kHz
Useable sensitivity: 25 V (S/N: 20 dB)
Signal-to-noise ratio: 62 dB (IEC-A netw

LWTuner

Frequency range: 153kHz to 281kHz Usable sensitivity: 28 V (S/N: 20 dB)

Signal-to-noise ratio: 62 dB (IEC-A network)

DABtuner

Frequency range (Band III): 174.92 MHz to 239.200 MHz (5 A to 13 F)

Frequency range (L Band): 1452.960 MHz to 1490.624 MHz (LA to LW)

Usable sensitivity (Band III): -100 dBm
Usable sensitivity (L Band): -100 dBm
Signal-to-noise ratio: 85 dB

NOTE

Specifications and the design are subject to modifications without notice.

Table des matieres

Avant de commencer 2
Mise en route 3
Radiodiffusion numérique (Digital Audio Broadcasting - DAB).... 5
Radio. 6
CD/USB/iPod/AUX. 6
Mode d'application. 8
Spotify 9
Utilisation de Pioneer ARC APP. 10
Réglages 10
Réglages FUNCTION 11
Réglages AUDIO 12
Réglages SYSTEM 13
Réglages ILLUMINATION 14
Raccordements/Installation 14
Informations complémentaires. 17

L'application Spotify est disponible pour les smartphones compatibles; veuillez consulter https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).( https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.( https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.(https://support.

Raccordements/Installation

Raccordements

Important

D: Afficheage C: Caractere

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

Digital Audio Broadcasting (DAB)

Best stations memory (BSM)

L'applicazione Spotify è disponibile per gli smartphone compatibili. Per informazioni aggiornate sulla compatibilità, visitare la pagina https://support).(https://support))(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support) (https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support)(https://support(https://support(https://support(https://support(https://support(https://support(https://support(https://support(https://support(https://support(https://support(https://support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https://support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https://support(https://support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support(https:/support

Importante

Utilizzard Pioneer ARC APP

D: C	D: C	D: C
R:A	B:B	B:B
F:Γ	A:D	E:E,E
J:X	J:3	H:N, N
K:K	I:Π	M:M
H:H	Ω:O	Π:Π
P:P	C:C	T:T
Y:Y	Φ:Φ	X:X
U:U	Y:Y	U:U, U
J:b	H:bl	b:b
J:θ	H:HO	η:η

Pendenza: -12 dB/act, -24 dB/act

Guadagno:da+6dB a-24dB

Fase:normale/inversa

Lettore CD

Sistema:istema audio compact disc

Specifications standard USB: USB 2.0 full speed

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

Digital Audio Broadcasting (DAB)

Los botones / / / also might be used to select an éscritora. In the case of [SEEK] this is just as important as in [PCH] in the case of [PCH].

Memoria deolestes emisoras (BSM)

https://www.spotify.com.

Especificaciones

General

Fuente de alimentacion: 14,4 V CC (de 10,8 V a 15,1 V permissible)

D: C	D: C	D: C
A	B	B
Γ	A	E; E, Ψ
K	3	H; H, Ψ
K	Π	M
H	0	Π
P	C	T
Y	Φ	X
U	q	u; u, Σ
J	b	b; b
J; J	H; H	η; J

D:Anzeige C:Zeichen

AOA (Android Open Accessory) 2.0

KLASSE 1 LASERPRODUCT

Bij problemen

Digital Audio Broadcasting (DAB)

Best stations memory (BSM)

Accessaire (of reserve)

D: C	D: C	D: C
R:A	B:B	B:B
F: F	A:A	E:E,E
J:X	J:3	H:N, N
K: K	I:I	M:M
H:H	O:O	N:I
P:P	C:C	T:T
Y: Y	Φ:Φ	X:X
U: U	Y:Y	W:W, W
Z: b	H:bl	b:b
J: Θ	H:IO	R: R

D:Display C:Token

Copyright en handelsmerken

iTunes

Helling: -12 dB/oct, -24 dB/oct

Gain: +6 dB tot -24 dB

Fase: Normaal/tegengesteld

Cd-speler

Systeem: Compact Disc Audio

Bruibbare discs: Compact Discs

Signaal-ruisverhouding: 94 dB (1 kHz) (IEC

A-netwerk)

MSC (Mass Storage Class)

MTP (Media Transfer Protocol)

AOA (Android Open Accessory) 2.0

Bestandsystem: FAT12, FAT16, FAT32

MP3-decoderingsformaat: MPEG-1 & 2

Audio Layer 3

WMA decodererformulaat:Ver.7,8,9,9.1,9.2

(2 kanaals geluid)

Pioneer CarStereo-Pass

28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, Japan

Kopnpaia NaiOnHp

28-8, XOHKOMAROM 2-HOME, ByHKe-Ky, Tokno 113-0021, Anohn

MnnpTeP OOO "NHOEP PYC"

105064, PocCraR, R. MockBa, HnKnn CyaCaN nepeynok,
dom 5, cTpoEne 19
Ten.: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium/Belgium
TEL: [phone]

PIONEER ELECTRONICS (USA) INC.

P.O.Box 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada
TEL: [phone]
TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

2 Jalan Kilang Barat, #07-01, Singapore 159346
TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arlo Carne, Heatherton, Victoria, 3202 Australia
TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd. Manuel Avila Camacho 138, 10 piso

Col.Lomas de Chapultepec, Mexico, D.F. 11000

Tel: [phone], Fax: [phone]

先锋股份有限公司

台北市內湖區瑞光路407號8樓
