BC50TFWTS - Fan Be Cool - Free user manual and instructions

Product type	Tower fan
Brand	Be Cool
Model	BC50TFWTS
Dimensions (W × H × D)	360 × 1270 × 360 mm
Weight	6 kg
Power supply	220-240 V~, 50/60 Hz
Nominal power	85 W
Sound level	58 dB(A)
Speeds	Low, Medium, High
Ventilation modes	Normal, Natural, Sleep
Oscillation	Yes
Timer	0.5 to 7.5 hours
Ionizer	Yes (negative ions)
Remote control	Yes, with CR2025 battery
Control panel	Built-in on the unit
Use	Indoor, dry locations
Assembly	Base to assemble (15 min)
Cleaning	Soft damp cloth, unplug before
Warranty	2 years (Austria)
Spare parts	Contact authorized after-sales service
Repairability	Repairs by authorized center

Frequently Asked Questions - BC50TFWTS Be Cool

How to assemble the BC50TFWTS fan?

Assemble the two halves of the base by aligning the groove. Remove the bottom screw from the housing, unroll the cable and pass it through the hole in the base. Place the base under the housing aligning the slots, then tighten the screw clockwise. Finally, route the cable through the channel provided on the edge of the base.

How to use the remote control?

Remove the plastic protective film from the battery compartment for first use. To change the battery, remove the holder, insert a CR2025 battery respecting polarity (+/-), then replace the holder.

What ventilation modes are available?

Three modes: Normal (constant speed), Natural (random variation between speeds), Sleep (speed cycles according to the chosen setting).

How to set the timer?

Press the TIMER button. Each press adds 30 minutes, up to a maximum of 7.5 hours. The timer displays on the LED screen.

What does the ionic function (ION) do?

The fan produces negative ions that help remove dust, allergens, and odors, thus improving indoor air quality.

How to clean the fan?

Always unplug the device. Clean it with a soft damp cloth. Do not use solvents and do not immerse the device in water.

What if the fan wobbles?

Slight wobbling is normal for a tower fan with oscillation, to prevent it from falling in case of contact. Ensure the base is properly attached.

Can I use the fan outdoors?

No, it is designed only for indoor use in dry locations. Do not use it near water or outdoors.

What if the power cord is damaged?

Do not use it. Have the cable replaced by the manufacturer or an authorized service center to avoid any electrical risk.

How to dispose of the appliance at end of life?

Do not throw it away with household waste. Dispose of it at a collection point for waste electrical and electronic equipment (WEEE) in accordance with local regulations.

USER MANUAL BC50TFWTS Be Cool

Black vertical tower with grid pattern and ventilation grille (no visible text or symbols)

HERZLICHEN GLÜCKWUNSCH!

Two abstract geometric diagrams showing circular and concentric shapes with internal curves (no text or symbols)

BE COOL

Technical line drawings showing mechanical assembly steps (no text or symbols)

Technical line drawing showing a hand operating a wheel and a mechanical component with striped pattern (no text or symbols)

Stark

Medium

Leicht

Medium

Leicht

BE COOL

TIMER-Taste:

Black vertical tower with grid pattern and ventilation grille (no visible text or symbols)

FÉLICITATIONS !

MERCI D'AVOIR CHOISI UN PRODUIT BE COOL.

BE COOL

VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI AVANT DE COMMENCER L'INSTALLATION, L'UTILISATION OU L'ENTRETIEN. PROTÉGEZ-VOUS ET PROTÉGEZ LES AUTRES EN RESPECTANT LES CONSIGNES DE SÉCURITÉ. LE NON-RESPECT DES INSTRUCTIONS POURRAIT ENTRAÎNER DES DOMMAGES CORPORELS ET/OU MATÉRIELS ET/OU LA PERTE DU DROIT À LA GARANTIE !

INFORMATIONS IMPORTANTES SUR LA SÉCURITÉ, L'EMPLACEMENT ET LE RACCORDEMENT ÉLECTRIQUE.

Utilisation prévue

Two abstract geometric diagrams showing circular and concentric shapes with no text or symbols

BE COOL

Léger

Black vertical electric fan with grid grille and ventilation grille (no text or symbols visible)

CONGRATULAZIONI! GRAZIE PER AVER SCELTO UN PRODOTTO BE COOL.

BE COOL

LEGGERE ATTENTAMENTE QUESTE ISTRUZIONI PRIMA DI INIZIARE L'INSTALLAZIONE, IL FUNZIONAMENTO O LA MANUTENZIONE. PROTEGGERE SE STESSI E GLI ALTRI SEGUENDO LE ISTRUZIONI DI SICUREZZA. LA MANCATA OSSERVANZA DELLE ISTRUZIONI PUÒ CAUSARE LESIONI PERSONALI E/O DANNI MATERIALI E/O LA PERDITA DELLA COPERTURA DELLA GARANZIA!

IMPORTANTI INFORMAZIONI SULLA SICUREZZA, L'UBICAZIONE E IL COLLEGAMENTO ELETTRICO.

Uso previsto

Two abstract geometric diagrams showing circular and concentric shapes with internal cutouts (no text or symbols)

BE COOL

Technical line drawings showing mechanical assembly steps (no text or symbols)

Technical line drawing showing a hand operating a mechanical component with a close-up of its internal structure (no text or symbols)

Facile

Facile

BE COOL

Pulsante TIMER:

Black vertical tower with grid pattern and ventilation grille (no visible text or symbols)

GEFELICITEERD! BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN BE COOL.

BE COOL

LEES DEZE INSTRUCTIES ZORGVULDIG DOOR VOORDAT U BEGINT MET DE INSTALLATIE, HET GEBRUIK OF HET ONDERHOUD. BESCHERM UZELF EN ANDEREN DOOR DE VEILIGHEIDSINSTRUCTIES OP TE VOLGEN. HET NIET OPVOLGEN VAN DE INSTRUCTIES KAN LEIDEN TOT PERSOONLIJK LETSEL EN/OF MATERIËLE SCHADE EN/OF VERLIES VAN DE GARANTIEDEKKING!

BELANGRIJKE INFORMATIE OVER VEILIGHEID, LOCATIE EN ELEKTRISCHE AANSLUITING.

Beoogd gebruik

Two abstract geometric diagrams showing circular and concentric shapes with no text or symbols

BE COOL

Line drawing of a hand adjusting a mechanical component with a coiled spring (no text or symbols)

Simple line drawing of a mechanical component with three circular sections and a central ribbed structure (no text or symbols)

Medium

Gemakke

Gemakke

BE COOL

TIMER-knop:

Black vertical tower with grid pattern and ventilation grille (no visible text or symbols)

Two abstract geometric diagrams showing circular and concentric shapes with internal cutouts (no text or symbols)

BE COOL

Fuerte

Medio

Fácil

Black vertical tower with grid pattern and ventilation grille (no visible text or symbols)

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI BE COOL.

BE COOL

PŘED ZAHÁJENÍM INSTALACE, PROVOZU NEBO ÚDRŽBY SI POZORNĚ PŘEČTĚTE TENTO NÁVOD. DODRŽOVÁNÍM BEZPEČNOSTNÍCH POKYNŮ CHRÁNÍTE SEBE I OSTATNÍ. NEDODRŽENÍ POKYNŮ MŮŽE MÍT ZA NÁSLEDEK ZRANĚNÍ OSOB A/NEBO POŠKOZENÍ MAJETKU A/NEBO ZTRÁTU ZÁRUČNÍHO KRYTÍ!

DŮLEŽITÉ INFORMACE O BEZPEČNOSTI, UMÍSTĚNÍ A ELEKTRICKÉM PŘIPOJENÍ.

Zamýšlené použití

Two abstract geometric diagrams showing circular and concentric shapes with internal curved features (no text or symbols)

BE COOL

Technical line drawings showing mechanical assembly and tool path (no text or symbols)

Technical line drawing showing a hand operating a car wheel and a mechanical component with striped pattern (no text or symbols)

Black vertical tower with grid pattern and ventilation grille (no visible text or symbols)

GRATULUJEME!

ĎAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI BE COOL.

BE COOL

PRED ZAČATÍM INŠTALÁCIE, PREVÁDZKY ALEBO ÚDRŽBY SI POZORNE PREČÍTAJTE TIETO POKYNY. DODRŽIAVANÍM BEZPEČNOSTNÝCH POKYNOV CHRÁŇTE SEBA AJ OSTATNÝCH. NEDODRŽANIE POKYNOV MÔŽE MAŤ ZA NÁSLEDOK ZRANENIE OSÔB A/ALEBO POŠKODENIE MAJETKU A/ALEBO STRATU ZÁRUČNÉHO KRYTIA!

DÔLEŽITÉ INFORMÁCIE O BEZPEČNOSTI, UMIESTNENÍ A ELEKTRICKOM PRIPOJENÍ.

Warning symbols including a hand holding a prohibition sign, a warning triangle with an exclamation mark, and a triangular hazard symbol.

Zamýšl'ané použitie

Two abstract geometric diagrams showing circular and concentric shapes with internal cutouts (no text or symbols)

BE COOL

Line drawing of a hand adjusting a mechanical component with a coiled spring (no text or symbols)

Simple line drawing of a mechanical component with three circular sections and a central vertical bar (no text or symbols)

Black vertical tower with grid pattern and ventilation grille (no visible text or symbols)

FELICITĂRI! VĂ MULȚUMIM CĂ AȚI ALES UN PRODUS BE COOL.

BE COOL

VĂ RUGĂM SĂ CITIȚI CU ATENȚIE ACESTE INSTRUCTIUNI ÎNAINTE DE A ÎNCEPE INSTALAREA, FUNCTIONAREA SAU ÎNTREȚINEREA. PROTEJAȚI-VĂ PE DUMNEAVOASTRĂ ȘI PE CEILALȚI RESPECTÂND INSTRUCTIUNILE DE SIGURANȚĂ. NERESPECTAREA INSTRUCTIUNILOR AR PUTEA DUCE LA VĂTĂMĂRI CORPORALE ȘI/SAU DAUNE MATERIALE ȘI/SAU PIERDEREA ACOPERIRII GARANȚIEI!

INFORMATII IMPORTANTE PRIVIND SIGURANTA, AMPLASAREA ŞI CONECTAREA ELECTRICĂ.

Two abstract geometric diagrams showing circular and concentric shapes with internal cutouts (no text or symbols)

BE COOL

Mediu

Uşor

Black vertical tower with grid pattern and ventilation grille (no visible text or symbols)

CONGRATULATIONS! THANK YOU FOR CHOOSING A PRODUCT FROM BE COOL.

BE COOL

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF WARRANTY COVERAGE!

IMPORTANT SAFETY, LOCATION AND ELECTRICAL CONNECTION INFORMATION.

Intended use

The fan is designed exclusively for the ventilation of dry rooms.

It is intended for private use only and is not suitable for commercial use.

Only use the fan as described in these operating instructions.

1. Only use this appliance in accordance with the guidelines in the operating instructions. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.

BE COOL

1. Remove the packaging and make sure that the unit is not damaged. If in doubt, do not use the unit and contact the service centre or your dealer.

2. Keep children away from packaging materials. There is a danger of choking if swallowed!

3. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre in order to avoid all possible risks.

4. Before connecting the appliance to the mains, check that the type of current and mains voltage correspond to the specifications on the appliance type plate.

5. The electrical socket in which you connect the unit must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed.

6. Avoid using an extension cord as it could overheat and cause a fire.

7. It is forbidden to adapt or modify the characteristics of this appliance in any way and use only spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the guarantee and warranty).

8. If the unit has a defect, switch it off and contact your dealer or the customer hotline.

9. Always and only contact customer service centres authorised by the manufacturer for any repairs to the appliance, mains plug or cable. You can find the service centres online at www.becool.at.

BE COOL

1. Children under the age of 8 and persons with reduced physical, mental, sensory or spiritual capabilities or lack of experience and knowledge should not use this appliance unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Do not operate the unit unattended. If you leave the room, always switch off the unit.
3. Children must not play with the appliance.
4. Do not twist or bend the mains cable.
5. Do not use the appliance with wet hands.
6. Do not use the unit outdoors.
7. Never operate the unit in rooms where gas, oil or sulphur are present.
8. Do not use the unit near water or high humidity, e.g. in damp basements, next to swimming pools, bathtubs or showers. Make sure that no water enters the unit.
9. Do not place any objects on the unit.
10. Place the unit on a stable and level surface.
11. Never cover the unit.
12. Never insert fingers, pens or other objects into the unit and make sure that the air inlet and outlet are never blocked.
13. Always switch off the appliance before unplugging it from the mains.
14. Do not pull on the mains cable to disconnect the appliance from the mains power. Always pull on the plug to unplug the mains cable.

BE COOL

1. Do not handle the plug with wet hands to avoid electric shock.
2. Unplug the appliance when you are not using it, before cleaning it, when it needs maintenance or when it is moved from one place to another.
3. Keep the unit in good condition by maintaining and cleaning the unit. If you have any questions about maintenance, you can contact the customer hotline/service centre authorised by the manufacturer.
4. Keep and store the appliance in a safe, dry place out of reach of children when not in use.

BE COOL

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will contribute to the protection of resources and the environment. For more information, please contact your dealer or local authorities. Directive 2012/19/EU
	BATTERY DISPOSALIn accordance with Legislative Decree 188 of 20 November 2008 transposing Directive 2006/66/EC on batteries, accumulators and related waste, the crossed-out wheeled bin symbol on the battery indicates that it is prohibited to dispose of waste batteries in household waste.Batteries and accumulators contain highly polluting substances. The user is obliged to dispose of used batteries at the collection points in the municipality or in the appropriate containers. The service is free of charge. In this way, the legal requirements are met and the environment is protected.You will find these signs on batteries:Li = battery contains lithiumAl = battery contains alkaliMn = battery contains manganeseCR 2025 (Li); AA (Al, Mn); AAA (Al, Mn)
	DECLARATION OF CONFORMITYWe hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

BE COOL

Technical information

If the fan has to be stored for a long time and is not used regularly, place the fan in its original packaging in a dry place. When using it for the first time after a long period of inactivity, make sure that the fan is clean and the motor blades are unrestricted (unit not powered).

Preparation

Before you start assembling the product, make sure that all parts are present. Included in the delivery: fan housing, fan foot (base) and remote control.

• Estimated assembly time: 15 minutes

Assembly

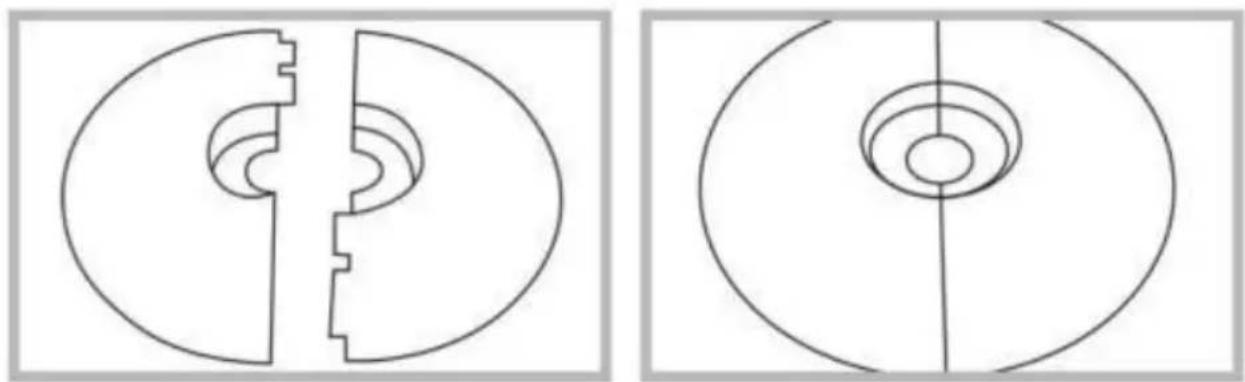

Step 1: Select the two halves of the base, align the groove and join them together to form a complete unit. Make sure that both halves of the base fit together properly.

Two abstract geometric diagrams showing circular and concentric shapes with internal curves (no text or symbols)

BE COOL

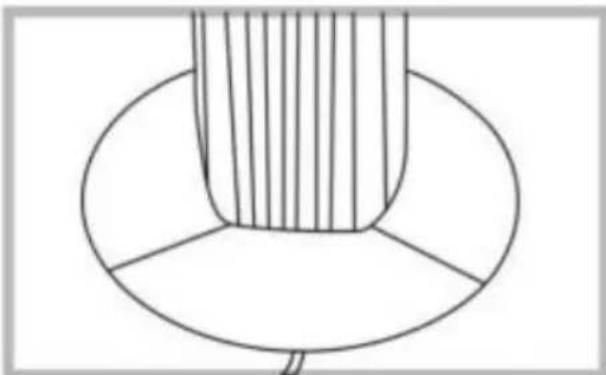

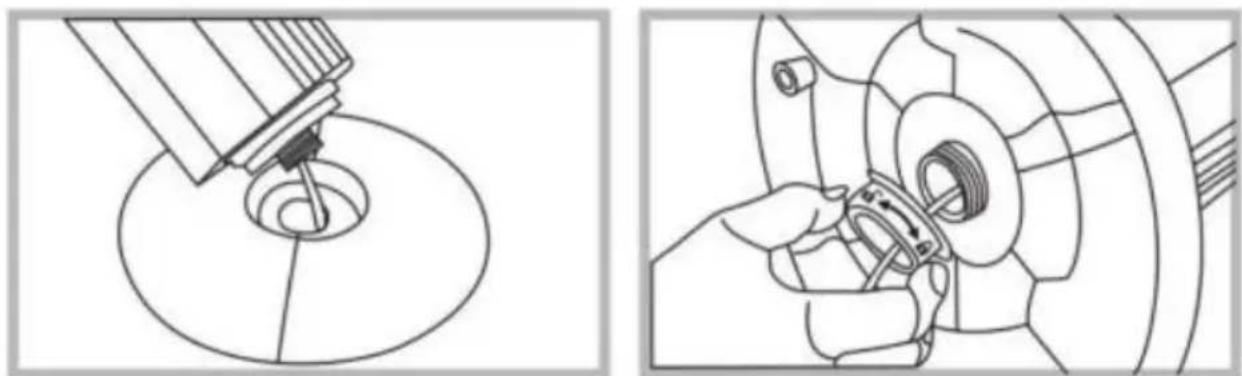

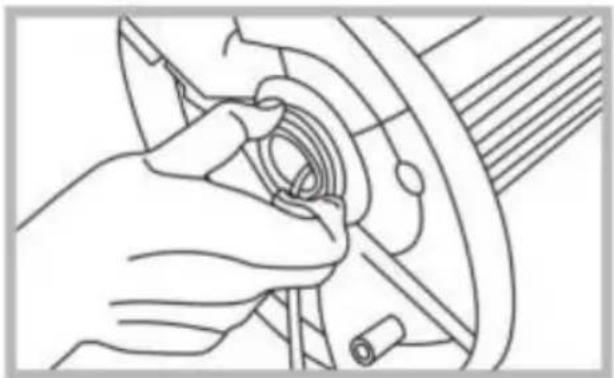

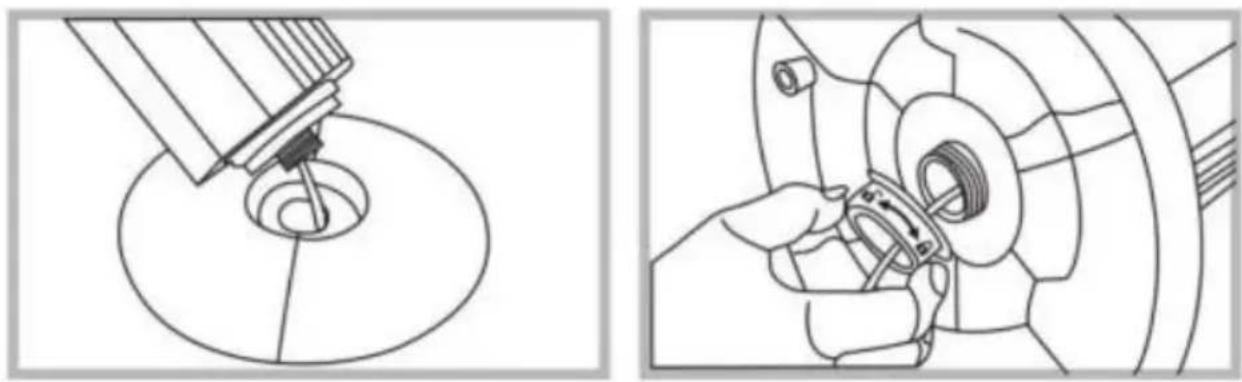

Step 2: Remove the fixing screw from the bottom of the fan housing, unwind the power cable and pass it through the hole in the fan base. Then add the base and rotate it to ensure that the two slots are perfectly aligned with the housing.

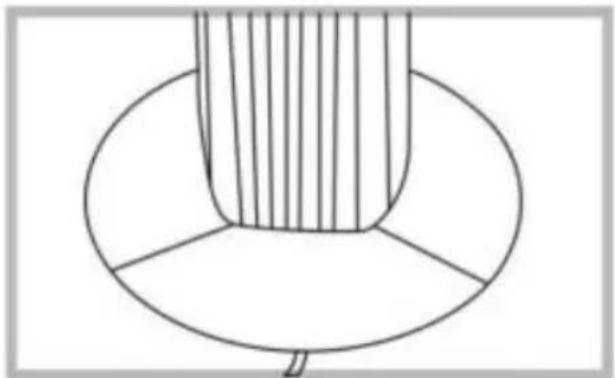

Step 3: Tighten the fixing screw (clockwise) and allow the power cable to pass through the cable duct on the edge of the base to make the product flatter and more stable. You have now completed the assembly of the tower fan.

Line drawing of a hand adjusting a mechanical component with a coiled spring (no text or symbols)

Simple line drawing of a circular object with three segments and a vertical striped top (no text or symbols)

Note: Please note that it is normal that the tower fan with swivel function may wobble slightly or appear unstable. This is to ensure that the fan does not immediately fall over when touched and that it performs the swivel function properly.

BE COOL

Remote control

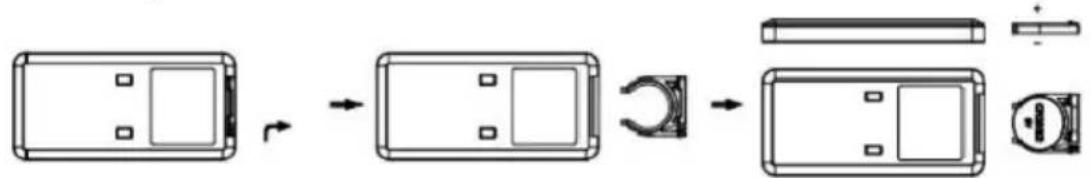

Preparing the remote control - Inserting or replacing the battery

Please follow the instructions below:

Initial operation:

To operate the remote control for the first time, please pull out the plastic protector from the battery compartment on the back of the remote control.

Change battery:

Pull out the battery holder on the back of the remote control and remove the old battery from the holder:

Now insert a new CR2025 battery, always paying attention to the polarity markings (+/-) on the battery and the battery holder.

Then push the battery holder fully back into the remote control.

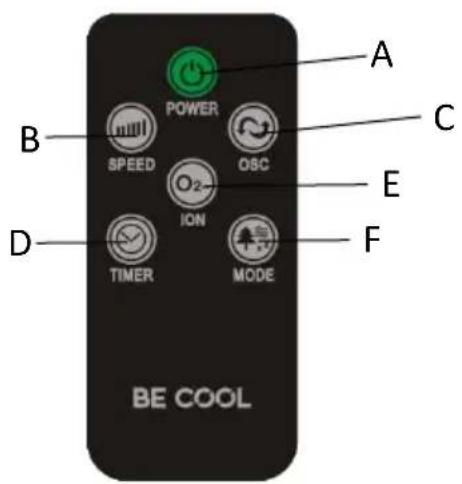

Remote control:

A POWER B SPEED O2- ION C OSC E D TIMER MODE F BE COOL

A: On/Off button

B: Speed button

C: Oscillation button

D: Timer button

E: Ion function

F: Mode button

BE COOL

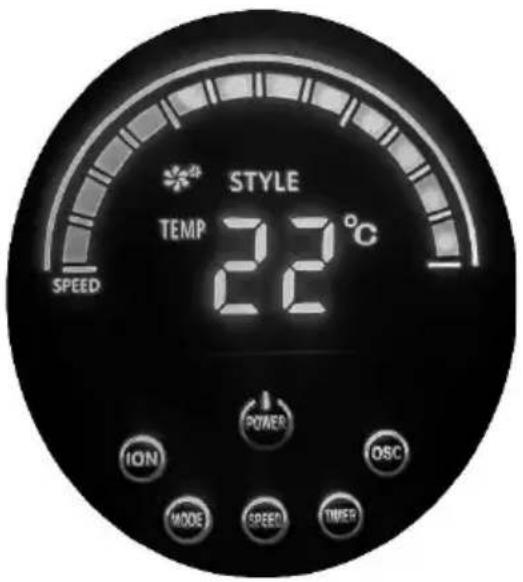

Control panel

STYLE TEMP 22°C SPEED POWER ION MODE SPEED TIMER OSC

ON/OFF button:

Press the ON/OFF button to switch the unit on or off.

SPEED button:

When operating the fan, press the Speed button to set the speed to low, medium or high to .

BE COOL

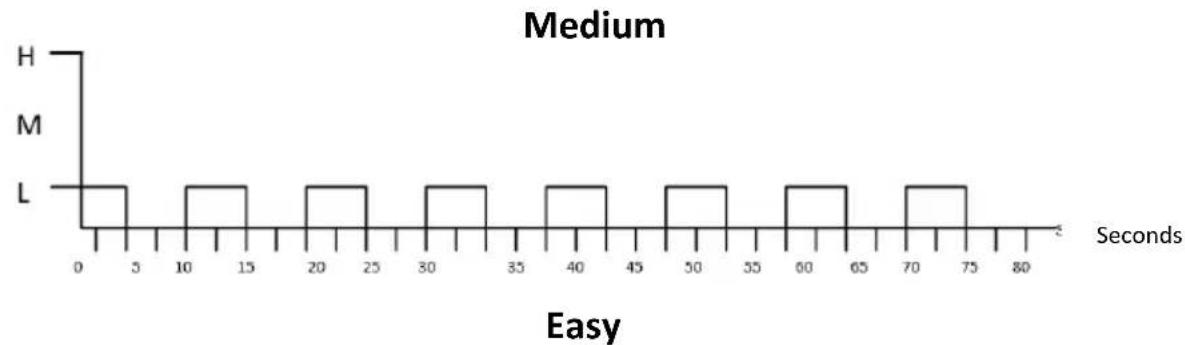

MODE button (3):

3 different wind modes can be selected: normal, natural and sleep mode.

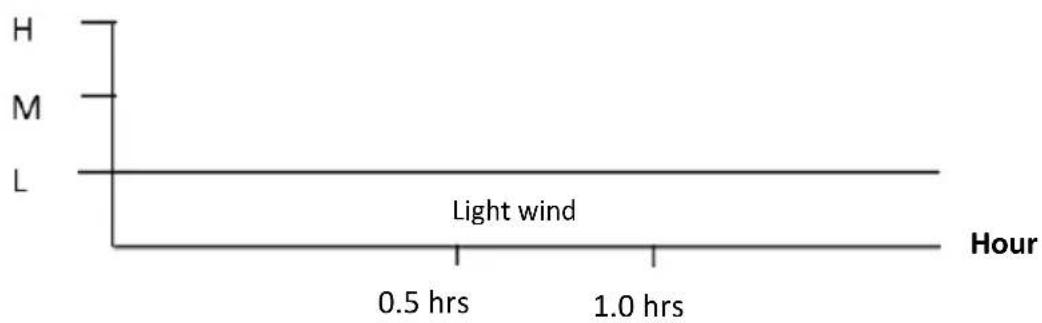

A) Normal wind: Separate operating modes for low, medium and high wind strength.

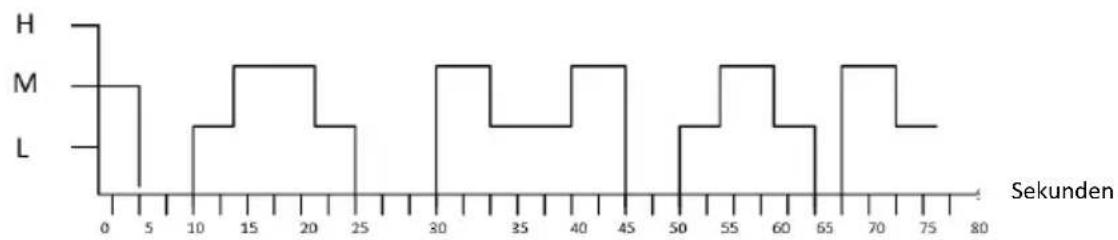

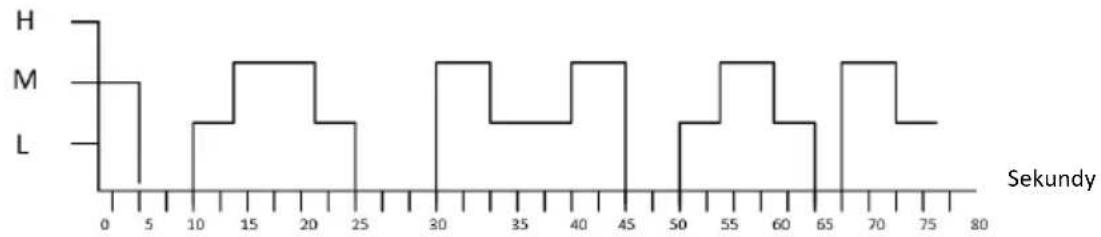

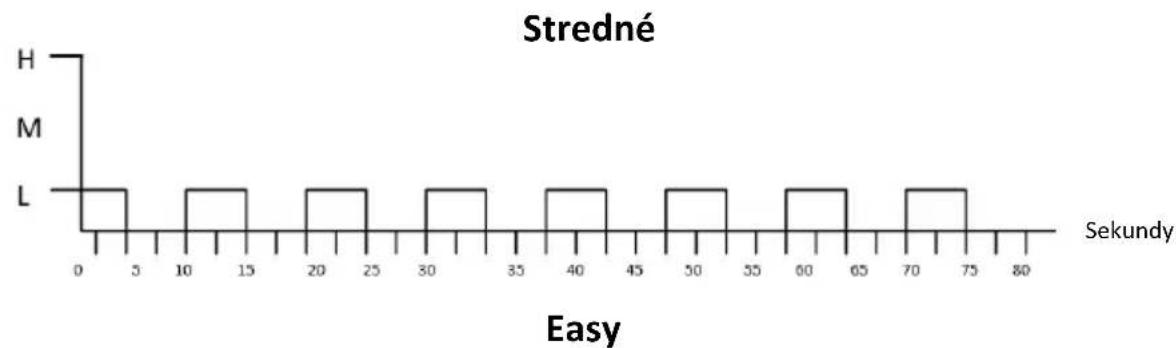

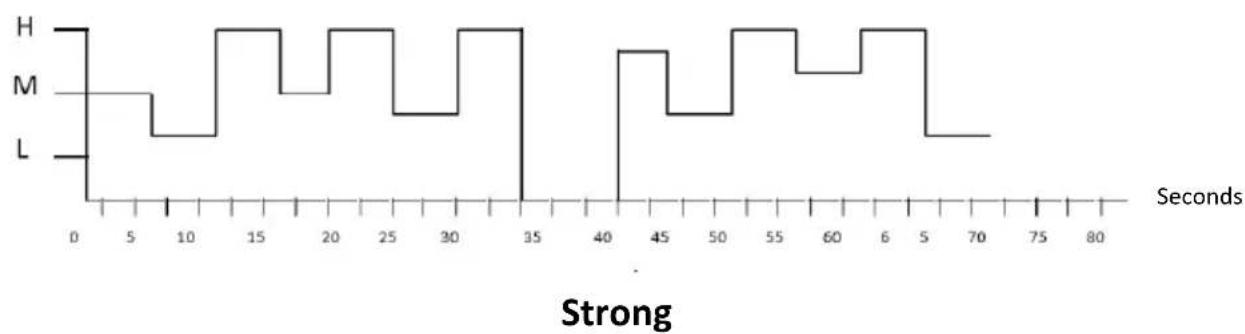

B) Natural wind: Changes the fan speeds randomly between the 3 speeds as follows:

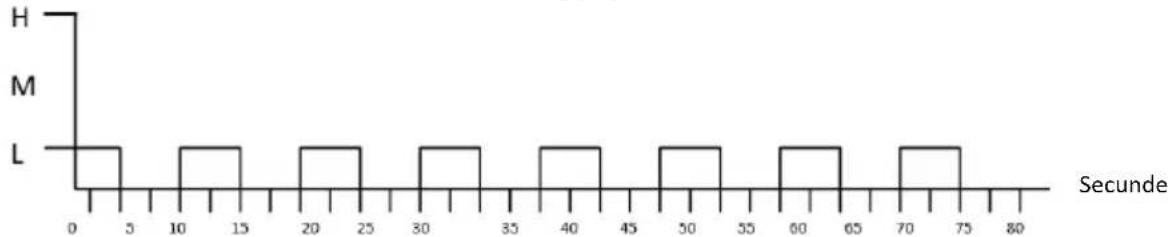

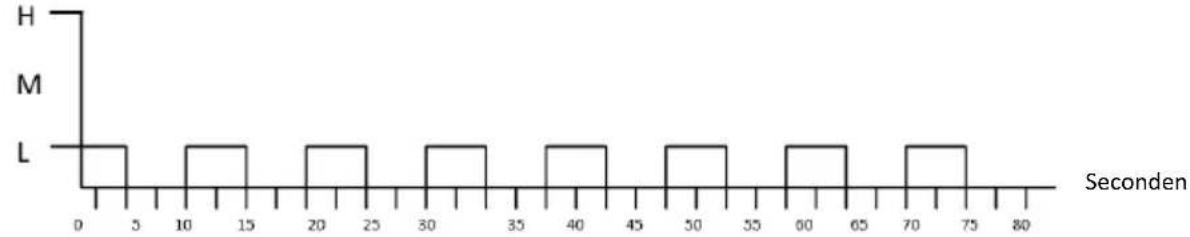

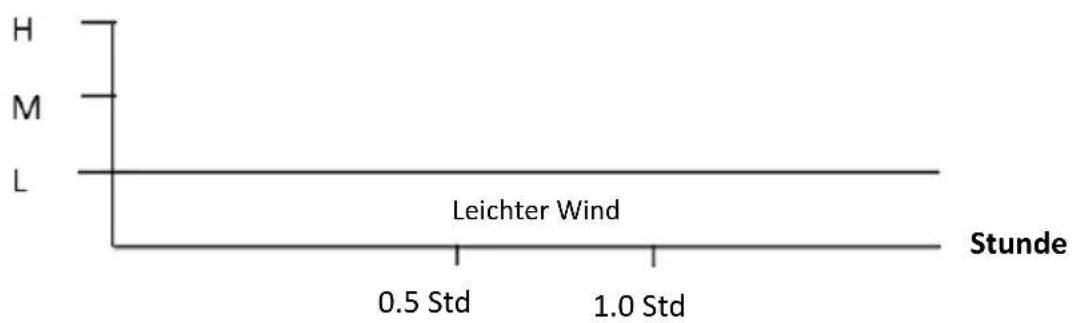

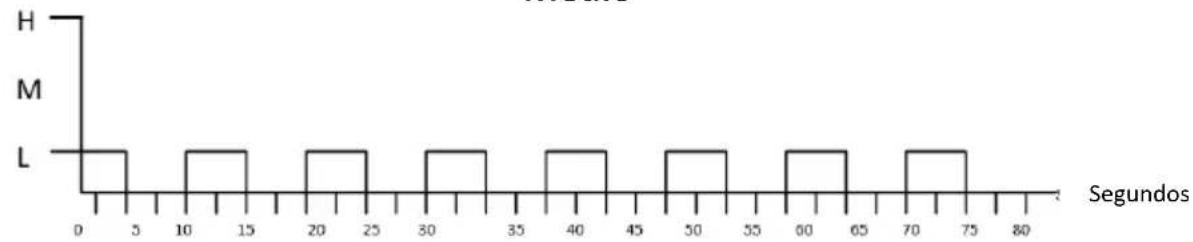

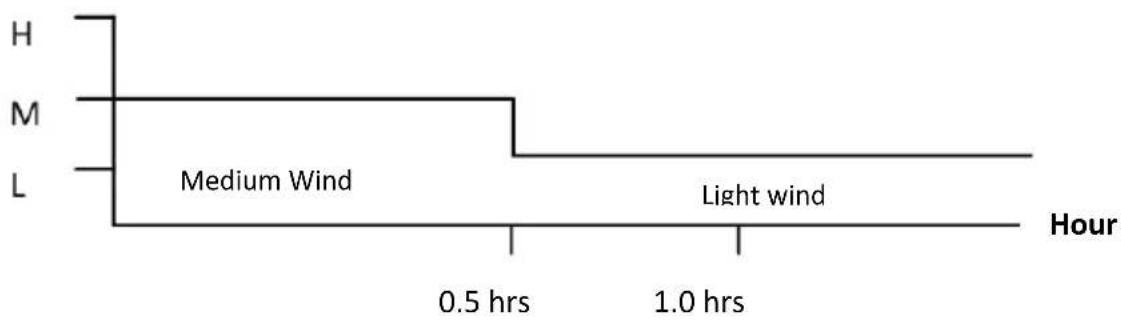

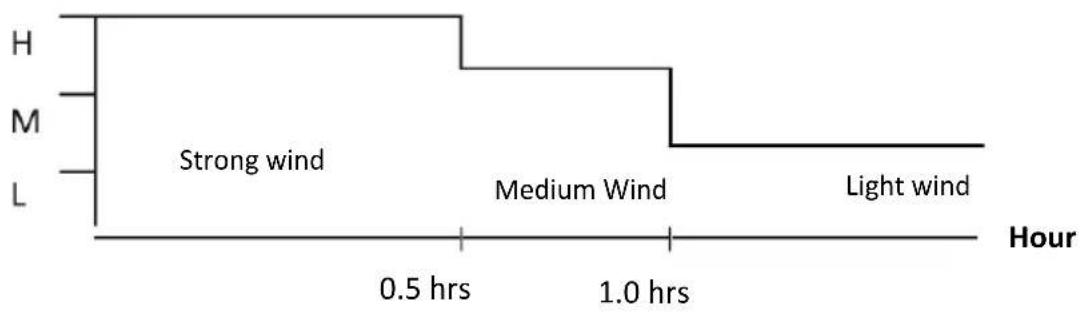

C) Sleep wind: Will cycle the fan speeds. The cycle depends on the fan speed setting as follows:

BE COOL

Strong

Medium

Easy

BE COOL

TIMER button:

The setting is from half an hour to 1 hour and up to 7.5 hours. Each additional button press adds half an hour until a maximum of 7.5 hours is reached. You can orientate yourself accordingly by the LED display on top of the tower fan.

SWING button:

Press the button to activate the fan's swivel function. Press again to deactivate the swivel function.

ION button:

The tower fan starts to generate negative ions, which are used to improve the air quality in the room.

Note: Negative ions are tiny charged particles that are released into the air. They can help remove dust, allergens and other harmful particles from the air by attracting them and pulling them to the ground. In addition, negative ions can also help reduce unpleasant odours and create fresher, healthier indoor air. This contributes to an overall improved air quality and a more pleasant indoor climate.

CLEANING

NOTE:

Always disconnect the mains plug from the socket before cleaning the appliance.

1. DO NOT immerse the unit in water or spray it with other liquids.
2. DO NOT use solvents or other chemical products for cleaning. Store the fan in a dry place when not in use.
3. When you stop using the fan at the end of the season, wipe off the dust to keep it in good condition for the next season. If necessary, dismantle the grille and remove the fan; clean it with a soft, damp cloth.

BE COOL

Technical information
Rated voltage	220-240V~
Frequency	50/60 Hz
Nominal power	85 Watt
Sound level	58 dB(A)
Dimensions	360 × 1270 × 360 mm
Weight	6 kg
Contact addresses for further information and service line:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaTel: [phone] - 0www.becool.atFB-No: 236974 t / FB-Court: Vienna

BE COOL

GUARANTEE

With this quality product from BE COOL, you have made a decision for innovation, durability and reliability.

For this BECOOL appliance we grant a guarantee period of 2 years from the date of purchase, valid in Austria! If, contrary to expectations, service work should nevertheless be necessary on your appliance during this period, we hereby guarantee to repair it free of charge (spare parts and labour) or (at the discretion of Schuss) to exchange the product. If neither repair nor exchange is possible for economic reasons, we reserve the right to issue a credit note for the current value.

In the case of air conditioners, please contact the customer hotline as a first step (see sticker on the unit or cover page of the operating instructions), in the case of fans, please contact your specialist dealer or us directly. We would like to point out that repair work that has not been carried out by the authorised contract workshop in Austria will immediately terminate the validity of this warranty.

This warranty does not cover:

• We do not accept any liability for consequential damage in the event of improper use.
• Repair or replacement of parts due to normal wear and tear
• Damage due to non-observance of the operating instructions
• Devices that are used - even only partially - for commercial purposes
• equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.
• Equipment that has been improperly handled
• Units that have not been opened by our authorised service workshop.
- Damage caused as a result of improperly closed condensation drain valves of air conditioners or improperly inserted water tank.
• Consumer expectations not met.
• Damage caused by force majeure, water, lightning, overvoltage.
- Units where the type designation and/or serial number on the unit has been changed, deleted, made illegible or removed.
• services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, and the associated risks.

We expressly point out that within the warranty period, a lump sum of € 60,- (indexed basis CPI 2010, June 2015) will be charged in case of operating errors or if no error was detected.

The provision of warranty service (repair or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete designation of the unit) and the corresponding warranty certificate, on which the type of unit as well as the serial number (visible on the box and on the back or bottom of the unit) must be noted! Without the guarantee certificate, only the legal guarantee applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and continue undiminished.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but not realised savings, consequential damage and damage from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you enjoy your BE COOL appliance!

ADDRESS

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number: ....

In the event of a warranty claim, this warranty certificate must be handed over to the authorised service centre together with the unit.

BE COOL

INSTRUKCJA OBSŁUGI BC50TFWTS

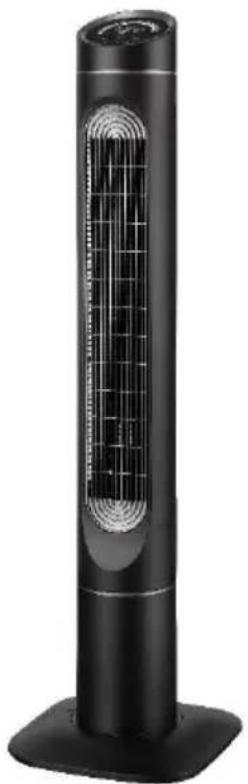

Black vertical tower with grid pattern and ventilation grille (no visible text or symbols)

GRATULACJE! DZIEKUJEMY ZA WYBRANIE PRODUKTU OD BE COOL.

BE COOL

PRZED ROZPOCZEĘCIEM INSTALACJI, OBSŁUGI LUB KONSERWACJI NALEŻY UWAŻNIE PRZECZYTAĆ NINIEJSZĄ INSTRUKCJĘ. NALEŻY CHRONIĆ SIEBIE I INNYCH POPRZEZ PRZESTRZEGANIE INSTRUKCJI BEZPIECZEŃSTWA. NIEPRZESTRZEGANIE INSTRUKCJI MOŻE SKUTKOWAĆ OBRAŻENIAMI CIAŁA I/LUB USZKODZENIEM MIENIA I/LUB UTRATĄ GWARANCJI!

WAŻNE INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA, LOKALIZACJI I PODŁĄCZENIA ELEKTRYCZNEGO.

Przeznaczenie

Two abstract geometric diagrams showing circular and concentric shapes with internal cutouts (no text or symbols)

BE COOL

Black vertical tower with grid pattern and ventilation grille (no visible text or symbols)

ČESTITAMO! HVALA, KER STE IZBRALI IZDELEK BE COOL.

BE COOL

PRED ZAČETKOM NAMESTITVE, DELOVANJA ALI VZDRŽEVANJA NATANČNO PREBERITE TA NAVODILA. Z UPOŠTEVANJEM VARNOSTNIH NAVODIL ZAŠČITITE SEBE IN DRUGE. NEUPOŠTEVANJE NAVODIL LAHKO POVZROČI TELESNE POŠKODBE IN/ALI MATERIALNO ŠKODO IN/ALI IZGUBO GARANCIJSKEGA KRITJA!

POMEMBNE INFORMACIJE O VARNOSTI, LOKACIJI IN ELEKTRIČNEM PRIKLJUČKU.

Warning symbols including a hand holding a prohibition sign, an exclamation mark, and a lightning bolt symbol

Predvidena uporaba

Two abstract geometric diagrams showing circular and concentric shapes with internal cutouts (no text or symbols)

BE COOL

Line drawing of a hand adjusting a mechanical component with a coiled spring (no text or symbols)

Simple line drawing of a mechanical component with three circular sections and a central ribbed structure (no text or symbols)

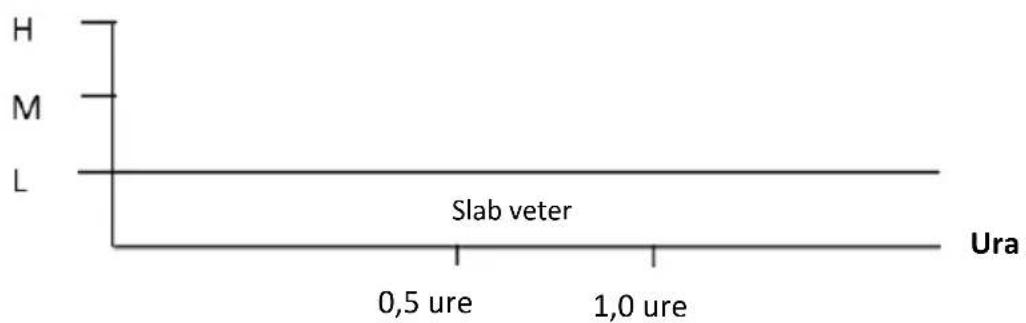

Enostavn

Srednja

Enostavn

BE COOL

Gumb TIMER:

Black vertical tower with grid pattern and ventilation grille (no visible text or symbols)

ČESTITAMO! HVALA VAM ŠTO STE ODABRALI PROIZVOD BE COOL.

BE COOL

MOLIMO VAS PROČITAJTE OVE UPUTE PAŽLJIVO PRIJE UGRADNJE, RADA ILI ODRŽAVANJA. ZAŠTITITE SEBE I DRUGE PRIDRŽAVANJEM SIGURNOSNIH UPUTA. NEPRIDRŽAVANJE UPUTA MOŽE REZULTIRATI OSOBNIM I/ILI ŠTETAMA NA IMOVINI I/ILI PONIŠTENJEM JAMSTVA!

VAŽNE INFORMACIJE O SIGURNOSTI, LOKACIJI I ELEKTRIČNOM POVEZIVANJU.

Three black-and-white warning symbols: no hand, warning triangle with exclamation mark, and triangular hazard symbol.

Namjena

Ventilator je namijenjen isključivo za ventilaciju suhih prostorija.

Namijenjen je isključivo za privatnu uporabu i nije prikladan za komercijalnu uporabu.

Two abstract geometric diagrams showing circular and concentric shapes with internal cutouts (no text or symbols)

BE COOL

Korak 2: Uklonite pričvrsni vijak s dna kućišta ventilatora, odmotajte kabel za napajanje i provucite ga kroz rupu u postolju ventilatora. Zatim dodajte bazu i zakrenite je kako biste bili sigurni da su dva utora savršeno poravnata s kućištem.
