USER MANUAL BT-CRS002 Batavia

Operating instructions

Mode d'emploi

Gebruiksaanwijzing

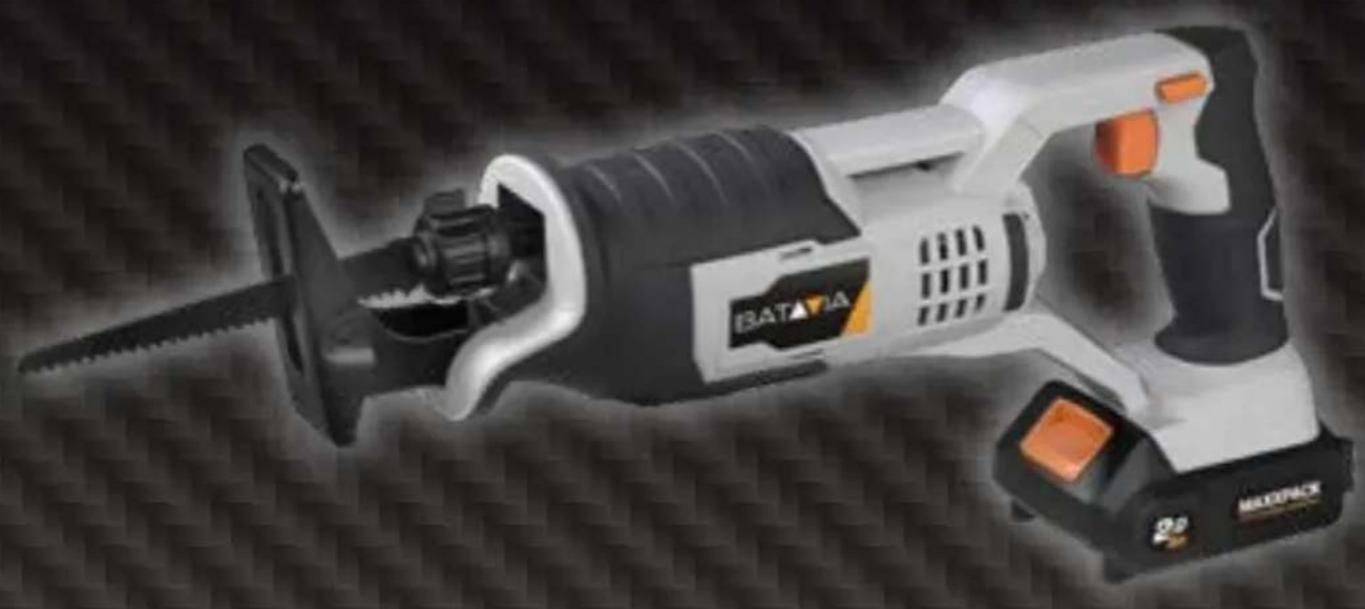

Exterior view of a BATAA saw tool with black and white body, displayed against a dark textured background (no text or symbols on the device itself)

Modelnr. BT-CRS002

Art.Nr. 7062507

Cordless Reciprocating Saw

Akku Säbelsäge

Scie Alternative Sans Fil

Accu Reciprozaag

BATAVIA

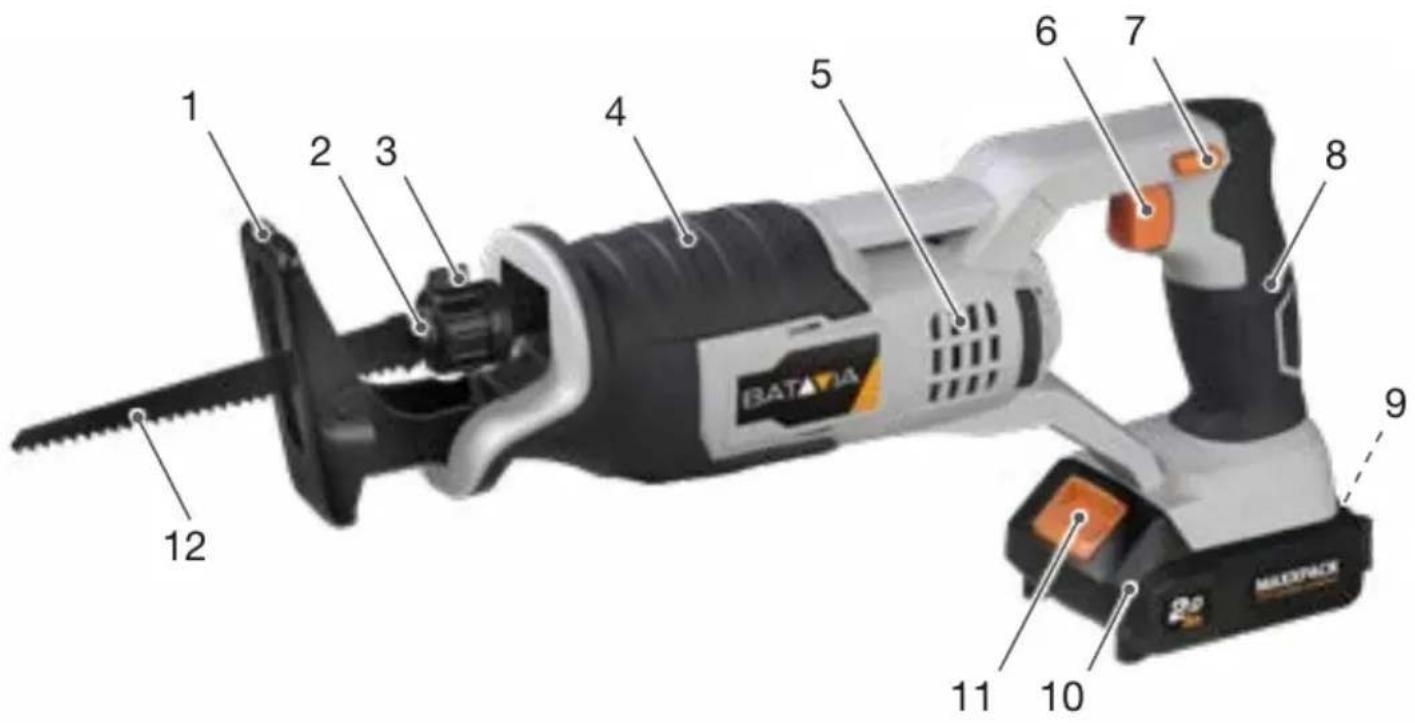

1 2 3 4 5 6 7 8 9 10 11 12 BATA7A MAEXPAC

ÜBERSICHT

1. Footplate
2. Saw Blade Mount
3. Saw Blade Locking Collar
4. Forward Handle
5. Motor Vents
6. Trigger Switch
7. Trigger Switch Lock
8. Hand Grip
9. Battery Charge Indicator
10. Battery (not included)
11. Battery Release Button
12. Sawblade

APERÇU

Staphorst, den 04. April 2017

Handwritten signature or scribble on a stylized oval shape, possibly a signature or artistic mark.

Instruction manuals provide valuable hints for using your new device. They enable you to use all functions, and they help you avoid misunderstandings and prevent damage. Please take the time to read this manual carefully and keep it for future reference.

EXPLANATION OF THE SYMBOLS

Warning! To reduce the risk of injury, the user must read the instruction manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Always wear hearing protection. The effects of noise can cause hearing loss.

Wear safety glasses. When working with electric power tools, sparks, splinters, chips and dust particles may be generated and these can cause loss of sight.

Wear safety glasses. When working with electric power tools, sparks, splinters, chips and dust particles may be generated and these can cause loss of sight.

CE stands for “Conformité Européenne”, which means “In accordance with EU Regulations”. With the CE marking, the manufacturer confirms that this Electric tool complies with the applicable European directives.

Do not dispose of electric power tools with domestic refuse.

SAFETY INSTRUCTIONS

The machine must not be damp and must not be operated in a wet environment. Wear protective gloves and sturdy footwear.

Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring.

Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Do not saw materials containing asbestos!

• Wear protective goggles when working with materials which produce large amounts of chips.
• Wear a protective mask when sawing other fibrous materials.
• Remove adjusting keys and wrenches before turning the tool on.
• Secure your workpiece with clamps.
• Move machine towards the workpiece only when switched on.
• Always hold machine with both hands and ensure that you have a safe footing while working.
• The machine may be operated only with the foot plate mounted. When sawing, the foot plate must always rest on the workpiece.
• Incorrect handling may damage the machine. Therefore always comply with the following instructions.
• Use only sharp saw blades in perfect condition; replace cracked, distorted or blunt saw blades immediately.
• Machine should only be switched on with blade installed.
• Do not attempt to stop the saw blade with lateral pressure after switching off.
• Only use genuine accessories.

INTENDED USE

Battery operated general-purpose reciprocating saw for work on wood, metal and plastics.

UNPACKING THE TOOL

• Carefully unpack and inspect your cordless reciprocating saw. Familiarise yourself with all its features and functions.
• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool.

MOUNTING ACCESSORIES

Fitting a saw blade

The machine is equipped with a quick fit system.

• Turn the clamping ring (3) of the saw blade holder as far to the left as possible and hold it there.
• Place the saw blade in the blade holder.
• Let go of the clamping ring.
• Make sure when changing the saw blade that the blade holder is free of material debris (such as splinters of wood or metal).
• Before use, always check that the saw blade is securely fixed.

Removing the saw blade

• Turn the clamping ring of the saw blade holder as far to the left as possible and hold it there.
• Remove the saw blade from its holder.
• Let go of the clamping ring.

OPERATION

Always follow the safety notes and the relevant safety code.

Make sure that the saw blade does not rest on or touch any objects when the machine is switched on.

To switch on

• Press the trigger switch lock (7) and the trigger switch (6).
• Press the trigger switch (6) further in to increase the stroke rate.

To switch off

- Release the trigger switch (6) and the trigger switch lock (7).

Sawing tips

- Adjust saw blade and stroke rate to suit the material to be processed. For right radius curves it is best to use a narrow saw blade. Apply coolant or lubricant to deal with the fluttering produced along the cut line when sawing metal.

• Check wood, chip boards, building materials etc, for foreign bodies (nails, screws etc.), before sawing and remove them, if necessary.
• Clamp material well. Do not support the workpiece with hand or foot. Do not touch objects or the floor with the saw running (danger of backlash).
• Put the footplate on the surface of the workpiece, and saw through it with constant contact pressure or feed. If the saw blade seizes switch the machine off immediately. Spread the gap with a suitable tool and pull out the saw blade.
• After finishing work, switch off the machine and only put down after it has come to a complete standstill.

Plunge cutting

• Plunge cutting may only be used on soft materials such as wood, aerated concrete, gypsum plaster boards, etc.
• However, this requires a certain practise and is only possible with short saw blades.
• Place the saw onto the workpiece and switch it on.
• Ensure that the bottom edge of the foot-plate rests on the workpiece surface.
• Slowly saw into the workpiece at an angle, moving the saw to a vertical position and continue to saw along the cutting line.
• Switch the saw off and lift off the workpiece when the work is complete.

Flush sawing

• Elastic bi-metal saw blades allow you to saw protruding objects (e,g, water pipes, iron bars, etc,) nearby the wall.
• Apply the saw blade directly to the wall and bend slightly so that the footplate rests against the wall.
• Switch the machine on and saw off the workpiece keeping constant lateral pressure against the wall.

MAINTENANCE AND CLEANING

WARNING: Always disconnect from the mains power supply, before carrying out any maintenance/ cleaning of the charger. Remove the battery before carrying out any maintenance/cleaning of the tool.

Maintenance

There are no inner parts of the tool which need maintenance.

Cleaning

• Keep safety devices, ventilation openings and the motor housing as free as possible from dirt and dust. Rub the electric power tool with a clean cloth or blow over it with low pressure compressed air.
• We recommend that you clean your electric power tool immediately after each use.
• Clean the electric power tool regularly with a damp cloth and somewhat soft soap. Do not use any cleaning or solvent materials; these can attack the device's plastic components. Make sure that no water can get inside the electric power tool.

TECHNICAL DATA

Speed	0 – 3000 min ^-1
Saw Blade Mount	Rotating Sleeve
Saw Stroke	22 mm
Dimensions	38.5 × 8 × 15 cm
Weight	1.64 kg
Sound Pressure Level L_pA	.87.33 dB(A)
Uncertainty K_pA	3 dB
Sound Power Level L_WA	98.33 dB(A)
Uncertainty K_WA	3 dB
Hand Arm Vibration
in board wood	21.98 m/s ^2
in wooden beams	21.10 m/s ^2
Uncertainty K.	1.5 m/s ^2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
  – the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

DISPOSAL

Do not dispose of electric power tools with domestic refuse.

The electric power tool is shipped in packaging to reduce transport damage. This packaging is a raw material and as such can either be reused or can be fed back into the raw material cycle. The electric power tool and its accessories are made from various materials such as metals and plastics. Take defective components to a special refuse collection point. Ask about these at your specialist shop or local council. The product and the user manual may be subject to changes. Technical data may be changed without prior notice.

Batteries

Think of the environment when disposing of batteries. Contact your local authorities to find out where your nearest disposal area is.

Do not dispose of batteries with domestic refuse.

Do not dispose of by burning, risk of explosion.

EC-DECLARATION OF CONFORMITY

We, the Batavia GmbH, Weth. Buitenhuisstraat 2a, NL-7951 SM Staphorst, declare by our own responsibility that the product Cordless Reciprocating Saw, Model BT-CRS002, Item-No 7062507 is according to the basic requirements, which are defined in the European Directives Electromagnetic Compatibility 2014/30/EU (EMC), 2006/42/EC (Machinery), 2011/65/EU (RoHS) and their amendments. For the evaluation of conformity, the following harmonized standards were consulted:

EN 55014-1:2006+A1+A2, EN 55014-2:2015, EN 60745-1:2009+A11, EN 60745-2-11:2010

Staphorst, 04 April 2017

Handwritten signature or scribble on a white background, possibly a signature or artistic mark

Meino Seinen, QA Representative Batavia GmbH, Weth. Buitenhuisstraat 2a, 7951 SM Staphorst, Netherlands

CHER CLIENT

CE-DÉCLARATION DE CONFORMITÉ

Handwritten signature or scribble on a document or scroll

Handwritten signature or scribble on a white background, possibly a signature or artistic mark

Cordless Reciprocating Saw

Akku Säbelsäge

Scie Alternative Sans Fil

Accu Reciprozaag

This product has got a 2 year warranty

Dear Client, if for any reason this product is not working, please ensure you contact our Client Service Centre. Ensure you have your original receipt of purchase. This warranty covers all defects in workmanship or materials in this Batavia product for a two year period from the date of purchase. The warranty does not cover any malfunction, or defect resulting from misuse, neglect, alteration, or repair.
