| Product type | Ultrasonic humidifier and essential oil diffuser |
| Brand | Prixton |
| Model | Essence |
| Tank capacity | Approximately 150 ml (maximum capacity line) |
| Power supply | AC adapter: input 100-240 V ~ 50/60 Hz, output 24 V DC |
| Mist modes | Continuous and Intermittent (stop/start every 8 seconds) |
| Timer | 2 hours and 4 hours |
| Control | Side buttons and remote control |
| LED lighting | RGB with automatic color change (7 colors) or fixed color, can be turned off |
| Automatic shut-off | Yes, when the tank is empty |
| Humidification type | Ultrasonic |
| Use of essential oils | Yes, 3 to 5 drops directly into the water |
| Weekly maintenance | Interior cleaning with a damp cloth and mild detergent |
| Bi-monthly maintenance | Descaling with white vinegar (1 teaspoon for 15 minutes of operation) |
| Safety | Automatic shut-off if tank is empty; unplug before maintenance |
| Protection in case of tipping | Unplug, empty and dry for 24 hours before reuse |
| Included accessories | Remote control, AC adapter, user manual |
| Warranty | In accordance with the legislation in force in the country of purchase |
| Compliance | Directive 2014/53/EU (radio equipment) |
| Dimensions (estimated) | Height approximately 15 cm, diameter approximately 12 cm |
Frequently Asked Questions - Essence Prixton
User questions about Essence Prixton
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Humidifier in PDF format for free! Find your manual Essence - Prixton and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Essence by Prixton.
USER MANUAL Essence Prixton
INDEX
ES 3
EN 6
FR 9
IT 12
DE 15
PT 18
NL 21
DIAGRAMAS


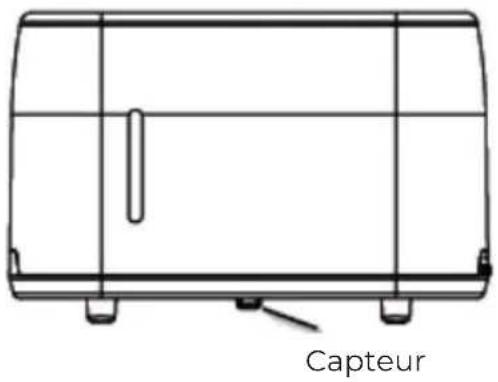

Line drawing of a rectangular container with a vertical slot and side supports (no text or symbols)Sensor

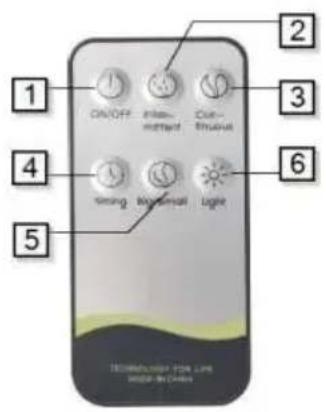

Remote Control
| Name | Function | |
| 1 | ON/OFF | Power On /Power Off |
| 2 | Intermittent | Mist stops/starts every 8 seconds |
| 3 | Continuous | Mist stays on |
| 4 | Timing | 2HR/4HR Timer |
| 5 | Big/small | Hi/Lo mist height |
| 6 | Light | First Press:color-changing modeSubsequent:select a solid colorPress again:turn light off |
COLOR SEQUENCE
Lime, Green, Yellow, Orange, Fire orange, Rainbow (Yellow-orange-green), Red.
SET UP
- Slide the cover up and off the empty diffuser.
- Pick up the uncovered diffuser. Turn it over to secure the DC adapter into the base. Then, plug the AC adapter into an
electrical outlet. - Set the diffuser on a flat surface. Pour water into the Fill/Drain side of the tank, do not overfill.
- Add 3-5 drops of essential oil to the water (optional) 5.Slide the cover on, with the window facing you.
TURN ON (with remote control)
- Press'ON/OFF'(turns on mist, no light yet)
- Press'Light'(to turn on light)
- Press'Light'to sequence through each color.
TURN ON (with side buttons)
√ Press MIST to turn on continuous, and again for intermittent
√ Press a third time to set 2Hr timer, and fourth to set 4Hr timer
√ Press a fifth time to turn OFF (2 beeps heard)
√ Press LIGHT to turn on, and to sequence through each color
STORAGE
Turn OFF the diffuser and unplug from the wall before handling. Slide the cover up and off, and carefully lift and tip the diffuser to the Fill/Drain side to pour out any remaining water
ACCIDENTAL LEAKAGE
If knocked over or tipped, unplug from wall. Detach DC adapter.
Tip to the Fill/Drain side to pour out
remaining water, shake gently to get any water
from the air intake. Please air dry 24 hours.
WEEKLY MAINTENANCE
Dampen a dean cloth with a solution of mild detergent and warm water, and wipe the inside of the tank (using extra care around the sensors at the bottom).
To reduce mold growing inside, fill with water and add 1 tsp white vinegar. Turn on and run 15min. Turn off, dispose of water and wipe dry of water and residue. Do not use soap or bleach.
PRECAUTIONS
• Dry your hands before handing
- Do not fill past MAX fill line
- Diffuser will auto-shutoff when tank is empty
- Avoid damaging the ultrasonic vibration plate in the reservoir
- Unplug before maintenance, cleaning, or just to move it
- Do not pour water out the Air side, only tip out the Drain side
- Clean regularly to keep sensors clean and to prevent mold. This is not a toy. Supervise children using this product
- Do not look into the LED lights when on
- Be aware of oils containing colors, which may stain surfaces
- Do not use diffuser with scented oils near air conditioning
- Keep away from direct sun and heat sources
· Always keep on a flat, stable surface
- Ensure power cord does not create a trip hazard
- Do not fill directly from the faucet; use a bottle or cup
- Do not attempt to open base
· Do not put anything in the tank other than water and oils
- If you notice unusual fumes or odors, unplug immediately
TROUBLESHOOTING
Q: Why won't it turn on (or off)?
AI: Too little or too much water will affect the sensor. Ensure t has enough water, but does not go over MAX fill line.
A2:Check if the plug came out of the wall or base and make sure both sides are plugged in securely.
A3: Empty then gently clean, or run a biweekly vinegar solution to clean residue from internal components.
Q: Why did the remote stop working?
A1: The remote must have a clear line of sight with the Remote Control Sensor. Hold it level for best results.
A2: Make sure nothing is obstructing the Remote Control Sensor A3: Pop the battery out of the remote and back in.
A4:Replace the remote Battery (model:CR2025)
Q: Why is it leaking?
A1: Make sure the cover is on correctly and is fully in place
A2: High humidity or cold temps causes mist to condense into droplets
TROUBLESHOOTING (CONTINUED)
Q: Why is the mist coming out uneven (or not at all)?
AI: Too little or too much water will affect the sensor. Ensure it has enough water, but does not go over MAX fill line.
A2:Is the ultrasonic plate at the bottom dirty?Built-up dirt inside can also block the suction ports.Empty and gently clean.
Q: It tipped over, why won't it turn on again?
Al: Water may have gotten into the Air intake. Empty and gently shake upside down to get any water from the intake.
A2:Inspect the inside for shifted parts.Ensure the clear inside cover is inserted properly.
Q: Why is there not enough smell coming out when I use oils?
A: Human senses get accustomed to smell quickly. The smell may take time to be noticed in a room. Be aware when adding oils:pet sensory systems are very sensitive to scent and oil. Add a few more drops, or set on Intermittent mode to interrupt release of mist and smell.
Warranty policy
This product complies with the warranty law in force in the country of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.
These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.
Simplified EU Declaration Of Conformity
We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:
| BRAND | MODEL NAME DESCRIPTION | CATEGORY |
| Prixton ESSENCE | Humidifier | Home |
Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.
The complete text of the UE Declaration of conformity is available anytime at this website address:
www.prixton.com
LA TRASTIENDA DIGITAL
