USER MANUAL Sahara Prixton

Line drawing of a modern industrial machine with ventilation grilles and a base (no text or symbols)

DESHUMIDIFICADOR DEHUMIDIFIER

INDEX

ES 3
EN 6
FR 9
IT 12
DE 15
PT 18
NL 21

Diagram of a white industrial air purifier with numbered parts labeled 7, 8, and 9

Line drawing of a portable air purifier connected to a power strip (no text or symbols)

Figura 1

Line drawing of a portable air conditioner unit with control buttons (no text or symbols)

Figura 2

Power Adapter User's manual

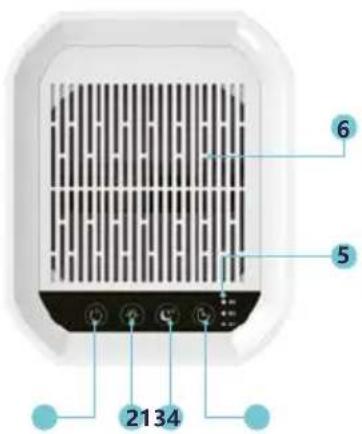

Product details

6 5 2134

1. Key button
2. Decorative light key
3. High and low speed keys
4. Timing key

Diagram of a white industrial air purifier with numbered parts labeled 7, 8, and 9.

1. Timing indicator
2. Air outlet
3. DC socket
4. RGB colorful lights (internal)

Simple line drawing of a plug with cable, no text or symbols present

3D rendering of a mechanical component with labeled parts (12 and 13), no readable text or symbols beyond labels

1. Inlet
2. DC wire and plug
3. AC cord and plug
4. Water intake
5. Water tank

Method of operation

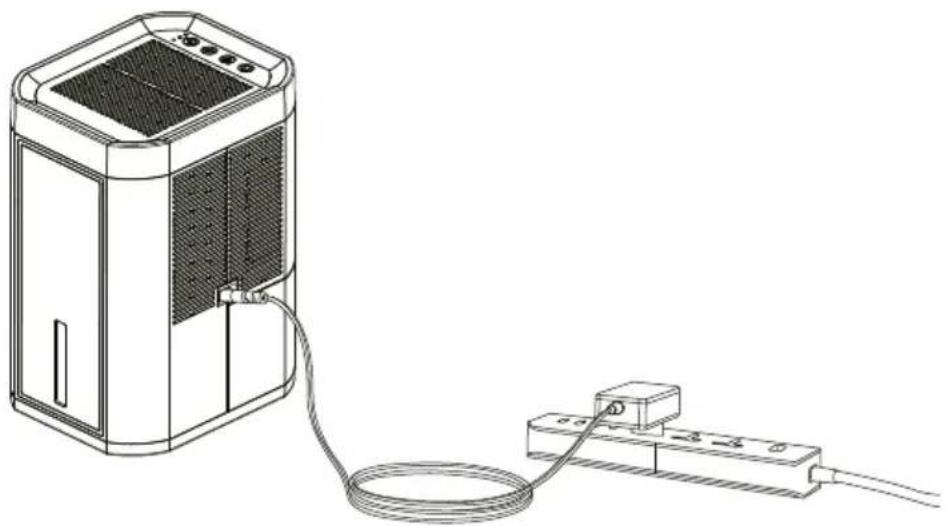

1. Connect the power adapter to the machine first, and connect the other end to the socket. (Figure 1)

Line drawing of a portable air purifier connected to a cable and a mounted electronic device (no text or symbols)

Figure 1

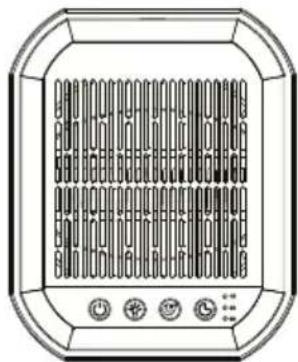

1. Control the dehumidifier through the top touch screen. (Figure 2)

Line drawing of a portable air conditioner unit with control buttons (no text or symbols)

Figure 2

Press the "💡" button to start the dehumidifier, the fan will default to high speed, and the airflow will be discharged from the air outlet, then press click this button to shut down. Press the "💡" key to switch the decorative lights, press the RGB colorful lights in the water tank to automatically flash colorful lights, press twice to fix the colorful lights to the current light effect color, and press three times to turn off the water tank lights.

Press the "💡" key to switch the fan speed between high and low speeds. At this time, the running sound is reduced, the dehumidification capacity is reduced, and the wind The fan runs at low speed, and the colorful lights of the water tank are off. Press the fan again to return to high-speed operation.

Press the "☐" button to turn on the timer function, there are 6 timing modes: 4H/6H/8H/10H/12H/always It runs, and there is a corresponding timing indicator light, and it always runs by default when it is turned on.

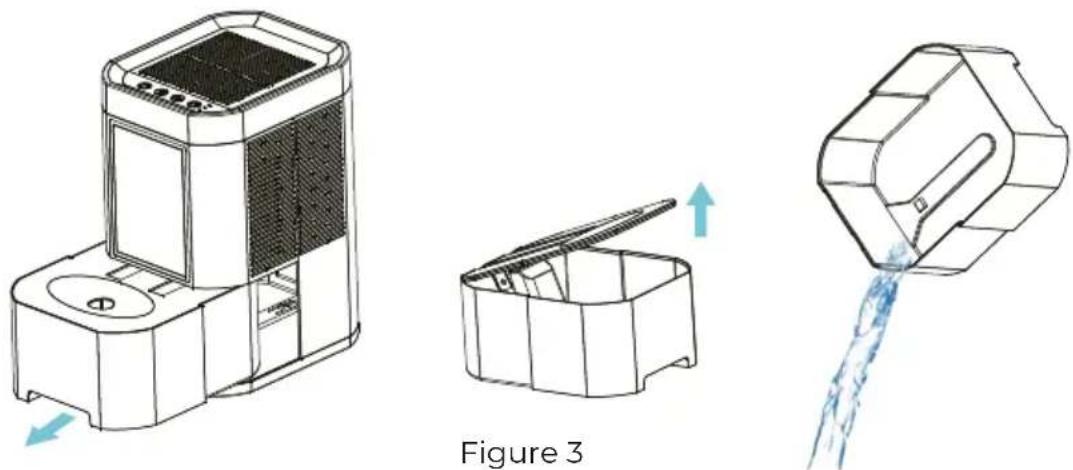

1. When the water tank is not installed or the water is full, the dehumidifier will not work and the water tank light will be red. At this time, the water tank should be taken out, the water in the water tank should be poured out, and the water tank can be put back to start the dehumidifier. (Figure 3)

Product specifications

Capacity: Approximately 300ml per day at 30°C, 80%RH

Cooling element: Peltier module

Fan: 80mm x 80mm DC Brushless motor

Power adapter: 9V DC 2.5Amp

Power consumption: 22.5W

Water tank capacity: 1000ML

Water Level Detector: When the water tank is not installed or the water is full, the RGB

colorful lights in the water tank will light up red

Product Dimensions: 160mm(w) x 130mm(d) x 219mm(h)

Working environment: Over 15°C, over 40% RH

Precautions

1. When placing the machine, keep it in an upright state, and cannot be tilted or placed horizontally to prevent the water in the machine from flowing out.
   2.There should be more than 10 cm space around the machine, and no clothes, plastic bags, etc. should be placed at the air inlet and outlet.Sundries, so as not to hinder the entry and discharge of air, and affect the dehumidification effect.
2. Do not sprinkle water on the machine, avoid using AC/DC switching power supply in humid places.

Warranty policy

This product complies with the warranty law in force in the country of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified EU Declaration Of Conformity

We, La Trastienda Digital located in Avenida Cervantes 49, módulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL NAME DESCRIPTION	CATEGORY
Prixton SAHARA	Dehumidifier	Home

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com

LA TRASTIENDA DIGITAL

Contenu du paquet

Déshumidificateur

Diagram of a white industrial air purifier with numbered parts labeled 7, 8, and 9.

Line drawing of a portable air conditioner unit connected to a cable and a terminal block (no text or symbols)

Figure 1

Line drawing of a portable air conditioner unit with control buttons (no text or symbols)

Figure 2

Diagram of a portable air purifier with labeled parts including ventilation, battery pack, and power cord

Line drawing of a portable air conditioner unit connected to a power strip (no text or symbols)

Figura 1

Line drawing of a portable air conditioner unit with control buttons (no text or symbols)

Figura 2

1. When the water tank is not installed or the water is full, the dehumidifier will not work and the water tank light will be red. At this time, the water tank should be taken out, the water in the water tank should be poured out, and the water tank can be put back to start the dehumidifier. (Figure 3)

Diagram of a white industrial air purifier with numbered parts labeled 7, 8, and 9

Simple line drawing of a black plug connected to a cable, with two numbered endpoints (10 and 11) marked on the left (no text or symbols on the plug itself)

3D rendering of a transparent cylindrical device with internal components and labeled parts (no text or symbols beyond numbers 12 and 13)

Line drawing of a portable air conditioner unit connected to a cable and a terminal block (no text or symbols)

Abbildung 1

Line drawing of a portable air conditioner unit with ventilation grilles and control buttons (no text or symbols)

Abbildung 2

Diagram of a white electronic device with numbered labels pointing to internal components

Simple line drawing of a black cable with a plug, connected to two labeled points (10 and 11) with no text or symbols.

3D rendering of a mechanical component with labeled parts (12 and 13), no readable text or symbols beyond labels

Line drawing of a portable electronic device connected to a cable and a terminal block (no text or symbols)

Figura 1

Line drawing of a portable air conditioner unit with ventilation grilles and control buttons (no text or symbols)

Figura 2

Diagram of a white industrial or laboratory device with numbered annotations pointing to internal components.

Simple line drawing of a black plug with wires, labeled 10 and 11 (no text or symbols on the plug itself)

3D rendering of a transparent plastic enclosure with labeled parts (12 and 13), no text or symbols present.

1. Inlaat
2. DC-kabel en stekker
3. AC-snoer en stekker
4. Waterinlaat
5. Waterreservoir

Bedieningsmethode

Line drawing of a portable air purifier connected to a cable and a terminal block (no text or symbols)

Afbeelding 1

Line drawing of a portable electric heater with cooling fins and control buttons (no text or symbols)

Afbeelding 2
