USER MANUAL DD 3 Smart STEBA

Steba® 00:35 Normal Pressure Time Adjust Pressure Adjust Steam Rice Vegetables Yogurt Cake Slow Cook Keep Warm Cook

220 - 240 V\~; 50/60 Hz; 1000 W

Dampfdruck-Garer

DD 3 Smart

Instructions for use 13

Mode d'emploi 24

ECO cooking with 1000 watts – a meals is prepared within 15-40 minutes.

It's never been as easy, healthy, and energy saving to cook...... No stove required.

The ingredients are cooked in pressurised steam within a fraction of the normal cooking time, whereby vitamins, mineral salts and trace elements are retained.

With a little practice you will be able to prepare any dish.

This device can be used with and without steam pressure: searing, braising, cooking rice, roasting, slow cooking, yoghurt preparation and baking.

Generally

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).

Safety information

Hot surface! There is danger of burning when touching the surface during operation. Set the back of the device with a distance of 10cm to the kitchen wall.

• Connect and operate the appliance in accordance with the specifications shown on the rating label.
• Do not use if the plug cord is damaged. Verify before every use.
• Do not plug with wet hands.
• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.
• Plug off the appliance after each use or in case of failure.

- Do not pull at the cord. Don’t pull it over edges and don’t bend it too much.

- Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

- Children under the age of 8 must be kept away from the appliance and the connecting cable.

- Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

- The appliance must not be operated using a timer or a separate remote system!

• Never leave the appliance unattended when in use.
• Do not leave the appliance outdoors or in a damp area.

Never place anything on top of the device.

- Never immerse the unit in water.

- Leave a space of about 10cm around the device.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.
• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.
• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

- The device gets hot, only transport after it cooled down.

- Only use the device as described in this manual.

- You must not put any materials such as paper, cardboard, plastic etc. into the appliance.

- This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

- Before initial use: clean all parts carefully and leave to dry. When used for the first time, the device can smoke slightly.

Attention! Housing and glass get hot. Danger of burns! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at least 70cm to burnable materials.

• During operation steam emerge. Keep hands and face away. Watch out for steam during cooking and when you pull out the pot. Take appropriate distance to wall cupboards to avoid damage of the veneer.
  This device is designed to automatically releases excess pressure / steam during the cooking process. Before use, it must be checked whether the pressure and safety valves are clean and free of blockages. The sealing ring must be clean and correctly installed. At the end of a cooking process, a signal sounds before the steam is released.

• Make sure that the drain valve is not covered.

• If an extension cable is used, it has to have a cross-section of 1,5mm^2 . A cable drum must always be unwound.
• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.
• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
• Hygiene: Please always clean the device to avoid bacteria and mold formation.

Cleaning

Attention! Pull the plug before cleaning and allow the device to cool down.

- Never immerse the unit into water.

- Do not use abrasives, oven spray or solvents.

• Pull the sealing ring out of the lid and remove all cooking residues. Then properly insert the sealing ring back into the cover. If no pressure builds up in the device during the next operation, check that the sealing ring is seated correctly.
• Rinse the pressure release valve and the condensate container and insert them completely into the cover.
• Wipe the housing with a damp cloth and a little washing-up liquid.
• Make sure that there are no residues on the heating plate and the bottom of the cooking pot so that the regulation is not affected.
  • The accessories can be cleaned in the dishwasher.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

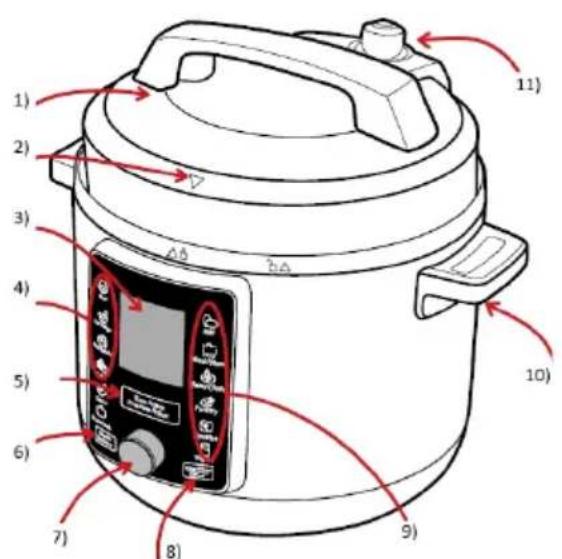

1. Lid
2. Lid lock mark
3. Display
4. Automatic programs
5. Setting timer / pressure
6. Pressure release button
7. Rotary control
8. Keep warm / cancel
9. Automatic programs
10. Handles
11. Pressure release valve
12. Lid lock valve
13. Condensate tank

Cooking pot / inner pot

• Make sure that the edge of the container and the bottom are not damaged, as this can impair the function.
• Only use the cooking container with this device and not as a saucepan or in a stove!
• The MAX marking must not be exceeded.

• Always fill the food into the cooking container and never into the device without an inner pot!

Getting started

1. Put the food in the cooking pot.

Please note that the filling level is between MIN and MAX and does not exceed or fall below them.

Place the cooking pot in the device.

1. Connect the device, beeps can be heard and "00:00" appears on the display.

2. Place the lid on the device and clos it according to the marking (No. 2) with a clockwise rotation.

To open the lid after the end of the cooking process, the pressure release button No. 6 must be pressed. Do not use force to open the lid! If the automatic pressure release "AON" is selected, the pressure is released automatically after the end of the program.

1. Select the desired automatic program with the rotary control No. 7. The corresponding symbol flashes on the display and the basic cooking time is displayed. If the program is not changed within 10 seconds, the device starts the basic program.

2. Changing cooking time / steam pressure

After selecting the program, changes in time or pressure must be made within 10 seconds.

Press the timer / pressure button No. 5, the time flashes in the display. The time can be changed from 00:01 minutes to 04:00 hours using the rotary control.

After 10 seconds the program starts with the changed time.

If you also want to change the pressure, press button No. 5 a second time. Use the rotary control to select the desired steam temperature between level 1 and 8. The device starts automatically and shows the set values on the display.

Note: The cooking time only begins to run as soon as the overpressure is reached.

If you want to change the timer or the pressure during the cooking process, press button No. 5 and change the values as described above.

Basic settings

Program Time		Modifiable scope time	Steam level	Modifiable scope
Meat/Stew 35 Min		01 Min - 4 h	8 1 - 8
Poultry	30 Min	01 Min - 4 h	High 1	- 8
Fish	10 Min	01 Min - 4 h	Low 1	- 8
Milk/Cereal	5 Min	01 Min - 4 h	Low 1	- 8
Sauté	10 Min	01 Min - 2 h	x	x
Frying without Pressure	15 Min	01 Min - 2 h	x	x
Steam	8 Min	01 Min - 4 h	Low 1	- 8
Rice	12 Min	01 Min - 1 h	Low 1	- 8
Vegetables	15 Min	01 Min - 4 h	Low 1	- 8
Yogurt	08 h	30 Min - 99 h	x	x
Cake	40 Min	01 Min - 4 h	8 1 - 8
Slow Cook	06 h	02 h - 30 h	x	x

• Sauté the food directly in the cooking pot before the lid is closed.
• Slow Cook does not require steam pressure. When the lid is put on, a small pressure builds up, which is regulated by the pressure valve at level 3.
• Frozen food takes 10 minutes longer.
• A beep sounds after the cooking time has expired. The steam pressure is automatically released. If there is no more steam pressure in the device, the lid lock opens automatically and the device switches to keep warm mode (70°C for max. 10 hours).
• If you want to change from the automatic pressure release "AON" set to the manual pressure release "AOFF", press the pressure release button (No. 6) and cancel (No. 8) together for 2 seconds.
• After the warm-up time has elapsed, the device switches to stand-by and then switches off finally after 5 minutes. Unplug it.

Note:

- If the lid is not closed properly, the display shows "LID".

When manually releasing the pressure, keep a sufficient distance from the pressure release valve. With the automatic pressure release, make sure that you are at a sufficient distance from the pressure release valve when the pressure is released (after the end of the cooking time).

Cooking rice

- Never use rice bags, only put loose rice in the cooking pot. The rice should be cleaned with cold water in a sieve and put them into the inner pot.

- Add water with the measuring cup:

o E.g. 2 measuring cups rice add 3 measuring cups water

- You can add spices such as chili, garlic etc. to the water. For wild and brown rice, add in addition to the above mentioned amounts half a measuring cup of water more.

- In various types of rice, it may be a slight browning of the rice grains on the bottom of the pot. This cannot be prevented by design.

Steaming:

• With the steaming insert it is possible to steam vegetables or fish. Cut the food in mouth size pieces and place it equally on the steaming insert. The vegetables must not protrude over the edge of the insert.
• Two cups of water should be poured inside the inner pot, then the steaming insert should be placed inside the pot, close the lid and start the appliance.

Yoghurt

• You can use both UHT milk and pasteurized fresh milk. For off-farm milk (milk dispenser / milk refuelling station), the milk must be boiled first and cooled to at least 35 °C.
• Stir one cup of yoghurt (125gr) into 2,0 litres of milk and fill into the yoghurt glasses.
• Then fill up the glasses with milk up to 1cm below the edge of the glass. Stir well each glass with a spoon and close with the lid. Then, place the glasses in the device and start the yoghurt program.
• Note: yoghurt glasses can be gained at the STEBA-Service as accessories.

Mature Time:

• The milk mixture should be left in the appliance for at least 8h. The longer the yoghurt matures, the tastier it becomes. The colder the mixture, the longer the timer has to be set. Use a spoon to check the consistency and, if necessary, increase the timer. Do not move the device during the mature time, otherwise the yoghurt might not thicken. One cup of the finished Yoghurt can be used as the starter culture, but not more than approx. 20 times, as the effect is not so good any more.
• Keep the ready yoghurt always in the refrigerator. Ingredients such as sugar, fruits or flavours can be added later to the plain yoghurt.

Troubleshooting

Dear Client,

Thank you for buying this STEBA product. The following table will help you with problems that may occur when using your device. For many problems there is a simple solution, because not everything that appears like a malfunction must be serious. Please check the following list before contacting our customer service.

Problem Reason Suggestion
Device does not work	It is not connectedFuse has failed	Check the plugCheck the fuse
Lid does not close	Sealing ring is missing or incorrect mountedLid is not put correctly on the device	Check the mounting of the sealing ringCheck the lid lock mark
Lid does not open	Pressure has not yet dischargedSafety valve is in lock position	Release pressure with the pressure release button
Steam discharges between lid and housing	Sealing ring is damage or soiled	Replace sealing ringClean sealing ring
Safety valve does not lock and no pressure can be built	Not enough liquid in the cooking potSilicon plug on the valve is soiled	Contact service
Occasional bangs	Cooking pot is damp at the bottom	Clean and dry before use
Rice is too soft	Too much water	Reduce water
Rice not totally cooked	To less water	Add more waterAfter cooking, leave the rice for another 5 minutes with the lid closed

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
