USER MANUAL 82-0250-W Weston

WESTON RECONNECT WITH REAL FOOD WESTON

DELUXE ELECTRIC

TOMATO STRAINER

LE INVITAMOS A LEER CUIDADOSAMENTE ESTE INSTRUCTIVO ANTES DE USAR SU APARATO.

DUE TO CONSTANT FACTORY IMPROVEMENTS, THE PRODUCT PICTURED MIGHT DIFFER SLIGHTLY FROM THE PRODUCT IN THIS BOX.

IMPORTANT SAFEGUARDS 3-4

OTHER CONSUMER SAFETY INFORMATION 5

COMPONENT LIST 6-7

DISASSEMBLY & CLEANING 8

ASSEMBLY 9-10

INSTRUCTIONS FOR USE 11

REVERSE FUNCTION 12

WARRANTY 14

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not put cord, plug, base, or motor in water or other liquid.
6. Turn the appliance OFF() then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
8. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.
9. Check if the voltage indicated on the appliance corresponds to the local voltage before you connect the appliance.
10. Do not use outdoors.
11. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove.
12. Do not place on or near a hot gas or electric burner, or in a heated oven.
13. Always use the juice extractor on a dry, level surface.
14. Turn the appliance off, unplug, and wait until moving parts have stopped running before removing parts of the appliance or attaching accessories.
15. Avoid contact with moving parts.
16. Never feed food into food chute by hand. Always use the food stomper.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFEGUARDS

1. Do not put fingers or other objects into the juice extractor feed chute while it is in operation. If food becomes lodged in the opening, use food stomper to push it down. When this method is not possible, turn the motor OFF (☐) unplug the cord from the outlet, and disassemble the appliance to remove the remaining food.
2. Do not operate the Tomato Strainer without the Hopper in place.
3. Keep hair, clothing, and jewelry, as well as spatulas and other utensils, away from feed chute during operation to prevent the possibility of severe injury to persons and/or damage to the appliance.
4. Do not leave the Tomato Strainer unattended while it is operating.
5. Do not attempt to process hard uncooked fruits and vegetables.
6. Do not operate the appliance for more than 5 minutes at one time. After 5 minutes of continuous use, allow a few minutes for the appliance to rest before next use.
7. Do not run the Tomato Strainer without food in the head. Severe damage to the head and auger may occur.
8. Wear eye protection. Wear safety glasses that conform to ANSI Z87.1 requirements. Everyday eye glasses are not safety glasses.
9. Check that the appliance is OFF (☐) before plugging cord into wall outlet. To disconnect, turn the control to OFF (☐) then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
10. Do not use appliance for other than intended purpose.
11. CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

SAVE THESE INSTRUCTIONS

OTHER CONSUMER SAFETY INFORMATION

This appliance is intended for household use only.

WARNING Entanglement Hazard: To avoid serious injury do not reach into Tomato Strainer inlet. Always use stomper. Do not operate without Hoper in place.

⚠ WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electrical shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord that it will not drape over the counter-top or tabletop where it can be pulled on by children or accidentally tripped over. Carry the unit by the Main Body with both hands. Do not carry by the Hopper or neck.

COMPONENT LIST

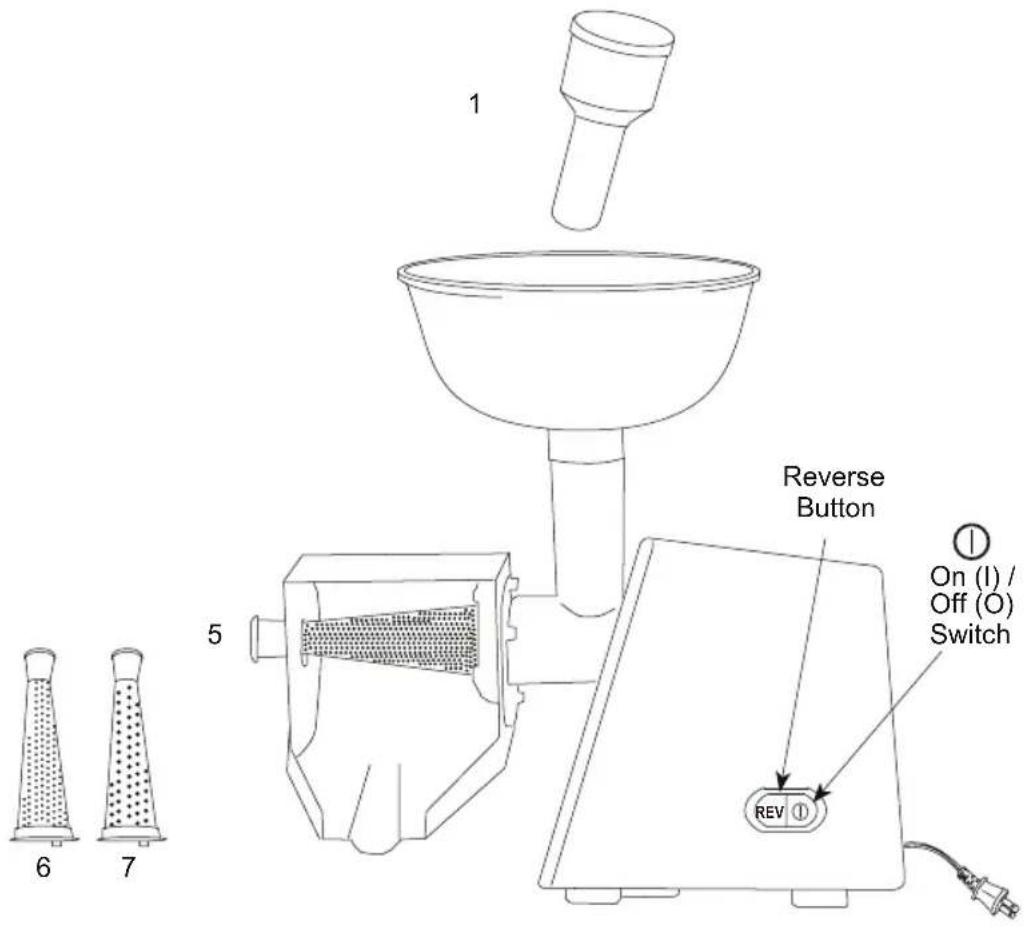

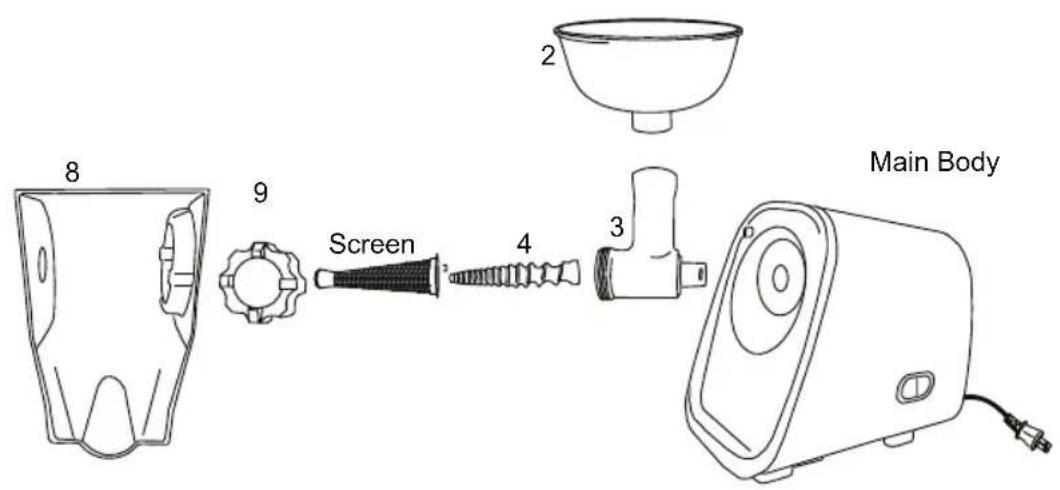

DIAGRAM NUMBER PART DESCRIPTION
1 STOMPER
2 HOPPER
3 HEAD
4 PLASTIC AUGER
5 STANDARD TOMATO/BERRY SCREEN
6 PUMPKIN SCREEN
7 SALSA SCREEN
8 CHUTE
9 FRONT RING NUT

If any components of this unit are broken, the unit does not operate properly or you need a replacement instruction manual, visit us on the web at

WestonBrands.com

6 7 5 1 Reverse Button On (I) / Off (O) Switch REV

8 9 Screen 4 3 2 Main Body

ENGLISH INSTRUCTIONS

DISASSEMBLY & CLEANING INSTRUCTIONS

WARNING

Electrical Shock Hazard. Before cleaning, assembling, or disassembling the appliance, make sure the appliance is OFF(●) and the plug is removed from the outlet/power source.

Before using the Tomato Strainer for the first time, thoroughly clean all parts (including accessories) as instructed below. DO NOT immerse the Main Body in water or other liquid.

1. Turn the Motor Unit off (☐) and disconnect it from the power supply.
2. Remove the Hopper from the Head.

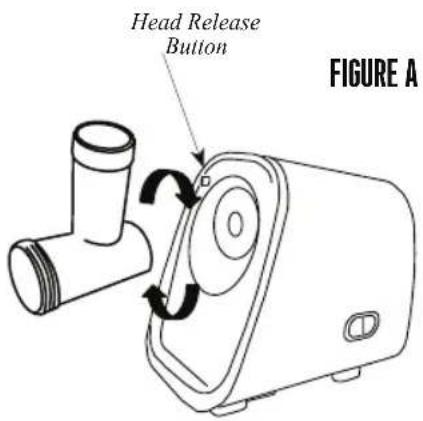

3. To remove the Head, press the Head Release Button and turn the Head clockwise (FIGURE A).

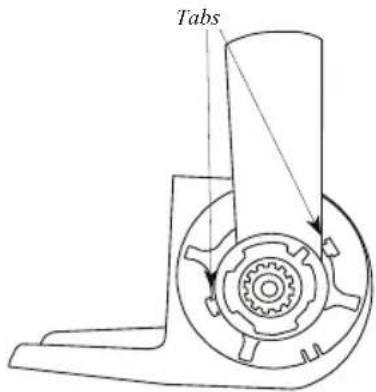

4. To remove the Head from the chute, press back the two tabs to release the head (FIGURE B).

5. Turn the Front Ring Nut counterclockwise to remove it from the Head.

6. Disassemble all the parts from the Head/Screen Assembly.

7. NOTE: DO NOT immerse the Main Body in water or other liquid. Clean the Main Body with a damp cloth or towel then wipe dry. Wash all parts that contact food in warm soapy water. Rinse with clean water. Dry all parts immediately.

NOTE: Only plastic parts of the Tomato Strainer are top-rack dishwasher safe.

1. Coat the Screen and Head with a food-grade silicone spray.

Head Release Button FIGURE A

FIGURE B

Tabs

Technical diagram showing assembly of a kitchen tool with labeled components including funnel, screwdriver, and motor.

ASSEMBLY

WARNING Entanglement Hazard: Disconnect power before cleaning, disassembling or assembling

1. Insert the Auger into the Head.
2. The place the screen over the auger and line up notch with the tab located on the bottom of the Head. Hold screen in place.
3. Slide the Front Ring Nut over the Screen assembly and turn clockwise to firmly tighten (make sure the tabs on the Screen remain aligned with the notches on the Head). DO NOT over-tighten the Front Ring

Nut to avoid damaging the Motor during operation (FIGURE C).

1. Insert assembled Screen and Head into the large opening of the Chute. Make sure that the end of the Screen exits the smaller opposite opening. The assembled Screen and Head will click into place (FIGURE D).
2. Align the notches on the Grinder Head with the tabs on the Main Body.

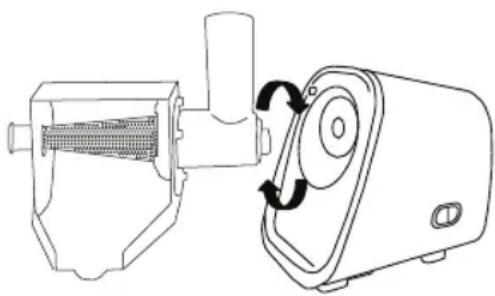

3. Press the Grinder Head against the Motor and rotate it counterclockwise until it locks into place (FIGURE E).
4. Rotate the Chute until the desire angle is reached.

FIGURE C

Diagram showing three-step assembly of a mechanical component with rotational arrows indicating motion.

FIGURE D

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

FIGURE E

Technical line drawing of a mechanical device with a side view showing internal components and rotation arrows (no text or symbols)

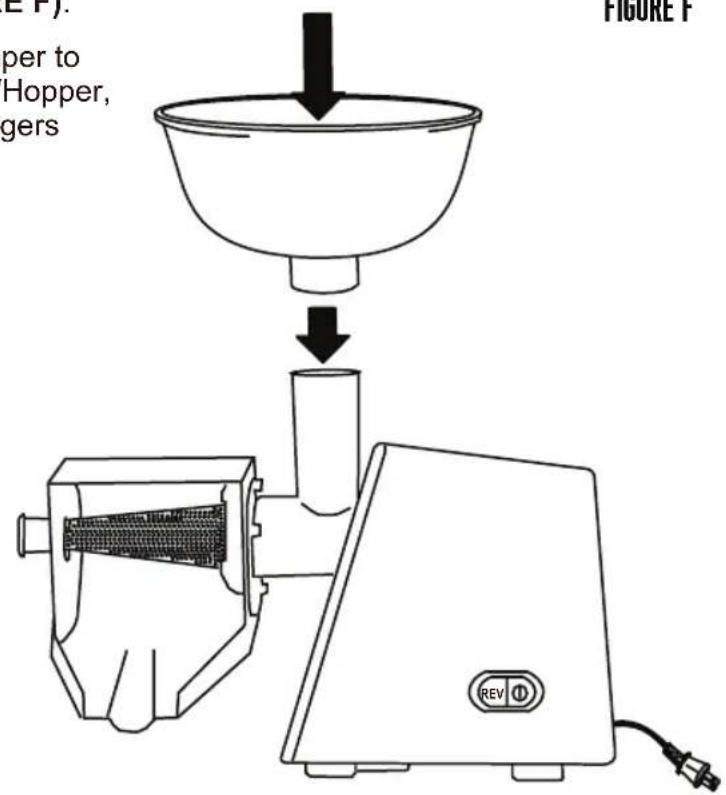

1. Install the Hopper onto the Head. Press the Hopper down until fully seated (FIGURE F).

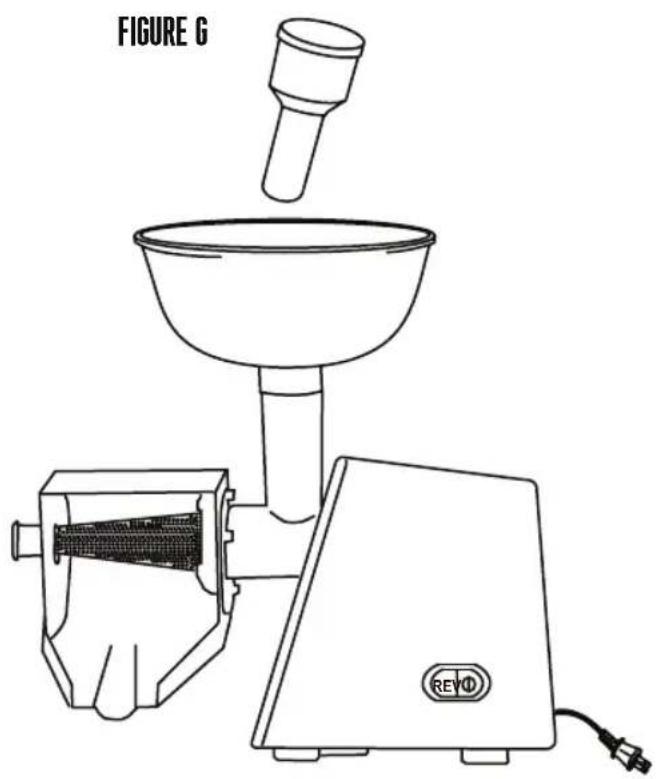

2. ALWAYS us the Stomper to push food into the Head/Hopper, NEVER use hands or fingers (FIGURE G).

FIGURE F

E F): per to Hopper, irgers FIGURE F

FIGURE G REV®

INSTRUCTIONS FOR USE

WARNING Entanglement Hazard: To avoid serious injury do not reach into Tomato Strainer inlet. Always use stomper. Do not operate without Hoper in place.

NOTE: The Tomato Strainer cannot be used with meat products.

1. Cut large fruits and vegetables into 1 inch pieces so that they can fit easily through the hole in the hopper. NOTE: Remove pits, stems, hard shells and hard seeds before placing fruits or vegetables into the Tomato Strainer to avoid damaging the Screen. Precook harder fruits and vegetables so that they are soft. DO NOT process hard uncooked fruit and vegetables.
2. Be sure the Power Switch is off (Connect the power cord for the Tomato Strainer to the power source.
3. Place the fruits/vegetables in the Hopper. Do not operate the Tomato Strainer without the Hopper in place.
4. Place a bowl under the Chute to collect juice and pulp. Place a bowl under the Screen outlet to collect skin and seeds (FIGURE H).
5. Push the power switch on (☐)
6. Feed the fruits/vegetables into the Head. Use the Stomper to push the fruits/vegetables into the Head. ALWAYS us the Stomper to push food into the Head/Hopper, NEVER use hands or fingers.

HELPFUL HINTS:

A. Be sure to cut food into smaller pieces in order to fit easily through the hole of the hopper. Smaller pieces will require less force in pushing the food down into the hopper with the stomper.
B. Rerun the skin and seeds through the Tomato Strainer to extract any leftover pulp & juice. Repeat as necessary.
C. Use a rubber spatula to scrape pulp from the Screen into the Chute.
D. When juicing with the pumpkin screen, ensure pumpkin skin is peeled off. Process 1 lb (0.4 kg) batch of pumpkin over a 3 minute on time. If processing more than one batch turn unit off and allow to rest for one minute.

1. When straining is complete, turn the Motor off ( ) and disconnect it from the power source.

REVERSE FUNCTION

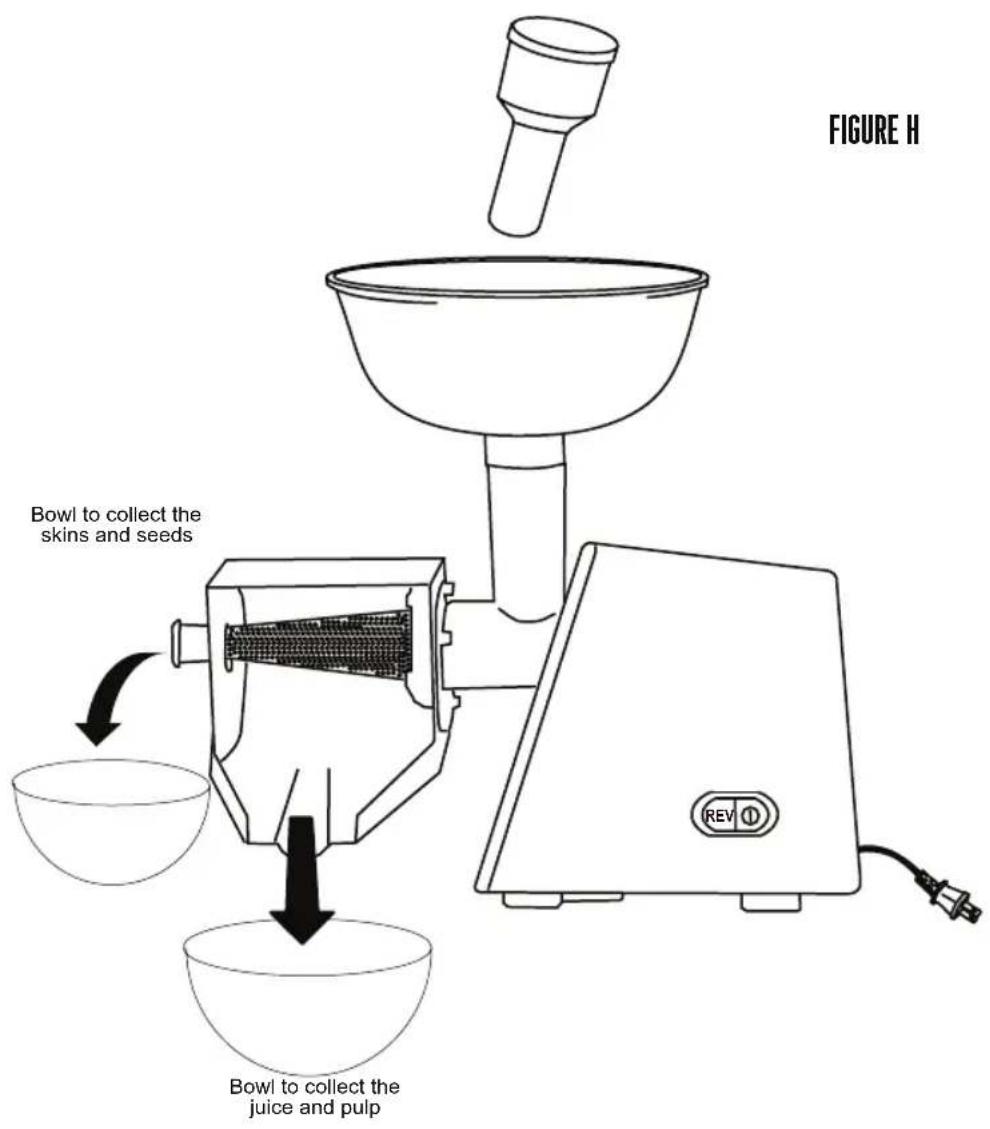

FIGURE H Bowl to collect the skins and seeds Bowl to collect the juice and pulp

The Reverse Button (REV) is used primarily for clearing jams. In event of a jam;

• Turn the power off ( ). Allow the Motor to come to a COMPLETE STOP before pressing the Reverse Button (REV) to clear a jam.
• Allow the Motor to come to a COMPLETE STOP before turning the Power back on ( ) after using the reverse function.
• NEVER operate the Motor in reverse for more than 5 seconds at a time.

If the jam does not clear, disconnect the Tomato Strainer from the power source and follow the "Disassembly & Cleaning Instructions" to clean the unit.

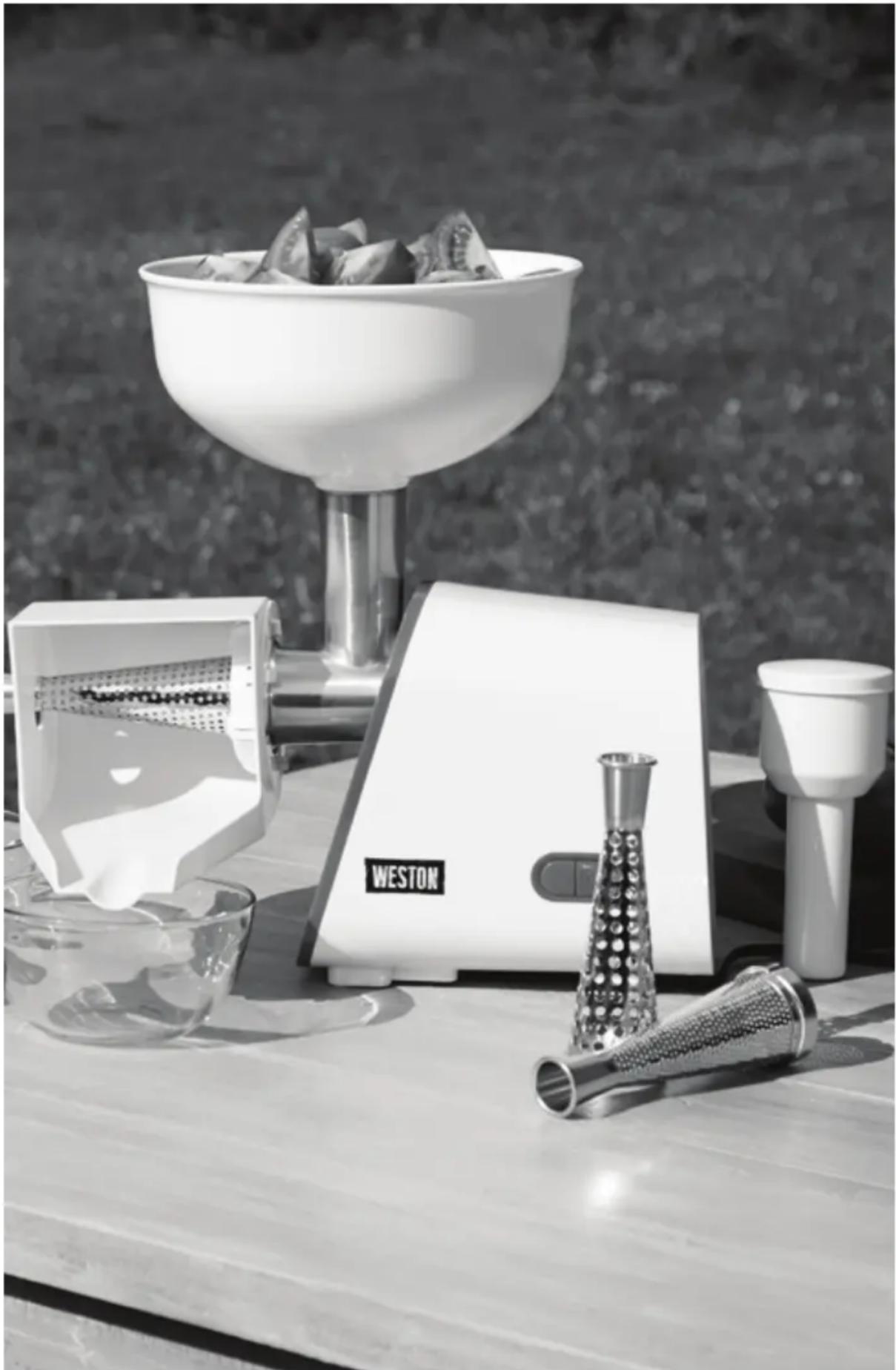

Black-and-white photo of a modern kitchen appliance with a grater, a bowl of food, and a stainless steel grater on a wooden table (no visible text or symbols)

WESTON

ONE-YEAR LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover unauthorized repairs or service to products, products sold "as-is" by retailers, glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

This warranty extends only to the original consumer purchaser or gift recipient and is not transferable. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty.

This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Visit WestonBrands.com. For faster service, locate the model, type, and series numbers on your appliance.

WESTON WESTON

COLADOR DE

TOMATEELÉCTRICO DELUXE

DEBIDO A CONSTANTES MEJORAS DE FÁBRICA, EL PRODUCTO ILUSTRADO PUEDE DIFERIR UN POCO DEL PRODUCTO QUE SE ENCUENTRA EN ESTA CAJA.

Diagram showing a mechanical assembly with rotating gears, fastener, and threaded component

FIGURA D

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

FIGURA E

Technical line drawing of a mechanical device with internal components and rotation arrows (no text or symbols)

FIGURA G REV 0

INSTRUCCIONES DE USO

Black-and-white photo of a modern kitchen appliance with a grater, a bowl of food, and a stainless steel grater on a wooden table (no visible text or symbols)

WESTON

WESTON RENOUVELEZ VOTRE LIEN AVEC LA VRAIE NOURRITURE WESTON

TAMIS POUR TOMATES/PRESSE-FRJITS ET LÉGUMES ÉLECTRIQUE DE LUXE

EN RAISON DES AMÉLIORATIONS CONSTANTES EN USINE, LE PRODUIT PRÉSENTÉ EN PHOTO PEUT ÊTRE LÉGÈREMENT DIFFÉRENT DU PRODUIT SUR LA BOÎTE.

PRÉCAUTIONS IMPORTANTES

Line drawing of a kitchen tool assembly showing a funnel, handle, screwdriver, and motor (no text or labels)

MONTAGE

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

FIGURE E

Technical line drawing of a mechanical device with internal components and rotation arrows indicating motion (no text or symbols)

FIGURE G REV 10

INSTRUCTIONS D'UTILISATION

Black-and-white photo of a modern kitchen appliance with a grater, a bowl of food, and a stainless steel grater on a wooden table (no visible text or symbols)

WESTON

GARANTIE LIMITÉE D'UN AN

Black-and-white photo of a modern kitchen appliance with a grater, a bowl of food, and a stainless steel grater on a wooden table (no visible text or symbols)

ATTENTION!
