Quick Guide

NVR H.265 CON HDMI

Indice

Set Unlock Pattern Release your finger when done. Language Device ID New Admin N Password St New Admin F Confirm Pass Unlock Patte

RecoverPwdDialog Security Question Configuration Security Question 1 Your favorite book? Answer Security Question 2 Your mother's name? Answer Security Question 3 Your head teacher's name in senior high school? Answer Certificate of authorization Super code(Not recommended) Export OK Annulla

Avvio dell'NVR

Screenshot of Aggiungi IP Camera software interface showing IP camera settings and configuration fields

7 192.168.1.170 9988 8 192.168.1.172 9988 9 192.168.1.174 9988 Ricerca Aggiungi Aggiungi Tutto Passaggio Modifica Stato Indirizzo IP/Dominio IP CH1 8 192.168.1.178 IP CH2 8 192.168.1.186 IP CH3 IP CH4 IP CH5 IP CH6 IP CH7 IP CH8 IP CH9 Assegna Auto IP Elimina Password Default

Toolbar with icons for data, chart, grid, and function tools in Chinese

Ricerca Data: UBD45/0022 Type: Ricerca ✓ Normale ✓ Modern ✓ PD ✓ PIR ✓ PID ✓ LCD ✓ SOD ✓ PD & VD ✓ AD ✓ FD ✓ CG ✓ CD ✓ GD ✓ LFD ✓ PSD ✓ SANS ✓ Ostraramento ✓ Manualie ✓ AMR Type: Stream Timeline ✓ CH1 ✓ CH2 ✓ CH3 ✓ CH4 ✓ CH5 ✓ CH6 ✓ CH7 ✓ CH8 ✓ CH9 ✓ CH10 ✓ CH11 ✓ CH12 ✓ CH13 ✓ CH14 24h 25h 1h 30m Ricerca ✓ Normal ✓ MVR ✓ Reali Infrazioni ✓ Alente ✓ Reali ✓ AMR OKOR 2022

User Info Username admin Password **** Device Info Start IP Media Port Web Port Gateway Net Mask Net Mode Static Modify

First access to the NVR 26

Starting up the NVR 28

DEVICE CONFIGURATION 28

IP CHANNEL CONFIGURATION ....28

OPERATING INFORMATION ....31

NVR CHANNEL CONFIGURATION FROM A PC 32

Recording and Playback 33

RECORDING PARAMETERS 33

PLAYBACK 35

Viewing from a PC browser 36

Viewing from Client Software 37

General Information

Dear Customer,

Thank you for purchasing this product.

This document describes how to quickly install and use the URMET S.p.A. H.265 series

NVR models. Before using the device, read this document carefully and keep in a safe place where it is easily accessible for reference when needed.

\*NOTE

For further information, see the instruction manual on the Urmet website. To download the manual from the site, see the QR code on the Addendum sheet.

WARNINGS

Power supply

Before connecting the device to the electrical outlet, ensure that the ratings on the nameplate match those of the mains power supply.

Do not pull on the cable to unplug the device.

Switch off the device before disconnecting the power. Do not switch the NVR off while recording or playing, or from the configuration menu. Stop recording and playback before disconnecting the device, to prevent damage to the hard disk.

Safety precautions

Keep the device away from rain and dampness to prevent the risk of fire or electrocution. Do not introduce any material (solid or liquid) inside it. If this should accidentally occur, disconnect the device from the mains outlet and have it inspected by qualified personnel.

Never open the device. In all cases, contact qualified personnel or an authorised service centre for repairs (www.urmet.com >> Contacts >> Technical Support Centres).

Keep the device away from children, to avoid accidental damage.

Do not touch the device with wet hands to prevent electric shock or mechanical damage.

Stop using the device if it falls or if the external casing is damaged. Continuing to use the device in these conditions could cause electric shock. Contact the retailer or authorised installer.

Installation precautions

To prevent the device from overheating, place it in a position that allows a flow of air through the vents in the casing.

Leave a space of at least 5 cm when installing in a rack. For the same reason, do not install near heat sources such as radiators or hot air ducts.

Keep the device away from direct sunlight. Do not install in areas subject to excessive dust, mechanical vibration or shock.

Do not place the device on an unstable surface, such as an unsteady or sloping table, as the device could fall, causing damage or mechanical failure.

Do not install the device where it may be exposed to moisture or water. Do not spray water on the device, to avoid risk of fire, electric shock or mechanical damage.

Stop using the device if water or any other material penetrates inside it, to prevent risk of fire or electric shock. In such cases, contact the retailer or authorised installer.

Do not place heavy or heat-generating objects on top of the device: this could damage the casing and/or increase the internal temperature, leading to damage.

Do not cover the device with a cloth while it is running to prevent deforming the external casing and overheating the internal parts, causing risk of fire, electrocution and mechanical failure. Keep magnets and magnetised objects away from the device to avoid malfunction. Do not use the device in the presence of smoke, vapour, humidity, dust or intense vibrations.

Do not operate the device immediately after moving it from a cold place to a warm place or vice versa. Wait for around three hours: this will allow the device to adapt to the new ambient (temperature, humidity, etc.).

Cleaning the device

Rub gently with a dry cloth to remove dust and dirt.

Dip the cloth in a neutral detergent if dirt cannot be removed with a dry cloth alone.

Do not use spray products to clean the device. Do not clean the device using volatile liquids (such a petrol, alcohol, solvents, etc.) or chemically treated cloths to prevent deformation, deterioration or scratches to the paint finish.

Disconnect the device from the electrical outlet before any cleaning or maintenance operations.

Hard Disk

The hard disk installed in this device is sensitive to shock, temperature changes and vibrations. Failure to adopt suitable precautions could compromise the proper functioning of the device and cause loss of data from the hard disk.

If repairs are required, it is advisable to backup all important data before taking the device to the service centre. Urmet S.p.A. is not liable for the loss of stored data.

Hard disks must be installed by qualified technical personnel or by contacting the technical support centre.

Image recording

This device was designed to record images. It is not a burglar alarm. URMET SpA cannot be held liable for loss or damage due to theft suffered by the user.

Make a test recording before using the device to ensure that it is working properly. URMET SpA is not liable for loss of stored data due to loss or damage caused by failure to follow the instructions for installation and use, improper use or malfunctioning of the device. This device contains precision electronic components. Protect the device from shocks to ensure proper image recording.

Privacy and Copyright

The NVR is a device for CCTV systems. The recording of images is subject to the laws in force in the country of use. Recording of images protected by copyright is forbidden.

Product users are responsible for checking and complying with all local rules and regulations regarding monitoring and the recording of video signals. The manufacturer SHALL NOT BE LIABLE for any use of this product not in compliance with the laws currently in force.

Software/Firmware upgrade

It is advisable to periodically check the Urmet website in the specific section of the product for software and/or firmware updates (access the www.urmet.com website in the "VIDEO SURVEILLANCE AREA" Products section, type the reference product code in the search field and move to DOCUMENTATION AND RESOURCES).

Network configuration

The factory default IP address for the NVR is assigned via DHCP.

From the NVR Network OSD Menu, assign the NVR an IP address that has not been assigned to other devices in order to prevent any network conflict.

Once the NVR had been assigned a suitable address, it can be connected to the network.

Network connections

When connecting a remote PC (using client software or a browser), bear in mind that all video channels used by the PC correspond to a “unicast” type connection (TCP, RTP, UDP).

Installation

For rapid installation and use, connect the NVR to a monitor with a VGA or HDMI input and carefully follow the instructions below in the given order.

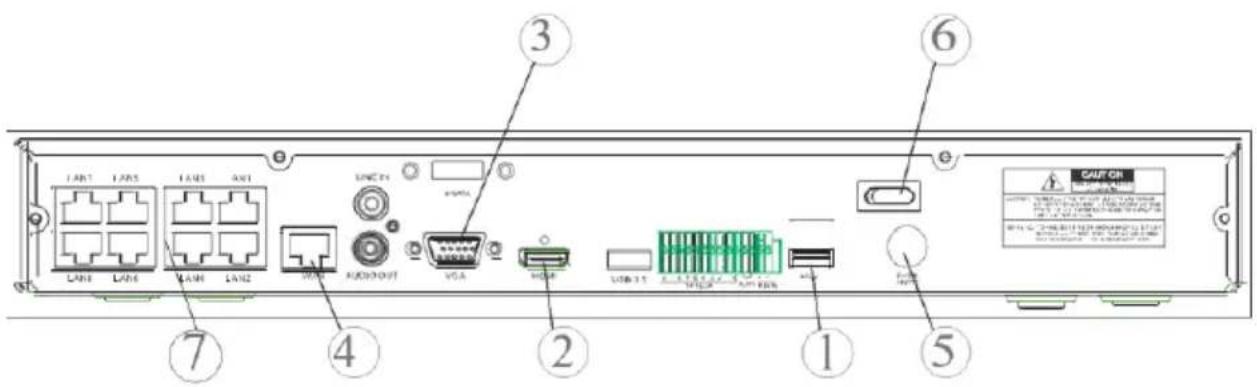

Rear panel on 1/2 HD NVR

LAN1 LAN5 LAN3 LAN1 LAN3 LAN6 MAIN LAN2 VGA AUDIOOUT VGA USB 3.1 USB 3.2 USB 3.3 CAN OFF CAUT OFF ① ② ③ ④ ⑤ ⑥ ⑦

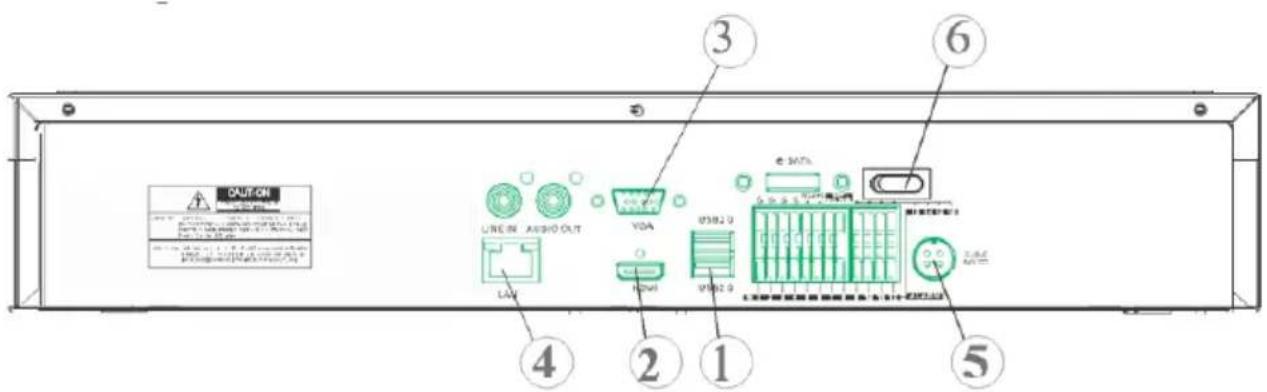

Rear panel on 4 HD NVR

CAUT ON LINE IN AUDIO OUT VDA USB2.0 3 6 4 2 1 5

① USB ports
② HDMI output
③ VGA port
④ Network connection port (to router, switch and PoE switch)
⑤ Power plug
⑥ Switches
⑦ PoE ports (available on the PoE model NVR) for direct connections to IP cameras (direct network cable)

Before installing the NVR, make sure the IP cameras are working and connected (via cable or WiFi) to the network that will be used by the NVR. For the IP camera network connection and configuration, see the instructions supplied with the cameras.

Installing the NVR

• Connect the mouse to the USB port ①.
• Connect the HDMI output ② or the VGA port ③ to the monitor to configure the IP cameras.
• Connect the network cable to the port ④.

Only for the PoE series:

• Connect one or more PoE IP cameras with network cables directly to one or more ports ⑦.
• Turn on the device by plugging it in ⑤ to the electrical mains and turning the switches ⑥ to the 1 position.

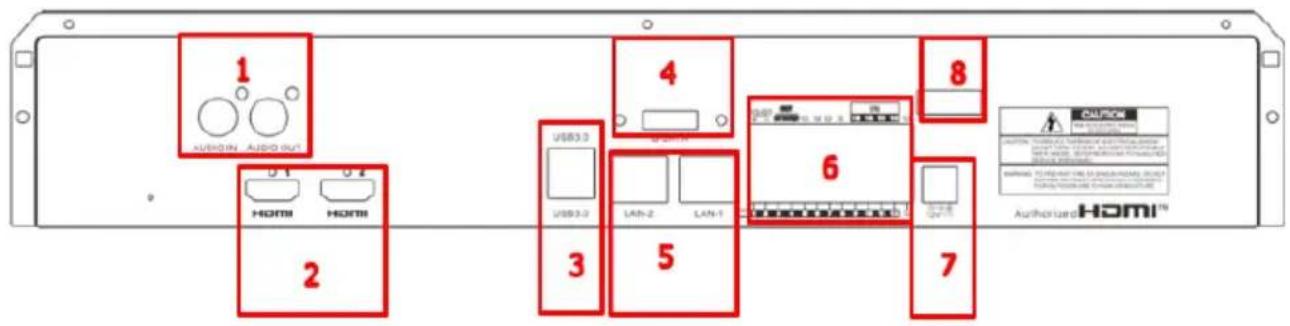

Rear panel on 32 CH NVR with dual network interface

1 AUDIO Audio Out 2 USB3.0 USB3.0 USB3.0 4 CAN-1 LAN-2 LAN-1 6 8 CAUTION WARNING: WARNING EQUIPMENT WARNING: WARNING SYSTEMS WARNING: WARNING SYSTEMS WARNING: WARNING SYSTEMS Copyright: HDMI™ Copyright: HDMI™

NUMBER	FUNCTION	DESCRIPTION
1	AUDIO	1 input/ 1 output
2	HDMI	2 outputs (HDMI-1 / HDMI-2)
3	USB	2 USB ports (Rear panel)1 USB port (Front panel)
4	E-SATA	1 E-sata port
5	PORT FOR NETWORK CONNECTION	2 LAN RJ45 1000 Base-T ports (LAN-1 / LAN-2)
6	I/O,RS485,KEYBOARD INTERFACES	16 inputs / 1 NO output1 RS485 line +/-1 Keyboard line +/-
7	POWER SUPPLY	Connector Jack 12 Vdc / 5A
8	POWER ON/OFF	Switch ON/OFF

Installing the NVR

• Connect the mouse to the USB port on the front panel of the NVR
• Connect the HDMI-1 output to its monitor for configuration
• Connect the network cable to the LAN-1 port
• Connect the power supply jack to the power supply connector on the front of the NVR
• Press the NVR's power switch to the ON position
• If you have a second monitor, connect it to the HMDI-2 port
• If you wish to perform operations related to network management/segmentation/balancing, you can connect part of the system to LAN-2

First access to the NVR

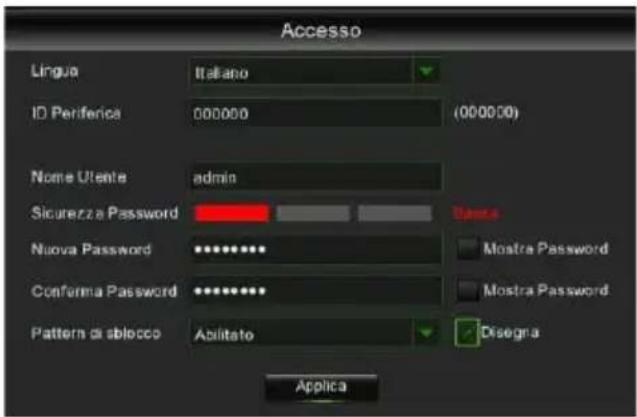

1. The first time you switch on the NVR, you must immediately set the password in order to protect your privacy. Write down the username and password and keep them in a safe place.

• Language: choose an OSD language
• Device ID: enter the device ID in brackets. Default ID: 000000.
- New Admin Name (Username): enter you administrator name.
- Password Strength: indicates the security level of the changed password.
- New Admin Password: enter your password. The password can be a combination of 8 characters.
- Confirm Password: enter your password once more.
- Enable Unlock Pattern: if this function is enabled, press Draw (pencil icon) to trace and confirm an unlock pattern; the set pattern must be traced each time to log in to the NVR system.

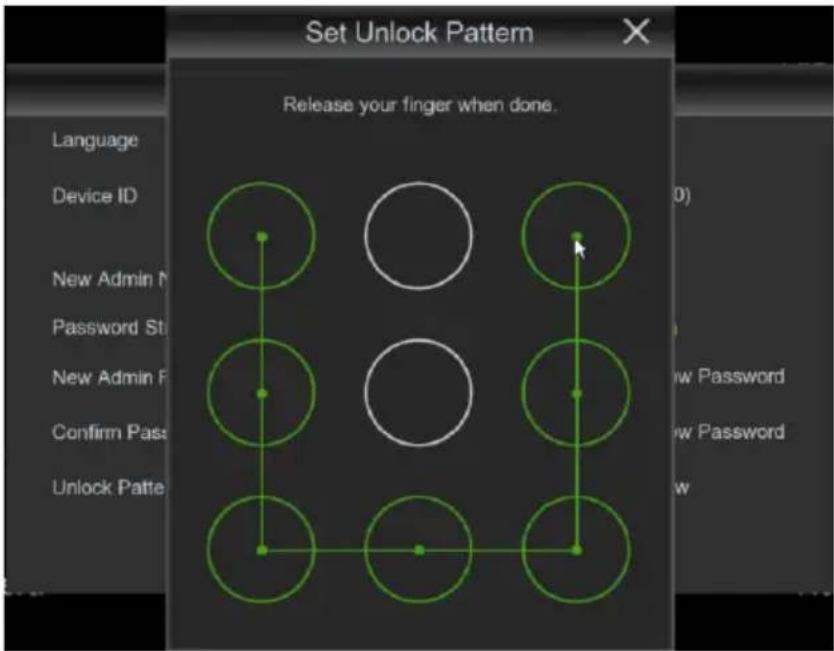

Set Unlock Pattern Release your finger when done. Language Device ID New Admin N Password St New Admin P Confirm Pass Unlock Patte

1. Click on Apply to confirm the settings and pass to the login interface. Enter the username and password to

access the NVR system.

NOTE: if you forget your password and e-mail is deactivated, you will not be able to log in to the system; contact your retailer to reset the password.

1. It is also possible to set up password recovery questions. It is suggested that you enter them in order to regain possession of your password if you lose it.

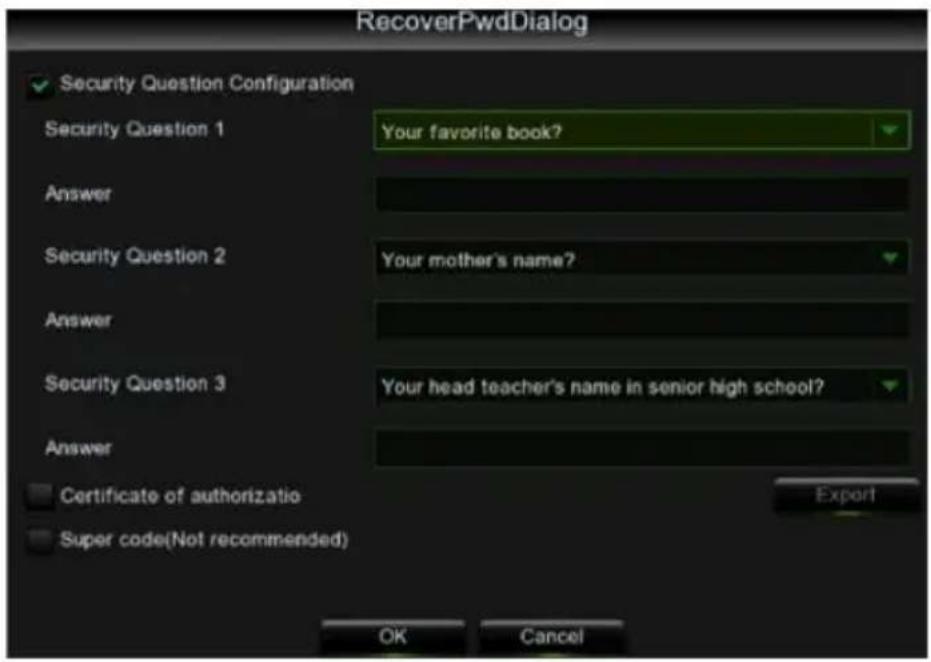

RecoverPwdDialog ✓ Security Question Configuration Security Question 1 Your favorite book? Answer Security Question 2 Your mother's name? Answer Security Question 3 Your head teacher's name in senior high school? Answer Certificate of authorization Export Super code(Not recommended) OK Cancel

Starting up the NVR

DEVICE CONFIGURATION

1. Right click and enter the administrator password to access the NVR OSD menu. To check the firmware version currently installed in the NVR, access the menu page "System" -> "Info". If the version is not recent, the NVR system software (firmware) can be updated by following the instructions given in the complete User Manual available on the Urmet website (to download the manual from the site, see the QR code printed on the Addendum sheet).

- View the network parameters currently in use in the NVR on the "Menu" -> "Network" page: wait about ten seconds for assignment and automatic display of the network parameters on the menu.

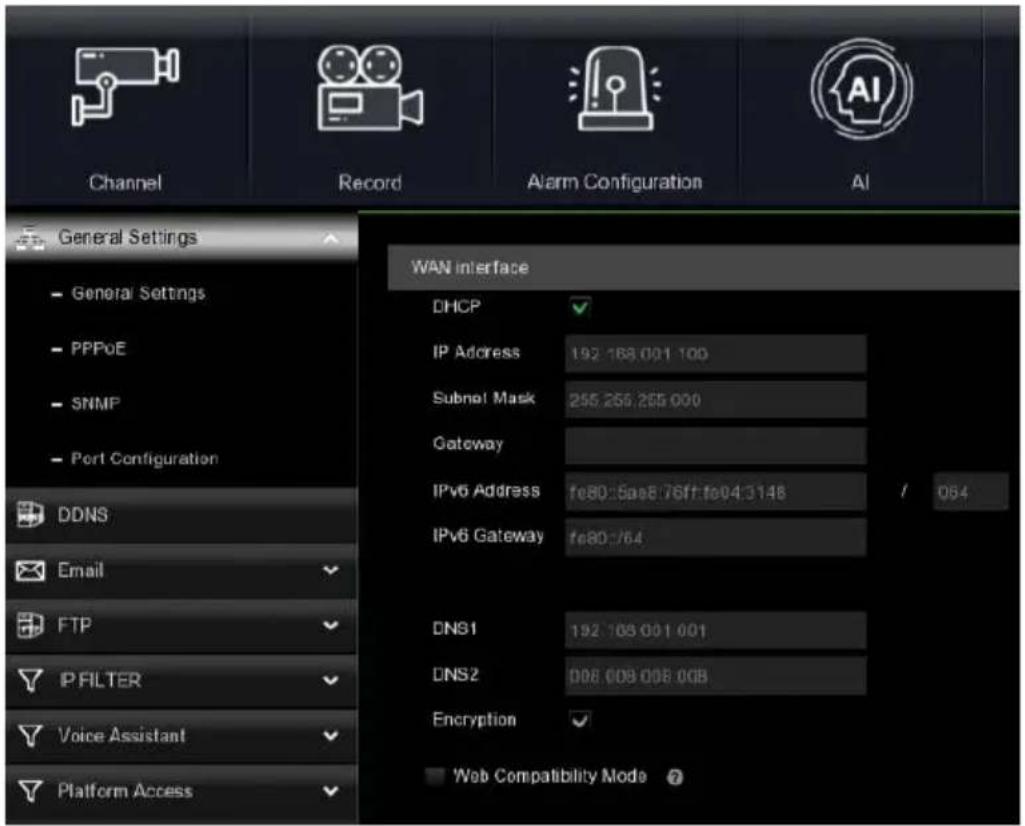

Channel Record Alarm Configuration AI General Settings - General Settings - PPPoE - SNMP - Port Configuration DDNS Email FTP IP FILTER Voice Assistant Platform Access WAN interface DHCP IP Address 192.168.001 100 Subnet Mask 255.255.255.000 Gateway IPv6 Address fe80:5ae8.76ff:fe04:3148 / 054 IPv6 Gateway fe80:764 DNS1 192.168.001 001 DNS2 008.008.008.0GB Encryption Web Compatibility Mode ?

- If the LAN network does not support the DHCP service, go to the "Menu" -> "Network" page, change from "DHCP" to "Static" mode, and then manually enter the appropriate network parameters: IP address, Mask, Gateway, DNS.

IMPORTANT

For IP channel recording, make sure that the IP cameras have a static IP address to avoid loss of video signal. The IP camera address can be changed from dynamic to static using the button (see following steps).

IP CHANNEL CONFIGURATION

Before configuring the NVR IP channels, make sure that the IP cameras are working and are connected to the same network that will be used by the NVR. For IP camera network connection and configuration, see the instructions supplied with the cameras.

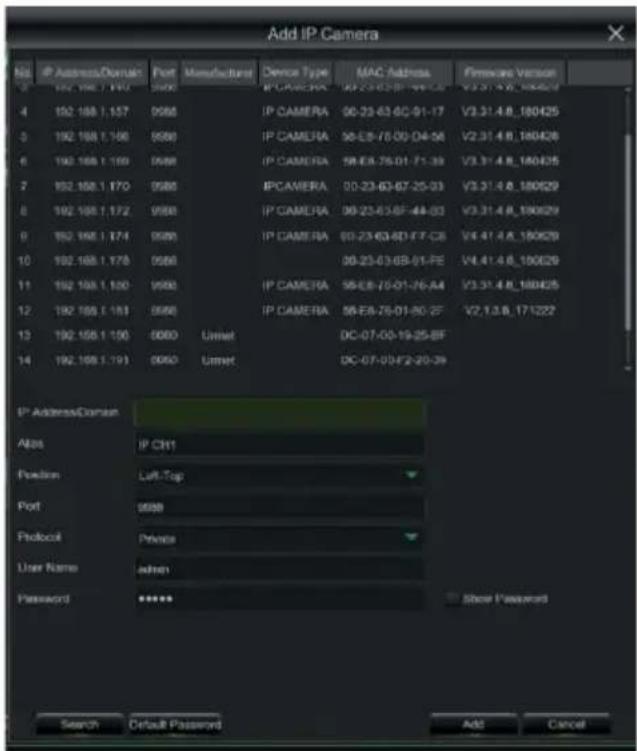

1. To manually assign IP cameras to the NVR channels, click on the “+” button to add the IP camera to the relevant channel, as shown in Figure:

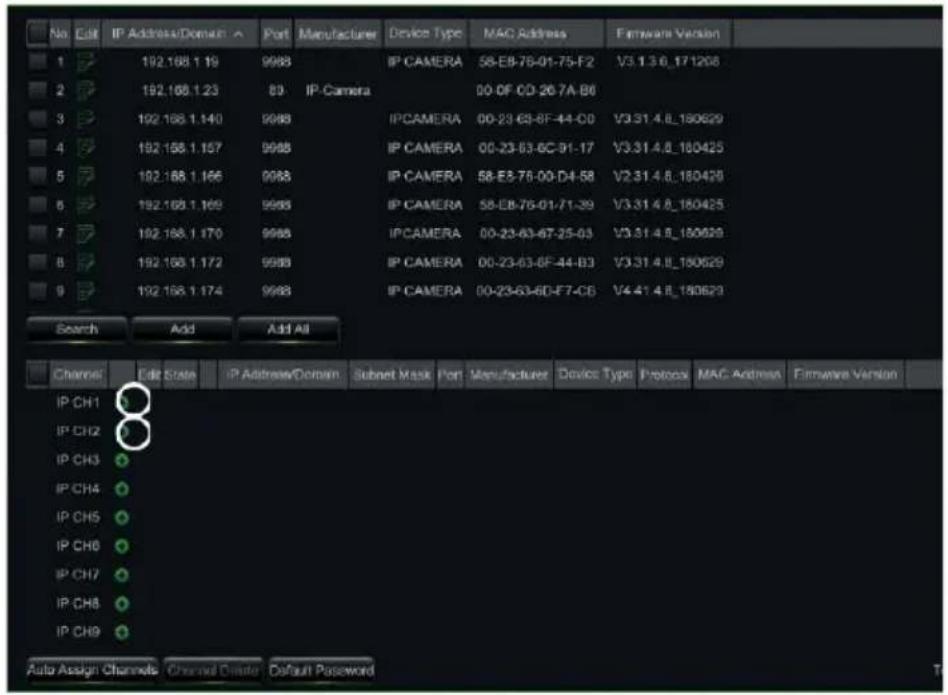

No Edit IP Address/Domain A Port Manufacturer Device Type MAC Address Firmware Version 1 192.168.1.19 9988 IP CAMERA 58-E8-76-01-75-F2 V3.1.3.6_171206 2 192.168.1.23 B3 IP Camera 00-DF-CD-26-7A-B6 3 192.168.1.140 9988 IPCAMERA 00-23-63-8F-44-C0 V3.31.4.8_180629 4 192.158.1.157 9988 IP CAMERA 00-23-63-6C-91-17 V3.31.4.8_180425 5 192.168.1.166 9988 IP CAMERA 58-E8-76-00-D4-58 V2.31.4.8_180429 6 192.168.1.169 9988 IP CAMERA 58-E8-76-01-71-29 V3.31.4.8_180425 7 192.158.1.170 9988 IPCAMERA 00-23-63-67-25-03 V3.31.4.8_180629 8 192.158.1.172 9988 IP CAMERA 00-23-63-6F-44-B3 V3.31.4.8_180629 9 192.158.1.174 9988 IP CAMERA 00-23-63-6D-F7-C6 V4.41.4.8_180629 Search Add Add All Channel Edit State IP Address/Domain Subset Mask Port Manufacturer Device Type Protocol MAC Address Firmware Version IP CH1 IP CH2 IP CH3 IP CH4 IP CH5 IP CH6 IP CH7 IP CH8 IP CH9 Auto Assign Channels Channel Delete Default Password

1. To continue manually adding IP cameras:

- Click on "Search" to find the IP cameras in the network, select the IP camera you want to add and enter the password (Default Password: admin), then check that the protocol and port are set correctly, as shown in the figure below. Select "Add" and wait for the device to come online (wait for the icon to turn green).

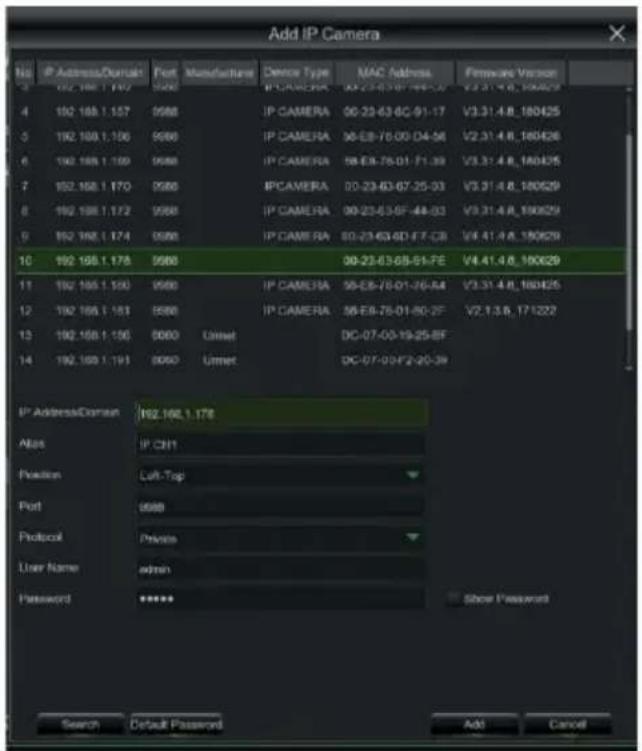

Add IP Camera No IP Address/Domain Port Manufacture Device Type MAC Address Password Version 192.188.1.157 0688 IP CAMERA 00-23-63-6C-01-17 V3.31.4.8_180425 192.188.1.166 0688 IP CAMERA 00-E8-78-00-D4-56 V2.31.4.8_180426 192.188.1.189 0688 IP CAMERA 58-E8-78-01-T1-39 V3.31.4.8_180425 192.188.1.170 0688 IPCAMERA 00-23-63-67-25-03 V3.31.4.8_180529 192.188.1.172 0688 IP CAMERA 00-23-63-BF-44-03 V3.31.4.8_180629 192.188.1.174 0688 IP CAMERA 00-23-63-BD-F7-CB V4.41.4.8_180629 192.188.1.178 0688 00-23-63-BS-01-FE V4.41.4.8_180629 192.188.1.180 0688 IP CAMERA 58-E8-78-01-T6-A4 V3.31.4.8_180425 192.188.1.183 0688 IP CAMERA 58-E8-78-01-B0-ZF V2.3.8_171222 192.188.1.190 0690 Ummet DC-07-00-19-25-BF 192.188.1.191 0690 Ummet DC-07-00-F2-20-39 IP Address/Command Alias IP CH1 Position Left Top Port 5659 Protocol Private User Name when Password **** Store Password Search Default Password Add Cancel

Add IP Camera No IP Address/Domain Port Manufacture Device Type MAC Address Firmware Version 3 192.168.1.157 9588 IP CAMERA 00-23-63-6C-91-17 V3.31.4.8_180629 4 192.168.1.157 9588 IP CAMERA 00-23-63-6C-91-17 V3.31.4.8_180629 5 192.168.1.156 9588 IP CAMERA 00-23-63-6C-91-17 V3.31.4.8_180629 6 192.168.1.159 9588 IP CAMERA 00-23-63-6C-91-17 V3.31.4.8_180629 7 192.168.1.170 9588 IPCAMERA 00-23-63-6C-91-17 V3.31.4.8_180629 8 192.168.1.172 9588 IP CAMERA 00-23-63-6C-91-17 V3.31.4.8_180629 9 192.168.1.174 9588 IP CAMERA 00-23-63-6C-91-17 V3.31.4.8_180629 10 192.168.1.178 9588 00-23-63-6C-91-FE V4.41.4.8_180629 11 192.168.1.180 9588 IP CAMERA 00-23-63-6C-91-FE V4.41.4.8_180629 12 192.168.1.181 9588 IP CAMERA 00-23-63-6C-91-FE V4.41.4.8_180629 13 192.168.1.150 9580 Umtet DC-07-03-19-25-BF V2.13.8_171227 14 192.168.1.191 9580 Umtet DC-07-03-F2-20-39 IP Address/Domain 192.168.1.178 Alias IP CHY Position Left-Top Port 5588 Protocol Drivers User Name admin Password **** Store Password Search Default Password Add Cancel

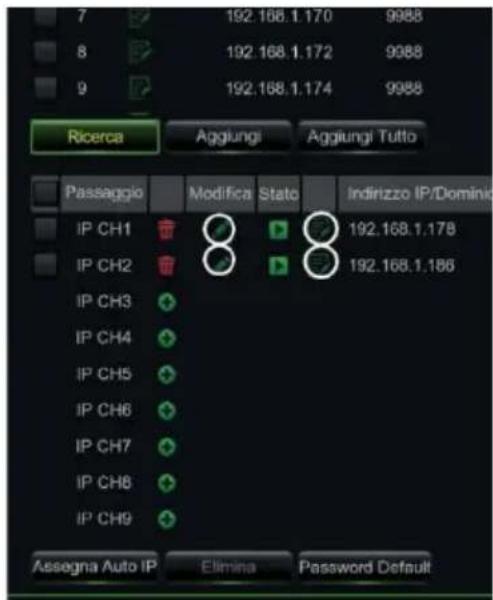

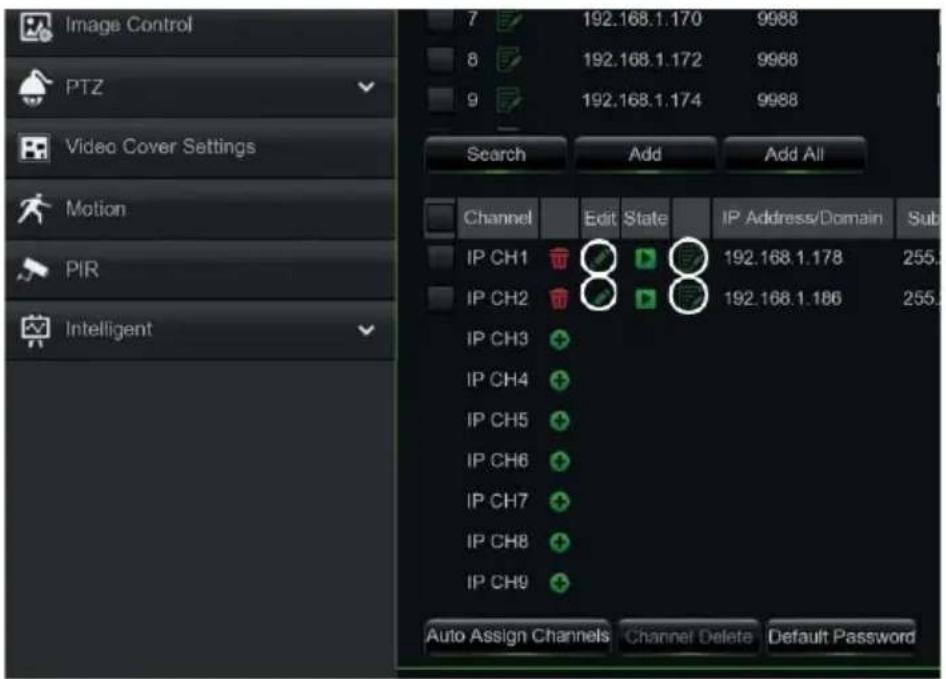

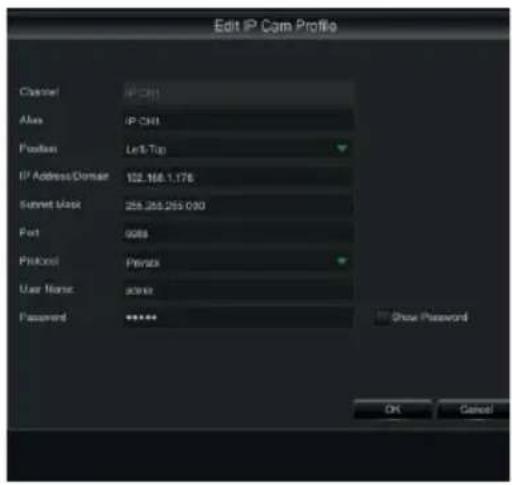

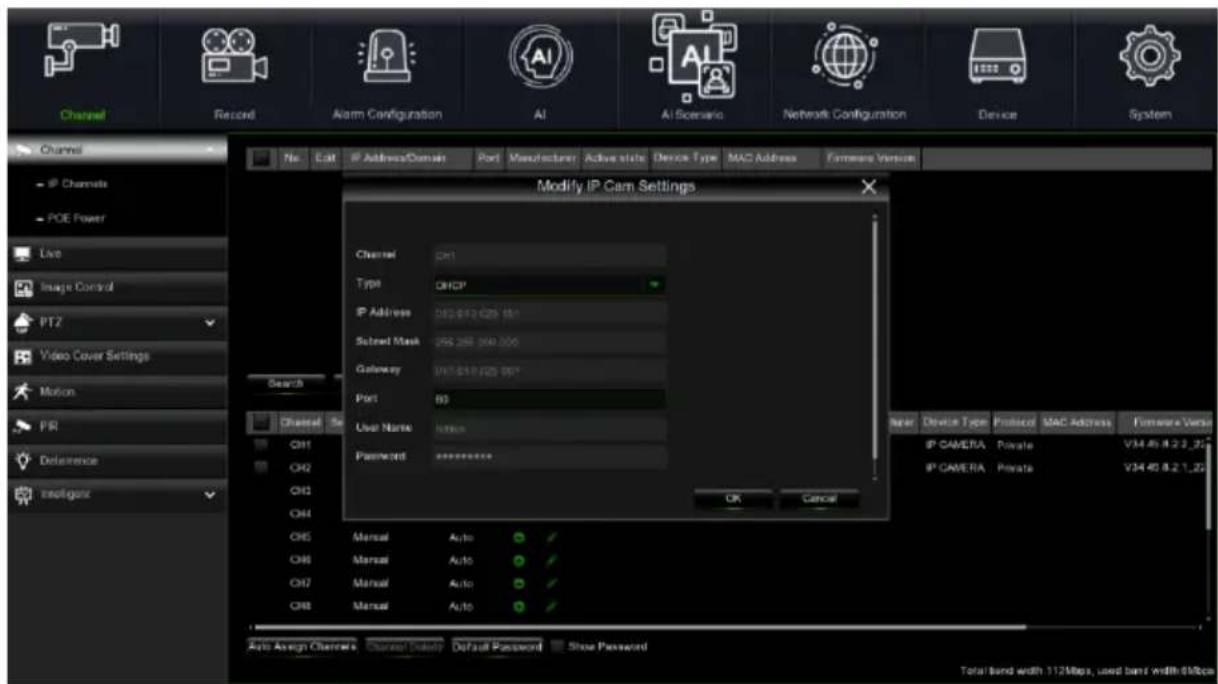

- To change the data used by the NVR to connect each channel, select the button (in line in the previous image).

Edit IP Cam Profile Channel: IP CN1 Alias: IP CN3 Position: Left-Top IP Address/Domain: 102.166.1.176 Sunset Mask: 258.255.255.030 Port: 9088 Protocol: Privacy User Name: admin Password: ****** Show Password OK Cancel

Modify IP Cart Settings Channel: IP Call Type IP Address: 192.998.061.178 Relief Mark: 255.255.255.060 Gateway: 192.998.061.001 Port: 9088 User Name: 48300 Password: **** Show Password OK Cancel

Image Control PTZ Video Cover Settings Motion PIR Intelligent 7 192.168.1.170 9988 8 192.168.1.172 9988 9 192.168.1.174 9988 Search Add Add All Channel Edit State IP Address/Domain Sub IP CH1 192.168.1.178 255. IP CH2 192.168.1.186 255. IP CH3 IP CH4 IP CH5 IP CH6 IP CH7 IP CH8 IP CH9 Auto Assign Channels Channel Delete Default Password

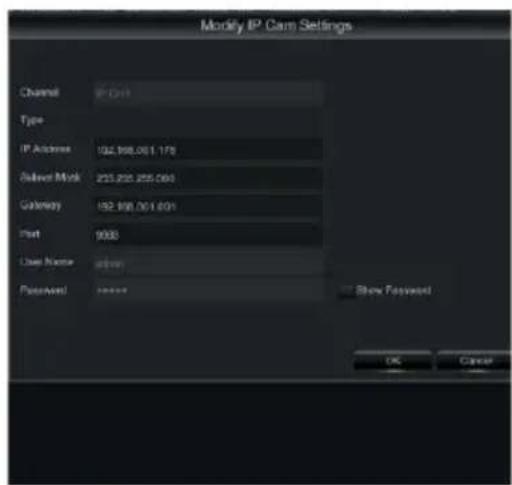

To change the network parameters of the connected camera (e.g.: camera IP address from DHCP to static, mask, Gateway, port) select the button (circled in the previous image).

Edit IP Cam Profile Channel CH1 Switch Mode Manual PCE Mode Auto Alias CH1 IP Address/Domain 10.10.25.151 Subnet Mask 255 255 000 000 Port 80 Protocol Private User Name admin Password ******** OK Cancel

Channel Record Alarm Configuration AI AI Scenario Network Configuration Device System Channel Channels POE Power Live Image Control PTZ Video Cover Settings Motion FIR Delatrence Intelliger No Edit IP Address/Domain Port Manufacturer Active state Device Type MAC Address Furniture Version Modify IP Cam Settings Channel Ctrl Type DHCP IP Address 012.613.625 80° Selected Mask 255.265 049.000 Gateway 011.613.625 80° Port 80 User Name Status Password ********* OK Cancel Channel Se CH1 CH2 CH3 CH4 CH5 Manual Auto ✓ CH6 Manual Auto ✓ CH7 Manual Auto ✓ CH8 Manual Auto ✓ Auto Assign Channels Channel Address Default Password Show Password New Device Type Protocol MAC Address Furniture Versi IP CAMERA Private V34.45.8.2.3_32 IP CAMERA Private V34.45.8.2.1_23 Total band width 112Mbps, used band width 6Mbps

1. The NVR is configured to automatically start the continuous recording of the cameras assigned to the channels. Check that the red “•” symbol is displayed on the monitor for each camera.
2. In the LIVE preview grid, by default, the NVR displays the MAINSTREAM of all the IP cameras enabled and configured. However, if the decoding resources are insufficient, the NVR automatically displays the SUBSTREAM of the channels.
3. When the "Insufficient Resources" message is displayed next to the IP channels in the LIVE preview grid, the MAINSTREAM or SUBSTREAM frame-rate and bitrate settings should be reduced on the IP channel settings page of the NVR OSD menu: "Main Menu" -> "Parameter" -> "Record" -> " mainstream" or "Main Menu" -> "Parameter" -> "Record" -> "SubStream".
4. If the IP camera web interface is used to change its parameters (e.g. Mainstream, Substream or Mobile Stream), the NVR must be restarted so that the changes on the camera are also displayed in the menu parameters of the corresponding channel on the NVR.
5. Once the network configuration is completed, the NVR and cameras can be remotely viewed using the URMET iUVS pro app on an iOS or Android smartphone or from a PC using Internet Explorer / Firefox or Urmet UVS pro client software.

\*NOTE

• The Password should be changed after installation.
• If the IP camera is not detected, try adding it manually.
• For further details, see the complete instruction manual on the Urmet website (to download the manual, see the QR code printed in the specific section on this Quick Guide).

NVR CHANNEL CONFIGURATION FROM A PC

To add the device quickly from a PC, without needing to connect it to a monitor, see the complete manual for the device, which can be read and downloaded from the Urmet website (to download the manual, see the QR code printed on this Quick Guide).

Recording and Playback

RECORDING PARAMETERS

Select "Menu" -> "Recording" to access the recording menu. The following functions are available:

1. The "Schedule" menu allows you to set the recording options: 24 hours or Normal, on Motion/Alarm; recording timetables can be customised. Both recording options, Normal/Alarm, can be set within the same timetables.

FRecord Alarm Configuration Network Configuration Device System Channel CH1 S M T W T P S Normal Motion IO PIR Copy Defeat Apply

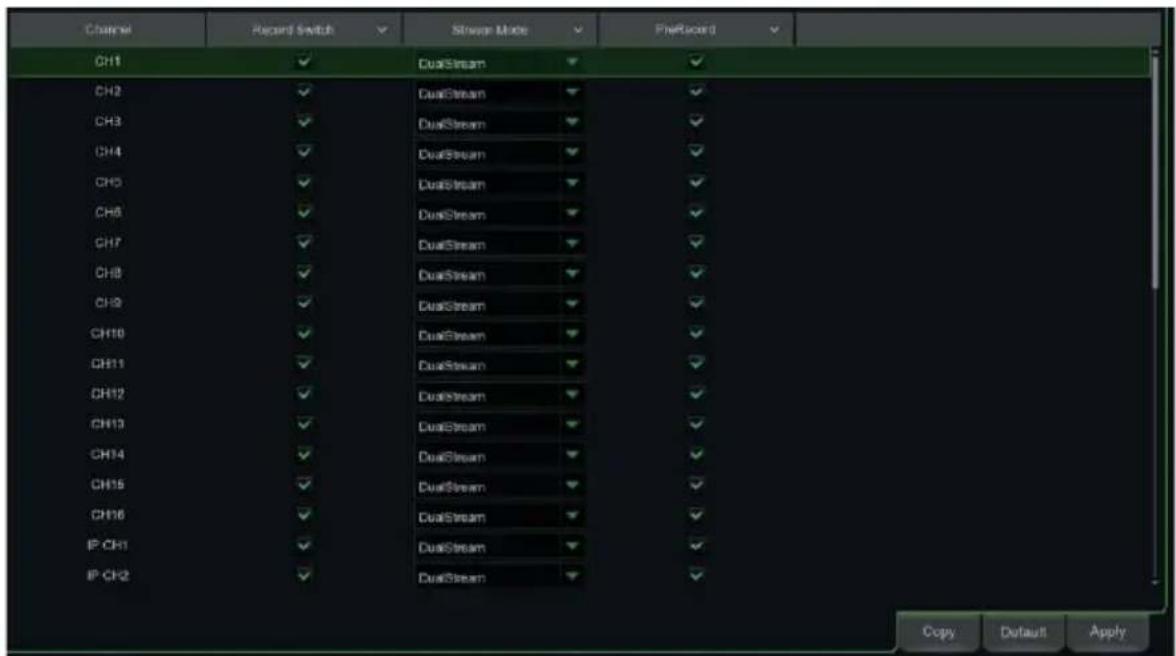

1. In the "Recording" menu you can set the stream to be recorded: Mainstream or DualStream (Mainstream + Substream).

Channel Record Switch Stream Mode PreRecord CH1 DualStream CH2 DualStream CH3 DualStream CH4 DualStream CH5 DualStream CH6 DualStream CH7 DualStream CH8 DualStream CH9 DualStream CH10 DualStream CH11 DualStream CH12 DualStream CH13 DualStream CH14 DualStream CH15 DualStream CH16 DualStream IP CH1 DualStream IP CH2 DualStream Copy Default Apply

The device manages different video streams for each IP input, as follows:

• Mainstream: maximum resolution stream, used for video recording to Hard Disk and display on a local network
• Substream: medium resolution stream for display in a multi-screen room or remote viewing
• Mobile stream: optional stream that can only be activated if supported by the IP camera. This is a low-resolution stream for remote viewing.

To configure each stream, open the "Recording" -> "Coding" page in the OSD menu and select the stream to configure:

Channel Record Alarm Configuration AI AI Scenario Network Configuration Device System Encode - Mainstream - Substream - Membrance - Audio Record Capture Channel WaveType Resistations EPS Video Encode Type Estate Cuts Estate Mode Squeeze Audio CH1 Normal 2500 x 1620 25 H 265 CBR PraktMixed T165 CH2 Normal ACbps EBB PraktMixed Total band width 1126Mfps, used band width 6Mfps Apply

Once the settings have been made on the Recording menu, save the changes, exit the device menu and then check that the “•” icon is displayed for each channel in LIVE mode, which shows that the device is recording in accordance with the set parameters.

IMPORTANT

The default factory settings are those recommended for video streams in order to obtain the right balance between video quality and fluidity, both for recording and LIVE display, locally or remotely. Streaming parameters can, however, be set differently to the factory ones described above.

PLAYBACK

From the start page, pressing the right mouse button will display the function bar at the bottom:

Toolbar with various icon buttons and text labels, likely representing UI or data formatting options

Select the playback icon and the video search interface will appear.

Select the channel you want to play with a flag and press the "Play" button to enter the playback mode shown above. You can use the "Playback" control bar to activate "Fast Forward" (X2, X4 and X8), "Slow play" (1/2, 1/4 and 1/8 speed), "Play", "Pause/Frame" and "Rewind" (X2, X4 and X8).

When playback is complete, the NVR will return to the previous menu, shown below.

The playback control bar displays the progression of the current playback. Pressing anywhere on the bar where there are no recording files will return the system to the previous menu.

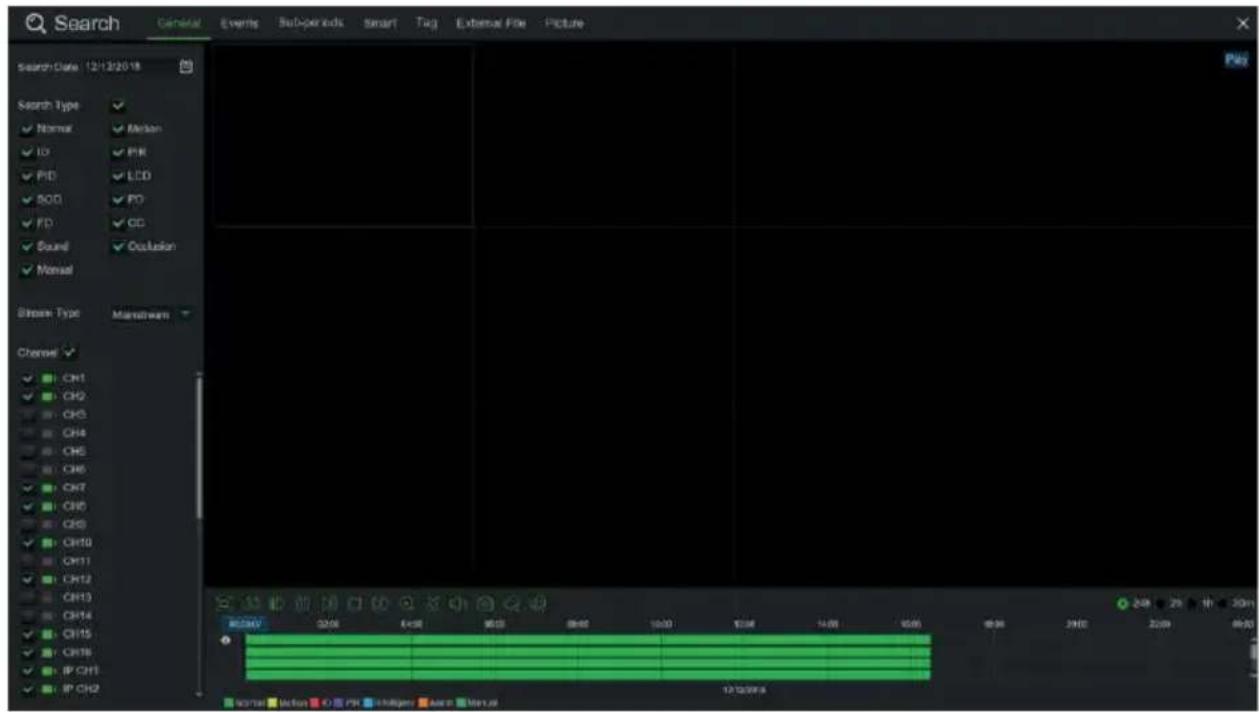

Search General Events Sub-parameters Smart Tag External File Picture Search Date 12/1/2018 Search Type ✓ Normal ✓ Melian ID ✓ PTR PID ✓ LCD POD FD ✓ CC Sound ✓ Occlusion ✓ Nominal Stream Type Mainstream Channel ✓ CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10 CH11 CH12 CH13 CH14 CH15 CH16 IP CH17 IP CH2 248 20 17 30m 0x340 32.0x 4.0x 9.0x 10.0x 11.0x 14.0x 15.0x 20.0x 24.0x 27.0x 30.0x Normal Section ✓ Fox Technologies ✓ Auto ✓ Manual 12/12/2018

Viewing from a PC browser

Once the NVR and cameras are configured in the network, you can connect to the NVR via a browser from:

• A PC with a Windows operating system and Edge in Internet Explorer mode or Firefox browser
• A MAC with a 10.8.0 operating system or higher and a Safari browser version 6.0 or higher.

The PC or MAC must be connected to the same local network (LAN) as the NVR.

To connect to the NVR (for Windows systems only), perform the following operations:

1. Install the "Device Config Tool" on a PC with a Windows operating system connected to the same network as the NVR.To download the "Device Config. Tool" go to www.urmet.com, in the Products section "CCTV VIDEO SURVEILLANCE AREA" and enter the reference product code in the search field. Once installed, the software will detect the NVR in the local area network and display it in the list.

- If the LAN to which the NVR is connected has an automatic address service (DHCP), the NVR will be automatically assigned a valid IP address, which will appear in the list in the "Device Config Tool" screen:

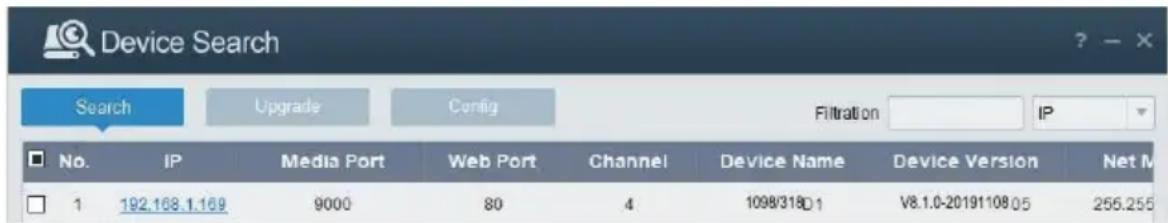

Device Search Search Upgrade Config Filtration IP No. IP Media Port Web Port Channel Device Name Device Version Net M 1 192.168.1.169 9000 80 4 1098/318D1 V8.1.0-20191108.05 255.255

- If the LAN network to which the NVR is connected does not support the DHCP service, an IP address must be assigned manually to the device. To do this, set the required network parameters to be assigned to the NVR at the bottom of the "Device Config Tool" screen: IP, Gateway, Net Mask, then enter the password and press "Modify" to save the network parameters in the NVR settings:

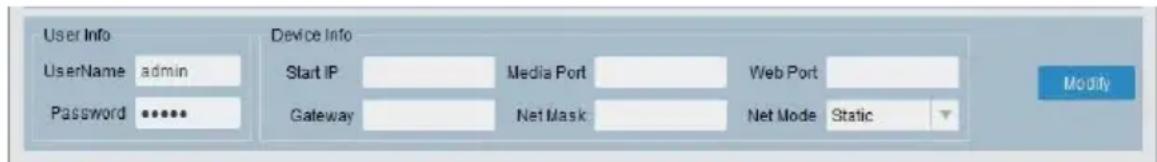

User Info Username admin Password ***** Device Info Start IP Media Port Web Port Gateway Net Mask Net Mode Static Modify

- Now click on the NVR IP address displayed in the "Device Config Tool" list to open Edge in Internet Explorer mode automatically. At the first connection, the browser will require the installation of a software component (ActiveX, in the case of Internet Explorer), which is downloaded directly by the NVR. Accept the installation of the component and continue. For further details, see the complete instruction manual on the Urmet website (to download the manual, see the QR code printed on the Addendum sheet).

- The NVR can also be reached without using the "Device Config Tool" software by opening your browser (Edge in Internet Explorer mode or Firefox for Windows, Safari for Mac) and typing in the IP address in the navigation bar. To know the NVR IP address, open the "Menu" -> "Network" page on the NVR monitor.

1. 1. Once the component has been installed, the browser will display the login page: enter the NVR password and press "Login" to start the connection and display the video streams inside the browser window.

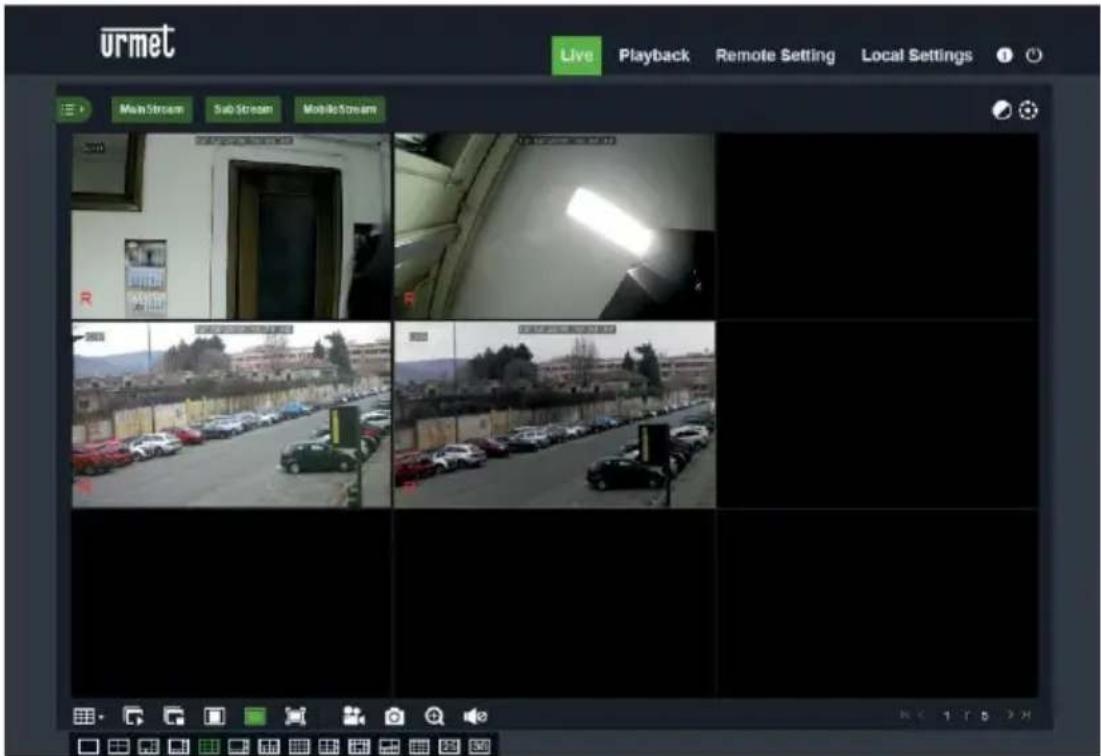

urmet Live Playback Remote Setting Local Settings Main Stream Sub Stream Mobile Stream R R R B B

For further details about using the NVR from a browser, see the complete manual available on the Urmet website (to download the manual, see the QR code printed on the Addendum sheet).

Viewing from Client Software

You can also simultaneously connect to one or more NVRs with the URMET UVS PRO client software available for download from www.urmet.com in the Products section 'CCTV VIDEO SURVEILLANCE AREA' and enter the reference product code in the search field. The URMET UVS PRO software is available in two versions: for Windows and for the Mac OS version 10.8.0 or higher.

For details on installing and using the URMET UVS PRO client software, see the full manual on the Urmet website.

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE).

The crossed-out wheeled bin symbol on the product or on its packaging indicates that the product must not be disposed of together with ordinary household waste.

The user must therefore dispose of the waste equipment by taking it to a designated collection centre for the recycling of waste electrical and electronic equipment. As an alternative to independent disposal, you

can hand in the equipment you wish to dispose of to the retailer when purchasing a new appliance of the same type.

Electronic products up to 25 cm in size can also be handed in for free disposal, with no purchase obligation, at electronics stores with sales areas of over 400 m ^2 .

Adequate separate collection for recycling, treatment and environmentally friendly disposal of the scrapped equipment helps to prevent negative impacts on the environment and on human health, and promotes recycling and/or reuse of the materials with which the equipment is made.

Quick Guide

NVR H.265 AVEC HDMI

Table des matières

Table des matières ....39

Set Unlock Pattern Release your finger when done. Language Device ID New Admin N Password St New Admin F Confirm Pass Unlock Patte

RecoverPwdDialog Security Question Configuration Security Question 1 Your father's name? Answer Security Question 2 Your mother's name? Answer Security Question 3 Your head teacher's name in senior high school? Answer Certificate of authorization Export Super code(Not recommended) OK Annuler

Allumage du NVR

CONFIGURATION DU DISPOSITIF

Canal Disseler enregistrement Mode de Out Pb-energister CA1 DoubleStream CA2 DoubleStream CA3 DoubleStream CA4 DoubleStream CA5 DoubleStream CA6 DoubleStream CA7 DoubleStream CA8 DoubleStream CA9 DoubleStream CA10 DoubleStream CA11 DoubleStream CA12 DoubleStream CA13 DoubleStream CA14 DoubleStream CA15 DoubleStream CA16 DoubleStream IP CA1 DoubleStream IP CA2 DoubleStream Copier Par défaut Apply

Row of green icons on gray background, no text or symbols present

User Info Username admin Password **** Device Info Start IP Media Port Web Port Gateway Net Mask Net Mode Static Modify

Set Unlock Pattern Release your finger when done. Language Device ID New Admin N Password St New Admin F Confirm Pass Unlock Patte

RecoverPwdDialog ✓ Security Question Configuration Security Question 1 Your favorite book? Answer Security Question 2 Your mother's name? Answer Security Question 3 Your head teacher's name in senior high school? Answer Certificate of authorization Super code(Not recommended) Export OK Annula

Start des NVR

GERÄTEKONFIGURATION

Toolbar with green icons representing various function keys or options

User Info Username admin Password **** Device Info Start IP Media Port Web Port Gateway Net Mask Net Mode Static Modify
