Product type	IP surveillance camera
Brand	Grothe
Model	VK 1099/402
Resolution	Up to 4K (depending on version)
Viewing angle	Wide angle (depending on lens)
Night vision	Built-in infrared
Protection rating	IP66 (weatherproof)
Operating temperature	-10°C to 50°C
Power supply	AC adapter (included) or PoE (depending on model)
Power consumption	≤ 12 W (estimated)
Storage	microSD card (up to 256 GB)
Connectivity	Ethernet RJ45 10/100, optional Wi-Fi (depending on version)
Supported protocols	TCP/IP, DHCP, HTTP, RTSP, ONVIF
Number of video streams	Up to 3 simultaneous streams (Main, Sub, Mobile)
Number of simultaneous users	Up to 10 unicast connections
Main functions	Motion detection, scheduled recording, remote access via browser or app
Mounting	Wall or ceiling (depending on version)
Maintenance and cleaning	Dry cloth or dampened with mild detergent; unplug before cleaning
Security	Administrator password, authorization certificate, recovery via security questions or Supercode
General information	Compliant with CE standards; do not dispose of with household waste

Frequently Asked Questions - VK 1099/402 GROTHE

How to install the Grothe VK 1099/402 camera?

Follow the mounting instructions according to the camera type (bullet, mini dome, etc.): attach the base to the wall or ceiling, adjust the angle, then connect power and network. Use the Device Config Tool software to configure the IP address.

How to access the camera remotely?

Open a web browser (Internet Explorer recommended) and enter the camera's IP address (default 192.168.1.168). Install ActiveX plugins on first access. You can also use a dedicated mobile app.

What password to use for the administrator?

On first access, set a password of 8 to 15 characters combining letters, numbers and symbols. Write it down and keep it in a safe place. You can configure security questions or a Supercode to recover it.

How to install an SD card in the camera?

Insert the microSD card into the designated slot. Caution: This operation must be performed by qualified personnel. The camera supports cards up to 256 GB.

Does the camera work at night?

Yes, the camera is equipped with infrared LEDs for night vision. The range depends on the model, typically up to 30 meters.

How to reset the camera to factory settings?

Press the RESET button on the camera for a few seconds. This will clear all settings, including the password.

Which mobile app is compatible with this camera?

Use the Urmet IP Cam app or any ONVIF-compatible app. Download it from the App Store or Google Play.

Can I record images on a NAS?

Yes, the camera supports recording to a NAS via SMB/CIFS protocol. Configure the network path in storage settings.

How to clean the camera without damaging it?

Use a soft dry cloth. For stubborn dirt, dampen the cloth with a mild detergent. Never use solvents, alcohol, or sprays. Unplug the camera before cleaning.

What to do if the camera stops responding?

Check power and network connection. Restart the camera by turning off power for 30 seconds. If the problem persists, perform a factory reset via the RESET button.

USER MANUAL VK 1099/402 GROTHE

Thank you for purchasing this product.

This quick start guide was written to help you set up H.265 IP Camera Series rapidly and easily.

Read this quick start guide which contains information for correct, safe use carefully before using the device.

Keep this guide at hand so that you can refer to it when needed.

\*NOTE

For more detailed information about the devices, refer to the complete user manual available on the Uromet website (see QR code printed on the Addendum sheet).

WARNING

Electricity

Before connecting to electrical outlet, verify the electrical specifications of the device are suitable for the available power source.

We suggest to connect the device to electrical outlet via a switch disconnector.

In case of malfunctioning, disconnect electrical power from the general switch.

Use only the provided power supply.

Safety precautions

Do not expose the device to rain or humidity and do not insert any solid or liquid object in it to prevent the risk of fire or electrocution. In these events disconnect the device from the electrical outlet and call technical assistance to check it.

Do not open the device. Any repair must be made by qualified personnel or by calling the nearest authorized technical assistance center (www.urmet.com >> Contacts).

Keep the device away from children to prevent any, even involuntary, damaging.

Do not touch the device with wet hands as it might cause electrical shock or mechanical damages.

If the device falls down while working or if the salesbox is damaged, do not continue using it. If usage is continued under such circumstances electrical shocks might take place.

Contact the authorized retailer or installer.

Installation precautions

Before installing the camera, check its technical specifications to ensure that the IP rating is suitable for the environment in which it will be mounted. The IP rating is only guaranteed if the product is installed correctly.

Do not point the camera directly to sunlight or other intense sources of light, even when turned off. The subject of recording must not be against the light.

Do not point the camera against reflective objects.

Some light conditions (such as fluorescent color) can affect the recorded colors. Use AUTO-IRIS lens when operating the camera in changing light environments.

Do not use this device on any unstable support such as lurching or sloping table to prevent the device from falling and be damaged.

If water or any other material should penetrate the camera, stop using it as it might cause fire or electrical shock and contact the authorized retailer or installer.

Do not cover the device with any cloth while using to prevent deformation of the external part and inner components heating which might provoke fire, electrical shock or mechanical damages.

Do not put magnets or magnetized objects close to the device to prevent functional anomalies.

Do not use this device in presence of smoke, steam, humidity, dust or intense vibrations. Do not use the device shortly after moving it from warm to cold environment and vice versa. After moving the device wait three hours before using it: this time is necessary for the device to adapt to the new environment (temperature, humidity, etc.).

Usage precautions

Check the device is not damaged after removing the packaging.

Check the working environment is not too humid and the temperature is within the indicated range.

Do not point the camera against sunlight to prevent sensor damages.

Device cleaning

Use a dry cloth to remove dust and dirt from the device.

If dirt cannot be removed with a dry cloth, use a humid cloth and a neutral cleanser.

Do not use spray cleanser for device cleaning. Do not use volatile liquids such as gasoline, alcohol, solvents etc. or chemical treated cloth to clean the device to prevent deformations, damages or scars on the finishing paint.

Disconnect the device from the electrical outlet before cleaning.

Video recording

This device is not designed as a burglar system but mainly to transmit and record video images. URMET S.p.A. is not in any way responsible for loss or damages of the user consequent to theft.

Before using the device, record a demo video to verify the correct functionality of this feature. URMET S.p.A. is not in any way responsible for loss of recorded data consequent to wrong setting or usage, device malfunctioning or failure.

This device is composed by electronic precision components. Do not hit the device while recording as it might affect the video.

Privacy and Copyright

The IP camera is designed for surveillance systems. Video recording is subject to the laws applicable to the Country where used. It is forbidden to record images with Copyright.

The User is responsible to check and respect all local laws and norms for video signal recording. The manufacturer is NOT in any way liable for any usage of the product

which might result not compliant to the relevant norms.

Firmware upgrade

Periodically check the Uromet website in the product-specific section for software and/or firmware updates (go to www.urmet.com in the Products section "CCTV-VIDEOSURVEILLANCE", type the reference product code in the search field and move to DOCUMENTATION AND RESOURCES).

Network configuration

Camera default setting is DHCP mode. If the network does not support dynamic addressing (DHCP), the device will automatically switch to factory IP 192.168.1.168. Use Uromet "Device Config. Tool" software in order to modify the IP address and other network settings to prevent any conflict with other devices on the network.

Network connections

When connecting a PC (using Software Client or Browser), any video channel on the PC will be using "unicast" connection (TCP, RTP, UDP).

The device can support up to 10 "unicast" connections so it is possible to show the video on maximum 10 remote devices (PC or smartphone) at the same time depending on the available network band.

Installation

INSTALLATION OF BULLET CAMERAS

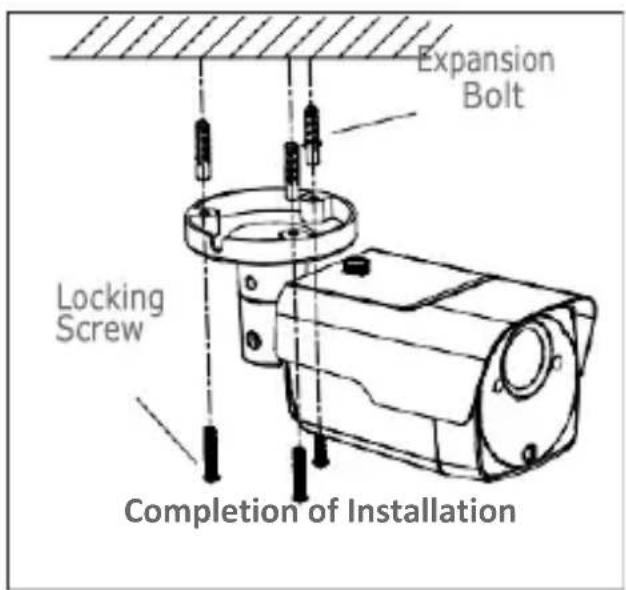

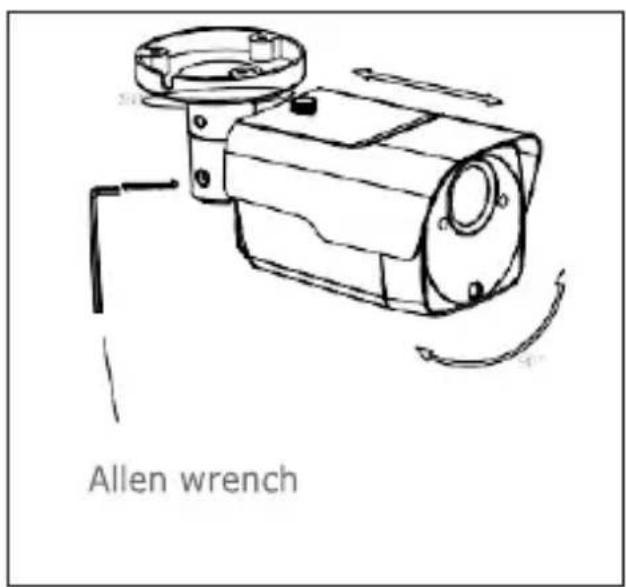

Ceiling Mounting

Insert three expansion bolts in place into the ceiling and fix the equipment with three locking screws

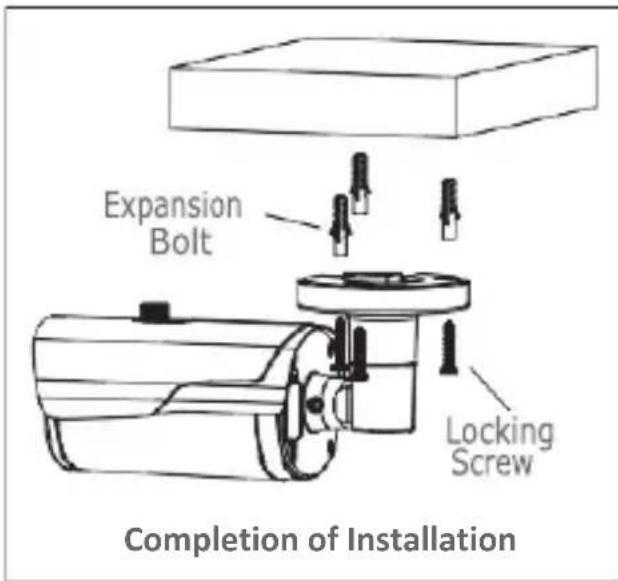

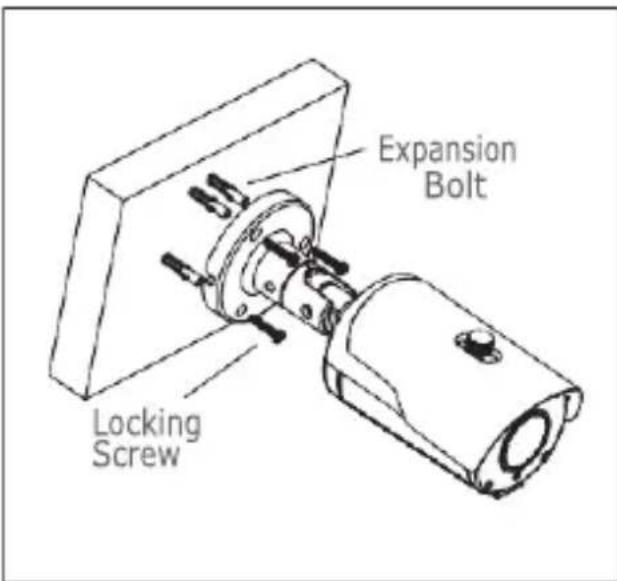

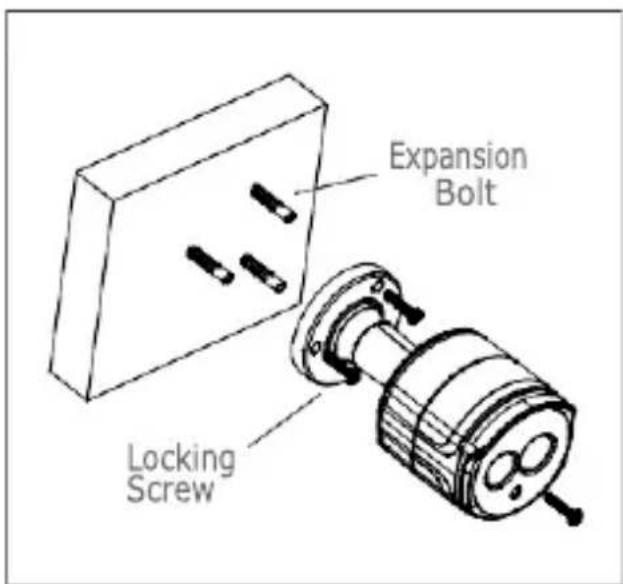

Wall Mounting

Insert three expansion bolts in place into the wall and fix the equipment with three locking screws.

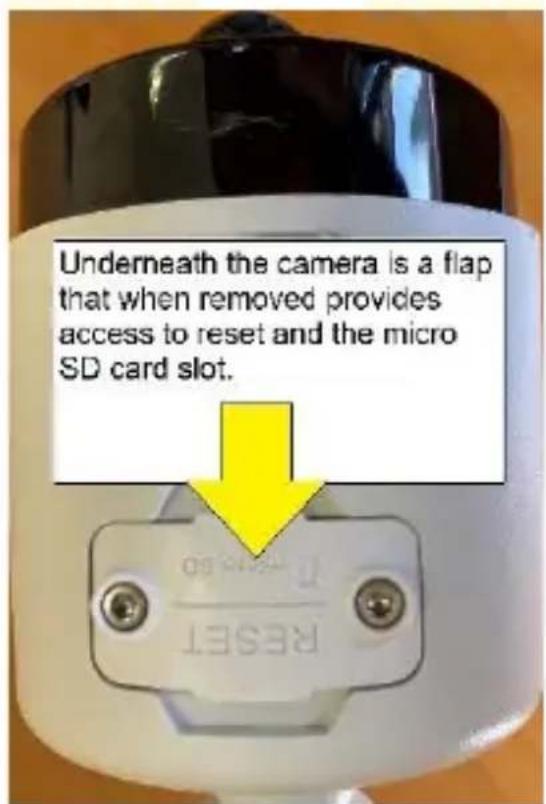

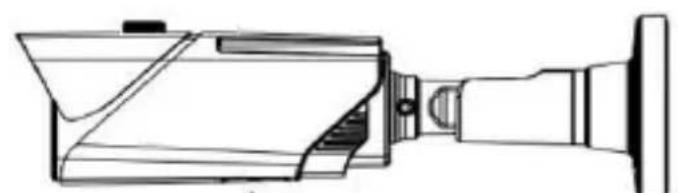

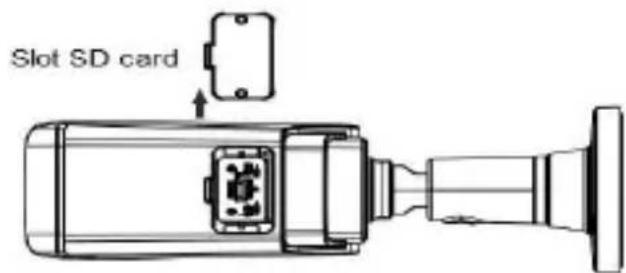

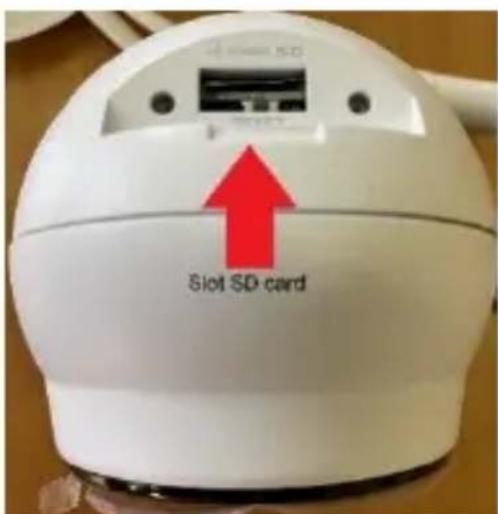

SD Card Installation

Slot SD card

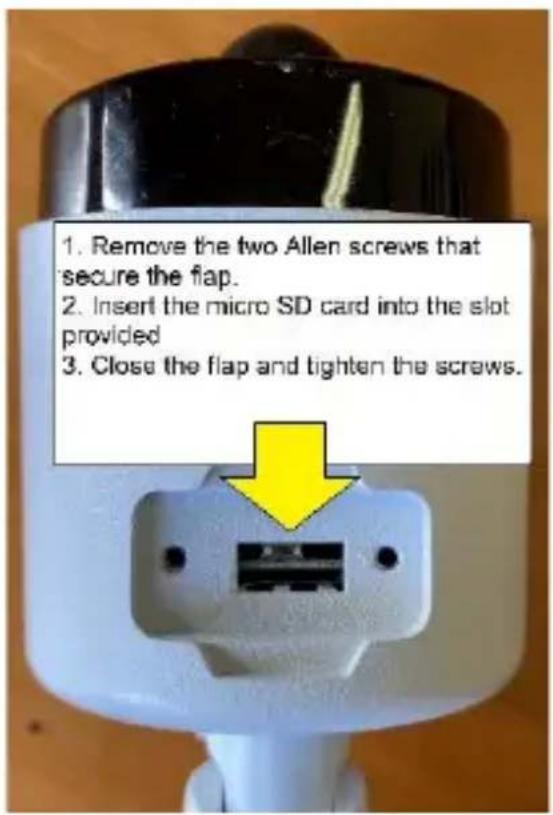

SD Card installation model 1099/208A

ATTENTION: this operation must be carried out by qualified personnel.

INSTALLATION OF MINI DOME CAMERAS

Ceiling Mounting

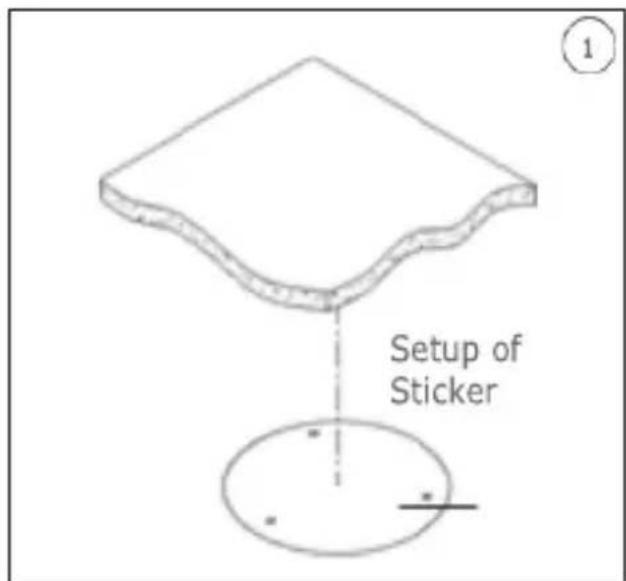

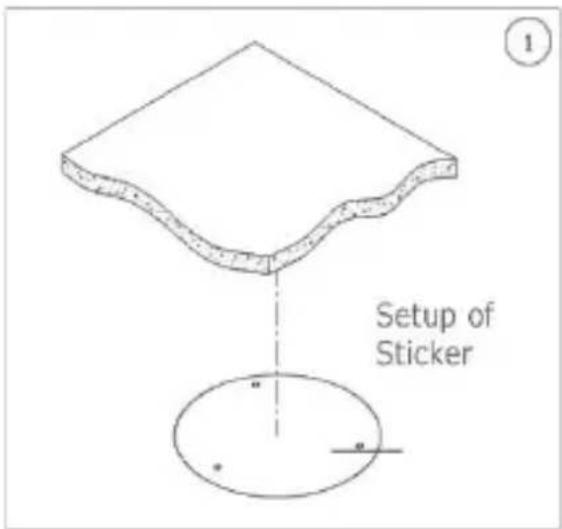

1. Paste the sticker in place at the proper position as selected.

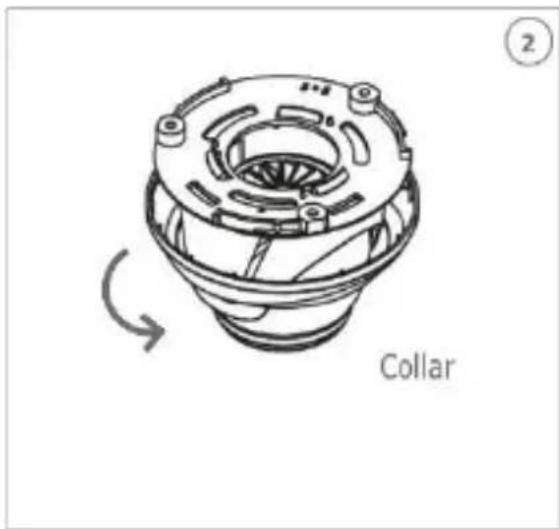

2. Remove the collar off the camera by rotating it down.

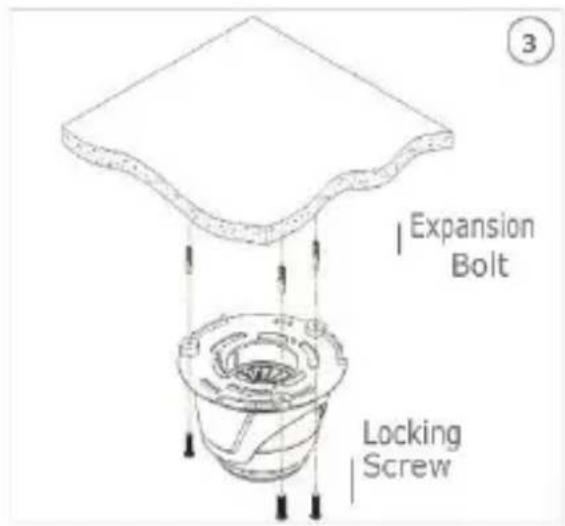

3. Fix the pedestal by drilling locking holes around the sticker and inserting three expansion bolts into the holes and fastening it with three locking screws.

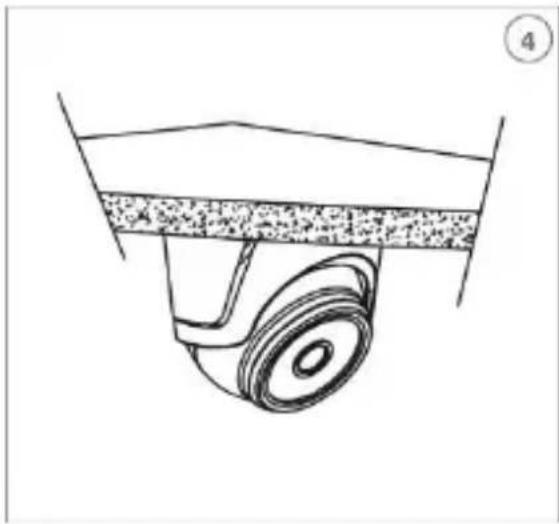

4. Adjust it to an appropriate angle.

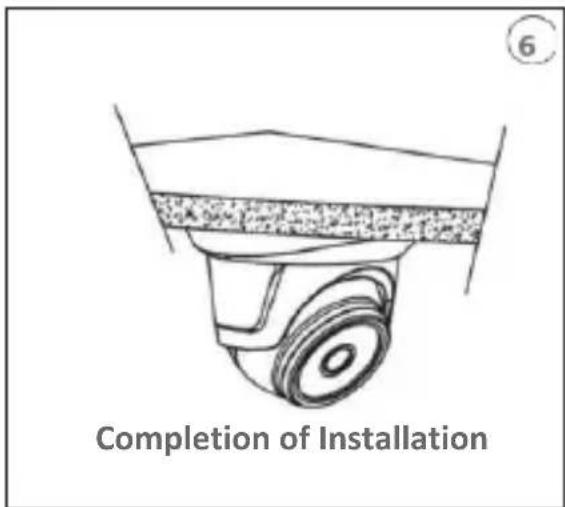

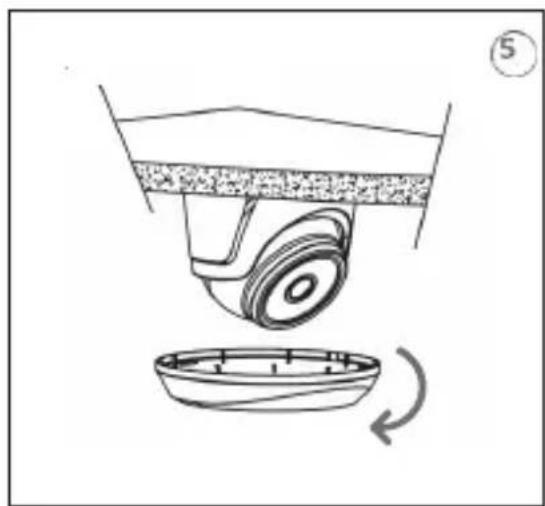

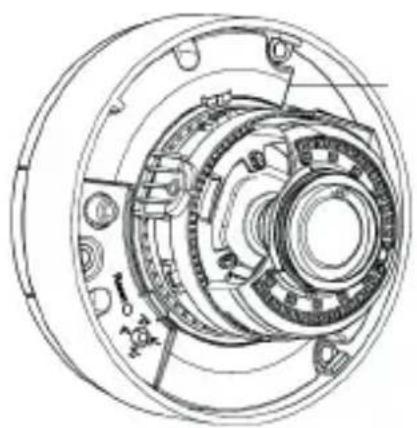

5. Mount the collar back by rotating it up.

SD Card Installation

MINI FLAT CAMERA INSTALLATION

Ceiling fixing

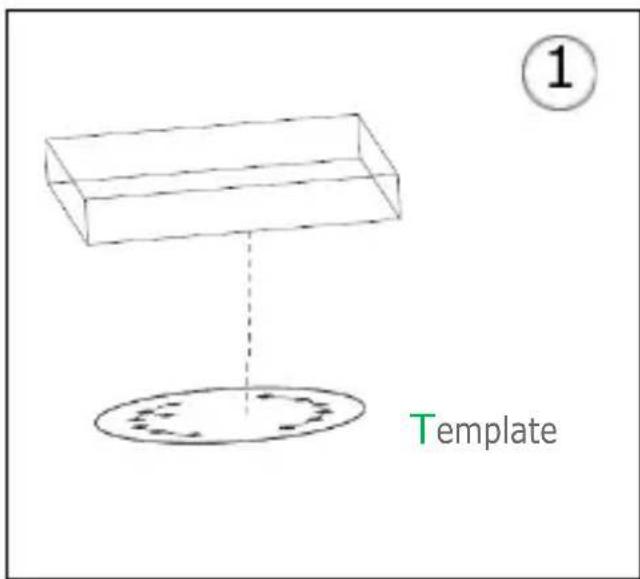

1. Fasten the fixing bracket to the ceiling.

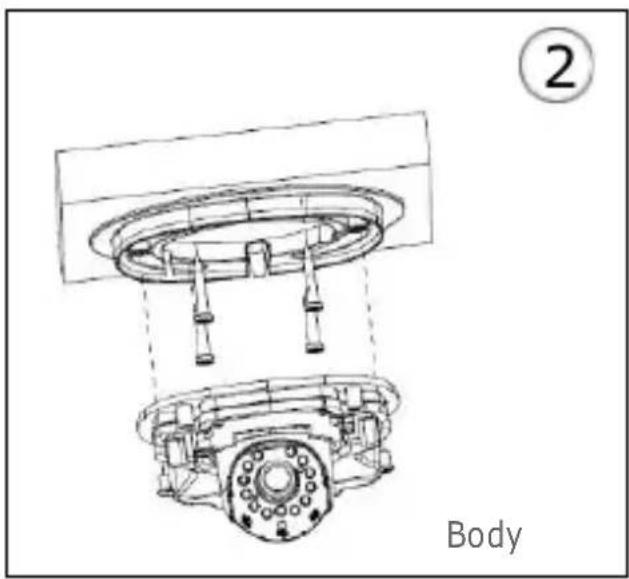

2. Fasten the camera body to the ceiling.
3. Correctly adjust the angle by rotating the camera body.

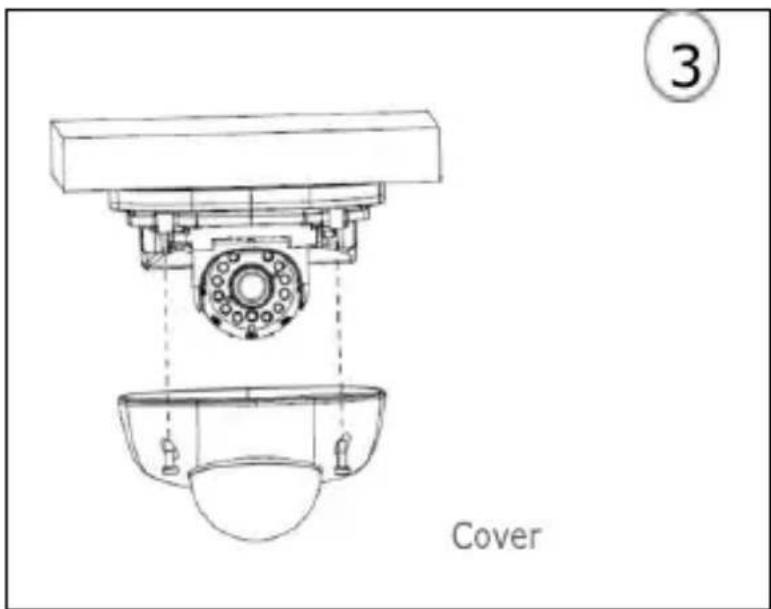

4. Apply the dome cover of the camera

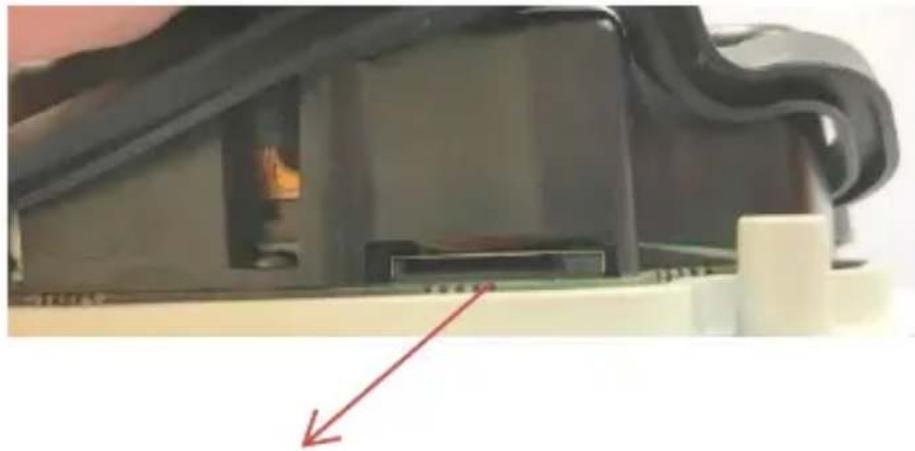

SD Card installation

Insert the SD Card in the slot indicated by the arrow

INSTALLATION OF VANDAL-PROOF DOME CAMERAS

Ceiling Mounting

1. Paste the sticker in place at the proper position as selected.

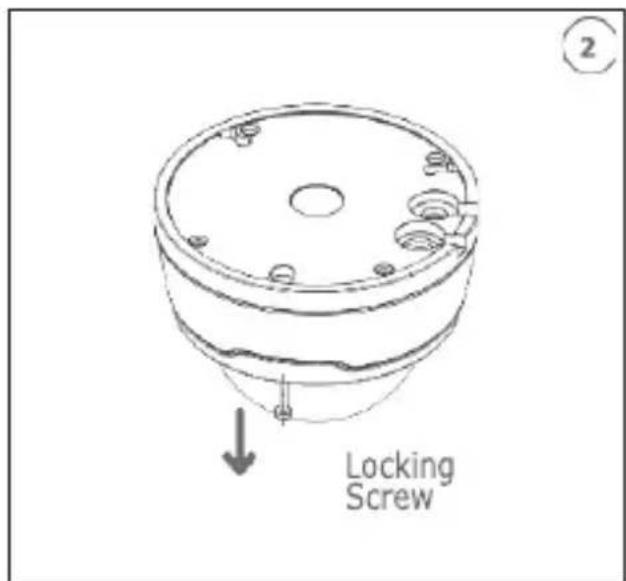

2. Remove the front component by loosening the three locking screws with a screwdriver.
3. Fix the pedestal by drilling locking holes around the sticker and inserting four expansion bolts into the holes and fastening it with four locking screws. Adjust it to an appropriate angle.

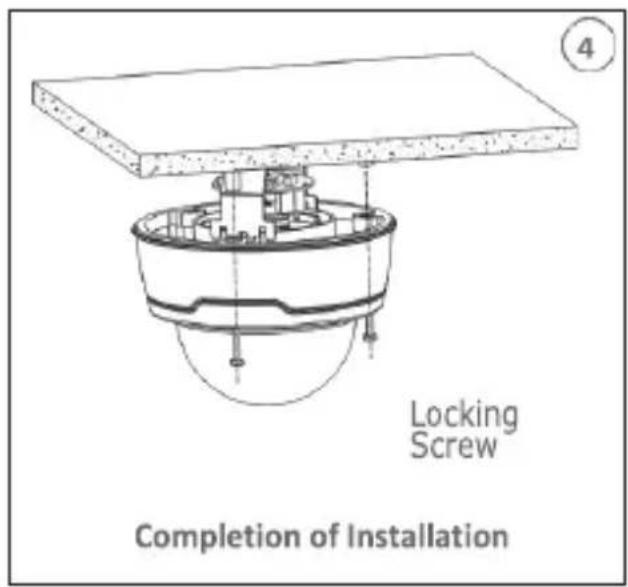

4. x the front component on the pedestal by tightening the three locking screws.

SD Card Installation

SD card slot

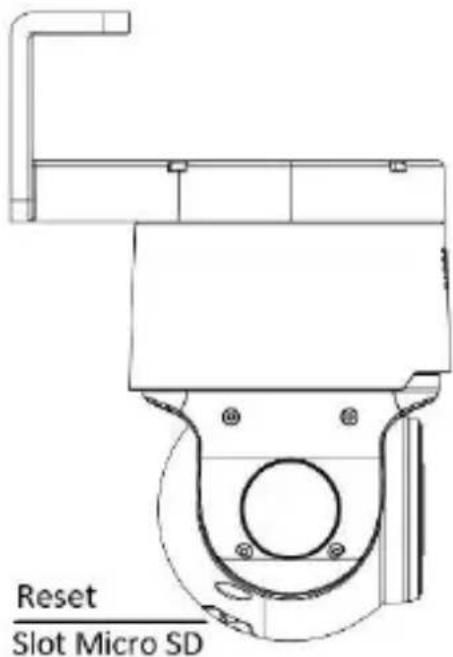

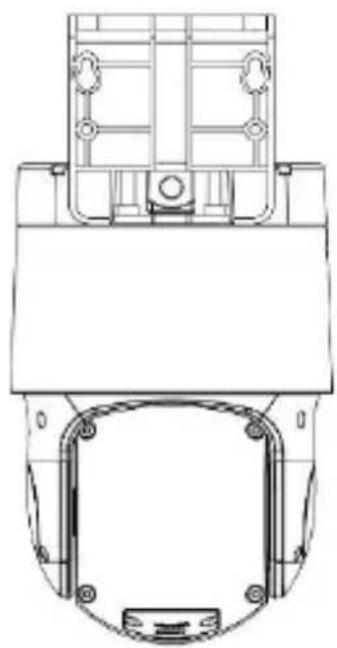

PTZ CAMERA 4K 4X DETERRENCE

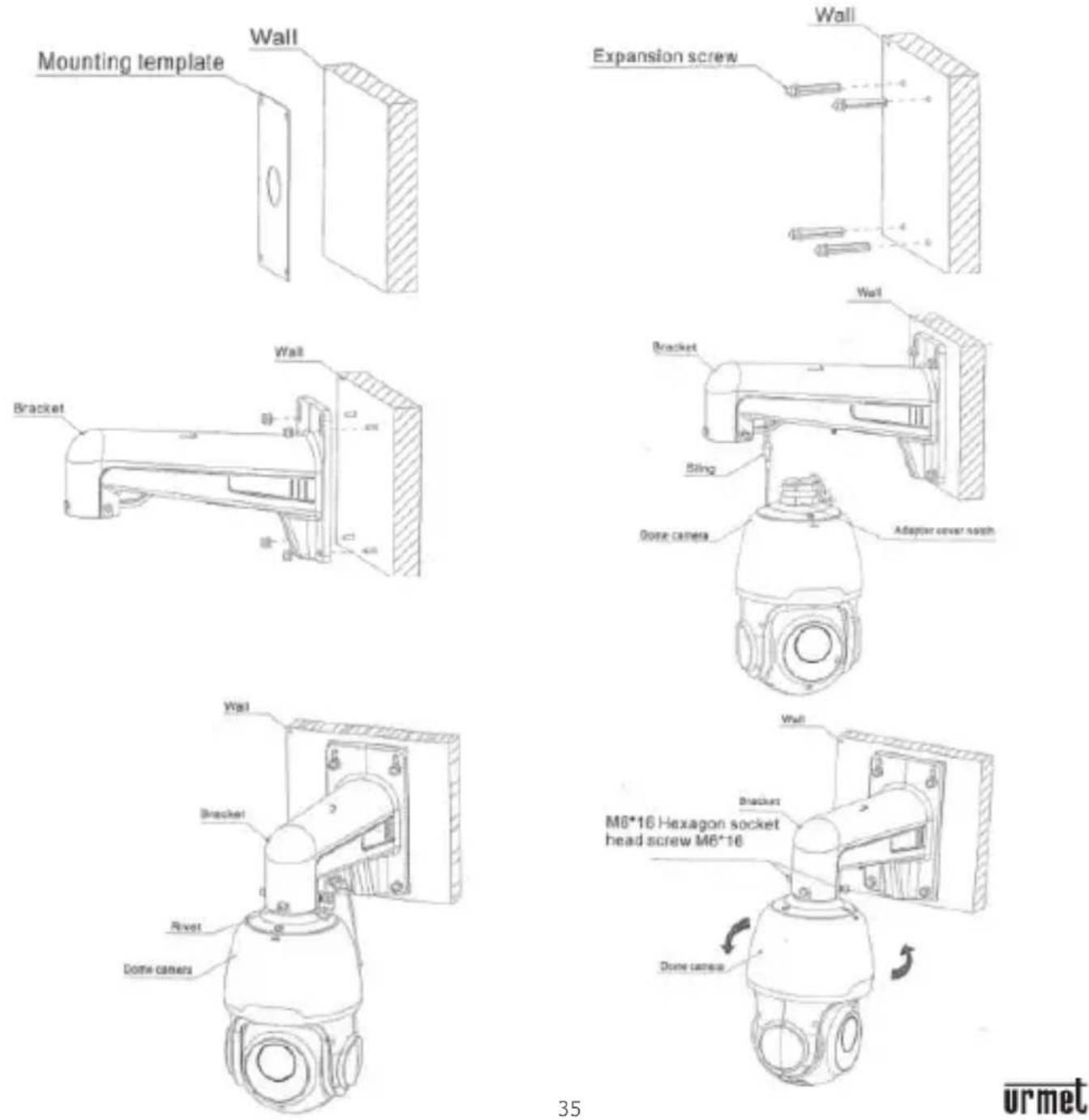

INSTALLATION OF SPEED DOME IP CAMERA 25X-33X

1. Stick the mounting template to the wall, drill 4 expansion screw holes. Hammer the 4 expansion screws into the drilled wall holes.
2. Align the 4 expansion screws with the holes of the bracket, install the gasket and spring washer, then lock the 4 nuts.
3. Fasten the anti-dropping rope of the bracket dome camera into the suspending rope loop of the bracket.
4. After the tail cable of the dome camera passes through the bracket, align the notch of the adapter cover with the rivet position of the bracket and insert it into the bracket hole.
5. After rotating the dome camera to the proper position, tighten the 2 socket head cap screws M6*16 on the bracket.

IP Camera Configurations

The camera must be configured for the home or office network after it has been powered. It is advisable to install and configure one camera at a time if you are installing multiple cameras on the same network.

CONNECTION TO IP NETWORK WITH DHCP SERVICE

For Quick installation about IP camera with dynamic host configuration (DHCP) on the network will be assigned an IP address automatically. IF DHCP Service is not supported, the default IP Address of IP Camera will be 192.168.1.168.

IP Camera Configuration:

1. Install the Software "Device Config. Tool" software, available for download at www.urmet.com. on the product page and by selecting the DOCUMENTATION AND RESOURCES section.

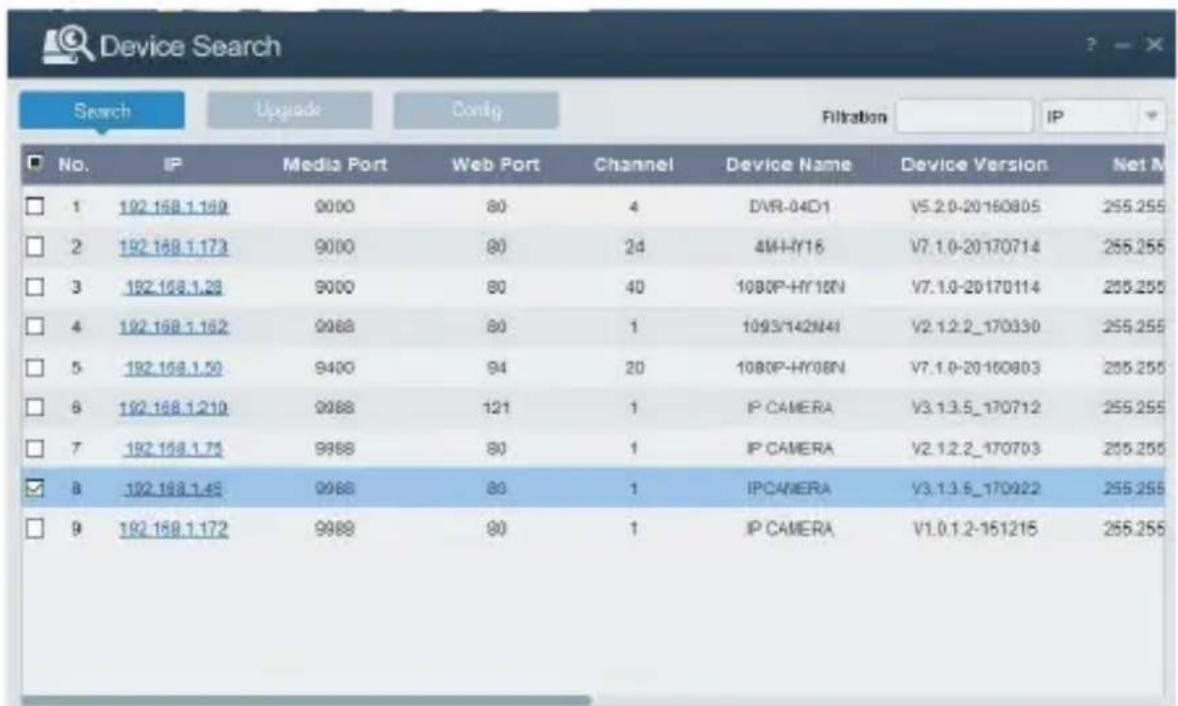

1. Launch the "Device Config. Tool" Software, selecting it will be displayed automatically IP Address, Subnet Mask, Gateway, and MAC Address for each IP Camera detected in LAN, as shown in picture below.

If the searched IP address and PC IP address are not in the same network segment, user may modify IP address, subnet mask, and other parameters of IP camera by

using "Device Config. Tool" software.

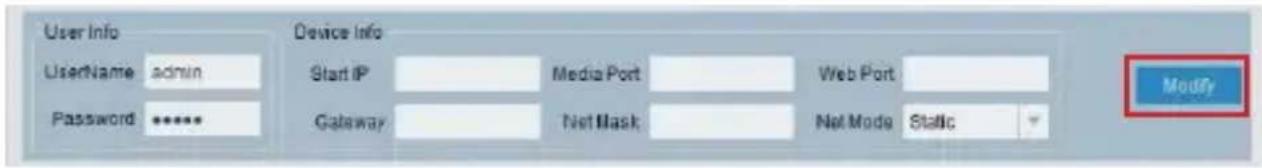

First select the device to modify IP address and then input new IP address, subnet mask, gateway and username/password. Insert the password and click Modify" button to change IP address of the device.

*IMPORTANT NOTE: IP camera Default

Settings Default Static IP

Address:192.168.1.168

Username: admin

Password: admin (only for firmware versions prior to V.8.2.2)

Media port: 9000

1. Before using IE (Internet Explorer) browser to access the IP camera for the first time, related plug-in components must be installed by following the procedure below:

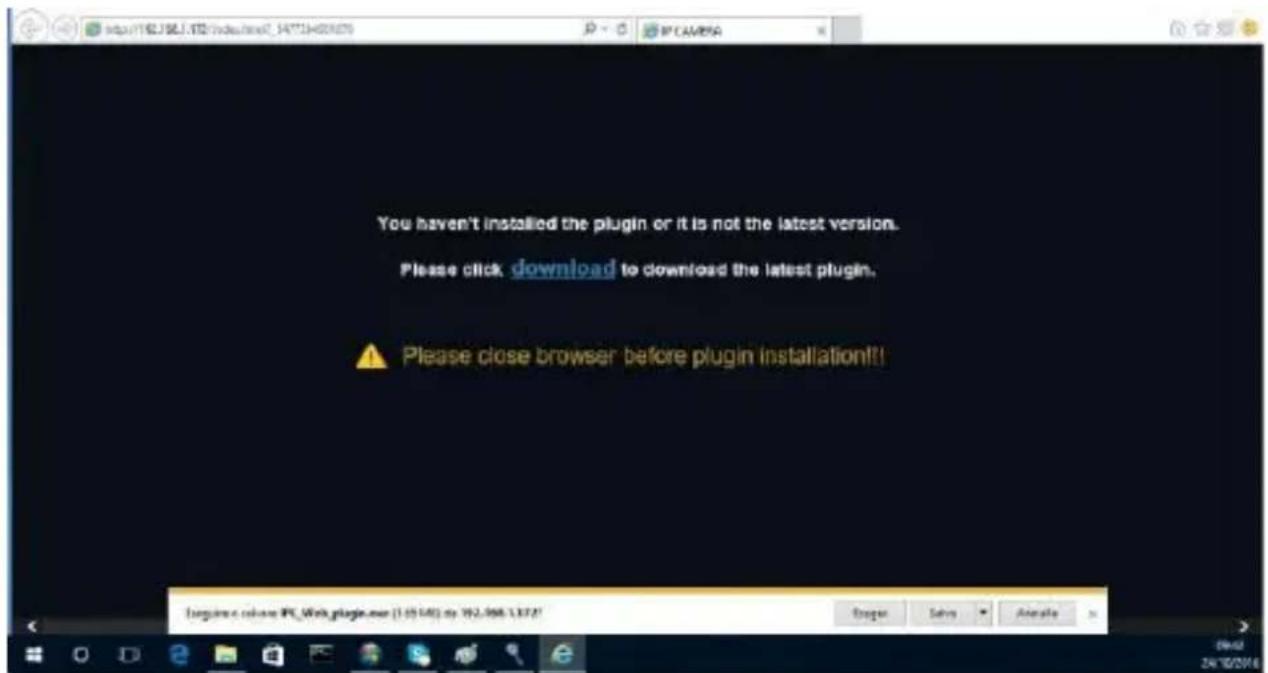

2. Access IP address of the IP camera for installing plug-in only for the first time. In the Web Page opened select "Download", after that select "Run" in the pop-up below

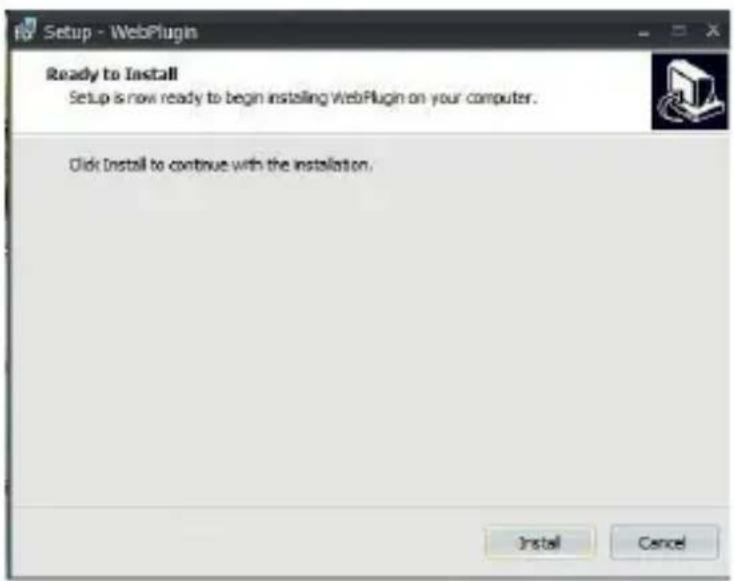

• Wait for plug-in download, after that confirm the ActiveX Installation.

• Select "Install" and wait for the installation is completed.

1. After completed the Active X installation, close the Internet Explorer Web Page and launch it again, put the IP Camera Address.
2. Open the browser and enter the camera's IP address (http://192.168.1.168) and the window for creating the Administrator password will appear. It is necessary to set the password immediately to protect your privacy. The password should contain a combination of 8 to 15 characters that meets the required security criteria. Make a note of the password and keep it in a safe place.

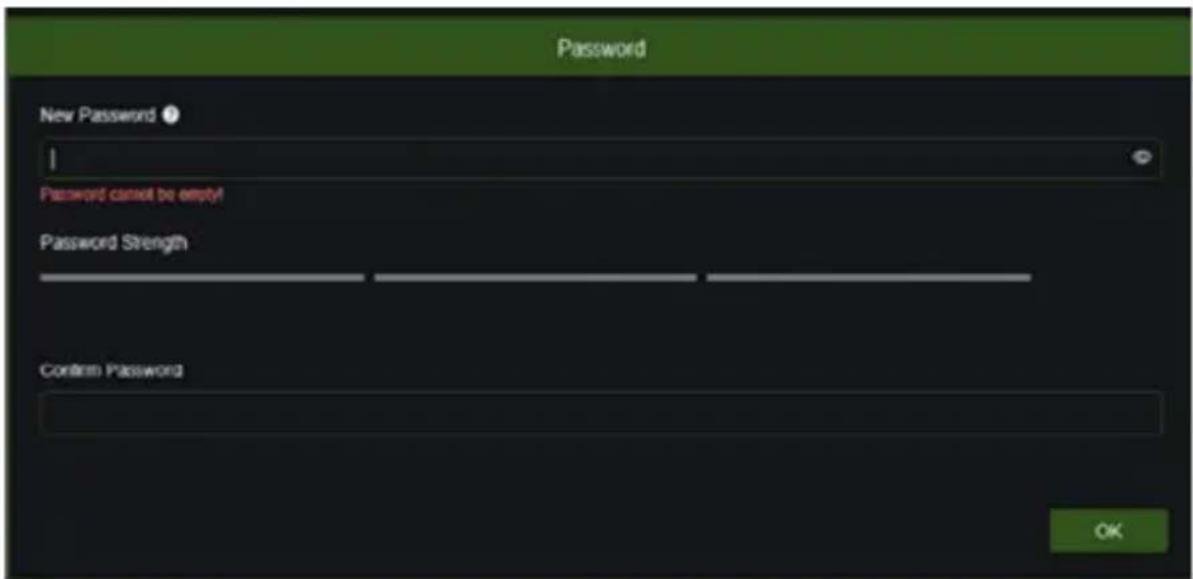

1. Confirm with OK button. At this point, another window will appear where the user can choose and configure how to recover his password if the user loses it.

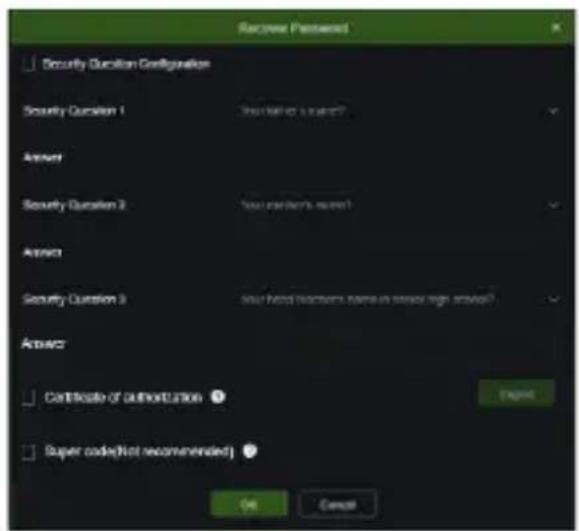

1. Security Question Configuration: choose one of the proposed questions and fill in the corresponding answer.

Certificate of authorization: it will be possible to export a certificate that can be used to set the password again using the password recovery function.

Supercode: enabling this function, it will be possible to contact Urmet Customer

Service to request a Super Code that will allow the user to set a new password using the recovery password function.

Once the options have been selected, confirm with OK.

At the end of the password change process, the following window will appear.

Confirm with the OK button. If no password recovery method is chosen, in the event of a lost password, it will be necessary to act directly on the RESET button (located on the camera), thus returning the camera to its factory parameters.

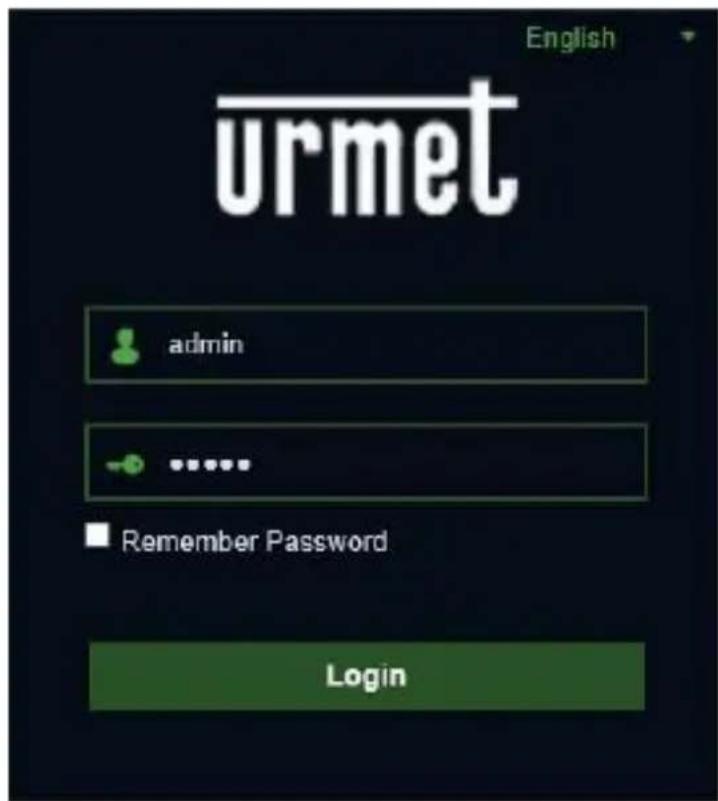

The LOGIN screen shown below will now appear:

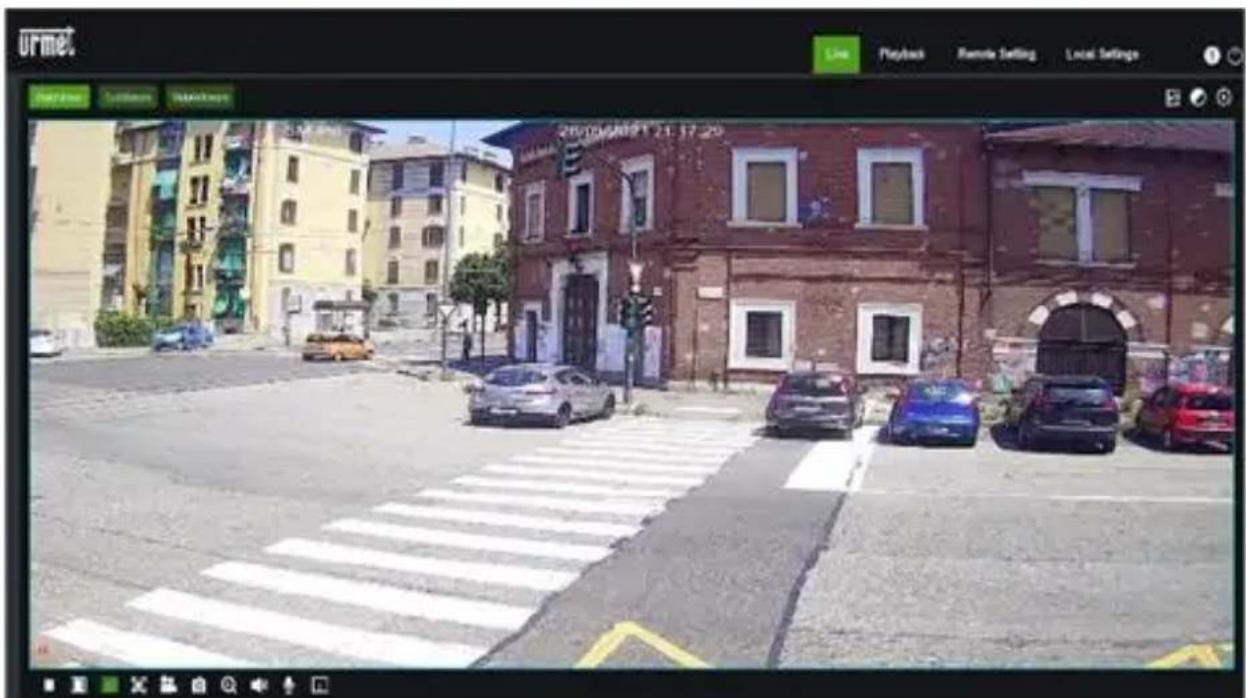

1. Select "Login" in order to enter in LIVE screen.
2. Click the buttons on the top left corner in the Web Page to select the stream to display (Main Stream, Sub Stream or Mobile Stream)

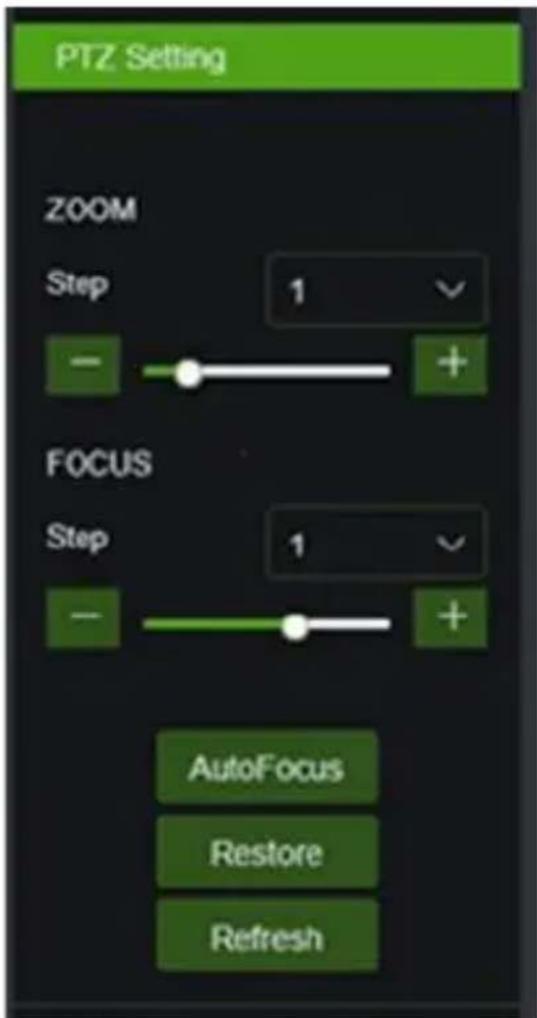

PTZ CONTROL

(PTZ control) select the icon to open the following window:

On Autofocus cameras, the PTZ interface will be as follows:

Option	Value	Explanation
Zoom	Step/-/+	Manually adjusts zoom (+ zoom in / - zoom out) Step: defines zooming speed
Focus	Step/-/+	Manually adjusts focus (+ increase / - decrease) Step: defines focusing speed
AutoFocus	/	Adjusts focus automatically
Restore	/	Resetset PTZ interface default settings (including focus)
Refresh	/	Updates the PTZ interface with changes to parameters (including focus)

PLEASE NOTE

For more details and technical details on programming (e.g. video analysis algorithms), setting (e.g. image controls) and configuration (e.g. user privilege management) please refer to the camera's technical manual.

CORRECT DISPOSAL OF THIS PRODUCT

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE)The symbol of the crossed-out wheeled bin on the product or on its packaging indicates that this product must not be disposed of with

your other household waste.

Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product
