USER MANUAL SP509AC Vonroc

Simple line drawing of a vacuum cleaner with tubing and a valve (no text or symbols)

EN Original Instructions 05

Close-up of a mechanical device with black components and a labeled component '2' (no text or symbols on the device itself)

DE-1

9 8 Rain barrel

4 14

E-2

3D rendering of a mechanical component with labeled parts (14 and 15), showing internal structure and outer ring (no text or symbols beyond labels)

1. SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instructions in this manual.

Indicates electrical shock hazard.

Protect the appliance against frost.

Maxdepth.

This appliance is classified as protection class I and must be connected to an earthed mains socket.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

SAFETY NOTES

THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN WITHOUT SUPERVISION. IF THE SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSON IN ORDER TO AVOID A HAZARD. THE PLUG MUST BE REMOVED

FROM THE SOCKETOUTLET BEFORE CLEANING OR MAINTAINING THE APPLIANCE.

Please read these instructions carefully and thoroughly before using this appliance and keep them for future reference. It is very important that you understand how to use this appliance safely so please take the time to familiarise yourself with the requirements as outlined in these instructions.

• If you are in any doubt what so ever about using this appliance, we strongly recommend that you employ the services of a suitably qualified person.
• Electrical connection must be protected by a residual current device (RCD) at the power socket with a nominal trip current of 30mA (max).
• Keep children and pets well away from the work area and never allow children to use this appliance or touch the extension cord at any time. When not in use, keep this appliance stored in a safe place out of reach of children.
• Never leave the appliance unattended when in use.
• Never pull the appliance by its power cord. Carry it using the carry handle.
• Do not allow the power cord to lay on or across sharp objects that might pierce the outer insulation. Carry out a visual inspection of the power cord before use and if it is damaged, have it replaced by a specialist service centre. Do not use the appliance if the cord is damaged.
• Keep the power cord away from heat, frost, oil, solvents or any sharp objects or edges.
• Electrical connections e.g. extension cable, must be protected from moisture at all times.
• Check that the power rating on your appliance corresponds with the power rating at you mains supply. The supply voltage must be 230VAC.
• Never run this appliance dry - out of the water. If the appliance overheats, the thermal cut-out will switch it off. If this happens wait 5 minutes before using the appliance again.
• Always have the appliance switched off and the plug removed from the power socket before placing it in or removing it from the water. Only switch the power back on with dry hands.
• Never use this appliance in a pond or swimming pool while people are present in the water!
• Do not use the pump for drinking water.

• Corrosive, flammable or explosive substances, grease, oil, salt water and sewage must not be conveyed by the pump.

• The pH of water must between 6.5 and 8.5.

• The temperature of the liquid conveyed may not exceed 35 °C.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the power supply corresponds to the voltage on the rating plate.

Connecting to the power supply

Check that the power supply and plug used in accordance with your machine. Have a look at the rating plate on the machine. Any changes should always be carried out by a qualified electrician.

Warning! This machine must be earthed. If not properly earthed this machine can cause an electrical shock. Be sure that the power supply outlet is earthed. If there is any doubt, have it checked by a qualified electrician.

Warning! Avoid contact with the terminals on the plug when installing (removing) the plug to (from) the power supply outlet. Contact will cause a severe electrical shock.

Replacing cables or plugs

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.

Using extension cables

Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5 mm^2 . When using a cable reel always unwind the reel completely.

2. MACHINE INFORMATION

The rain barrel pump is intended for private use for irrigation of gardens, it is not intended for commercial use. Explosive, corrosive, flammable substances, sewage, salt water, grease and oil must not be conveyed by the pump.

It is solely intended for pumping clear and rain water. The particle sizes of the solids in the water must not exceed the maximum particle size specified in the technical data.

This pump is not designed for continuous operation (e.g. as a swimming pool or pond circulation pump) or for stationary installations (e.g. lifting device, fountain pump).

Model No. SP509AC
Application Clean water
Floating switch Yes
Voltage 230 VAC / 50Hz
Input power 400W
Protection class Class I
Max. flow rate 5200l/h
Max. pressure 1.1 bar
Max. pumping height 11m
Max. depth 7m
Max. particle size 5mm
Min. residual water height (manual operation) *	50mm
Switch-on height (automatic operation)	50cm
Switch-off height (automatic operation)	5cm
Max. water temperature 35°C
Protection IPX8
Built-in thermal motor pro-tector	Yes
Cable length	10m
Weight	4.22 kg

* The stated residual water height is only achieved in manual operation.

DESCRIPTION

The numbers in the text refer to the diagrams on page 2-3.

1. Carry handle
2. Lock (float switch)
3. Float on/off switch
4. Base
5. Water outlet (pump)
6. Lower pipe
7. Upper pipe
8. Hanger
9. Locking knob of hanger
10. Flexible pipe
11. Water flow regulator
12. Water flow regulator knob
13. Hose connector
14. Filter cover
15. Filter

3. ASSEMBLY

Before assembly, always remove the mains plug from the mains.

Assembling the rain barrel pump (Fig. A, B)

1. Screw the flexible pipe (10) on the water flow regulator (11), as shown on figure B1.
2. Screw the flexible pipe (10) on the upper pipe (7), as shown on figure B2.
3. Screw the upper pipe (7) on the lower pipe (6), as shown on figure B3.
4. Screw the lower pipe (6) on the water outlet (5), as shown on figure B4.

4. OPERATION

Never use this pump in a pond or swimming pool while people are present in the water!

Never pull the pump by its power cord. The pump must be carried by, and placed in the water using the carry handle (1) or if the water is deep, be lowered on a rope tied to the carry handle (1).

Always have the pump switched off and the plug removed from the power socket before placing it in or removing it from the water. Only switch the power back on with dry hands.

Never run this pump dry - out of the water. If the appliance overheats, the thermal cut-out will switch it off. If this happens wait 5 minutes before using the pump again.

Automatic operation (Fig. A, C, D)

The cable length between the float switch (3) and the float switch lock (2) must always be at least 10 cm.

Clean the filter (15) and filter cover (14) at regular intervals, and check it for damage. Otherwise, its function can be impaired.

1. To adjust the cut-in and cut-out height, attach the float switch (3) cable to the float switch lock (2) at the required length, , as shown on figure C.
2. Connect quick coupler of the garden hose (not included) to the hose connector (13).

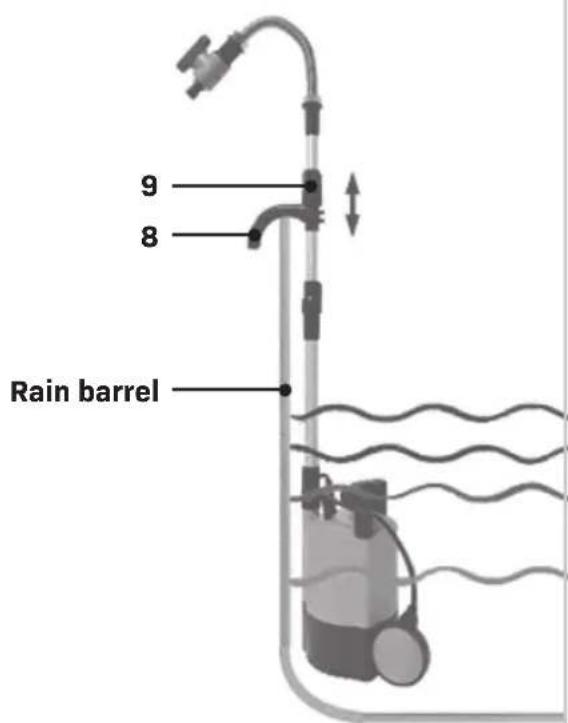

3. Lower the pump into the rain barrel. If necessary, hang the pump with the included hanger (8) on the rain barrel, as shown on figure D. You can adjust the height of the hanger (8) after loosening the locking knob (9).
4. When the water level is low, it would be advisable to stand the pump on a solid platform at the bottom to keep it upright, if practical to do so. Ensure there are no obstructions around the inlet openings around the base of the pump. The inlet openings must be clear of mud or sludge at the bottom of a barrel.
5. Connect the mains plug.
6. When the pump is lowered into the water and the power is switched on, it will start to operate as soon as the floating switch (3) reaches the minimum activation height (approx. 50cm) in the water.
7. The pump switches off as soon as the float switch (3) has reached the switch-off height (approx. 5cm) due to the falling water level.
8. Ensure that the float switch (3) is not obstructed in any way.
9. After use, remove the mains plug from the mains.
10. Lift the pump back out of the water.

Manual operation (Fig. A)

Where manual operation is preferred, the motor can be activated by raising the float switch (3) by hand (ON) or lowering it by hand (OFF).

Adjusting the water flow (Fig. A)

It is possible to set the water flow by using the regulator knob (12):

- By turning clockwise, the water flow will be increased.

- By turning anti-clockwise, the water flow will be reduced.

Finish operation

After use allow the pump to run using clean water for 2 - 3 minutes in order to remove residues and particles that may have accumulated in the pump and outlet hose.

5. MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

During maintenance or cleaning never rest the appliance on the impeller.

Clean the machine casings regularly with a soft cloth, preferably after each use. Remove very persistent dirt using a soft cloth moistened with soap-suds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components.

There are no user serviceable parts in this appliance. If the appliance appears to be blocked, switch off the power at the mains, remove the plug from the socket and check the appliance for blockage (see 'clean the filter' and 'blockages').

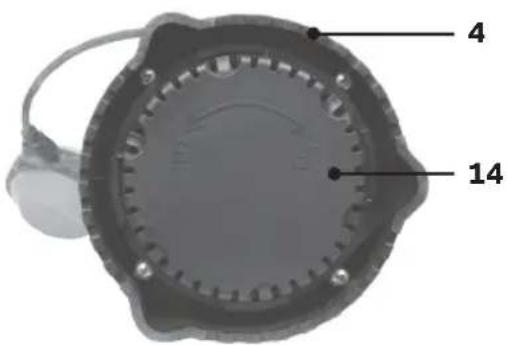

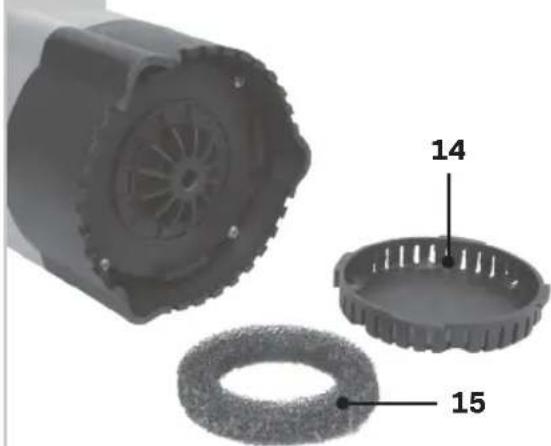

Clean the filter (A,E)

Clean the filter (15) at regular intervals, and check it for damage. Otherwise, its function can be impaired.

1. Unscrew the filter cover (14) by turning counter clockwise and remove filter (15) as shown in Fig. E.
2. Use a mild soap and water solution to clean the filter and afterwards rinse with clean water.
3. Re-install the filter (15) and the filter cover (14). Screw the filter cover (14) by turning clockwise.

Always flush through with clean water after every use.

Blockages

If you suspect the pump has become blocked, switch off the power at the mains socket remove the plug and examine the turbine. The turbine can be accessed by removing the securing screws in the base (4).

STORAGE AND FROST POTECTION

The submersible pump and accessories that are not completely drained can be destroyed by frost. Completely drain the submersible pump and accessories and protect them against frost.

Keep this appliance in well-ventilated dry premises with temperature not going below +5°C.

When not in use, keep this appliance stored in a safe place out of reach of children.

TROUBLE SHOOTING GUIDE

Problem Cause	Remedy
Pump does not start.	No mains supply.	Check mains supply.
	Float switch restricted.	Bring floater to a higher position.
Pump is active but no water is being delivered.	Impeller clogged.	Disconnect pump from the power supply and clean the filter / impeller (see 'MAINTENANCE').
Pump will not switch off.	Float switch restricted.	Bring float switch to a lower position.
Pump will not start or stops during use. Pump switched off after short operating periods.	Thermal overload safety switch has activated.	Disconnect from the power supply, leave for 2 minutes and clear the turbine (see 'MAINTENANCE').
	Power has tripped.	Check fuses and electrical connec-tions.
	Filter / turbine clogged.	Disconnect pump from the power supply and clean the filter / turbine (see 'MAINTENANCE').
	Floater restricted.	Bring floater to a higher position.
	Water too hot. Ensure that the wa-ter temperature has not exceeded the maximum of 35°C.

ENVIRONMENT

ulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

VEILIGHEIDSWAARSCHUWINGEN

DIT APPARAAT MAG WORDEN GEBRUIKT DOOR KINDEREN VANAF 8 JAAR EN DOOR PERSONEN MET VERMINDERDE LICHAMELIJKE, ZINTUIGLIJKE OF GEESTELIJKE VERMOGENS, OF MET EEN GE- BREK AAN ERVARING EN KENNIS, MITS ZIJ ONDER TOEZICHT STAAN OF GEINSTRUEERD ZIJN BETREF- FENDE HET VEILIG GEBRUIK VAN HET APPARAAT EN ZICH BEWUST ZIJN VAN DE ERMEE VERBON- DEN RISICO'S. KINDEREN MOGEN NIET MET HET APPARAAT SPELEN. REINIGING EN GEBRUIKERSON- DERHOUD MOGEN NIET DOOR KINDEREN ZONDER

TOEZICHT WORDEN UITGEVOERD. OM GEVAARLIJKE SITUATIES TE VOORKOMEN MOET HET NETSNOER DOOR DE FABRIKANT, ZIJN SERVICEMEDEWERKERS OF ANDERE GEKWALIFICEERDE PERSONEN WORDEN VERVANGEN ALS HET BESCHADIGD IS. DE STEKKER MOET UIT HET STOPCONTACT WORDEN GETROKKEN VOORDAT U HET APPARAAT REINIGT OF ONDERHOUD UITVOERT.

2. INFORMATIE OVER HET APPARAAT

OPSLAG EN BESCHERMING TEGEN VORST

Rengør filteret (A,E)
