LEAF BLOWER LB505AC

Thank you for buying this VONROC product. By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by VONROC are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

1.SAFETYINSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instructions in this manual.

Warning: Read manual.

Risk of electric shock.

Objects thrown by the product could hit the user or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation. In general, children must not come near the area where the product is.

Failure to keep long hair away from the air inlet could result in personal injury.

Keep other people out of working area during operation. A distance of at least 15 m must be observed.

SWITCH OFF! Remove plug from outlet before cleaning or conducting maintenance checks.

Remove plug from mains if cable is damaged.

Wear eye protection.

Wear hearing protection.

Sound power level.

Do not expose the product to rain or wet conditions.

Doubleinsulation.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure

the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

ADDITIONAL SAFETY WARNINGS FOR BLOWER

- Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. A wire gauge size (A.W.G.) of at least 14 is recommended for an extension cord 50 feet or less in length. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.

• Do not point the blower nozzle in the direction of people or pets.
• Never run the unit without the proper equipment attached. Always ensure the blower tubes are installed.

• Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.

• When not in use, blower should be stored indoors in a dry, locked up place-out of the reach of children.

• Maintain tool with care. Keep fan area clean for best and safest performance. follow instructions for proper maintenance.
• Do not attempt to clear clogs from tool without first unplugging it.
• Do not pull or carry by cord, do not use cord as a handle, or do not pull cord around sharp edges or corners. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• To reduce the risk of electrical shock, do not expose to rain, do not use on wet surfaces. Store indoors.

• Disconnect the supply (e.g. remove the plug from the mains or remove the disabling device)

• whenever the machine is left by the user;

• before clearing a blockage;
• before checking, cleaning or working on the machine;
• after striking a foreign object to inspect the machine for damage;
• if the machine starts to vibrate abnormally, for immediately check.

Connect the machine only to a supply circuit protected by a residual current device (RCD) with a tripping current of not more than 30 mA. Avoid using the machine in bad weather conditions especially when there is a risk of lightning.

• If the power supply cord is damaged, it must be replaced only by the manufacturer or by an authorized service center to avoid risk.
• Save these instructions. Refer to them frequently and use them to instruct others who may use this power tool. If you loan someone this power tool, loan them these instructions also.

- Never point the blower in the direction of people or pets or in the direction of windows. Use extra caution when blowing debris near solid objects such as trees, automobiles and walls.

OTHER SAFETY WARNINGS

• Be sure to secure the unit while transporting.

• Store the unit in a dry area, locked up to prevent unauthorized use or damage, and stored in a high place out of the reach of children.

• Never douse or squirt the unit with water or any other liquid. Keep handles dry, clean and free from debris. Clean after each use. See the Cleaning and Storage instructions.

• Keep these instructions. Refer to them often and use them to instruct other users. If you loan someone this unit, also loan them these instructions.

WARNING:

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

1. Lead from lead-based paints,
2. Crystalline silica from bricks and cement and other masonry products,
3. Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

2.MACHINEINFORMATION

Intended use

The leaf blowers are developed to remove leaves from the street, garden and lawn. A fan inside the leaf blower causes a flow of air, which can be used to blow leaves away.

TECHNICAL SPECIFICATIONS

Model No. LB505AC
Voltage 230V, 50Hz
Input power 650 W
No load speed	Low: 10000/minHigh: 13000/min
Low blower velocity 120 km/h
High blower velocity 190 km/h
Low air volume 1.85 m3/min
High air volume 3.0 m3/min

Model No. LB505AC

L_PA (Sound pressure level)	76.8dB(A) K=3dB
L_WA (Sound power level)	89.2dB(A) K=2.12dB
Vibration level	<= 2.5m/s2 K=1.5 m/s2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN 60335-1 and EN 50636-2-100; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• The times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns.

DESCRIPTION

The numbers in the text refer to the diagrams on page 2-3.

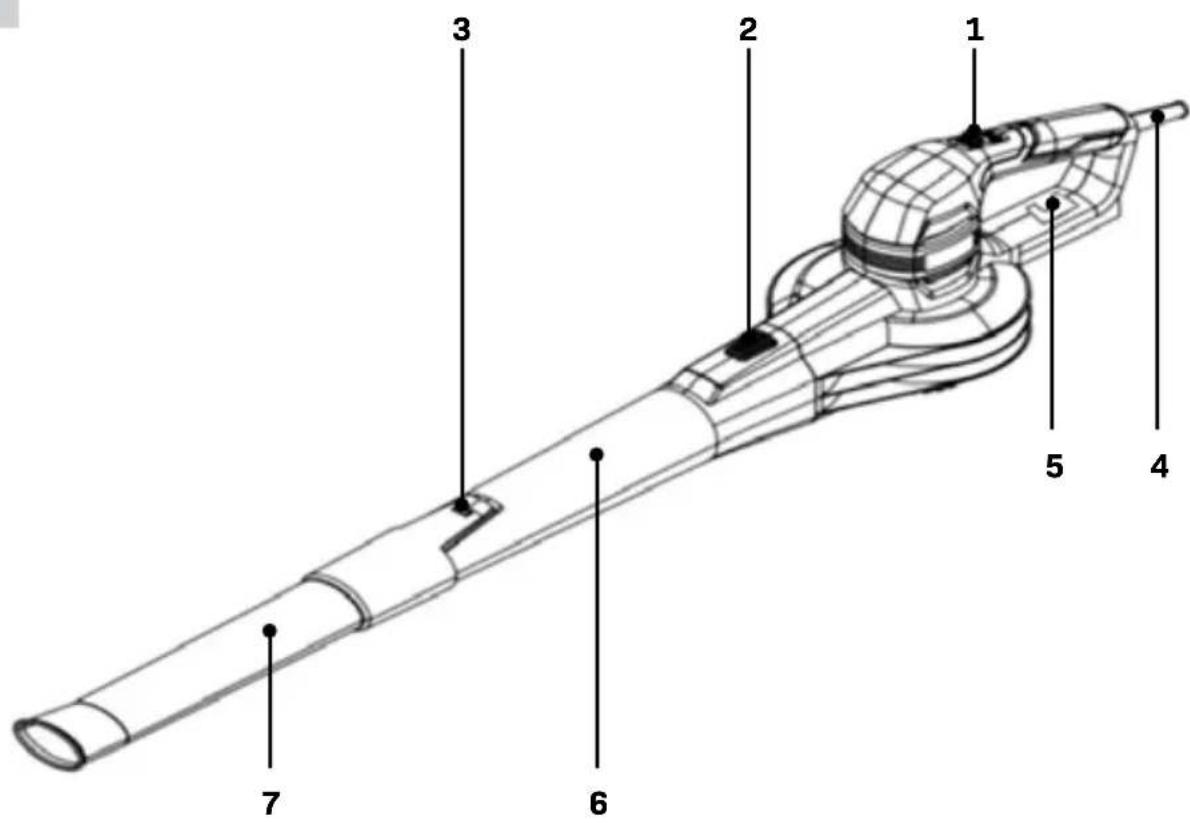

1. 2 speed power switch
2. Lock button
3. Tube lock button
4. Power cord
5. Cable strain relief
6. Upper tube
7. Lower tube

3.ASEMBLY

Before assembly, always switch off the machine and remove the mains plug from the mains.

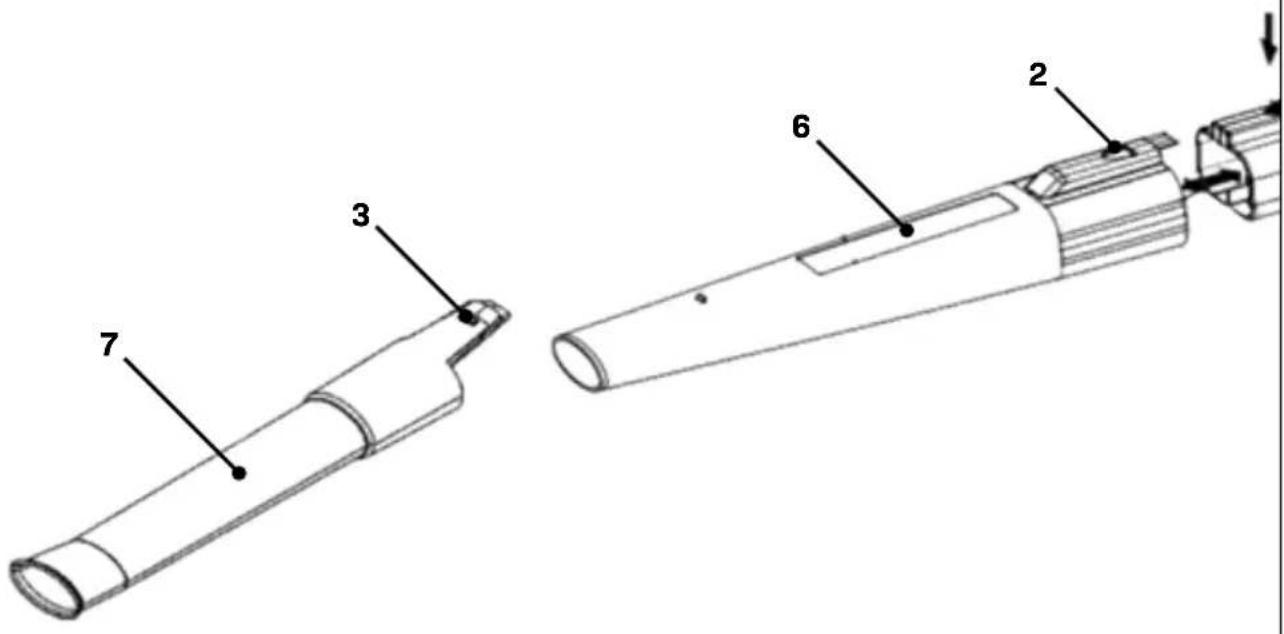

Assembling the tubes (Fig. B)

• Slide the upper tube (6) onto the motor housing until it clicks into place.
• Slide the lower tube (7) onto the upper tube (6) until it clicks into place.

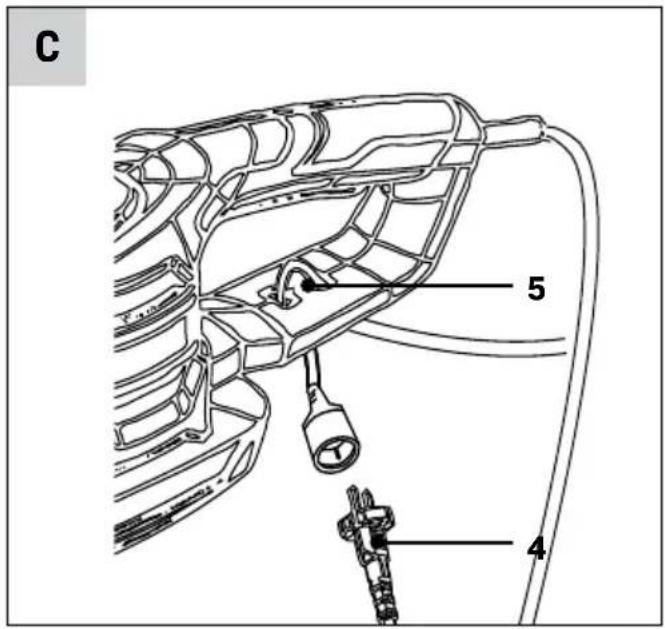

Using the cord grip (Fig. C)

To help secure the plug to the extension cord, make a loop in the extension cord and attach it to the cord grip as shown (see Fig. C). Once secure, attach the cord to the plug. This will prevent accidental 'pull-out'.

Note: We recommend the use of a heavy-duty outdoor extension cable.

4. OPERATION

Switching the machine in Low-, high speeds or off (Fig. A)

• Slide the switch forward to the first position for LOW speeds.
• Slide the switch forward to the second position for HIGH speeds.
• To stop, slide the switch back to off.

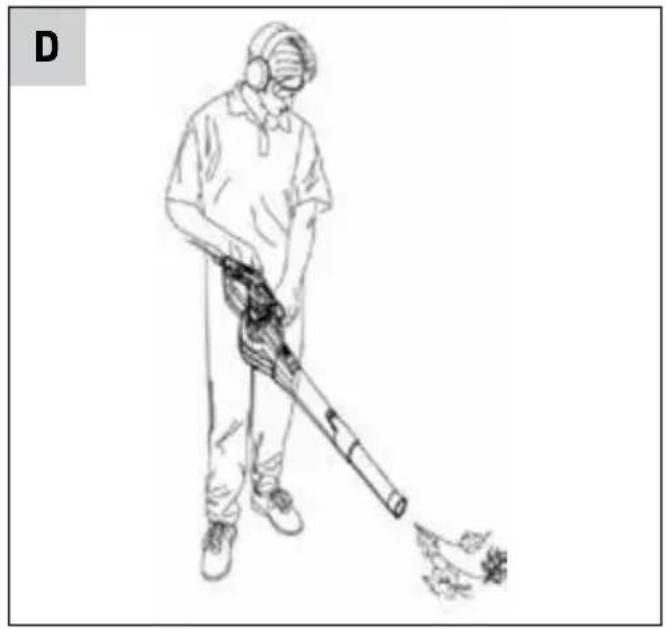

Operating tips (Fig. D)

Hold the blower firmly. Sweep from side to side with the nozzle several inches above the ground or floor. Slowly advance the unit, keeping the accumulated pile of debris in front of you. Most dry blowing operations are better suited to low speeds, rather than high. High speed blowing is a better way to move heavier items like large debris or gravel.

• Assure the unit is not directed at anybody or any loose debris before starting the unit.
• Verify that the unit is in good working condition. Make sure the tubes and guards are in place and secure.
• Always hold the unit with both hands when operating.
• Keep a firm grip on both the front and rear handle or grips.

- To reduce the risk of hearing loss associated with sound level(s), hearing protection is required.

- Operate power equipment only at reasonable hours not early in the morning or late at night when people might be disturbed. Comply with times listed in local ordinances. Usual recommendations are 9:00 am to 5:00 pm, Monday through Saturday.

- To reduce noise levels, limit the number of pieces of equipment used at any one time.

- To reduce noise levels, operate power blowers

at the lowest possible speed to do the job.

• Use rakes and brooms to loosen debris before blowing.
• In dusty conditions, slightly dampen surfaces.
• Conserve water by using power blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches, and gardens.
• Watch out for children, pets, open windows or freshly washed cars, and blow debris safely away.
• Clean up after using blowers and other equipment. Dispose of debris appropriately.

WARNING:

Never cover air vents. Keep them free from obstructions and debris. They must always remain clear for proper motor cooling.

5.MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

This machine has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Cleaning

Keep the ventilation slots of the machine clean to prevent overheating of the engine. Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

ENVIRONMENT

The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the

presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

WARRANTY

VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact your VONROC dealer directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers.
• Normal wear and tear.
• The tool has been abused, misused or improperly maintained.
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.

The product and the user manual are subject to change. Specifications can be changed without further notice.

LAUBBLÄSER LB505AC

ANDERE VEILIGHEIDSWAARSCHUWINGEN

2. INFORMATIE OVER HET APPARAAT

Bedoeld gebruik

Measured sound power level: 89.2 dB(A)

Guaranteed sound power level: 92 dB(A)

Conformity assessment method to Annex V Directive 2000/14/EC amended by 2005/88/EC.

The notified body involved: TÜV SÜD Industrie Service GmbH, Certification Body of the Notified Body 0036

EN 60335-1, EN 50636-2-100, EN 62233, EN IEC 55014-1, EN IEC 55014-2, EN IEC 61000-3-2, EN 61000-3-3,

2006/42/EC, 2014/30/EU, 2000/14/EC & 2005/88/EC, 2011/65/EU, 2012/19/EU

Zwolle, 01-01-2024

CEO FERM

VONROC - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands
