USER MANUAL Ecomonoblocco mX 25:9F Palazzetti

Technical diagram of a refrigerator assembly with numbered components and exploded view, labeled as Fig. 2

Diagram of a fire extinguisher system with heat flow and recycling bin (no text or labels)

Technical diagram of a fire extinguisher with labeled components A, C, D, and E

8.4 Verifica base in ghisa

Diagram showing a vehicle on a road with directional arrows indicating motion, no text or symbols present

Technical line drawing of a mechanical assembly with labeled component 'C' (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with a magnified inset showing a hand holding a piece, labeled Fig. 30 (no text or symbols on the diagram itself)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

1.1 Symbols 34
1.2 Intended use 34
1.3 Purpose and content of the manual 34
1.4 Preservation of the manual 34
1.5 Update of this manual 34
1.6 Overview 34
1.7 Compliance 35
1.8 Responsibility of the manufacturer 35
1.9 Technical assistance and maintenance 36
1.10 Spare parts 36
1.11 Serial plate 36
1.12 Delivery of the appliance 36

2 SAFETY WARNING 37

2.1 Warnings for the installer 37
2.2 Warnings for technical maintenance personnel 38
2.3 Warnings for users 38

3 FUEL CHARACTERISTICS 40

3.1 Fuel characteristics 40

4 BECOMING FAMILIAR WITH THE PRODUCT 41

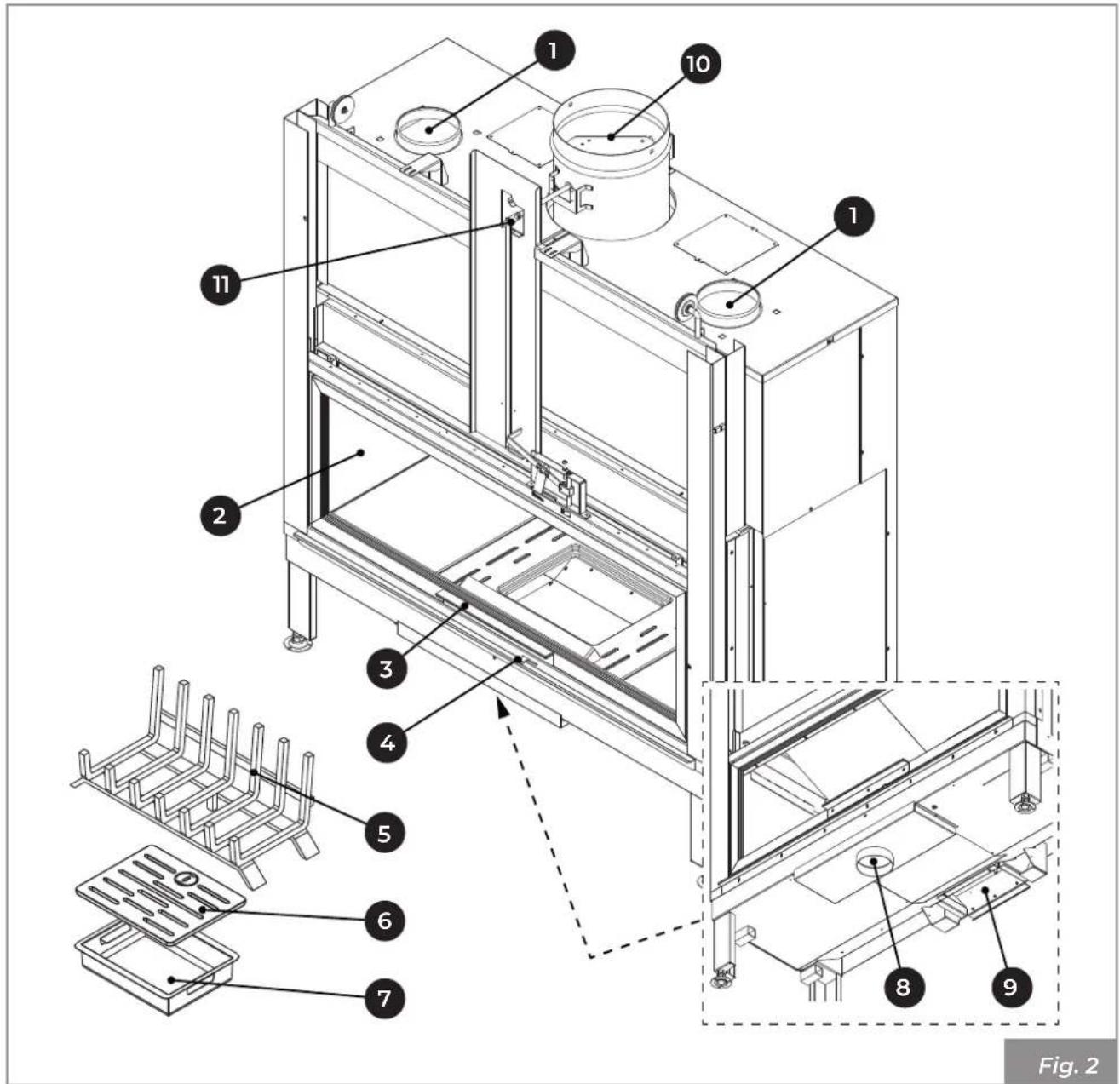

4.1 Description 41

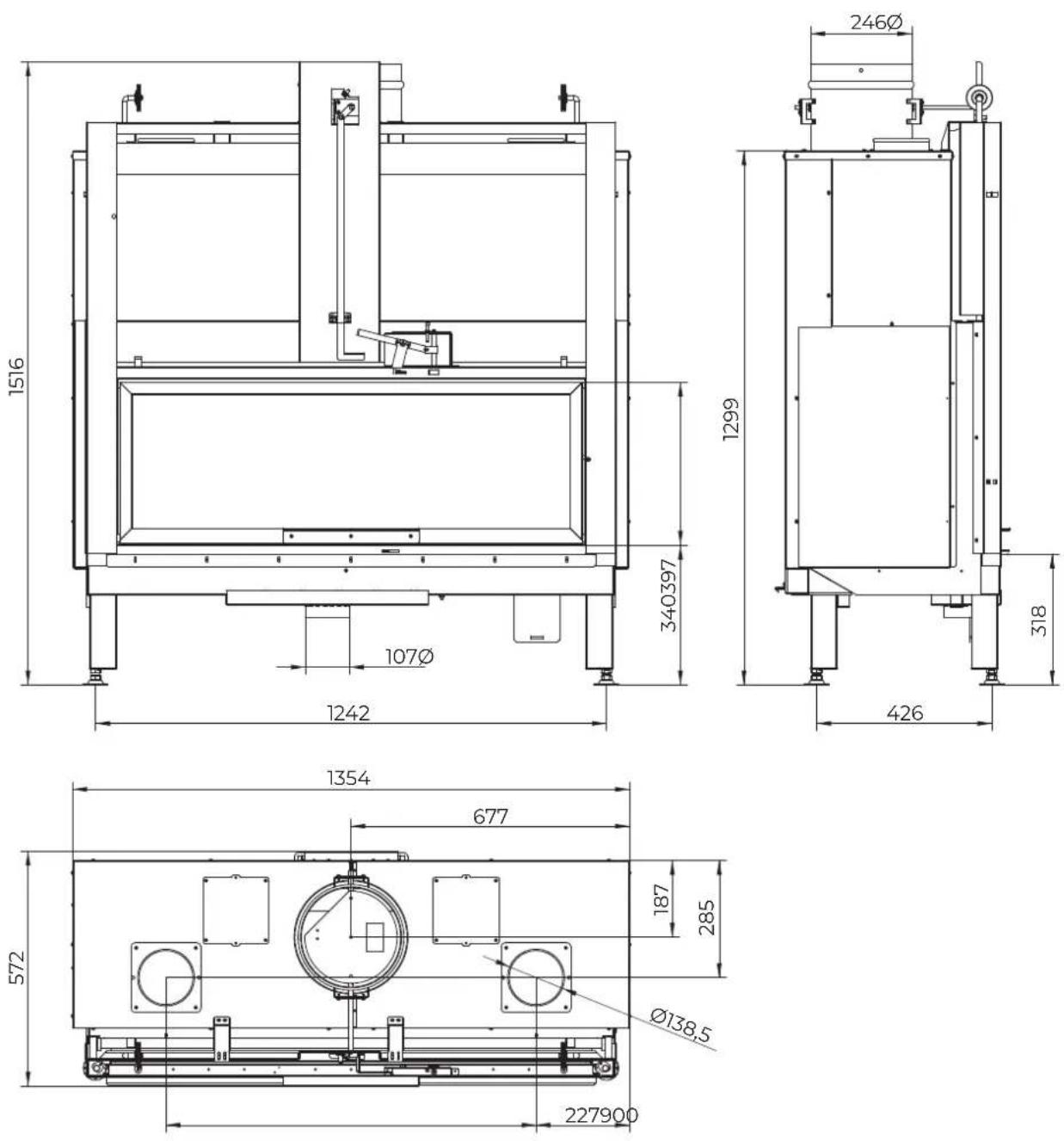

4.2 Dimensions 42
4.3 Technical features 43
4.4 Serial plate 44

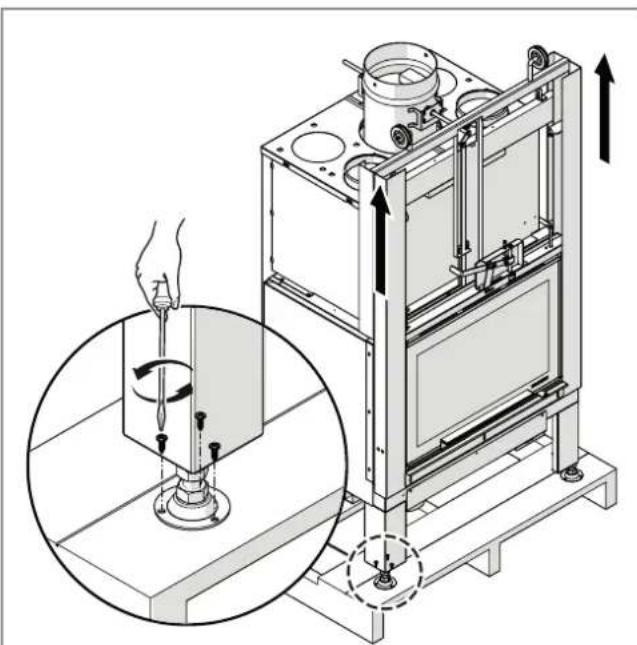

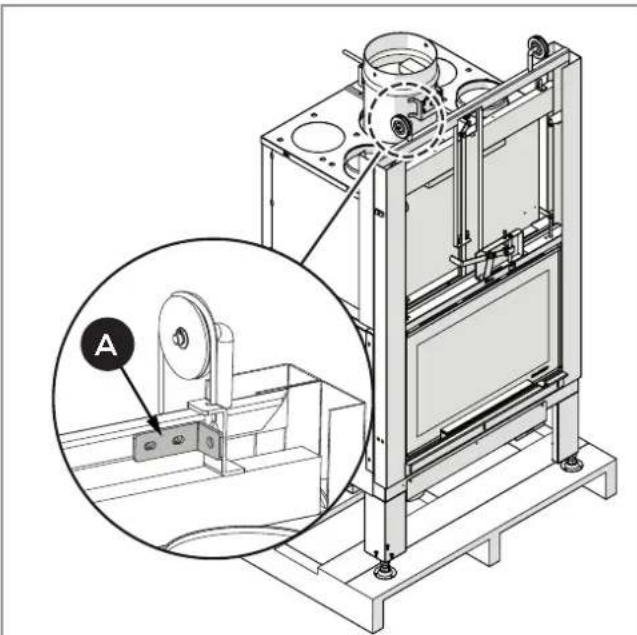

5 HANDLING AND TRANSPORTATION 45

5.1 Transportation 45

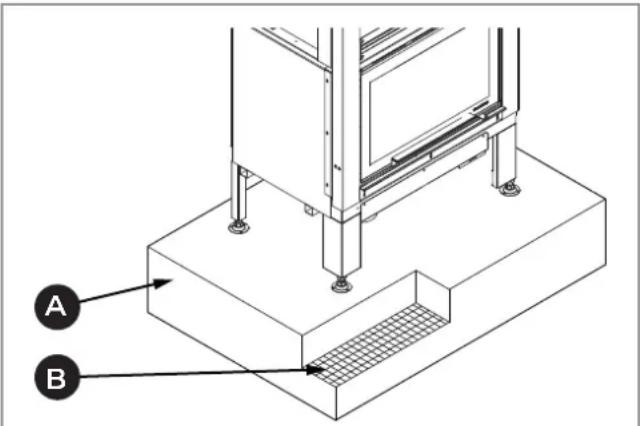

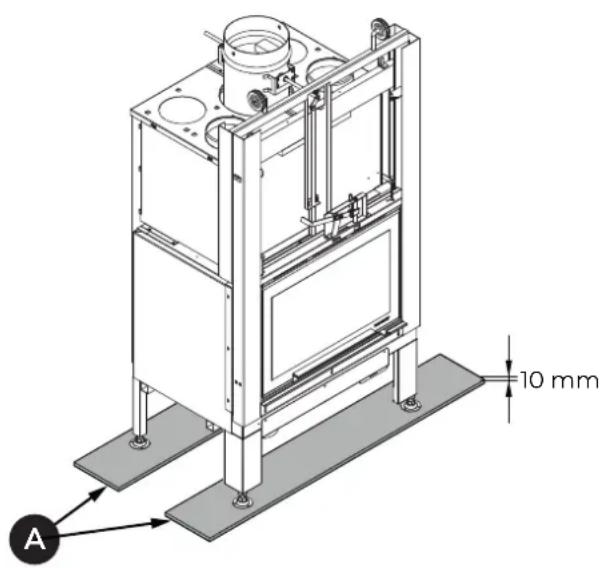

5.2 Checking the floor where the appliance will be placed 46

6 PREPARING THE PLACE OF INSTALLATION 46

6.1 General considerations 46

6.2 Safety Precautions 46

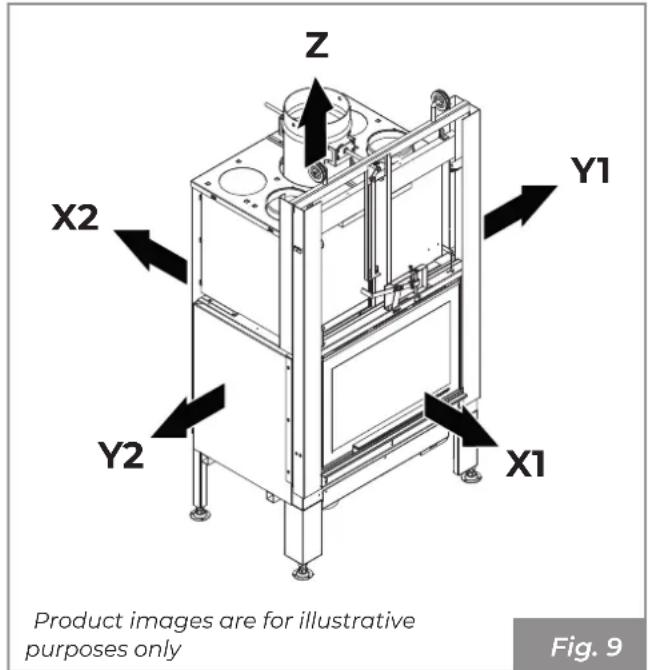

6.3 Place of installation 47

7 INSTALLATION 47

7.1 General considerations 47

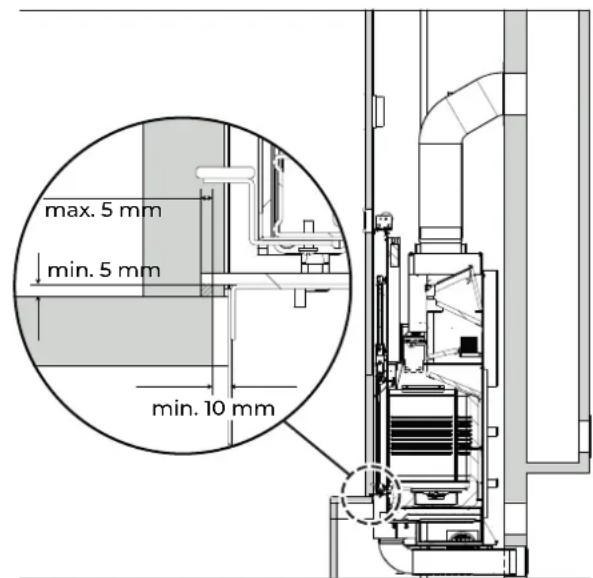

7.2 Dry positioning 47

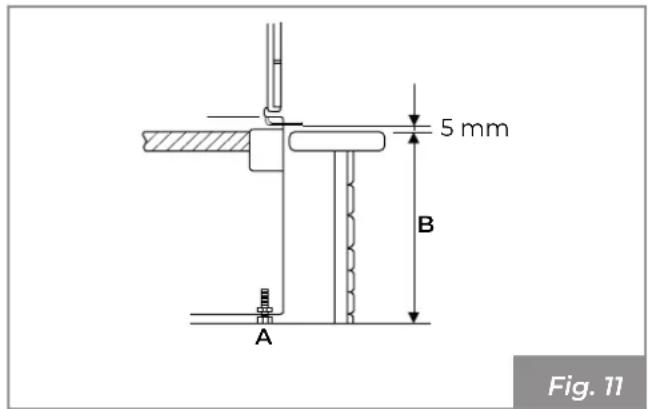

7.3 Levelling of the appliance 48

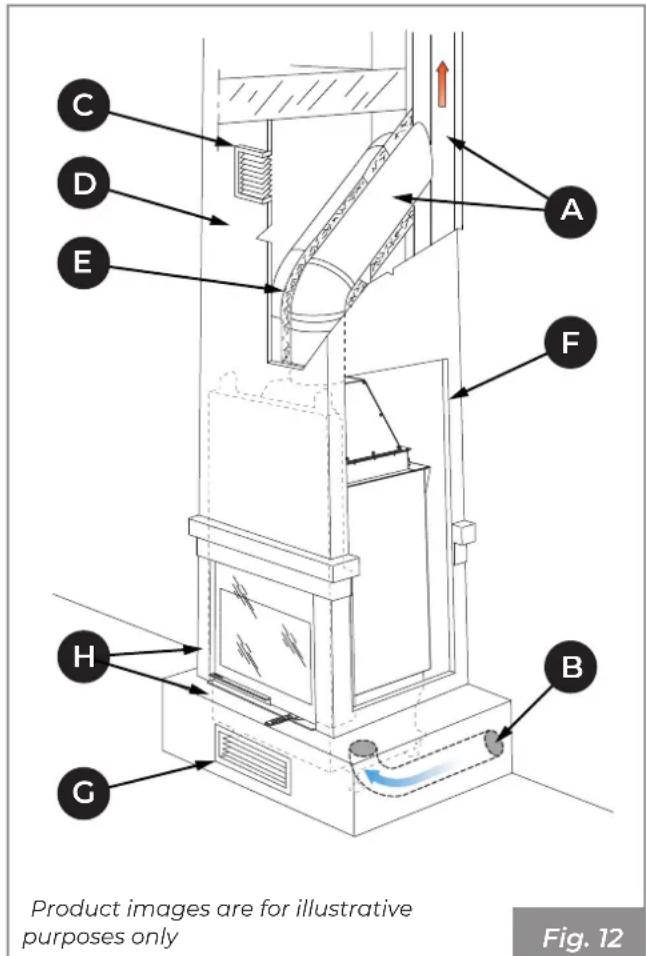

7.4 Assembly diagram 48
7.5 Earthing 49

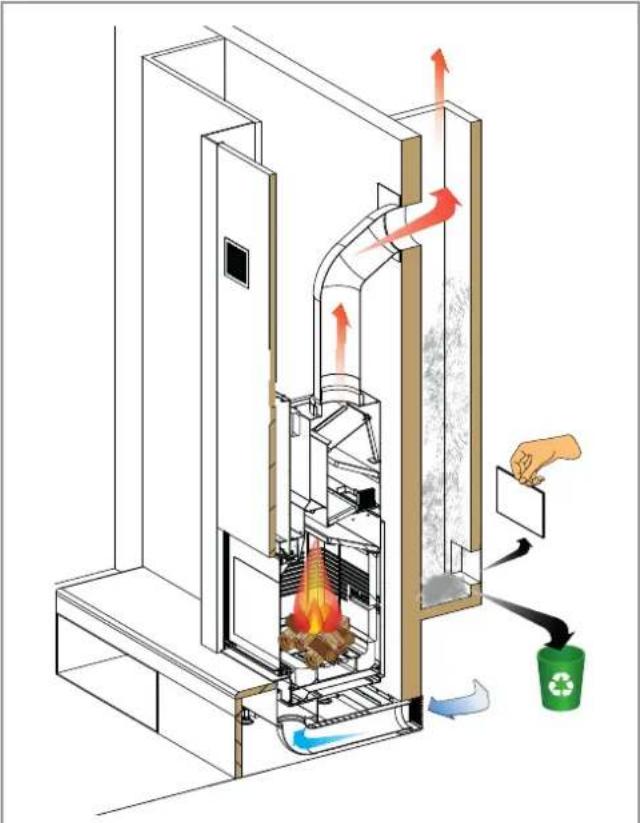

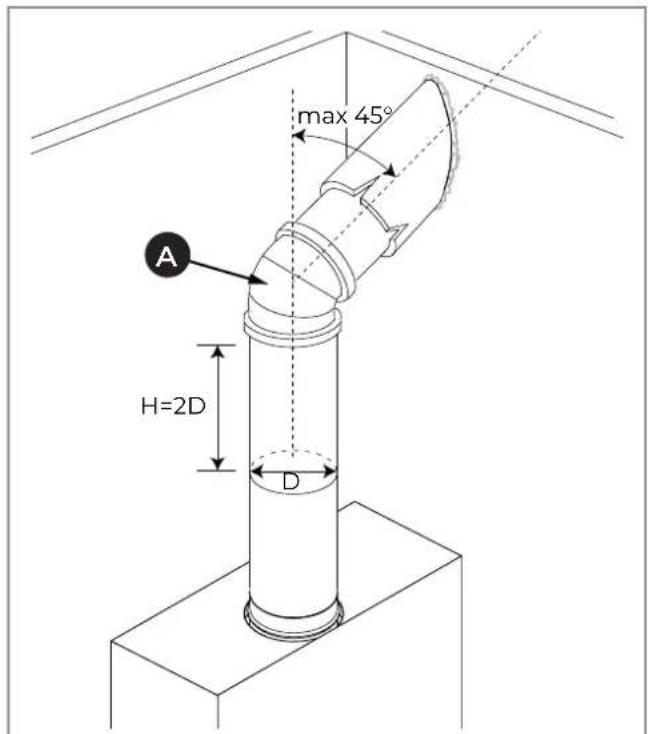

7.6 Fume evacuation system 49

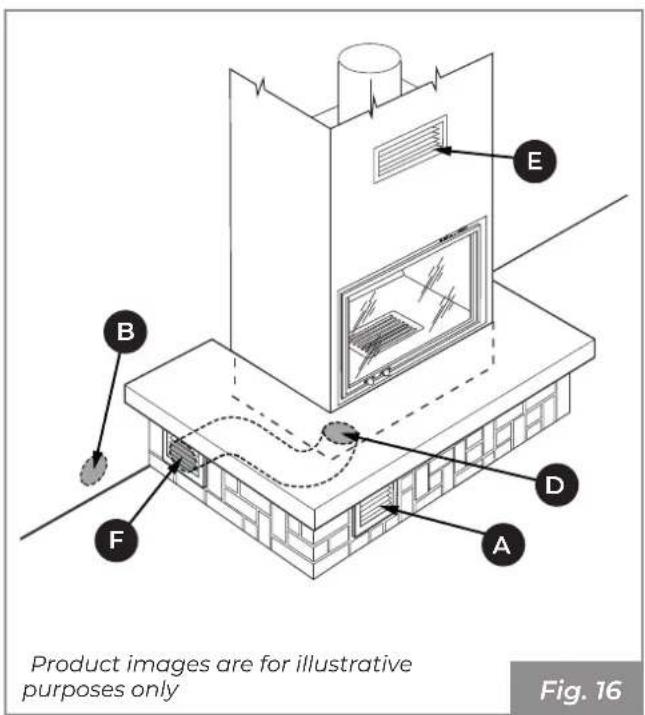

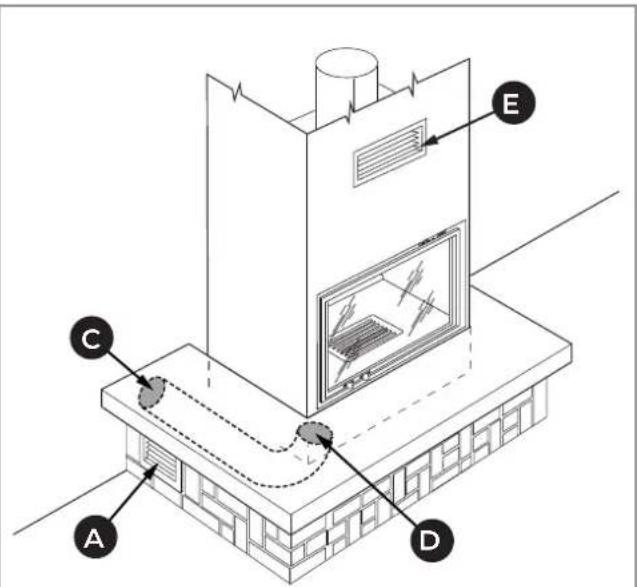

7.7 Air intake 50
7.8 Hot air delivery connection 51

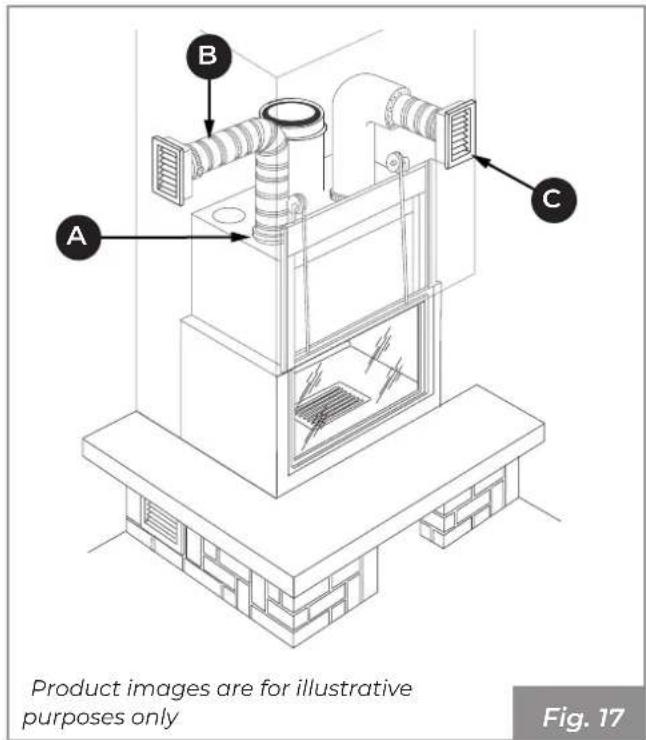

7.9 Hood liner 51

8 COMMISSIONING

8.1 Description and positioning of the deflectors 52

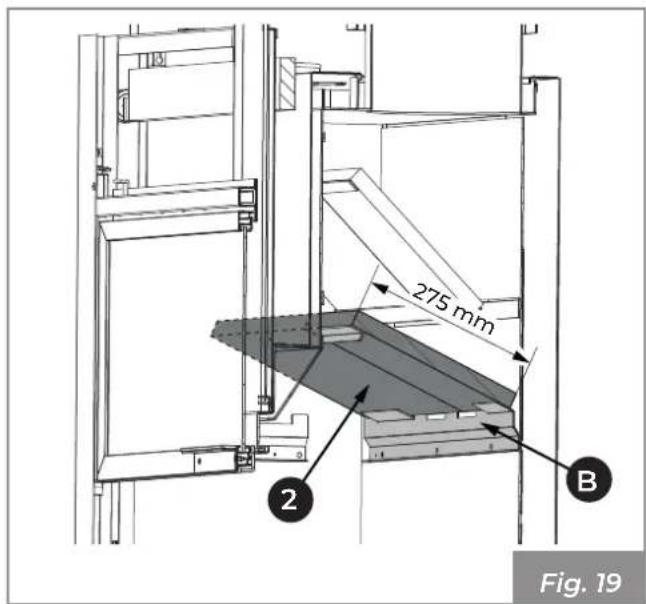

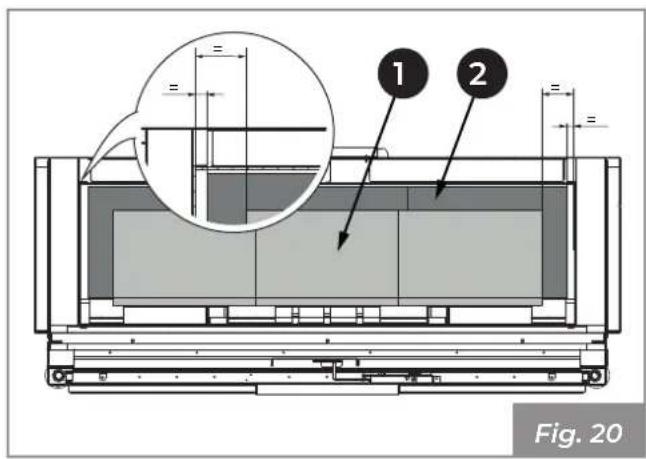

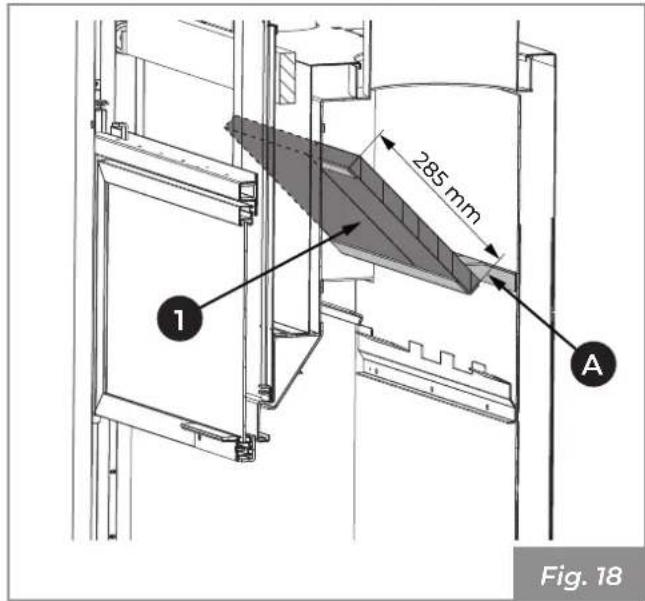

8.2 Deflector assembly 52

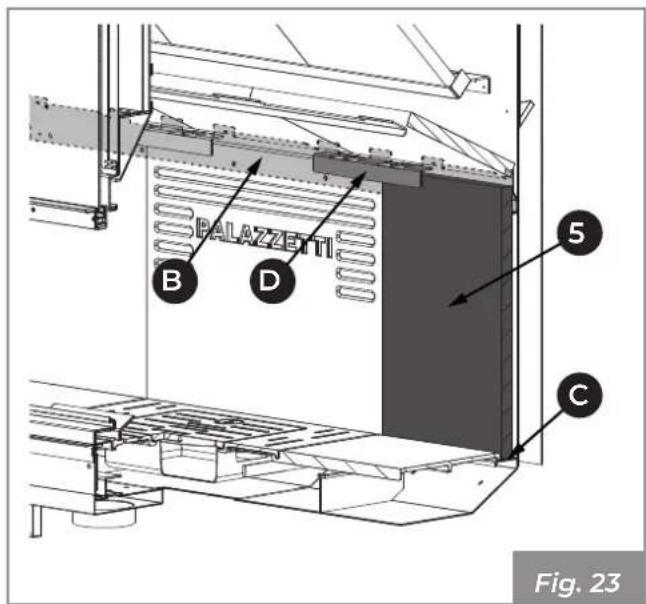

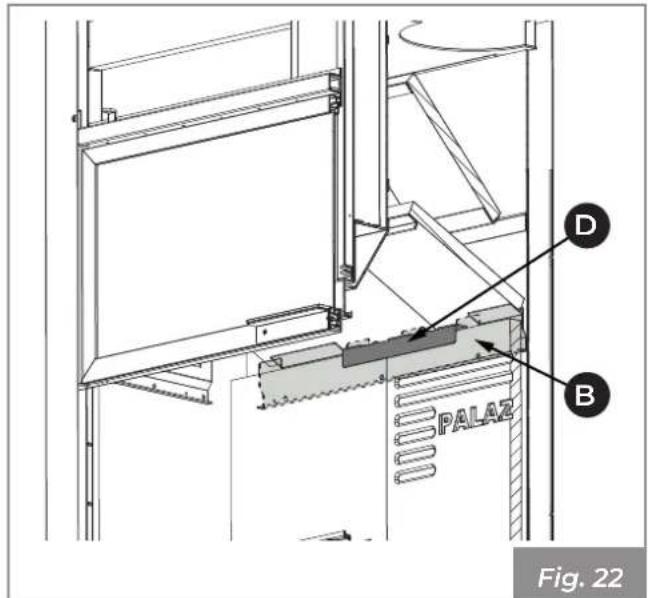

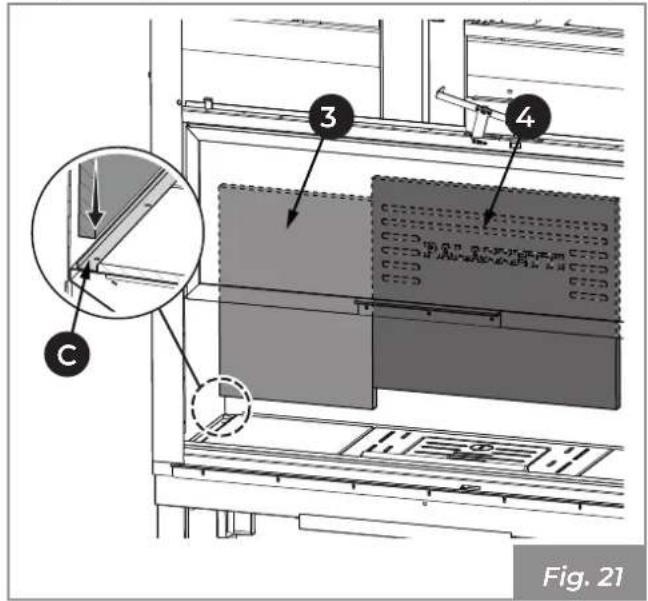

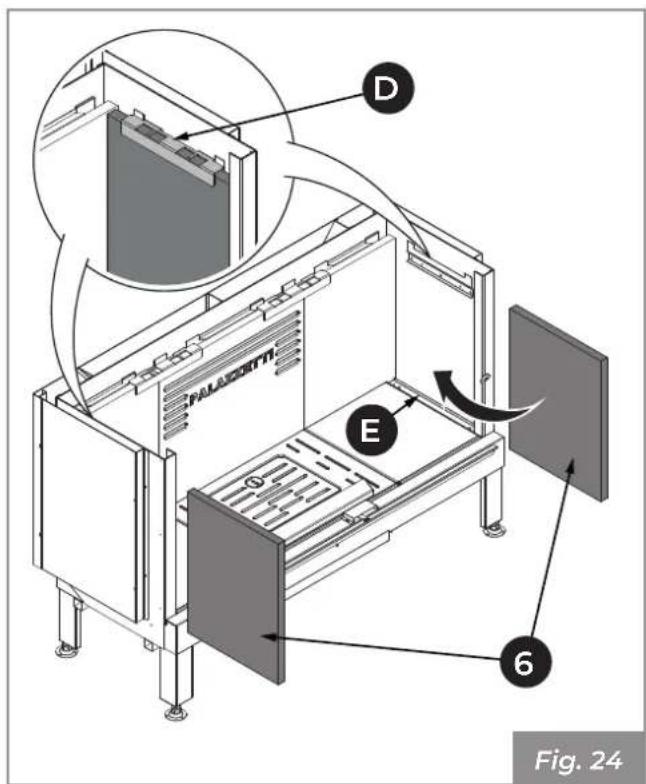

8.3 Assembly of refractory brick 53
8.4 Checking the cast iron base 54
8.5 First ignition 54
8.6 Combustion 54

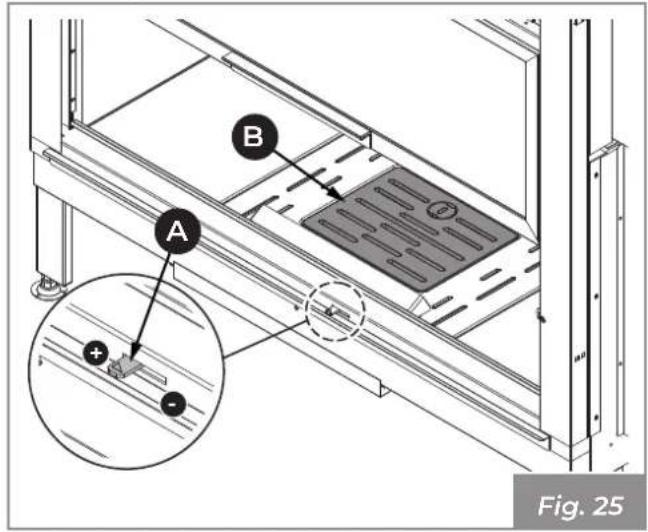

9 POWER ON

9.1 Adding fuel 55
9.2 Operation 55

10 CLEANING AND MAINTENANCE

10.1 Routine maintenance cleaning program 56

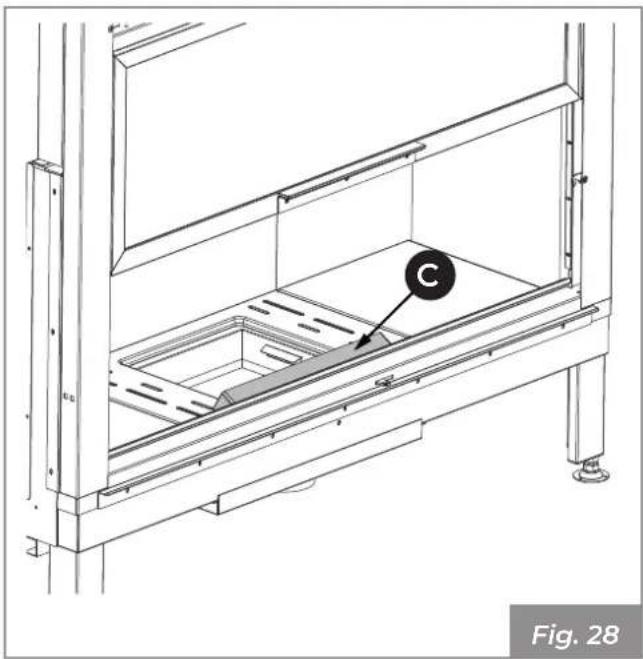

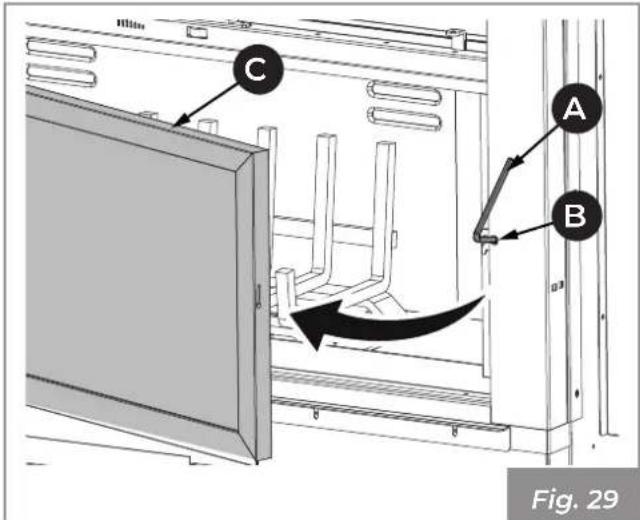

10.2 Routine cleaning 57

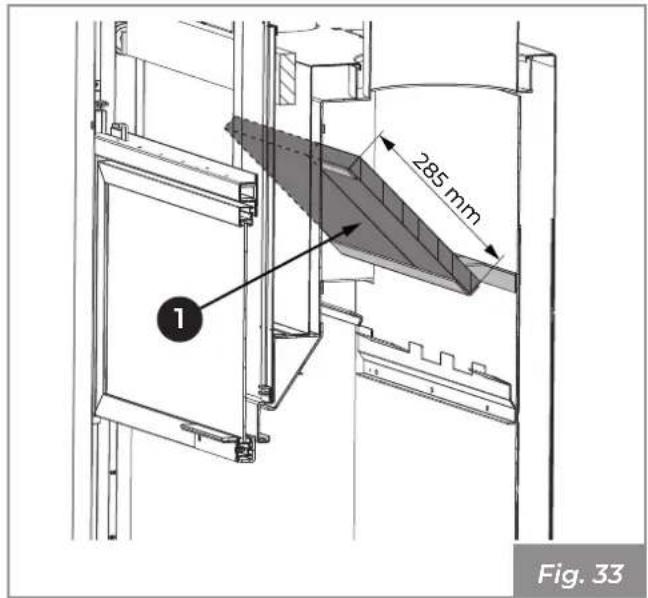

10.3 Routine maintenance 58

11 DEMOLITION AND DISPOSAL

11.1 Disposal of electrical components (where present) 60

1 GENERAL INTRODUCTION

Palazzetti heating appliances are manufactured and tested in accordance with the safety requirements set forth in the reference European directives.

Even partial printing, translation and reproduction of this manual are bound by the authorisation from Palazzetti. Technical information, graphical representations and specifications in this manual may not be disclosed to third parties.

Do not operate if not all the information provided in the manual has been thoroughly understood; if in doubt always request the advice or intervention of Palazzetti specialised personnel.

Palazzetti reserves the right to change specifications and technical and/or functional characteristics of the product at any time without prior notice.

1.1 Symbols

In this manual the points of major importance are highlighted by the following symbols:

INDICATION: Indications concerning the correct use of the appliance and the responsibilities of those in charge.

ATTENTION: The point in which a note of particular importance is expressed.

HAZARD: Expresses an important note of behaviour for the prevention of injuries or damage to property.

1.2 Intended use

The appliance, which is the subject of this manual, is an ecomonoblocco for indoor domestic heating, suitable for burning wood logs.

The appliance must only work with the fire box door closed.

The intended use indicated is valid only for appliances in full structural, mechanical and engineering efficiency.

1.3 Purpose and content of the manual

The purpose of this manual is to provide the fundamental and basic regulations for correct installation of the appliance.

Strict observance of that which is described herein guarantees a higher level of appliance safety and productivity.

1.4 Preservation of the manual

Preservation and consultation

The manual must be kept carefully and must always be available for consultation, both by the user and by the assembly and maintenance staff.

The installation manual is an integral part of the appliance.

Deterioration or loss

If needed, request an additional copy from Palazzetti.

Sale of the appliance

In the event of transferring the appliance the user is obliged to deliver even this manual to the new owner.

1.5 Update of this manual

This manual reflects the latest developments at the time the appliance was placed on the market.

The products already on the market with the relevant technical documentation, will not be considered by Palazzetti as deficient or inadequate due to possible modifications, adjustments or application of new technologies on newly marketed products.

1.6 Overview

The instructions in this manual apply as general rules; it is still necessary to comply with all the rules laid down by the local, national and European legislation in force in the country where the appliance is installed.

Information

In the event that you need to contact the Manufacturer of the appliance, refer to the serial number and the identification data indicated on the identification plate.

In case of problems, contact the dealer or a qualified technician authorised by the manufacturer; in case of repair, request the use of original spare parts.

Periodically check and clean the flue gas duct (connected to the chimney flue).

The ecomonoblocco is not a cooking appliance.

Store this instruction manual, which is an integral part of the appliance, for its entire service life. If the appliance is sold or transferred to another user, always make sure it is accompanied by the product booklet.

In case of loss, contact the manufacturer or authorised retailer to receive another copy.

Maintenance

Maintenance operations must be carried out by qualified personnel authorised to work on the appliance to which this manual refers.

Responsibility for the works of installation

Responsibility for the works carried out for the installation of the appliance cannot be considered to be taken on by Palazzetti; it is and remains the responsibility of the installer, who is responsible for carrying out the checks relating to the flue, the air intake and how right the proposed installation solutions are.

1.7 Compliance

The appliances covered by this manual comply with the legislative provisions of the following European directives:

2018/852: Packaging Directive

2009/125/EC: Ecodesign Directive – Energy related product

REGULATION (EU) N. 305/2011 (CPR)

DELEGATED REGULATION (EU) 2015/1186 (ECOLABELLING)

REGULATION (EU) 2017/1369 (EPREL)

REGULATION (EC) No. 1907/2006 (REACH)

REGULATION (EU) 2015/1185 (ECODESIGN)

The following harmonised standards and/or regulations have been applied:

CPR:

- EN 13229:2006

1.8 Responsibility of the manufacturer

With the delivery of this manual, Palazzetti declines all responsibility, both civil and criminal, direct or indirect, due to:

• installation that does not comply with standards in force in the country and with safety directives;
• partial or total non-compliance with the instructions contained in this manual;
• installation by unqualified and/or untrained personnel;
• use not in compliance with the safety directives;
• modifications and/or repairs carried out on the appliance that are not authorised by the manufacturer;
• lack of maintenance;
• exceptional events.

1.9 Technical assistance and maintenance

Palazzetti has a dense network of service centres with specialised, trained and skilled technicians.

The headquarters and our sales network is at your disposal to direct you to the nearest authorised service centre.

1.10 Spare parts

Use only original spare parts.

Do not wait until the components are worn by use before proceeding to their replacement.

Replace a worn component before its breaking favours the prevention of accidents arising from accidents caused by the sudden breakage of components which may cause serious damages to persons and objects.

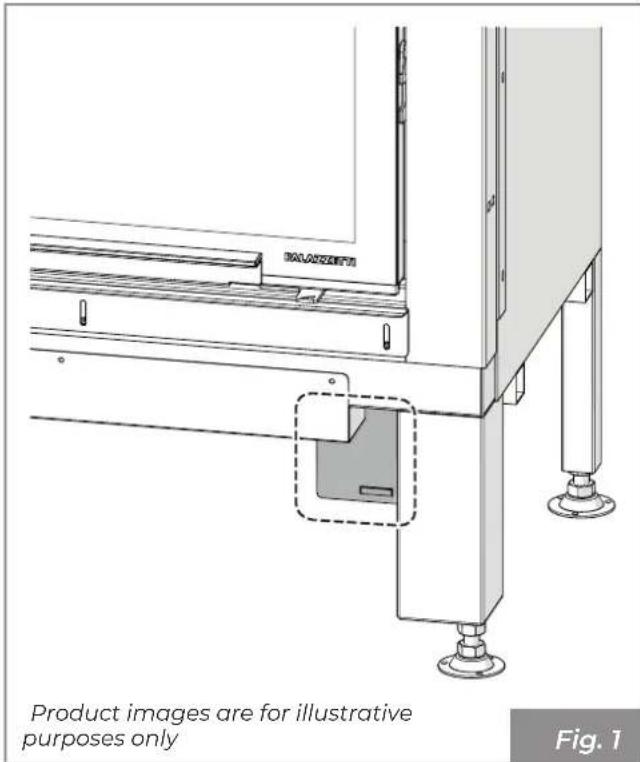

1.11 Serial plate

The serial plate (A) displays all the characteristic data relating to the appliance, including the manufacturer's data, the serial number and CE mark.

It is supplied with the product and must be placed beneath the ecomonoblocco's marble cover profile during installation (accessible by lifting the fire bed) (Fig. 1).

Product images are for illustrative purposes only Fig. 1

The Serial number must always be indicated for any type of request regarding the appliance.

1.12 Delivery of the appliance

The appliance is delivered perfectly packaged and fixed to a wooden platform which allows handling it using fork lift trucks and/or other means.

The following material accompanies the appliance:

• manual for use, installation and maintenance;
• bar code label;
• protective glove;
• hex door release key.

2 SAFETY WARNING

2.1 Warnings for the installer

Observe the prescriptions contained in this manual.

The instructions for assembly and disassembly of the appliance are reserved for specialist technicians only.

The installation, use and maintenance of the product must be in accordance with the manufacturer's instructions and in compliance with the regulations. Failure to comply with the instructions and any incorrect operations may give rise to hazardous situations, damage to property, animals, health problems or malfunctioning.

Installation, functional testing and maintenance should only be carried out by authorised, qualified personnel.

The cladding must be carried out in such a way that the user cannot gain access to hazardous parts.

The installation and maintenance of the product must be carried out exclusively by qualified personnel with suitable knowledge of the product itself. Use only original spare parts recommended by the manufacturer.

Responsibility for the works carried out in the location of the appliance is, and remains, with the user; the latter is also responsible for carrying out the checks relating to the proposed installation solutions.

The installer must comply with all local, national and European safety regulations.

The appliance must be installed on floors with adequate load bearing capacity.

Check that the chimney flue and air inlet set-ups conform to the type of installation.

Before starting the assembly or dis- assembly phases of the appliance, the installer must observe the safety precautions required by law and the following instructions in particular:

• do not operate in adverse conditions;
  • they must operate in perfect psychophysical conditions and must check that the personal protective equipment is intact and functioning perfectly;
• they must wear gloves and safety shoes;
• they must use tools with electrical insulation;
• they must make sure that the area used during assembly/dismantling is free from obstacles.

The product must only be installed in rooms that are not subject to fire hazards and must be equipped with all the necessary facilities including air supplies and flue gas exhausts.

Evaluate the static conditions of the surface bearing the weight of the product and provide suitable insulation if it is composed of flammable materials (e.g. wood, carpet, plastic).

2.2 Warnings for technical maintenance personnel

Maintenance operations must be carried out only by authorised and qualified personnel.

Observe the prescriptions contained in this manual.

Always use personal protective equipment and other means of protection.

Before starting any maintenance work ensure that the appliance, if it has been used, has cooled down.

Even if only one of the safety devices is not working, the appliance is to be considered not working.

2.3 Warnings for users

The appliance may only be put into operation when installation is complete and cladding is in place.

To use the product in the correct manner and prevent accidents from occurring, follow the instructions in this manual.

The appliance has particularly hot external surfaces (door, handle, glass, flue gas outlet pipes, etc.). It is therefore essential to avoid contact with these parts without suitable protective clothing or appropriate tools, which may be provided.

For this reason, maximum caution is recommended during operation and in particular:

Do not touch and do not get close to the glass of the firebox door, it may cause burns, do not stare at the flame for a long time.

Do not hang laundry directly over the appliance for drying: fire hazard.

· do not touch the flue gas outlet;
· do not perform any type of cleaning;
· do not remove the ashes;
· do not open the ash drawer (where provided).

The appliance cannot be used by children under the age of 8 and by people with reduced physical, sensory or mental abilities, or without experience or the necessary knowledge, unless they are under supervision or after they have received instructions relating to the safe use of the appliance and to understanding the inherent dangers. Children must not play with the appliance. Cleaning for which the user is responsible must not be carried out by unsupervised children.

Before performing any type of operation, the user or whoever is operating the product must have read and fully understood the contents of this installation and use manual. Errors or bad settings may cause hazardous conditions and/or irregular operation.

Unskilled users must be protected from access to any part that could expose them to danger. They must, therefore, not be permitted to work on internal parts that pose a hazard.

Respect the instructions and warnings highlighted on the sign plates displayed on the appliance.

The sign plates are accident prevention devices, therefore they must always be perfectly legible. If these are damaged and unreadable, it is mandatory to replace them, requesting the original spare parts from the Manufacturer.

Follow the routine and non-routine maintenance schedule carefully.

Do not use the appliance without having first carried out daily cleaning.

Do not use the appliance if operation is abnormal, you suspect a breakage or if there are unusual noises.

In case of failure or malfunction, turn the appliance off and immediately contact your specialised technician.

Do not throw water on the appliance in operation or to extinguish the fire in the burn pot.

Do not use the appliance as an anchor support of any kind.

It is prohibited to use the product as a ladder or support structure.

Do not clean the appliance until the structure and ashes have completely cooled.

In case of flue gas leaks in the room or deflagration detrimental to the device, turn it off, ventilate the room and immediately contact your installer/service technician.

In the event of a fire in the flue, attempt to extinguish the fire in the appliance by closing off all primary air flow using the combustion air regulator. Then call the competent authorities.

In case of malfunction of the appliance due to a poor flue draught, clean the flue in accordance with the procedure described in section "10.3.7 Maintenance of the smoke system" on page 59.

Do not touch the painted parts during operation to avoid damage to the paintwork.

All responsibility for improper use of the product is fully borne by the user, who relieves the manufacturer of any civil and criminal liability.

It is prohibited to operate the appliance with the door open.

It is prohibited to use the appliance if the door glass or gaskets are damaged.

Any type of unauthorised handling or replacement with non-original spare parts shall place the safety of the operator at risk and relieve the manufacturer of any civil and criminal liability.

Before each ignition be sure to have correctly cleaned the ash drawer.

Do not wash the product with water.

Do not sit/stand in front of the product in operation for long periods.

Incorrect use of the product or incorrect maintenance works may create a serious risk of explosion in the combustion chamber.

Only use the fuel recommended by the manufacturer. The product must never be used as an incinerator.

It is prohibited to use benzene, lamp fuel, kerosene, liquid firelighter for wood, ethyl alcohol or similar liquids to light or rekindle a flame in this appliance. Keep these liquids at a due distance from the appliance during operation.

Some tips to avoid corrosion phenomena:

• carry out routine cleaning operations to avoid the build-up of ash deposits;
• feed the appliance only with fuel having the characteristics described in the section "Fuel characteristics";

• Do not use solvents, acids, aggressive detergents or products to directly clean the glass or other components of the product;

• avoid leaving the product in unfavourable ambient conditions (humidity, airborne salinity, storms, etc.);

• if the appliance is not used for a long time (e.g. summer period), introduce desiccant bags into the combustion chamber to absorb moisture from the air, being sure to remove them when the product is switched on again.

3 FUEL CHARACTERISTICS

3.1 Fuel characteristics

The appliance should preferably be fuelled with well seasoned beech/birch wood. Each type of wood has different characteristics that also affect the combustion efficiency.

The use of conifers (pine-fir) is discouraged: they contain high quantities of resinous substances that quickly clog the flue.

Waste, bark, wood treated with paints, panels, coal, plastic materials, paper and cardboard cannot be burned, under penalty of forfeiture of the appliance warranty.

The continuous and prolonged use of wood particularly rich in aromatic oils (e.g. eucalyptus, myrtle, etc.) causes sudden deterioration of the internal components of the product.

The nominal yield declared in kW of the stove, is obtained by burning a correct quantity of wood, being careful not to overload the combustion chamber.

The wood must have a recommended humidity no higher than 25%, an ideal length of approximately 33 cm and must be placed in a horizontal position, making sure not to completely obstruct the slots in the fire box grate and the front and rear holes of the combustion air distributor.

The reference standard for the fuel is UNI/ISO 17225-1 "wood logs of forest origin".

It is prohibited to use the appliance as an incinerator to burn rubbish.

4 BECOMING FAMILIAR WITH THE PRODUCT

4.1 Description

Technical diagram of a multi-level refrigerator with numbered components and exploded view, labeled as Fig. 2.

1 Air ducting fitting

2 Door glass

3 Door opening handle

4 Combustion air regulation

5 Wood grate

6 Fire box grate

7 Ash drawer

8 Combustion air inlet

9 Optional fan fitting

10 Flue gas outlet

11 Bypass valve

4.2 Dimensions

∅ 107 combustion air inlet
∅ 246 flue gas outlet
(*) variable height depending on the feet
Dimensions in mm

Fig. 3

4.3 Technical features

Technical data MX 25:9F
Classe di appartenenza in riferimento a D.L.G. 186/2017 No. 4 stars
Rated thermal power (*) kW 18.3
Yield % 77.1
Hourly fuel consumption	kg/h	4.2
Flue gas flow rate	g/s	15.3
CO emissions (13% of O2)	mg/Nm ^3	1199
Flue gas temperature	°C	260.1
Fuel		Wood
Chimney draught	Pa 12 ± 2
Weight	kg	315
Smoke outlet pipe	mm	∅ 250
Outside air intake	mm	∅ 130
Combustion air inlet pipe	mm	∅ 110
Suitable for rooms not less than:	m ^3	100

Electrical data		MX 25:9F
Voltage	V	-
Frequency	Hz	-
Max power absorbed during operation	W	-

(*) Performances included in the technical specifications are obtained with the primary air regulator positioned on the first notch from the left - Glass cleaning fully closed.

4.4 Serial plate

Palazzetti Lelio S.p.A. - via Roveredo 103 - 33080 Porcia (PN)

SOP No. P00027061 - N.B. 2488 EN 13229 2001 14/2 20004614C 20007

F	Fuel
PImax	Max. thermal power input
Pmax	Rated room thermal power
EFFmax	Efficiency at rated power
COmax (13% O_2 )	CO emissions at rated power (13% O_2 )

Dust	Dust
Tf	Flue gas temperature
x1/x2/y	Minimum distance from flammable materials

5 HANDLING AND TRANSPORTATION

The appliance is delivered complete with all the parts required: mounted metal structure and separate combustion chamber inner lining. These parts are contained in a packaging suitable for long distance transportation.

It is advisable to unpack the appliance only when it has arrived at the installation site.

The product must be handled and unpacked using suitable means.

Make sure that children do not play with the packaging components (e.g. films and polystyrene):

Danger of suffocation!

During moving, lifting, and unpacking of the appliance the following is absolutely necessary:

• always keep it upright;
- never tip it over into a horizontal position;

- Removal of the transport pallet

Disposal can be entrusted to a third party, provided only companies authorised for the recovery and elimination of the materials in question are used.

Always follow the regulations in force in the country in which the appliance is being used for disposal of materials and possibly for the disposal report.

To remove the appliance from the transport pallet:

• Remove the wooden crate.
• Remove the shrink film.
• Ensure that the ropes are in the grooves of the pulleys and then release the counterweight by removing the fixing brackets (A - Fig. 6) and then the clamps.
• Where present, remove from the pallet the packaging containing the parts of the inner lining of the fire box.

Remove the screws that secure the feet of the appliance to the pallet (Fig. 6) and remove it.

Technical line drawing of a mechanical device with an inset magnified view showing a component labeled 'A' (no text or symbols present)

Product images are for illustrative purposes only

Fig. 5

Technical illustration of a mechanical device with a hand operating a rotating component, showing motion arrows (no text or symbols)

Product images are for illustrative purposes only
Fig. 6

5.1 Transportation

Make sure that the lifting carriage has a payload higher than the weight of the appliance to be lifted. The full responsibility of the lifting of loads lies with the person handling the lifting equipment.

Ensure wood or timber floors are properly protected in order to prevent the weight of the appliance from damaging them during movement.

During lifting, avoid jerking or abrupt movements.

Pay attention to overbalancing.

5.2 Checking the floor where the appliance will be placed

Check the load capacity of the floor slab.

If a floor is not suitable for supporting the weight of the appliance, install appropriate steel plates (A - Fig. 7) or concrete base (A - Fig. 8) equipped with 10x10x6 electro-welded mesh (B - Fig. 8) to distribute the weight.

For the dimensions of the plates and the concrete base, use a qualified technician.

It is advisable to install the appliance at a height of approximately 35-40 cm from the floor to the fire bed to facilitate its use.

To level the appliance, use the dedicated adjustment screws located under the feet of the appliance.

10 mm A

Product images are for illustrative purposes only
Fig. 7

A B

Product images are for illustrative purposes only
Fig. 8

6 PREPARING THE PLACE OF INSTALLATION

6.1 General considerations

The following sections contain some guidelines to be followed to obtain the maximum efficiency of the product purchased and to ensure safe operation. The following indications are however subject to compliance with any possible national, regional and municipal laws and regulations in force in the country where the appliance is installed.

In Italy, installation must be performed by qualified personnel in compliance with the EN 10683 standard.

6.2 Safety Precautions

The operations for assembly and disassembly of the appliance are reserved for specialist technicians only.

It is recommended to be sure of their qualifications and their actual capacity.

For Italy, these technicians must be in possession of the letter "C" qualification issued by the chamber of commerce based on the Ministerial Decree. 37/08.

6.3 Place of installation

For the minimum distances that must be respected when positioning the appliance with respect to flammable materials and objects, refer to the instructions in Fig. 9.

Z X2 Y1 Y2 X1 Product images are for illustrative purposes only Fig. 9

Model X1	X2 Y1	Y2 Z
MX 25:9F	1000	300	450	450	750 mm

Floors made of flammable material such as wood, parquet, linoleum, laminate or floors covered with carpets must be protected by a fireproof base under the appliance that also protects the front during cleaning from any falling burning residues.

The manufacturer declines all responsibility for any variations in the characteristics of the material constituting the floor under the protection.

Set up an accessible technical space for any maintenance work.

Remember to respect the minimum distance from flammable materials (X), shown on the identification plate of the pipes used to make the chimney.

Prepare the arrival of the electric line near the appliance for the connection of the power supply cable (if present).

7 INSTALLATION

7.1 General considerations

In the following sections some indications are provided to be respected in order to obtain the maximum performance from the purchased product.

The following indications are however subject to compliance with any possible national, regional and municipal laws and regulations in force in the country where the appliance is installed.

Before proceeding with installation of the appliance and the execution of the lining, it is necessary to carry out the following checks:

- check the correct operation of the bypass valve.

7.2 Dry positioning

It is recommended to dry pre-install the appliance in order to verify the dimensions of the various components and air intakes.

It is necessary to align the front part of the appliance with the internal edge of the marble top, leaving a gap of 5 mm to allow free expansion of the appliance (Fig. 10).

max. 5 mm min. 5 mm min. 10 mm

Product images are for illustrative purposes only
Fig. 10

7.3 Levelling of the appliance

To adjust the final height of the Ecomonoblocco (height fire plane of the cladding) it is sufficient to act on the adjusting screws on the legs. Adjust the screws (Fig. 11: A-adjustment screw, B-fire bed height), until the marble cover profile is brought onto the Ecomonoblocco to the required height with respect to the cladding, making sure that the base of the fire box is level.

5 mm B A Fig. 11

7.4 Assembly diagram

In Fig. 12 there is an example of an assembly diagram.

A) Chimney flue
B) External air intake
C) Heat recovery grate
D) Counter-hood and fireproof load-bearing structure
E) Flue gas duct
F) Inspection panel
G) Air recirculation grate
H) Minimum distance 5 mm between cladding and Ecomonoblocco

Correct installation of the fume duct between the Ecomonoblocco and the fireplace must be watertight, sealing all the linking joints (A - Fig. 12) with material suitable for high temperatures.

If the Ecomonoblocco is installed on a fireplace previously used by other fire boxes, it is necessary to carry out thorough cleaning to avoid abnormal functioning and to prevent possible igniting of any unburned products that may be deposited on the inner walls of the same.

The installation requires the installation of a heat recovery grate as close as possible to the ceiling (approximately 20 cm) (C - Fig. 12).

The provision of an inspection panel (F - Fig. 12) with minimum dimensions 300x300 mm at the height of the gearmotor, required for models with automatic door opening, and on moving parts to facilitate maintenance.

Incorrect installation can compromise the safety of the appliance.

The lining must be made of fireproof material.

C D E A F H B G Product images are for illustrative purposes only Fig. 12

The electrical system, if present, must be earthed and equipped with an earth leakage circuit breaker in accordance with current legislation.

The flue gas evacuation duct must be equipped with its own earth connection.

7.5 Earthing

The appliance is provided with screw for equipotential coupler that can receive a cable with cross-section from 2.5 mm ^2 to 6 mm ^2 , that can be used to obtain the equipotential bonding of the earth in accordance with the rules in force. This connection is located on the back of the appliance and indicated with the symbol ⏻

The flue must also be provided with its own earthing in compliance with the current regulations.

7.6 Fume evacuation system

The appliance must be connected to a system for flue gas evacuation suitable to ensure an adequate dispersion into the atmosphere of the combustion products, in compliance with the standards EN 1856-1-2, EN 1857, EN 1443, EN 13384-1-3, EN 12391-1, UNI 10683 both in terms of the size and the materials used in its construction.

The fume duct (A - Fig. 14) between the firebox and the chimney must have the same cross-section as the fume outlet of the fireplace, as shown on the technical data sheet "4.3 Technical features" on page 43.

The components of the fume evacuation system must be suitable for the specific operating conditions and be CC marked.

It is appropriate to provide, under the chimney inlet, a collection chamber with inspection for solid materials and any condensate (Fig. 13).

Do not use glass wool or insulating material with paper support: they could ignite.

Diagram of a fire extinguisher with heat flow and recycling bin, showing internal components and airflow direction (no text or labels)

Product images are for illustrative purposes only
Fig. 13

The flue connection must be tight and the use of flexible extendible metal pipes is forbidden. Changes in direction with respect to the appliance flue gas outlet must be made with elbow fittings no greater than 45^ (preferably only 30^ ) with respect to the vertical.

The chimney cowl must be of the windproof type with internal section equivalent to the one of chimney and the passage section of the exhaust smoke at least twice the one inside the flue pipe.

max 45° A H=2D D

Product images are for illustrative purposes only
Fig. 14

7.7 Air intake

The Ecomonoblocco must have the right flow of combustion air to guarantee proper combustion.

There must be an outside air intake to guarantee the flow of combustion air to the appliance and/or recirculation of the ambient air.

The external air intake must be correctly sized and protected by an insect-proof grate; it must also be positioned in such a way as not to be accidentally obstructed. A non-closable permanent protection grille must be placed externally; in areas that are particularly windy and exposed to weathering, install a rain and wind protection.

If the rear wall of the appliance is an external wall, make a hole to extract the combustion air 20-30 cm from the ground, observing the size indicated in "External air intake" of section "4.3 Technical features" on page 43

If it is not possible to create the fresh air intake in the room, an external hole can be created in an adjacent room provided it is permanently interconnected by means of a transfer grille.

If there are other heating or extraction appliances in the installation room, combustion malfunctions may occur due to a lack of combustion air. The combustion air intakes must therefore be sized correctly, in order to ensure the necessary supply of air for the correct operation of all devices.

It is prohibited to withdraw combustion air from a garage, warehouse containing combustible materials or rooms at risk of fire.

In accordance with local regulations in force, there are two possible configurations for the combustion air intake:

- (Fig. 15): external air intake (c) channelled to the fire box. Lower grate (A) supplied for the recirculation of ambient air on the cladding;

Technical diagram of a fire extinguisher with labeled components A, C, D, and E

Product images are for illustrative purposes only
Fig. 15

- (Fig. 16): air intake (F) on the cladding, channelled to the hearth. Lower grate (A) supplied on the cladding and wall hole (b) for the recirculation of ambient air.

Product images are for illustrative purposes only Fig. 16

The ecomonoblocco is equipped, on the front bottom, with a special flange (D) for the inlet of combustion air.

The heat recovery grate (E) supplied with the product must be positioned on the top part of the lining.

7.8 Hot air delivery connection

7.8.1 Hood liner fitting for heating in a single room

Attach the flexible ducts (∅ 140 mm) for the distribution of hot air to the front outlet vents, above the hood, securing them with the clamps (Fig. 17: A-clamps, B-distribution ducts, C-vents).

Product images are for illustrative purposes only Fig. 17

7.9 Hood liner

For constructing of the hood liner it is recommended to use flame-retardant plasterboard.

During creation of the hood it is essential to protect the door sliding frame with nylon to prevent dust, mortar or other foreign bodies damaging the sliding system. Remove this protection when the work is completed.

Provide cladding inspection panels for the maintenance of mechanical and/or electronic assemblies.

Before carrying out the final assembly it will be advisable to carry out a smoke test, i.e. to test the operation of the appliance.

8 COMMISSIONING

After positioning the appliance it is necessary to perform the following operations:

8.1 Description and positioning of the deflectors

No. Description	Quantity / Dimension
1 Upper panel. 3 / 285x330
2 Bottom panel 3 / 275x365

Dimensions in mm.

8.2 Deflector assembly

For the numbering of the panels refer to the section "Description and positioning of the deflectors" on page 52.

1) Open the door by pushing it upwards.
2) Position the panels (1) resting them on the appropriate supports (A) (Fig. 18).

285 mm 1 A Fig. 18

3) Position the panels (2) resting them on the appropriate supports (B) (Fig. 19).

275 mm 2 B Fig. 19

Place the panels on the supports, spacing them equally on both sides of the boiler (Fig. 20). Do not leave any clearance between the panels in order to ensure proper smoke evacuation flow.

1 2 Fig. 20

8.3 Assembly of refractory brick

1) Place the right (3) and middle (4) refractory backs on the wall of the Ecomonoblocco and gently slide them into position, centring the guide (C) behind the cast iron base (Fig. 21).

C 3 4 Fig. 21

2) Secure the refractory elements using the slotted bracket (D) in the support (B) (Fig. 22).

D B PALAZ Fig. 22

3) Place the left refractory back (5) against the wall of the Ecomonoblocco and gently slide it into position, centring the guide (C) in the cast iron base (Fig. 23).
4) Secure the refractory using the bracket (D) in the support (B).

PALAZZETTI B D 5 C Fig. 23

5) Place the refractory side panels (6) inside the combustion chamber and gently slide them into place, centring the guide (E) on the sides of the cast iron base (Fig. 24).
6) Attach the securing brackets (D) that align the side walls with the back walls.

D PALA201TH E 6 Fig. 24

8.4 Checking the cast iron base

The cast iron base is supplied preassembled and must be inspected to see if any components have moved or been damaged during transportation.

An incorrect levelling of the base would prevent correct assembly of the remaining refractory bricks.

8.5 First ignition

The first ignition must be carried out by the installer.

Before commissioning, remove the stickers and packaging inside the fire box and the external stickers applied to the glass.

The first lighting operation is a fundamental operation, used to test the product in full function, and to gradually evaporate the water used in the construction mixtures, which will make it resistant and long-lasting.

First lighting must be carried out with reduced loads (approximately 2 kg/h), keeping the appliance on for at least 4 hours at low speeds. Proceed with these feed rates for at least three days before using the appliance at its full capacity. This will allow for the evaporation of any moisture accumulated in the refractory elements when not used.

During the first ignition of the item, unpleasant odours or fumes may be generated due to the evaporation or drying out of the materials used, and water may seep from grouting. This phenomenon will gradually disappear.

For this reason, it is advisable to keep rooms well ventilated when igniting for the first time.

8.6 Combustion

The wood-fired appliance has been designed for intermittent combustion. This means the product will need to be periodically loaded within a time period that guarantees complete burning of the previous load until nothing is left but burning embers. Operation

When handling hot parts (e.g. door) use the supplied glove.

9 POWER ON

• Open the sliding door using the dedicated glove supplied, gripping the handle and pushing it upwards.
• Using the supplied glove, open the primary air regulator (A) to its maximum (+) (Fig. 25).
• Carefully place the pieces of wood on the fire box grate (B) (Fig. 25).
• Place a natural fire-igniter on the pile of wood.
• Add small pieces of wood on top of the stack in a crossed over-type pattern.
  • Light the fire-igniter from above.
• Close the fire door and make sure it is firmly closed.
• Keep the air regulator (A) open to ensure a high, bright flame.
• Reduce the opening of the air intake (-) only when a good foundation of embers has formed.

B A + - Fig. 25

9.1 Adding fuel

During operation, to add fuel, it is necessary to follow this procedure:

- Open the fire door slowly in order to avoid smoke escaping into the room.

If the chimney draught is less than 10 Pa, flue gas may backflow into the room.

- Refill the fire box with fuel and then close the fire door.

Do not overheat the product by inserting an excess quantity of fuel.

Introduce fuel when the embers have formed and the flame has lowered.

The appliance is equipped with a bypass valve, which, when opened, facilitates the escape of smoke into the flue, minimising puffs of smoke into the environment.

9.2 Operation

Natural convection heating.

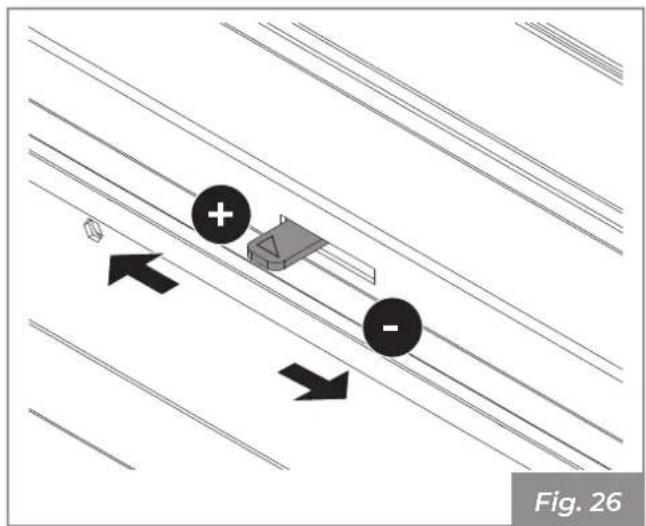

Combustion is adjusted using the air regulator. Turning it toward the symbols (+) or (-) a higher or lower flow of combustion air will be obtained and consequently a faster or slower combustion will result.

Fig. 26

10 CLEANING AND MAINTENANCE

Cleaning can be carried out by the user.

Maintenance operations must be performed by an authorised technical assistance centre.

Before performing any maintenance operation, take the following precautions:

• Ensure that all appliance parts are cold.
  • Make sure that the ashes are completely extinguished.
• Use personal protective equipment provided for by Directive 89/391/EEC.
• Ensure that the main power switch is switched off (if present).
• Make sure that the power supply cannot be accidentally reactivated. Disconnect the plug from the wall socket (if present).
  • Always use appropriate equipment for maintenance.
• Once maintenance or repair operations have been completed, before putting the appliance back into service, reinstall all the safety guards and reactivate all the safety devices.

10.1 Routine maintenance cleaning program

10.1.1 Routine cleaning (User)

	EVERY TIME THE APPLIANCE IS TURNED ON	EVERY WEEK 1 MONTH
Burn pot / Grate (Fig. 27) X
Ash drawer / Compartment (Fig. 28) X
Glass (Fig. 29 - Fig. 30) X

10.1.2 Routine maintenance (certified technical service centre)

	1 YEAR (*)
Flue system (refer to section "10.3.7 Maintenance of the smoke system" on page 59)	X
Appliance (refer to section "10.3.8 Appliance maintenance" on page 59)	X
Refractory elements and smoke deflectors (refer to section "Routine maintenance" on page 58)	X

(*) At least once a year or every 4000 kg of fuel burned.

10.2 Routine cleaning

10.2.1 Cleaning the fire box

Before performing any maintenance operation, take the following precautions:

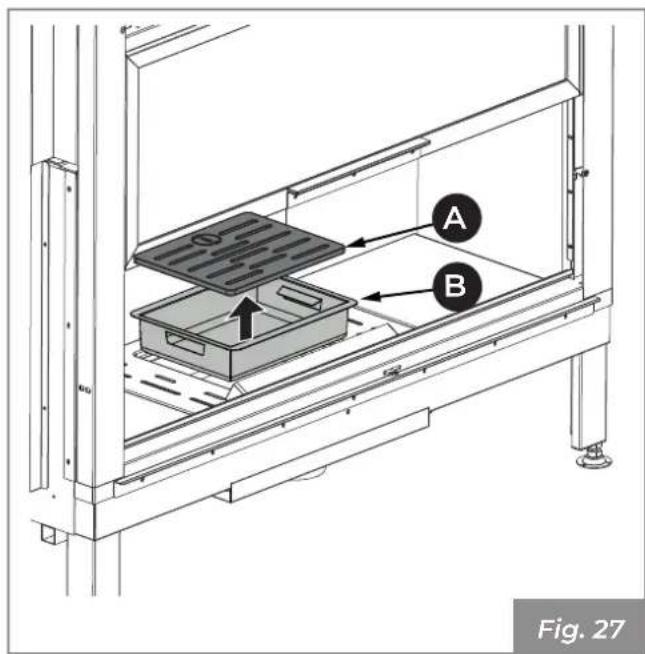

1) Make sure that the grate (A) (Fig. 27) is free from any combustion residues that may obstruct the free passage of air. Remove it and clean the fire box using a hand brush (not supplied) conveying the combustion residues into the ash drawer. Pay attention to any burning embers.

Place the grate carefully on a suitable support surface.

2) Remove the ash drawer (B) from the base and vacuum out any ash deposited in the compartments below.

The ash drawer below the fire box must be emptied out every day to stop it from filling up with ash, thus causing the cast iron grate of the fire box to overheat and preventing the flow of air to the fire box.

A B Fig. 27

3) Vacuum the front and rear holes (C) of the combustion air distributor to avoid any accumulation of ash (Fig. 28).

Technical line drawing of a mechanical assembly with labeled component 'C' (no text or symbols beyond label)

10.2.4 Cleaning the glass

Do not clean the glass while the appliance is operating and do not use abrasive sponges.

During the cleaning operations, support the door with one hand to avoid excessive stresses to the structure.

Be very careful not to strike the ceramic glass as the material is very brittle.

To clean the glass, proceed as follows:

1) Insert the hex key (A) into the hole (B) to open the door (C) (Fig. 29).

C A B Fig. 29

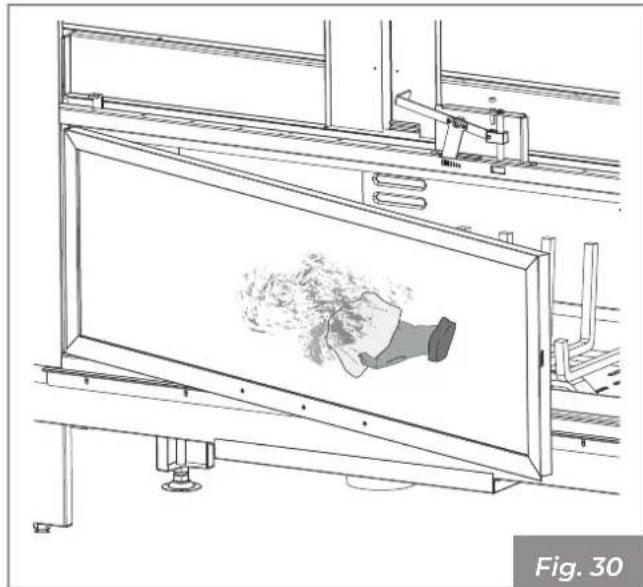

2) Clean the glass with a damp cloth or with paper moistened and dabbed in the ashes (Fig. 30).

You can also use detergents suitable for cleaning kitchen ovens.

Technical line drawing of a mechanical assembly with a magnified inset showing a hand holding a tool, labeled Fig. 30 (no text or symbols on the diagram itself)

3) Accompany the door until it is completely closed.
4) Turn the hex key in the opposite direction to return it to the locked position.

10.3 Routine maintenance

10.3.1 Firebox maintenance

Encrustations and deposits on the deflectors and on the back of the refractory panels can compromise the correct functioning and duration of the appliance.

To clean the parts and the appliance properly, use a simple brush or ash vacuum cleaner.

For cleaning it is necessary to perform the following operations:

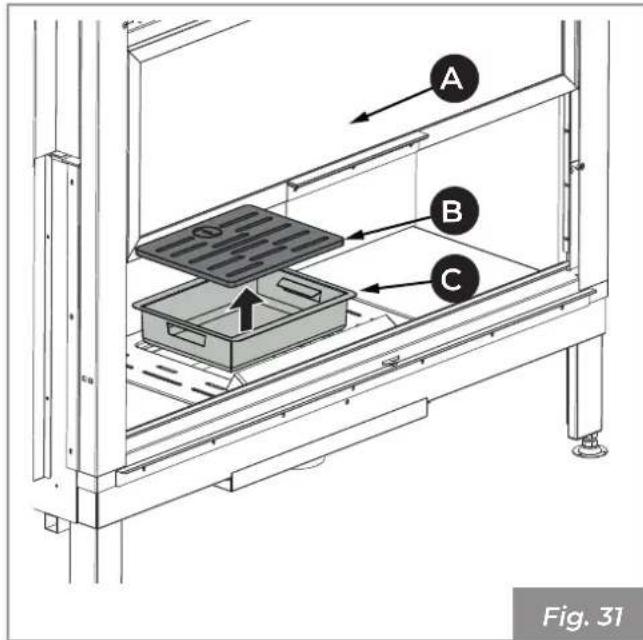

1) Open the door (A) by pushing it upwards.
2) Lift and extract the grate (B) and ash drawer (C) (Fig. 31).

A B C Fig. 31

3) Vacuum any ash deposited in the underlying compartments.
4) Slide out and extract the panels (2) (Fig. 32).

275 mm 2 Fig. 32

5) Slide out and extract the panels (1) (Fig. 33).

285 mm 1 Fig. 33

6) After cleaning, reassemble referring to section "Deflector assembly" on page 52.

10.3.7 Maintenance of the smoke system

If there are horizontal sections, it is necessary to check and remove any deposits of ash and soot before they obstruct the passage of fumes.

The incrustations inside the flue affect the optimum forced draught. When they reach a thickness of 5-6 mm, with high temperatures and sparks, they can ignite with easily imaginable consequences both for the flue and for the house.

10.3.8 Appliance maintenance

To be carried out at least once a year, or every time the appliance signals maintenance request.

During the maintenance operation, the technician must:

• clean the flue gas transit area thoroughly and completely;
• check the condition and tightness of all the seals;
• check the condition of all internal components and make sure they are clean;
  • make sure the flue gas outlet connection is sealed and clean;
• check the correct operation of the appliance.

11 DEMOLITION AND DISPOSAL

The demolition and disposal of the appliance is the sole responsibility of the owner, who must comply with the current regulations in the country where the appliance is in use for the disposal of materials and, if required, for a declaration of disposal, with regard to safety, respect and protection of the environment.

Disposal can be entrusted to a third party, provided only companies authorised for the recovery and elimination of the materials in question are used.

All dismantling for demolition must be carried out with the appliance stationary and with the power supply cut, where present.

Leaving the appliance in accessible areas is a serious danger to people and animals.

The differentiated disposal of the product makes it possible to avoid potentially negative consequences on the environment and health, and also allows recycling of the materials making up the product in order to achieve significant energy and resource savings.

Any liability for damage to people and animals always falls on the owner. Upon demolition, the CE marking, this manual and other documents relating to this appliance must be destroyed.

11.1 Disposal of electrical components (where present)

• Remove all the electrical equipment.
• Separate the accumulators on the electronics boards.
• Scrap the structure of the appliance with the assistance of authorised companies.

INFORMATION FOR THE PROPER DISPOSAL OF THE BATTERIES WITHIN THE MEANING OF THE EU DIRECTIVE 2006/66/EC

Please replace the battery when its electric charge is exhausted: at the end of its useful life this battery must not be disposed of together with unsorted waste. It must be delivered at appropriate selective collection centres for municipal waste or to resellers who provide this service. Disposing of a battery separately allows you to avoid possi-

ble adverse effects on the environment and on human health resulting from improper disposal and allows to recover and recycle the materials of which it is composed, with substantial savings on energy and resources. In order to emphasize on the obligation to dispose of separately the batteries, on the battery itself there is the crossed-out wheeled bin symbol. Abusive disposal of the product by the user involves the application of administrative sanctions provided by law.

Simple line drawing of a trash bin with crossed lines indicating no waste or prohibition (no text or symbols)

A crossed-out wheelie bin symbol on the equipment label indicates that the product must not be disposed of as unsorted waste, but should be sent to separate collection facilities for recovery and recycling.

Pursuant to art.13 of Italian Legislative Decree no. 151 of 25 July 2005 implementing the Directive 2002/96/EC of 23 February 2003 on Waste Electrical and Electronic Equipment relating to the measures and procedures designed to prevent the production of waste electrical and electronic equipment, called WEEE, promoting the reuse, recycling and other forms of recovery so as to reduce the quantity to be disposed of and improving the intervention of the parties involved in the life cycle of such products.

INHALTSVERZEICHNIS

4 DAS PRODUKT KENNEN 70

4.1 Beschreibung 70

4.2 Abmessungen 71

4 DAS PRODUKT KENNEN

4.1 Beschreibung

Technical diagram of a multi-level refrigerator with numbered components and exploded view, labeled as Abb. 2.

Technical line drawing of a mechanical device with an inset magnified view labeled 'A', showing internal components and mounting base (no text or symbols beyond label)

Technical illustration of a mechanical testing apparatus with a hand operating a tool, showing internal components and motion arrows (no text or symbols)

6.3 Installationsort

Diagram of a fire extinguisher system with heat flow and recycling bin (no text or labels)

Technical diagram of a fire extinguisher with labeled components A, C, D, and E

Technical line drawing of a mechanical assembly with labeled component C, no readable text or symbols present

Technical line drawing of a mechanical assembly with a magnified inset showing a hand holding a textured object (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

5 MANUTENTION ET TRANSPORT 103

5.1 Transport 103

LES IMAGES DU PRODUIT SONT INDICATIVES Fig. 1

Technical diagram of a multi-level refrigerator with numbered components and exploded view, labeled as Fig. 2.

5 MANUTENTION ET TRANSPORT

Diagram of a waste sorting or recycling system with heat exchanger, fan, and recycling bin (no text or labels)

Technical diagram of a fire extinguisher with labeled components A, C, D, and E

Diagram showing a vehicle on a road with directional arrows indicating movement, no text or symbols present

10 NETTOYAGE ET ENTRETIEN

Technical line drawing of a mechanical assembly with labeled component 'C' (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with a magnified inset showing a spray or explosion (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

REGLAMENTO (UE) 2015/1185 (ECODESIGN)

4 CONOCER EL PRODUCTO

4.1 Descripción

Technical diagram of a refrigerator assembly with numbered components and exploded view, labeled as Fig. 2

Technical line drawing of a mechanical device with an inset magnified view showing a component labeled 'A' (no text or symbols present)

Technical illustration of a mechanical testing setup with a hand operating a tool and a magnified inset showing the mechanism (no text or symbols present)

Diagram of a fire extinguisher with heat flow and recycling bin, showing airflow direction and component placement (no text or symbols)

Technical diagram of a fire extinguisher with labeled components A, C, D, and E

Technical line drawing of a mechanical assembly with labeled component 'C' (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with a magnified inset showing a hand holding a textured object (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Palazzetti reserves the right to change its products at any time and without notice in order to improve them without compromising their essential characteristics.
