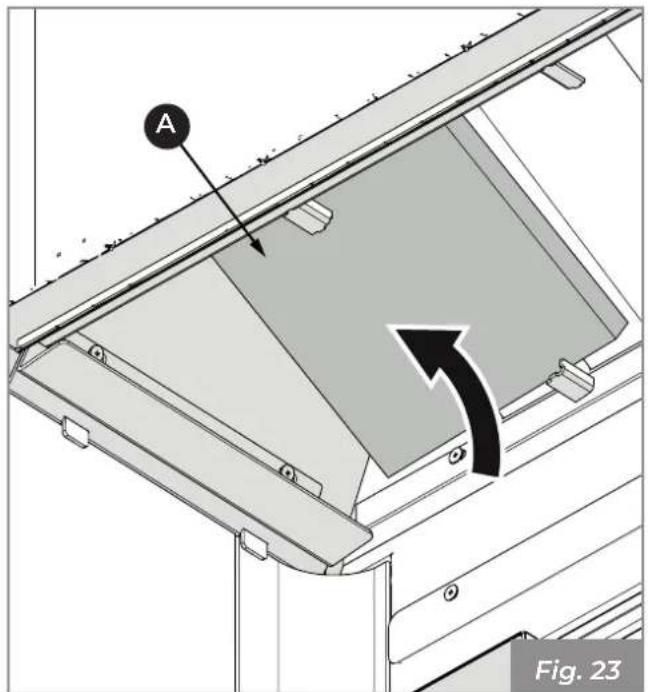

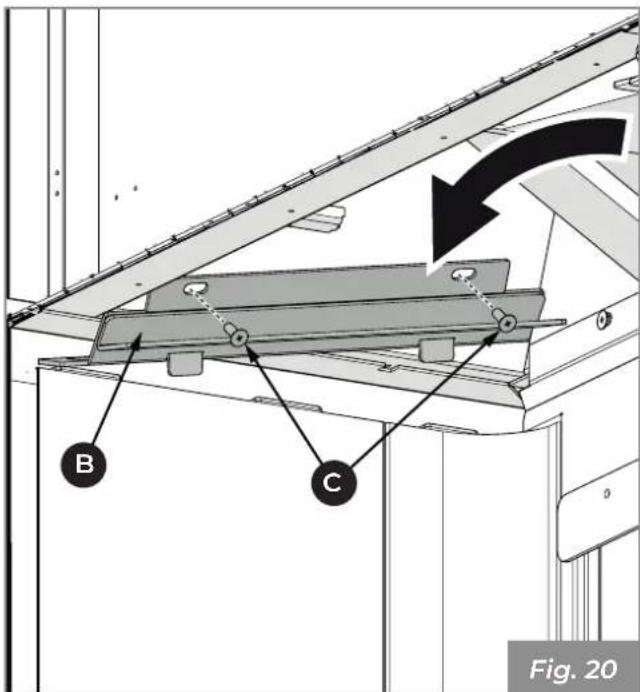

6.2 Upper deflectors assembly 30

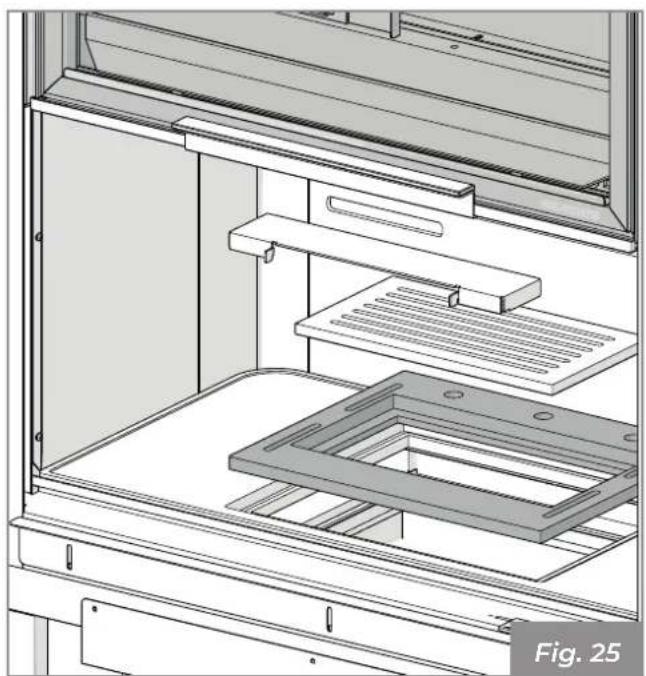

6.3 Assembly of refractory bricks 30

6.3.1 MX 64 models 30

6.3.2 MX 78 and MX 86 models 32

6.4 Lower deflectors assembly 33

6.4.1 MX 78 models 33
6.4.2 MX 86 models 33

6.5 First lighting 34

7 DEMOLITION AND DISPOSAL 35

1 GENERAL INTRODUCTION

Palazzetti heating appliances are manufactured and tested in accordance with the safety requirements set forth in the reference European directives.

Even partial printing, translation and reproduction of this manual are bound by the authorisation from Palazzetti. Technical information, graphical representations and specifications in this manual may not be disclosed to third parties.

Do not operate if all the information given in the manual are not well understood; if in doubt always ask the advice or the intervention of Palazzetti specialized personnel.

Palazzetti reserves the right to change specifications and technical and/or functional characteristics of the product at any time without prior notice.

1.1 Symbols

In this manual the points of major importance are highlighted by the following symbols:

Indication: Indications concerning the correct use of the product and the responsibility of the designated persons.

Attention: The point in which a note of particular importance is expressed.

Hazard: Expresses an important note of behaviour for the prevention of injuries or damage to properties.

1.2 Intended use

TheEcomonoblocco Palazzetti series MX is a residential heating appliance that can be installed and used only inside homes. It is made of a completely metal structure with a fire box closed by a ceramic glass and is suitable for burning wood logs.

The appliance must only work with the fire box door closed.

The appliance is not intended to be used by children under the age of 8 years and by persons with reduced physical, sensory or mental

capacity, or without experience and knowledge, unless they have received instructions relating to the safe use of the appliance and they are under the surveillance of a person responsible for their safety.

The destination of use indicated is valid only for appliances in full structural, mechanical and engineering efficiency.

1.3 Purpose and content of the manual

The purpose of the manual is to provide the fundamental and basic rules for correct installation of the product.

The strict observance of what is described in it guarantees a high level of safety and productivity of the product.

1.4 Preservation of the manual

Preservation and consultation

This manual must be carefully stored and must be available at all times for consultation, both on the part of the user and the installation and maintenance personnel.

The installation manual is an integral part of the appliance.

Deterioration or loss

If necessary, request a further copy from Palazzetti.

Sale of the appliance

In the event of transferring the appliance the user is obliged to deliver even this manual to the new owner.

1.5 Update of this manual

This manual reflects the state of the art at the time of placing the product on the market.

The products already on the market with the relevant technical documentation, will not be considered by Palazzetti as deficient or inadequate due to possible modifications, adjustments or application of new technologies on newly marketed products.

1.6 Overview

The instructions in this manual apply as general rules; it is still necessary to comply with all the rules laid down by the local, national and European legislation in force in the country where the appliance is installed.

Information

In case of exchange of information with the Manufacturer of the product please refer to the serial number and to the identification data on the serial number plate of the product.

Maintenance

Maintenance operations must be performed by qualified personnel authorised to intervene on the product referred to in this manual.

Responsibility for the works of installation

Palazzetti cannot be considered responsible for the works carried out for installation of the product; it is and remains the responsibility of the installer, who must check the flue, the air intake and the correctness of the proposed installation solutions.

1.7 Main reference directives

The appliances covered by this manual comply with the following directives:

Regulation (EU) no. 305/2011 "Construction Products". In compliance with the harmonised standard UNI EN 13229: 2006 "Inserts and open fireplaces fed with solid fuel - Requirements and test methods".

1.8 Responsibility of the manufacturer

!

With the delivery of this manual, Palazzetti declines all responsibility, both civil and criminal, direct or indirect, due to:

• installation non-complying with the existing regulations in the country and with the safety directives;
• partial or total non-compliance with the instructions contained in this manual;
• installation by unqualified and/or untrained personnel;
• use not in compliance with the safety directives;
• modifications and/or repairs not authorised by the manufacturer carried out on the product;
• lack of maintenance;
• exceptional events.

1.9 Technical assistance and maintenance

Palazzetti has a dense network of service centres with specialized, trained and skilled technicians.

The headquarters and our sales network is at your disposal to direct you to the nearest authorized service centre.

1.10 Spare Parts

Use only genuine spare parts.

Do not wait until the components are worn by use before proceeding replacing them.

Replacing a worn component before it breaks help prevent injury due accidents occurring when components break unexpectedly which may cause serious harm to persons and property.

1.11 Serial plate

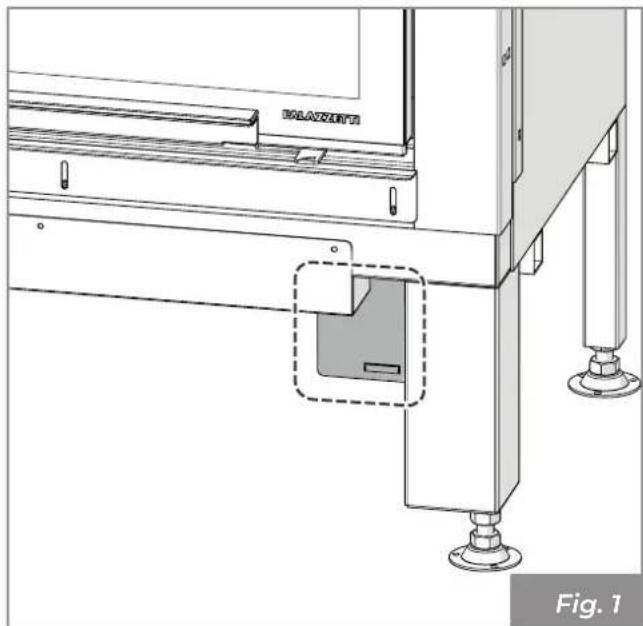

The serial number plate is placed under the fire box on the right side of the fireplace (accessible by raising the fire bed) (Fig. 1) and bears all the data relating to the product, including the data of the manufacturer, the serial number and the brand name C€

Technical line drawing of a mechanical assembly with mounting feet and a highlighted component (no text or symbols)

The Serial number must always be indicated for any type of request regarding the appliance.

1.12 Delivery of the appliance

The appliance is delivered perfectly packaged and fixed to a wooden platform which allows handling it using fork lift trucks and/or other means.

The following material accompanies the appliance:

• manual for use, installation and maintenance;
• product booklet;
• bar code label;
• protective glove;
• cold door opening handle only for the MX F models;

• door release hex key only for the MX R and MX L models.

• they must operate in perfect psychophysical conditions and must check that the personal protective equipment is intact and functioning perfectly;
  • they must wear gloves and safety shoes;
  • they must use tools with electrical insulation;

• they must ensure that the area involved in the assembly/disassembly phases is free from obstacles.

3 HANDLING AND TRANSPORTATION

2 SAFETY WARNING

2.1 Warnings for the installer

Observe the prescriptions contained in this manual.

The instructions for assembly and dis- assembly of the appliance are reserved for specialist technicians only.

The installation and connections to the appliance must be carried out to a professional standard by qualified personnel.

Responsibility for the works carried out in the space of the appliance location is, and remains, the responsibility of the user; the latter is also responsible for performing checks regarding the proposed installation solutions.

The installer must comply with all local, national and European safety regulations.

The appliance must be installed on floors with adequate load bearing capacity.

Verify that the chimney flue and air inlet predispositions conform to the type of installation.

Do not carry out flying electrical connections with provisional or not isolated cables.

Check that the earthing of the electrical system is efficient.

Before starting the assembly or disassembly phases of the appliance, the installer must comply with the safety precautions required by law and in particular with:

• they must not operate in adverse conditions;

The appliance is delivered complete with all the parts required: mounted metal structure and separate combustion chamber inner lining. These parts are contained in a packaging suitable for long distance transportation. It is advisable to unpack the appliance only when it has arrived at the installation site.

It is absolutely necessary to move and unpack the appliance with suitable means and to check its compatibility with the room in which it is to be installed.

Make sure that children do not play with the packaging components (e.g. films and polystyrene):

Danger of suffocation!

During the operations of moving, lifting and unpacking of the appliance, the following are absolutely essential:

• always keep it upright;
- never tip it into a horizontal position;
- never tilt it on its front to avoid breaking the glass.

3.1 Removal of the packaging

Remove the shrink film.

Release the counterweight by removing the fixing clamps.

Where present, remove from the pallet the packaging containing the parts of the inner lining of the fire box.

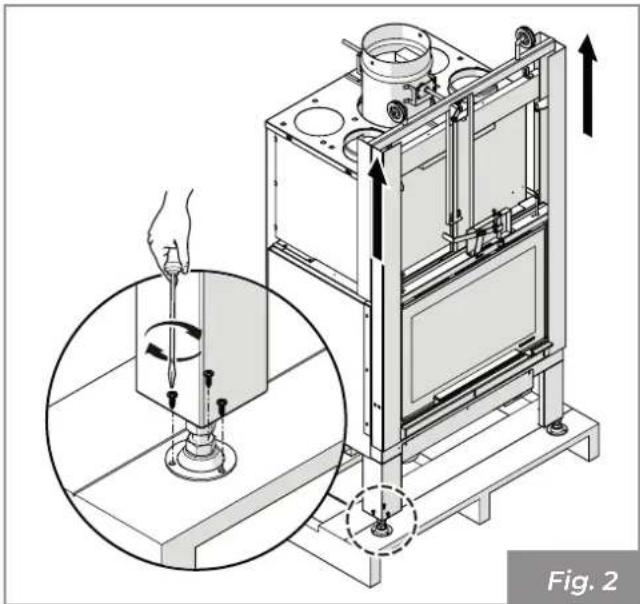

Remove the screws that secure the feet of the appliance to the pallet (Fig. 2) and remove it.

Dismantling and disposal of materials may also be entrusted to third parties, provided that companies who are authorised to recover and dispose of the materials in question are always used.

Always follow the regulations in force in the country in which the appliance is being used for disposal of materials and possibly for the disposal report.

3.2 Transportation

Make sure that the lifting carriage has a payload higher than the weight of the appliance to be lifted. The full responsibility of the lifting of loads lies with the person handling the lifting equipment.

Ensure wood or timber floors are properly protected in order to prevent the weight of the appliance from damaging them during movement.

During lifting, avoid jerking or abrupt movements.

Pay attention to overbalancing.

3.3 Check the support surface

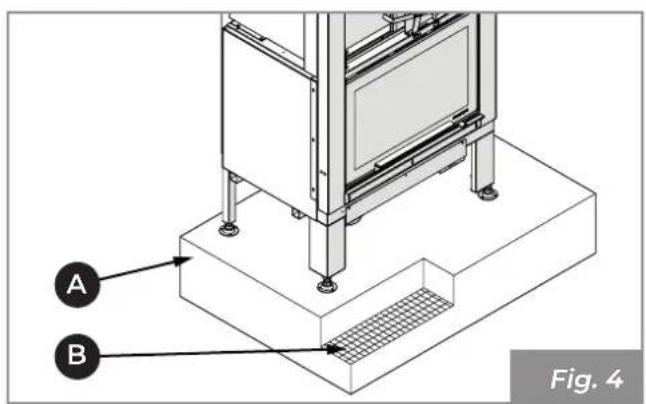

Check the load capacity of the floor slab.

In the event of a floor not suitable for supporting the weight of the appliance, install suitable steel plates (A - Fig. 3) or concrete base (A - Fig. 4) equipped with 10x10x6 electro-welded mesh (B - Fig. 4) to distribute the weight.

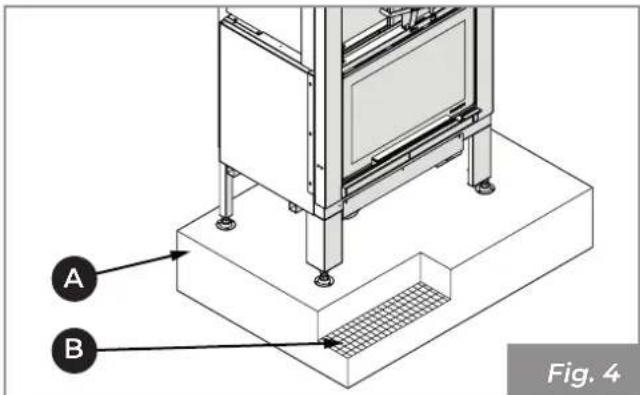

For the dimensions of the plates and of the concrete base, use a qualified technician.

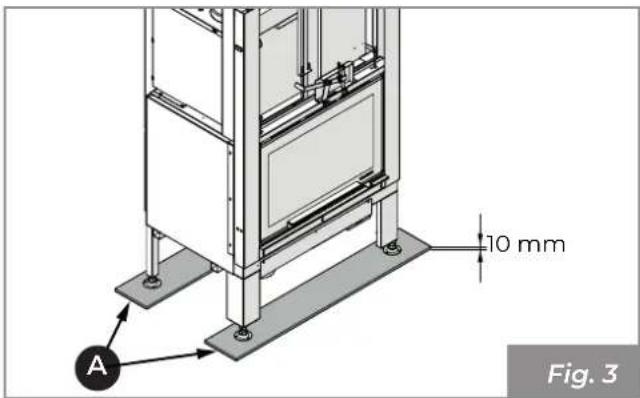

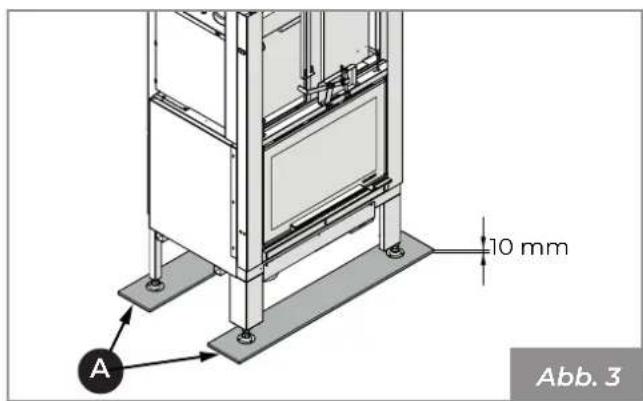

It is advisable to install the appliance at a height of approximately 40-50 cm from the floor to the fire bed to facilitate its use.

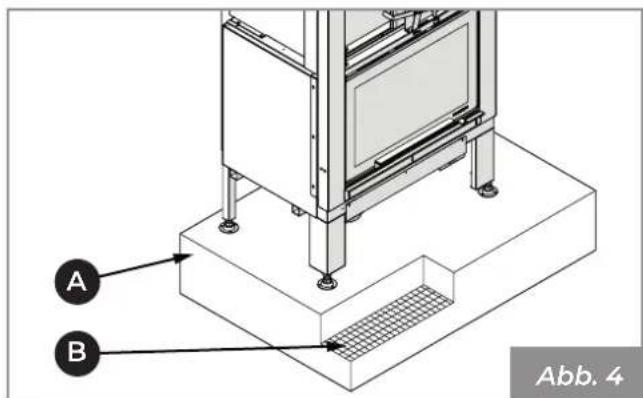

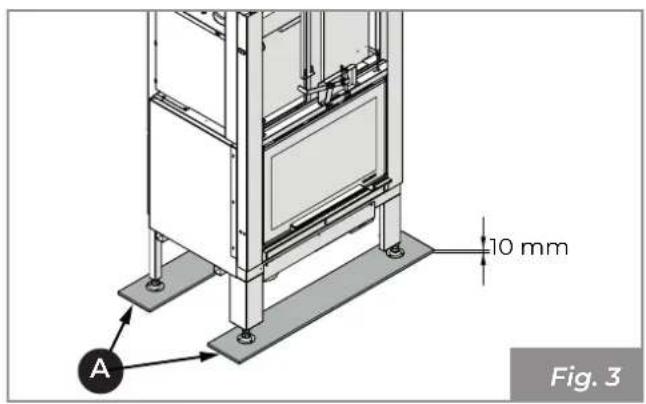

To level the appliance, use the dedicated adjustment screws located under the feet of the appliance.

Technical illustration of a mechanical device with a hand operating a rotating component, showing internal components and motion arrows (no text or symbols)

10 mm A Fig. 3

A B Fig. 4

4 PREPARATION OF THE INSTALLATION SITE

4.1 General considerations

The following paragraphs contain some guidelines to be followed to obtain the maximum efficiency of the product purchased and to ensure safe operation. The following instructions are nevertheless subject to compliance with any national, regional and municipal laws and regulations in force in the country where the product is installed.

4.2 Safety Precautions

The operations for assembly and disassembly of the appliance are reserved for specialist technicians only.

It is recommended to make sure about their qualifications and their actual capacity.

For Italy, these technicians must be in possession of the letter "C" qualification issued by the chamber of commerce on the basis of Italian Ministerial Decree 37/08.

The person in charge of the installation, before starting assembling or disassembling the machine, must comply with the safety precautions required by law and in particular to:

• do not operate in adverse working conditions;
• they must operate in perfect psychophysical conditions and must check that the personal protective equipment is intact and functioning perfectly;
  • they must wear gloves and safety shoes;
• they must make sure that the area involved in the assembly/dismantling phases is free from obstacles.

4.3 Place of installation

For the minimum distances expressed in cm that must be respected in the positioning of the product with respect to flammable materials and objects, refer to the product manual delivered that accompanies the appliance.

Floors made of flammable material such as wood, parquet, linoleum, laminate or covered with carpets must be protected by a fireproof base under the appliance that also protects the front part from the possible falling of combustion residues during cleaning.

The manufacturer declines all responsibility for any variations in the characteristics of the material constituting the floor under the protection.

Provide a technical space accessible for any maintenance.

Please remember to respect the minimum distance from flammable materials stated on the id plate of the tubes used to manufacture the fireplace.

5 INSTALLATION

5.1 General considerations

In the following paragraphs there are some guidelines to follow in order to obtain the maximum performance of the product purchased.

The following instructions are nevertheless subject to compliance with any national, regional and municipal laws and regulations in force in the country where the product is installed.

Before proceeding with installation of the appliance and the execution of the lining, it is necessary to carry out the following checks:

- check the correct operation of the bypass valve.

5.2 Dry positioning

It is recommended to dry pre-install the appliance in order to verify the dimensions of the various components and air intakes.

It is necessary to align the front part of the appliance with the internal edge of the marble top, leaving a gap of 5 mm to allow free expansion of the appliance (Fig. 5).

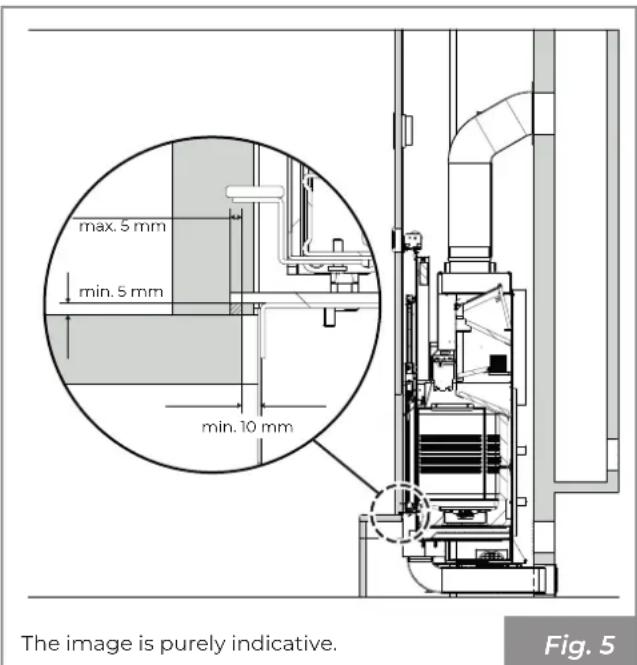

max. 5 mm min. 5 mm min. 10 mm The image is purely indicative. Fig. 5

5.3 Levelling of the appliance

To adjust the final height of the Ecomonoblocco (fire bed height of the lining), simply act on the adjustment screws on the legs. Adjust the screws (Fig. 6: A-adjustment screw, B-fire bed height), until the marble cover profile is brought Ecomonoblocco to the required height with respect to the lining, making sure that the base of the fire box is level.

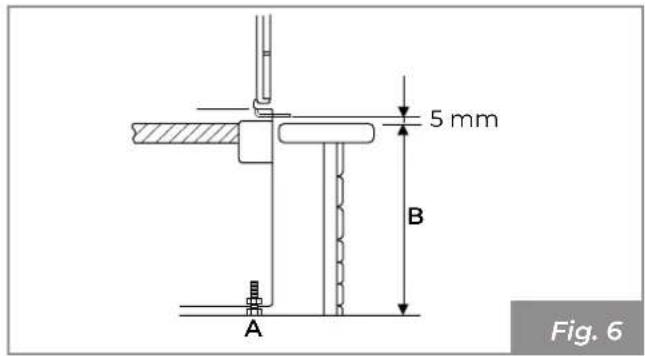

5 mm B A Fig. 6

5.4 Assembly diagram

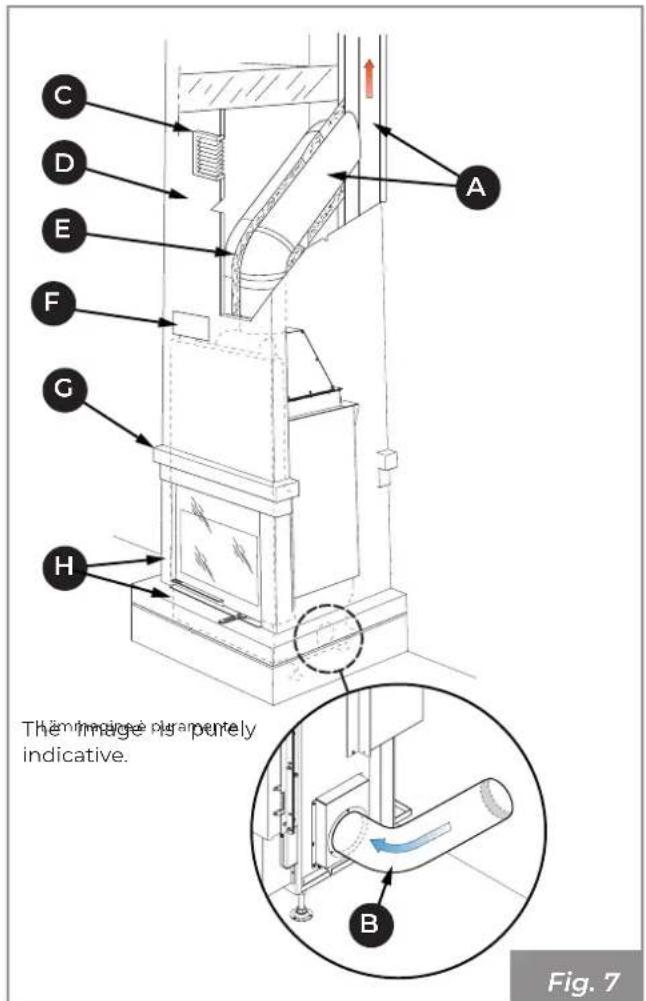

In Fig. 7 there is an example of an assembly diagram.

A) Chimney flue

B) External air intake

C) Heat recovery grate

D) Counter-hood and fireproof load-bearing structure

E) Fume channel

F) Inspection panel

H) Min. distance 5 mm between lining and Ecomonoblocco

Correct installation of the fume duct between the Ecomonoblocco and the fireplace must be watertight, sealing all the linking joints (A - Fig. 7) with material suitable for high temperatures.

If Ecomonobloccois installed on a fireplace previously used by other fire boxes, it is necessary to carry out thorough cleaning to avoid abnormal functioning and to prevent possible igniting of any unburned products that may be deposited on the inner walls of the same.

The installation requires the installation of a heat recovery grate as close as possible to the ceiling (approximately 20 cm) (C - Fig. 7).

Incorrect installation can compromise the safety of the appliance.

The lining must be made of fireproof material.

In presence of flammable structures or other materials behind or besides the fire box, respect the minimum safety distances reported on the product booklet.

C D E F G H A The image is purely indicative. B Fig. 7

The system must be equipped with earthing and with a differential switch in compliance with the laws in force.

The flue gas exhaust duct must have its own earth connection.

All combustible materials that are in the area of heat radiation from the door glass must be placed at a distance from it of at least 100 cm (Fig. 8).

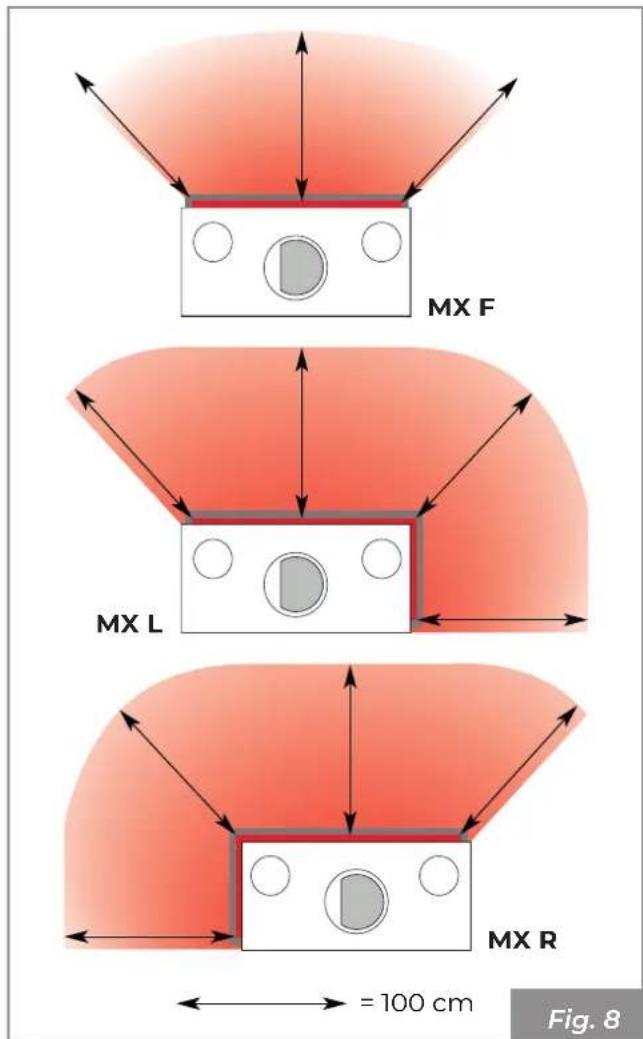

MX F MX L MX R = 100 cm Fig. 8

5.5 Earthing

The appliance is provided with screw for equipotential coupler that can receive a cable with cross-section from 2.5 mm ^2 to 6 mm ^2 , that can be used to obtain the equipotential bonding of the earth in accordance with the rules in force. This connection is located on the back of the appliance and indicated with the symbol ⏻

The flue must also be provided with its own earthing in compliance with the current regulations.

5.6 Fumes evacuation system

The appliance must be connected to a system for flue gas evacuation suitable to ensure an adequate dispersion into the atmosphere of the combustion products, in compliance with standards EN 1856-1-2, EN 1857, EN 1443, EN 13384--1--3, EN 12391--1, UNI 10683 both in terms of the size and the materials used in its construction.

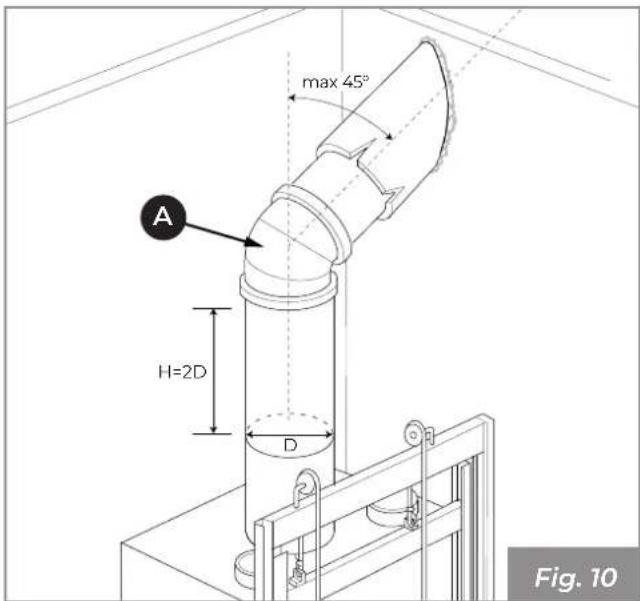

The diameter of the fume duct must comply with what is stated in the Technical data sheet of the product booklet.

The components of the systems for the evacuation of combustion products must be adequate for the specific operating conditions and provided with marking CE

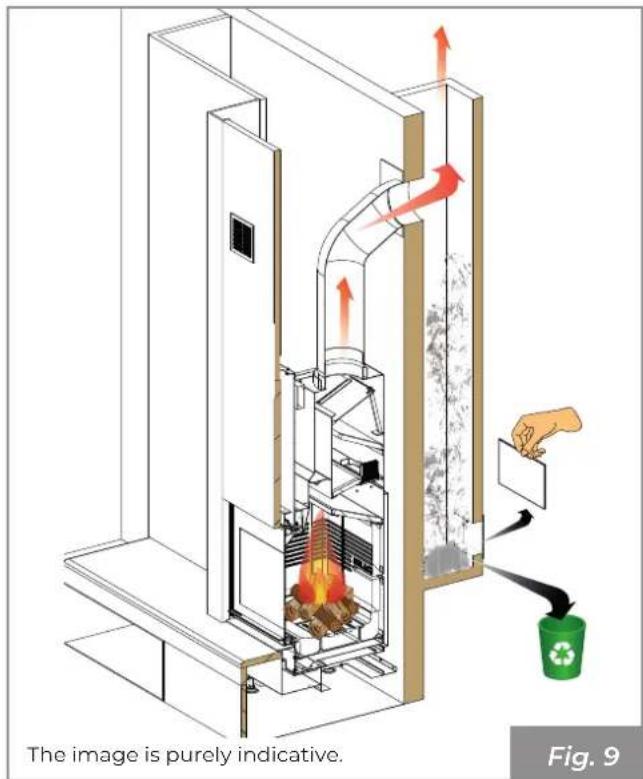

It is appropriate to provide, under the chimney inlet, a collection chamber with inspection for solid materials and any condensate (Fig. 9).

Do not use glass wool or insulating material with paper support: they could ignite.

All components of the chimney system must be declared suitable to the specific operating conditions and provided with CE marking.

The image is purely indicative. Fig. 9

The fume duct (A - Fig. 10) between the fire box and the fireplace must have the same section as the smoke outlet of the fireplace. The flue connection must be tight and the use of flexible extendible metal pipes is forbidden. Changes in direction with respect to the appliance fume outlet must be made with elbows not exceeding 45° (even better if only 30°) with respect to the vertical.

The chimney cowl must be of the windproof type with internal section equivalent to the one of chimney and the passage section of the exhaust smoke at least twice the one inside the flue pipe.

max 45° A H=2D D Fig. 10

5.7 Air intake

The Ecomonoblocco must have the correct quantity of combustion air to ensure correct combustion.

There must be an outside air intake to guarantee the flow of combustion air to the appliance and/or recirculation of the ambient air.

The air intake must be correctly sized and protected by an insect-proof grate; it must also be positioned in such a way as not to be accidentally obstructed.

In accordance with local regulations in force, there are two possible configurations for the combustion air intake:

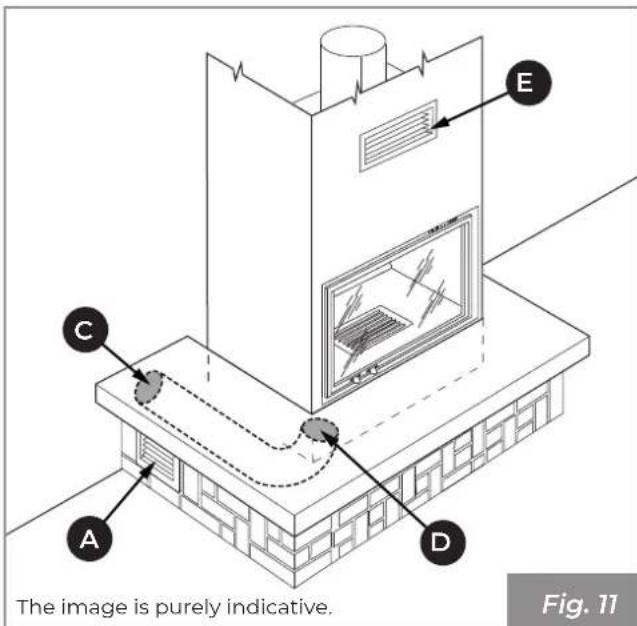

- (Fig. 11): external air intake (c) channelled to the fire box. Lower grate (A) supplied for the recirculation of ambient air on the lining;

E C A D The image is purely indicative. Fig. 11

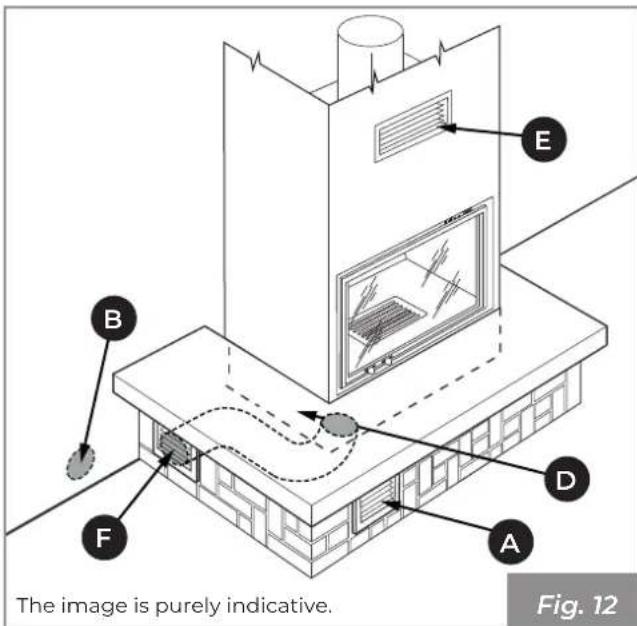

- (Fig. 12): air intake (F) on the lining, channelled to the fire box. Lower grate (A) supplied on the lining and wall hole (b) for the recirculation of ambient air.

E B F D A The image is purely indicative. Fig. 12

The Ecomonoblocco is equipped, on the right side, with a dedicated flange (D) with a diameter of 110 mm, for the inlet of combustion air.

The heat recovery grate (E) supplied with the product must be positioned on the top part of the lining.

In the case in the room where is located the fireplace there are one or more extraction fans operating (suction hoods) malfunctions to the combustion may occur caused by a shortage of combustion air.

5.8 Hood liner

For constructing of the hood liner it is recommended to use flame-retardant plasterboard.

Before creating the hood liner, the control unit must be installed.

During creation of the hood it is essential to protect the door sliding frame with nylon to prevent dust, mortar or other foreign bodies damaging the sliding system. Remove this protection when the work is completed.

Make suitable side openings for the inspection of parts.

Before carrying out the final assembly it will be advisable to carry out a smoke test, i.e. to test the operation of the appliance.

6 COMMISSIONING

After positioning the appliance it is necessary to perform the following operations:

6.1 Disassembly of the fire pit

1) Open the door (A) by pushing it upwards.

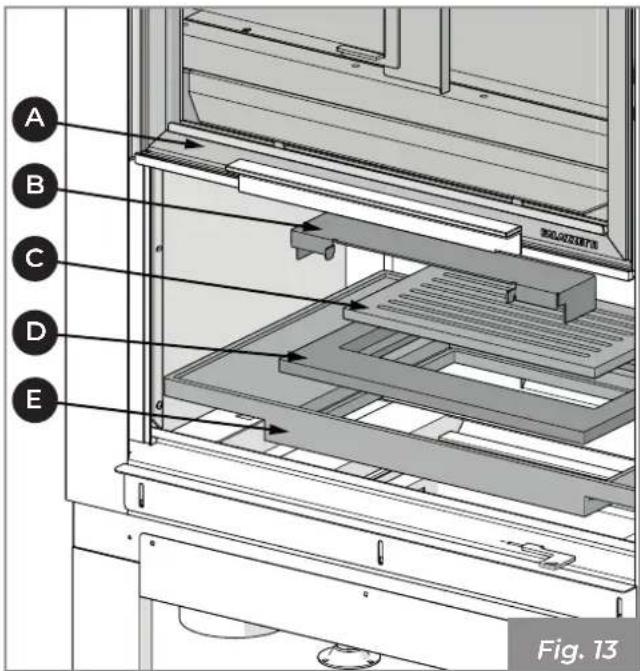

2) Lift and extract the combustion air deflector (B), the grate (C), the grate support (D) and the fire pit (E) (Fig. 13).

A B C D E Fig. 13

6.2 Upper deflectors assembly

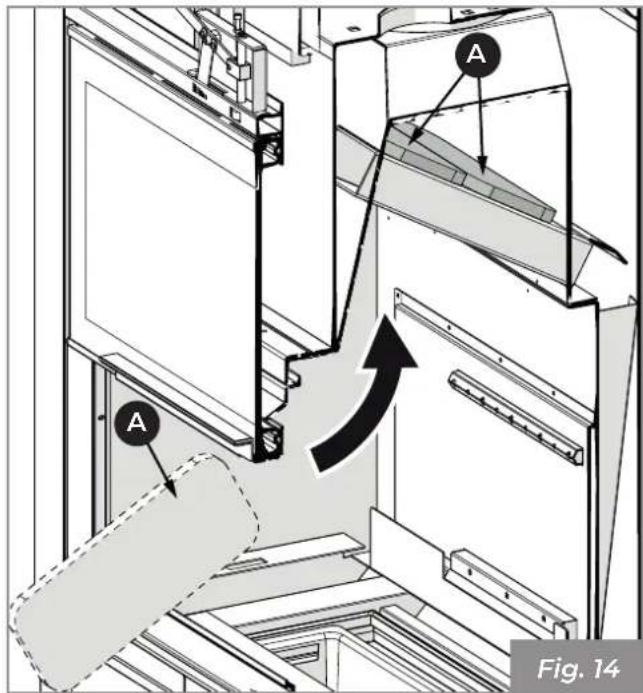

1) Position the two upper deflectors (A) (Fig. 14).

A A Fig. 14

6.3 Assembly of refractory bricks

6.3.1 MX 64 models

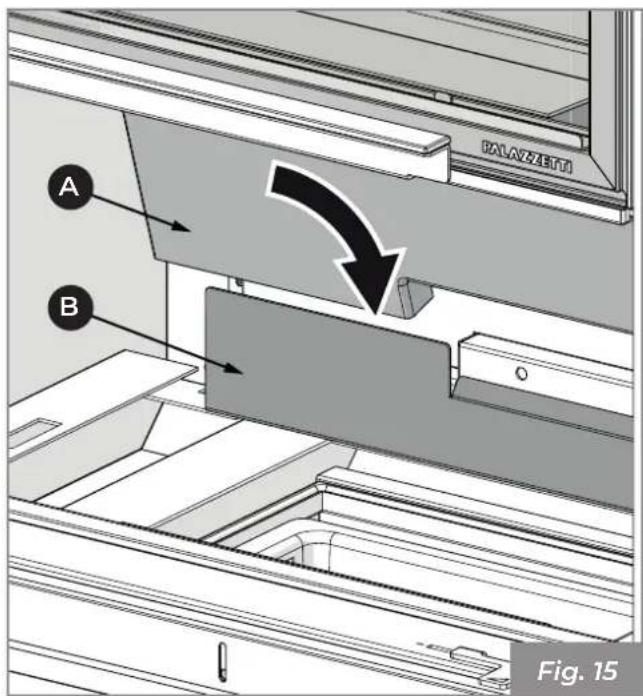

1) Place the refractory backrest (A) behind the bracket (B) and make sure that the post combustion outlet holes are centred with the slot on the panel (Fig. 15).

A B PALAZZETTI Fig. 15

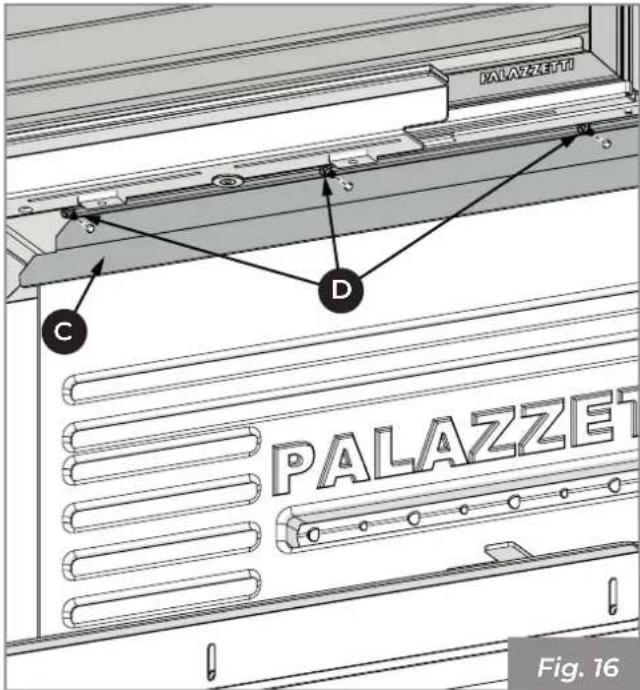

2) Block the refractory with the bracket (c) fixing it with the appropriate screws (D) (Fig. 16).

PALAZZET D C PALAZZET Fig. 16

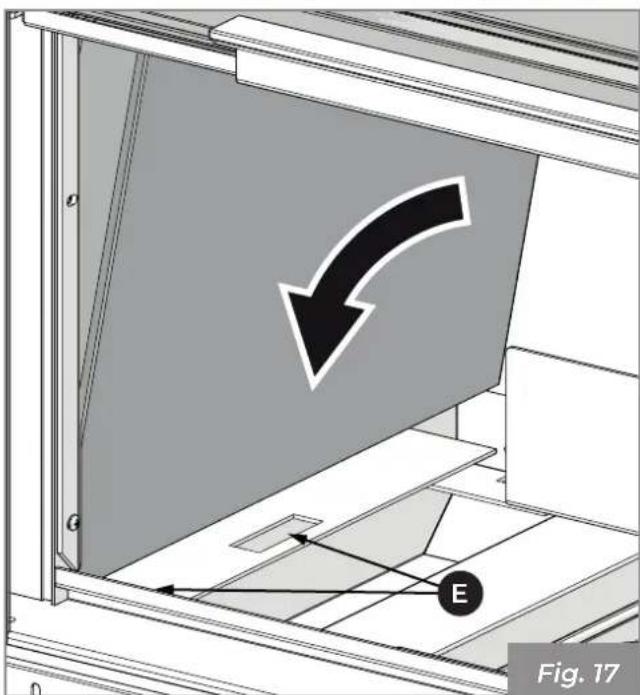

3) Position the side refractory being sure to insert it in the appropriate slots (E) (Fig. 17).

Fig. 17

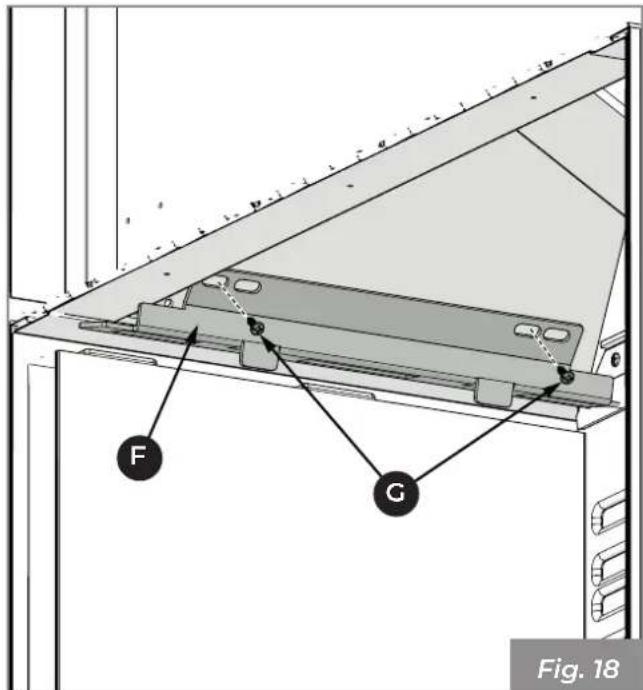

4) Block the refractory with the bracket (F) being sure to insert the slots in the relevant projections and secure it with the appropriate screws (G) (Fig. 18).

F G Fig. 18

5) Proceed in the same way on the opposite side (in the mX R and mX I models the dimensions of the refractory and the relative fixing bracket are reduced due to the presence of the side glass).
6) Reposition the fire pit, the grate support, the grate and the combustion air deflector, being sure not to damage the refractory panels.

6.3.2 MX 78 and MX 86 models

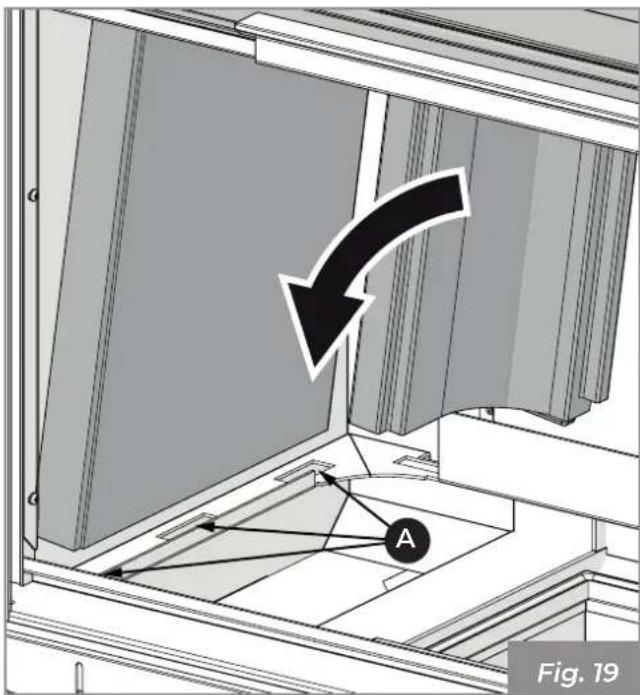

1) Position the lateral refractory and the elbow being sure to insert them in the appropriate slots (A) (Fig. 19).

Fig. 19

2) Block the refractory with the bracket (B) being sure to insert the slots in the relevant projections and secure it with the appropriate screws (C) (Fig. 20).

B C Fig. 20

3) Proceed in the same way on the opposite side (in the MX R and MX L models there are only the elbow and the upper bracket (B - Fig. 20) due to the presence of the side glass).

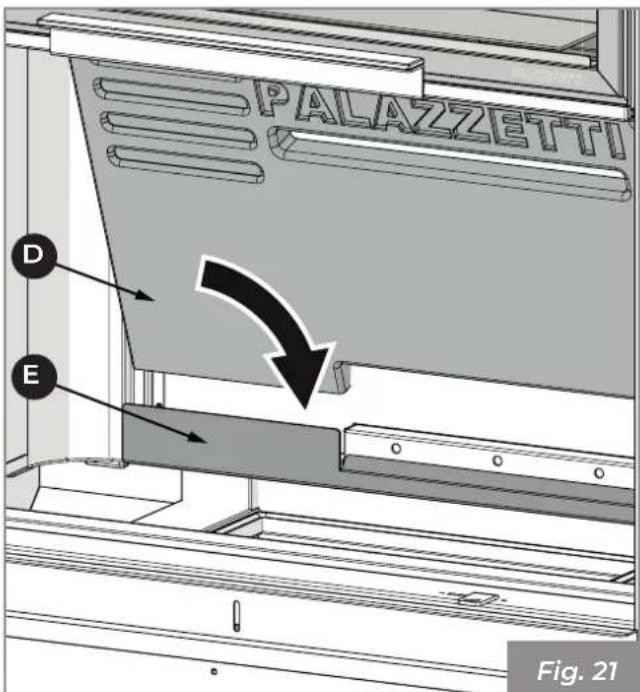

4) Place the refractory backrest (D) behind the bracket (E) and make sure that the post combustion outlet holes are centred with the slot on the panel (Fig. 21).

PALAZZETTI D E Fig. 21

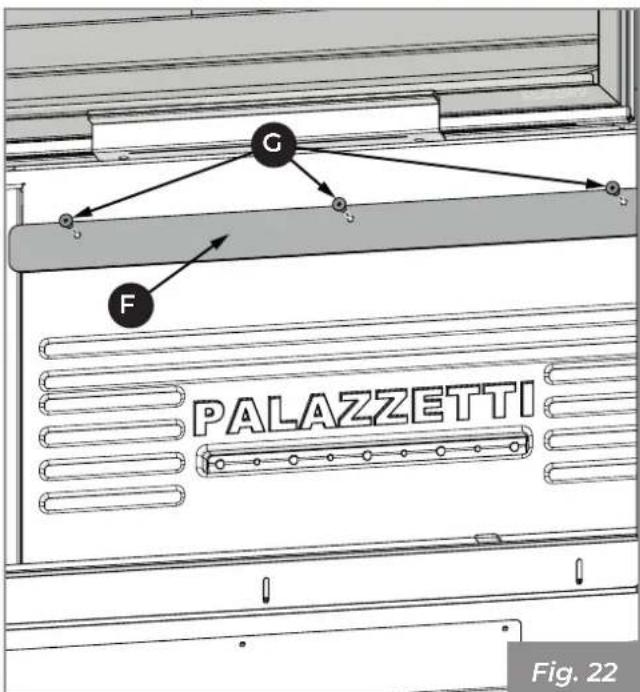

5) Block the refractory with the bracket (F) fixing it with the appropriate screws (G) (Fig. 22).

G F PALAZZETTI Fig. 22

6.4 Lower deflectors assembly

6.4.1 MX 78 models

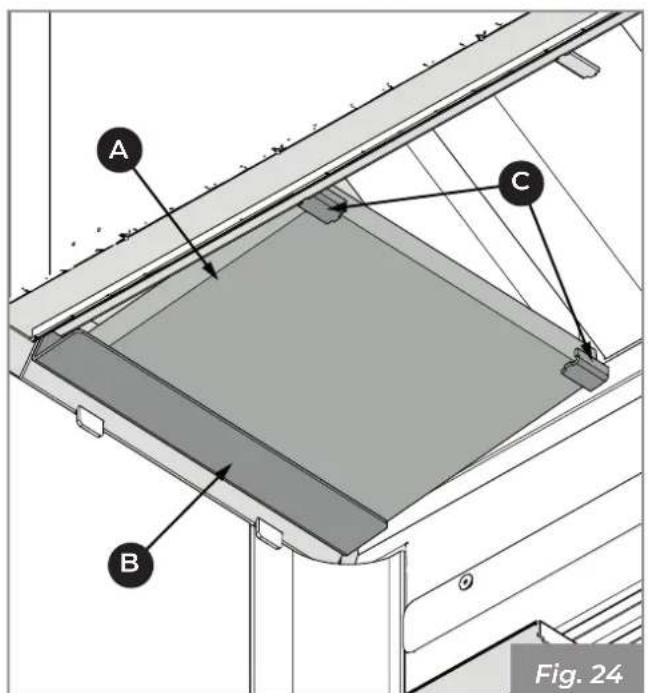

1) Position the lower deflector (A) (Fig. 23) resting it on the brackets (B and C) (Fig. 24).

A Fig. 23

The three circular holes in the grate support must be positioned as shown in Fig. 25.

Technical line drawing of a refrigerator interior showing storage compartments and ventilation grilles (no text or symbols)

6.4.2 MX 86 models

1) Position the bracket (A) fixing it with the appropriate screws (B) (Fig. 26).

A B C Fig. 24

2) Proceed in the same way on the opposite side.
3) Reposition the fire pit, the grate support, the grate and the combustion air deflector, being sure not to damage the refractory panels.

A B Fig. 26

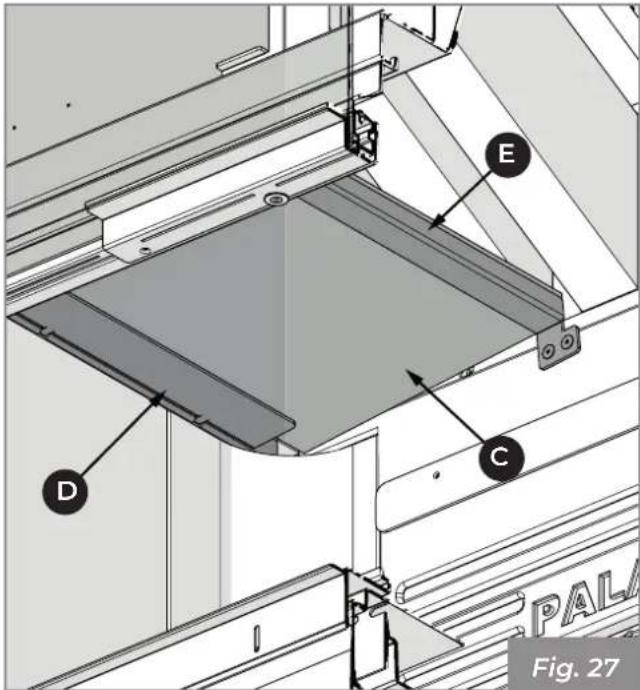

2) Insert the lower deflector (c) and position it resting it on the brackets (D and E) (Fig. 27).

E C D PAL Fig. 27

3) Proceed in the same way on the opposite side.
4) Reposition the fire pit, the grate support, the grate and the combustion air deflector, being sure not to damage the refractory panels.

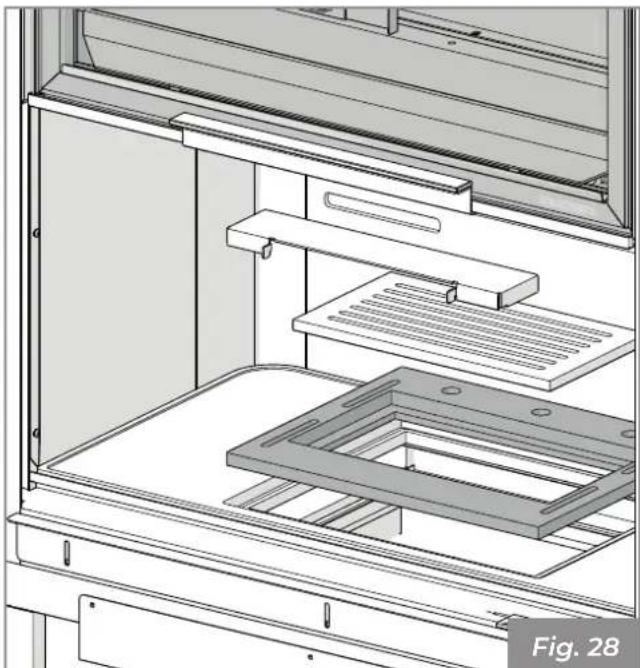

The three circular holes in the grate support must be positioned as shown in Fig. 28.

Technical line drawing of a refrigerator interior showing storage compartments and ventilation grilles (no text or symbols)

6.5 First lighting

Arrange for the installer to perform the "first lighting".

Before commissioning, remove the stickers and packaging inside the fire box and the external stickers applied to the glass.

The first lighting operation is a fundamental operation, used to test the product in full function, and to gradually evaporate the water used in the construction mixtures, which will make it resistant and long-lasting.

First lighting must be carried out with reduced loads (approximately 2 kg/h), keeping the appliance on for at least 4 hours at low speeds. Proceed with these feed rates for at least three days before using the appliance at its full capacity. This will allow for the evaporation of any moisture accumulated in the refractory elements when not used.

During first lighting of the product, unpleasant odours or fumes may be generated caused by the evaporation or drying of certain materials used and water may leak from the grout. This phenomenon will gradually disappear.

For this reason during the first lighting it is recommended to maintain the premises well airy.

7 Demolition and disposal

The responsibility for the demolition and disposal of the appliance is the exclusive responsibility of the owner who must act in compliance with the laws on safety, respect and protection of the environment, in force in the country where the fireplace is installed.

Decommissioning and disposal can be entrusted to a third party, provided to always use companies authorised for recovery and elimination of the materials in question.

Always follow the regulations in force in the Country where the appliance is working for the disposal of materials and possibly for the disposal notification.

All disassembly operations for demolition must take place with the appliance stopped and without the power supply.

- scrap the fireplace structure through authorised companies;

Abandoning the fireplace in accessible areas constitutes a serious danger for people and animals.

Any liability for damage to people and animals always falls on the owner. At the time of demolition, the CE marking, this manual and any other documents relating to this fireplace should be destroyed.

The crossed-out wheelie bin symbol that appears on the label of the appliance indicates that, at the end of its useful life, the product must be disposed of separately from other waste.

Pursuant to art.13 of Italian Legislative Decree no. 151 of 25 July 2005 implementing the Directive 2002/96/EC of 23 February 2003 on Waste Electrical and Electronic Equipment relating to the measures and procedures designed to prevent the production of waste electrical and electronic equipment, called WEEE, promoting the reuse, recycling and other forms of recovery so as to reduce the quantity to be disposed of and improving the intervention of the parties involved in the life cycle of such products.

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

InHAITSVERZEIcHnIS

1 ALLGEMEINES 39

1.1 Symbole 39

Technical line drawing of a mechanical assembly with mounting feet and a highlighted component (no text or symbols)

Technical illustration of a mechanical device with a hand operating a rotating component, showing internal components and motion arrows (no text or symbols)

10 mm A Abb. 3

A B Abb. 4

Technical line drawing of a refrigerator interior showing storage compartments and ventilation grilles (no text or symbols)

6.4.2 Modelle MX 86

Technical line drawing of a refrigerator interior showing storage compartments and structural supports (no text or symbols)

6.5 Erste Zündung

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

TABLE DE mATIÈRES

1 INTRODUCTION 56

3 MANUTENTION ET TRANSPORT 58

Technical line drawing of a mechanical assembly with mounting feet and a highlighted component (no text or symbols)

3 MANUTENTION ET TRANSPORT

2 AVERTISSEMENTS POUR LA SÉCURITÉ

Technical illustration of a mechanical device with a hand operating a tool, showing internal components and motion arrows (no text or symbols)

10 mm A Fig. 3

A B Fig. 4

4 PRÉPARATION DU LIEU D'INSTALLATION

Technical diagram of a mechanical component with labeled section A and arrow indicating direction (no text or symbols beyond labels)

Technical line drawing of a refrigerator interior showing storage compartments and ventilation grilles (no text or symbols)

6.4.2 Modèles MX 86

Technical line drawing of a refrigerator interior showing storage racks and doorways (no text or symbols)

6.5 Premier allumage

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

ÍnDlcE

1 PREMISA GENERAL 73

1.1 Simbología 73

Technical line drawing of a mechanical assembly with mounting feet and a highlighted component (no text or symbols)

Technical illustration of a mechanical device with a hand operating a tool, showing internal components and motion arrows (no text or symbols)

10 mm A Fig. 3

A B Fig. 4

Technical diagram of a structural component with labeled section A and arrow indicating direction (no text or symbols beyond labels)

Technical line drawing of a refrigerator interior showing storage compartments and ventilation grilles (no text or symbols)

6.4.2 Modelos MX 86

Technical line drawing of a refrigerator interior showing storage compartments and ventilation grilles (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

PALAZZETTI

IL CALORE CHE PIACE ALLA NATURA

Palazzetti Lelio s.p.a.

Via Roveredo, 103

cap 33080 - Porcia (PN) - ITALY

Internet: www.palazzetti.it

Palazzetti reserves the right to change its products at any time and without notice in order to improve them without compromising their essential characteristics.
