USER MANUAL VT-60006 V-TAC

WEEE Number: 80133970

INSTRUCTION MANUAL

LED BACKLIT SURFACE MOUNTED PANEL

V-TAC VT-60006 - INSTRUCTION MANUAL - 1

natural_image Circular object with a smooth, gradient surface, resembling a lid or cover (no text or symbols visible)

V-TAC VT-60006 - INSTRUCTION MANUAL - 2

natural_image White rectangular electronic device with a flat top and small indicator lights at the bottom (no visible text or symbols)

V-TAC VT-60006 - INSTRUCTION MANUAL - 3
WARRANTY*

V-TAC VT-60006 - INSTRUCTION MANUAL - 4

PRO SERIES
V-TAC VT-60006 - INSTRUCTION MANUAL - 5

TECHNICAL DATA

MODELSKKUWATTSLUMENIAPPEBEAM ANGLEIP RATINGCRIBODY TYPETOTAL CURRENTINPUT VOLTAGELIFE SPANON/OFF CYCLEDIMENSION (LxWxH)
VT-60006104921,10493110494178701,7871178721ROUND6W660LmSphere 360°>80PLASTICP2G6mAAC:220-24050/60Hz20000H>15000 121.2x30.6mm
SQUARE120.8x120.8x30.7mm
VT-60012104951, 10496110497178731, 7874178751ROUND12W1200LmSphere 360°IP20>80PLASTIC71mAAC:220-24050/60Hz20000H >15000 167.4x30.7mm
SQUARE167.3x167.3x30.7mm
VT-60018104981,10499110500178761,7877178781ROUND18W1850LmSphere 360°IP20>80PLASTIC103mAAC:220-24050/60Hz20000H >15000 215.6x30.8mm
SQUARE1980Lm214x214x31mm
VT-60024105141,10516123023178791,7880178811ROUND24W2500LmSphere 360°IP20>80PLASTIC160mAAC:220-24050/60Hz20000H>15000 288.6x31.2mm
SQUARE2640Lm285x285x30.7mm

'This product contains a light source of energy efficiency class ', where shall be replaced by the energy efficiency class of the contained light source.

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

WARNING

  • Please make sure to turn off the power before starting the installation.
    • Installation must be performed by a certified person.
  • If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
  • Method of attachment of the cable or cord such that any replacement can only be made by the manufacturer, his service agent or similar qualified person.
  • For Indoor use only.

V-TAC VT-60006 - WARNING - 1

text_image QR code image containing encoded data, no visible human-readable text

MULTI-LANGUAGE MANUAL QR CODE
Please scan the QR code to access the manual in multiple languages.

V-TAC VT-60006 - WARNING - 2

This marking indicates that this product should not be disposed of with other household wastes.

V-TAC VT-60006 - WARNING - 3

Caution, risk of electric shock.

V-TAC VT-60006 - WARNING - 4

Replaceable (LED only) light source by a professional

V-TAC VT-60006 - WARNING - 5

Do not look directly at LED light beam. Product can only be supplied by rated voltage or voltage within the range provided. It's forbidden to use the product with damaged protective cover. Product must not be used in unfavorable conditions, e.g. dust, water, moisture, vibrations, explosive air atmosphere, fumes, or chemical fumes, etc. In the area of strong electromagnetic interference, the functioning of the product may be disrupted.

Any maintenance work must be performed when the power supply is cut off and the product has cooled down. Clean only with soft and dry cloths. Do not use chemical detergents. Do not cover the product. Ensure free air access. Product may heat up to a higher temperature.

MOUNTING

Read the manual before mounting. Mounting should be performed by a qualified electrician. Exercise caution. Product has a protective contact /terminal. Failure to connect the protective lead may lead to

electric shock. Mounting diagram: see pictures. Check for proper mechanical fastening and connection to electrical power prior to first use.

V-TAC VT-60006 - MOUNTING - 1

text_image WIRING DIAGRAM BROWN -L - BLUE -N -

SURFACE PANEL INSTALLATION DIAGRAM

V-TAC VT-60006 - SURFACE PANEL INSTALLATION DIAGRAM - 11.Switch OFF the power before starting the installationV-TAC VT-60006 - SURFACE PANEL INSTALLATION DIAGRAM - 22.Confirm the installation position of the bracketV-TAC VT-60006 - SURFACE PANEL INSTALLATION DIAGRAM - 33.Drill a hole.
V-TAC VT-60006 - SURFACE PANEL INSTALLATION DIAGRAM - 44.Plug in expansion bolt.V-TAC VT-60006 - SURFACE PANEL INSTALLATION DIAGRAM - 55.Fix the bracket ( Included) on the ceiling with screws.V-TAC VT-60006 - SURFACE PANEL INSTALLATION DIAGRAM - 66.Connect the wiring as per wiring diagram
V-TAC VT-60006 - SURFACE PANEL INSTALLATION DIAGRAM - 77.Fix the panel onto the bracketV-TAC VT-60006 - SURFACE PANEL INSTALLATION DIAGRAM - 88.Fix the light and bracket with screws.V-TAC VT-60006 - SURFACE PANEL INSTALLATION DIAGRAM - 99.Switch ON the power and test the light.

DISASSEMBLY DIAGRAM

(For Market surveillance team only)

V-TAC VT-60006 - DISASSEMBLY DIAGRAM - 1

natural_image Simple line drawing of a hand holding a tool inside a circular frame (no text or symbols)

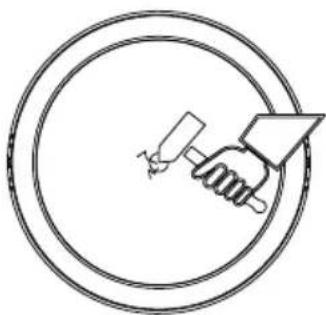

  1. Power off, tap the central area of the diffusion plate with a pointed tool, and take out the cracked diffusion plate

V-TAC VT-60006 - DISASSEMBLY DIAGRAM - 2


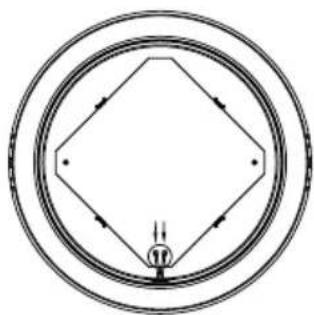

  1. Remove the power wire from the plug terminal

V-TAC VT-60006 - DISASSEMBLY DIAGRAM - 3


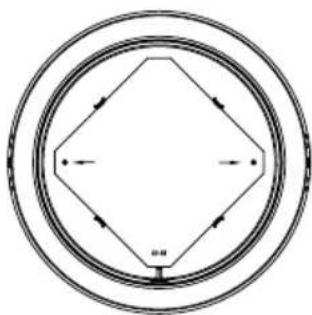

  1. If there is no hot melt column in the lamp body or the hot melt column is not hot melt, this step will be adjusted without treatment. If the hot-melt column has been fused to fix the aluminum substrate, cut the hot-melt part of the hot-melt point with diagonal pliers.

V-TAC VT-60006 - DISASSEMBLY DIAGRAM - 4

natural_image Pure electrical circuit lines without any symbols

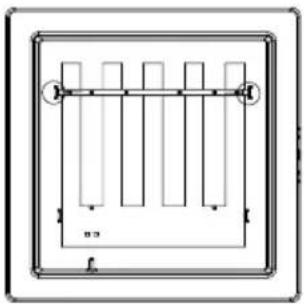

  1. Press the buckle outwards, remove the aluminum substrate pressing strip from the bayonet, and remove the pressing strip. This step is only required for 24W panel light, other items are not required.

V-TAC VT-60006 - DISASSEMBLY DIAGRAM - 5

natural_image Pure geometric diagram with concentric circles and a central diamond shape, no text or symbols present.

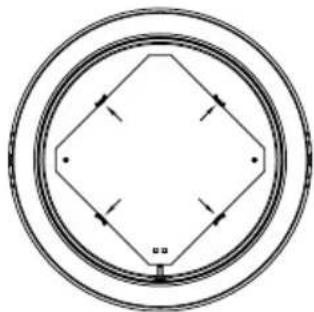

  1. Press the buckle outwards, remove the aluminum substrate from the buckle, and remove the light source board.

V-TAC VT-60006 - DISASSEMBLY DIAGRAM - 6

natural_image Pure geometric diagram of a diamond shape with a small tassel at the bottom (no text or symbols)
  1. Take out two-cord cable (wire diameter 18-22AWG) and insert it into the plug-in terminal. Connect the external power supply for testing.

Note: Light source removal will void the warranty

RoHS

V-TAC VT-60006 - DISASSEMBLY DIAGRAM - 7

V-TAC VT-60006 - DISASSEMBLY DIAGRAM - 8

V-TAC VT-60006 - DISASSEMBLY DIAGRAM - 9

V-TAC VT-60006 - DISASSEMBLY DIAGRAM - 10

V-TAC VT-60006 - DISASSEMBLY DIAGRAM - 11

V-TAC VT-60006 - DISASSEMBLY DIAGRAM - 12

V-TAC VT-60006 - DISASSEMBLY DIAGRAM - 13

IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU FOR MORE PRODUCTS RANGE, INQUIRY PLEASE CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B

WEEE Number: 80133970

РЪКОВОДСТВО ЗА УПОТРЕБА

natural_image Circular object with a smooth, gradient surface, possibly a lid or cover (no text or symbols visible)

V-TAC VT-60006 - РЪКОВОДСТВО ЗА УПОТРЕБА - 1

natural_image White rectangular electronic device with a flat top and small indicator lights at the bottom (no visible text or symbols)

V-TAC VT-60006 - РЪКОВОДСТВО ЗА УПОТРЕБА - 2
WARRANTY

V-TAC VT-60006 - РЪКОВОДСТВО ЗА УПОТРЕБА - 3

V-TAC VT-60006 - РЪКОВОДСТВО ЗА УПОТРЕБА - 4

V-TAC VT-60006 - РЪКОВОДСТВО ЗА УПОТРЕБА - 5

ТЕХНИЧЕСКИ ДАННИ

МОДЕЛSKUSHAPEWATTSLUMENSТЫЛ НА ЛЪЧАР РЕЙТИНГCRIТИП НА ТЯЛОТООБЩО БЪЛГАРСКОВХОДНО НАПРОЖЕНИЕПРОДЬ ЛЖИТЕЛ НОСТ НА ШИРОТЦИКЪЛ НА ВКЛЮЧВАНЕ /ИЗКЛЮЧВАРАЗМЕРИ (LxWxH)
VT-60006104921,10493110494178701,7871178721КРЪГ6W660LmСфера 360°IP20>80PLASTIC36mAAC: 220-24050/60Hz20000H>15000 121.2x30.6mm
КВАДРАТ120,8x120,8x30,7 mm
VT-60012104951, 10496110497178731, 7874178751КРЪГ12W1200LmСфера 360°IP20>80PLASTIC71mAAC: 220-24050/60Hz20000H>15000 167.4x30.7mm
КВАДРАТ167,3x167,3x30,7 mm
VT-60018104981,10499110500178761,7877178781КРЪГ18W1850LmСфера 360°IP20>80PLASTIC103mAAC: 220-24050/60Hz20000H>15000 215.6x30.8mm
КВАДРАТ1980Lm214x224x31mm
VT-60024105141,10516123023178791,7880178811КРЪГ24W2500LmСфера 360°IP20>80PLASTIC160mAAC: 220-24050/60Hz20000H>15000 288.6x31.2mm
КВАДРАТ2640Lm285x285x30,7 mm
natural_image Simple line drawing of a ring with a small object inside, no text or symbols present.
natural_image Pure electrical circuit lines without any symbols
natural_image Pure geometric diagram of a diamond shape with a vertical bar at the bottom (no text or symbols)
natural_image Circular object with a smooth, gradient gray surface, resembling a lid or cover (no text or symbols visible)

V-TAC VT-60006 - РЪКОВОДСТВО ЗА УПОТРЕБА - 6

natural_image White rectangular electronic device with two ports at the bottom (no visible text or symbols)

V-TAC VT-60006 - РЪКОВОДСТВО ЗА УПОТРЕБА - 7
WARRANTY*

V-TAC VT-60006 - РЪКОВОДСТВО ЗА УПОТРЕБА - 8

PRO SERIES
V-TAC VT-60006 - РЪКОВОДСТВО ЗА УПОТРЕБА - 9

TEHNIČKI PODACI

MODELSKUOBLIKWATTILUMENIKut svjetlosnog snopaIP OCJENACRITip tijelaUlazna strujaUlazni naponŽivotni vijekCiklus uključivanja/ isključivanjaDimenzija (DxŠxV)
VT-60006104921,104931 104941 78701,78711 78721Krug6W660LmSfera 360°IP20>80plastični36mAAC:220-240 50/60Hz20000H>15000 121.2x30.6mm
Kvadrat120.8x120.8x30.7mm
VT-60012104951,104961 104971 78731,78741 78751Krug12W1200LmSfera 360°IP20>80plastični71mAAC:220-240 50/60Hz20000H>15000 167.4x30.7mm
Kvadrat167.3x167.3x30.7mm
VT-60018104981,104991 105001 78761,78771 78781Krug18W1850LmSfera 360°IP20>80plastični103mAAC:220-240 50/60Hz20000H>15000 215.6x30.8mm
Kvadrat1980Lm214x214x31mm
VT-60024105141,105161 230231 78791,78801 78811Krug24W2500LmSfera 360°IP20>80plastični160mAAC:220-240 50/60Hz20000H>15000 288.6x31.2mm
Kvadrat2640Lm285x285x30.7mm
natural_image Simple line drawing of a hand holding a tool near a vertical line (no text or symbols)
natural_image Simple line drawing of a hammer and fulcrum against a vertical line, with no text or symbols present.

V-TAC VT-60006 - РЪКОВОДСТВО ЗА УПОТРЕБА - 10

natural_image Technical line drawing of a ceiling fixture with a circular component and a magnified inset showing internal components (no text or symbols)

V-TAC VT-60006 - РЪКОВОДСТВО ЗА УПОТРЕБА - 11

natural_image Pure electrical circuit lines without any symbols
natural_image Pure mechanical diagram showing a beam supported by two supports with downward force arrows, no text or symbols present.
natural_image Diagram of a circular container with internal compartments and directional arrows, no text or symbols present
  1. Pričvrstite ploču na nosač.

V-TAC VT-60006 - РЪКОВОДСТВО ЗА УПОТРЕБА - 12

natural_image Pure diagram of a cylindrical object with directional arrows, no text or symbols present
  1. Pričvrstite svjetlo i nosač vijcima.

V-TAC VT-60006 - РЪКОВОДСТВО ЗА УПОТРЕБА - 13

text_image 9. Uključite napajanje

DIJAGRAM RASTAVLJANJA

(Samo za tim za nadzor tržišta)

V-TAC VT-60006 - DIJAGRAM RASTAVLJANJA - 1

natural_image Simple line drawing of a hand holding a tool inside a circular frame (no text or symbols)
natural_image Pure electrical circuit lines without any symbols
  1. Pritisnite kopču prema van, uklonite traku za pritiskanje aluminijske podloge s bajuneta i uklonite traku za pritiskanje. Ovaj korak je potreban samo za rasvjetnu ploču od 24 W. ostale stavke nisu potrebne.

V-TAC VT-60006 - DIJAGRAM RASTAVLJANJA - 2

natural_image Pure geometric diagram with concentric circles and a central diamond shape, no text or symbols present
  1. Pritisnite kopču prema van, uklonite aluminijsku podlogu s kopče i uklonite ploču izvora svjetla.

V-TAC VT-60006 - DIJAGRAM RASTAVLJANJA - 3

natural_image Pure geometric diagram of a diamond shape with a small tassel at the bottom (no text or symbols)
  1. Izvadite dvožilni kabel (promjer žice 18-22AWG) i umetnite ga u utičnicu. Spojite vanjsko napajanje za testiranje.

PANEL S LED PODSVÍCENÍM PRO POVRCHOVOU MONTÁŽ

V-TAC VT-60006 - PANEL S LED PODSVÍCENÍM PRO POVRCHOVOU MONTÁŽ - 1

natural_image Circular object with a smooth, gradient gray surface, resembling a lid or cover (no text or symbols visible)

V-TAC VT-60006 - PANEL S LED PODSVÍCENÍM PRO POVRCHOVOU MONTÁŽ - 2

natural_image White rectangular electronic device with a small indicator light at the bottom (no visible text or symbols)

05 YEAR

WARRANTY

V-TAC VT-60006 - PANEL S LED PODSVÍCENÍM PRO POVRCHOVOU MONTÁŽ - 3

V-TAC VT-60006 - PANEL S LED PODSVÍCENÍM PRO POVRCHOVOU MONTÁŽ - 4

V-TAC VT-60006 - PANEL S LED PODSVÍCENÍM PRO POVRCHOVOU MONTÁŽ - 5

TECHNICKÉ ÚDAJE

MODELSKUSHAPEWATTSLUMENSÚHEL PAPRS KUIP RATINGCRITYP TĚLACELKE M BĚŽ NÝVSTUP NÍ NAPĚTÍDÉLK A ŽIVOTCYKLUS ZAPNUT /VYPNUTROZMĚRY (DxŠxV)
VT-60006104921,10493110494178701,7871178721ROUND6W660LmSféra 360°IP20>80PLASTO VÉ36mAStřídavý proud: 220-240 50/60Hz20000H>15000 121,2x30,6 mm
SQUARE120,8x120,8x30,7 mm
VT-60012104951, 10496110497178731, 7874178751ROUND12W1200LmSféra 360°IP20>80PLASTO VÉ71mAStřídavý proud: 220-240 50/60Hz20000H>15000 167,4x30,7 mm
SQUARE167,3x167,3x30,7 mm
VT-60018104981,10499110500178761,7877178781ROUND18W1850LmSféra 360°IP20>80PLASTO VÉ103mAStřídavý proud: 220-240 50/60Hz20000H>15000 215,6x30,8 mm
SQUARE1980Lm214x214x31mm
VT-60024105141,10516123023178791,7880178811ROUND24W2500LmSféra 360°IP20>80PLASTO VÉ160 mAStřídavý proud: 220-240 50/60Hz20000H>15000 288,6x31,2 mm
SQUARE2640Lm285x285x30,7 mm
natural_image Simple line drawing of a hand holding a tool inside a circular frame (no text or symbols)
natural_image Pure electrical circuit lines without any symbols
natural_image Pure geometric diagram of a diamond shape with a vertical bar at the bottom (no text or symbols)

MANUEL D'INSTRUCTIONS

PANNEAU DE SURFACE RÉTRO-ÉCLAIRÉ PAR LED

V-TAC VT-60006 - MANUEL D'INSTRUCTIONS - 1

natural_image Circular object with a smooth, gradient surface, possibly a lid or cover (no text or symbols visible)

V-TAC VT-60006 - MANUEL D'INSTRUCTIONS - 2

natural_image White rectangular electronic device with a flat top and small indicator lights at the bottom (no visible text or symbols)

V-TAC VT-60006 - MANUEL D'INSTRUCTIONS - 3
WARRANTY

V-TAC VT-60006 - MANUEL D'INSTRUCTIONS - 4

V-TAC VT-60006 - MANUEL D'INSTRUCTIONS - 5

V-TAC VT-60006 - MANUEL D'INSTRUCTIONS - 6

DONNÉES TECHNIQUES

MODELESKUFORMEWATTSLUMENSANGLE DU FAISCEAUNOTE PCRITYPE DE CORPSTOTAL COURANTTENSION D'ENTRÉEDURÉE DE VIECYCLE MARCHE/ARRÊTDIMENSIONS (LxLxH)
VT-60006104921,10493110494178701,7871178721ROND6W660LmSphère 360IP20>80PLASTIQUE36mAAC:220-24050/60Hz20000H>15000 121.2x30.6mm
CARRE120.8x120.8x30.7mm
VT-60012104951,10496110497178731,7874178751ROND12W1200LmSphère 360IP20>80PLASTIQUE71mAAC:220-24050/60Hz20000H>15000 167.4x30.7mm
CARRE167.3x167.3x30.7mm
VT-60018104961,10499110500178761,7877178781ROND18W1850LmSphère 360IP20>80PLASTIQUE103mAAC:220-24050/60Hz20000H>15000 215.6x30.8mm
CARRE1980Lm214x214x31mm
VT-60024105141,10516123023178791,7880178811ROND24W2500LmSphère 360IP20>80PLASTIQUE160mAAC:220-24050/60Hz20000H>15000 288.6x31.2mm
CARRE2640Lm285x285x30.7mm

INTRODUCTION ET GARANTIE
text_image Diagram showing a switch with labeled 'OFF' and directional arrows, likely illustrating a logic or control mechanism.
natural_image Simple line drawing of a hand holding a tool above a vertical axis (no text or symbols)
natural_image Simple line drawing of a hammer and sickle on a surface with two X marks (no text or symbols)
  1. percer un

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 1

natural_image Pure technical diagram showing a structural beam with supports and a hatched top section, no text or symbols present.
  1. insérer le boulon

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 2

natural_image Pure diagram of a mechanical or structural assembly with no text, numbers, or symbols
natural_image Simple line drawing of a ceiling structure with a circular component underneath (no text or symbols)
natural_image Pure diagram of an oval-shaped object with internal lines and arrows, no text or symbols present
natural_image Simple line drawing of a cylindrical object with a small protrusion, no text or symbols present
natural_image Simple line drawing of a ring with a small object inside, no text or symbols present.
natural_image Pure electrical circuit lines without any symbols
natural_image Simple line drawing of a diamond-shaped frame with a vertical bar at the bottom (no text or symbols)
natural_image Circular object with a smooth, gradient surface, resembling a washer or cover (no text or symbols visible)

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 3

natural_image White rectangular electronic device with a flat top and small indicator lights at the bottom (no visible text or symbols)

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 4
WARRANTY

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 5

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 6

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 7

TECHNISCHE DATEN

MODELLSKUSHAPEWATTSLUMENSSTRAHL ENWINKE LIP RATINGCRIKÖRPE R-TYPGESAMT AKTUELLEINGANGS SPANNUNGLEBEN SDAUEREIN/AUS-ZYKLUSABMESSUNG (LxBxH)
VT-60006104921,10493110494178701,7871178721RUND6W660LmSphäre 360°IP20>80KUNSTSTO FF36mAAC:220-24050/60Hz20000H>15000 121.2× 30.6mm
SQUARE120.8x120.8x30.7mm
VT-60012104951,10496110497178731,7874178751RUND12W1200LmSphäre 360°IP20>80KUNSTSTO FF71mAAC:220-24050/60Hz20000H>15000 167.4× 30.7mm
SQUARE167.3x167.3x30.7mm
VT-60018104961,10499110500178761,7877178781RUND18W1850LmSphäre 360°IP20>80KUNSTSTO FF103mAAC:220-24050/60Hz20000H>15000 215.6× 30.8mm
SQUARE1980Lm214x224x31mm
VT-60024105161,10516123023178791,7880178811RUND24W2500LmSphäre 360°IP20>80KUNSTSTO FF160mAAC:220-24050/60Hz20000H>15000 288.6× 31.2mm
SQUARE2640Lm285x285x30,7 mm
text_image Diagram showing a grid connection with labeled 'OFF' and directional arrows, possibly indicating a control or operation.
natural_image Simple line drawing of a hand holding a tool near a vertical line (no text or symbols)
natural_image Simple line drawing of a hammer and fulcrum against a vertical axis, with no text or symbols present.
  1. ein Loch

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 8

natural_image Pure technical diagram of a structural beam with supports and hatched areas, no text or symbols present
  1. den Spreizbolzen

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 9

natural_image Pure mechanical diagram showing a beam supported by two vertical supports with downward force arrows, no text or symbols present.
natural_image Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols
text_image Diagram showing a cross-section of an oval with labeled dimensions and directional arrows, likely illustrating a physical or engineering concept.
natural_image Simple line drawing of a ring with a small object inside, no text or symbols present
natural_image Pure electrical circuit lines without any symbols
natural_image Simple geometric diagram of a diamond shape with a vertical bar at the bottom (no text or symbols)
natural_image Circular object with a smooth, gradient surface, possibly a lid or cover (no text or symbols visible)

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 10

natural_image White rectangular electronic device with a flat top and small indicator lights at the bottom (no visible text or symbols)

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 11

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 12

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 13

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 14

TEXNIKA ΣΤΟΙΧΕΙΑ

MONTELOSKUSHAPEWATTSLUMENSΓΟΝΑ ΔΕΣΜΗΣΒΑΘΜ ΟΛΟΥΑ IPCRIΤΥΠΟΣ ΣΩΜΑΤΟ ΣΣΥΝΟΛΟ ΤΡΕΧΟΥΣΑΤΑΣΗ ΕΙΣΟΔΟΥΔΙΑΡΚΕ Α ΖΩΗΣΚΥΚΛΟΣ ΕΝΕΡΓΟΠΟΙΗ ΣΗΣ/ΑΠΕΝΕΡΔΙΑΣΤΑΣΕΙΣ (LxWxH)
VT-60006104921,10493110454178701,7871178721ΣΤΡΟΓΥΛΟ Σ6W660LmΣφαίρα 360°IP20>80ΠΛΑΣΤΙΚΟ36mAAC: 220-240 50/60Hz20000H>15000 121.2x30.6mm
SQUARE120.8x120.8x30.7mm
VT-60012104951, 10496110497178731, 7874178751ΣΤΡΟΓΥΛΟΣ12W1200LmΣφαίρα 360°IP20>80ΠΛΑΣΤΙΚΟ71mAAC: 220-240 50/60Hz20000H>15000 167.4x30.7mm
SQUARE167.3x167.3x30.7mm
VT-60018104961,10499110500178761,7877178781ΣΤΡΟΓΥΛΟΣ18W1850LmΣφαίρα 360°IP20>80ΠΛΑΣΤΙΚΟ103mAAC: 220-240 50/60Hz20000H>15000 215.6x30.8mm
SQUARE1980Lm214x224x31mm
VT-60024105141,10516123023178791,7880178811ΣΤΡΟΓΥΛΟΣ24W2500LmΣφαίρα 360°IP20>80ΠΛΑΣΤΙΚΟ160mAAC: 220-240 50/60Hz20000H>15000 288.6x31.2mm
SQUARE2640Lm285x285x30.7mm
natural_image Simple line drawing of a ring with a small object inside, no text or symbols present.
natural_image Pure electrical circuit lines without any symbols
natural_image Pure geometric diagram of a diamond shape with a vertical bar at the bottom (no text or symbols)
natural_image Circular object with a smooth, gradient surface, possibly a lid or cover (no text or symbols visible)

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 15

natural_image White rectangular electronic device with a flat top and small indicator lights at the bottom (no visible text or symbols)

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 16
WARRANTY

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 17

PRO SERIES
V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 18

TECHNIKAI ADATOK

MODELLSKUSHAPEWATTSLUMENSSUGÁ R SZÖGEIP RATINGCRITEST TÍPU SÖ SSZES ÁRAMBEMEN ETI FESZÜLT SÉGÉLET SZAK ASZBE/KIKA PCSOLÁ SI CIKLUSMÉRET (LxSxBxH)
VT-60006104921,104931 104941 78701,78711 78721KÖRKÉP6W660LmGömb 360°IP20>80PLASTIC36mAAC: 220-240 50/60Hz20000H>15000 121.2 × 30.6mm
SQUARE120.8x120.8x30.7mm
VT-60012104951, 104961 104971 78731, 78741 78751KÖRKÉP12W1200LmGömb 360°IP20>80MŰANY AG71mAAC: 220-240 50/60Hz20000H>15000 167.4 × 30.7mm
SQUARE167.3x167.3x30.7mm
VT-60018104981,104991 105001 78761,78771 78781KÖRKÉP18W1850LmGömb 360°IP20>80PLASTIC103mAAC: 220-240 50/60Hz20000H>15000 215.6 × 30.8mm
SQUARE1980Lm214x214x31mm
VT-60024105141,105161 230231 78791,78801 78811KÖRKÉP24W2500LmGömb 360°IP20>80PLASTIC160mAAC: 220-240 50/60Hz20000H>15000 288.6 × 31.2mm
SQUARE2640Lm285x285x30.7mm
natural_image Simple line drawing of a hand holding a tool inside a circular frame (no text or symbols)
natural_image Pure electrical circuit lines without any symbols
natural_image Pure geometric diagram of a diamond-shaped frame with a vertical bar at the bottom (no text or symbols)
natural_image Circular object with a smooth, gradient gray surface (no text or symbols visible)

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 19

natural_image White rectangular electronic device with a flat top and small side ports (no visible text or symbols)

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 20

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 21

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 22

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 23

DATI TECNICI

MODELLOSKUFORMAWATTSLUMENSANGOL O DEL RAGGIOVALU TAZIONE IPCRITIPO DI CORPOTOTALE CORRENTETENSIONE D'INGRESSODURA TA DELLA VITACICLO ON/OFFDIMENSIONE (LxLxH)
VT-60006104921,10493110494178701,7871178721TONDO6W660LmSfera a 360°IP20>80PLASTICA36mACA: 220-24050/60Hz20000H>15000 121,2x30,6 mm
PIAZZA120,8x120,8x30,7 mm
VT-60012104951,10496110497178731,7874178751TONDO12W1200LmSfera a 360°IP20>80PLASTICA71mACA: 220-24050/60Hz20000H>15000 167,4x30,7 mm
PIAZZA167,3x167,3x30,7 mm
VT-60018104981,10499110500178761,7877178781TONDO18W1850LmSfera a 360°IP20>80PLASTICA103mACA: 220-24050/60Hz20000H>15000 215,6x30,8 mm
PIAZZA1980Lm214x214x31 mm
VT-60024105141,10516123025178791,7880178811TONDO24W2500LmSfera a 360°IP20>80PLASTICA160mACA: 220-24050/60Hz20000H>15000 288,6x31,2 mm
PIAZZA2640Lm285x285x30,7 mm
natural_image Simple line drawing of a circular ring with a hand holding a small object, no text or symbols present.
natural_image Pure electrical circuit lines without any symbols
natural_image Simple line drawing of a diamond-shaped frame with a vertical bar at the bottom (no text or symbols)
natural_image Circular object with a smooth, gradient surface, resembling a washer or cover (no text or symbols visible)

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 24

natural_image White rectangular electronic device with a flat top and small base (no visible text or symbols)

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 25

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 26
WARRANTY

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 27

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 28

V-TAC VT-60006 - INTRODUCTION ET GARANTIE - 29

DANE TECHNICZNE

MODELSKUKSZTAŁTWATTSLUMENYKĄT WIAZKIIP RATINGCRITYP NADW OZIABIEŻACE OGÓLEMNAPIĘCIE WEJŚCIOW EROZPIĘTOŚĆ ŻYCIACYKL WŁĄCZANI A/WYŁĄCZ ANIAWYMIARY (dl. x szer. x wys.)
VT-60006104921,10493110494178701,7871178721RUNDA6W660 lmSfera 360IP20>80PLASTIK36mAAC:220-24050/60Hz20000H>15000 121,2 × 30,6 mm
KWADRAT120,8x120,8x30,7 mm
VT-60012104951, 10496110497178731, 7874178751RUNDA12W1200 lmSfera 360IP20>80PLASTIK71mAAC:220-24050/60Hz20000H>15000 167,4 × 30,7 mm
KWADRAT167,3x167,3x30,7 mm
VT-60018104981,10499110500178761,7877178781RUNDA18W1850LmSfera 360IP20>80PLASTIK103mAAC:220-24050/60Hz20000H>15000 215,6 × 30,8 mm
KWADRAT1980Lm214x214x31mm
VT-60024105141,10516123023178791,7880178811RUNDA24W2500 lmSfera 360IP20>80PLASTIK160mAAC:220-24050/60Hz20000H>15000 288,6 × 31,2 mm
KWADRAT2640Lm285x285x30,7mm

WPROWADZENIE I GWARANCJA
natural_image Simple line drawing of a ring with a small object inside, no text or symbols present.
natural_image Pure electrical circuit lines without any symbols
natural_image Pure geometric diagram of a diamond shape with a vertical bar at the bottom (no text or symbols)

MANUAL DE INSTRUÇÕES

PAINEL DE MONTAGEM À SUPERFÍCIE COM RETROILUMINAÇÃO POR LED

V-TAC VT-60006 - MANUAL DE INSTRUÇÕES - 1

natural_image Circular object with a smooth, gradient surface, possibly a lid or cover (no text or symbols visible)

V-TAC VT-60006 - MANUAL DE INSTRUÇÕES - 2

natural_image White rectangular electronic device with a flat top and small indicator lights at the bottom (no visible text or symbols)

05 YEAR

WARRANTY

V-TAC VT-60006 - MANUAL DE INSTRUÇÕES - 3

PRO SERIES

V-TAC VT-60006 - MANUAL DE INSTRUÇÕES - 4

DADOS TÉCNICOS

MODELOSKUFORMAÁGUASLUMENSÂNGULO DO FEIXECLAS SIFICAÇÃO PIRCTIPO DE CORPOTOTAL CORRENTETENSÃO DE ENTRADADURAÇÃO DA VIDACICLO ON/OFFDIMENSÃO (CxLxA)
VT-60006104921,10493110494178701,7871178721REDONDA6W660LmEsfera 360°IP20>80PLÁSTICO36mAAC:220-24050/60Hz20000H>15000 121.2x30.6mm
QUADRADO120,8x120,8x30,7mm
VT-60012104951,10496110497178731,7874178751REDONDA12W1200LmEsfera 360°IP20>80PLÁSTICO71mAAC:220-24050/60Hz20000H>15000 167.4x30.7mm
QUADRADO167,3x167,3x30,7mm
VT-60018104981,10499110500278761,7877178781REDONDA18W1850LmEsfera 360°IP20>80PLÁSTICO103mAAC:220-24050/60Hz20000H>15000 215.6x30.8mm
QUADRADO1980Lm214x224x31mm
VT-60024105141,10516123023178791,7880178811REDONDA24W2500LmEsfera 360°IP20>80PLÁSTICO160mAAC:220-24050/60Hz20000H>15000 288.6x31.2mm
QUADRADO2640Lm285x285x30,7mm
text_image Diagram showing a grid with an 'OFF' label and directional arrows, possibly indicating movement or control points.
natural_image Simple line drawing of a hand holding a pen, poised to write on a surface (no text or symbols)
natural_image Simple line drawing of a hammer and sickle on a vertical surface with two cross marks (no text or symbols)
  1. fazer um

V-TAC VT-60006 - MANUAL DE INSTRUÇÕES - 5

natural_image Pure technical diagram showing a structural beam with supports and hatched areas, no text or symbols present
  1. ligar o parafuso de

V-TAC VT-60006 - MANUAL DE INSTRUÇÕES - 6

natural_image Pure technical diagram showing a beam supported by two vertical supports with downward force arrows, no text or symbols present.
natural_image Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols
text_image Diagram showing a cross-section of an oval with labeled dimensions and directional arrows, likely illustrating a physical or engineering concept.
  1. Fixar o painel no suporte.

V-TAC VT-60006 - MANUAL DE INSTRUÇÕES - 7

text_image Handwritten diagram with a circular arrow and a plus sign, possibly indicating a process or transformation step.
natural_image Simple line drawing of a cylindrical object on a flat surface (no text or symbols)
natural_image Simple line drawing of a ring with a small object inside, no text or symbols present.
natural_image Pure electrical circuit lines without any symbols
natural_image Pure geometric diagram of a diamond shape with a vertical bar at the bottom (no text or symbols)

MANUAL DE INSTRUCTIUNI

PANOU MONTAT LA SUPRAFAȚĂ CU ILUMINARE DIN SPATE CU LED

V-TAC VT-60006 - MANUAL DE INSTRUCTIUNI - 1

natural_image Plain white circular object with a smooth curved surface (no text or symbols)

V-TAC VT-60006 - MANUAL DE INSTRUCTIUNI - 2

natural_image White rectangular electronic device with a flat top and small side ports (no visible text or symbols)

V-TAC VT-60006 - MANUAL DE INSTRUCTIUNI - 3

V-TAC VT-60006 - MANUAL DE INSTRUCTIUNI - 4

V-TAC VT-60006 - MANUAL DE INSTRUCTIUNI - 5

V-TAC VT-60006 - MANUAL DE INSTRUCTIUNI - 6

DATE TEHNICE

MODELSKUFORMAWATTSLUMENIUNGHIULFASCICULULUIIPRATINGCRITIP DECAROSERIETOTALCURENTTENSIUNEDEINTRAREDURATADEVIAȚACICLULON/OFFDIMENSIUNE(LxWxH)
VT-60006104921,10493110494178701,7871178721ROUND6W660LmSferă360°IP20>80PLASTIC36mAAC:220-24050/60Hz20000H>15000 121.2 × 30.6 mm
SQUARE120.8x120.8x30.7mm
VT-60012104931,10496110497178731,7874178751ROUND12W1200LmSferă360°IP20>80PLASTIC71mAAC:220-24050/60Hz20000H>15000 167.4 × 30.7 mm
SQUARE167.3x167.3x30.7mm
VT-60018104961,10499110500178761,7877178781ROUND18W1850LmSferă360°IP20>80PLASTIC103mAAC:220-24050/60Hz20000H>15000 215.6 × 30.8 mm
SQUARE1980Lm214x214x31mm
VT-60024105141,10516123023178791,7880178811ROUND24W2500LmSferă360°IP20>80PLASTIC160mAAC:220-24050/60Hz20000H>15000 288.6 × 31.2 mm
SQUARE2640Lm285x285x30.7mm
natural_image Simple line drawing of a ring with a hand holding a tool, no text or symbols present
natural_image Pure electrical circuit lines without any symbols
natural_image Pure geometric diagram of a diamond shape with a vertical bar at the bottom (no text or symbols)
natural_image Circular object with a smooth, gradient surface, resembling a mechanical or electronic component (no text or symbols visible)

V-TAC VT-60006 - MANUAL DE INSTRUCTIUNI - 7

natural_image White rectangular electronic device with a flat top and small side ports (no visible text or symbols)

05 YEAR

WARRANTY ^2

V-TAC VT-60006 - MANUAL DE INSTRUCTIUNI - 8

V-TAC VT-60006 - MANUAL DE INSTRUCTIUNI - 9

V-TAC VT-60006 - MANUAL DE INSTRUCTIUNI - 10

DATOS TÉCNICOS

MODELOSKUSHAPEWATTSLUMENSANGULO DEL HAZCLASI FICACIÓN IPCRITIPO DE CARRO CERÍATOTAL CORRIENTETENSIÓN DE ENTRADAVIDA ÚTILCICLO ON/OFFDIMENSIONES (LxAnxAl)
VT-60006104921,10493110494178701,7871178721RONDA6W660LmEsfera 360IP20>80PLÁSTICO36 mACA:220-24050/60Hz20000H>15000 121.2x30.6mm
CUADRADO120,8x120,8x30,7 mm
VT-60012104951,10496120497178731,7874178751RONDA12W1200LmEsfera 360IP20>80PLÁSTICO71 mACA:220-24050/60Hz20000H>15000 167,4x30,7mm
CUADRADO167,3x167,3x30,7mm
VT-60018104961,10499110500178761,7877178781RONDA18W1850LmEsfera 360IP20>80PLÁSTICO103 mACA:220-24050/60Hz20000H>15000 215,6x30,8mm
CUADRADO1980Lm214x214x31mm
VT-60024105141,10516125025178792,7880178812RONDA24W2500LmEsfera 360IP20>80PLÁSTICO160 mACA:220-24050/60Hz20000H>15000 288,6x31,2mm
CUADRADO2640Lm285x285x30,7mm
natural_image Simple line drawing of a ring with a small object inside, no text or symbols present
natural_image Pure electrical circuit lines without any symbols
natural_image Pure geometric diagram of a diamond shape with a vertical bar at the bottom (no text or symbols)
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : V-TAC

Model : VT-60006

Category : Lighting
