USER MANUAL V100 AddLiving

Technical diagram of a device with numbered parts and labeled connectors, including a connector pin and internal components.

Line drawing of a portable air conditioner unit with a close-up inset showing its internal components (no text or symbols)

Diagram of a printer with paper being inserted, showing internal structure and page loading (no text or symbols)

Diagram of a printer with labeled buttons and a hand pointing to the button, showing text in Chinese.

Illustration of a printer with hands pointing at it, no text or symbols present

Line drawing of a portable electronic device connected to a cylindrical base (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Hersteller

GO Europe GmbH

Zum Kraftwerk 1

45527 Hattingen

AddLiving

psum STOP LOCK MENSAL SWITCH SOYA EXTERNAL

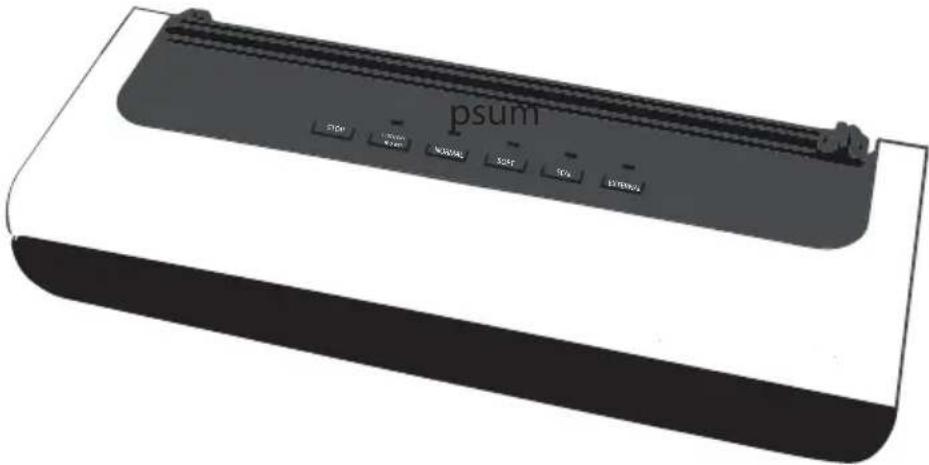

Vacuum sealer

Model: V100

EN

Warranty

Dear customer,

We are delighted that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Intended use

The vacuum sealer is used to vacuum pack food or seal plastic bags.

Any other use is considered improper use. Unauthorised modifications or conversions that are not described in these operating instructions are not permitted and will result in damage to this product. Proper installation and observance of and compliance with the instructions in this operating manual are prerequisites for the intended use of the product.

Content

Warranty....12

Intended use....12

Important safety instructions....13

Notes on use 13

Product overview 14

Scope of delivery 15

Installation site 15

Functions 15

Commissioning....16

Vacuuming and sealing 16

Sealing without vacuuming....18

Cutting the vacuum bag ....18

Vacuum external containers (with vacuum hose)....18

Remove, clean and insert the collection container....19

Cleaning....20

Troubleshooting 20

Notes on disposal....20

Technical data....21

Technical changes 21

Declaration of Conformity....21

Manufacturer 21

Important safety instructions

Warning! Choking hazard due to small parts, packaging and protective film! Keep children away from the product and its packaging!

Warning! There is a risk of electric shock!

Never open or repair the appliance yourself. Never touch bare contacts with with metal objects. Never operate the product with wet hands. Do not operate the product if it is damaged.

Warning! Do not touch the heating element or the sealing seam directly after use to avoid burns.

Warning! If the product exhibits unusual characteristics such as noise, odour or smoke, disconnect the power supply immediately.

Notes on use

Before connecting and using the product, please read these operating instructions and keep them for future reference.

Protect the product from direct sunlight, naked flames, heat sources and moisture.

Do not store the product at extreme temperatures or in a humid environment, as this may affect its service life.

Prevent the ingress of dust and moisture.

Do not cover the product during operation.

The product is not intended for commercial use and should only be used indoors in accordance with the instructions.

Only operate the product from a professionally installed socket. Observe the information under Technical data.

The device is not suitable for continuous operation. The overheating protection function switches on automatically after 20 consecutive processes. The device cannot be used for 5 minutes. Open the device to prevent overheating.

Do not leave the device unattended during operation.

Only use vacuum bags that are suitable for vacuum sealers.

When you are not using the device, disconnect it from the power supply to prevent accidental operation.

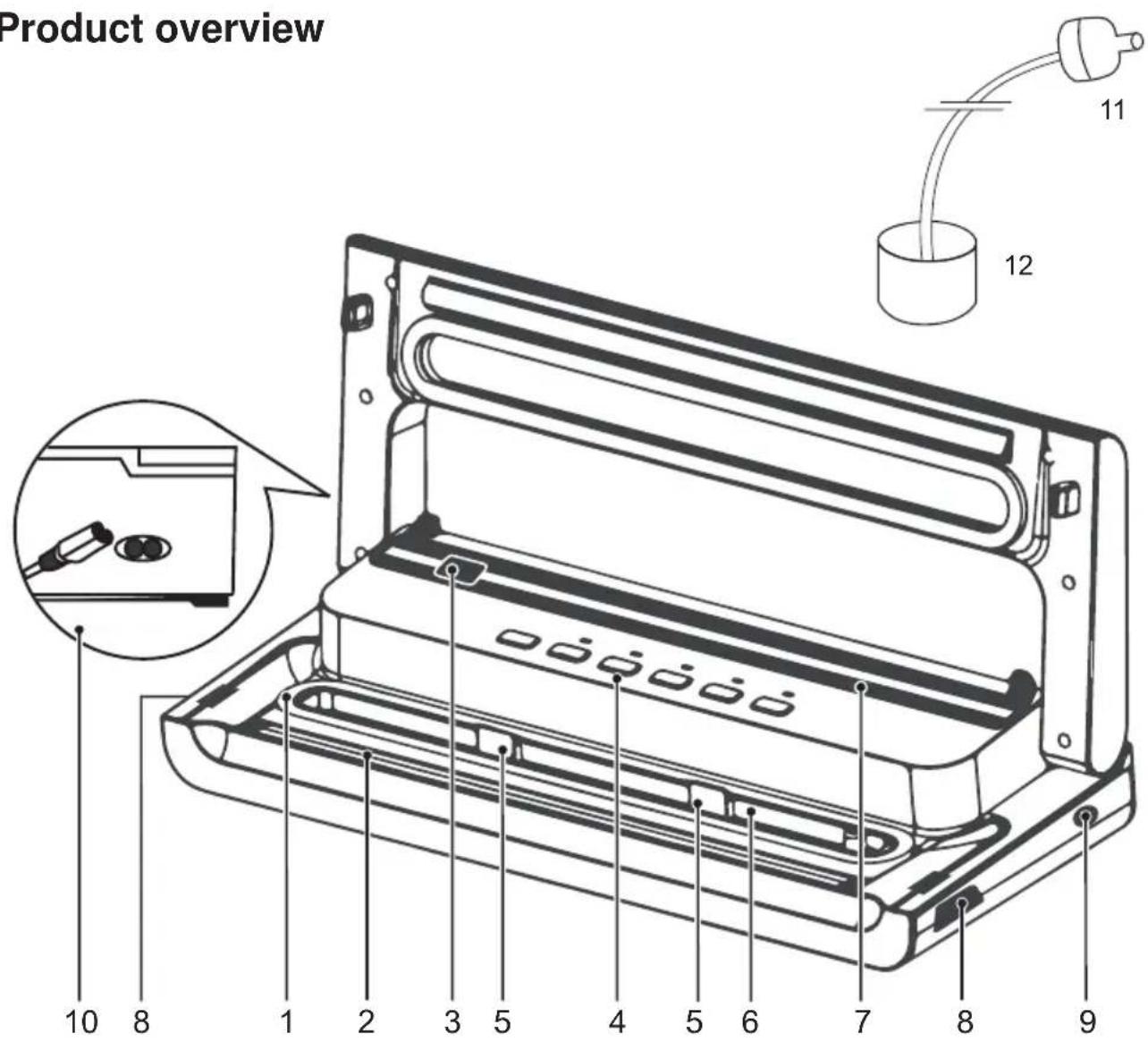

Product overview 10 8 1 2 3 5 4 5 6 7 8 9 11 12

1 Sealing foam 7 Cutting bar
2 Heating element 8 Unlocking buttons
3 Cutting knife 9 Connection for vacuum hose
4 Control panel 10 Grid connection 230V
5 Vacuum bag stop 11 Device connection
6 Collection container (removable) 12 Container connection

Scope of delivery

1 Vacuum sealer V100
1 Mains cable
1 Operating instructions
1 Vacuum hose
5 Vacuum bag (20x30 cm)

Installation site

Place the device on a stable, level surface near a power socket.

Functions

Cancel (STOP)

Cancellation of vacuuming / sealing.

Programme selection button (DRY / WET)

Vacuum programme according to the nature of the food.

Vacuuming and sealing (NORMAL)

Use this function for dry or hard foods, such as nuts, rice, fruit, etc. The vacuum level is -55 kPa.

Vacuuming and sealing gently (SOFT)

Use this function for soft foods, such as bread etc.

The vacuum level is between -15 kPa and -30 kPa.

Sealing (SEAL)

Use this function for sealing.

Vacuum external containers with vacuum hose (EXTERNAL)

Use this accessory to vacuum seal liquid foods, such as soups, sauces, etc. A suitable container (not included in the scope of delivery) must be used to utilise this function.

Commissioning

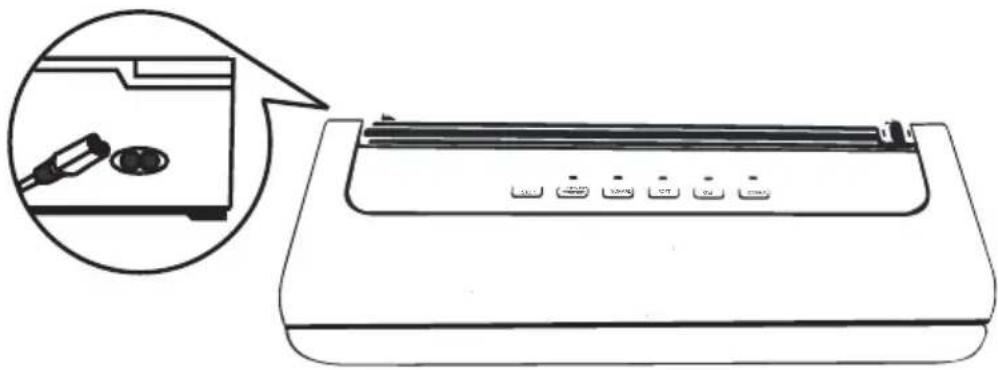

1 Insert the mains plug with the device connection into the grid connection (10).
2 Connect the mains plug to a properly installed socket.

Line drawing of a portable electronic device with a close-up inset showing a device emitting a cable (no text or symbols)

The LED indicators light up once. The device is in standby mode.

Vacuuming and sealing

1 Press both unlocking buttons (8) to open the cover.

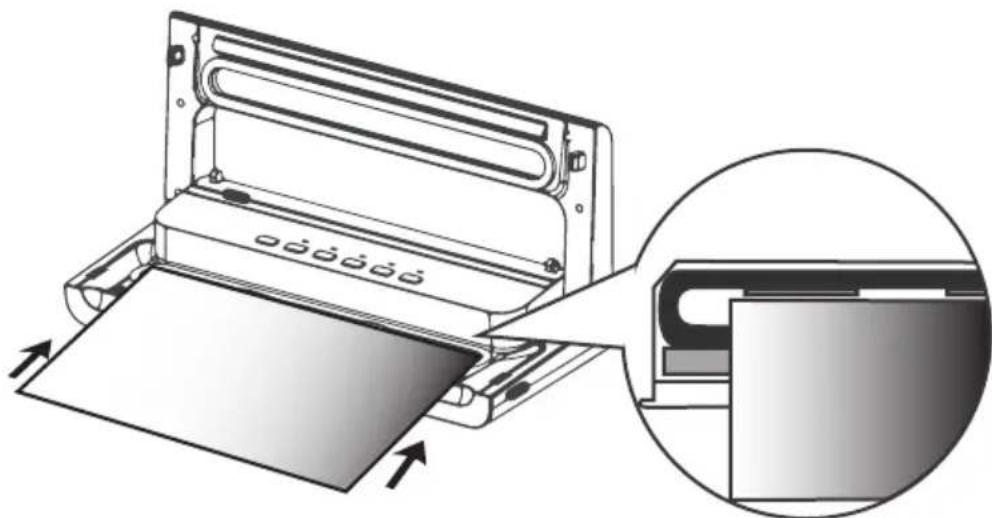

2 Place the bag opening up to the vacuum bag stop (5) in the vacuum chamber and press the bag flat.

A distance of at least 70 mm or more should be maintained between the food in the bag and the bag opening.

Note: Make sure that the vacuum bag is inserted straight, flat and crease-free.

Note: Sharp, fermented, rotten items are not suitable for vacuuming. This may cause leaks in the vacuum bag or it may inflate.

Diagram of a printer with paper being inserted, showing internal structure and page loading (no text or symbols)

3 Press the cover down firmly until you hear it click into place.

4 Depending on the nature of the food, press the programme selection button (GREEN DRY / RED WET).

Press the button to switch between the following functions:

Green LED: Dry

Use this function for dry food.

Red LED: Moist

Use this function for foods with little moisture, e.g. fresh fish or raw meat.

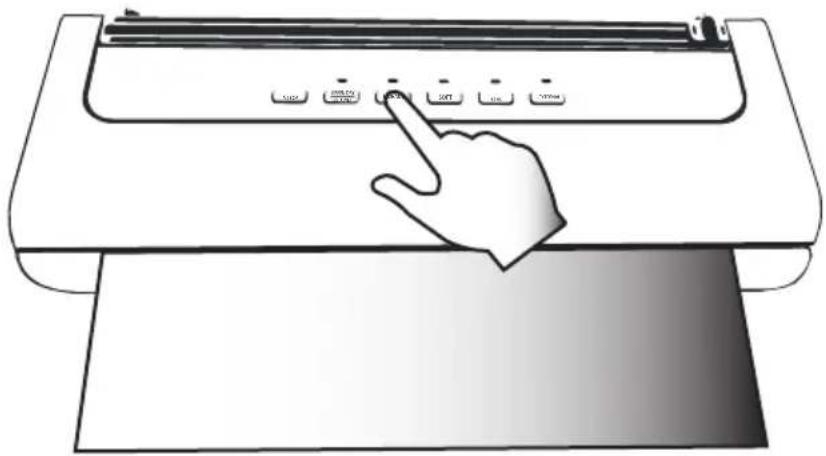

5 Press the button with the desired function NORMAL or SOFT. The vacuuming process starts and the corresponding LED lights up.

Illustration of a printer with labeled buttons and a hand pointing to the button, showing text in English.

6 When the process is complete, the device stops automatically and the LED goes out.

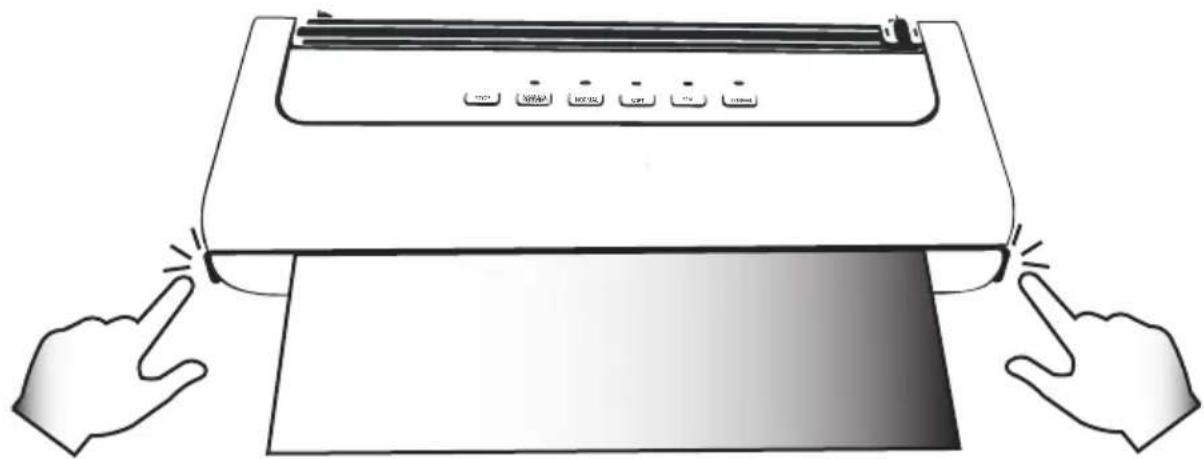

7 Press both unlocking buttons (8) to open the cover and remove the bag.

Illustration of a printer with hands pointing at it, no text or symbols present

Caution! Do not touch the heating element or the sealing seam to avoid burns!

Note: Unlock the cover after each use. This prevents pressure being exerted on the sealing foam.

Sealing without vacuuming

1 Press both unlocking buttons (8) to open the cover.

2 Place the bag opening up to the vacuum bag stop (5) in the vacuum chamber and press the bag flat.

3 Press the cover down firmly until you hear it click into place.

4 Press SEAL. The sealing process starts and the corresponding LED lights up.

5 When the process is complete, the device stops automatically and the LED goes out.

6 Press both unlocking buttons to open the cover and remove the bag.

Caution! Do not touch the heating element or the sealing seam to avoid burns!

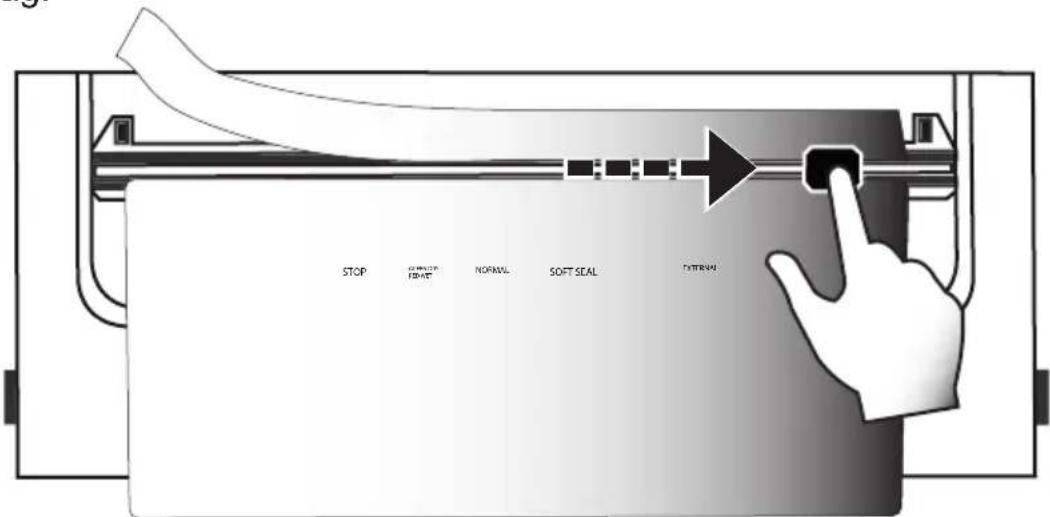

Cutting the vacuum bag

1 Move the cutting blade (3) to the left or right end of the cutting rail (7) and fold the cutting rail upwards.

2 Place the vacuum bag as far as desired under the cutting rail and fold it down.

3 Hold the cutting bar down and slide the cutter to the other end to cut the vacuum bag.

STOP NORMAL NORMAL SOFT SEAL EXTRAVI

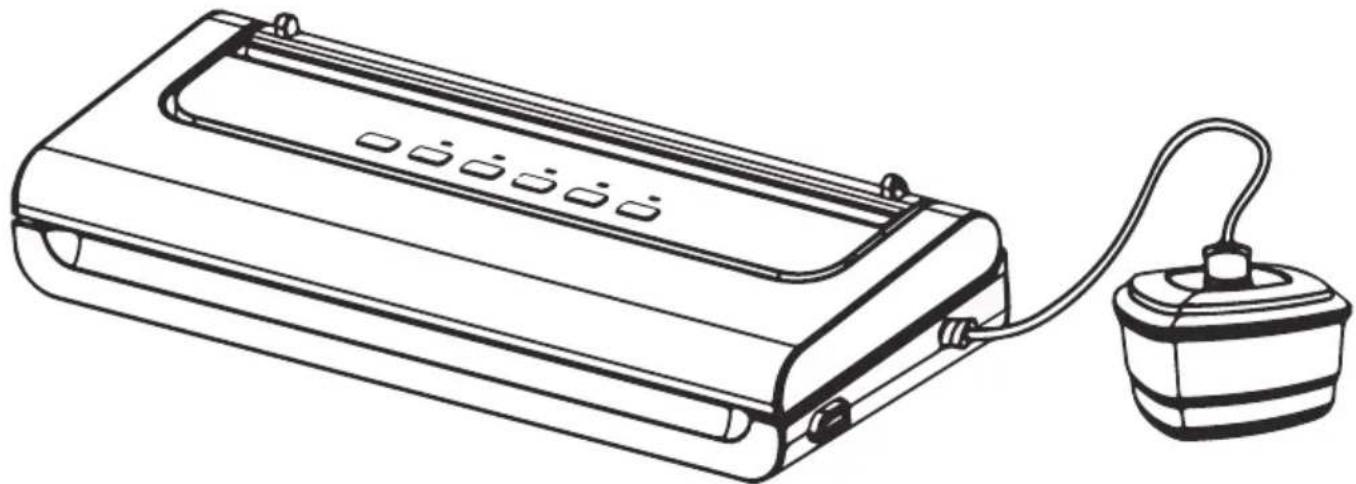

Vacuum external containers (with vacuum hose)

Note: Only vacuum external containers with the vacuum hose included in the scope of delivery.

1 Prepare a container suitable for vacuum sealers. Make sure that the container is completely closed and that no air can enter.
2 Plug the device connection of the vacuum hose (11) into the connection (9) on the device.
3 Place the container connection (12) on the suction opening of your container.
4 Press the cover down firmly until you hear it click into place.

Line drawing of a portable air conditioner unit connected to a cylindrical device (no text or symbols)

5 Press EXTERNAL. The vacuuming process starts and the corresponding LED lights up.

The maximum vacuuming time is 5 minutes. If the air is not completely extracted, you can press EXTERNAL again.

6 Press STOP to end the process before the end of the vacuuming time.

7 When the process is complete, the device stops automatically and the LED goes out.

8 Remove the vacuum hose once the process is complete.

Note: The external connection can only vacuum seal. There is no sealing. Disconnect the hose from the device after each use.

Remove, clean and insert the collection container

1 Press both unlocking buttons (8) to open the cover.
2 Remove the collection container (6).

Caution! Do not touch the heating element or the sealing seam to avoid burns!

3 Clean the collection container thoroughly and dry it well.
4 Put the container back into the device.

Cleaning

Clean the inside and outside of the device with a soft, slightly damp, lint-free cloth. Only use gentle cleaning agents.

Note: Do not clean the device under running water.

Troubleshooting

Malfunction Solution

The device does not start Check

The device does not vacuum or seal / does not seal properly

that the mains plugs are plugged in correctly.

Check whether the vacuum bag is too full. There should be a distance of at least 70 mm or more between the food in the bag and the bag opening.

heck whether the vacuum bag is leaking or not inserted correctly.

Check that the vacuum hose is connected correctly if you want to vacuum over it.

Check whether the vacuum bag is damaged or whether there is liquid on the sealing seam.

Notes on disposal

Find out about the possibilities of taking back used appliances free of charge from your dealer.

Packaging materials must be disposed of according to local regulations.

The packaging is made of environmentally friendly materials that you can dispose of at local recycling points. Advice on the options with which to dispose of your old device can be obtained from your municipal or local administration offices.

Observe the identification on the packaging materials during the waste sorting process; they are identified by abbreviations (b) and numbers (a) which have the following significance: 1–7: plastic/20–22: paper and cardboard/80–98: composite materials.

The adjacent symbol indicates laws dictate that electrical and electronic apparatus no longer required must be disposed of separate from domestic waste. Dispose of your device at a collection point provided by your local public waste authority. Packaging materials must be disposed of according to local regulations.

Technical data

Input voltage: 220-240VAC 50Hz | Power: 95W

Working width: max. 300mm | Weight: 1120 g

Dimensions (W x H x D): 414 x 85 x 155 mm

The EU-wide glass-fork symbol identifies materials that are suitable for food contact.

Technical changes

These operating instructions are for information purposes only. Its contents are not the subject of a contract. All data given are only nominal values. The equipment and options described may vary depending on the country-specific requirements.

Declaration of Conformity

We, GO Europe GmbH, Zum Kraftwerk 1, 45527 Hattingen, DEUTSCHLAND, declare in sole responsibility, that the product complies with the EU Directives: 2014/53/EU and 2011/65/EU. The full EU Declaration of Conformity is available online at the following website or by scanning the QR code:

The CE Mark on the device confirms conformity. The Declaration of Conformity can be read online at http://productip.com/?f=2a1543

Manufacturer

45527 Hattingen | Germany
