Product type	Built-in gas hob
Brand	Franke
Model	FHSM 905 4G DCL C OA
Number of burners	5 (1 double crown, 1 rapid, 2 semi-rapid, 1 auxiliary)
Heat source	Gas
Gas category	II 2H3+ (Natural gas G20 and LPG G30/G31)
Power supply	220-240 V, 50-60 Hz, 0.6 W
Overall dimensions (W x D)	880 x 510 mm
Built-in dimensions (W x D)	840 x 480 mm
Built-in height	40 mm
Net weight	14 to 15.7 kg (depending on finish)
Total nominal gas power	10.8 kW
Total nominal flow rate G20	1.028 m³/h
Total nominal flow rate G30/G31	785 g/h
Ignition	Integrated electric (rotary knob with hold)
Safety	Safety thermocouple (automatic gas shut-off if flame goes out)
Material	Stainless steel or enameled plate depending on version
Grates	Cast iron or steel, with rubber feet
Cleaning	Grates, caps and diffusers washable with soapy water (not dishwasher)
Installation	Class 3, type Y, requires a worktop 40 mm thick
Spare parts	Injectors, knobs, grates, caps, diffusers
Repairability	Maintenance by Franke approved service only
Warranty	Refer to Franke's general terms and conditions

Frequently Asked Questions - FHSM 905 4G DCL C OA FRANKE

How to light a burner?

Press and turn the corresponding knob to the ignition position (flame symbol). Hold it pressed for 3-4 seconds to allow ignition and heat the thermocouple. Release and adjust the flame.

What to do if a burner does not light?

Check that the gas and electrical supplies are active, the gas valve is open, the burner openings are not obstructed, and all parts are correctly repositioned. If the problem persists, contact after-sales service.

How to convert the hob to use LPG?

This operation must be carried out by a qualified technician. Replace the injectors with those suitable for LPG (supplied or to be ordered) and adjust the minimum flame screw to maximum. The conversion sticker must be affixed to the rating plate.

What types of gas are compatible?

This hob is adjustable for natural gas (G20) and LPG (G30 butane or G31 propane). It is category II 2H3+. The factory setting is for natural gas.

How to clean the burners?

Remove the grates, caps and diffusers. Wash them in warm soapy water with a soft sponge. Dry thoroughly before reassembling. Do not wash in the dishwasher or use abrasive products.

What to do in case of accidental flame extinction?

Immediately turn off the burner control knob and do not attempt to relight for at least 1 minute. The safety thermocouple automatically shuts off the gas supply after about 30 seconds.

What is the minimum distance between the hob and walls?

Maintain at least 150 mm from side walls, 50 mm from the rear wall and 700 mm from cupboards above. These distances are essential to avoid fire risks.

Can I install the hob above an oven?

Yes, but ensure that a separator is installed if the oven is not built-in. The gas pipe must not come into contact with the hot oven walls. Refer to the installation instructions.

How to obtain spare parts or a repair?

Contact Franke customer service via the website www.franke.com. Use exclusively original parts. Provide the model (FHSM 905 4G DCL C OA) and serial number when requesting.

What to do if the hob does not work at all?

Check that the power supply is plugged in and the circuit breaker has not tripped. Ensure the gas supply valve is open. If the problem persists after these checks, contact Franke after-sales service.

USER MANUAL FHSM 905 4G DCL C OA FRANKE

EN User manual Gas Hob

In this manual and on your appliance we have provided many important safety messages. Always read and obey all safety messages. Franke reserves the right to make modifications to the product without prior notice. All information correct at time of issuance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Risk of injury!

This device is not a toy. - Keep children and pets away from the device and the packaging material e.g. plastic film and polystyrene; it can be dangerous, dispose of it in a proper way.

Do not leave children near the device unattended. Do not let children play with the device.

Risk of burns!

During use the appliance becomes hot. Care should be taken to avoid touching the hob.

WARNING: Accessible parts may become hot during use. Young children should be kept away. Children less than 8 years of age shall be kept away unless continuously supervised.

Ensure the gas type and supply is compatible with appliance specifications. The hob was developed exclusively for nonprofessional, domestic use in the household only. The type of gas for which the appliance is arranged is specified on the dataplate on the bottom of the tray. Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible. This appliance is not connected to a combustion products evacuation device.

It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation.

The adjustment conditions for this appliance are stated on the label (or data plate). Pay particular attention to the applicable regulations on ventilation. After use, switch off the hob by its controls. Make sure the burners are cold before closing the lid, if the appliance has one.

Risk of electric shock due to entering liquid!

The device contains electrical components.

Make sure that no liquid enters the interior of the device. Do not use pressurised steam to clean the device. In the event of the burner flames accidentally extinguished, turn off the burner control and do not attempt to reignite the burner for at least 1 min. The device shall not be operated for more than 15 seconds if after 15 seconds the burner has not lit, stop operating the device and open the compartment door.

and/or wait at least 1 minute before attempting a further ignition of the burner.

Ensure that the device is installed in a way that allows to disconnect it from the power supply, with a contact opening distance (3 mm) that ensures complete disconnection in category III overvoltage conditions. Ensure that the appliance is connected to an earthing system in compliance with the current regulations.

CAUTION: The use

of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed.

Ensure that the kitchen is well ventilated especially when the appliance is in use: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). Do not operate the appliance with an external time switch or a separate remote control system.

CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

Do not use steam cleaners or direct jets of water. Never use scouring pads, steel wool, muriatic acid or other products which could scratch or mark the surface. - Never use sharp objects, as they could damage the seals between the trim and worktop. Ensure the gas outlet zones are perfectly clean. These instructions are only valid if the country symbol appears on the appliance. If the symbol does not appear on the appliance, it is necessary to refer to the

technical instructions which will provide the necessary instructions concerning modification of the appliance to the conditions of use of the country.

Risk of fire!

Do not store items on the cooking surfaces.

WARNING: Unattended or automatic cooking on a hob with fat or oil can be dangerous and may result in fire. Hot oil ignites readily.

TECHNICAL DATA

FHSM 604 4G

FHMA/FHSM 604 3G DC

THMA 755 4G DCL FHSM/FHM

4G 755 DC FHMA/FHSM 905 4

Position Burner Rated		Capacity-G20	InjectorsG20-20 mbar	RatedCapacity-G30	RatedCapacity-G31	Injectors G30/G31 28-30/37 mbar	RatedPower(Kw)	ReducedPower (Kw)
4 DC 0,315 1,35				240 240 0,91 3,3*218 *218 *0,85	*3			2,10
3	R	0,286	1,15	218	218	0,85	3	1,30
2	SR	0,166	0,97	127	127	0,65	1,75	0,70
1 AUX		0,095	0,72	73	73	0,50	1	0,65
Pressure(mbar)	min	17		20	25
	nom	20		28-30	37
	max	25		35	45
Type of Gas		G20 natural gas		LPGG30 ButaneG31 Propane			Cat. II2H3+

*ALL FHMA MODELS

MODELS'S CONFIGURATION
MOD. nr	AUX	nr SR	nr R	nr DC	N burners	Heat Source	Total Rated Capacity G20 (m3/h)	Total Rated Capacity G30/G31 (g/h)	Air Necessary for combustion (m3/h)	Tot Installed Gas Rated Power (kW)	Tot Installed LPG Rated Power (kW)	Weight (net - gross) (kg)
FHSM 604 4G	1	2	1		4	GAS	0,713	545	15	7,5	7,5	8-9,4 (C) 7,1-8,5 (E)
FHSM 604 3G DC	1	2		1	4	GAS	0,742	567	15,6	7,8	7,8	8-9,4 (C) 7,1-8,5 (E)
FHSM 755 4G DC	1	2	1	1	5	GAS	1,028	785	21,6	10,8	10,8	10,5-12(C) 8,9-10,4 (E)
FHSM 905 4G DCL	1	2	1	1	5	GAS	1,028	785	21,6	10,8	10,8	14-15,7 (C) 12,5-14,2(E)
FHMA 604 3G DC	1	2		1	4	GAS	0,742	545	15,6	7,8	7,5	8,8-10,2 (C)
FHMA 755 4G DC	1	2	1	1	5	GAS	1,028	764	21,6	10,8	10,5	11,5-13 (C)
FHMA 755 4G DCL	1	2	1	1	5	GAS	1,028	764	21,6	10,8	10,5	11,5-13 (C)
FHMA 905 4G DCL	1	2	1	1	5	GAS	1,028	764	21,6	10,8	10,5	14,5-16,2 (C)
DC = Double Crown SR-Semi-Rapid R = Rapid AUX=Auxiliary C = Cast Iron Grid E = Enameded Grid Power supply = 220-240 V; Frequency = 50-60 Hz; Power/current = 0,6 Watt

INSTALLATION

Installation and electrical/gas connection must only be carried out by specialized and licensed personnel.

The manufacturer declines any liability for injury to persons or damage to things due to failure to comply with these provisions. The gas connection must comply with the regulations in force in the country at the time of installation.

Ensure that the device is connected directly to the mains socket. Ensure that no adapters, no multi-sockets and no extension cables are used to connect the device.

Cabinet requirements

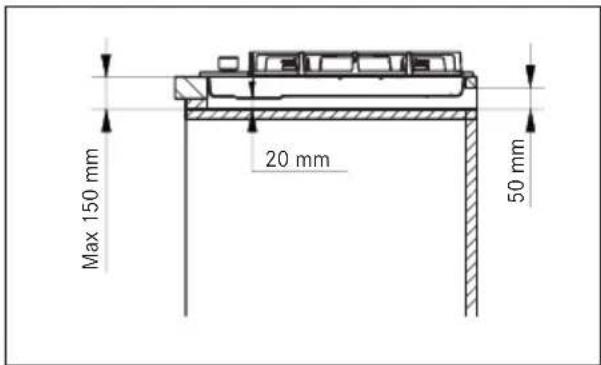

This handbook refers to a class 3 built-in gas hob and type Y for electric part. The gas pipe must not come into contact with the sides of any oven under the hob. For fitted units, the components (plastic materials and veneered wood) must be assembled with heat-resistant adhesives (min. 100°C): Unsuitable materials and adhesives can result in warping and detachment.

The ventilation of rooms must be in compliance with local regulations. The kitchen element must allow sufficient room for the electrical connections of the appliance.

Important: These devices are "Y" type with respect to the degree of protection against the dangers of fire. The minimum distance from the edge of the appliance is 150 mm for the side wall, 50 mm for the rear and 700 mm for any cabinets above it. The appliance is recommended to be built into 40 mm thick worktops. In case the dimensions are different, eventual modifications have to be managed by the technician.

Note: if a hood is installed above the hob, for the distance to be respected refer to the assembly instructions of the hood.

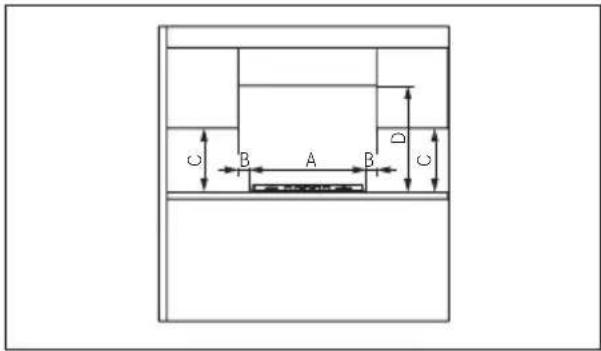

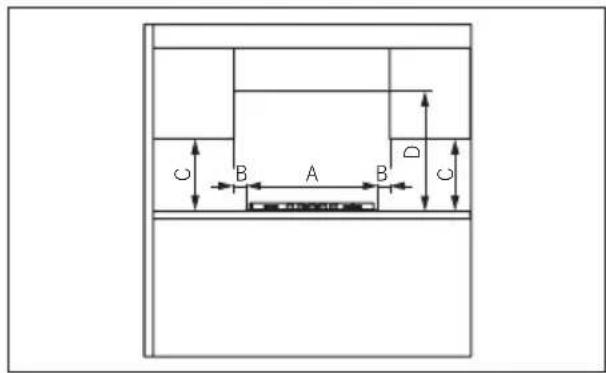

MINIMUM DIMENSIONS (MM)

A = 590 / 730 / 880, B = 50, C = 400, D = 700

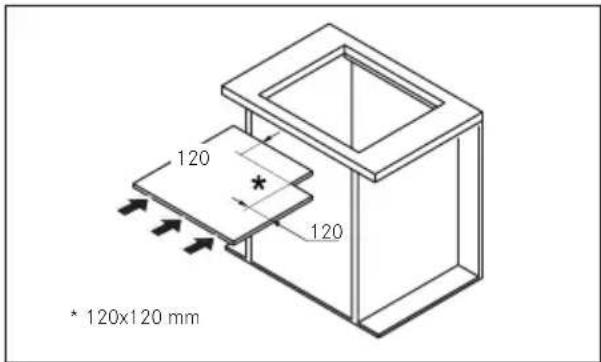

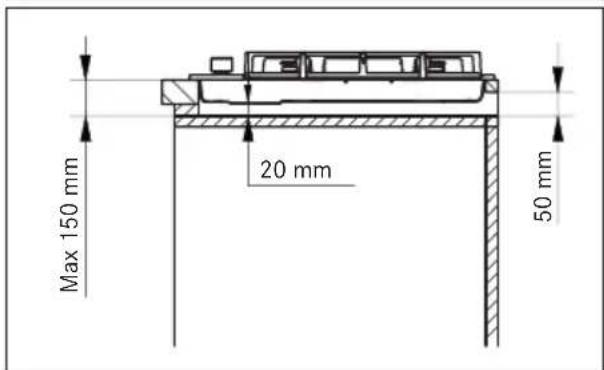

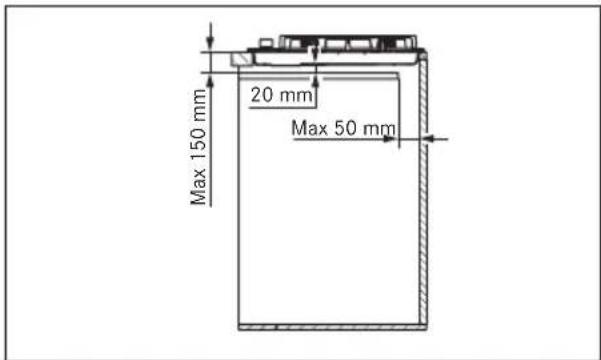

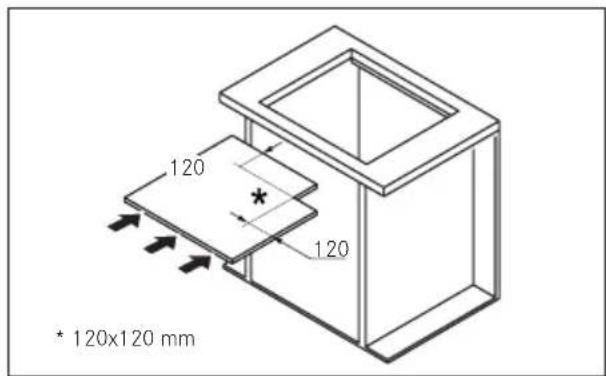

If the appliance is not installed above an oven: arrange a separator baffle.

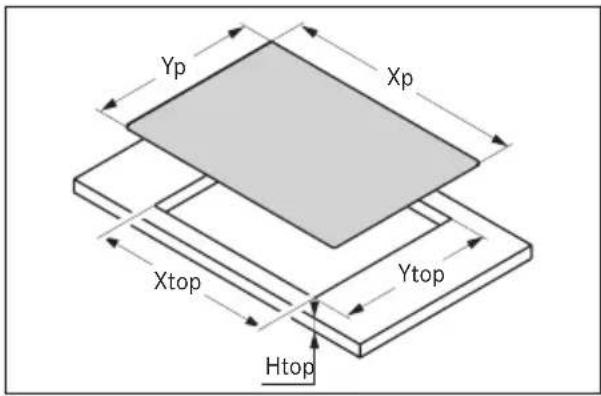

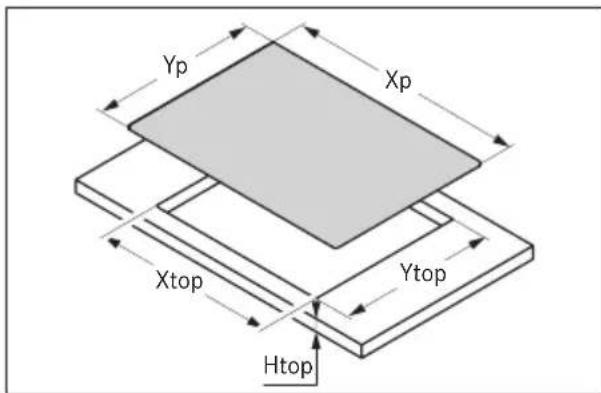

Installation procedure

The appliance is fixed to the unit by means of the brackets and accessories provided.

Make sure that there is free access to the fixing elements in front and in the rear after the installation of the appliance. Prepare the hole in the worktop according to the dimensions indicated. Be sure to comply with the dimensions indicated.

Model Xp Yp X
			top	Y top	H top
FHSM 604 3G DC	590	510	560	480	40
FHSM 604 4G	mm	mm	mm	mm	mm
FHMA 604 3G DC
FHSM 755 4G DC	730	510	560	480	40
FHMA 755 4G DC/DCL	mm	mm	mm	mm	mm
FHSM 905 4G DCL	880	510	840	480	40
FHMA 905 4G DCL	mm	mm	mm	mm	mm

Apply the sealing strip around the hole and position the hob. Fix the appliance with the screws and brackets. Remove any excess sealing strip.

Connection to gas supply

Connect the appliance to the gas supply in compliance with the current regulations, only after making sure it is arranged for the type of gas to be used. Otherwise, carry out the operations described in the paragraph "Replacing injectors". For liquid gas use pressure regulators complying with the current regulations.

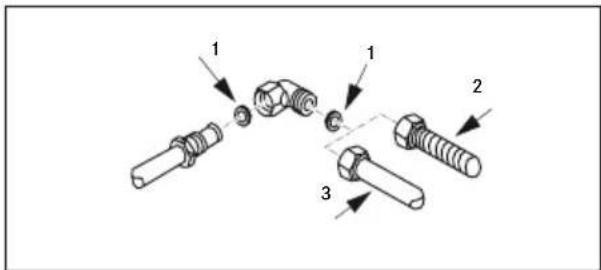

Connection to the gas supply can be made in two ways:

A. Connect the gas hob using a 12 mm diameter rigid copper pipe (3). To ensure a good seal, use the elastomer gasket supplied as an accessory (1). B. Connect the hob using a continuous-surface flexible steel tube (2). Also in this case, to ensure a good seal use the gasket supplied as an accessory (1). The maximum length of the hose is 2 linear metres.

Important: if a stainless steel hose is used, it must be installed so as not to touch any mobile part of the furniture. It must pass through an area where there are no obstructions and where it is possible to inspect it on all its length.

After connection to the gas supply light up the burners and turn the knobs from max position to minimum position to check flame stability. After carrying out the connection use soapy water to check for any leaks.

For United Kingdom, Northern Ireland and Republic of Ireland.

Electrical connection

The FRANKE cooking hob comes with a 3-core power cable with free terminals.

Ensure the following:

• The characteristics of your household electrical power supply (voltage, maximum output and current) are compatible with those of your FRANKE hob.
• The plug and the socket can be easily reached and are positioned so that no live part is accessible when inserting or removing the plug.
• A 3 × 0.75 mm² H05RR-F type cable for completely gas hobs is used when replacing the power cable.
• The terminals of two appliances are not connected to the same plug.
• The polarities of the free terminals (Blue = Neutral = (1) / Yellow and Green = Earth = (2) / Brown = Live = (3)) are respected.

Adjustment to different types of gas

WARNING: This operation must be performed by a qualified technician.

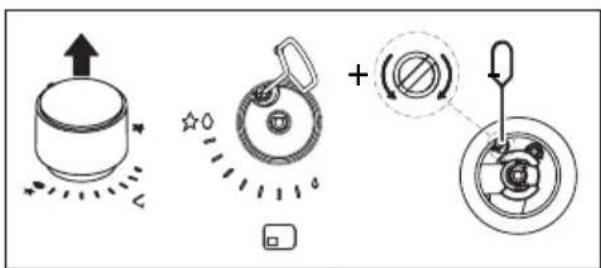

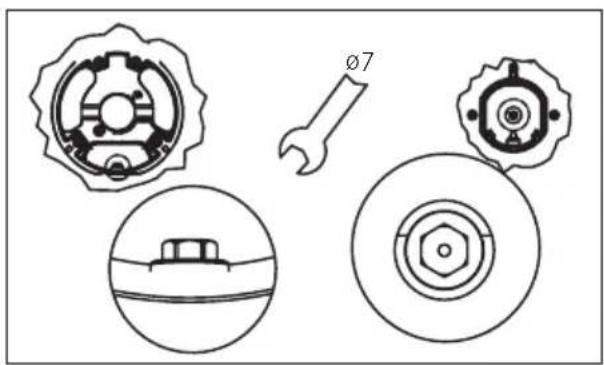

Minimum flame adjustment

Remove the knob. Insert the screwdriver between the gasket and the cover until it reaches the adjustment screw. Adjust the minimum flame by turning the screw clockwise to decrease the flame and anticlockwise to increase it. The screwdriver for adjustment is supplied with the accessories.

Replacing injectors

Not supplied injectors must be requested to the customer service.

Important: All the appliances are factory-set for natural gas (G20). If a different type of gas is to be used, change the injectors as follows:

• Remove the grids, burner caps and flame-spreaders;
• Unscrew the injectors and replace them with those provided and suitable for the gas supply, making sure the marking matches that given in the table:
• Refit the flame-spreaders, burner caps and grids.

These burners do not require air adjustment.

Accessing the hob

To access the tray containing the functional parts, proceed as follows:

• Remove the grids, burner caps and flame-spreaders;
• Remove the knobs, sliding them off their pins;
• Remove the screws that fix the burners to the hob:
• Lift the hob.

Important: When converting the appliance to a different type of gas, place the corresponding sticker (supplied as an accessory) in the special space on the data plate. For operation with LPG (G30 or G31), the minimum flame adjustment screw must be fully screwed down. These appliances are supplied in cat. II 2H3+.

INTENDED USE

CAUTION: This appliance is for cooking purposes only. It must not be used for other purposes, for example room heating.

Do not pull the appliance or the power cable to unplug it. Close the general gas supply cock when the hob is not in use.

Risk of burns!

Do not touch the pot grids during use. Do not touch the appliance with wet parts of the body.

Lighting the burners

The hob is lit with the control knobs. To light the burners, proceed as follows:

• Press and turn the required knob to the lighting and max delivery position.
• Keep the knob pressed down for 3-4 seconds to allow the sparks to ignite the gas coming out of the burner and to allow the thermocouple to heat up.

Then release the knob and, turning it anticlockwise, adjust the flame as required. If the flame does not stay lit, repeat the operation from step 1.

The hob is an item for daily use: signs of usage such as scratches or visible material abrasion from pots or cookware are normal. Intensive use leads to more distinctive signs of usage. In such cases, the appliance continues to function perfectly and a complaint is not justified. Safety is always guaranteed.

Do not use the appliance as a support top. To avoid damaging the appliance: In the case of thermal failure, switch the solid plate off and allow it to cool down completely. Do not put any dishes on it. Do not cool with cold water under any circumstances. Do not climb onto the appliance. The appliance is manufactured in compliance with the relevant effective safety standards and safety requirements of the Gas Directive.

Automatic Safety Valve

These hobs have a safety device that automatically closes the gas flow if the flame accidentally goes out due to draughts, pot spilling, or a temporary interruption of the gas supply. This device is activated approx. 30 seconds after the flame goes out.

Burner use

For lower gas consumption and better efficiency, use pots of widths suitable for the burners, making sure the flame does not go beyond the edges (comply with the following table):

Burner	Pan bottom min-max. (recommended)
Double Crown 160 -240 mm
Rapid 140 - 220 mm
Semi-Rapid 140 - 200 mm
Auxiliary 60 - 140 mm

The use of larger pots than those specified can cause excessive overheating of the knobs and top and, in case of prolonged use, yellowing of the cover (if in stainless steel). FRANKE declines any liability for damage due to such use (Fig. 1).

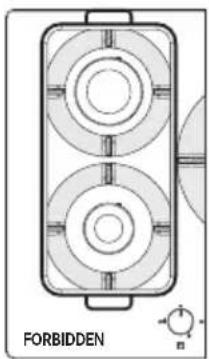

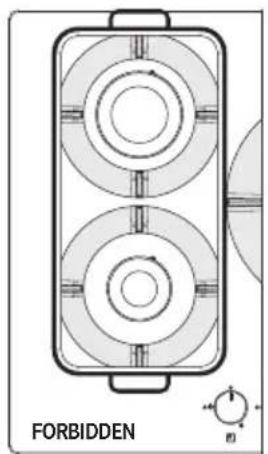

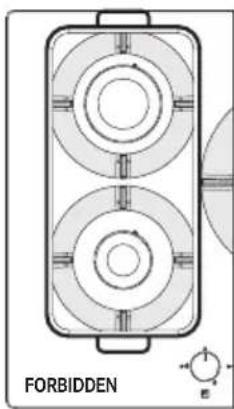

Do not put the same pan on two burners (Fig. 1). Do not use two burners working at the same time with a single container, like a saucepan or a fish pan (Fig. 1). Improper use of the grids can damage the hob: do not position the grids upside down or slide them across the hob. In case of use of cast iron griddles, ollar stones, terracotta pots and pans, use them for no more than 20 minutes and, in case of prolonged cooking, adjust the burner to the minimum. Heat diffusers such as metal mesh, or any other types, are not recommended.

CAUTION: The use of particular pans or pots may cause a light temporary deformation of the steel cooking surface. This is normal and does not affect the operation of the appliance.

Fig. 1

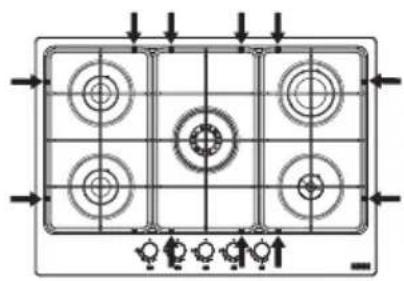

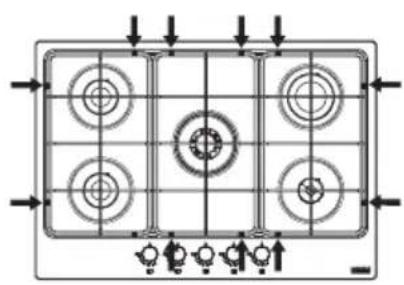

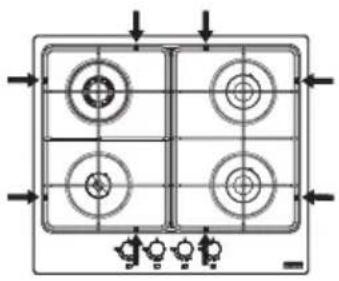

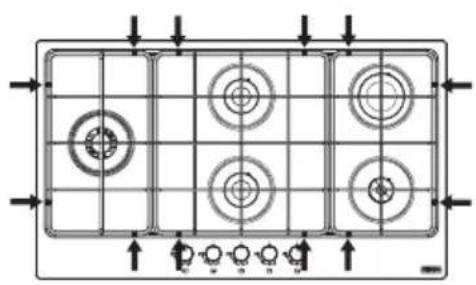

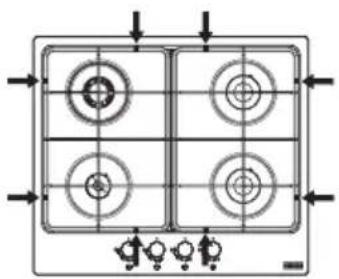

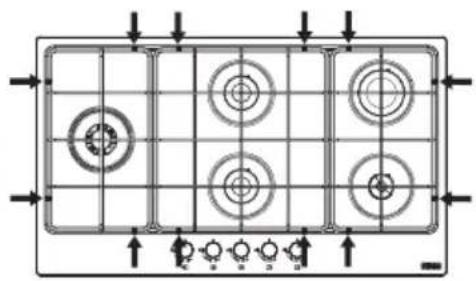

Correct position of the grids

Be sure to place the grids with the rubber feet in the right position as indicated by the arrows in the pictures below:

CLEANING AND CARE

Risk of burns!

Do not clean the appliance and its accessories until they are cold. Do not use flammable liquids near the appliance.

Before performing any cleaning and care: Turn the appliance off.

Foods that accidentally fall or settle on the surface, on the functional or aesthetic elements of the hob must not be eaten.

Cleaning the appliance

Clean the hob after every use in order to prevent food residues from burning on. To clean food residues, use a soft cloth or sponge with water. We recommend using protective cleaning agents. Immediately remove any foods with high sugar content that spill onto the hob. To prevent limescale stains from forming, always thoroughly dry the appliance after going over it with a damp cloth. Clean the grids, burner caps and flame spreaders with hot soapy water, making sure to carefully dry them. Do not clean in a dishwasher. Make sure the gas outlet zones are perfectly clean. The natural colour of the pot grids in the pot placing section may alter over time due to the heat.

MAINTENANCE AND REPAIR

Before any maintenance operations disconnect the appliance from the mains power supply. In case of any operation problems, contact the Franke Technical Service Centre.

Make sure that maintenance on electrical components is carried out only by the manufacturer or the customer service. Use original spare parts only. Make sure that damaged cables are changed only by the manufacturer or the customer service.

When contacting the customer service, please provide the following information:

-type of fault - appliance model (Art. / Cod.) - serial number (S.N.)

This information is given on the data plate on the booklet or under the hob.

If the hob doesn't operate correctly, before calling the Franke Technical Service Centre, refer to the Troubleshooting Guide to determine the problem:

TROUBLESHOOTING GUIDE

Type of failure Check if:

A

The burner fails to ignite, does not stay lit or the flame is not steady

1 The gas or electrical supplies are not shut off 2 The gas supply tap is not open 3 The refillable gas cylinder (liquid gas) is not empty 4 The burner openings are not clogged 5 The plug end is not dirty 6 All the burner parts have not been positioned correctly 7 There are no draughts near the hob 8 When lighting the burner, the knob has not been pressed for enough time to activate the protection device (see page 9 „Intended use“) 9 The burner openings are not clogged near the thermocouple 10 The minimum gas setting is not correct

B

The containers (pots, pans, kettles) are not stable

11 The bottom of the container is not perfectly flat 12 The container is not centered on the burner 13 The grids have not been exchanged or positioned incorrectly

If after the above checks the fault still occurs, get in touch with the nearest Franke Technical Service Centre.

DISPOSAL

Packaging

All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked and should, if possible, be collected for recycling and disposed of in an environmentally friendly way.

Disconnection

Disconnect the appliance from the mains. With a fixed appliance, this must be carried out by a qualified electrician.

Disposal

The symbol on the product or on the packaging indicates that the device must not be disposed of in the domestic waste.

Dispose of the device, which is to be discarded, via a specialised waste collection point for electronic and electrical devices.

CUSTOMER SERVICE

Refer to the contact address for your country on the back page or on our website: www.franke.com

In accordance with the Directive 2012/19/EU, regarding the reduction of the hazardous substances used in electrical and electronic appliances, and waste disposal.

Proper separate waste collection of the scrapped appliance for subsequent recycling, treatment and environmentally-friendly disposal helps prevent a potentially negative impact on the environment and health and facilitates recycling of the materials used in appliance construction.

SAFETY INSTRUCTIONS

A = 590/730/880 B = 50

C = 400 D = 700

FHSM7554GDC 730mm 510mm 560mm 480mm 40mm

FHMA7554G

DC/DCL

FHSM 905 4G DCL 880 mm 510 mm 840 mm 480 mm 40 mm

FHMA 9054G DCL

Place the sealing strip around the opening and set the hob in place. Secure the appliance with screws and brackets. Remove any excess length of the sealing strip.

Connection to the gas supply

MAINTENANCE AND REPAIR

Some parts of the device that are accessible during operation may become very hot. Do not allow children near the device.

Make sure that the type of gas used and its supply pressure correspond to the characteristics of the device.

The burner has been designed exclusively for non-professional use, only in domestic conditions.

The appropriate gas type for the device is indicated on the technical data plate, located on the lower part of the device. Before installation, it is necessary to ensure that local supply conditions (gas type and gas pressure) are compatible with the adjustment of the appliance. This device is not connected to a flue for the evacuation of combustion products. When installing and connecting the device, it is necessary to comply with current standards and regulations. Particular attention should be paid to ventilation requirements. The adjustment characteristics of this device are given on the rating plate (see technical data label). Pay special attention to standards and regulations regarding ventilation when using the device.

After using the burner, always switch off the device using the corresponding control elements. Before closing the lid (if present), make sure that the burners have cooled down sufficiently.

Risk of burns

Electric shock due to liquid entering the device!

The gas hose must not come into contact with the sides of the oven or the hot surfaces of the burner.

For cleaning components of furniture, plastic and plywood, use a soft cloth with warm water and mild detergent (max. 100°C).

Ventilation openings must comply with local regulations.

The furniture element must be installed in accordance with the electrical connection instructions.

Important: the installation must comply with safety class Y. The minimum distance from the edge of the appliance must be

150 mm for the front side, 50 mm for the rear side, and 700 mm for any side. The appliance is recommended to be installed in a worktop with a thickness of 40 mm. If the dimensions of the existing furniture elements differ from those specified, a qualified technician must make the necessary modifications to their construction.

Note: if the appliance is installed with an extractor hood, the installation instructions for the hood must be followed.

OVERALL DIMENSIONS (MM)

A=590/730/880 B=50

C=400 D=700

The appliance is not intended for installation above a gas hob: install a separating partition.

Installation procedure

Attach the appliance to the furniture element using screws and accessories included in the kit.

Make sure that free access to the hinged elements is provided from the front after installation of the appliance. Make a hole in the panel according to the specified dimensions. When doing so, adhere to the specified dimensions.

Mодь Xp Yp X				Y	H
			Bepx	Bepx	Bepx
FHSM 604 3G DC	590 MM	510 MM	560 MM	480 MM	40 MM
FHSM 604 4G
FHMA 604 3G DC
FHSM 755 4G DC	730 MM	510 MM	560 MM	480 MM	40 MM
FHMA 755 4G DC/DCL
FHSM 905 4G DCL	880 MM	510 MM	840 MM	480 MM	40 MM
FHMA 905 4G DCL

Apply the sealing strip around the hole. Insert the appliance into the hole, placing the flange surface in the opening. Secure the appliance with screws and brackets. Remove the protective strip so that it protrudes.

Connection to the gas supply

Connect the appliance to the gas supply in accordance with current regulations, after making sure that the appliance corresponds to the type of gas used. In this case, perform the operations described in the section "Replacing injectors". When using liquefied gas, use a pressure reducer that complies with current regulations.

Connection to the gas supply can be done in two ways:

A. Connect the gas flange surface using a flexible metal hose with a diameter of 12 mm (3). To ensure proper sealing, use the rubber gasket (included in the accessories kit) (1). B. Connect the flange surface using a flexible steel hose with a corrugated surface (2). For proper sealing, also use the rubber gasket (included in the accessories kit) (1). The maximum length of the hose is 2 linear meters.

Important: If the hose is used with a non-compliant part, it must be installed so that it does not touch any moving part of the furniture. It must pass through a zone without obstacles and where it can be checked along its entire length.

Check the appliance for gas leaks and return the knobs from the maximum to the minimum position to check the stability of the flame. After assembly, check the connections using a soapy solution to verify the absence of leaks.

SURFACE: The appliance is intended only for cooking food. It must not be used for other purposes, for example, for heating the room.

The device heats up during operation, and also for its own safety, the device switches off when the plug is disconnected.

Turn off the tap when not using the device.

Fire hazard!

Do not touch the device with wet hands during operation. Do not touch the device with wet parts of the body.

Filling the burners

The hot surface is ignited by the handles and regulators. To fill the burners, do the following:

Press and turn the desired handle to the ignition position and maximum feed. - Press the handle for 3-4 seconds, until the spark ignites the gas coming out of the burner, and the thermocouple heats up. - After that, release the handle, turning it counterclockwise, and adjust the flame. If the flame goes out, repeat the operation from point 1.

Handle position

Function

Off

Minimum flame

Ignition and maximum flame

Emergency zone

The hot surface of the device during normal operation. Accordingly, traces of use on the pan and other cookware (for example, stains from washing material) are a normal phenomenon. With intensive use, traces will be noticeable. In any case, the device will continue to work safely, so do not worry. We guarantee the safety of our products.

Do not place the device on the side of the burner. Avoid damaging the device in case of fire due to accidental temperature conditions. Do not place cookware on it. In case of any circumstances, do not use cold water for cooling. Do not leave the device unattended.

Approved by the relevant safety standard and safety requirements for gas equipment.

Automatic shut-off valve

The hot surfaces of the shut-off device, which automatically stops the gas flow in case of sudden extinguishing of the flame through the nozzle, made of cast iron or through the thermal shut-off of the gas supply. The described device is activated approximately 30 seconds after the flame is extinguished.

Using the burner

To reduce gas consumption and increase efficiency, use cookware whose bottom diameter matches the burner, placing it so that the flame does not extend beyond the edge of the cookware (see the following table):

Конфоркa	Pan bottom min-max. Ø (recommended)
Дворяднa 160 - 240 MM
«Експес» 140 - 220 MM
«Нanzi�кспес» 140 - 200 MM
Довоміжna 60 - 140 MM

When using larger cookware, which is not recommended, the burner and the cooking surface may heat up excessively. This can occur during prolonged use; the cooking surface may become discolored (especially with stainless steel). The company Franke assumes no liability for damage to the device caused by improper use as described above. (Fig. 1)

Do not place a single pan on the burner (Fig. 1). Do not use the burner with only one pan, pot, pan, or griddle (Fig. 1). Improper use of the grates may damage the cooking surface: do not place the grates upside down and do not drag them across the cooking surface. When using non-stick pans, the maximum recommended cooking time is 20 minutes; for longer cooking, use a suitable amount of water in the burner. It is not recommended to use heat diffusers such as metal mesh or any other type.

SURFACE: Using a very large pot may cause a temporary deformation of the steel cooking surface. This is a normal phenomenon and does not affect the operation of the device.

Fig. 1

Correct position of the grates

It is necessary to correctly install the grates

with rubber feet, as shown by the arrows

On the indicated illustrations:

CLEANING AND MAINTENANCE

Danger of burns!

Do not use the device if it is damaged. Do not use it if it is broken.

Before cleaning and maintenance, perform the following actions: turn off the device.

It is forbidden to immerse the device, its accessories, or the appliance in water or any other liquid, or to expose it to functional or aesthetic components of the appliance surface.

Cleaning the device

To prevent damage to the surface of the device, clean it after each use. To remove product residues from the surface, use a soft cloth or sponge dampened with water. We recommend using mild cleaning agents with gentle properties. If any liquid with a high sugar content spills on the surface, wipe it off immediately.

After cleaning the appliance with a damp cloth, be sure to dry it. This will prevent the formation of limescale. Clean the grates, drip tray, and coffee spouts with a soft, damp cloth. Do not wash the described parts in a dishwasher. Ensure that the gas outlet area is completely clean. If the appliance is not used for a long time, the parts placed inside the appliance may be damaged due to heating.

SERVICE AND REPAIR

Before performing any operations with the appliance, disconnect it from the power supply.

If problems arise during the operation of the device, contact the Franke technical service center.

Maintenance of electrical components should only be carried out by the manufacturer's representatives or a service center. Use only original spare parts. Replacement of damaged cables is allowed only by the manufacturer's representative or a service center.

When contacting the service center, be sure to provide the following information:

• Type of malfunction - Device model (Art. / Cod.)
• Serial number (S. N.)

Lay the appliance on a stable, flat or slightly inclined surface.

If the surface is not level, before calling the Franke Technical Service Center, try to follow the troubleshooting instructions to identify the problem:

TROUBLESHOOTING INSTRUCTIONS

Tун несяпавноcti Песовipte настуне:
A Конфорka He розалюетс, He п探测жу极易 рогити abo полу'm' He e CTiKIM	1 He nepekpitra noada ra3y abo elektprkn
	2 He bIDkpIto kpan noadai r3sy
	3 Заразвий ra3obni 6baon (ckpanleho ro r3sy) He e nopoxhim
	4 OТьор палнika He 3a6nii.
	5 3aIpyuKa He e 6bpydno
	6 Bci detani конфоркpo3miiцeni He nprabinbHo
	7 Порч 3 рукopo HeMae npotrayiB
	8 Пи заразлобанhi конфоркruycha Hatnckalacry npotrayom He doctatnboro acy, lo6 akTbByBatn 3axncnnpictpi (dNbiTbCsr cTospHky 152 "Kornstvahnna 3a npn3naueHnem")
	9 OТьор конфоркHe zacmiiehi npoyr 3termonapoiu
	10 He nprabinbHe halaTuBaHHa MinImaIbHoI noadai r3sy
B Емностi (kactpyli, сковорідк, чayнік) e HEcTiKIMn	11 Дно посуdu He e idealbHo pIBHm
	12 Пocyd He bIDcentroBoHa Ho KaONФорci
	13 Peшітki He nomiHni Mlczamn i po3miuToTbSЯ правиьHo

If the malfunction still occurs after the checks, contact the nearest Franke Technical Service Center.

DISPOSAL

Packaging

All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are marked with the corresponding symbol. Where possible, they should be taken to a recycling center and disposed of in an environmentally friendly manner.

Disconnection

Disconnect the appliance from the power supply before cleaning. If the appliance is fixed, this operation must be carried out by a qualified electrician.

Disposal

The symbol on the product or its packaging indicates that the appliance must not be disposed of with household waste.

Take the appliance to a special collection point for old electrical appliances.

Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) and on the disposal of waste applies.

Proper sorting and disposal of the old appliance for recycling, treatment, and environmentally compatible disposal helps prevent potential negative effects on the environment and human health, and promotes the recycling of materials used in the manufacture of the appliance.

SERVICE CENTER

The contact address of the service center in your country is indicated on the last page of the manual, as well as on our website www.franke.com

y! p# y # a##ll ## y#S# ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## ## # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # (#.Cod / .Art) j# # # # # # # # # # # # # # # # # # # # (N.S) #

(.Cod / .Art)	jLjLjLj	-
(.N.S)	jLjLjLj	-

(1)

()

y:joligall

jolgi jll jhao lgs jzj g jia jiao

yall jao ac gaaal giall al

a

gabll 20 2

a j 1j 1e aiei iia

∴ a i = a 1 + 2Δa_{i - 1}

Jia jolaljg jglai Jia jiu

15

a

j 2 1

jie:all jièn jièng

jiaaiyaoiayaoiayaoiayibiao

Therefore, D1(-2,0) and D2(0,2).

1

1. (x, y) = (ab, 5/2 ab). If b is a positive integer, find the range of x + y.

2a 1

1 1

880/730/590 = A50 = B

400 = C700 = D

45

H top	Y top	top
40	480	560	510	590	FHSM 604 3G DC
					FHSM 604 4G
					FHMA 604 3G DC
40	480	560	510	730	FHSM 755 4G DC
					FHMA 755 4G DC/ DCL
40	480	840	510	880	FHSM 905 4G DCL
					FHMA 905 4G DCL

J 1 J 2 J 3 J 4 J 5 J 6

y j 1
