Ceramic Fan Heater

Mod No: 305698/305830

EN This product is only designed for use inside well insulated rooms or for occasional use

Table of contents

1. Deutsch .... 3
2. English 16
3. Français 28
4. Italiano 41
5. Español....54

Prohibition sign with a diagonal line crossed over a document icon, indicating no prohibition or exclusion.

DO NOT COVER/ NICHT ABDECKEN

Technical diagram of a portable air purifier with labeled parts including mesh cover, ventilation slots, and control panel.

Usage and safety instructions

• Read the manual completely before using the product!
• Before using the fan heater, check whether the voltage indicated on the rating plate matches that of your mains supply!
• Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!
• Never block the fan of the appliance. This could damage the appliance or result in a fire or electric shock!
• Never block the air inlet of the fan heater!
• Disconnect the plug from the power source if the appliance is not being used! Do not leave the fan heater unattended!

- This appliance emits a lot of heat during operation. Therefore, touch only the operating controls. In case of doubt, use heat-resistant gloves.

- Keep flammable materials such as pillows, paper, clothing, curtains or other highly flammable objects away from the fan heater!

- This appliance is intended for personal use only!

- Caution! The fan heater is not suitable to be used in confined areas if they are occupied by persons who are not able to leave the room or the vehicle by themselves.

- Cleaning and user maintenance should not be carried out by children without supervision.

• CAUTION! Some parts of the product may become very hot and cause burns. Be very careful if children or frail persons are present.
• Never immerse it in water for cleaning. Wipe the body with a dry cloth.
• Place the appliance at least 30 cm from other objects.
• Use this appliance only on a flat surface.
• Disconnect the product from the mains when not in use or during cleaning.
• Keep the product at least 90 cm away from flammable materials, such as furniture, curtains, bedding, clothing or paper.

• Never allow the cable to come in contact with hot or damp surfaces.

• Do not turn on the appliance if you find a defect in the power cord. Contact the manufacturer of the product in such cases.

• This appliance is suitable only for properly isolated spaces or for occasional use.
• Due to the tilt protection at the bot- tom, the appliance should always be placed on a flat, level surface!
• Do not use the heater in the immediate vicinity of a bathtub, a shower or a swimming pool.
• If the mains power cable of this appliance is damaged, it should be replaced by the manufacturer, his after-sales service personnel or by an equally qualified person, so as to prevent any risk.

• Children may not play with the appliance!

• Children younger than 3 years must be kept away from it, unless they are constantly supervised.

• This appliance can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and understand the resultant dangers. This requires that the appliance is placed or installed in its normal usage position.
• Children between 3 and 8 years may not insert the plug into the socket, may not regulate the appliance, may not clean and / or carry out user maintenance.

• The heater must not be placed directly below a wall socket.

• Never cover the openings of the appliance!

• This product is suitable only for well isolated spaces or for occasional use.

Prohibition sign with a diagonal line and document icon, indicating no prohibition or exclusion

DO NOT COVER

Thank you for choosing an Brandon product. Please read the following user manual carefully so as to be able to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Fan heater
• User manual

2. Technical data

Power supply 220-240 V AC / 50 Hz
Power consumption	Setting 1: 1000 WSetting 2: 1500 W
Ambient temperature 0°C to 40°C
Features • 5 temperature settings	• 2 heat settings• Timer function (0-7 hours)• Tilt protection

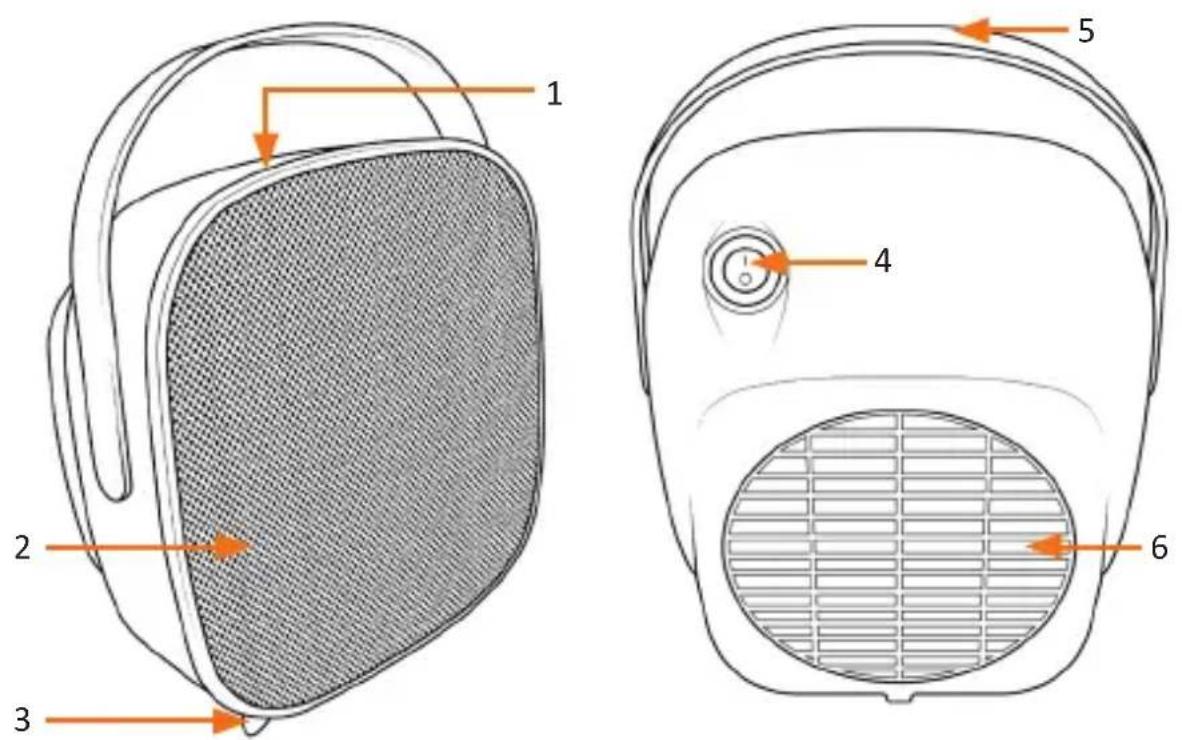

1. Product details


No. Discription

1 Operating elements and status LEDs

2 Heating elements

3 Stands

4 ON/OFF switch

5 Handle

6 Air inlet

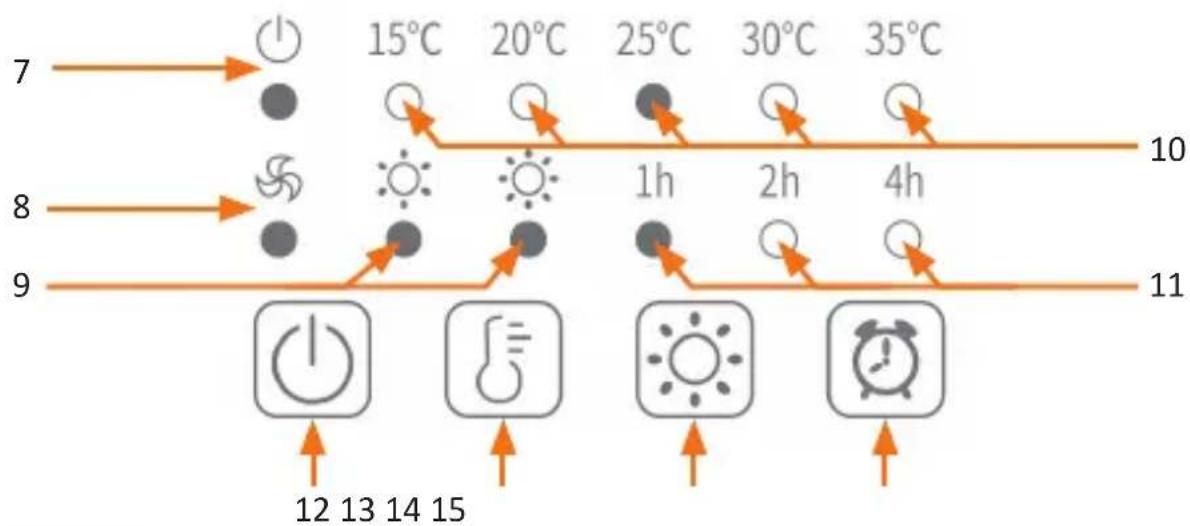

Operating elements and status LEDs

No. Discription

7 Power Status LED

8 Fan Status LED

9 Heat setting display

10 Temperature setting display

11 Timer display

12 ON / OFF button

13 Temperature setting button

14 Heating setting button

15 Timer button

5. Initial use

Take the appliance out of the package and remove all the packaging material. Place the fan heater on a firm surface so that the tilt protection at the bottom is not pressed. Then please put the On/Off switch (4) at the rear of the fan heater to "OFF" (0) position and connect the appliance to a normal 220-240 V AC mains socket. You can then put the On/Off switch (4) to "ON" position (1).

• To start the appliance, press the " 🔊" button on the control panel. The fan heater now starts to emit cold air.
• Press the " [ ] " button to adjust the desired temperature. The heater will start heating if the set temperature is higher than the room temperature. If the current temperature is higher than the set temperature, the appliance only starts heating if the temperature falls below the set value.
• The symbol of the heat setting display (9) starts glowing. The fan heater has 2 heat settings. Heat setting 2 is active if two " " symbols are displayed.
• As an alternative to setting the temperature, you can directly press the heat setting button " " and the fan heater heats continuously and does not stop when a certain temperature is reached.
• You can also manually set whether you want to activate heat setting 2 or heat setting 1. Press the " " symbol on the control panel.

6. Timer function

You can enable the timer function by pressing the "button. The currently configured time setting is displayed. You can select between 1 to 7 hours in increments of 1 hour. Please refer to the following table for the respective steps and the corresponding illuminated LEDs.

Timer LEDs Timer time
none Timer switched off
1 h Timer 1 hour
2 h Timer 2 hours
1 h + 2 h Timer 3 hours
4 h Timer 4 hours
4 h + 1 h Timer 5 hours
4 h + 2 h Timer 6 hours
4 h + 2 h+ 1 h Timer 7 hours

7. Tilt protection

In the event of tipping over, the appliance switches off automatically due to the tilt protection. The fan heater can therefore only be placed on firm and flat surfaces.

8. Overheating

WARNING: The heater should not be covered to avoid overheating.

Overheating generally occurs only if one of the openings of the fan heater is covered, blocked or clogged. This appliance has overheating protection. The heater switches off automatically once the overheating temperature is reached. If the appliance is therefore turned off for this reason, disconnect the plug and wait for 30 minutes. You can then attempt to turn on the appliance once again. If this does not happen, please contact the customer service department. After the appliance it switched off, the fan continues to run for a while in the cooling phase in order to blow the warm air out of the appliance.

9. Cleaning and maintenance

Disconnect the product from the power supply before cleaning or maintenance. Do not use any aggressive or chemical cleaning agents. Use a dry, soft cloth. Ensure that you do not touch the heater elements and hot surfaces when cleaning! You have to open the flap at the back to clean or replace the dust filter. Remove the dust filter, clean it and put the filter back.

10. Safety instructions and disclaimer

Never try to open the appliance to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the product away from high temperatures. Do not expose the product to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the product for any damage before using it. The product should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the product for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the appliance, which is not carried out by the original supplier, will void any warranty and guarantee claims. The appliance should be used only by persons who have read and understood this user manual. The specifications of the product may be changed without any special prior notification.

11. Disposal instructions

In line with the European WEEE directive, electrical and electronic products should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used products, you make an important contribution towards protecting our environment.

12. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of appliances that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the product 305698/305830 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover. Or from the following Internet address: https://downloads.ganzeinfach.de/

Prohibition sign with a diagonal line crossing over a document icon, indicating no prohibition or exclusion.

DO NOT COVER/ NE PAS COUVRIR

Prohibition sign with a diagonal line crossing over a document icon, indicating no prohibition or exclusion.

DO NOT COVER/ NON COPRIRE

Technical diagram of a portable air purifier with labeled parts including mesh cover, ventilation slots, and control panel.

Prohibition sign with a diagonal line crossing over a document icon, indicating no prohibition or exclusion.

DO NOT COVER/

NO CUBRIR

Model identifier(s): WDP-305698
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,5	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	1,1	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	1,5	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	el_max	0,000	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	0,000	kW	single stage heat output and no room temperature control	No
In standby mode	el_sb	0,000	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	Yes
				electronic room temperature control plus day timer	No
				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	Yes
				with black bulb sensor	No
Contact details				WD Plus GmbHWohlenbergstraße 16 - 30179 Hannover
