303334 - Heating Brandson - Free user manual and instructions

Product Type	Ceramic Fan Heater, analog
Model	303334
Brand	Brandson
Power Supply	220-240 V AC / 50/60 Hz
Power Consumption Setting 1	1000 W
Power Consumption Setting 2	1500 W
Heat Settings	2 (1000 W and 1500 W)
Functions	Heating, fan-only mode, oscillation
Temperature Control	Mechanical thermostat (adjustable)
Overheat Protection	Non self-resetting thermal fuse
Safety Features	Automatic shut-off on overheating; keep 1 m from objects; do not cover
Installation	Place on firm, flat surface; at least 1 m from other objects
Cleaning	Wipe housing with dry cloth; vacuum air inlets/outlets
Warranty	At least 1 year (2 years in Germany)
Disposal	Separate collection according to WEEE directive
Suitable For	Well insulated rooms or occasional use
Included Accessories	User manual

Frequently Asked Questions - 303334 Brandson

How do I set the desired temperature on the Brandson 303334 heater?

Turn the thermostat to the maximum setting. Once the room is at your desired temperature, slowly turn the thermostat back until the heater switches off. It will then maintain that temperature automatically.

What are the two heat settings and how do I select them?

The heater has two power settings: Setting 1 (1000 W) and Setting 2 (1500 W). Use the Heat setting regulator knob to choose between fan only (fan symbol), 1000 W (I), or 1500 W (II).

Can I leave the heater unattended?

No, never leave the fan heater unattended. Always disconnect the plug when not in use, and do not leave it running without supervision.

What should I do if the heater overheats and shuts off?

The heater has a non self-resetting thermal fuse. If it overheats due to blocked openings, it will switch off automatically. The fuse must be replaced by the manufacturer or a qualified person before reuse.

How close can I place the heater to curtains or furniture?

Keep the heater at least 1 meter away from flammable materials such as curtains, furniture, bedding, or clothing to prevent fire hazards.

Can I use the heater in a bathroom or near water?

No, do not use the heater near water (bathtub, washbasin, swimming pool) or outdoors. It is only approved for dry indoor use.

How do I clean the Brandson 303334?

Disconnect the heater from the power supply. Wipe the housing with a slightly damp cloth or use a vacuum cleaner to remove dust from the air inlet and outlet. Never use flammable or abrasive cleaners.

Does the heater have an oscillation function?

Yes, the heater features an oscillation function that helps distribute heat evenly throughout the room.

What is the warranty period for this heater?

The warranty covers defects in material or workmanship for at least 1 year (2 years in Germany), starting from the date of purchase. Keep your original receipt.

Can I use an extension cord or power strip?

No, never connect the heater to an extension cable or power strip. Connect it directly to a properly installed wall socket.

USER MANUAL 303334 Brandson

MON-FRI 9:30am - 18pm CET

https://downloads.ganzeinfach.de/

Ceramic Fan Heater, analog

Mod.-Nr.: 303334

This product is only suitable for well insulated rooms or for occasional use.

Abstract circular diagram with concentric rings and a cross mark at the bottom (no text or symbols)

Symbol of a waste bin with no text or labels

Usage and safety instructions

• Read the manual completely before using the product! Keep this user manual for future reference.
• Before using the heater, check whether the voltage indicated on the rating plate matches that of your mains supply!
• Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!
• Never block the fan in the device. This could damage the device, result in a fire or electric shock!
• Never block the air inlet of the interior fan heater!

• Disconnect the plug from the power source if the device is not being used! Do not leave the fan heater unattended!

• This device emits a lot of heat during operation. Therefore, touch only the operating controls. In case of doubt, use heat-resistant gloves.

• Keep flammable materials such as pillows, paper, clothing, curtains or other highly flammable objects away from the fan heater!
• This device is intended for personal use only!
• Caution! The fan heater is not suitable to be used in confined areas if they are occupied by persons who are not able to leave the room or the vehicle by themselves.
• Cleaning and maintenance should not be carried out by children.
• This appliance can be operated by children from 8 years of age and above, as well as by people with re-

duced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the device, and they understand the resultant dangers.

- CAUTION! Some parts of the product may become very hot and cause burns. Be very careful if children or frail persons are present.

- Never immerse it in water for cleaning. Wipe the body with a dry cloth.

- Place the appliance at a distance of least 1m from other objects.

- Use the product only on a flat surface.

- Disconnect the appliance from the mains when it is not being used or during cleaning.

- Keep the appliance at least 1m away from flammable materials, such as

furniture, curtains, bedding, clothing or paper.

• Ensure that the cable does not come into contact with any hot or moist surfaces.
• Do not turn on the appliance if you find a defect in the power cord. Contact the manufacturer of the product in such cases.

- Never move the appliance during operation.

- The appliance should be opened or repaired only by qualified technicians!

- Remove the packaging material and check if the appliance is in proper working condition before using it.

- Ensure that children do not play with the appliance or the packaging material!

• This product is not a toy!

• Close supervision is required if the product is used by or near children or frail persons.
• Do not use the appliance after a malfunction, if it has been dropped, or appears to be damaged in any way. Return the complete product to the manufacturer for inspection, repair or replacement.
• Ensure that the appliance is switched off before disconnecting the mains cable. If you touch it, make sure that your hands are dry so as to avoid electric shock.
• Hold the heater only using the handle on the back.

• Do not use the heater in places such as garages, where petrol, paint, or other flammable materials are used or stored.

• This product should not be used near water, such as a bathtub, washbasin, swimming pool, etc., where there is a risk of immersion or splashing.

• Dust and lint deposits which get into the appliance are a common cause of overheating. Make sure that these deposits are removed regularly by disconnecting the heater from the socket, so that it can cool down and be cleaned (as described in the section on "Cleaning and care").
• Never connect the appliance to an extension cable or power strip!
• Do not use the appliance outdoors!
• Use this heater only as described in this manual. Using the appliance for any other purpose which is not recommended by the manufacturer may

cause fire, electric shock or physical injury and void the guarantee.

• CAUTION: Please do not cover!
• Do not cover the product during use or shortly after use (e.g., using a cloth, a blanket, a curtain, etc.) to prevent overheating of the product. There is also a risk of fire!

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time.

1. Scope of delivery

• Fan heater
• User manual

2. Technical data

Power supply 220-240 V AC / 50/60 Hz
Power consumption	Setting 1: 1000 W / Setting 2: 1500 W
Features 2 heat settings
Ambient temperature + 0-3°C until 35-40°C

3. Function

You can heat the desired area with the Brandon heater. Thanks to the oscillation function and the 2 heat settings, you can heat as desired.

Note: To ensure that the heater works and heats properly, the desired temperature must be set on the heater.

To arrive at the ideal thermostat setting, proceed as follows:

Adjust the thermostat to the maximum setting. Once the desired room temperature is reached, turn the thermostat back slowly until the heater switches off. The heater will automatically maintain the desired temperature. If the heater does not seem to be heating, increase the desired temperature on the heater to activate the heating elements.

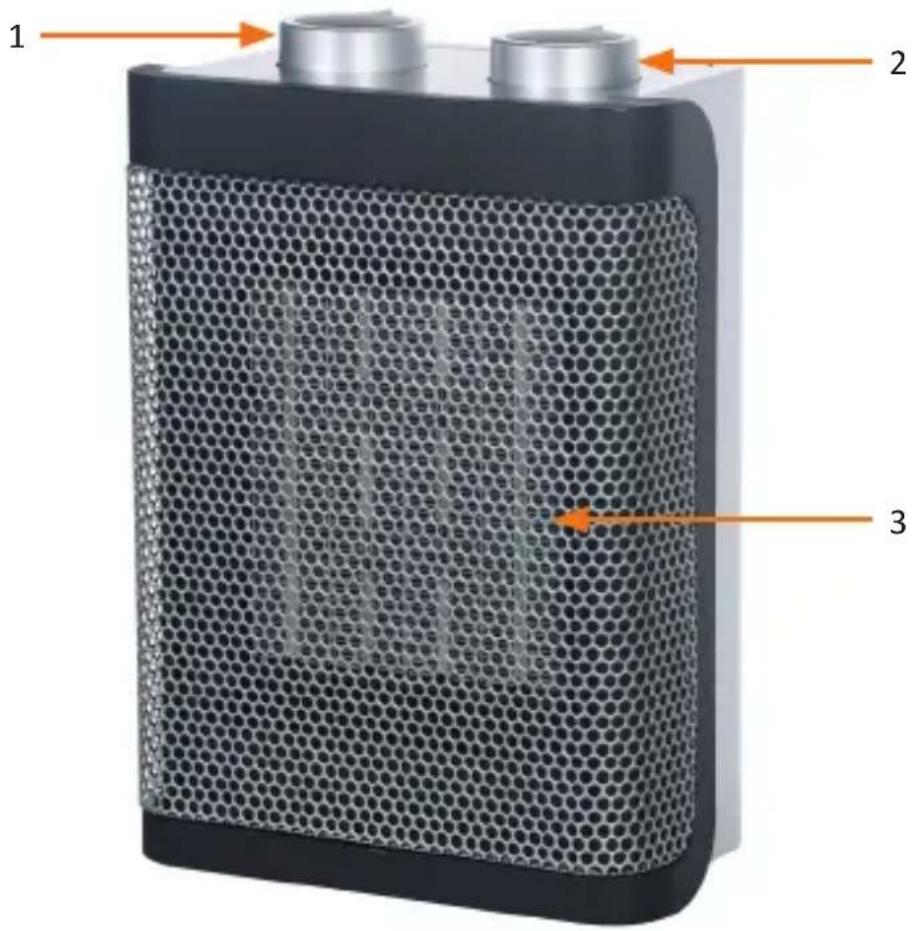

4. Product details

No.	Description
1	Temperature controller
2	Heat setting regulator
3	Heating elements

5. Installation

Take the appliance out of the packaging and remove any packaging material and check the appliance for any damage. The fan heater must be placed on a firm and flat surface. Ensure that the heater is placed at least 1m away from other objects, and not directly below a socket. A socket should be available for supplying power to the appliance.

Caution! Ensure that the appliance is not placed near any flammable materials or fluids, or with the air discharge pointing in these directions.

6. Commissioning

Connect the appliance to a properly installed socket. To start the appliance, turn the "Heat setting regulator" at the top of the appliance to the desired function.

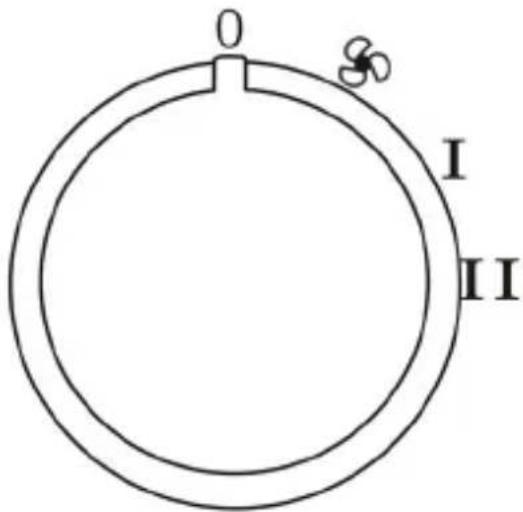

Fan symbol Only fan is switched on

I First heat setting (1000W)

II Second heat setting (1500W)

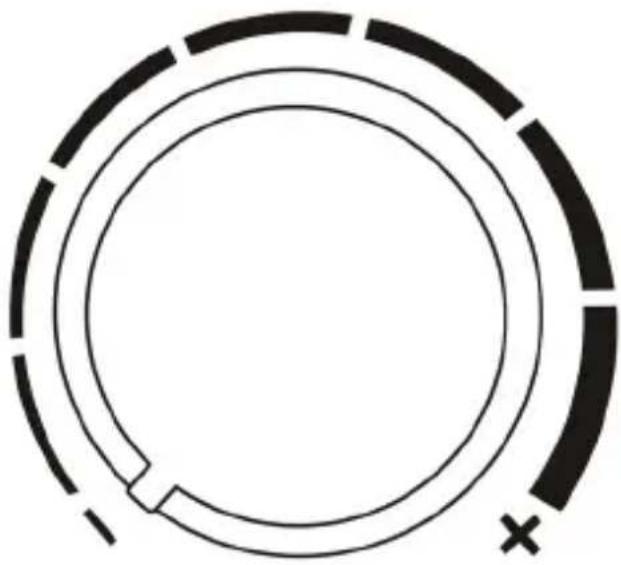

Abstract circular diagram with concentric rings and a cross mark at the bottom (no text or symbols)

Then select the desired temperature using the "Temperature controller". "Minus (-)" is the lowest temperature setting and "Plus (+)" is the highest. To switch off the appliance completely, disconnect the mains plug from the socket.

This temperature is maintained almost constant by switching the appliance on and off automatically.

Please remember that the appliance only heats when the thermostat setting is higher than the room temperature.

7. Overheating

Overheating generally occurs only if one of the openings of the fan heater is blocked. This device comes with a non self-resetting thermal fuse. The heater switches off automatically once the overheating temperature is reached. The fan heater can be operated again only after the fuse is replaced by the manufacturer or an equally qualified person.

8. Cleaning and Care

Completely switch off the appliance and disconnect it from the power supply before you start cleaning it.

Clean the housing with a slightly damp cloth, a vacuum cleaner or a dusting brush. Never use flammable, aggressive or scouring cleaning agents such as benzene or spirit to clean the appliance.

Clean the air inlet and outlet regularly using a vacuum cleaner.

If the appliance is not going to be used for a long time, then it must be protected against excessive dust and dirt.

9. Safety instructions and disclaimer

Never try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the appliance for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without special prior notice.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol on the product, in the user manual or/and the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

11. Warranty declaration

Regardless of statutory warranty claims, the manufacturer grants a warranty pursuant to the laws of your country, however, at least 1 year (2 years in Germany). The warranty starts on the date that the device has been sold to the consumer.

The warranty covers exclusively defects based on material or manufacturing defects. Repairs under this warranty may be performed exclusively by an authorized customer service centre. Submit the original sales receipt (showing date of sale) to assert your warranty claim.

The following are excluded from the warranty:

• Normal wear
• Improper use, e.g. overloading the device, unapproved accessories
• Damage caused by external influences, force, or foreign objects
• Damage caused by noncompliance with these operating instructions,
  e.g. connecting to the wrong voltage or noncompliance with the installation instructions
• Fully or partially disassembled devices

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

This symbol indicates that disposal of this product in the domestic waste is not permitted within the EU. Waste devices contain valuable recyclable material that should be recycled. Recycling also prevents uncontrolled waste disposal from damaging the environment and human health. Therefore, please dispose of all waste devices in the appropriate collection systems or send the device to the place where you bought the device for disposal. They will then recycle the device

WEEE Guideline: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303334 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, or from the following Internet address: downloads.ganzeinfach.de

Model identifier(s): 303334
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	1,5	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	1.0	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	1,5	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	el_sb	N/A	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No

				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details				WD Plus GmbHWohlenbergstraße 16 · 30179 Hannover	No

Notes

Notes

Notes

SERVICE

We hope you enjoy your new product in every way! If there is still something you're concerned about; please feel free to let us know. You're welcome to contact our service team at any time.
