USER MANUAL 305472 Brandson

This product is only suitable for well insulated rooms or suitable for occasional use.

Table of contents

1. Deutsch....3
2. English....17
3. Français....30
4. Italiano....43
5. Español....56

Prohibition sign with red circle and black icon depicting a document or file, crossed by a diagonal line

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Usage and safety instructions

• Read the manual completely before using the product! Keep this user manual carefully for future reference.
• Don’t use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children younger than 3 years must be kept away unless they are supervised at all times.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

- WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless onstant supervision is provided.

- Do not use this heater if it has been dropped.

- Do not use if there are visible signs of damage to the heater.

- Use this heater on a horizontal and stable surface, or fix it to the wall, as applicable.

- WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

- Please do not pull on the cable when you want to remove the plug from the power source. Always pull on the plug itself!

• Never block the fan of the unit. This could result in damage, fire or electric shock!
  • Always unplug the appliance from the power source when it is not in use!
• Never leave the fan heater unattended!
• This unit gives off strong heat when in operation. Therefore, touch it only at the operating elements. If in doubt, use heat-resistant gloves.
• Keep combustible materials such as pillows, papers, clothing, curtains or other easily combustible objects away from the fan heater!
• This appliance is intended for private use only!

• Do not move the appliance under any circumstances during operation.

• Make sure that children do not play with the appliance or packaging materials!

• If the connecting cable of this appliance is damaged, it must be replaced by the manufacturer or its after-sales service or a similarly qualified person in order to avoid hazards.

• Do not operate the unit after a malfunction, if it has been dropped, or appears damaged in any way. Return the complete product to the manufacturer for inspection, repair or replacement.

• WARNING: In order to avoid overheating, do not cover the heater.

• The meaning of figure in marking is “DO NOT COVER”.

Prohibition sign with a red circle and black icon depicting a document or file, crossed out by a diagonal line.

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Fan heater
• User manual

2. Technical data

Power supply 380-400V 3~50Hz
Power consumption max. 5000 W
Required fuse min. 16 A
Protection class Protection class I
Dimensions (H x W x D) approx. 300 mm x 235 mm x 345 mm
Features 2 heating stages and fan mode
Ambient temperature -15°C until 25°C

Caution! Make sure that the total consumption of loads connected to one circuit does not exceed the maximum total load of the circuit fuse!

3. Function

You can heat the desired area with your Brandon heater. Thanks to the 2 heat settings, you can heat individually.

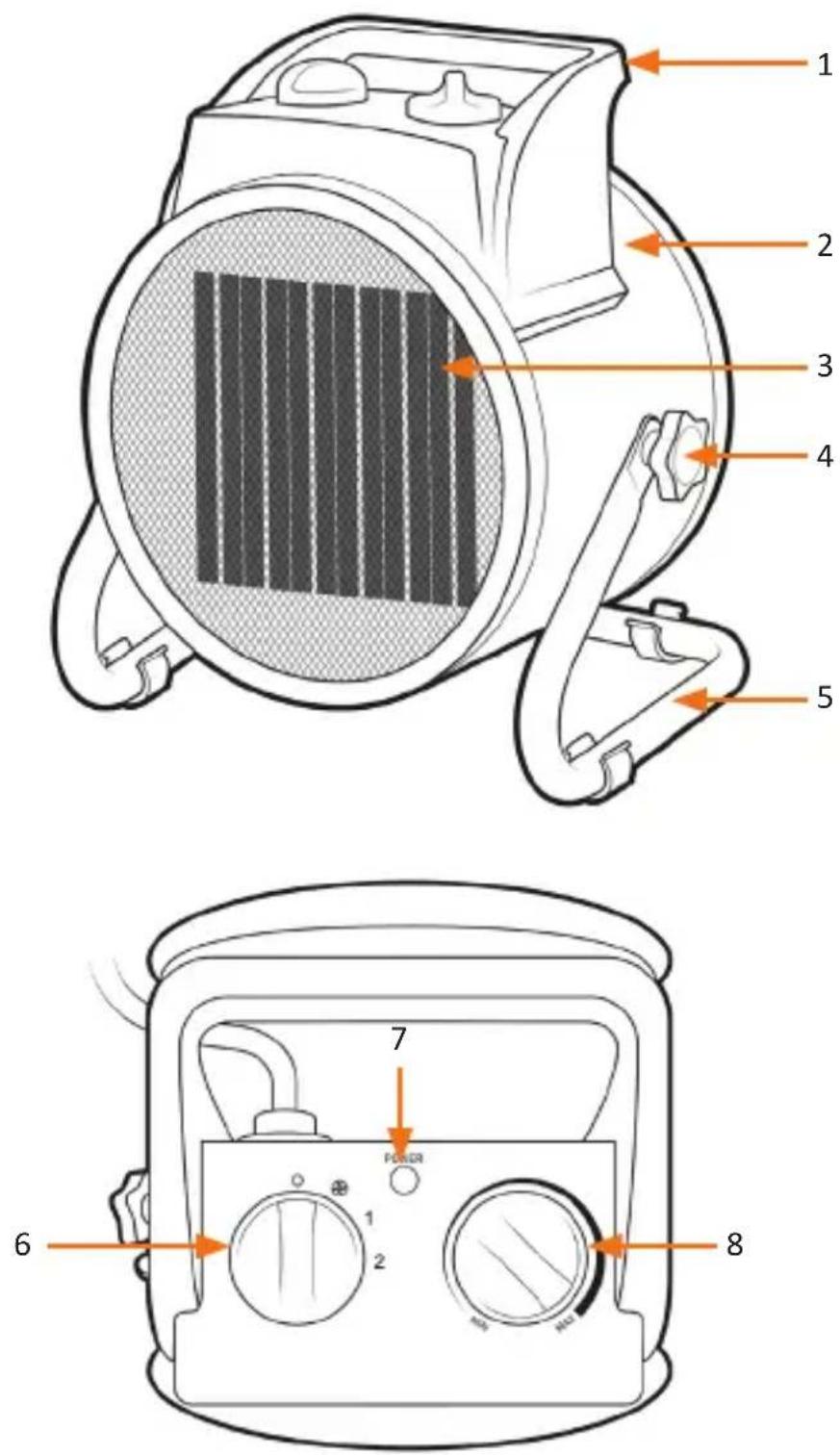

1. Product details


No. Description
1 Carrying handle
2 Housing
3 Heating elements
4 Nut to tilt the fan heater
5 Pedestal
6 Power setting controller
7 Power lamp
8 Temperature controller

5. Installation

Take the appliance out of the package and remove all the packaging material. Then check the product for any damage. Place the heater on a flat surface. The heater has to be placed at least 1 m away from other objects and should not be kept directly under a socket.

Caution! Make sure that the appliance is not placed near flammable materials or any liquids. The air outlet should also not point in this direction.

Note: To ensure that the heater works and heats properly, the desired temperature must be set on the heater so that it is a couple of degrees higher than the room temperature. If the heater does not start heating, increase the desired temperature to activate the heating elements.

6. Initial use

Connect the appliance to a 16A 380-400V 3\~50/60 Hz socket. To start the appliance, turn the "Power regulator" at the top to the desired position.

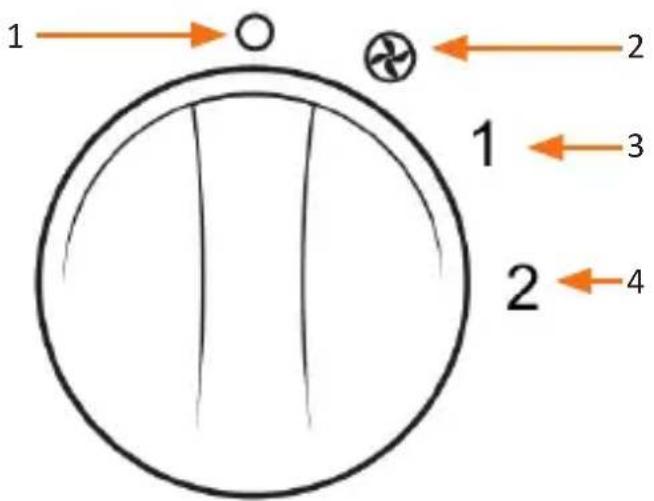

1 → ○ ← 2 1 ← 3 2 ← 4

No. Description
1 Off
2 Only ventilation (about 50 W)
3 Heat setting 1 (about 3300 W)
4 Heat setting 2 (about 5000 W)

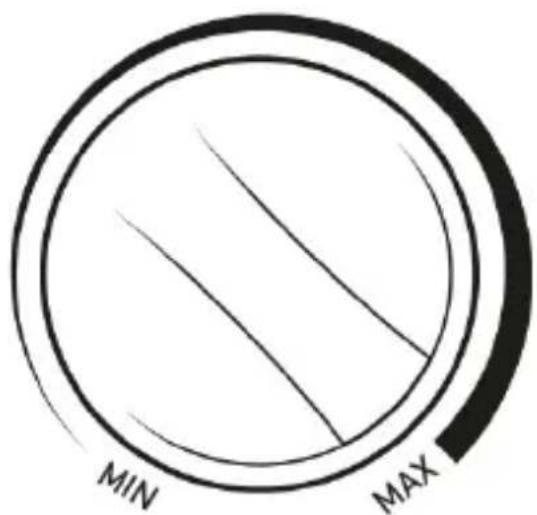

MIN MAX

Select the desired temperature using the "Temperature regulator". "MIN" is the lowest temperature and "MAX" is the highest. To switch off the appliance, turn the "Temperature regulator" in the counter-clockwise direction till the appliance switches off with an audible "click".

This temperature is maintained almost constant by switching the appliance on and off automatically. Please remember that the appliance is switched on only if the thermostat setting is higher than the room temperature.

7. Overheating

Normally, overheating only occurs if one of the heater's openings is blocked or clogged. The device has a self-resetting thermal fuse. As soon as the overheating temperature is reached, the heater switches off automatically. Operation of the heater can only be resumed when the fuse has been reset.

8. Cleaning and Care

Completely switch off the appliance and disconnect it from the power supply before you start cleaning it.

Clean the housing with a slightly damp cloth, a vacuum cleaner or a dusting brush. Never use flammable, aggressive or scouring cleaning agents such as benzene or spirit to clean.

Clean the air inlet and outlet regularly using a vacuum cleaner.

If the appliance is not going to be used for a long time, then it must be protected against excessive dust and dirt.

9. Safety instructions and disclaimer

Never try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the appliance away from high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damage before using it. The appliance should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of

the reach of children or mentally disabled persons. Any repair or modifications to the appliance, which is not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without prior intimation.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

11. Warranty and guarantee

Regardless of statutory warranty claims, the manufacturer provides a guarantee of at least 1 year (2 years in Germany) under the laws of your country. The warranty starts on the date of sale to the end user. The warranty only covers defects caused by material or manufacturing shortcomings. Warranty repairs should only be car-

ried out by an authorized customer service centre. To assert your warranty claim, the original sales receipt (with date of sale) has to be enclosed.

The following are excluded from the warranty:

• Normal wear and tear
• Improper use such as overloading the appliance, unapproved accessories
• Damage caused by external influences, use of force or by foreign bodies
• Damage caused by not following the instructions in the manual, such as connecting to the wrong mains voltage or not following the assembly instructions
• Fully or partially dismantled appliances

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Within the EU, this symbol indicates that this product must not be disposed of with household waste. Used appliances contain valuable materials that should be recycled to prevent harm to the environment or human health caused by uncontrolled disposal of waste. Please dispose your old appliances via appropriate collection centres or send the appliance for disposal back to the place where you bought it. It will then be sent for recycling.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 305472 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, or from the following Internet address: downloads.ganzeinfach.de

Prohibition sign with red circle and black icon depicting a document or folder, no text present

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Prohibition sign with red circle and black silhouette of a building, indicating no signage or restriction

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Prohibition sign with red circle and black icon depicting a document or file, crossed out by a diagonal line.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Model identifier(s): WDP-305472
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	5	kW	manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P_min	3.3	kW	manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P_max,c	5	kW	electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				fan assisted heat output	No
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	el_sb	N/A	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	Yes
				with electronic room temperature control	No
				electronic room temperature control plus day timer	No

				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	No
				with black bulb sensor	No
Contact details				WD Plus GmbHWohlenbergstraße 16 · 30179 Hannover	No
