USER MANUAL 305884 Brandson

This product is only for well insulated rooms or suitable for occasional use.

Mod.-Nr.: 303846

Mod.-Nr.: 305884

Table of contents

1. Deutsch .... 3
2. English 18
3. Français 32
4. Español.... 48
5. Italiano 62

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage: https://model.ganzeinfach.de/303846.

Prohibition sign with a diagonal line crossing over a building icon, indicating no prohibition or exclusion.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Usage and safety instructions

- Read the manual completely before using the product! Keep this user manual for future reference.

- Before using the heater, check whether the voltage indicated on the rating plate matches that of your mains supply!

- Do not pull the cable if you want to disconnect the plug from the power source. Always pull the plug itself!

- Never block the fan of the appliance. This could result in damage, a fire or electric shock!

- Never block the air inlet of the interior fan heater!

- Disconnect the plug from the power source if the appliance is not being used! Do not leave the fan heater un-attended!

• This appliance emits a lot of heat during operation. Therefore, touch only the operating controls. In case of doubt, use heat-resistant gloves.
• Keep flammable materials such as pillows, paper, clothing, curtains or other highly flammable objects away from the fan heater!
• This appliance is intended for personal use only!
• Caution! The fan heater is not suitable to be used in confined areas if they are occupied by persons who are not able to leave the room or the vehicle by themselves.
• Cleaning and maintenance should not be carried out by children.
• This appliance can be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental

capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the appliance, and they understand the resultant dangers.

• CAUTION! Some parts of the product may become very hot and cause burns. Be very careful if children or frail persons are present.
• Never immerse it in water for cleaning. Wipe the body with a dry cloth.
• Maintain a distance of at least 1 m from other objects and the ground.
• Use the product only on a flat surface.
• Disconnect the appliance from the mains when it is not being used or it is being cleaned.

• Keep the product at least 1 m away from flammable materials, such as furniture, curtains, bedding, clothing or paper.

• Ensure that the cable does not come into contact with any hot or moist surfaces.

• Do not turn on the appliance if you find a defect in the power cord. Contact the manufacturer of the product in such cases.
• Never move the appliance during operation.
• The appliance should be opened or repaired only by qualified technicians!
• Remove the packaging material and check if the appliance is in proper working condition before using it.
• Ensure that children do not play with the appliance or the packaging material!
  • This product is not a toy!

• Close supervision is required if the product is used by or near children or frail persons.

• Do not use the appliance after a malfunction, if it has been dropped, or appears to be damaged in any way. Return the complete product to the manufacturer for inspection, repair or replacement.

• Ensure that the appliance is switched off before disconnecting the mains plug. If you touch it, make sure that your hands are dry to avoid electric shock.
• Hold the heater only using the handle on the back.
• Do not use the heater in places such as garages, where petrol, paint, or other flammable materials are used or stored.
• This product should not be used near water, such as a bathtub, washbasin, swimming pool, etc., where there is a risk of immersion or splashing.

- Dust and lint deposits which get into the appliance are a common cause of overheating. Make sure that these deposits are removed regularly by disconnecting the heater from the socket, so that it can cool down and be cleaned (as described in the section on "Cleaning and care").

- Connect the appliance only to a suitable socket. Do not connect the heater to extension cables, surge protectors, timers, direct switches or electrical sockets when other devices are plugged into the same socket. The appliance should not be used with cable extension sets, power strips or adapters. Non-compliance could result in fire, overheating, malfunction, property damage, injury or even death!

- Do not use the appliance outdoors!

- This heater has to be connected to a

separate 220-240 V, 5A (or more) circuit.

• Never connect anything else to the same circuit. Please contact a certified electrician if you are unsure whether your home meets this specification. Non-compliance could result in fire, overheating, malfunction, property damage, injury or even death!
• Do not disconnect the plug of the heater when the appliance is still switched on, since the ventilation grille will be hot. Turn the heater off and wait for 10 minutes before you disconnect the plug from the socket.

• Use this heater only as described in this manual. Any other usage which is not recommended by the manufacturer may result in fire, electric shock or physical injury and void the guarantee.

• CAUTION: Please do not cover!

• Do not cover the product during use or shortly after use (e.g., using a cloth, a blanket, a curtain, etc.) to prevent overheating of the product. There is also a risk of fire!

Prohibition sign with a diagonal line crossing over a document icon, indicating no prohibition or exclusion.

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Fan heater
• User manual

2. Technical data

Power supply 220-240 V AC / 50-60 Hz
Power consumption 400 W
Protection class Protection class II
Features • Timer function	• Display• 90 ° rotary plug

3. Function

You can heat the desired area with the Brandon heater. Thanks to the rotary plug, you can adjust the appliance suitable and heat as desired.

4. Product details

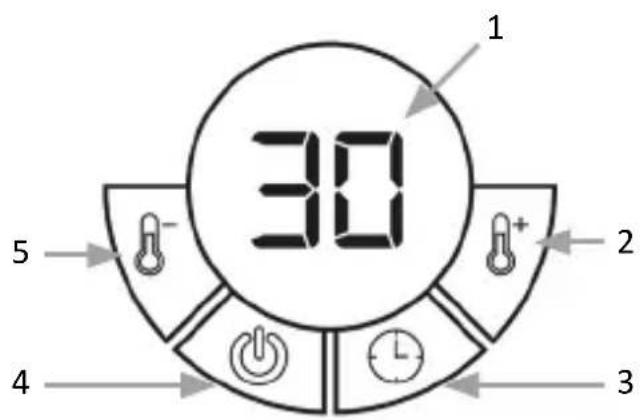

30 1 2 5 - + - 4 - 3

No. Discription
1 Display
2 Temperature "+" button
3 Timer button
4 ON/OFF button
5 Temperature "-" button

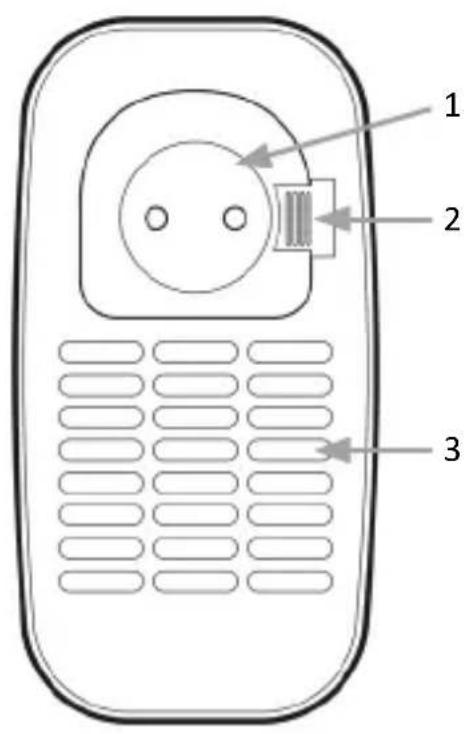

1 2 3

4 5 6

No. Discription
1 Plug
2 Plug-unlock button
3 Air inlet
4 Operating controls
5 "POWER" switch
6 Air outlet

5. Installation

Take the appliance out of the package and remove all the packaging material. Then check the product for any damage. Choose a suitable socket and connect the fan heater to it. The place of installation of the heater should be at least 1 meter away from other objects and the ground.

Caution! Make sure that the appliance is not placed near flammable materials or any liquids. The air outlet should also not point in this direction.

Note: To ensure that the heater works and heats properly, the desired temperature must be set on the heater so that it is a couple of degrees higher than the room temperature. If the heater does not start heating, increase the desired temperature on the heater to activate the heating elements.

6. Initial use

Connect the appliance to a 220-240 V AC socket. Set the ON/OFF switch at the side of the appliance to position "I" to start the fan heater. The heater then shows the current temperature in the display. To switch off the appliance, set the "ON/OFF" switch to "0".

Press the "button on the control panel at the front of the fan. The ventilation starts now.

You can adjust the desired room temperature using the temperature buttons "+" ( ) and "-" ( ). The fan heater now heats until the specified room temperature is reached.

Note: The fan heater is connected to a timer. Wait for 60 seconds after switching the appliance off before disconnecting it from the socket.

Thermostat function

Press the temperature button "+" ( ) and "-" ( ) to set the desired temperature. Temperatures between 15°C and 45°C can be set. If the set temperature is less than or equal to the current air temperature, the heating function is switched off. The fan does not switch off and maintains the set temperature.

When the set temperature is higher than the current air temperature, the appliance switches on again and heats until the desired room temperature is reached.

Timer function

Press the "L" button to switch on the timer. Every time you press the timer button, the value increments by one hour, up to a maximum of 12 hours. Press the timer button again to reset the timer. The time duration set is shown in the display.

As soon as the timer is set, the countdown function starts counting down and switches off the appliance at the end of the timer count.

7. Overheating

Overheating generally occurs only if one of the openings of the fan heater is blocked. This appliance comes with a self-resetting thermal fuse. The heater switches off automatically once the overheating temperature is reached. The fan heater can be operated again once the fuse is reset.

8. Cleaning and Care

Completely switch off the appliance and disconnect it from the power supply before you start cleaning it. Clean the housing with a slightly damp cloth, a vacuum cleaner or a dusting brush. Never use flammable, aggressive or scouring cleaning agents such as benzene or spirit to clean. Clean the air inlet and outlet regularly using a vacuum cleaner. If the appliance is not going to be used for a long time, then it must be protected against excessive dust and dirt.

9. Safety instructions and disclaimer

Never try to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the appliance away from high temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the appliance for any damage before using it. The appliance should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the appliance, which is not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without prior intimation.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

11. Warranty and guarantee

Regardless of statutory warranty claims, the manufacturer provides a guarantee of at least 1 year (2 years in Germany) under the laws of your country. The warranty starts on the date of sale to the end user. The warranty only covers defects caused by material or manufacturing shortcomings. Warranty repairs should only be carried out by an authorized customer service centre. To assert your warranty claim, the original sales receipt (with date of sale) has to be enclosed.

The following are excluded from the warranty:

• Normal wear and tear
• Improper use such as overloading the appliance, unapproved accessories
• Damage caused by external influences, use of force or by foreign bodies
• Damage caused by not following the instructions in the manual, such as connecting to the wrong mains voltage or not following the assembly instructions
• Fully or partially dismantled appliances

Symbol of a waste bin with no text or labels

Within the EU, this symbol indicates that this product must not be disposed of with household waste. Used appliances contain valuable materials that should be recycled to prevent harm to the environment or human health caused by uncontrolled disposal of waste. Please dispose your old appliances via appropriate collection centres or send the appliance for disposal back to the place where you bought it. It will then be sent for recycling.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 303846 / 305884 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, or from the following Internet address: downloads.ganzeinfach.de

Prohibition sign with a crossed-out document icon and diagonal line, indicating no text or symbols beyond the circle.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Prohibition sign with a diagonal line crossing over a document icon, indicating no prohibition or exclusion.

Symbol of a waste bin with no text or labels

Prohibition sign with a diagonal line crossing over a document icon, indicating no prohibition or exclusion.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Model identifier(s): WDP-303846, WDP-305884
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	0,4	kW	manual heat charge control, with integrated thermostat	NA
Minimum heat output (indicative)	P_min	0,4	kW	manual heat charge control with room and/or outdoor temperature feedback	NA
Maximum continuous heat output	P_max,c	0,4	kW	electronic heat charge control with room and/or outdoor temperature feedback	NA
Auxiliary electricity consumption				fan assisted heat output	NA
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW	single stage heat output and no room temperature control	No
In standby mode	el_sb	0,00032	kW	Two or more manual stages, no room temperature control	No
				with mechanic thermostat room temperature control	No
				with electronic room temperature control	Yes
				electronic room temperature control plus day timer	No

				electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				room temperature control, with presence detection	No
				room temperature control, with open window detection	No
				with distance control option	No
				with adaptive start control	No
				with working time limitation	Yes
				with black bulb sensor	No
Contact details				WD Plus GmbHWohlenbergstraße 16 · 30179 Hannover	No

Umgebungstemperatur + 0-3°C bis 35-40°C
Ambient temperature	+ 0-3°C until 35-40°C
Température ambiante + 0-3°C à 35-40°C
Temperature ambiante + 0-3°C fino 35-40°C
Temperatura ambiente + 0-3°C a 35-40°C
