Product type	Pedestal fan
Brand	Brandson
Model	303369
Dimensions (L x W x H)	45.5 x 41 x 115-134.5 cm (adjustable height)
Rotor diameter	Approx. 38.5 cm
Weight	Approx. 5 kg (estimated)
Power supply	220-240 V ~ 50 Hz
Power consumption	30 W
Motor type	DC motor
Number of speeds	24 levels
Oscillation	Yes, approx. 80° (can be turned on/off)
Tilt	Up to 35°
Timer	Yes, up to 7.5 hours (in 0.5 hour increments)
Remote control	Yes, with CR2032 button cell battery included
Noise level	LpA < 70 dB(A)
Main functions	24 speeds, oscillation, timer, adjustable tilt, adjustable height
Maintenance and cleaning	Unplug before cleaning; wipe with a damp cloth and dry; do not immerse in water
Safety	Protective grille, automatic shut-off not mentioned, do not use without grille
Spare parts and repairability	Not specified; repairs by manufacturer or authorized service
General information	Indoor use only; energy savings up to 60% compared to AC motor

Frequently Asked Questions - 303369 Brandson

How to assemble the Brandson 303369 fan?

First, assemble the support base with the outer tube, then attach the motor unit to the inner tube. Mount the rear grille, the rotor blade, then the front grille using the provided screws and nuts. Refer to the instruction manual for details.

How to use the remote control?

The remote control works with an included CR2032 button cell battery. It allows you to turn on/off, adjust speed (24 levels), activate oscillation and timer.

How to adjust the height of the fan?

Slightly loosen the height adjustment nut (12), then slide the inner tube up or down. Once the desired height is reached, retighten the nut. Make sure to turn off the appliance before any adjustment.

How to activate oscillation?

Press the oscillation button (symbol) on the control panel or remote control to turn on or off the left-to-right movement (approx. 80°).

How to set the timer?

Press the Timer button repeatedly until the desired duration is reached (in 0.5 hour increments, max 7.5 h). The LEDs indicate the remaining time. Example: 4h + 1h + 0.5h = 5.5h.

How to clean the fan?

Always unplug the appliance before cleaning. Use a slightly damp cloth (water only) to wipe the housing and grille. Never immerse in water. Allow to dry completely before reuse.

What speed levels are available?

The fan has 24 adjustable speed levels via the ⊕ and — buttons on the panel or remote control.

What to do if the fan does not work?

Check the power connection, that the switch is on, and that the remote control has a battery. If the problem persists, contact after-sales service. Do not attempt to repair yourself.

Is the fan noisy?

The noise level is below 70 dB(A). Thanks to the DC motor, it is relatively quiet, especially at low speeds.

Can I use the fan outdoors?

No, the device is designed for indoor use only. Do not expose it to moisture, rain, or direct sunlight.

USER MANUAL 303369 Brandson

Standing Fan, DC Motor

Mod.-Nr.: 303369

Table of contents

1. Deutsch 3
2. English 15
3. Français 27
4. Italiano 39
5. Espanol 51

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Important safety guidelines for this device

• Use the device for the private and intended purpose only. This product is not intended for commercial use. Do not use it outdoors and keep it away from heat as well as direct sunlight.
• Please do not keep the device in the immediate vicinity of water sources such as a bathtub, shower, washbasin or swimming pool.
• Do not use the product with wet hands.

• If the device becomes moist or wet, pull out the power plug immediately. Ensure your own safety and do not touch any conductive material on the device.

• Protect the product from moisture (under no circumstances should the device be immersed in liquid), sharp edges or large sources of dust.

• Do not keep the device in the immediate vicinity of heat sources (e.g., ovens or heating system).
• Keep it on an appropriate surface so that it does not tip over.
• Unplug the power plug when the device is not in use, during transport or during cleaning.
• Never keep the fan machine unattended; keep it out of reach of animals and children wherever you use or store it.
• Operate the device only with the voltage mentioned on the device label
• This device can be operated by children from 8 years of age and above,

as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of the device, and understand the resultant dangers.

• Children should not play with the device. Cleaning and user maintenance shall not be carried out by children without supervision.
• Keep the device and its connection cable out of reach of children under 8 years.
• For the safety of your children, keep packaging parts out of their reach (plastic bag, foils, carton or polystyrene).
• Do not allow small children to play

with the foil or plastic bags. Danger of suffocation!

• While operating the device, ensure that the protective cage is closed.
• The fan, rotational switch and switches should not be blocked!
• Ensure that the fan is disconnected from the power supply before removing the protective cage
• Never insert your body parts (e.g., fingers) or objects through the protective cage.
• Ensure that your hair is not within the range of the protective cage as it may get caught in the air current.
• If the power cable of this device is damaged, it should be replaced by the manufacturer, his after-sales service or by an equally qualified person, so

as to prevent any risk.

• Allow the device to cool down before cleaning it, or disconnect the power plug from the socket.
• Wipe the device housing with a damp cloth and dry it afterwards with a clean dry cloth. Never immerse the housing in water for cleaning.

Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

Fan
- Remote control including button cell (CR2032)
- User manual

2. Technical data

Input voltage 220 -240 VAC 50Hz
Power consumption 30W
Noise emission Workplace related emission value LpA < 70 dB(A)
Rotor diameter approx. 38.5 cm
Oscillation Approx. 80° can be enabled / disabled
Angle of inclination Approx. 35°
Dimensions	Width approx. 45.5cm, depth approx. 41cm, height approx. 115-134.5cm (adjustable)
Features	• 24 speed levels • Oscillation option • Timer function • DC motor • Quiet operation

3. Functions

The Brandon pedestal fan has an efficient DC motor and large 38.5cm rotor blades which ensure optimum ventilation even on hot days. Thanks to the 24 speed levels, adjustable angle of inclination and oscillation function, you can adapt the fan to your individual requirements.

Compared to conventional AC fans, up to 60% can be saved on energy costs with the DC motor fan with an identical air flow in m^3 . The input voltage of 220-240 VAC is converted to the 24V DC required by the DC motor using an internal power adapter.

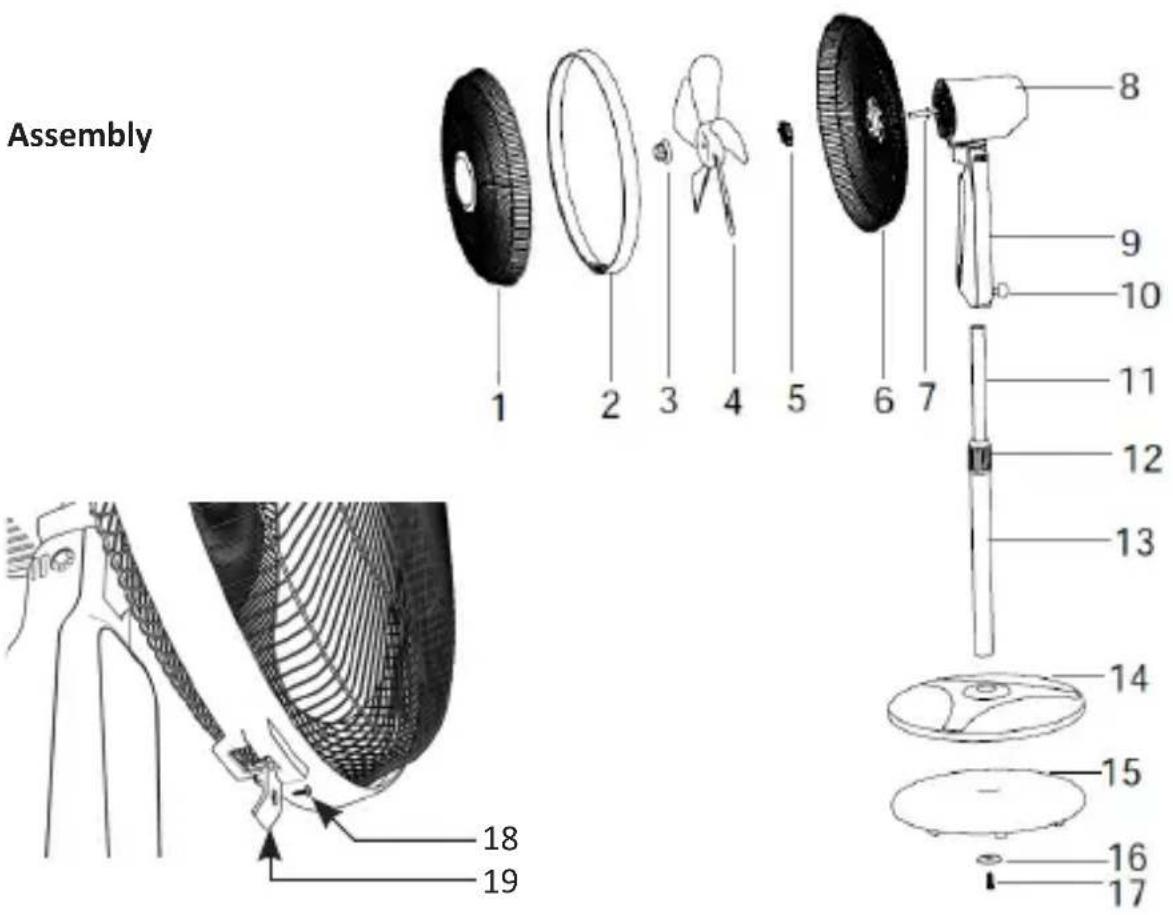

4. Product details

1 Front	protective cage
2 Ring	protective cage
3 Rotor	mounting screw
4 Rotor	blade
5 Locking nut
6 Rear	protective cage
7 Motor	axis
8 Motor	unit
9 Fan	control
10 Adjusting	screw
11 Inner	pipe (inserted into the outer pipe when delivered (13))
12 Height adjustment nut
13 Outer pipe
14 Pedestal cover
15 Pedestal weight
16 Pedestal locking member
17 Pedestal - locking screw
18 Protective cage - locking screw
19 Protective cage - lock

5. Assembly

Take the fan out of the package and check the device as well as the scope of delivery mentioned in the table above. Please contact the supplier if any part is missing or has been damaged.

1. To mount the fan correctly, screw the pedestal (14, 15) first to the outer pipe (13).
2. Take the pedestal weight (15), place the cover (14) and firmly screw the outer pipe (13) to the pedestal (14, 15) from the bottom using the attachment (16, 17).
3. To join the motor unit (8.9) to the inner pipe (11), insert this into the guide of the fan control (9) and fix it using the adjusting screw (10).
4. Now place the rear protective cage (6) on the fan unit. Make sure that the handle is facing up.
   5.Tighten the rear protective cage firmly using the locking nut (5).
5. Then insert the rotor blade (4) onto the motor shaft (7) and fasten it using the appropriate mounting screw (3). Make sure that the individual components are properly mounted on the motor shaft (7) to avoid vibrations!
6. Mount the protection cage ring (2) to the front protective cage (1) and connect it to the rear protection cage (6). The protective cage lock (19) is located at the bottom of the two cages.
7. Fasten the lock (19) with the protective cage locking screw (18).

6. Usage

Keep the fan in an appropriate location and connect the device to a properly installed 220-240V AC socket.

By tipping the protective cage, you can change the angle of inclination according to your needs by up to 35^ .

Press the "Oscillation" button ( ) on the control unit or on the remote control to turn on the oscillation.

The fan has 24 different speed levels, which you can change using the "Speed level" buttons ( ,一) on the control unit or on the remote control.

6.1 Button functions

Button Function
(Speed level button)	To switch between 24 different speed levels
(Oscillation button)	Oscillation On/Off
(Timer button)	Switch on timer
(ON/OFF button)	Device On/Off

6.3 Timer function

The fan has 15 different timer levels that can be set up to a maximum duration of 7.5 hours in 30-minute steps. For this purpose, press the "Timer" button on the remote control or the operating panel of the fan. The remaining time is indicated by the LEDs on the timer display. To increase the duration of the timer, press the button again.

Example: If you want to set a timer for 5.5 hours, press the "Timer" button till the LEDs "4" "1" and "0.5" start glowing. Added together, these indicate the remaining time of the timer.

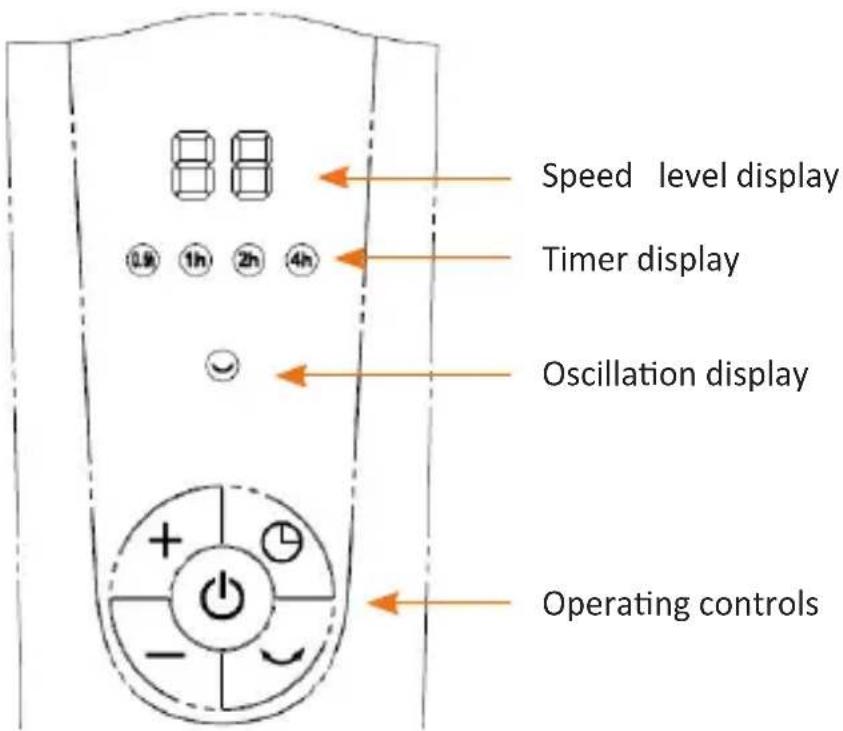

6.4 Fan control

6.5 Height adjustment

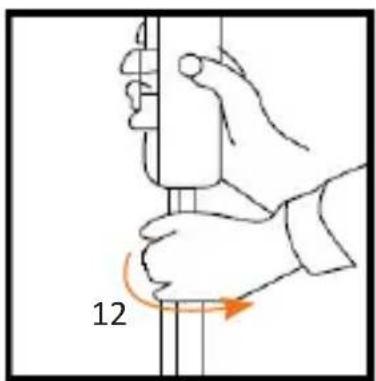

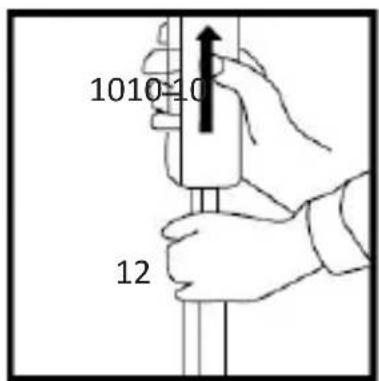

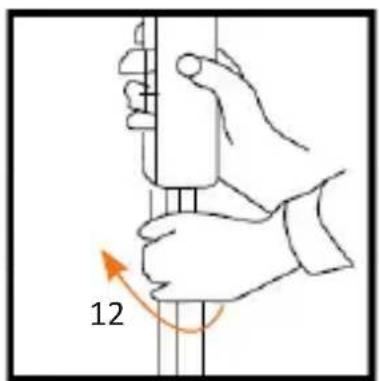

To adjust the height of the fan, first loosen the height adjustment nut (12). You can then adjust the height of the fan by holding the fan control (10) and slightly pushing the fan upwards. Once the desired height is reached, tighten the height adjustment nut (12) again.

Caution! Always switch off the unit before adjusting the height.

7. Cleaning

Pull out the power plug from the socket before starting the cleaning process! Use a slightly moist cloth for cleaning (wetted with water). For cleaning, never immerse the device into water! This could lead to electric shock or fire!

8. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The device does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms. The appliance is not approved for outdoor use. Therefore, please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other way. Please follow the local regulations and restrictions. Do not use the appliance for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the appliance, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without prior notification.

9. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE Guideline: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303369 complies with the fundamental requirements and the other relevant stipulations of the directive. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://downloads.ganziinfach.de/
