USER MANUAL Quizy i-Size CHICCO

Line drawing of a car comfort seat with rear seats and seatbelt (no text or symbols)

ECE R 129/03, 100-150 cm.

1

Line drawing of a car comfort seat with seatbelt and seat (no text or symbols)

100-150 cm

IT QUIZY i-SIZE (100-150 cm) 43
EN QUIZY i-SIZE (100-150 cm) 49
FR QUIZY i-SIZE (100-150 cm) 55
DE QUIZY i-SIZE (100-150 cm) 61
ES QUIZY i-SIZE (100-150 cm) 67
PT QUIZY i-SIZE (100-150 cm) 73
CZ QUIZY i-SIZE (100-150 cm) 79
PL QUIZY i-SIZE (100-150 cm) 85
NL QUIZY i-SIZE (100-150 cm) 91
EL QUIZY i-SIZE (100-150 cm) 97
TR QUIZY i-SIZE (100-150 cm) 104
HR QUIZY i-SIZE (100-150 cm) 110

SL QUIZY i-SIZE (100-150 cm) 116
SK QUIZY i-SIZE (100-150 cm) 122
HU QUIZY i-SIZE (100-150 cm) 128
RO QUIZY i-SIZE (100-150 cm) 134
BG QUIZY i-SIZE (100-150 cm) 140
UK QUIZY i-SIZE (100-150 cm) 146
RU QUIZY i-SIZE (100-150 cm) 152
BR QUIZY i-SIZE (100-150 cm) 158
SV QUIZY i-SIZE (100-150 cm) 164
AR QUIZY i-SIZE (100-150 cm) 170

2

M B C A D E N F G H I J L K

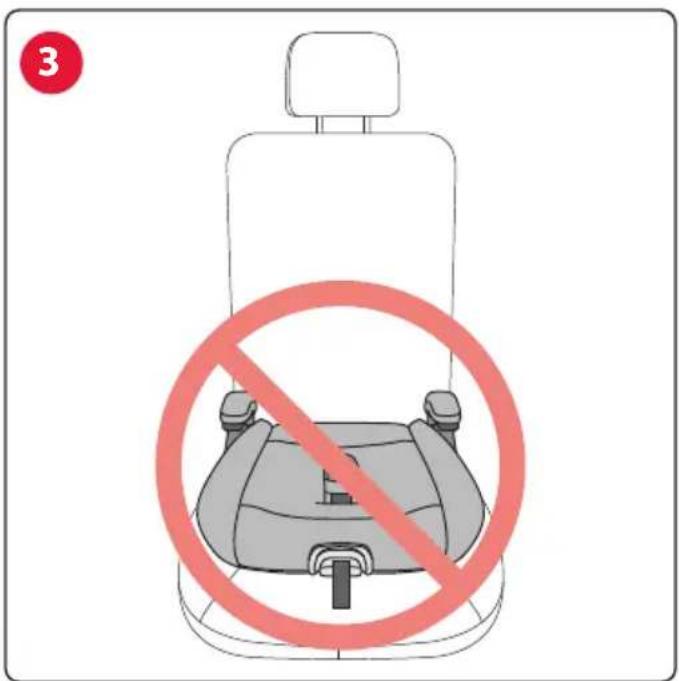

3

ISOFIX

(100-150 cm)

OK

NO!

OK! OK! NO! NO!

(100-150 cm)

7

Illustration of a car seat with two side brackets and a central knob (no text or symbols)

L

R

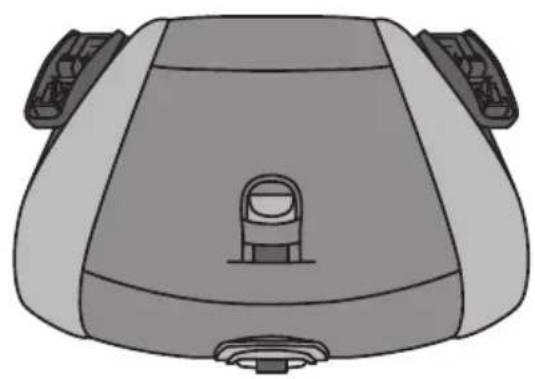

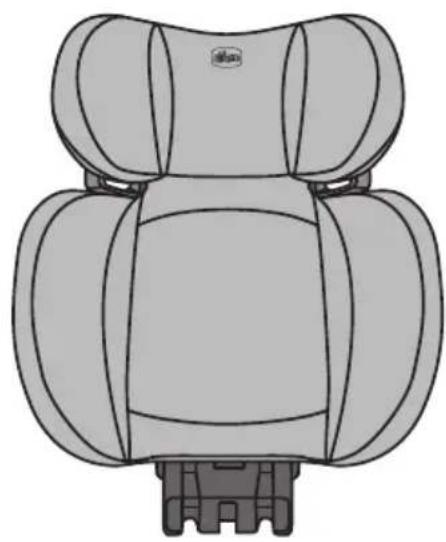

Top-down line drawing of a car seat assembly (no text or symbols)

(100-150 cm)

8

Diagram of a car interior showing internal components and a close-up view of the car's side panel (no text or symbols present)

(100-150 cm)

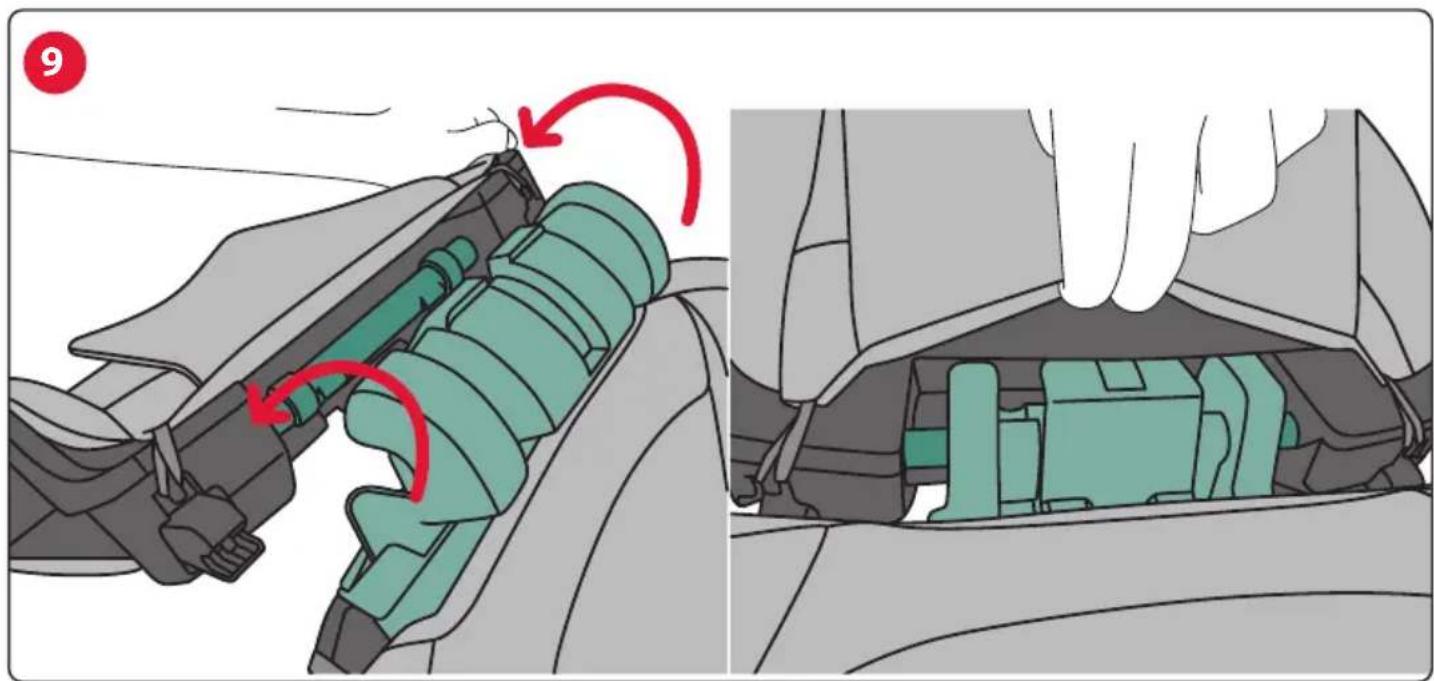

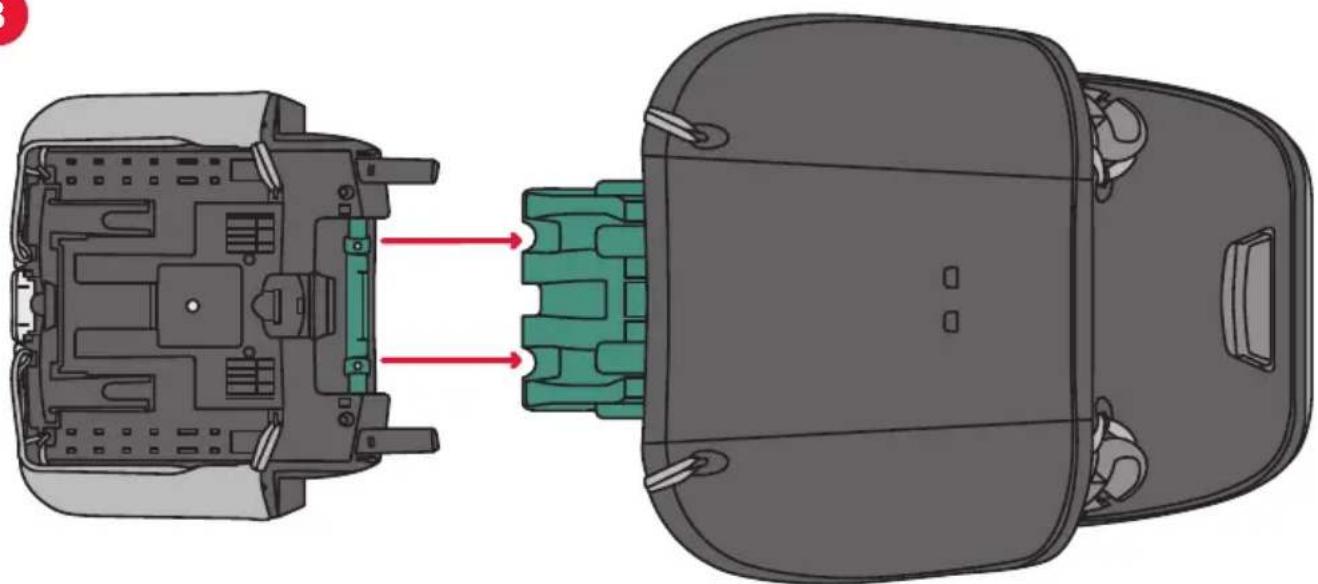

Diagram illustrating car intake mechanism with red arrows indicating flow direction and component placement

(100-150 cm)

10

CLICK

ISOFIX

(100-150 cm)

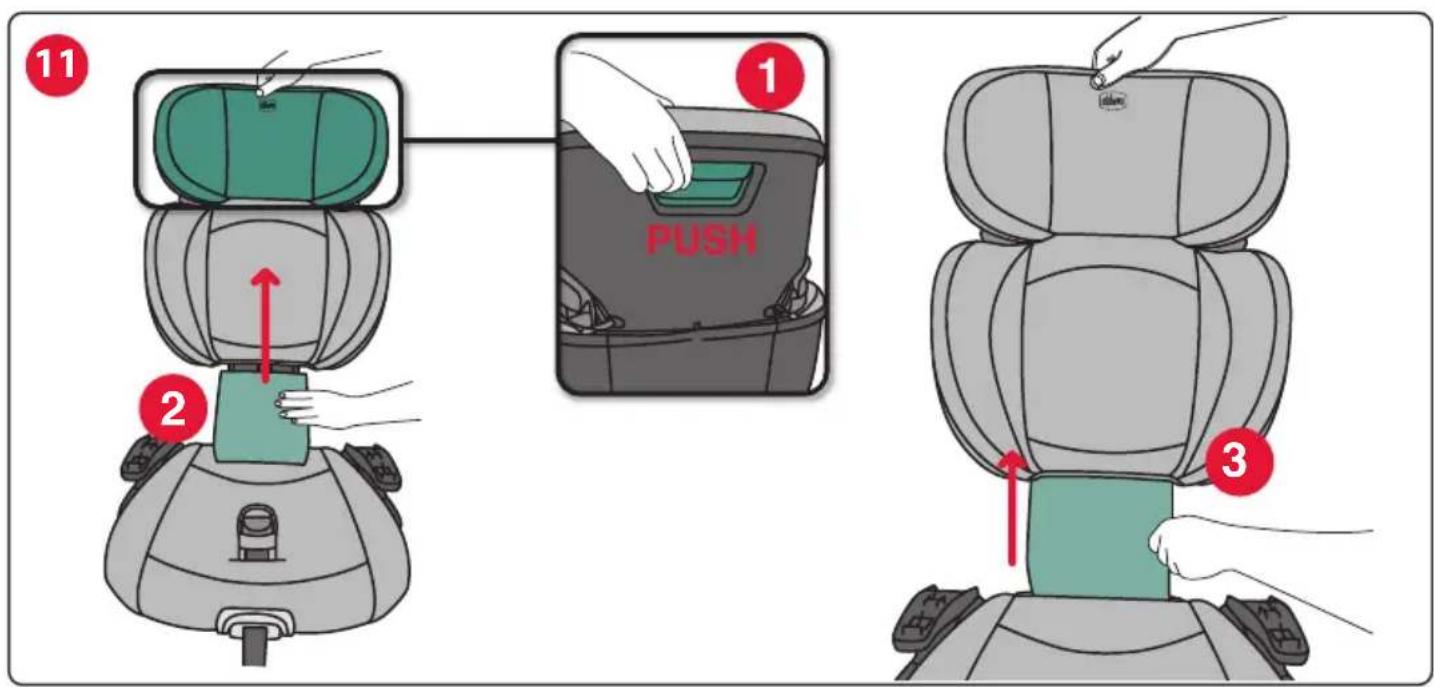

11 2 1 PUSH 3

(100-150 cm)

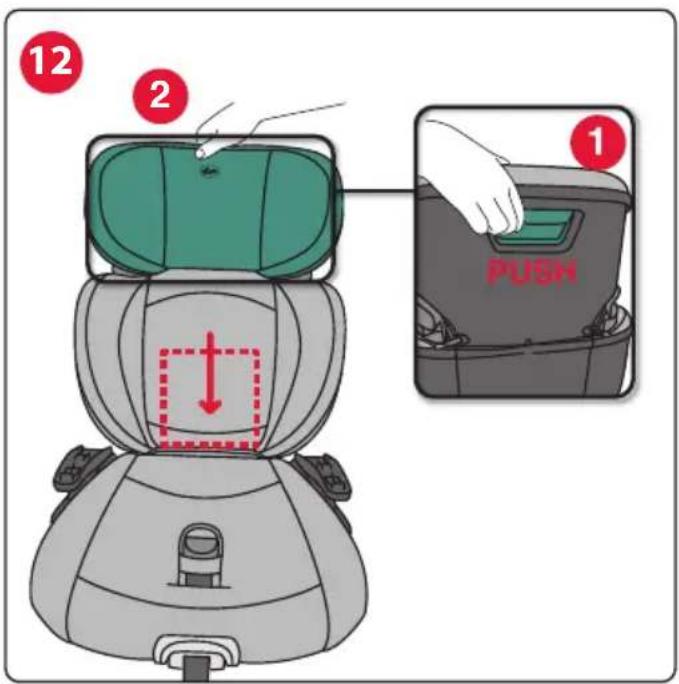

12 2 1 PUSH

(100-150 cm)

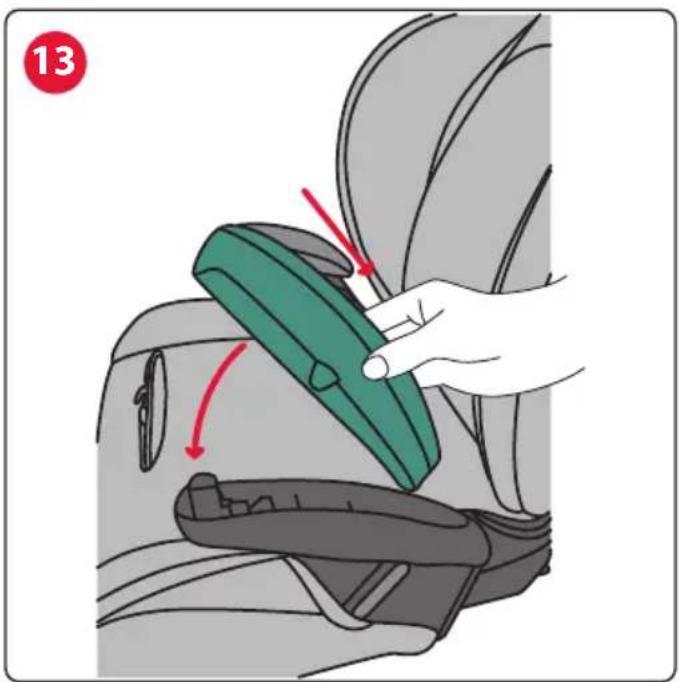

13

(100-150 cm)

14

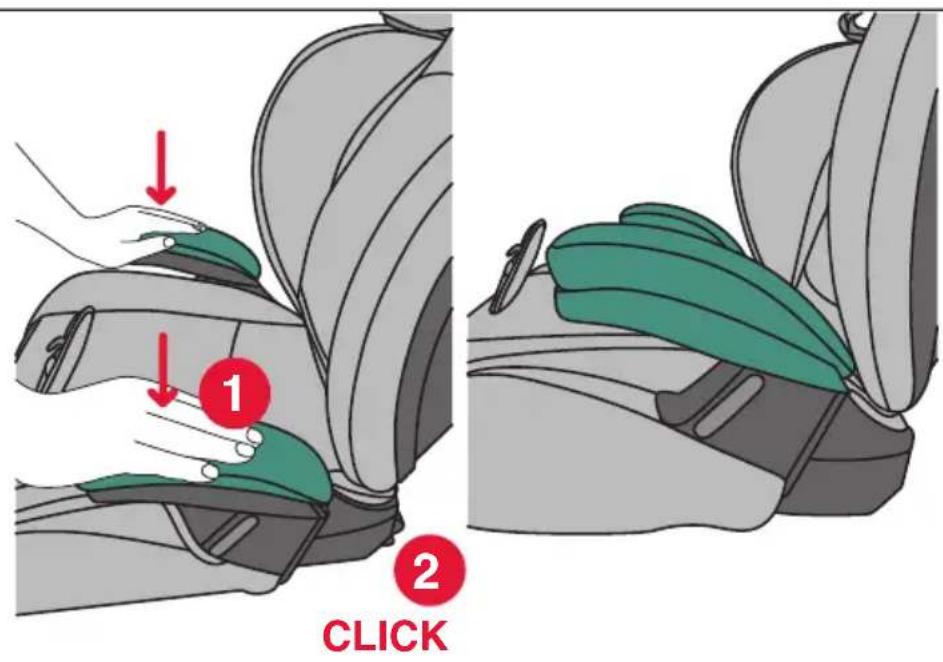

1 2 CLICK

(100-150 cm)

15

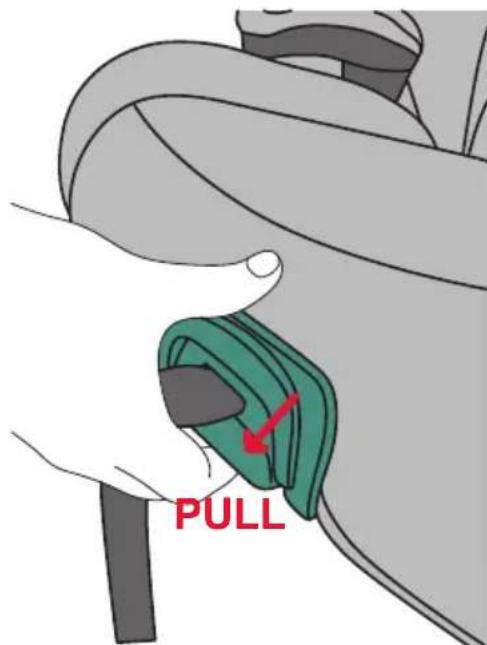

PULL

Mechanical component diagram showing a seat with green connectors and red directional arrows indicating movement (no text or symbols)

(100-150 cm)

16

CLICK

(100-150 cm)

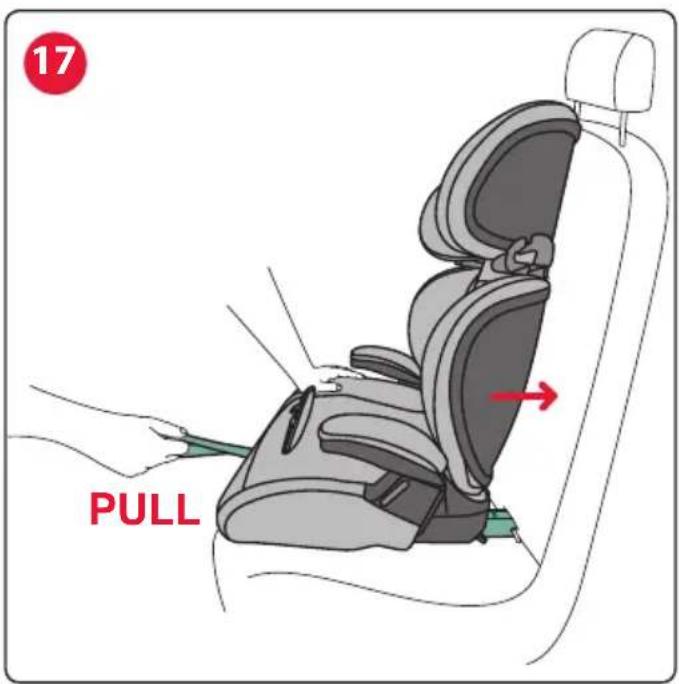

17 PULL

(100-150 cm)

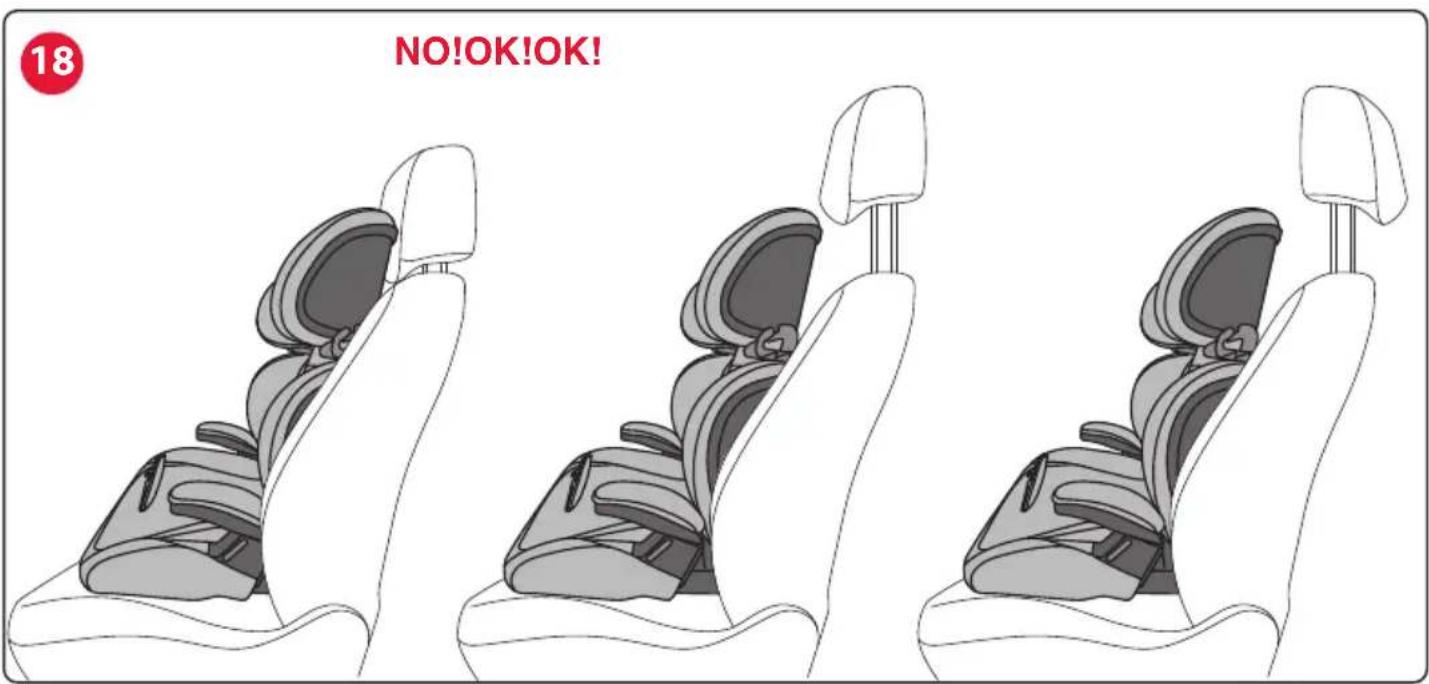

18 NO!OK!OK!

(100-150 cm)

Illustration of a person seated in a car seat with a belt buckle, no text or symbols present

(100-150 cm)

Illustration of a child seated in a car seat being lifted by a green safety belt, with no text or symbols present.

(100-150 cm)

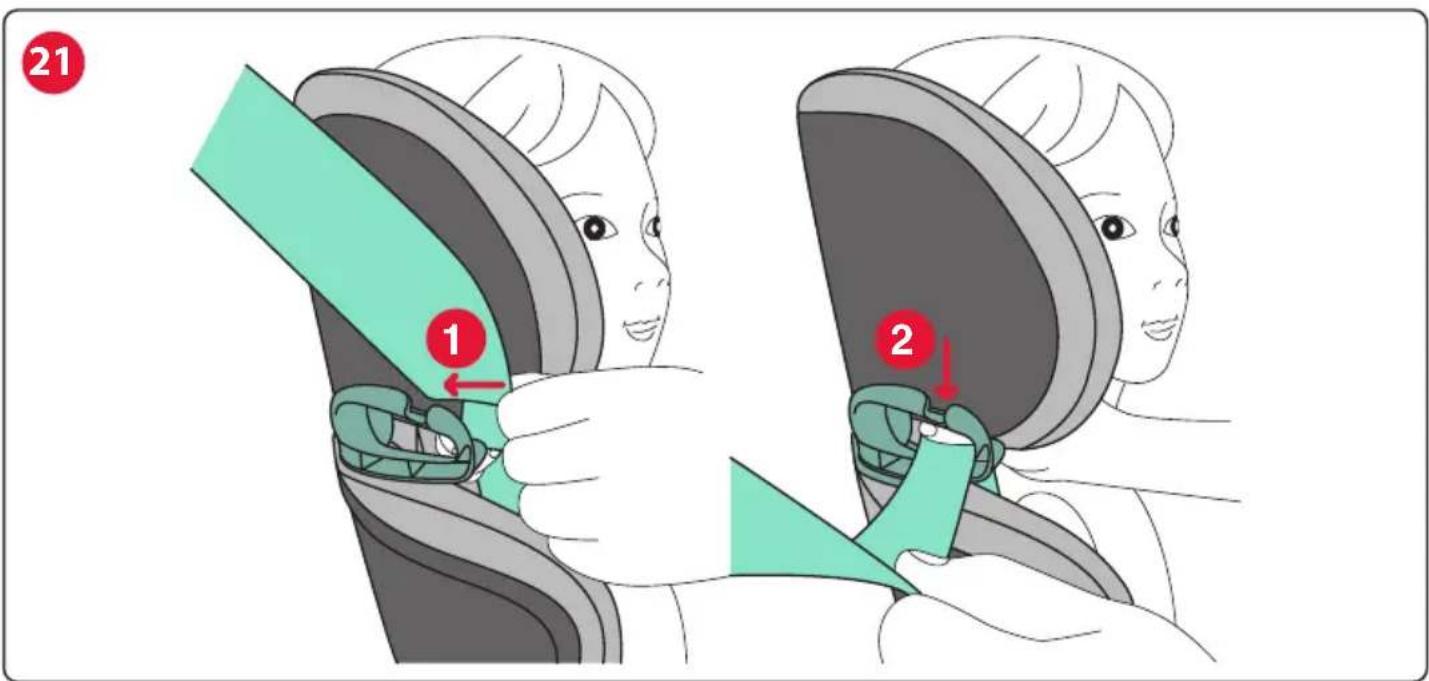

21 1 2

(100-150 cm)

Illustration of a child wearing a car seatbelt, holding a green belt (no text or symbols visible)

(100-150 cm)

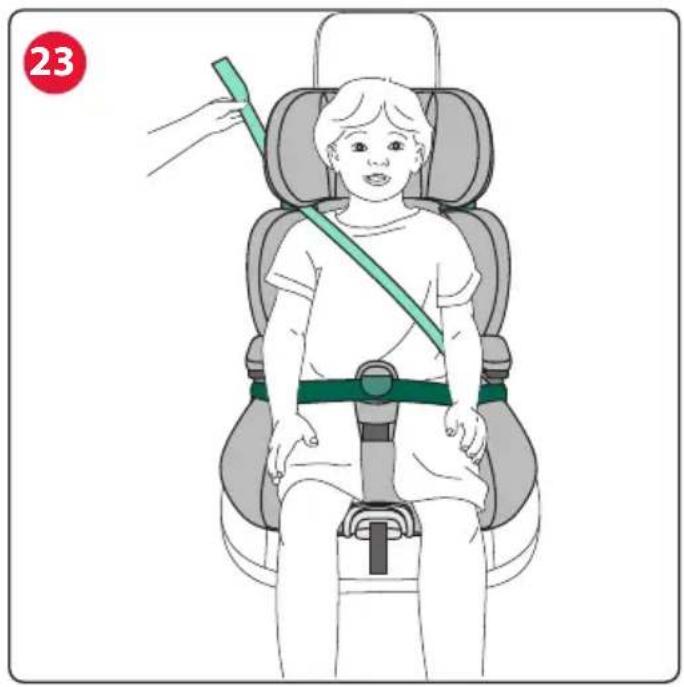

Illustration of a child wearing a car seat with a green safety belt, no text or symbols present

(100-150 cm)

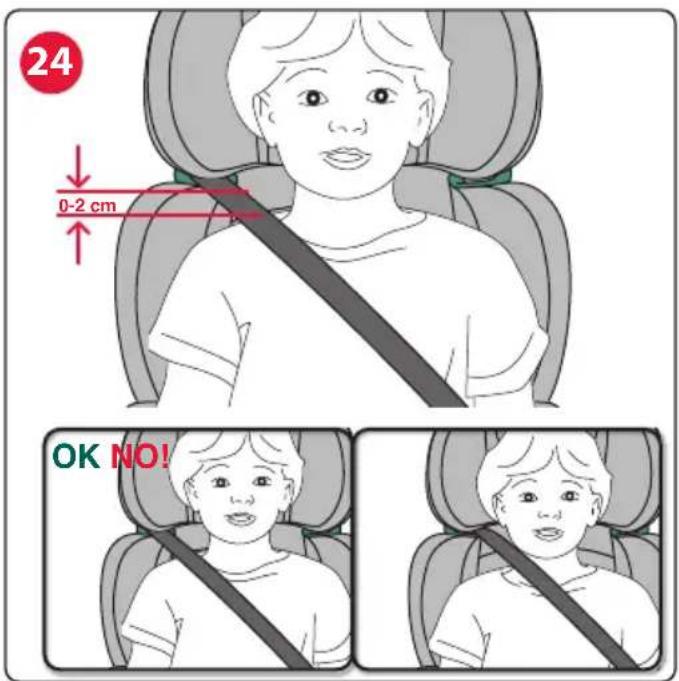

24 0-2 cm OK NO!

ISOFIX

(100-150 cm)

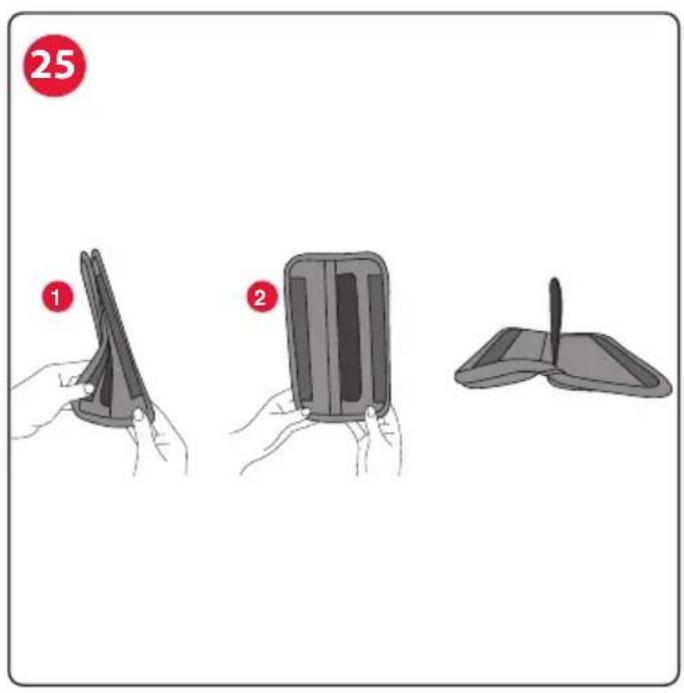

25 ① ②

Illustration showing three steps of a child's seatbelt usage, with numbered instructions and a red circle symbol.

(100-150 cm)

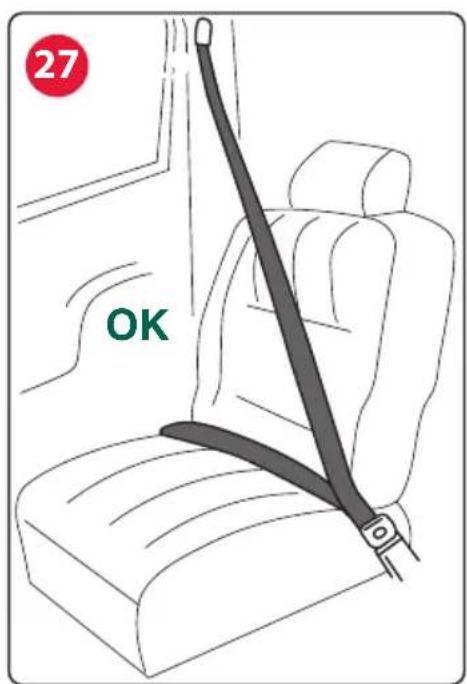

27 OK

NO!

OK! OK! NO! NO!

(100-150 cm)

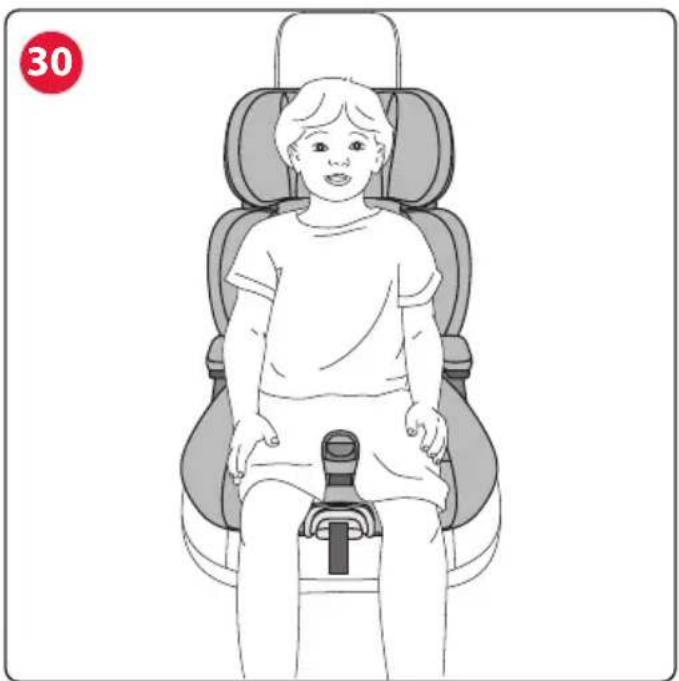

Illustration of a child seated in a car seat with a red circular badge showing number 30 (no text or symbols on the diagram itself)

(100-150 cm)

Illustration of a child seated in a car seat being adjusted for a cable, with no text or symbols present.

(100-150 cm)

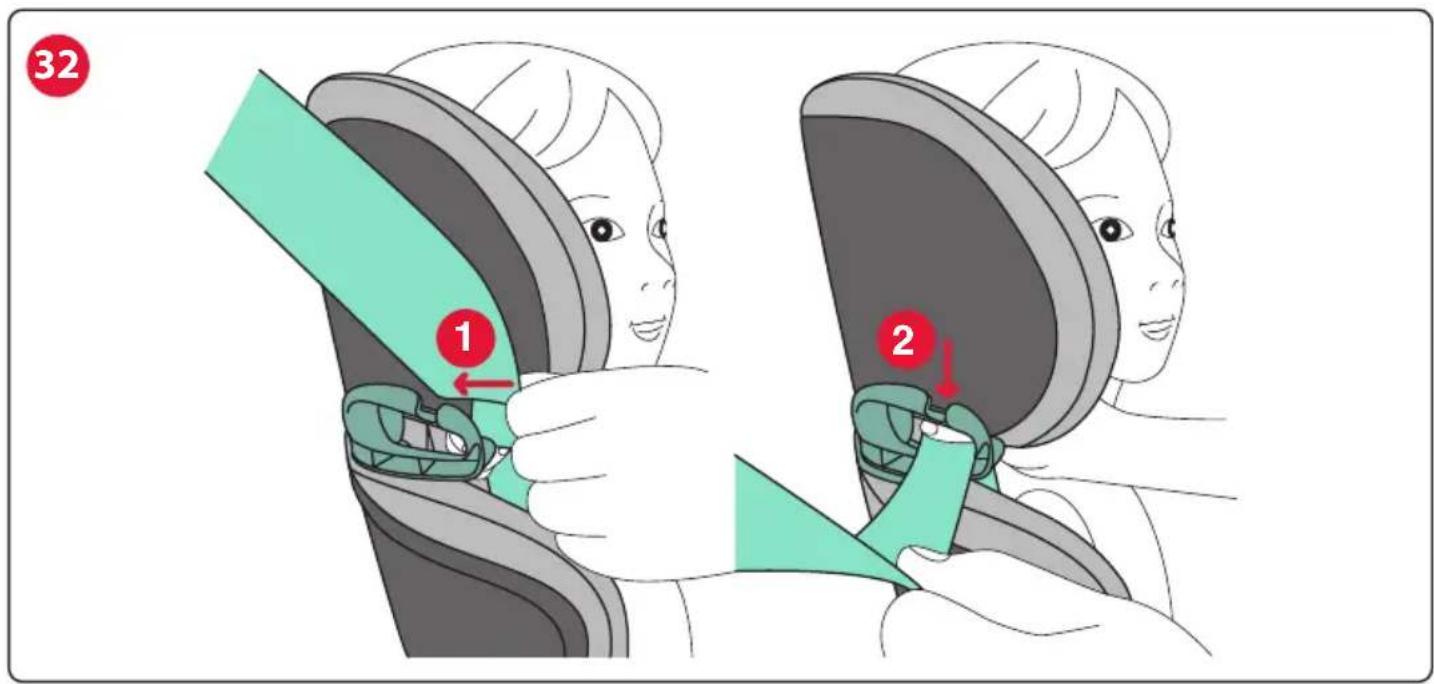

32 1 2

(100-150 cm)

Illustration of a child wearing a car seatbelt and harness, with no visible text or symbols

(100-150 cm)

Illustration of a child wearing a car seat with a green belt, no text or symbols present

(100-150 cm)

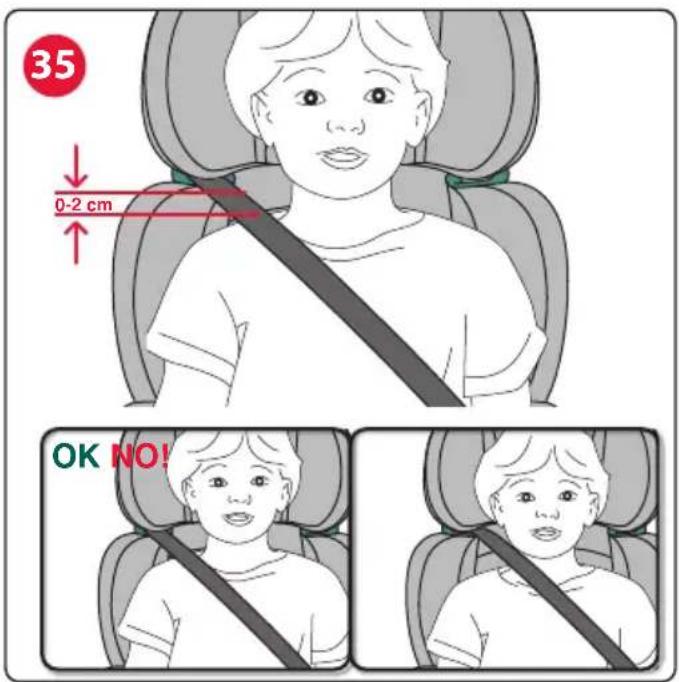

35 0-2 cm OK NO!

(100-150 cm)

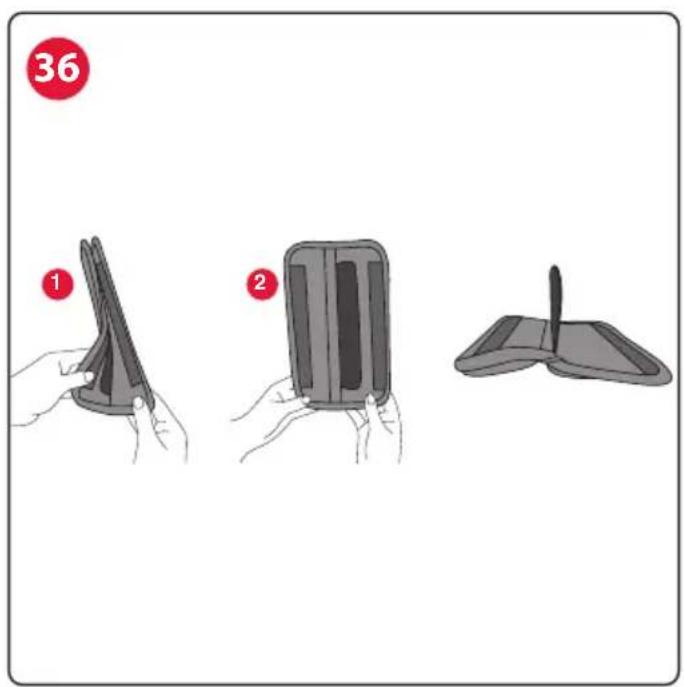

36 ① ②

Illustration showing three children in a car seat with green safety belt and a red circle symbol, illustrating seatbelt usage.

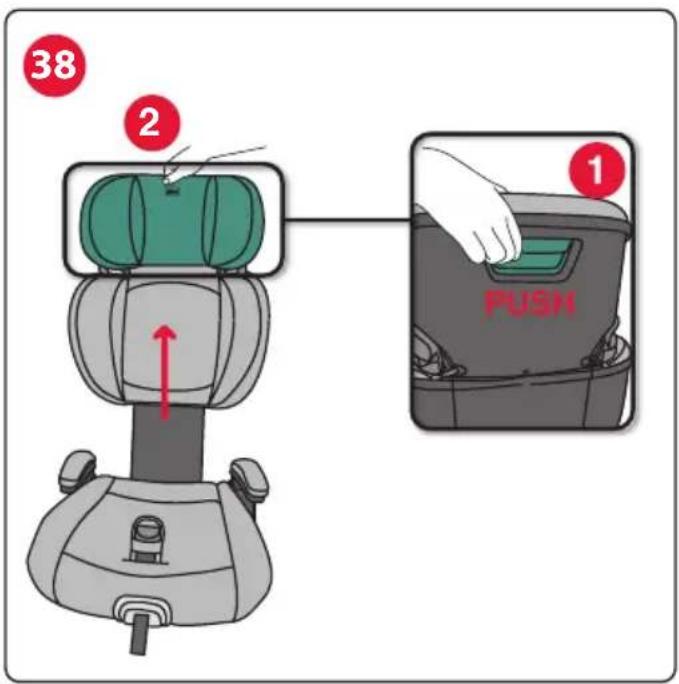

38 2 1 PUSH

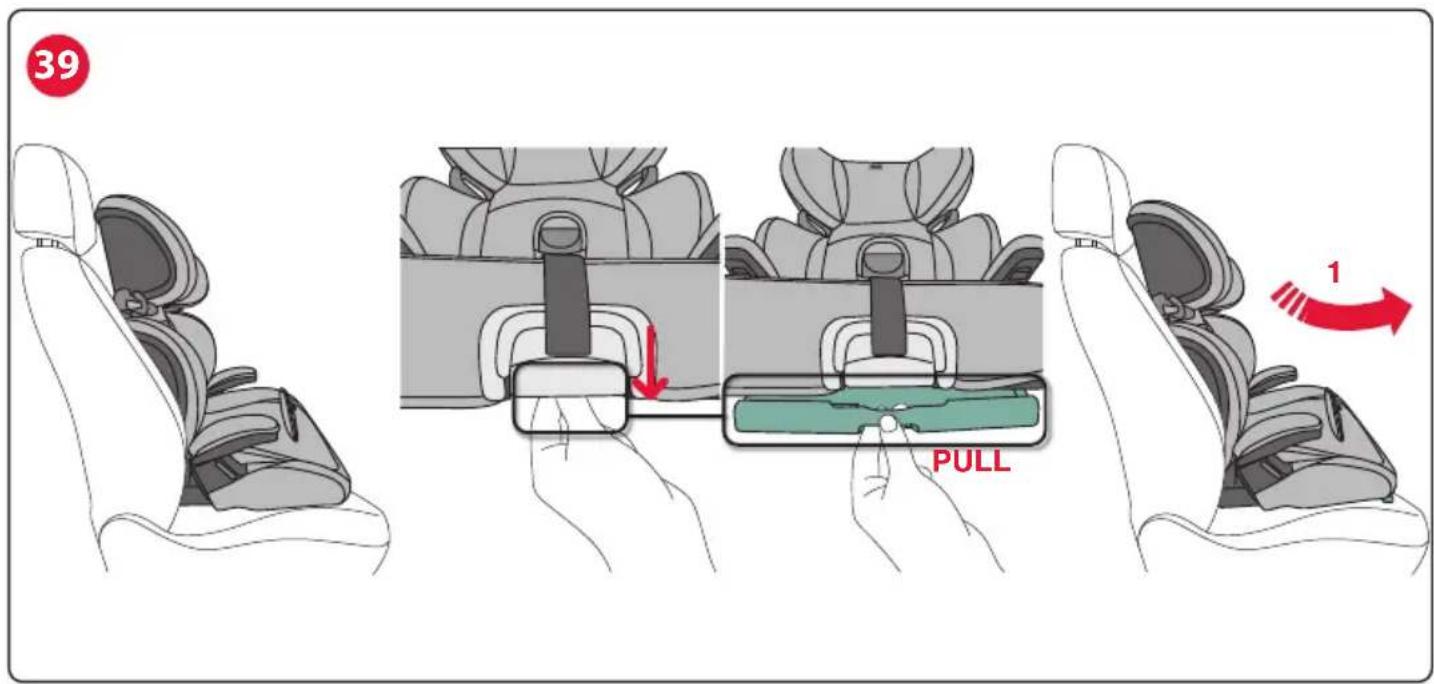

39 PULL 1

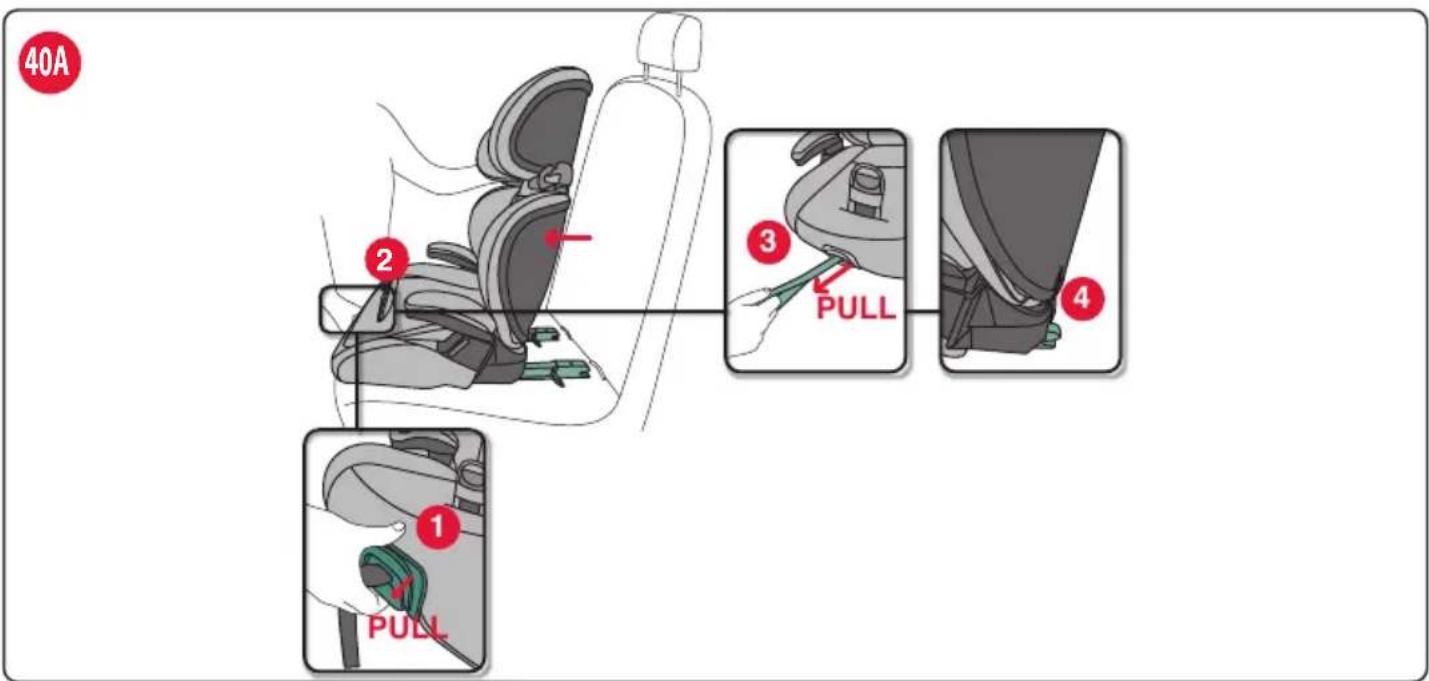

40A 2 PULL 3 PULL 4 1 PULL

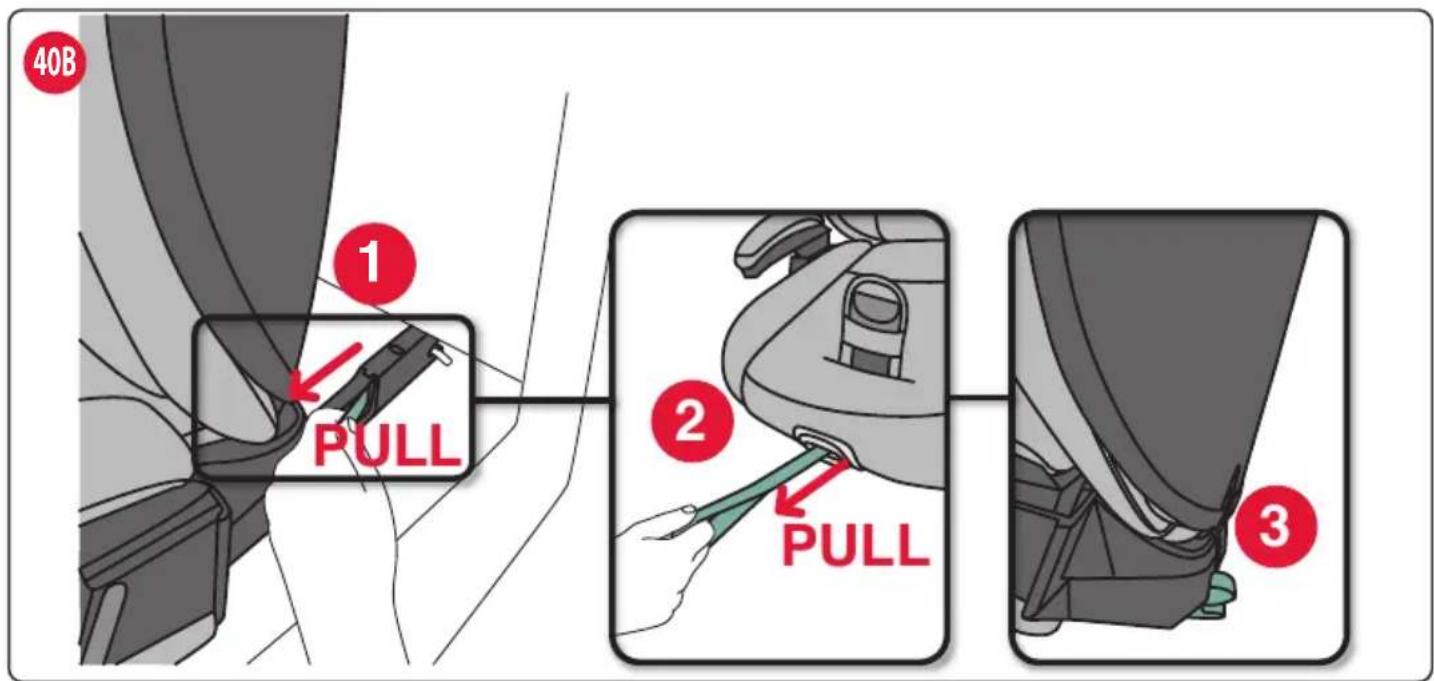

40B 1 PULL 2 PULL 3

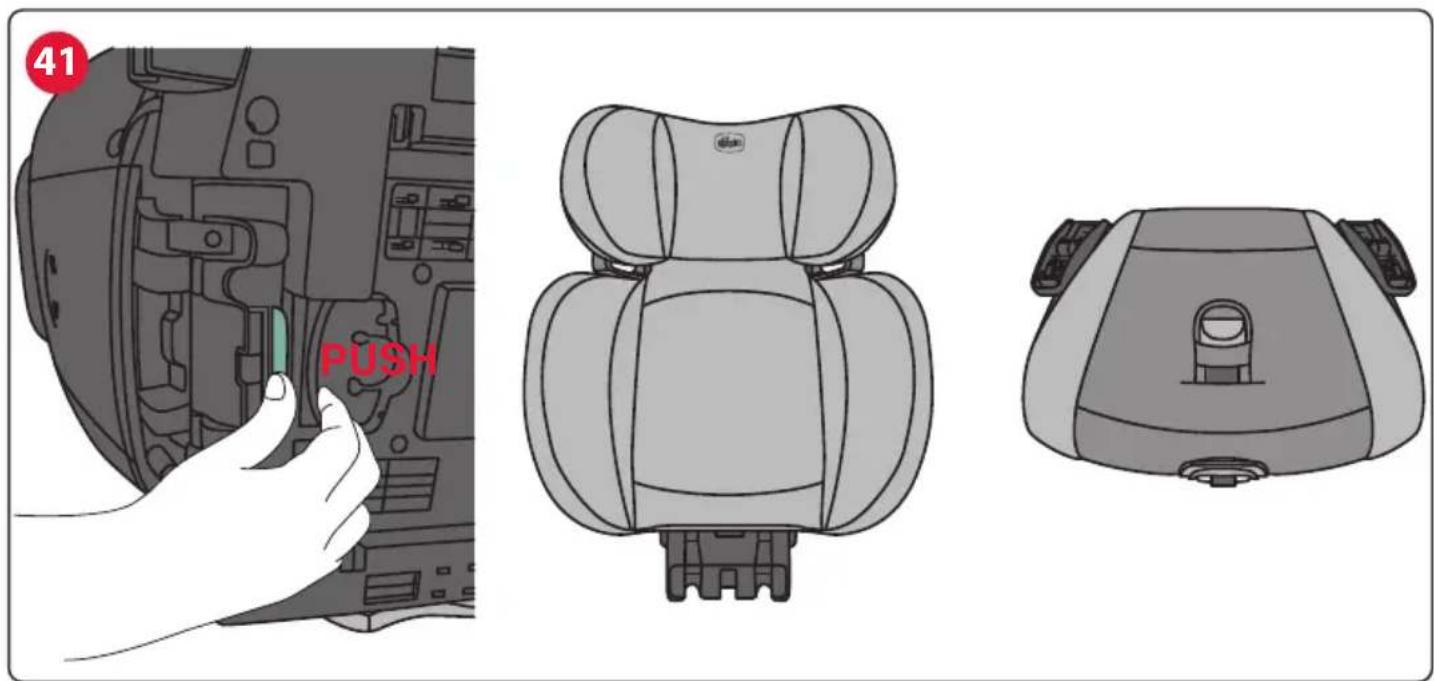

41 PUSH

QUIZY i-SIZE (100-150 cm)

This car seat is type approved in accordance with ECE R 129/03 for the transport of children:

• Whose height is between 100 and 150cm (Fig.1) (i-SIZE Booster Seat);
  • Age: from 3 to around 12 years;
• Forward-facing only.

INSTRUCTIONS FOR USE

IN ORDER TO AVOID RISKS WHEN USING THE PRODUCT READ THE ENTIRE INSTRUCTION BOOKLET CAREFULLY BEFORE INSTALLING THE CAR SEAT AND STORE THE BOOKLET FOR FUTURE REFERENCE.

WARNINGS

• Before use, remove and dispose of all plastic bags and packaging materials and keep them out of reach of children. Please dispose of these items as sorted waste in accordance with applicable laws.
• Every country has different safety laws and regulations for the transportation of children in cars, contacting the local authorities for more information is therefore advisable.
• Prevent anybody from using the product without reading the instructions. Store this manual for future reference.
• The product is intended exclusively to be used as a Car Seat, therefore not for home use.
  • Make sure that all passengers in the vehicle know how to release the child from the child car seat in case of an emergency.

• If you need to carry out any adjustment on the child car seat or on your child when travelling, stop the vehicle in a safe place.

• Verify that the abdominal portions of the harness restraining the child rest firmly over the pelvic region, so that they won't press on the abdomen in the event of an impact.

• Check from time to time that your child does not release the buckle of the vehicle seat belt or has interfered with the car seat or parts of it.
• Do not let children play with car seat components or parts.
• When the child car seat is not in use, it should be left secured to the car's seat, or stowed in the car's boot with the seat inclination adjuster handle completely inserted into the lower part of the child car seat. In fact, an unsecured car seat may pose a hazard to the passengers in the event of an accident or sudden braking.
• Any adjustments made to the car seat should only be carried out by an adult.
• The risk of serious injuries to your child increases, not only in the case of accidents, but also in other circumstances (sudden braking, etc.) if these instructions are not followed carefully.
• No car seat can guarantee your child's total safety in the event of an accident, but the use of this product reduces the risk of serious injuries or death when installed correctly.
• Always use the child car seat, fitted correctly, including for short journeys. Your child's safety will be compromised if you do not follow the above mentioned rule. In particular, make sure that the child car seat belt is properly tensioned, free of knots and in a proper position.
• Ensure that all the car passengers fasten their safety harnesses for their own safety and because, during the journey, they may injure the child in the event of an accident or sudden braking of the car.
• Make sure that the vehicle seats (foldable, tiltable or rotating) are well secured.
• Check that the vehicle car seat headrest does not interfere with that of the child car seat: do not push it forwards. If this is the case, remove the headrest from the car seat on which the child car seat is fitted, without resting it on the luggage rack.
• When adjusting the car seat (headrest and backrest), make sure that

the movable parts of the car seat do not come into contact with the child's body.

• After an accident, even if minor, the child car seat must be replaced because it may have suffered damages, although these damages may not be visible to the naked eye.

- Do not use second-hand child car seats: it may have suffered damage that is not visible to the naked eye but that may compromise the safety of the product.

- Do not use a car seat if it has been damaged, deformed or excessively worn out, or if any parts are missing, as the original safety features may have been compromised.

- Do not remove the labels and logos from the product.

- The seat fabric must only be replaced with another approved by the manufacturer as it forms an integral part of the child car seat. To ensure the safety of the child car seat, never use it without its fabric cover.

- The child car seat must be replaced should the harness be cut or frayed.

- This product must not be modified in any way unless the modification has been approved by the manufacturer. Do not install accessories, spare parts or components which are not supplied and approved by the manufacturer and intended for the child car seat.

- Do not use anything – pillows, blankets, etc. – to distance the child car seat from the vehicle seat or to distance the child from the child car seat; in case of accident, the child car seat may not work properly.

- Make sure that no objects are positioned between the child car seat and the vehicle seat or between the child car seat and the car door.

- Do not transport loose, unsecured objects or baggage on the back shelf of the vehicle: they may injure the passengers in the event of an accident or sudden braking.

- Never leave your child unattended in the car, it can be dangerous!

- Do not carry more than one child at a time in the car seat.

- Avoid giving food to your child while travelling, especially lollies, ice lollies or other foods on sticks. they may injure your child in case of accident or sudden braking.

- Stop frequently during long trips: children tire easily whilst using the child car seat and need to move around. It is recommended that children get in and out of the child car seat from the curbside.

- If the vehicle has been left in the sun, check that the different parts of the child car seat are not too hot: otherwise, let them cool off before accommodating your child, in order to prevent burns.

- DO NOT use the product for more than 10 years. After this period, alterations of the materials (e.g., due to exposure to sunlight) may reduce or compromise the product's effectiveness.

- Artsana declines any liability for the improper use of the product or any other use other than that specified in these instructions.

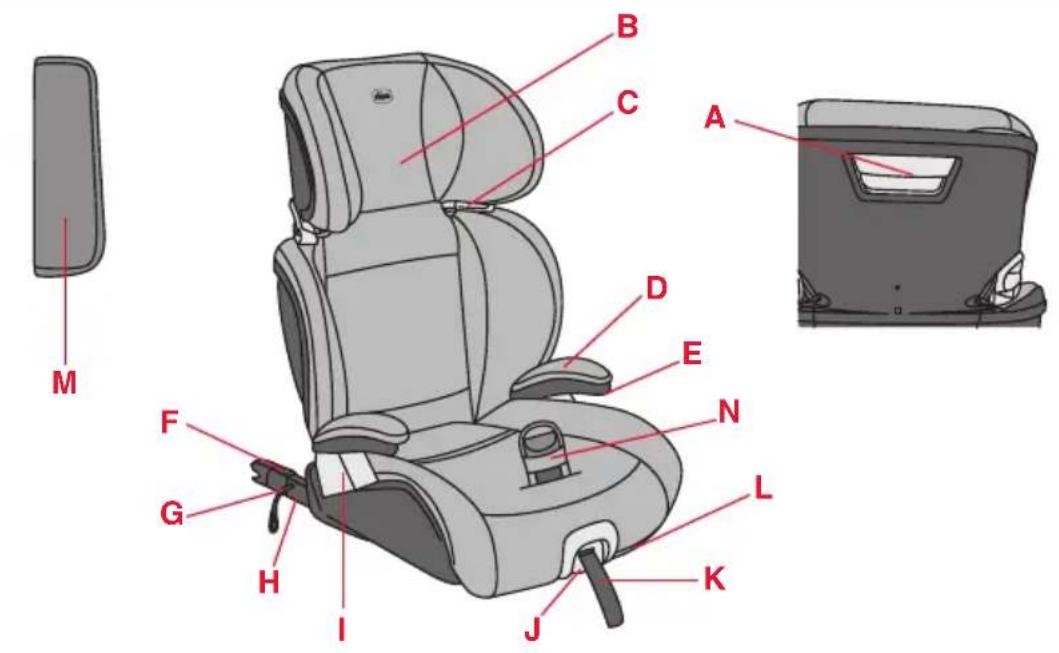

LIST OF COMPONENTS (Fig. 2)

A. Headrest adjustment handle

B. Headrest

C. Diagonal harness guide

D. Armrests

E. Armrest removal button

F. Isofix connector indicators

G. Isofix connector release strap

H. Isofix connectors

I. Abdominal harness guide

J. Isofix connector extraction and release lever

K. Isofix connector adjustment strap

L. Reclining handle

M. Safe pad

N. Belt positioner

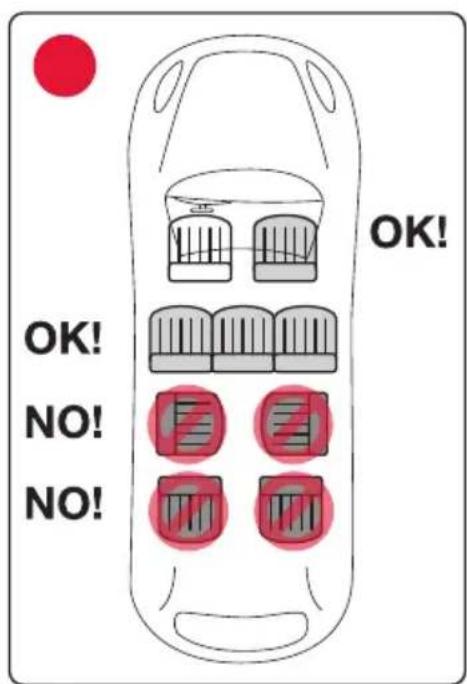

CORRECT POSITION IN THE VEHICLE

100-150 cm:

This is an advanced child restraint system classified as an "i-Size" booster. It is approved under Regulation No. 129/03 for use in vehicles on "i-Size compatible" seats as indicated by the vehicle manufacturer in the vehicle users' manual. If in doubt, consult either the child restraint manufacturer or the vehicle manufacturer. If the vehicle does not have an i-Size seat check the vehicle compatibility list, available via the QR code on the product installation label and at the end of this manual. When used for children between 135 cm and 150 cm in height, Quizy i-Size may not be suitable for all cars, especially in the case of cars with a low roof at the sides.

INSTALLATION

100-150 cm	Isofix connectors + vehicle's 3-point seat belt
100-150 cm	Vehicle's 3-point seat belt only

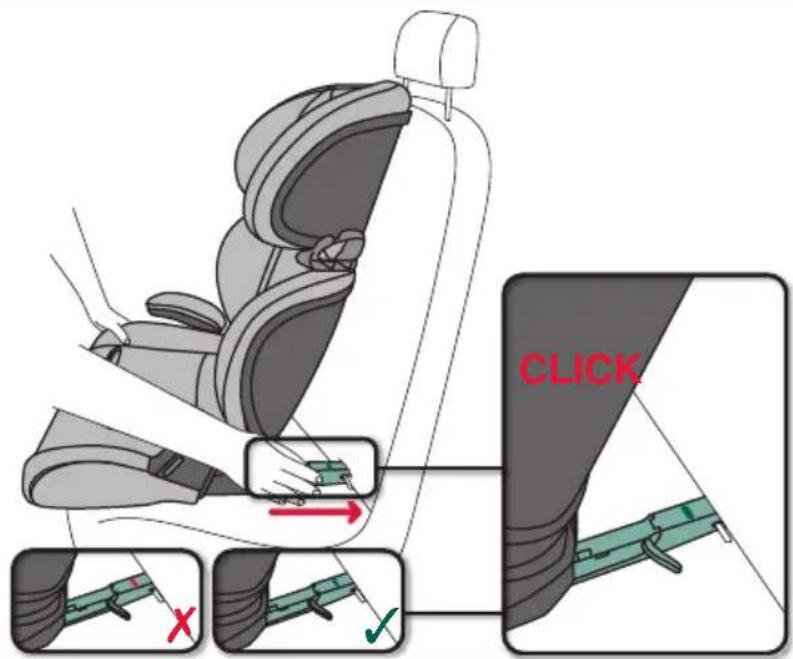

1. Installation with Isofix connectors and the car's 3-point seat belt (see illustrations from number 4 to 25)

FOCUS AREAS

a) The car seat must be installed with the backrest. It is not approved for use without the backrest. (Fig. 3)

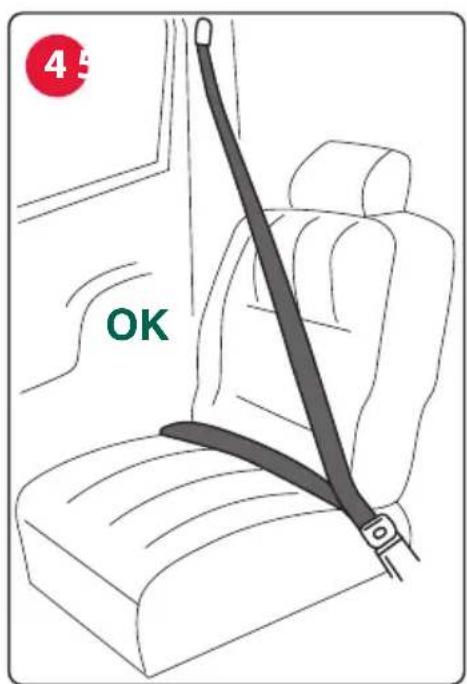

b) The vehicle seat must be equipped with a 3-point safety harness, whether static or with a retractor, approved according to UN/ECE Regulation no. 16 or other equivalent standards (Fig. 4).

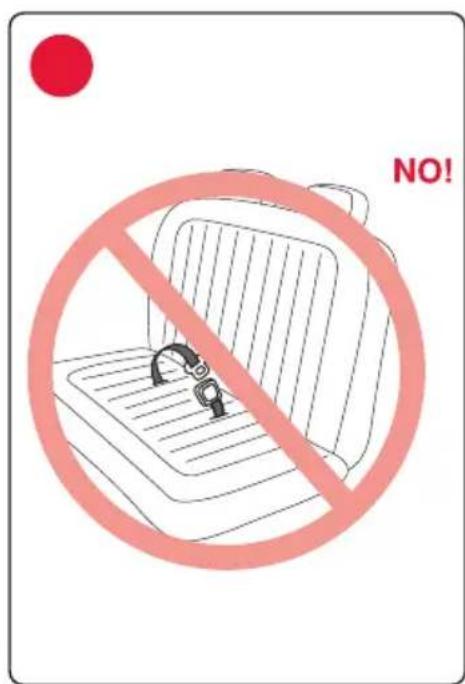

c) Never fit the car seat to a vehicle seat that is only equipped with a 2-point safety belt (Fig. 5).
d) Make sure that the abdominal portion of the vehicle seat belt rests correctly on the waist of the child.
e) If used in a vehicle equipped with rear vehicle seat belts with integrated air bags (inflatable seat belts), the interplay between the inflatable portion of the seat belt and this child restraint system could cause serious injury or death. When using the car seat in vehicles equipped with rear vehicle seat belt with integrated air bags (inflatable seat belts), follow the car manufacturer's instruction manual.
f) The car seat can be fitted on the front passenger seat or on any one of the rear seats so long as they are equipped with an Isofix system. Never use this Car seat rear facing on any vehicle's seat (Fig. 6).
g) Make sure that the buckle of the car's three-point belt is not too far up. Otherwise, try to install the car seat on a different seat in the vehicle.

2. Installation with the vehicle's 3-point seat belt (see illustrations from number 26 to 34)

FOCUS AREAS

a) The car seat must be installed with the backrest. It is not approved for use without the backrest. (Fig. 3)
b) The vehicle seat must be equipped with a 3-point safety harness,

whether static or with a retractor, approved according to UN/ECE Regulation no. 16 or other equivalent standards (Fig. 26).

c) Never fit the car seat to a vehicle seat that is only equipped with a 2-point safety belt (Fig. 27).
d) Make sure that the abdominal portion of the vehicle seat belt rests correctly on the waist of the child.
e) If used in a vehicle equipped with rear vehicle seat belts with integrated air bags (inflatable seat belts), the interplay between the inflatable portion of the seat belt and this child restraint system could cause serious injury or death. When using the car seat in vehicles equipped with rear vehicle seat belt with integrated air bags (inflatable seat belts), follow the car manufacturer's instruction manual.
f) The car seat can be fitted on the front passenger seat or on any one of the rear seats. Never use this child car seat on vehicle seats facing the sides or opposite to the direction of the driver's seat (Fig. 28).
g) Make sure that the buckle of the car's three-point belt is not too far up. Otherwise, try to install the car seat on a different seat in the vehicle.

HOW TO CLEAN THE FABRIC COVER

The child car seat's fabric cover can be removed and washed by hand or in a washing machine at 30^ C, while the reducer cushion can only be washed by hand. Please refer to the cleaning instructions on the fabric label which illustrates the following washing symbols:

Wash by hand

Machine washable at 30°C.

Do not bleach

Do not tumble dry

Do not iron

Do not dry clean

Never use abrasive detergents or solvents. Do not dry the fabric cover within a dryer, let it dry without squeezing it.

The fabric cover must only be replaced with another cover approved by the manufacturer, since it is an integral part of the child car seat and, therefore, one of its safety elements.

WARNING! To ensure the safety of the child car seat, never use it without its fabric cover.

To remove the fabric cover follow the instructions below:

Cover

• Detach the elastic bands located under the sitting area at the front;
• Detach the elastic bands located behind the sitting area;
  • Free the plastic tabs located on either side of the seat;
• Pull the cover off.

Headrest

• Detach the elastic bands located behind the backrest at the top;
• Detach the elastic bands located behind the backrest at the top;
  • Free the plastic tab located behind the headrest;
• Pull off the headrest.

HOW TO CLEAN THE PLASTIC AND METAL PARTS

Clean the plastic and coated metal parts with a damp cloth only. Nev-

defects please refer to the specific provisions of applicable national laws in the country of purchase, where appropriate.

er use abrasive detergents or solvents.

The moving parts of the child car seat must not be lubricated.

CHECKING THE CONDITION OF THE COMPONENTS

It is recommended to regularly check the condition of the following components to make sure they are not damaged or worn:

• Fabric cover: check that the padding does not come out from the seams. Check the condition of the seams: they must always be intact and undamaged.
• Harness straps: check that the fabric lining is not frayed and that the thickness of the harness strap is not worn out in the parts corresponding to the adjustment strap.
• Plastic parts: check that the plastic parts are not worn out, damaged or faded.

STORING THE PRODUCT

When it is not fitted in the car, it is recommended to store the child car seat in a dry place, away from sources of heat and to protect it from dust, humidity and direct sunlight.

DISPOSING OF THE PRODUCT

When the child car seat no longer complies with the original safety standards, stop using it and dispose of it at an appropriate collection point. Always dispose of the child car seat following the guidance and regulations set out in the country of use.

WARRANTY

The product is guaranteed against any lack of conformity under normal use as specified in the instructions. The warranty shall not therefore apply in the case of damage caused by improper use, wear or accidental events. For the duration of the warranty on conformity
