USER MANUAL Fold&Go S i-Size CHICCO

Illustration of a car comfort seat with green accents and a small icon showing a person using a device (no text or symbols on the chair itself)

INDEX

4

6

17

19

21

23

Line drawings of a car, its rear window, and rear door (no text or symbols)

25

28

IT

32

HR

89

EN

37

SL

94

FR

42

SK

99

DE

47

HU

104

ES

53

RO

109

PT

58

BG

114

CZ

62

UK

120

PL

68

RU

125

NL

73

BR

131

EL

78

SV

137

TR

84

AR

142

Omologazione

Homologation

Homologation

Zulassung

Homologación

Homologação

Homologace

Homologacja

Goedkeuring

'Εγκρισης τύπου

Homologasyon

Homologacija

Homologacije

Homologizácie

Típusa

Omologare

Съответствие

Сертифікація

Сертификация

Certificação

Godkännande

الاعتماد

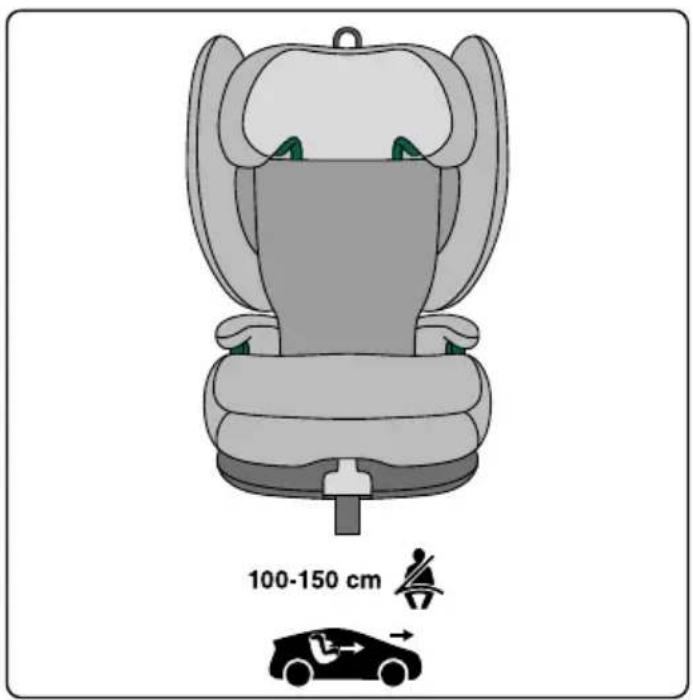

100-150 cm

CLICK CLICK X

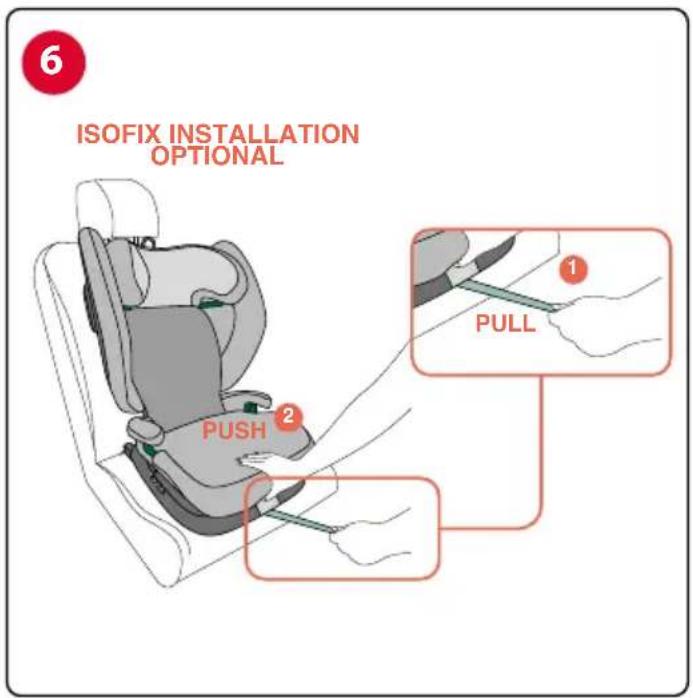

ISOFIX INSTALLATION OPTIONAL PULL 1 2 6

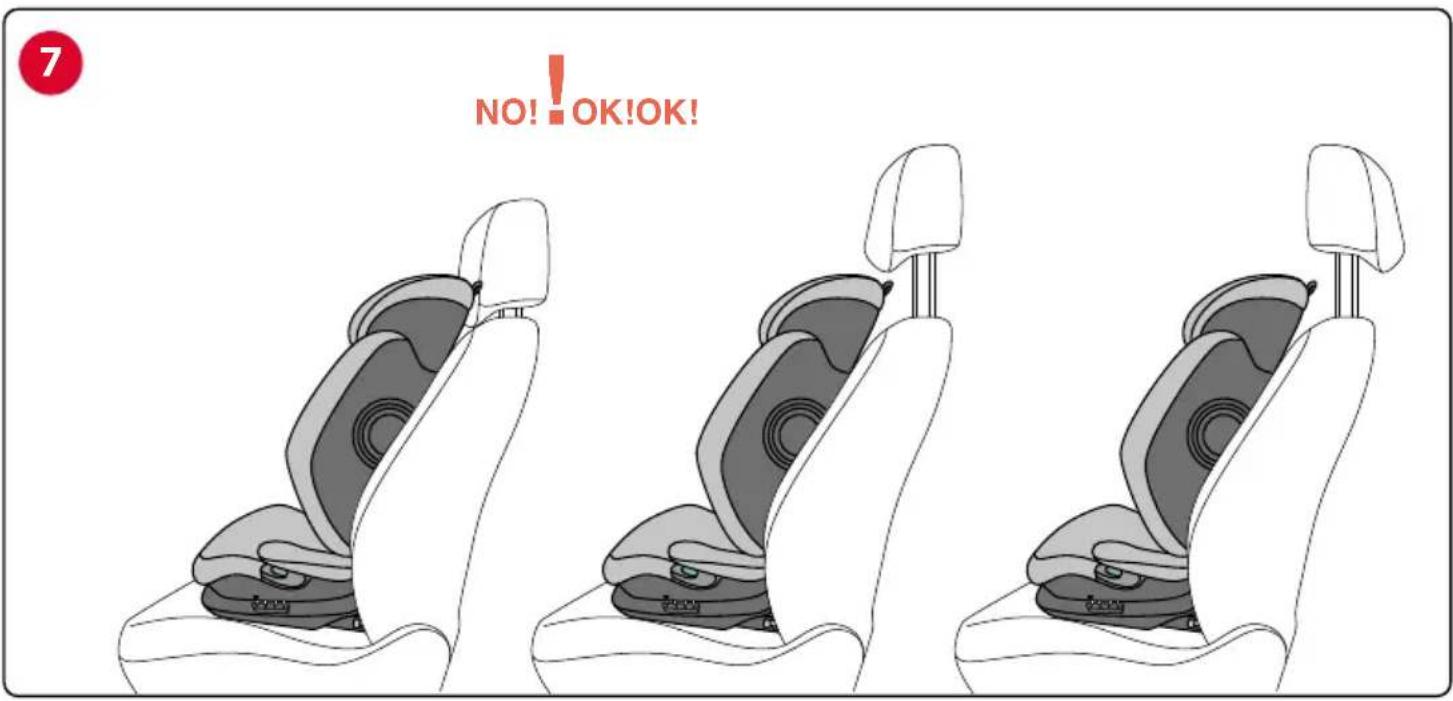

7 NO! OK!OK!

Illustration showing a person adjusting a seatbelt with a green handle, no text or symbols present

Illustration of a child wearing a car seatbelt, with a hand adjusting the seatbelt and a red arrow indicating pressure or direction (no text or symbols)

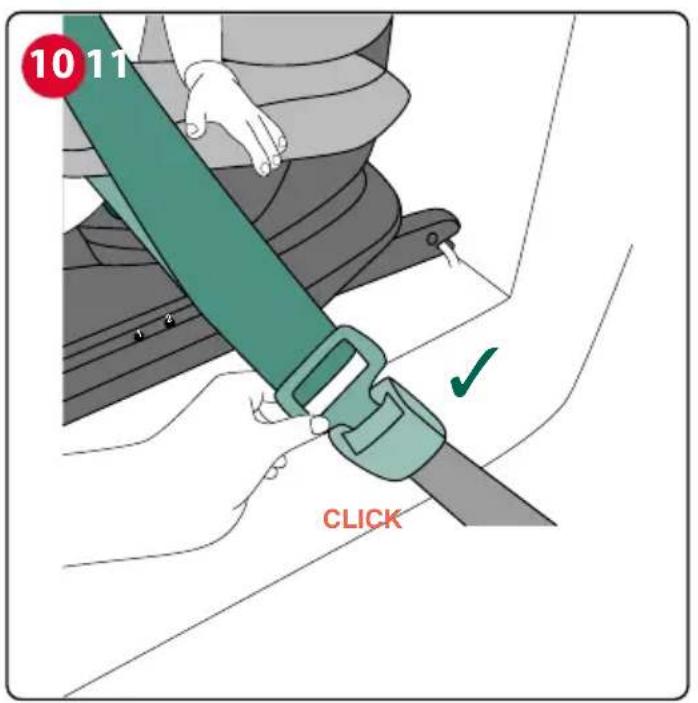

10 11 CLICK

Illustration showing a child in a car seat being lifted by a hand, with a magnified view highlighting the seat area.

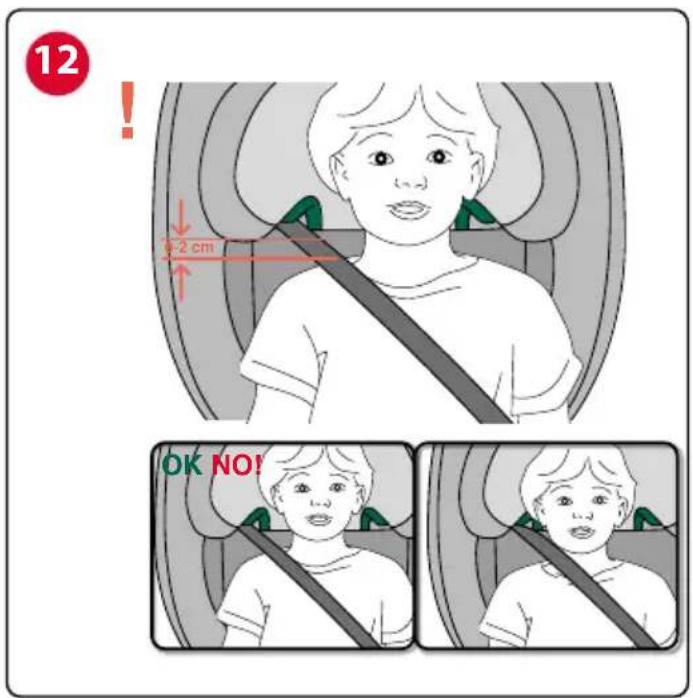

12 ! 9.2 cm OK NO!

DA 106 A 150 CM - ! FROM 106 TO 150 CM - ! DE 106 À 150 CM - DE 106 A 150 CM - ! DE 106 A 150 CM - ! OD 106 DO 150 CM ! OD 106 DO 150 CM - ! FROM 106 TO 150 CM - AÑO 106 EΩΣ 150 CM - ! 106 - 150 CM ARASI - ! OD 106 DO 150 CM ! OD 106 DO 150 CM - ! OD 106 DO 150 CM - ! 106-150 CM - ! DE LA 106 LA 150 CM - ! OT 106 DO 150 CM - ! 106 - 150 CM ! OT 106 DO 150 CM - ! DE 106 A 150 CM - ! FRAN 106 TILL 150 CM - من 106 سم حنى 150 سم

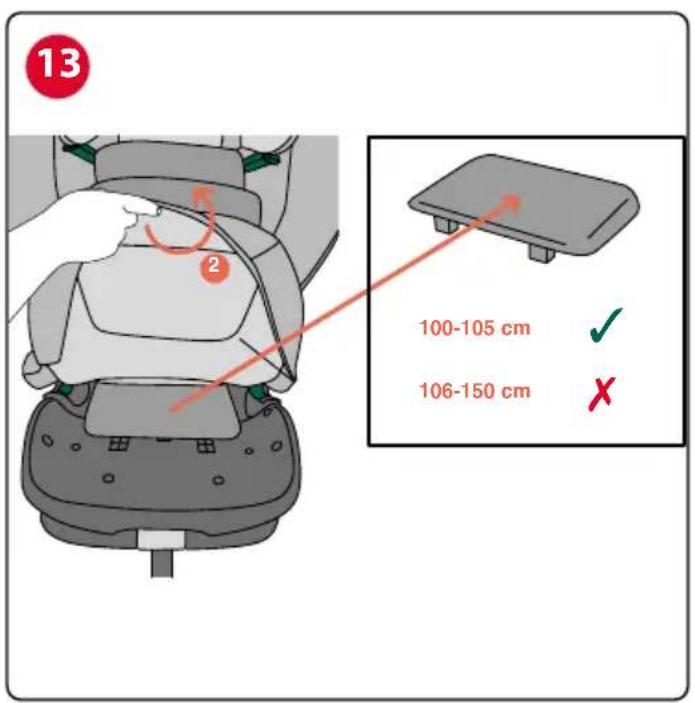

13 2 100-105 cm ✓ 106-150 cm ✗

Medical diagram showing hand placement on a device with numbered annotation '3' and red circle marker

DA 106 A 150 CM - ! FROM 106 TO 150 CM - ! DE 106 À 150 CM - DE 106 A 150 CM - ! DE 106 A 150 CM - ! OD 106 DO 150 CM ! OD 106 DO 150 CM - ! FROM 106 TO 150 CM - AÑO 106 EΩΣ 150 CM - ! 106 - 150 CM ARASI - ! OD 106 DO 150 CM ! OD 106 DO 150 CM - ! OD 106 DO 150 CM - ! 106-150 CM - ! DE LA 106 LA 150 CM - ! OT 106 DO 150 CM ! 106 - 150 CM - ! OT 106 DO 150 CM - ! DE 106 A 150 CM - ! FRÁN 106 TILL 150 CM - من 106 سم حنتي 150 سم

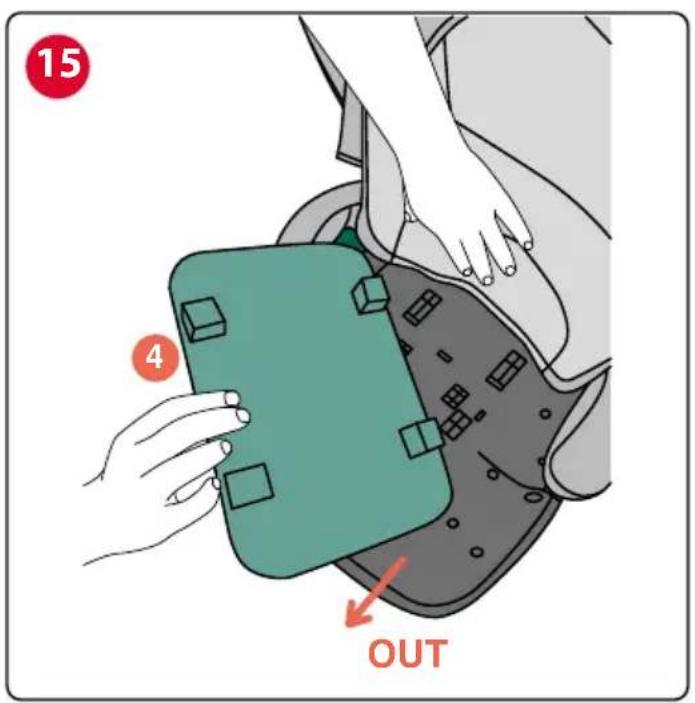

15 4 OUT

Illustration of a car seat assembly with a hand adjusting the seatbelt and a red circle highlighting a specific seat (no text or symbols present)

EN Headrest adjustment

EN Side safety system

Simple line drawing of a car and a car seat (no text or symbols)

IT Disinstallazione

EN Uninstallation

FR Désinstallation

DE Ausbau

ES Desinstalación

PT Desmontagem

CZ Demontáž

PL Zdejmowanie

NL Deïnstallatie

EL Απεγκατασταση

TR Demontaj

HR Vađenje

SL Odstranjevanje

SK Odinštalovanie

HU Eltávolítás

RO Dezinstalarea

BG Демонтаж

UK ЗЗНЯТТЯ

RU Снятие

BR Remoção

SV Demontering

AR إلغاء التثنيت

21

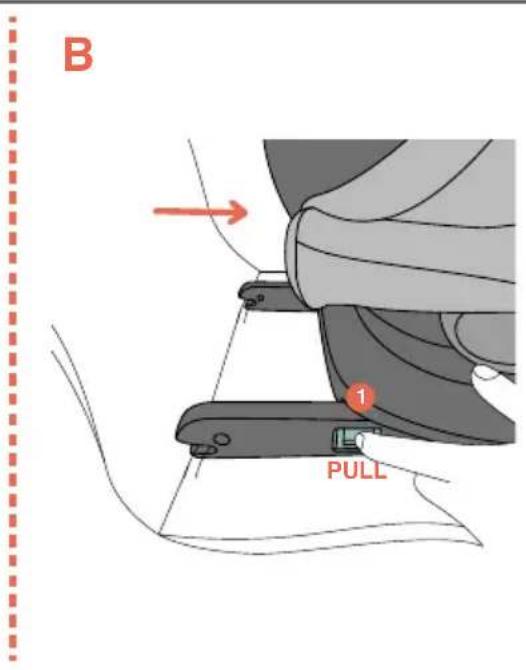

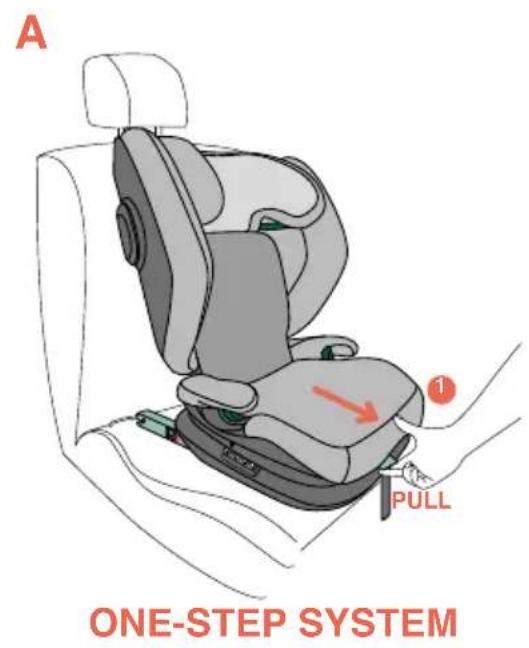

A PULL ONE-STEP SYSTEM

B 1 PULL

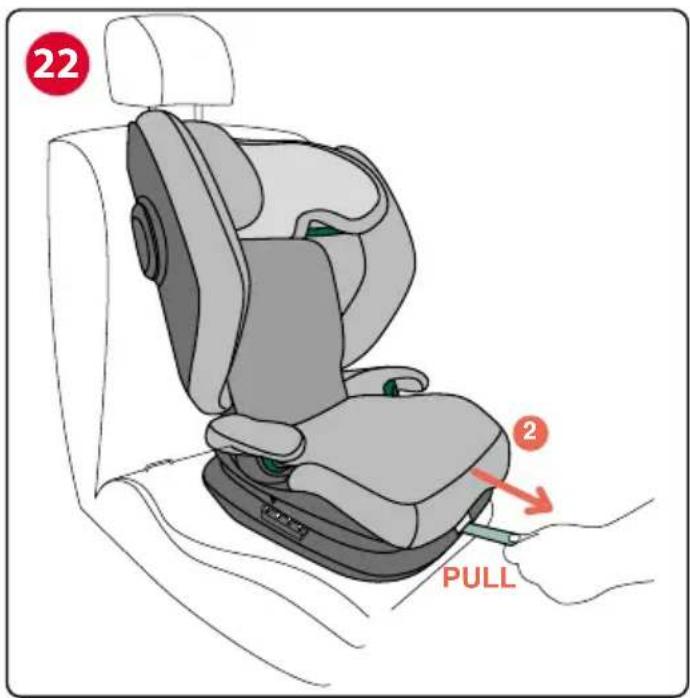

22 2 PULL

Line drawing of a mechanical device with no visible text or symbols

IT Sistema di chiusura e trasporto
EN Foldaway and transport system
FR Système de verrouillage et de transport
DE Klapp-undTransportsystem
ES Sistema de cierre y transporte
PT Sistema de bloqueio e transporte
CZ Upínací a přepravní systém
PL System blokowania i transportu
NL Vergrendelings-entransportsysteem
EL Σύστημα κλειδώματος και μεταφοράς
TR Katlanabilir ve taşınabilir sistem
HR Sustav sklapanja i nošenja

SL Zložljiv in prevozni sistem
SK Skladací a prepravný systém
HU Összecsukható és hordozható kialakítás
RO Sistem de blocare și transport
BG Система за заключване и транспортиране
UK Система замикання та перевезення
RU Система фиксации и транспортировки
BR Sistema de travamento e transporte
SV Stängningssystemochtransport
AR نظام الطي والNFL

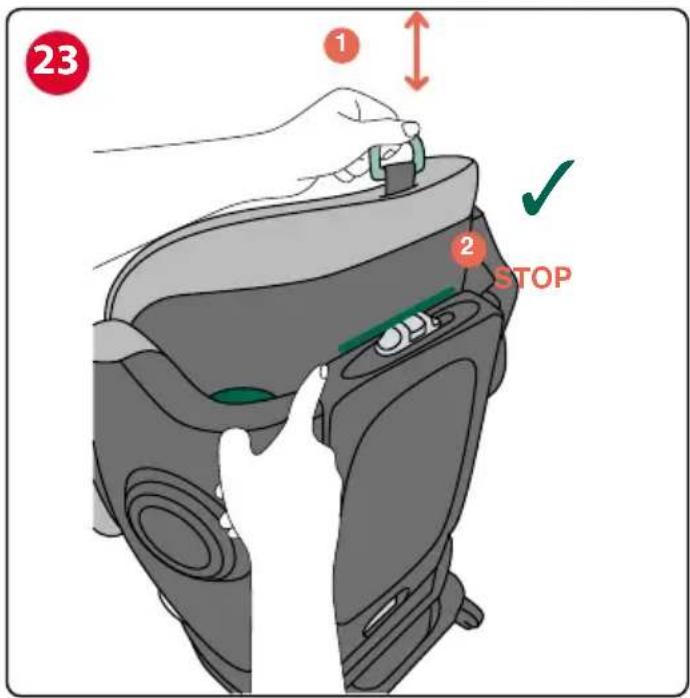

23 ① ② STOP

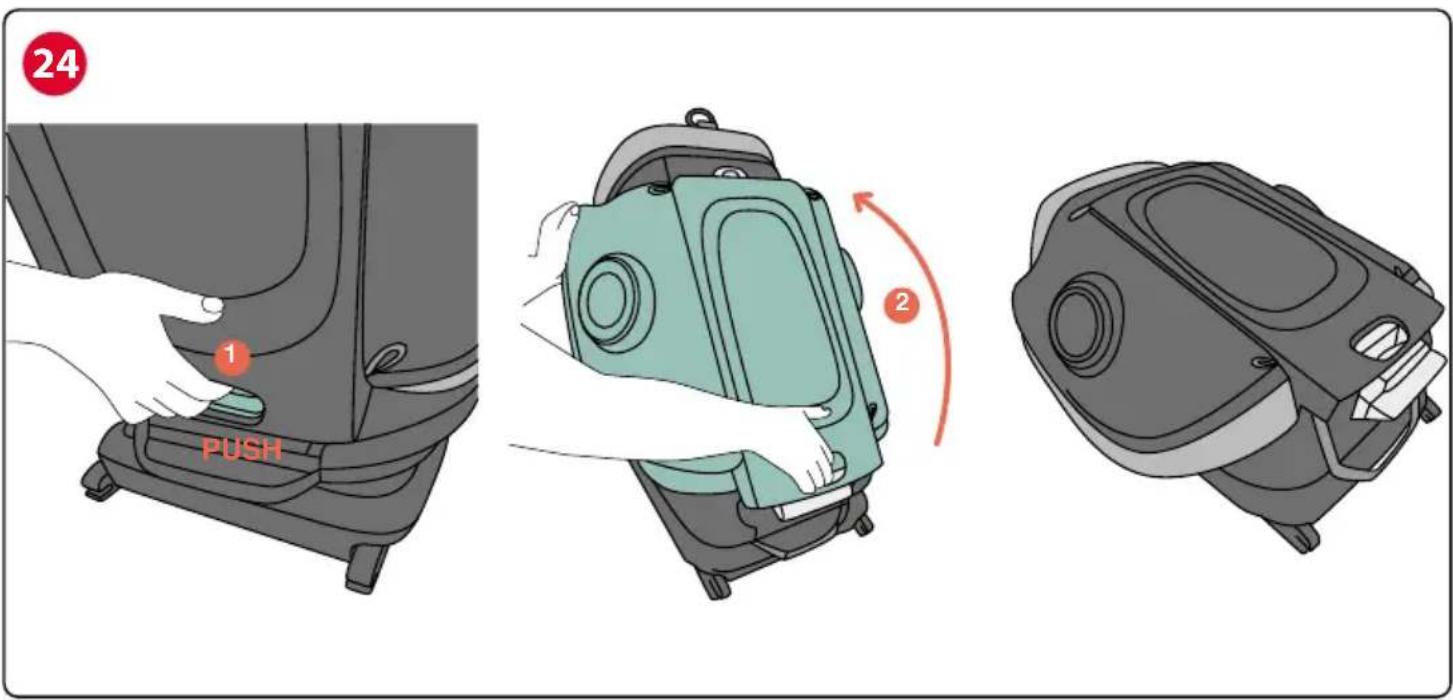

24 1 PUSH 2

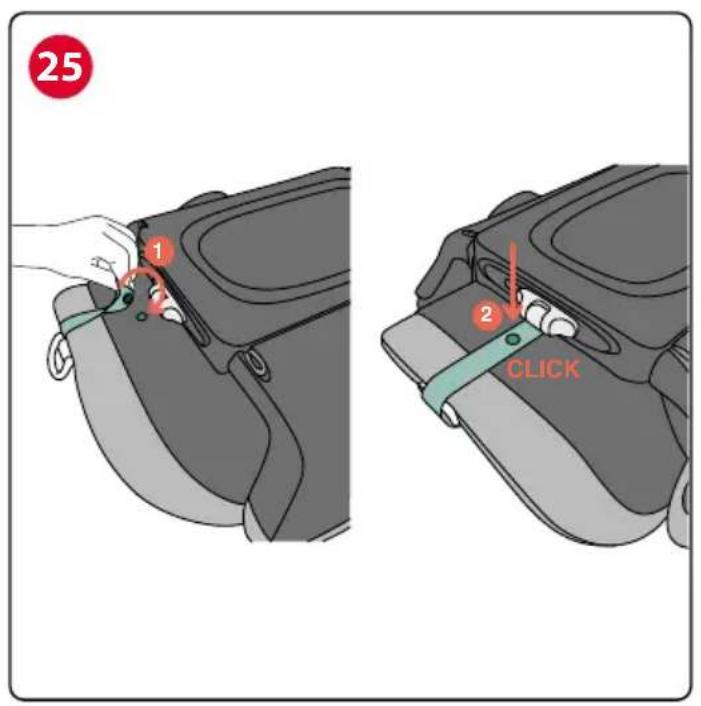

25 1 2 CLICK

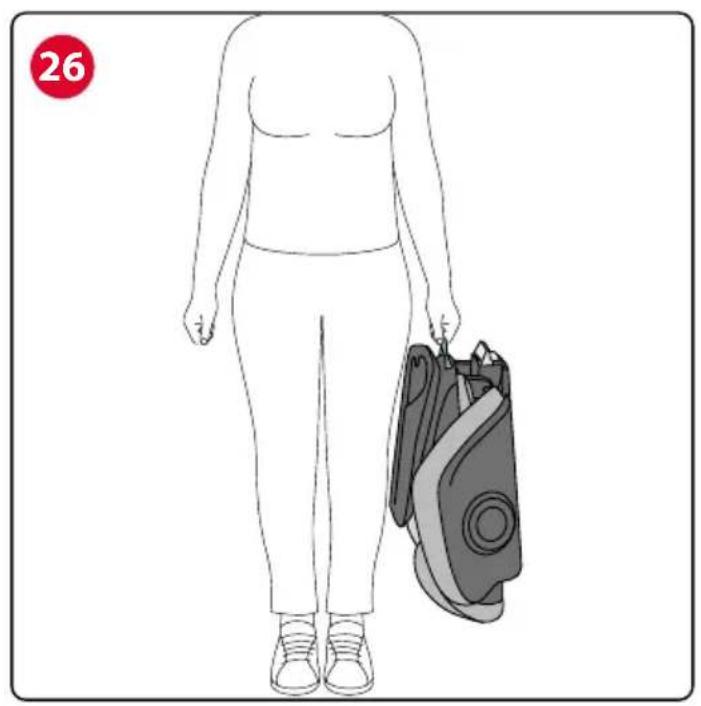

Line drawing of a person walking with a backpack, no text or symbols present

FOLD&GO S i-SIZE (100-150 cm)

Technical diagram of a car seat assembly with labeled parts and exploded view

This car seat is type approved in accordance with ECE R 129/04 for the transport of children:

• Whose height is between 100 and 150~cm (i-SIZE Booster Seat);
  • Age: from 3 to around 12 years;
• Forward-facing only.

Instructions for use

IN ORDER TO AVOID RISKS WHEN USING THE PRODUCT READ THE ENTIRE INSTRUCTION BOOKLET CAREFULLY BEFORE INSTALLING THE CAR SEAT AND STORE THE BOOKLET FOR FUTURE REFERENCE.

WARNINGS

• Before use, remove and dispose of all plastic bags and packaging materials and keep them out of reach of children. Please dispose of these items as sorted waste in accordance with applicable laws.
• Do not insert your fingers inside the mechanisms.
• Every country has different safety laws and regulations for the transportation of children in cars, contacting the local authorities for more information is therefore advisable.
• Prevent anybody from using the product without reading the instructions. Store this manual for future reference.
• The product is intended exclusively to be used as a Car Seat, therefore not for home use.
• Make sure that all passengers in the vehicle know how to release the child from the child car seat in case of an emergency.
• If you need to carry out any adjustment on the child car seat or on

your child when travelling, stop the vehicle in a safe place.

• Verify that the abdominal portions of the harness restraining the child rest firmly over the pelvic region, so that they won't press on the abdomen in the event of an impact.
• Check from time to time that your child does not release the buckle of the vehicle seat belt or has interfered with the car seat or parts of it.
• Do not let children play with car seat components or parts.
• When the child car seat is not in use, it should be left secured to the car's seat, or stowed in the car's boot with the seat inclination adjuster handle completely inserted into the lower part of the child car seat. In fact, an unsecured car seat may pose a hazard to the passengers in the event of an accident or sudden braking.
• Any adjustments made to the car seat should only be carried out by an adult.
• The risk of serious injuries to your child increases, not only in the case of accidents, but also in other circumstances (sudden braking, etc.) if these instructions are not followed carefully.
• No car seat can guarantee your child's total safety in the event of an accident, but the use of this product reduces the risk of serious injuries or death when installed correctly.
• Always use the child car seat, fitted correctly, including for short journeys. Your child's safety will be compromised if you do not follow the above mentioned rule. In particular, make sure that the child car seat belt is properly tensioned, not twisted and in a proper position.
• Ensure that all the car passengers fasten their safety harnesses for their own safety and because, during the journey, they may injure the child in the event of an accident or sudden braking of the car.
• Make sure that the vehicle seats (foldable, tiltable or rotating) are well secured.
• Check that the vehicle car seat headrest does not interfere with that of the child car seat: do not push it forwards. If this is the case, remove the headrest from the car seat on which the child car seat is fitted, without resting it on the luggage rack.

EN

• When adjusting the car seat (headrest and backrest), make sure that the movable parts of the car seat do not come into contact with the child's body.
• After an accident, even if minor, the child car seat must be replaced because it may have suffered damages, although these damages may not be visible to the naked eye.
• Do not use second-hand child car seats: it may have suffered damage that is not visible to the naked eye but that may compromise the safety of the product.
• Do not use a car seat if it has been damaged, deformed or excessively worn out, or if any parts are missing, as the original safety features may have been compromised.
• Do not remove the labels and logos from the product.
• The seat fabric must only be replaced with another approved by the manufacturer as it forms an integral part of the child car seat. To ensure the safety of the child car seat, never use it without its fabric cover.
  • The child car seat must be replaced should the harness be cut or frayed.
• This product must not be modified in any way unless the modification has been approved by the manufacturer. Do not install accessories, spare parts or components which are not supplied and approved by the manufacturer and intended for the child car seat.
• Do not use anything – pillows, blankets, etc. – to distance the child car seat from the vehicle seat or to distance the child from the child car seat: in case of accident, the child car seat may not work properly.
  • Make sure that no objects are positioned between the child car seat and the vehicle seat or between the child car seat and the car door.
• Do not transport loose, unsecured objects or baggage on the back shelf of the vehicle: they may injure the passengers in the event of an accident or sudden braking.

• Never leave your child unattended in the car, it can be dangerous!

• Do not carry more than one child at a time in the car seat.

• Avoid giving food to your child while travelling, especially lollies, ice lollies or other foods on sticks. they may injure your child in case of accident or sudden braking.
• Stop frequently during long trips: children tire easily whilst using the child car seat and need to move around. It is recommended that children get in and out of the child car seat from the curbside.
• If the vehicle has been left in the sun, check that the different parts of the child car seat are not too hot: otherwise, let them cool off before accommodating your child, in order to prevent burns.
• DO NOT use the product for more than 10 years. After this period, alterations of the materials (e.g., due to exposure to sunlight) may reduce or compromise the product's effectiveness.
• Artsana declines any liability for the improper use of the product or any other use other than that specified in these instructions.

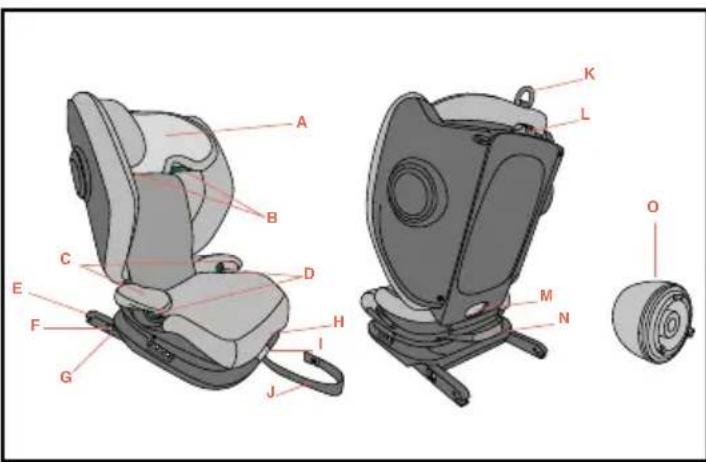

List of components

Technical diagram of a car comfort seat with labeled parts including seats A, B, C, D, E, F, G, H, I, J, K, L, M, N, and O.

A. Headrest
B. Diagonal harness guide
C. Armrests
D. Abdominal harness guide
E. Isofix connectors
F. Isofix connector release button
G. Isofix connector indicators
H. Recline handle
I. Isofix connector extraction and release lever
J. Strap for adjusting Isofix connectors and closing the product
K. Headrest adjustment ring
L. Shoulder space adjustment button
M. Closing handle
N. Handle for transporting the product
O. Side Safety System

CORRECT POSITION IN THE VEHICLE 100-150 cm:

This is an advanced child restraint system classified as an "i-Size" booster. It is approved under Regulation No. 129/04 for use in vehicles on "i-Size compatible" seats as indicated by the vehicle manufacturer in the vehicle users' manual. If in doubt, consult either the child restraint manufacturer or the vehicle manufacturer. If the vehicle does not have an i-Size seat check the vehicle compatibility list, available via the QR code on the product installation label and at the end of this manual. When used for children between 135 cm and 150 cm in height, Fold&Go S i-Size may not be suitable for all cars, especially in the case of cars with a low roof at the sides.

A small wedge is positioned on the sitting area of the child car seat to

ensure the optimal positioning of younger child in the vehicle. Its use is mandatory until the child reaches a height of 105 cm and must be removed from 106 cm onwards.

Installation

1. Installation with Isofix connectors and the car's 3-point seat belt (see illustrations from number 1-16)

! Focus areas

q) The vehicle seat must be equipped with a 3-point safety harness, whether static or with a retractor, approved according to UN/ECE Regulation no. 16 or other equivalent standards (Fig. 1).
b) Never fit the car seat to a vehicle seat that is only equipped with a 2-point safety belt (Fig. 2).
c) Make sure that the abdominal portion of the vehicle seat belt rests correctly on the waist of the child.
d) If used in a vehicle equipped with rear vehicle seat belts with integrated air bags (inflatable seat belts), the interplay between the inflatable portion of the seat belt and this child restraint system could cause serious injury or death. When using the car seat in vehicles equipped with rear vehicle seat belt with integrated air bags (inflatable seat belts), follow the car manufacturer's instruction manual.
e) The car seat can be fitted on the front passenger seat or on any one of the rear seats so long as they are equipped with an Isofix system. Never use this Car seat rear facing on any vehicle's seat (Fig. 3).
f) Make sure that the buckle of the car's three-point belt is not too far up. Otherwise, try to install the car seat on a different seat in the vehicle.

2. Installation with the vehicle's 3-point seat belt (see illustrations from number 1-16)

! Focus areas

a) The vehicle seat must be equipped with a 3-point safety harness, whether static or with a retractor, approved according to UN/ECE Regulation no. 16 or other equivalent standards (Fig. 1).
b) Never fit the car seat to a vehicle seat that is only equipped with a 2-point safety belt (Fig. 2).
c) Make sure that the abdominal portion of the vehicle seat belt rests correctly on the waist of the child.
d) If used in a vehicle equipped with rear vehicle seat belts with integrated air bags (inflatable seat belts), the interplay between the inflatable portion of the seat belt and this child restraint system could cause serious injury or death. When using the car seat in vehicles equipped with rear vehicle seat belt with integrated air bags (inflatable seat belts), follow the car manufacturer's instruction manual.
e) The car seat can be fitted on the front passenger seat or on any one of the rear seats. Never use this child car seat on vehicle seats facing the sides or opposite to the direction of the driver's seat (Fig. 3).
f) Make sure that the buckle of the car's three-point belt is not too far up. Otherwise, try to install the car seat on a different seat in the vehicle.

How to clean the fabric cover

The car seat fabric cover can be removed and cleaned by hand or in a washing machine at 30^ C. Please refer to the cleaning instructions on the fabric label which illustrates the following washing symbols: Machine washable at 30°C.

Do not bleach

Do not tumble dry

Do not iron

Do not dry clean

Never use abrasive detergents or solvents. Do not dry the fabric cover within a dryer, let it dry without squeezing it.

The fabric cover must only be replaced with another cover approved by the manufacturer, since it is an integral part of the child car seat and, therefore, one of its safety elements.

WARNING! To ensure the safety of the child car seat, never use it without its fabric cover.

To remove the fabric cover follow the instructions below:

Cover

• Detach the elastic bands located behind the backrest at the top and bottom;
• Unfasten the buttons located in the front at the top and bottom of the backrest;
• Release the elastic bands of the armrests;
• Pull the cover off.

Headrest

• Release the elastic bands behind the headrest;
• Pull the headrest cover off.

How to clean the plastic and metal parts

Clean the plastic and coated metal parts with a damp cloth only. Nev-

er use abrasive detergents or solvents.

The moving parts of the child car seat must not be lubricated.

Checking the condition of the components

It is recommended to regularly check the condition of the following components to make sure they are not damaged or worn:

• Fabric cover: check that the padding does not come out from the seams. Check the condition of the seams: they must always be intact and undamaged.
• Harness straps: check that the fabric lining is not frayed and that the thickness of the harness strap is not worn out in the parts corresponding to the adjustment strap.
• Plastic parts: check that the plastic parts are not worn out, damaged or faded.

Storing the product

When it is not fitted in the car, it is recommended to store the child car seat in a dry place, away from sources of heat and to protect it from dust, humidity and direct sunlight.

Disposing of the product

When the child car seat no longer complies with the original safety standards, stop using it and dispose of it at an appropriate collection point. Always dispose of the child car seat following the guidance and regulations set out in the country of use.

Warranty

The product is guaranteed against any lack of conformity under

normal use as specified in the instructions. The warranty shall not therefore apply in the case of damage caused by improper use, wear or accidental events. For the duration of the warranty on conformity defects please refer to the specific provisions of applicable national laws in the country of purchase, where appropriate.

FOLD&GO S i-SIZE (100-150 cm)

Technical diagram of a car seat assembly with labeled parts and exploded view

Technical diagram of a car comfort seat with labeled parts including seats A, B, C, D, E, F, G, H, I, J, K, L, M, N, and O.

Technical diagram of a car seat assembly with labeled parts and exploded view

Technical diagram of a car seat assembly with labeled parts and exploded view

Technical diagram of a car seat assembly with labeled parts and exploded view

Technical diagram of a car seat assembly with labeled parts and exploded view

Technical diagram of a car seat assembly with labeled parts A through O, showing front and side views.

Technical diagram of a car seat assembly with labeled parts A through O

A. Просткέφало

Technical diagram of a car comfort seat with labeled parts including seats A, B, C, D, E, F, G, H, I, J, K, L, M, N, and O.

Technical diagram of a car seat assembly with labeled parts A through O, including front and side views.

A. Naslon za glavu
B. Vodilica dijagonalnih pojaseva
C. Nasloni za ruke
D. Vodilica trbušnog dijela pojasa
E. Isofix konektori
F. Gumb za otkapčanje Isofix konektora
G. Indikatori konektora Isofix
H. Ručka za podešavanje nagiba
I. Polugica za izvlačenje i otpuštanje konektora Isofix
J. Traka za podešavanje konektora Isofix i za sklapanje proizvoda
K. Prsten za podešavanje naslona za glavu
L. Gumb za podešavanje prostora za ramena
M. Ručka za sklapanje

A B C D E F G H I J K L M N O

Technical diagram of a car comfort seat with labeled parts and exploded view

A. Opierka hlavy

Technical diagram of a car seat assembly with labeled parts A through J and a separate exploded view of the rear wheel.

Technical diagram of a car seat assembly with labeled parts A through O, including exploded and assembled views.

Technical diagram of a car seat assembly with labeled parts A through O, including front and side views.

Technical diagram of a car seat assembly with labeled parts A through O, including exploded and assembled views.

Technical diagram of a car seat assembly with labeled parts and exploded view

Technical diagram of a car comfort seat with labeled parts and exploded view

Technical diagram of a car seat assembly with labeled parts A through O, including exploded view and exploded view views.

Technical diagram of a car comfort seat with labeled parts and exploded view

A. مسند الرأس

لا تستخدم acidic أي، مواد نظيف كاشطة أو مديبات. chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest chest

الغطاء

ARTSANA GERMANY GMBH

Borsigstrasse 1-3

28923 Alcorcon (Madrid)-Spain

902117093

www.chicco.es

ARTSANA PORTUGAL S.A.

ARTSANA POLAND Sp.z o.o.

Ul. Połczyńska 31 A

01-377 Warszawa

[phone]

www.chicco.pl

ООО «Артсана Рус»

Dec V. Ruben Dario 1015

Colonia Lomas De Providencia 44647

Guadalajara, Jalisco-Mexico

01800 702 8983

www.chicco.com.mx

ARTSANA ARGENTINA S.A.

Av. Santa Rita 2731 Piso 1 Of 5,

1609 Boulogne, Buenos Aires.

Argentina.

Phone: [phone]

www.chicco.com.ar

ARTSANA INDIA PRIVATE LIMITED,

7Th Floor, Tower B, Paras Twin Towers.

Golf Course Road, Sector 54

Gurgaon - 122002 - Haryana, India

(+91)(124)(4964500)

www.chicco.in

ARTSANA S.p.A

22070 Grandate (CO) - Italy

Tel. [phone]

Fax [phone]

www.chicco.com

NOTE

QR code image containing encoded data, no visible human-readable text
