USER MANUAL Tiger E 7R MKIII BeamZ
SAFETY INSTRUCTIONS 3
UNPACKING INSTRUCTION 4
POWERSUPPLY 4
RIGGING 4
DMX512 CONTROL 5
CLEANING 5
REPLACING THE FUSE 5
TROUBLESHOOTING 6
NEDERLANDS
VEILIGHEIDSINSTRUCTIES 7
UITPAKKEN 8
AANSLUITSPANNING 8
RIGGING 8
DMX BEDIENING 9
REINIGEN 9
VERVANGEN ZEKERING 9
PROBLEMEN OPLOSSEN 10
DEUTSCH
REEMPLACEMENT DU FUSIBLE 21
RESOLUTION DE PROBLEMES 22
POLSKI
INSTRUKCJA BEZPIECZENSTWA 23
ROZPAKOWYWANIE INSTRUKCJI 24
ZASILACZ 24
MOCOWANIE 24
KONTROLA DMX512 25
CZYSZCZENIE 25
WYMIANA BEZPIECZNIKA 25
ROZWIAZYWANIE PROBLEMOW 26
TECHNICAL DETAILS
CONTROL MENU 27
DMX CHANNELS 29
TECHNICAL SPECIFICATIONS 32
SAFETY INSTRUCTIONS

WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with care for future reference. It contains important information about the installation, usage and maintenance of the unit.
- Unpack and check carefully that there is no transportation damage before using the unit
Please read these instructions carefully and follow the instructions. - Observe all safety warnings. Never remove safety warnings or other information from the equipment.
- Be sure that no ventilation slots are blocked; otherwise the unit will overheated.

WARNING! Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.
After connecting the unit, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards.
Make sure that the power cord is never crimped or damaged. Check the unit and the power cord from time to time.
Always disconnect power from the mains, when unit is not used or before cleaning! Only handle the power cord by the plug. Never pull out the plug by tugging the power cord.
- Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.
- Do not switch the unit on and off in short intervals.
- Do not connect the unit to a dimmerpack.
Install the unit in a well ventilated place.
- Never place any material over the lens.
- Never let the sunlight lights directly to the front lens, even when the unit is not working.
Always allow free air space of at least 50~cm around the unit for ventilation.
Make sure that the area below the installation place is blocked when rigging, derigging or servicing the unit.
- For mounting height >100 cm, always fix the unit with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!
- Never look directly at the light beam. Please note that fast changes in lighting, e.g. flashing light, may trigger epileptic seizures in photosensitive persons or persons with epilepsy.
This unit is not designed for permanent operation. Consistent operation breaks will ensure that the unit will serve you for a long time without defects.

WARNING! If the power cord of the unit is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.
Make sure that the unit is not exposed to extreme heat, moisture or dust.
- Clean the unit using a dry cloth.
- Do not touch the unit bare-handed during its operation (housing becomes very hot). Allow the unit to cool for at least 5 minutes before handling.
This unit is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of fluid (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this unit to flammable materials, fluids or gases.
If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.
- Never attempt to bypass the thermostatic switch or fuses.
- Do not dismantle or modify the unit.
- For replacement use fuses/bulb of same type and rating only.
- Repairs, servicing and electric connection must be carried out by a qualified technician.
The ambient temperature must always be between -5^ and +45^ .
If this unit is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void.
- Plastic bags must be kept out of reach of children.
Unit must be installed out of the reach of children. Never leave the unit running unattended.

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present,
and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear
damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.
If the unit has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your unit. Leave the unit switched off until it has reached room temperature.
POWERSUPPLY
The label on the backside of the unit indicates the mains voltage to which it must be connected. Check that the mains voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.
The unit has a powerconnector output on board. Depending on the local conditions several units can be linked by powerconnector in- and output. Connect a maximum of four (when using 230V/16A) units in a row. Use an approved three-core cable with a cross-section of at least 1.5mm^2 . The installation instructions of the manufacturer and the colour coding of the cable must be observed. Do not turn off the unit by turning the powerconnector but use the power on/off switch or schuko!

WARNING! Always connect the unit to a protected circuit (circuit breaker or fuse). Make sure the unit has an appropriate electrical ground to avoid the risk of electrocution or fire.

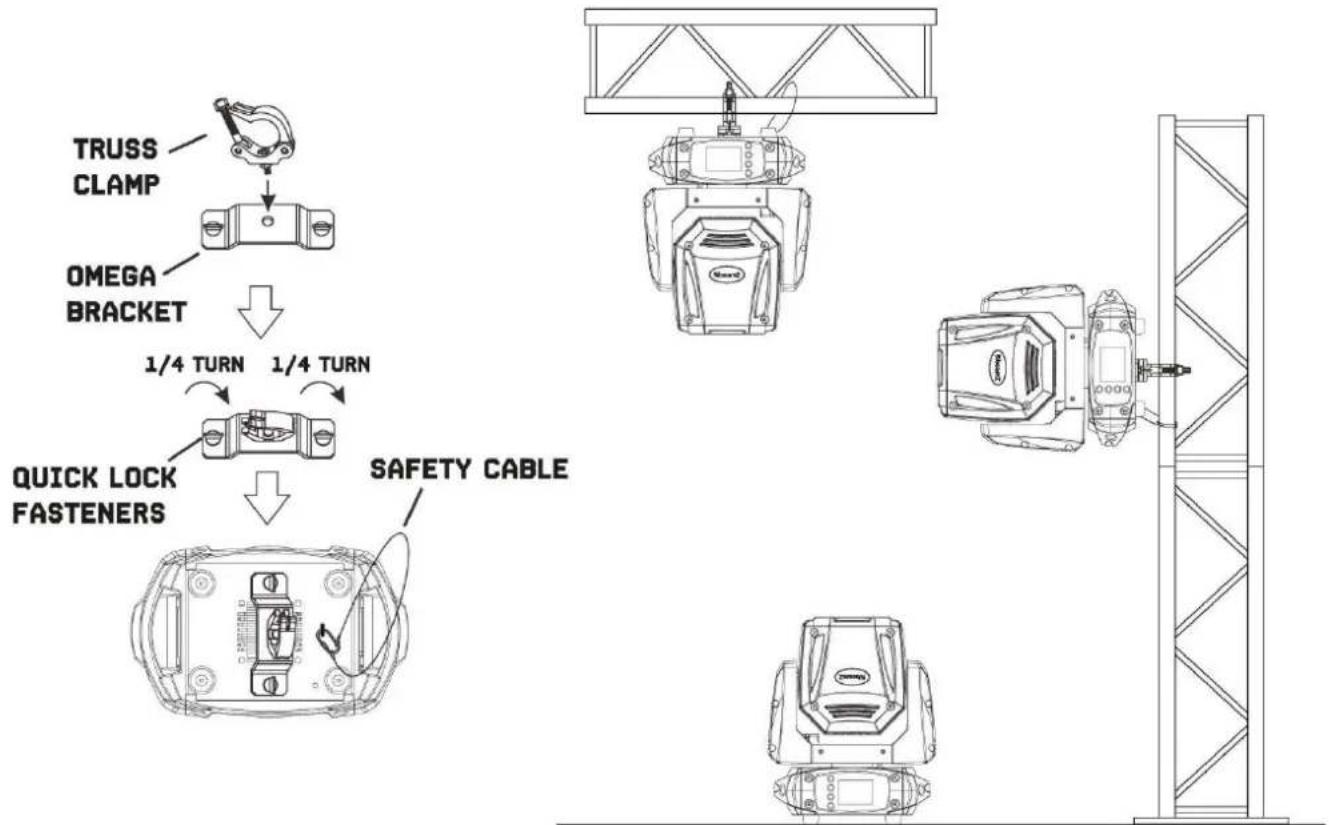

RIGGING
The unit may be set up on a stable and even surface. By means of the fixing facilities of the baseplate, the unit can also be mounted upside down to a truss, see below picture. For fixing, certified clamps with correct save working load are required. According to the figure, the quick lock bolts of the omega brackets are placed into the openings provided in the base plate and turned clockwise until they lock (to the stop). The mounting place must be of sufficient stability and be able to support a weight of 10 times of the unit's weight. Secure the unit with a safety cable so that it cannot fall down.
When carrying out any installation, always comply European and national guidelines concerning rigging, truss and all other safety issues. Always let the installation checked out by an authorized dealer!

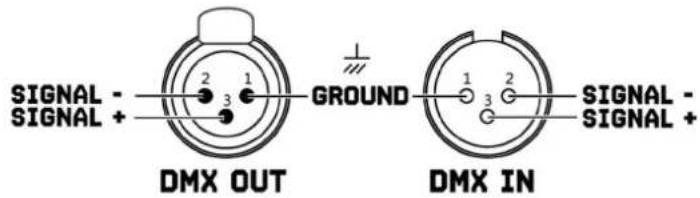

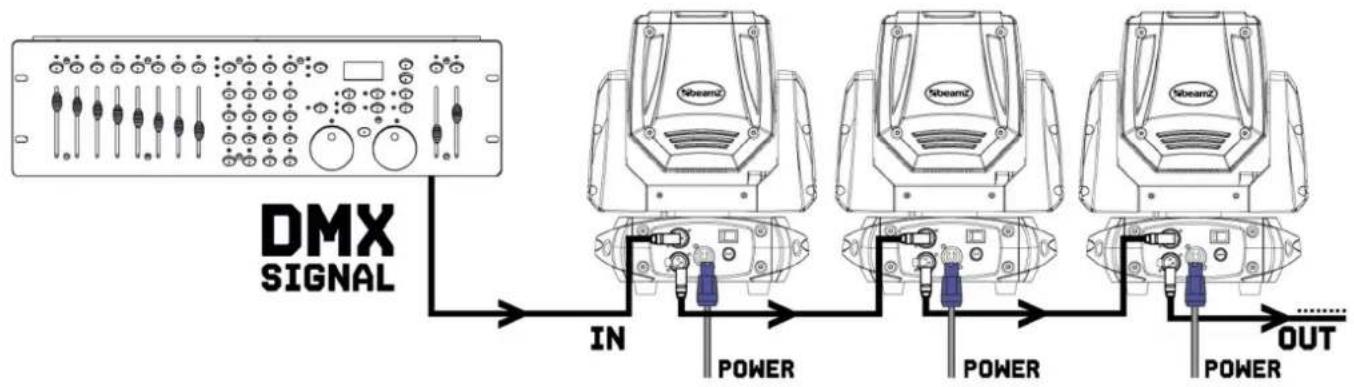

DMX512 CONTROL
If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. Always connect the output of one unit with the input of the next unit until all units are connected.


CAUTION! At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 ohm resistor between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.


CLEANING
The buildup of dust, dirt and other airborne particles will reduce the unit's light output. It will also prevent the unit from cooling correctly, and this will reduce the unit's lifetime. The rate of dirt buildup will vary depending on environmental factors such as airborne dust, use of smoke machines, airflow from ventilation systems, etc. The unit's cooling fans will accelerate buildup, and any smoke particles that are present in the atmosphere will increase the tendency for dirt to clog.
To get the best performance and lifetime from the unit, inspect it regularly and clean it as soon as you see signs of dirt buildup.
Assess the operating environment each time you begin to use the unit. In dusty or smoky conditions, inspect the unit after a few hours and check it frequently the unit may attract dirt faster than you expect. Draw up a cleaning schedule that will make sure that dirt is removed before it can build up.
Use the following guidelines:
- Disconnect the unit from power and allow it to cool completely before cleaning.
- Do not use solvents, abrasives or any other aggressive product to clean the unit.
- Vacuum or use low-pressure compressed air to remove dust and loose particles from surfaces and air vents. Prevent the blades of cooling fans from turning before you aim a vacuum or air jet at the fan, or you may spin the fan too fast and damage it.
- Clean glass components by wiping gently with a soft, clean, lint-free cloth moistened with a weak detergent solution. Put the solution on the cloth and not on the surface to be cleaned. Avoid rubbing glass surfaces.
- Dry the unit with a soft, clean, lint-free cloth or low-pressure compressed air before reapplying power.
REPLACING THE FUSE
If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.

Procedure:
Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing.
TROUBLE SHOOTING
The checklist below may help you troubleshoot in the unlikely event that a problem occurs while using the product:
| SYMPTOM | POSSIBLE CAUSE | SUGGESTED ACTION |
| No response from unit. No power to unit. Check that power is turned on. | ||
| Fuse blown or internal fault. | Check cables and connections. Replace mean fuse or contact Beamz support or Beamz authorized service partner. Do not remove base or yoke covers. Do not attempt to replace a fuse or carry out any repairs or service that are not described in this User Manual unless you have both authorization from Beamz support or Beamz authorized service partner. | |
| Unit resets correctly but does not respond [or does not respond correctly] to the controller. | The controller is not connected. Connect controller. | |
| Bad DMX-line. Inspect connections and cables. Correct poor connections. Repair or replace damaged cables. | ||
| DMX-line has no end resistance. | Insert DMX terminator plug in DMX output socket of last unit on DMX-line. | |
| Incorrect unit addressing. Check unit address and DMX mode settings. | ||
| A unit is defective and is disturbing data transmission on the DMX-line. | Unplug DMX IN and OUT connectors and connect them directly together to bypass one unit at a time until normal operation is regained. Have defective unit serviced by an authorized technician. | |
| Pin 2 and 3 are reversed in XLR connection. | Inspect connections and cables. Install a phase-reversing cable between the units or swap pin 2 and 3 in the unit, that behaves erratically. | |
| Error after unit reset. | Effect requires mechanical adjustment. | Check unit's software version and error messages for more information. Contact Beamz support or Beamz authorized service partner. |
| Light output cuts out intermittently. Unit too hot. Allow unit to cool. Reduce ambient | temperature. Ensure free airflow around unit. Clean unit if necessary. | |
| LEDs damaged. Disconnect unit and contact Beamz support or Beamz authorized service partner. | ||
| The power supply settings do not match local AC voltage and frequency. | Disconnect unit. Check settings and correct if necessary. | |
VEILIGHEIDSINSTRUCTIES

REEMPLACEMENT DU FUSIBLE
| MANUAL | 1 Color 000-255 | |
| 2 Strobe 000-255 | ||
| 3 Dimmer 000-255 | ||
| 4 Gobo 000-255 | ||
| 5 Prism1 000-255 | ||
| 6 Prism Rotation 000-255 | ||
| 7 Prism2 No function | Press "enter" button to select what value you want to change. then press "up" or "down" to adjust value. Press "enter" button again to confirm and save | |
| 8 Frost 000-255 | ||
| 9 Focus 000-255 | ||
| 10 Pan 000-255 | ||
| 11 Pan Fine 000-255 | ||
| 12 Tilt | 000-255 | |
| 13 Tilt Fine 000-255 | ||
| 14 Macro Function | 000-255 | |
| 15 Reset | Ok / Cancel Reset unite | |
| 16 Lamp Power | ON/OFF Control lamp on or off | |
| SETTING | 1 Run Mode | DMX Select running mode |
| AUTO1 | ||
| AUTO2 | ||
| Random | ||
| Sound | ||
| 2 DMX Address | A001-A512 Select DMX start address | |
| 3 Channel Mode | 16CH / 20CH DMX mode | |
| 4 Invert Pan | OFF Pan counter clockwise rotation | |
| ON | ||
| 5 Invet Tilt | OFF Tilt counter clockwise rotation | |
| ON | ||
| 6 Pan-Tilt Swap | OFF Exchange XY - axis Channel (Including Trimming) | |
| ON | ||
| 7 Pan-Tilt Encoder | OFF Judging whether has out - of - step and self - correcting position by using encoder | |
| ON | ||
| 8 DMX Signal | KEEP Working as original status | |
| CLEAR Stop working | ||
| 9 Lamp On | OFF Control lamp status when switch on or reset | |
| ON | ||
| 10 Linear Color | OFF Adjust color | |
| ON | ||
| 11 Load Default | Ok Load factory setting | |
| Cancel | ||
| SYSTEM | 1 DIS:XXXXXXXX* | * Current Software version |
| 2 MT:XXXXXXXX* | * Current hardware version | |
| 3 Reset Cal | Pan Cal Adjust Pan - axis, Tilt - axis resetting position, the adjustable range is - 128~+127, +0 means no adjustment. | |
| Tilt Cal |
| Color Cal | ||
| Gobo cal | ||
| Focus Cal | ||
| Prism1 Cal | ||
| Prism2 Cal | ||
| Frost Cal | ||
| 4 Sensor Monitor | Pan Hall | Monitor all the optoelectronic switch on/off and sensor |
| Tilt Hall | ||
| Color Hall | ||
| Gobo Hall | ||
| Focus Hall | ||
| Prism Hall | ||
| Panwheel State | ||
| Tiltwheel State | ||
| Panwheel step | ||
| Tiltwheel step | ||
| 5 System Errors System error warning | ||
| 6 Authority Hours 9999 | 0 - 9999 hours, lamp burning time | |
| 7 DMX Monitor | Color | Monitor DMX signal at any moment |
| Strobe | ||
| Dimmer | ||
| Gobo | ||
| Prism1 | ||
| Prism Rotation | ||
| Prism2 | ||
| Frost | ||
| Focus | ||
| Pan | ||
| Pan Fine | ||
| Tilt | ||
| Tilt Fine | ||
| Macro Function | ||
| Reset | ||
| Lamp Power | ||
DMX CHANNELS
| 20CH 16CH Function Value | Description | ||
| 1 1 Colour wheel | 000 - 004 White | ||
| 005 - 009 White + red | |||
| 010 - 014 red | |||
| 015 - 019 Red + orange | |||
| 020 - 024 orange | |||
| 025 - 029 Orange + Aquamarine | |||
| 030 - 034 Aquamarine | |||
| 035 - 039 Aquamarine + Green | |||
| 040 - 044 Green | |||
| 045 - 049 Green + CTO 1 | |||
| 050 - 054 CTO 1 | |||
| 055 - 059 CTO1+ Fluorescent Violet | |||
| 060 - 064 Fluorescent Violet | |||
| 065 - 069 Fluorescent Violet + Pink | |||
| 070 - 074 Pink | |||
| 075 - 079 Pink + Cyan | |||
| 080 - 084 Cyan | |||
| 085 - 089 Cyan + Yellow | |||
| 090 - 094 Yellow | |||
| 095 - 099 Yellow + Light green | |||
| 100 - 104 Light green | |||
| 105 - 109 Light green + Magenta | |||
| 110 - 114 Magenta | |||
| 115 - 119 Magenta + Lavender | |||
| 120 - 124 Lavender | |||
| 125 - 129 Lavender + Warm white | |||
| 130 - 134 CTO 2 | |||
| 135 - 139 CTO2 + CTB8000 | |||
| 140 - 144 CTB8000 | |||
| 145 - 149 CTB8000 + White (open) | |||
| 150 - 200 Counter clockwise rotation from fast to slow | |||
| 201 255 Clockwise rotation from slow to fast | |||
| 2 | 2 | Strobe | 000 - 003 Closed |
| On/Off | 004 - 250 Strobe from slow to fast | ||
| 251 - 255 Full on (Open) | |||
| 3 | 3 | Dimmer | 000 - 255 Dimmer from dark to bright |
| 4 | 4 | Gobo wheel | 000 - 004 White (open) |
| 005 - 009 Gobo 1 | |||
| 010 - 014 Gobo 2 | |||
| 015 - 019 Gobe 3 | |||
| 020 - 024 Gobe 4 | |||
| 025 - 029 Gobe 5 | |||
| 030 - 034 Gobe 6 | |||
| 035 - 039 Gobe 7 | |||
| 040 - 044 Gobe 8 | |||
| 045 - 049 | Gobe 9 | |||
| 050 - 054 | Gobe 10 | |||
| 055 - 059 | Gobe 11 | |||
| 060 - 064 | Gobe 12 | |||
| 065 - 069 | Gobe 13 | |||
| 070 - 074 | Gobe 14 | |||
| 075 - 079 | Gobe 15 | |||
| 080 - 084 | Gobe 16 | |||
| 085 - 089 | Gobe 17 | |||
| 090 - 094 | Gobo 1 jitter from slow to fast | |||
| 095 - 099 | Gobo 2 jitter from slow to fast | |||
| 100 - 104 | Gobo 3 jitter from slow to fast | |||
| 105 - 109 | Gobo 4 jitter from slow to fast | |||
| 110 - 114 | Gobo 5 jitter from slow to fast | |||
| 115 - 119 | Gobo 6 jitter from slow to fast | |||
| 120 - 124 | Gobo 7 jitter from slow to fast | |||
| 125 - 129 | Gobo 8 jitter from slow to fast | |||
| 130 - 134 | Gobo 9 jitter from slow to fast | |||
| 135 - 139 | Gobo 10 jitter from slow to fast | |||
| 140 - 144 | Gobo 11 jitter from slow to fast | |||
| 145 - 149 | Gobo 12 jitter from slow to fast | |||
| 150 - 154 | Gobo 13 jitter from slow to fast | |||
| 155 - 159 | Gobo 14 jitter from slow to fast | |||
| 160 - 164 | Gobo 15 jitter from slow to fast | |||
| 165 - 169 | Gobo 16 jitter from slow to fast | |||
| 170 - 174 | Gobo 17 jitter from slow to fast | |||
| 175 - 214 | Clockwise rotation from fast to slow | |||
| 215 - 255 | Counter clockwise rotation from slow to fast | |||
| 5 | 5 | Prism | 000 - 127 | No function |
| 128 - 255 | Prism | |||
| 6 | 6 | Prism rotation | 000 - 127 | Control by user |
| 128 - 190 | Clockwise rotation from fast to slow | |||
| 191 - 192 | Stop | |||
| 193 - 255 | Counter clockwise rotation from slow to fast | |||
| 7 | 7 | 000 - 255 | Reserve channels for extending prism function | |
| 8 | 8 | Frost | 000 - 127 | No function |
| 128 - 255 | Frost | |||
| 9 | 9 | Focus | 000 - 255 | Focus 0 - 100% |
| 10 | 10 | Pan | 000 - 255 | Pan movement 0 - 540° |
| 11 | 11 | Pan Fine | 000 - 255 | Pan Fine |
| 12 | 12 | Tilt | 000 - 255 | Tilt movement 0 - 270° |
| 13 | 13 | Tilt fine | 000 - 255 | Tilt fine |
| 14 | 14 | Macro | 000 - 015 | Macro function |
| 016 - 031 | No function | |||
| 032 - 047 | Macro 1 | |||
| 048 - 063 | Macro 2 | |||
| 064 - 079 | Macro 3 | |||
| 080 - 095 | Macro 4 | |||
| 096 - 111 | Macro 5 | |||
| 112 - 127 | Macro 6 | |||
| 128 - 143 | Macro 7 | |||
| 144 - 159 | Macro 8 | |||
| 160 - 175 | Macro 9 | |||
| 176 - 191 | Macro 10 | |||
| 192 - 207 | Macro 11 | |||
| 208 - 223 | Macro 12 | |||
| 224 - 239 | Macro 13 | |||
| 240 - 255 | Macro 14 | |||
| 15 | 15 Reset | 000 - 127 | No function | |
| 128 - 255 | Complete reset | |||
| Lamp Control | 000 - 009 | No Function | ||
| 16 | 010 - 100 | Lamp OFF | ||
| 101 - 255 | Lamp ON | |||
| 17 | Pan/Tilt | 000 - 255 | Speed from fast to slow | |
| speed | ||||
| 18 | Color speed | 000 - 255 | Speed from fast to slow | |
| 19 | Beam speed | 000 - 255 | Speed from fast to slow | |
| 20 | Gobo speed | 000 - 255 | Speed from fast to slow |
TECHNICAL SPECIFICATIONS
Rated voltage :100-240VAC, 50-60Hz, 2.3-1.1A
Light source : MSD 7R 230W Bulb
Beam angle : 5^
Illuminance :186.695lx @7m
Prism :16 Facet
Gobo wheel :17 fixed gobos + open
Colour wheel : 14 colours + open
Flash rate : 0-10Hz
Functions : DMX, Automatic programs, Sound to light and Master-Slave.
Dimensions per unit : 325 x 395 x 515mm
Weight(per unit) :16,55kg
Design and product specifications are subject to change without prior notice.
The products referred to in this manual conform to the European Community Directives to which they are subject:
European Union United Kingdom
Tronios B.V.,
7602KR Almelo, The Netherlands
Tronios Ltd.,
130 Harley Street,
London W1G 7JU, United Kingdom
2014/35/EU S.I. 2016:1101
2014/30/EU
2011/65/EC

S.I. 2016:1091
S.I. 2012:3032

BEAMZ
YOUR FUTURE
YOUR SKILLS
YOUR PLATFORM
YOUR PARTY
YOUR EVENT
beamZPro
offers a wide range of high performance lighting equipment and related accessories for the rental, entertainment and architectural lighting markets. BeamZ Pro stands for performance, innovation and value pricing!
