Contents

Safety precautions 4

Intended use. 8

Parts identification. 9

Using the carrying holder. 10

Charging the shaver 10

Using the shaver. 11

Cleaning the shaver. 12

Troubleshooting 14

Battery life. 15

Removing the built-in rechargeable battery 15

Specifications 17

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions are required to always be followed, including the following:

Read all instructions before using this appliance.

DANGER

To reduce the risk of electric shock:

1. Do not reach for an appliance that has fallen into water. Unplug immediately.
2. Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
3. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
4. Unplug this appliance before cleaning.

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is required when this appliance is used by, on, or near children or invalids.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

1. Never operate this appliance when it has a damaged cord or plug, when it is not working properly, after it has been dropped or damaged, or after it has been dropped into water. Return the appliance to a service center for examination and repair.
2. Keep the cord away from heated surfaces.
3. Never drop or insert any object into any opening.
4. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
5. Do not use this appliance with damaged shaving blades and/or foil, as it has the potential to result in facial injury.
6. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls to "off" then remove plug from outlet.

SAVE THESE INSTRUCTIONS

WARNING

This product

This shaver has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.

Doing so may cause overheating, ignition, or explosion.

Do not modify or repair.

• Doing so may cause fire, electric shock, or injury. Contact an authorized service center for repair (battery change etc).

Never disassemble except when disposing of the product.

• Doing so may cause fire, electric shock, or injury.

In case of an abnormality or malfunction Immediately stop using and remove the adap there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.

• The main unit, charging stand, adaptor or cord is deformed or abnormally hot.
• The main unit, charging stand, adaptor or cord smells of burning.
• There is an abnormal sound during use or charging of the main unit, adaptor or cord.
• Immediately request inspection or repair at an authorized service center.

WARNING

Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

• Doing so may cause electric shock or injury.

Do not damage, modify, or forcibly bend, pull, or twist the cord. Also, do not place anything heavy on or pinch the cord.

• Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

• Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Do not use anything other than the supplied AC adaptor.

Also, do not charge any other product with the supplied AC adaptor.

• Doing so may cause burn or fire due to short circuit.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor. Fully insert the adaptor.

• Failure to do so may cause fire or electric shock.

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

• Failure to do so may cause fire due to insulation failure caused by humidity.

Preventing accidents

Do not place within reach of children or infants. Do not let them use it.
- Putting parts or accessories in the mouth may cause an accident or injury.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Failure to do so may cause an accident or injury.

The supply cord cannot be replaced. If the cord is

damaged, the AC adaptor should be discarded.

• Failure to do so may cause an accident or injury.

CAUTION

Protecting the skin

Do not use excessive pressure to apply the system outer foil to your lip or other part of your face.

Do not apply the system outer foil directly to blemishes or injured skin.

Do not touch the blade section (metallic section) of the inner blade.

• Doing so may cause injury to skin or hand.

Check the system outer foil for cracks or deformations before use. - Failure to do so may cause injury to the skin.

Be sure to place the carrying holder on the shaver when carrying around or storing. - Failure to do so may cause injury to skin or reduce the life of the system outer foil.

Note the following precautions

Do not wrap the cord around the adaptor when storing.

• Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

Do not allow metal objects or trash to adhere to the power plug or the appliance plug.

• Doing so may cause electric shock or fire due to a short circuit.

Do not disconnect the adaptor or the appliance plug by holding onto the cord.

• Doing so may cause electric shock or injury.

Do not share your shaver with your family or other people.

• Doing so may result in infection or inflammation.

Handling of removed battery when disposing

DANGER

The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.

• Do not throw into fire or apply heat.
• Do not hit, disassemble, modify, or puncture with a nail.
• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.
• Do not carry or store the battery together with metallic jewelry such as necklaces and hairpins.
• Never peel off the tube.
• Doing so may cause fluid leak, overheating, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

The battery will harm the body if accidentally swallowed. If it happens, consult a physician immediately

4s16b3

WARNING

If the battery fluid leaks out, do not touch the battery with your bare hands.

• The battery fluid may cause blindness if it comes in contact with your eyes.
  Do not rub your eyes. Wash immediately with clean water and consult a doctor.
• The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes.

Wash it off thoroughly with clean water and consult a doctor.

Intended use

• This WET/DRY shaver can be used for wet shaving using shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean with water. The following symbol means suitable for use in a bath or shower.

• Treat yourself to wet lather shaves for at least three weeks and notice the difference. Your Panasonic WET/DRY shaver requires a little time to get used to because your skin and beard need about a month to adjust to any new shaving method.
• Do not bring the system outer foil into contact with hard object.
  Doing so may damage the blades as they are very thin and deform easily.

8

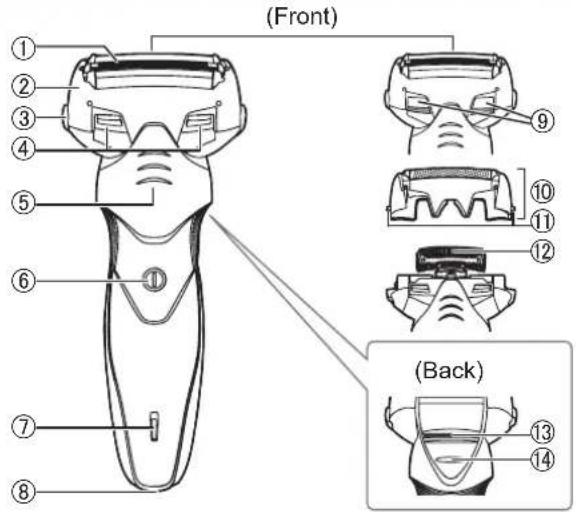

Parts identification

A

B

A Main body

① System outer foil
② Foil frame
③ Foil frame release buttons
④ Cleaningshutter
⑤ Finger rest
⑥ Power switch
⑦ Low battery/charge status lamp)
⑧ Appliance socket
⑨ Water inlet
Outer foil section
① System outer foil release buttons
12 Inner blades

13 Trimmer
⑭ Trimmer handle

Carrying holder

AC adaptor (RE7-87)

15 Power cord
Adaptor
⑦ Appliance plug
電 Power plug

Accessories

Charging stand (RC9-85)

19 Power plug

4s16b3

Using the carrying holder

The shaver can be kept vertically or horizontally. When transporting the shaver, you can use the carrying holder to protect the outer foil and prevent erroneous operation of the switch.

• When transporting the shaver, be sure to clean off any shavings before attaching the carrying holder.

Attaching the carrying holder

Attach the carrying holder as illustrated.

• Check that all four protrusions on the shaver are inserted securely.

Removing the carrying holder

Remove the carrying holder while pressing down on both sides.

Charging the shaver

• Turn the shaver off before inserting.
• Wipe off any water droplets on the Appliance socket.

Charging with the Appliance plug

1. Insert the appliance plug into the shaver.

2. Plug in the adaptor into a household outlet.

Make sure that the low battery/charge status lamp is on. If the battery capacity is too low, the low battery/charge status lamp will not turn on immediately.
The charging time is approx. 1 hour.
The charging time many differ with the charging capacity.
- Charging the battery for more than 1 hour will not affect battery performance.
- Charging the appliance after each use will not affect the battery life.

3. Disconnect the adaptor after charging is completed.

Note

You cannot operate the shaver while charging.

Charging with the charging stand (only for ES-SL83)
1. Insert the appliance plug into the charging stand.
2. Place the shaver on the charging stand.
3. Plug in the adaptor into a household outlet.

While charging

Charging in progress

The low battery/charge status lamp stays in red.

Charging complete

The low battery/charge status lamp turns off.

Charging abnormal

The low battery/charge status lamp keeps blinking in red quickly, twice a second.

Notes

After charging is completed, if the power switch is turned on while the shaver is being charged, the low battery/charge status lamp lights on in red and then turns off after 5 seconds. This means that the shaver has been fully charged.
- Recommended ambient temperature for charging is 10 - 35^ (50°F - 95°F). It may take longer to charge, or the low battery/charge status lamp will blink in red quickly and the battery may fail to charge properly in extremely high or low temperatures.
- When charging the shaver for the first time or when it has not been in use for more than 6 months, the low battery/charge status lamp (red) may not glow. It will eventually glow if kept connected for several minutes.

Using the shaver

1 Press the power switch.

2 Hold the shaver as illustrated above and shave.

Start shaving by applying gentle pressure to your face. Stretch your skin with your free hand and move the shaver back and forth in the direction of your beard. You may gently increase the amount of pressure as your skin becomes accustomed to this shaver. Applying excessive pressure does not provide a closer shave.

You can also use a pen grip to hold the shaver.

The low battery/charge status lamp keeps blinking in red once a second for 5 second after the power switch is pressed.

Notes

The appliance may not operate in an ambient temperature lower than approximately 5^ (41^) Before shaving, check that the cleaning shutter is closed. Do not place your fingers on the power switch while using the shaver. This may cause the shaver to turn off. Do not use shaving creams or face cleansers containing scrubbing compounds as these may cause the outer foil to clog.

Using the trimmer

Slide the trimmer handle up to open the trimmer. Place the trimmer at a right angle (90 degree) to your skin and move downwards to trim your sideburns.

You can still use the shaver once or twice after the low battery/charge status lamp blinks in red. (The actual times of use may differ depending on the duration of usage.) A full charge will supply enough power for approx. 20 shaves based on one 3-minute dry-shave use per day. (This will differ depending on usage.)

1. Remove the shaver from the AC adaptor.
2. Apply some hand soap and some water to the outer foil. Close the cleaning shutter.
3. Turn the shaver on.

To remove light dirt For
4. Slide the cleaning shutter until it clicks.

1. Clean the outer foil section with running water.

1. Turn the shaver off.

2. Rinse with water and shake up and down several times to remove the water.

3. Be careful not to hit the main body on the sink or any other object while draining the water. Failure to do so may cause malfunction.

heavy dirt

1. Turn the shaver off after 10-20 seconds.

1. Remove the outer foil section and turn the shaver on.

1. Clean the shaver and the outer foil section with running water.

• Rinse with water and shake up and down several times to remove the water.

• Wipe off any drops of water with a dry cloth.

• Dry the outer foil section and the shaver completely in a shaded area.
• Attach the outer foil section to the shaver.

Replacing the system outer foil and the inner blades

system outer foil once every year

inner blades once every two years

• Removing the outer foil section Press the foil frame release buttons and lift the outer foil section upwards

Attaching the outer foil section After turning the water inlet surface to the front, securely attach the outer foil section to the shaver until it clicks.

Replacing the system outer foil

1. Press the system outer foil release buttons and pull down the system outer foil.

2. Align the front side of the foil frame with the system outer foil mark (4) and insert them firmly together.

3. The system outer foil cannot be reversely attached.
   Always insert the system outer foil to the foil frame when attaching to the shaver.

Replacing the inner blades
1. Remove the inner blades one at a time.
- Do not touch the edges (metal parts) of the inner blades to prevent injury to your hand.
2. Insert the inner blades one at a time until they click.

Replacement parts

Replacement parts are available at your dealer or Service Center.

Replacement parts for ES-SL83	System outer foil WES9087
	Inner blades WES90	68
	System outer foil and inner blades	WES9013

Troubleshooting

Problem Action

Trimmed hairs fly all over.
System outer foil gets hot.
The blades do not dry.
The odor is getting stronger.
You do not get as close a shave as before.

This can be improved by cleaning every time after shaving.
Clean the blades with the brush.
Replace the system outer foil if it is damaged or deformed. (See page 13)
The blades may not dry quickly due to temperature conditions.
The blades can be dried more easily by removing for drying.
This can be improved by cleaning every time after shaving.
This can be improved by cleaning every time after shaving.
Replace the system outer foil and/or inner blades.
Expected life of system outer foil and inner blades:
System outer foil:
Approximately 1 year
Inner blades:
Approximately 2 years

Problem Action

Makes a loud sound.

The shaver cannot be charged.

Operating time is short even after charging.

Shaver stopped functioning.

If the problems still cannot be solved, contact the store where you purchased the unit or a service center authorized by Panasonic for repair.

Battery life

The life of the battery is 3 years. The battery in this shaver is not intended to be replaced by consumers. Have the battery replaced by an authorized service center.

Removing the built-in rechargeable battery

ATTENTION:

A lithium ion battery that is recyclable powers the product you have purchased. Please call 1-800-8-BATTERY for information on how to recycle this battery.

us6u

Remove the built-in rechargeable battery before disposing of the shaver.

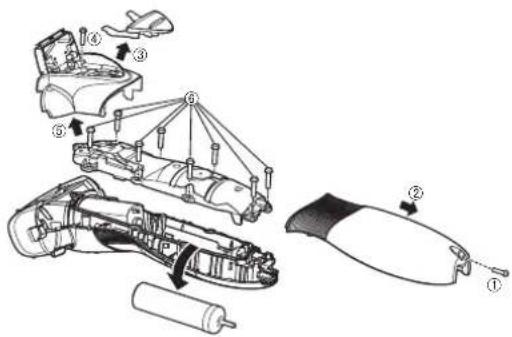

This figure must only be used when disposing of the shaver, and must not be used to repair it. If you dismantle the shaver yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the shaver from the AC adaptor.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps ① to ⑥ and lift the battery, and then remove it.
• Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage 3.6 V	---
Charging time Approx. 1 hour

This product is intended for household use only.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, install and use in accordance with provided instructions. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Personal Care & Beauty Care Products

FOR USA ONLY

30-Day Quality Satisfaction Guarantee

If you are dissatisfied with any Panasonic Personal Care & Beauty Care Products for any reason, simply return it to the place of purchase with a dated proof of purchase, in the original packaging, with all accessories, parts and instructions, within 30 days of the date of purchase, for a full refund, or call Panasonic at 1-800-338-0552.

Abuse or misapplication of this product voids the guarantee.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED A TOLL-FREE (IN USA ONLY) NATIONAL ACCESSORY PURCHASE HOT LINE AT 1-800-332-5368.

Panasonic

Mode d'emploi

A Appareil principal

Support de transport

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

IN CANADA CONTACT:

AU CANADA, COMMUNIQUEZ AVEC:

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.com

EN MÉXICO CONTACTE CON:

Panasonic de Mexico S.A. de C.V.

Felix Cuevas No. 6 Piso 2 y 3

Col. Tlacoquemecatl Del Valle

Del. Benito Juarez

Mexico, D.F. C.P.03200

01(55)5488-1000

EN PANAMA CONTACTE CON:

Panasonic Latin America. S.A.

P.O.Box 0816-03164

Panama, Republica de Panama

[phone]

Service · Assistance · Accessories

Dépannage · Assistance · Accessoires

Call 1-800-338-0552 (In USA)

http://shop.panasonic.com/personal-care

http://shop.panasonic.com/support

www.panasonic.ca/english/support (In Canada)

www.panasonic.ca/french/support (Au Canada)

http://www.panasonic.com

EN, CA, ES

Printed in China

Imprimé en Chine

Impreso en China

ES9210SL831551 Y0616-0
