X4 - Smartwatch Xplora - Free user manual and instructions

USER MANUAL X4 Xplora

Xplora Smartwatch Phone for Kids

QUICK USER GUIDE • GUIDE DE L'UTILISATEUR RAPIDE • KURZANLEITUNG •

GUÍA RÁPIDA DE USUARIO • GUIDA D'USO RAPIDA • BRUKERVEILEDNING •

UPPSTARTSGUIDE • PIKAKÄYTTÖOPAS • SKRÓCONA INSTRUKCJA OBSŁUGI

UK

01 Welcome

Thank you for choosing XPLORA. We hope that you and your child enjoy this new and more exciting way of exploring the world.

SIM CARD ACTIVATION: If your XPLORA comes with a pre-installed or bundle SIM card, please visit at https://activate.myxplora.com or NO: https://xplora.no/aktiver SE: https://xplora.se/aktivera FI: https://xplora.fi/aktivoi for further instruction to activate your SIM card.

IMPORTANT: If you choose to use your own SIM card, you must remove PIN code from SIM card before use.

For further information, please visit https://start.myxplora.com or NO: https://xplora.no SE: https://xplora.se FI: https://xplora.fi

UK

02 Box contents

Check the box contents:

Smartwatch with green and black buttons and a digital display showing 12:30 (no readable text or symbols beyond clock)

X4 Watch

Quick User Guide

Charging Cable

NOTE: Please use XPLORA authorized accessories.

CAUTION: Risk of explosion if battery is replaced by an incorrect type. Do not remove or attempt to remove the non-user-replaceable battery. If you have a problem with the battery, please contact the customer support.

UK

03 SIM Card specification

X4 accepts only nano size SIM card.

Mini
SIM

Micro
SIM

Nano
SIM

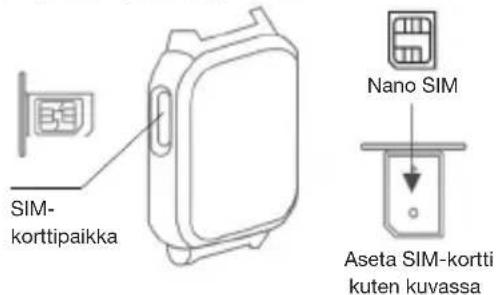

Install SIM Card:

SIM slot

Nano SIM

Place SIM upward

UK

04 Watch Button

(1) With your nano SIM card's gold contacts facing up, place card into SIM holder tray.
(2) Make sure the tray is facing up so that your card doesn't fall out.
(3) Steadily slide the tray all the way into the slot.

Power / Home Button

(1) Press and hold for 10 sec to turn it on or off.
(2) Short press to return the home menu.

Return / SOS Button

(1) Press and hold for 5 sec to initiate SOS.
(2) Short press to return the previous menu.

Power / Home SOS / Return

UK

05 Power Charge

(1) Use only XPLORA authorized magnetic charging cable.
(2) Connect the magnetic charger as shown below.
(3) Charge for the watch more than 15 minutes from complete power off before use. Please use an output voltage of 5V and current above 500mA.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Charging Port

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Connect the charger

06 Download XPLORA app

XPLORA app is available in Apple and Google app store. Search the app by "XPLORA".

NOTE: Please ensure that you download the correct app for your XPLORA watch.

xplora

Cancel

XB4GRA 4 + GO

Lifestyle

GET

Smartphone displaying a messaging app interface with social media icons (no readable text or symbols)

XPLOFA APP For our smartwatches with phone, GPS and active tracking

Hindi, India ACES OF THE MULTIVERSE

UK

UK

Activation procedure:

(1) Ensure the SIM is active with sufficient voice and data allowance.
(2) If necessary, charge the watch.
(3) Open XPLORA app and create your guardian account if it is the first time.
(4) From the app, scan QR code to be shown on the watch screen.
(5) Provide your child's profile information as well as the phone number of the watch.
(6) Once it's successfully connected, the watch may take a few minutes to fully synchronize with the app.

NOTE: The service performance may vary by the mobile network coverage. Feel free to contact us via [e-mail] or NO: [e-mail]

SE: [e-mail]

FI: [e-mail] for further assistance.

UK

07 Declaration of Conformity

XPLORA Technologies AS hereby declares that this XPLORA smartwatch phone for kids (Model name: X4) is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

X4 complies with the RF (Radio Fréquences) standards by CE, when used next to mouth at distance of 10mm and properly worn on the body. The highest SAR value reported for this device type when tested next to the mouth is 0.72W/kg (legal limit: 4W/kg(10g)) and when properly worn on the body is 2/kg (Legal Limit: 4W/kg(10g)).

A copy of the original declaration of conformity can be found in https://start.myxplora.com. Alternatively you may contact XPLORA customer support via [e-mail].

FREQUENCY	POWER
GSM 2/3/5/8	32dBm
WCDMA 1/2/4/5/8	22dBm
LTE-FDD 1/2/3/4/5/7/8/20	22dBm
LTE-TDD 38/40	22dBm
BLUETOOTH	4dBm
BLUETOOTH LE	0dBm
2.4 b/g/n	14dBm/12dBm/10dBm
EUT OPERATING TEMPERATURE RANGE	-10°C to 45°C
HIGHEST SAR VALUE 2.0	W/kg ICNIRP

EXPOSURE POSITION	FREQUENCY BAND	10g-SAR REPORTED RESULT (w/kg)	Highest 10g-SAR REPORTED RESULT (w/kg)	LIMIT (w/kg)/10g	RESULT
Limb Back (0mm)	GSM & Wi-Fi (2.4G)	2.00	2.00 4.00 PASS
	WCDMA & Wi-Fi (2.4G)	1.05
	LTE & Wi-Fi (2.4G)	0.96
Next-to-Mouth Front (10mm)	GSM & Wi-Fi (2.4G)	0.72	0.72 2.00 PASS
	WCDMA & Wi-Fi (2.4G)	0.58
	LTE & Wi-Fi (2.4G)	0.37

08 Correct disposal of this product

(Waste Electrical & Electronic Equipment)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. This product is RoHS compliant.

01 Bienvenue

Smartwatch with digital display showing time 12:30 (no visible text or symbols on the device itself)

X4 Smartwatch

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Port de chargement

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Illustration of a smartphone displaying chat messages and logos (no readable text or symbols)

XPLOFA APP For our smartwatches with phone, GPS and active tracking

MACS ACES OF THE MULTIVERSE

FR

Procedure d'activation:

Smartwatch with digital display showing time, battery icon, and '12:30' logo (no readable text beyond branding)

XPKORA 4 Telefonuhr

Kurzanleitung

Ladekabel

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Lade- kontakte

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Illustration of a smartphone displaying a messaging app interface with icons for social media, chat, and bell (no text or symbols)

XPLOFA APP For our smartwatches with phone, GPS and active tracking

Holly Daily ACES OF THE MULTIVERSE

DE

Smartwatch with digital display showing 12:30, no visible text or symbols on the device itself

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Puerto de carga

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Conecta el cargador

Smartphone displaying a messaging app interface with social media icons (no readable text or symbols)

XPLOFA APP For our smartwatches with phone, GPS and active tracking

Holly Club! ACES OF THE MULTIVERSE

ES

Smartwatch with digital display showing time 12:30 (no visible text or symbols on device)

Orologio X4

Guida d'uso rapida

Cavo di ricarica

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Porta di ricarica

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Illustration of a smartphone displaying a messaging app with chat bubbles and logos (no readable text or symbols)

XPLOFA APP For our smartwatches with phone, GPS and active tracking

Halo, Global ACES OF THE MULTIVERSE

IT

Smartwatch with digital display showing time, battery, and control buttons (no readable text or symbols)

X4 Klokke

Brukerveiledning

Lade- kabel

xplora Cancel XPLORA 4 + GO Lifestyle GET XPLORA APP For our smartwatches with phone, GPS and activity tracking

NO

TRINN 4:

Digital smartwatch with green and black buttons, displaying time 12:30 (no visible text or symbols on the device itself)

X4 Mobilklocka

Bruksanvisning

Laddnings- kabel

Smartphone displaying app interface with icons for messaging, chat, and call (no readable text or symbols)

XPLOFA APP For our smartwatches with phone, GPS and activity tracking

2014 ACES OF THE MULTIVERSE

STEG 4:

xplora Cancel XPLORA 4 + GO Lifestyle GET XPLORA APP For our smartwatches with phone, GPS and activity tracking

VAIHE 4:

Virta / Koti-painike

Diagram showing three document icons with red and green checkmarks indicating cancellation or rejection status

Mini Micro Nano SIM SIM SIM

ASETA SIM-KORTTI:

https://activate.myxplora.com

Smartwatch with digital display showing time, battery icon, and status bar (no readable text)

X4 Smartwatch

Simple line drawing of a device panel with two circular buttons labeled 'i' and 'SOS', no text or symbols present.

Pure diagram of a mechanical component with no text, numbers, or symbols

Port ładowania

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Połącz adapter

Illustration of a smartphone with app icons and chat bubbles (no readable text or symbols)

XPLOFA APP For our smartwatches with phone, GPS and active tracking

ACS OF THE MULTIVERSE

PL

PL

Aktywacja:
