VÄDFLISESKÆRER DWC410

Tillykke!

RSEL: For at reducere

SEL: For at reducere risikoen

SEL: For at reducere risikoen

D-65510, Idstein, Germany

09.03.2010

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical Data

DWC410
Voltage V 230UK & Ireland V 115
Type		1
Power input	W	1,300
No load speed		min ^-1	13,000
Wheel diameter	mm	110
Cutting depth at 90°		mm	34
Maximum permissible water pressure		bar	6
Weight kg	3.0
L _Rt (sound pressure)		dB(A)	102.4
K _th (sound pressure uncertainty)		dB(A)	3.0
L _Rt (sound power)	dB(A)		113.4
K _th (sound power uncertainty)		dB(A)	3.0

Vibration total values (triax vector sum) determined according to EN 60745:

Vibration emission value a _h	_h
a_h =	m/s ^2	4.1
Uncertainty K =	m/s ^2	1.5

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

WARNING: The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Fuses

Europe	230 V tools	10 Amperes, mains
U.K. & Ireland	230 V tools	13 Amperes, in plugs

NOTE: This device is intended for the connection to a power supply system with maximum permissible system impedance Zmax of 0.367 Ω at the interface point (power service box) of user's supply.

The user has to ensure that this device is connected only to a power system which fulfils the requirement above. If necessary, the user can ask the public power supply company for the system impedance at the interface point.

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Denotes risk of electric shock.

Denotes risk of fire.

ENGLISH

EC-DeclarationofConformity

MACHINERY DIRECTIVE

DWC410

DEWALT declares that these products described under "technical data" are in compliance with: 2006/42/EC, EN 60745, EN ISO 12100-2

These products also comply with Directive 2004/108/EC. For more information, please contact DEWALT at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of DEWALT.

H. Jopsmann

Horst Grossmann

Vice President Engineering and Product Development

WARNING: To reduce the risk of injury, read the instruction manual.

General Power Tool Safety Warnings

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A

wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these instructions taking into account the working conditions and the work to be performed. Use of the power tool for

operations different from those intended could result in a hazardous situation.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Additional Specific Safety Rules for Wet Tile Cutter

- Always use guard provided with the tool. The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of blade is exposed towards the operator. Position yourself and bystanders away from the plane of the rotating blade. The guard helps to protect operator from broken blade fragments and accidental contact with the blade.

- The rated speed of the blade must be at least equal to the maximum speed marked on the power tool. Blades running faster than their rated speed can break and fly apart.

- Blades must be used only for recommended applications. For example: do not grind with the side of cut-off blade. Abrasive cut-off blades are intended for peripheral grinding, side forces applied to these blades may cause them to shatter.

- Keep hands away from cutting area and blade. Keep your second hand on auxiliary handle or motor housing. If both hands are holding the saw, they cannot be cut by the blade.

- Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece

- Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control.

- Hold power tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and shock the operator.

- Always use blades with correct size and shape (diamond versus round) of arbor/bore holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.

ENGLISH

• Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.
• Always use undamaged blade flanges that are of correct diameter for selected blade. Proper blade flanges support the blade thus reducing the possibility of blade breakage.
• The outside diameter and thickness of your blade must be within the capacity rating of your power tool. Incorrectly sized blades cannot be adequately guarded or controlled.
• Do not use damaged blades. Before each use, inspect the blades for chips and cracks. If power tool or blade is dropped, inspect for damage or install an undamaged blade. After inspecting and installing the blade, position yourself and bystanders away from the plane of the rotating blade and run the power tool at maximum no load speed for one minute. Damaged blades will normally break apart during this test time.
• Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
• Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken blade may fly away and cause injury beyond immediate area of operation.
• Position the cord clear of the spinning blade. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning blade.
• Never lay the power tool down until the blade has come to a complete stop. The spinning blade may grab the surface and pull the power tool out of your control.

• Do not run the power tool while carrying it at your side. Accidental contact with the spinning blade could snag your clothing, pulling the blade into your body.

• Regularly clean the power tool's air vents. The motor's fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards.

• Don't unplug if plug or receptacle is wet. Disconnect the fuse or circuit breaker that supplies power to the tool. Then unplug and examine for presence of water in the receptacle.
• Wait for the saw to come to a complete stop. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.
• Do not use to cut wood or metal.

- Never use toothed or segmented diamond blades. This tool is not equipped with a lower guard.

WARNING: Keep hands away from cutting area and blade. Personal injury may result.

VG: To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch plug with wet hands.

WARNING: A Portable Residual Current Device (PRCD) is provided on the cord set. Receptacles are available having built in PRCD protection and may be used for an added measure of safety. When using an extension cord, always plug into a PRCD protected receptacle or outlet.

NG: Always plug extension cord into a PRCD protected outlet.

VG: Test PRCD before each use:

1. Plug PRCD into power outlet. Indicator should turn red.
2. Press test button. Red indicator should disappear.
3. Press reset button for use. Do not use if above test fails.

VG: Never use saw with salt water or a conductive fluid.

Additional Safety Rules

- Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.

- Keep your body positioned to either side of the blade, but not in line with the saw blade.

- NOTICE: Blades coast after turn off. Serious personal injury may result.

ResidualRisks

In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

• Impairment of hearing.
  – Risk of personal injury due flying particles.
• Risk of burns due to accessories becoming hot during operation.
  – Risk of personal injury due to prolonged use.

Markings on Tool

The following pictograms are shown on the tool:

Read instruction manual before use.

Wear ear protection.

Wear eye protection.

Never use toothed or segmented diamond blades

DATE CODE POSITION (FIG. 1)

The Date Code (j), which also includes the year of manufacture, is printed into the housing.

Example:

2010 XX XX

Year of Manufacture

Package Contents

The package contains:

1 Water kit
1 Blade Spanner
1 Blade Wrench
1 Cutting disc
1 Instruction manual
1 Exploded drawing

• Check for damage to the tool, parts or accessories which may have occurred during transport.
  • Take the time to thoroughly read and understand this manual prior to operation.

Description (fi g. 1)

VG: Never modify the power tool or any part of it. Damage or personal injury could result.

a. PRCD on cord set
b. On/Off Switch
c. Lock-On button
d. Diamond blade
e. External flange

f. Clamping screw

Your wet tile cutter has been designed for professional tile cutting applications.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

These wet tile cutters are professional power tools.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

Electrical Safety

The electric motor has been designed for one voltage only. Always check that the power supply corresponds to the voltage on the rating plate.

Your DEWALT tool is double insulated in accordance with EN 60745; therefore no earth wire is required.

: 115 V units have to e operated via a fail-safe isolating transformer with an earth screen

ENGLISH

between the primary and secondary winding.

If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DEWALT service organisation.

Mains Plug Replacement (U.K. & Ireland Only)

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the plug.
- Connect the blue lead to the neutral terminal.

WARNING: No connection is to be made to the earth terminal.

Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 13 A.

Using an Extension Cable

If an extension cable is required, use an approved 3-core extension cable suitable for the power input of this tool (see technical data). The minimum conductor size is 1.5 mm ^2 ; the maximum length is 30 m.

When using a cable reel, always unwind the cable completely.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing setups or when making repairs. Be sure the trigger switch is in the OFF position. An accidental start-up can cause injury.

Switch (fi g. 1, 2)

WARNING: To avoid the possibility of the appliance plug or receptacle getting wet, position the saw to one side of a wall mounted receptacle to prevent water from dipping onto the receptacle or plug. The user should arrange a "drip loop" in the cord connecting the saw to a receptacle (fig. 2). The "drip loop" is that part of the cord below the level of the receptacle, or the connector if an extension cord is used, to prevent water traveling along the cord and coming in contact with the receptacle.

CAUTION: Before plugging in tool, always check to see that the switch actuates properly and returns to the OFF position when released.

1. Depress and hold the switch (b) to start operation.
2. For continuous operation, press the lock-on button (c) and release the switch. To disengage the locking button, depress then release the switch.

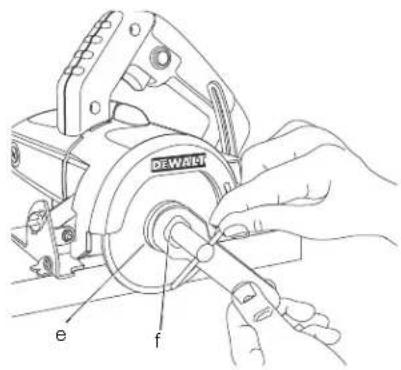

To Install the Diamond Blade (fi g. 1, 3)

1. Hold the external flange (e) in place with the flange wrench provided and use the blade wrench provided to turn the left-hand threaded clamp screw (f) clockwise to loosen and remove.
2. Remove the clamping screw (f) and external flange (e).
3. Place saw on a stable surface.
4. Place blade (d) on spindle.
5. Using the flange wrench provided, hold the external flange (e).
6. Turn the clamping screw (f) counterclockwise to tighten. Use the blade wrench provided to secure tightly.
7. To remove the blade, reverse this procedure.

Mounting the Wet Cut System (fi g. 1)

WARNING: Do not use wet cut system unless tool is protected by a PRCD.

This system minimizes airborne dust particles while improving cutting quality and blade life.

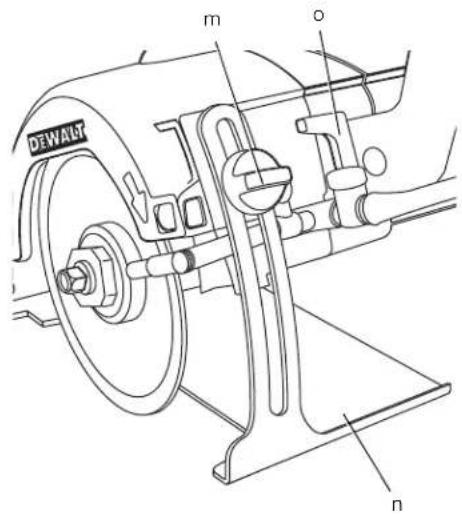

1. Loosen the depth adjustment knob (m) and pull shoe (n) to its minimum depth of cut position.
2. Remove the screw (k) located directly to the right of the depth adjustment knob (m) mounted to the casting.
3. Position the water valve assembly such that the hole in the water valve assembly aligns with the screw hole located in the casting and the forked water valve straddles the blade.
4. Secure in place with screw. DO NOT overtighten the screw; this could damage the water valve assembly.

Water Valve Assembly (fi g. 1)

WARNING: Test PRCD before each use:

1. Plug PRCD into power outlet. Indicator should turn red.

2. Press test button. Red indicator should disappear.

3. Press reset button for use. Do use if above test fails

WARNING: Check hose and water kit before each use. Do not use if hose or water kit is damaged.

CAUTION: Do not connect to water supply more than 6 bar.

If the maximum pressure of the water supply system is above 6 bar a pressure reducing valve must be added between the tool and the water supply outlet.

1. Never use the saw over head. When using water, limit cutting to the horizontal position to reduce the risk of water entering the tool.
2. Prior to using the tool with the water valve assembly, inspect water tubing (g) for holes cracks or other damage. Replace with identical replacement parts if a potential weakened or damaged area is found. Check connections at the tool inlet (h), water valve and adapter (l) for leaks. If the connection is loose or the tubing is relaxed around barbs, disconnect tubing, trim tubing back approximately 1" (25.4 mm), then reconnect tubing. Ensure that tubing is pushed all the way past the barb(s). Check to ensure tight connection.

Use of Extension Cords

• Always plug extension cord into a PRCD receptacle.
- Use only extension cords that are intended for outdoor use. These extension cords are identified by a marking "Acceptable for use with outdoor appliance; store indoors while not in use."
- Use only extension cords having an electrical rating not less than the rating of the product.
- Do not use damaged extension cords. Examine extension cord before using and replace if damaged.
- Do not abuse extension cords and do not yank on any cord to disconnect.

Motor

Be sure your power supply agrees with the nameplate marking. Voltage decrease of more than 10% will cause loss of power and overheating. All DEWALT tools are factory tested; if this tool does not operate, check the power supply.

• Keep cord away from heat and sharp edges.
  • Always disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.

OPERATION

Instructions for Use

WARNING: Always observe the safety instructions and applicable regulations.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories.

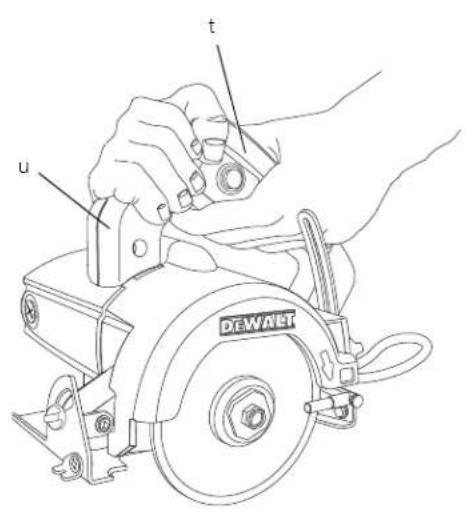

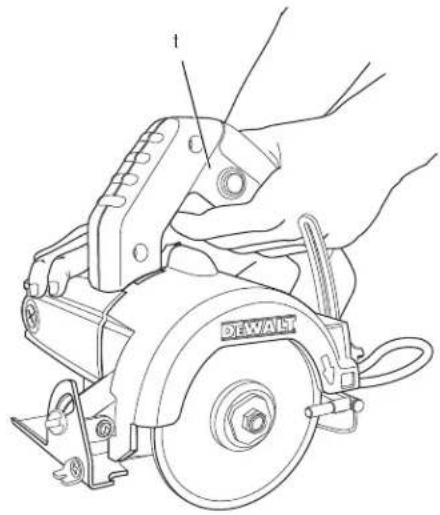

Proper Hand Position (fi g. 4)

WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position as shown.
WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the handle (t), with the other hand on the front of main handle (u) or on the motor housing as shown.

WARNING: Use the appropriate

blade. Do not use cracked, damaged or excessively worn blades. Do not use to cut wood or metal.

CAUTION: Wait for the blade to reach the maximum speed and use a slow even feed for proper cutting.
CAUTION: The DWC410 can be used on horizontal surfaces when the water valve assembly is attached (see Water Valve Assembly) and used on vertical surfaces without the water valve assembly attached.
CAUTION: Use clamps or other practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.

ENGLISH

Depth of Cut Adjustment (fi g. 5)

1. Loosen the depth adjustment knob (m) to release.
2. Move the shoe (n) up or down to desired position.
3. Tighten the depth adjustment knob.

Wet Cut method (Fig. 1)

WARNING: Do not use wet cut system unless tool is protected by the PRCD.

WARNING: To reduce the risk of electric shock, ensure water will not enter into your tool. Do not touch plug with wet hands.

1. Follow the instructions described under Mounting the Wet Cut System.
2. To regulate the water flow, open the water valve by pivoting the lever (o) away from the unit.
3. To close water valve, push the lever toward the unit.

Proceed as described below for straight or angled cuts.

Straight cuts (Fig. 1)

1. Using a marker or grease pencil, mark the area to be cut.
2. Place the shoe (n) of the saw on the workpiece ensuring that the blade does not touch the workpiece.
3. Align the external part of the cutting guide (p) with the cut outline on the workpiece.
4. Turn the tool on and wait for the blade to reach its maximum velocity.
5. Move the tool slowly and evenly forward, following the cut line.

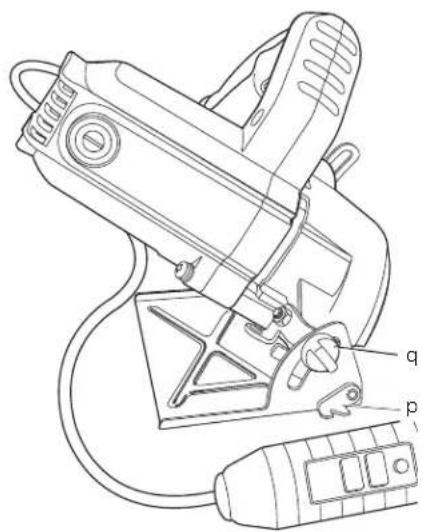

Angled cuts (Fig. 1, 6)

1. Using a marker or grease pencil, mark the area to be cut.
2. Release the bevel adjustment knob (q) and move it to the desired angle.
3. After selecting the desired angle, tighten the bevel adjustment knob to secure the shoe.
4. Align the internal part of the cutting guide (p) with the cut line on the workpiece.
5. Turn the tool on and wait for the blade to reach its maximum velocity.
6. Move the tool slowly and evenly forward, following the cut line.

MAINTENANCE

Your DEWALT power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

IG: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set-ups or when making repairs. Be sure the trigger switch is in the OFF position. An accidental start-up can cause injury.

WARNING: This is a non user maintenance tool. It has to be maintained by an official DEWALT maintenance dealer only.

Lubrication

NG: NEVER spray or in any other way apply lubricants or cleaning solvents inside the tool.

This may result in personal injury and can seriously affect the life and performance of the tool.

DEWALT tools are properly lubricated at the factory and are ready for use. However, it is recommended that, once a year, you take or send the tool to a certified service center for a thorough cleaning and inspection.

Cleaning

WARNING: Blow dirt and dust out of the main housing with dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.

IG: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild

soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Optional Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT, recommended accessories should be used with this product.

Consult your dealer for further information on the appropriate accessories.

Protecting the Environment

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your DEWALT product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

DEWALT provides a facility for the collection and recycling of DEWALT products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local DEWALT office at the address indicated in this manual. Alternatively, a list of authorised DEWALT repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com.

GUARANTEE

DEWALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

• 30 DAY NO RISK SATISFACTION GUARANTEE •

If you are not completely satisfied with the performance of your DEWALT tool, simply return it within 30 days, complete with all original components, as purchased, to the point of purchase, for a full refund or exchange. The product must have been subject to fair wear and tear and proof of purchase must be produced.

• ONE YEAR FREE SERVICE CONTRACT •

If you need maintenance or service for your DEWALT tool, in the 12 months following purchase, you are entitled to one service free of charge. It will be undertaken free of charge at an authorised DEWALT repair agent. Proof of purchase must be produced. Includes labour. Excludes accessories and spare parts unless failed under warranty.

• ONE YEAR FULL WARRANTY •

If your DEWALT product becomes defective due to faulty materials or workmanship within 12 months from the date of purchase, DEWALT guarantees to replace all defective parts free of charge or – at our discretion – replace the unit free of charge provided that:

• The product has not been misused;
- The product has been subject to fair wear and tear;
• Repairs have not been attempted by unauthorised persons;
• Proof of purchase is produced.
- The product is returned complete with all original components

If you wish to make a claim, contact your seller or check the location of your nearest authorised DEWALT repair agent in the DEWALT catalogue or contact your DEWALT office at the address indicated in this manual. A list of authorised DEWALT repair agents and full details of our after-sales service is available on the Internet at: www.2helpU.com

ESPAÑOL

Vice President Engineering and Product Development

DEWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Duitsland

09.03.2010

BEWAAR ALLE WAARSCHUWINGEN EN INSTRUCTIES ALS TOEKOMSTIG REFERENTIEMATERIAAL

CHUWING: Test steeds de reststroombeveiliging:

POSITIE DATUMCODE [AFB (FIG.) 1]

CHUWING: Test steeds de reststroombeveiliging:

1) SIKKERHET PÅ ARBEIDSOMRÅDET

Vice President Engineering and Product

Development

DEWALT, Richard-Klinger-Strasse 11,

D-65510, Idstein, Germany

09.03.2010

DATUMKODPLACERING (FIG. 1)

Pure horizontal line with endpoints and no text or symbols

Belgique et LuxembourgBelgië en Luxemburg	Black & Decker - DEWALTNieuwlandlaan 7, IZ Aarschot B156 Fax: +32 (0)015 - 15 47 9210B-3200Aarschot		Tel: +32 (0)015 - 15 47 9211
Danmark	DEWALTSiuseholmen	2-4	Tlf:	70201511Fax:
2450 Kobenhavn SV www.dewalt.dk
Deutschland	DEWALTRichard-Klinger-Straße65510Idstein		Tel:Fax:	06126-21-106126-21-2770www.dewalt.de
Ελλάς	Black & Decker (Hellas) S.A.Στράβωνος 7 & Bouλιαγμένης 159Γλυφάδα 16674, Αθήνα		Τηλ: [phone]Φαξ: [phone]Service: [phone]
EspañaParque de Negocios "Mas Blau"Edificio Muntadas, c/Borgadá, 1, Of. A608820 El Prat de Llobregat (Barcelona)	DEWALTFax: 934 797 439www.dewalt.es		Tel: [phone]
France5, allée des hêtresBP 30084, 69579 Limonest Cedex	DEWALTFax: 04 72 20 39 00www.dewalt.fr		Tel: [phone]
SchweizSuisseSvizzera	DEWALTIn der Luberzen 408902 Urdorf		Tel: 01 - 730 67 47Fax: 01 - 730 70 67www.dewalt.ch
IrelandCalpe House Rock HillBlack Rock, Co. Dublin	DEWALTFax: 00353-2781811www.dewalt.ie		Tel:	00353-2781800
ItaliaViale Elvezia 220052 Monza (Mi)	DEWALTFax: 039-2387592www.dewalt.it		Tel:	800-014353
NederlandsJoulehof 124600 AB Børgon Op Zoom	Black & Decker - DEWALTFax: 0164 283100www.dewalt.nl		Tel: [phone]
NorgePostboks 4814, Nydalen	DEWALTFax: 22 90 99 010422Oslo		Tel: [phone]
ÖsterreichWorkzeugevertriebs GmbHErlaaerstraße 165, Postfach 320,1231 Wien		DEWALTFax: 01 - 66116 - 14www.dewalt.at	Tel: 01 - 66116 - 0
PortugalRua Egas Moniz 173João do Estoril, 2766-651 Estoril	DEWALTFax: 214 66 75 75www.dewalt.pt		Tel: [phone]
SuomiTeknikantie 1202150 Espoo, Finland	DEWALT OyFaksi: 0800 411 340www.dewalt.fi		Puh: 010 400 430
Teknikvägen 1202150 Esbo, Finland www.dewalt.fi	DEWALT OyFax: 0800 411 340		Tel: [phone]
SverigeBox 94431 22 Mölndal	DEWALTFax: 031 68 60 08www.dewalt.se		Tel: [phone]
TürkiyeDefterdar Mah. Savaklar Cad. No:15Edirnekapi / Eyüp / İSTANBUL 34050 TÜRKİYE		KALE Hirdavat ve Makina A.Ş.Faks: 0212 533 10 05	Tel: [phone]
		EDIRNEKAPI / Eyüp / İSTANBUL 34050 TÜRKİYE	www.dewalt.com.tr
United Kingdom210 Bath RoadSlough, Berks SL1 3YD	DEWALTFax: 01753-57 21 12www.dewalt.co.uk		Tel: [phone]
N068397				04/10
