USER MANUAL CS-A28JKD PANASONIC

Panasonic

Panasonic®

Operating Instructions Air Conditioner

Indoor Unit Outdoor Unit

CS-A28JKD

CU-A28JKD

Interior view of a modern office with cubicles, desks, and workstations (no visible text or symbols)

ENGLISH

2\~7

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

FRANÇAIS

8\~13

Unauthorized copying and distribution is a violation of law.

SAFETY PRECAUTIONS SAFETY PRECAUT

DEFINITION

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote actions that are COMPULSORY.

To prevent personal injury, injury to others, or property damage, please observe the following.

Incorrect operation due to failure to follow instructions may cause harm or damage, the seriousness of which is classified as below:

Warning

This sign warns of death or serious injury.

Caution

This sign warns of injury or damage to property.

Remote Control

• Do not use rechargeable (Ni-Cd) batteries.
• Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.
• Remove the batteries if the unit is not going to be used for a long period of time.
• New batteries of the same type must be inserted following the polarity stated to prevent malfunction of the remote control.

Indoor Unit

• Do not install, remove and reinstall the unit by yourself; improper installation will cause leakage, electric shock or fire. Please consult authorized dealer or specialist for the installation work.
• Do not insert your fingers or other objects into the unit, rotating parts may cause injury.
• Do not attempt to repair the unit by yourself.

Indoor Unit

• Do not install the unit in a potentially explosive atmosphere.
• Do not wash the unit with water, benzene, thinner or scouring powder.
• Do not use for other purposes such as preservation of food.
• Do not use any combustible equipment in front of the airflow outlet.
• Do not expose directly to cold air for a long period.
• Ensure that the drainage pipe is connected properly. Otherwise, leakage may occur.
• Aerate the room regularly.
• Ensure that the drainage pipe is connected properly. Otherwise, leakage may occur.
• Aerate the room regularly.

Power Supply

• Do not share the same power outlet with other equipment.
• Do not modify power cords.
• Do not use extension cords.
• Do not operate with wet hands.

• Use the specified supply cord.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This equipment must be earthed and strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD). Otherwise, it may cause electrical shock or fire in case of malfunction.

• In case of emergency or abnormal conditions (burnt smell, etc), turn off the power supply, and please consult authorized dealer.

Outdoor Unit

- Do not insert your fingers or other objects into the unit, rotating parts may cause injury.

Air inlet

Air outlet

Air inlet

Air inlet

Air outlet

Power Supply

• Switch off the power supply before cleaning or servicing.
• Turn off the power supply if the unit is not used for a long period of time.
• This air conditioner is equipped with a built-in surge protective device. However, in order to further protect your air conditioner from being damaged by abnormally strong lightning activity, you may want to disconnect it from the power supply. Do not touch the air conditioner during lightning, it may cause electric shock.

Outdoor Unit

• Do not sit or step on the unit, you may fall down accidentally.
• Do not touch the sharp aluminium fi n, sharp parts may cause injury.
• Ensure that the drainage pipe is connected properly. Otherwise, leakage may occur.
  • After long periods of use, make sure the installation rack is not damaged.

REGULATORY INFORMATIO

Thank you for purchasing Panasonic Air Conditioner

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

OPERATION CONDITION
Use this air conditioner under the following temperature range

Temperature (°C)		Indoor Outdoor
		*DBT *WBT *DBT *WBT
COOLING	Maximum 32 23 43 26
	Minimum 16 11 16 11
HEATING	Maximum 30 - 24 18
	Minimum 16 - -5	-6

* DBT: Dry bulb temperature

* WBT: Wet bulb temperature

TABLE OF CONTENTS

SAFETY PRECAUTIONS	2
REGULATORY INFORMATION	3
PRODUCT OVERVIEW & OPERATIONS	4~5
CARE & CLEANING	6
TROUBLESHOOTING	7
QUICK GUIDEBACK COVER

NOTE :

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. It is subjected to change without notice for future improvement.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

Pb

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

• Do not switch ON the unit when waxing the floor. After waxing, aerate the room properly before operating the unit.
• Do not install the unit in oily and smoky areas.

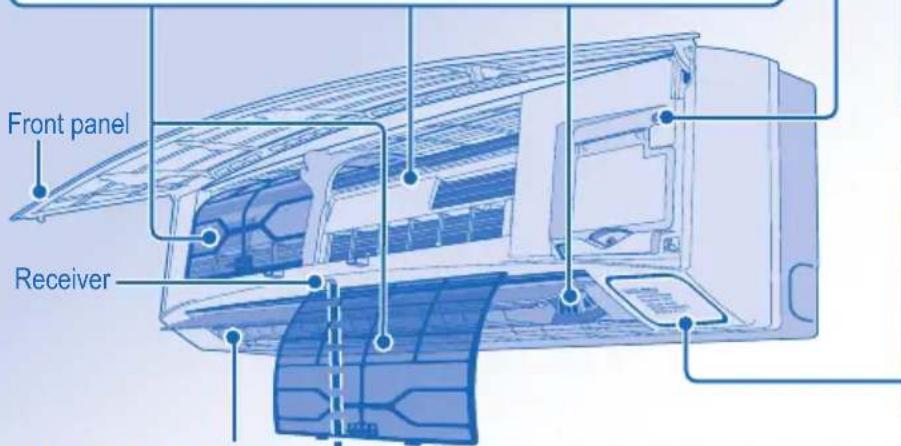

e-ion AIR PURIFYING SYSTEM

Do not touch during operation

e-ion filters

e-ion charging wire

Active e-ion Generator

Auto OFF/ON button

• Used when remote control is misplaced or malfunction.

Action	Mode
Press once.	Auto
Press and hold until 1 beep is heard, then release.	Cooling
Press the button to turn off.

Front panel Receiver

INDICATOR

PATROL SENSOR

POWER

TIMER

QUIET

POWERFUL

e-ion

(Red/Orange/Blue)

(Green)

(Orange)

(Orange)

(Orange)

(Blue)

Airflow direction louver

- Do not adjust by hand.

Maximum distances: 8m

Remote control display

AUTO HEAT COOL DRY 27°C OFF AUTO FAN SPEED AUTO AIR SWING 12:00

e-Ion

OFF/ON①

C-Ion

PATROL

MODE

FAN SPEED

[Non-Text]

TEMP

▲

□

[Non-Text]

-

-

LTD QUANTO

1

QUIET

AIR SWING

POWERFUL

The image is too blurry to recognize any text content.

-

F

_TIMER

m = 311

一、本声明

ON

[Non-Text]

SET

。

2

2

-

-

-

OFF

↓

CANCEL

m = 311

。

(1) 本说明仅供参考。

•

©

•

SET

Panasonic

OFF/ON①

TO TURN ON OR OFF THE UNIT

POWER

- Please be aware of the OFF indication on the remote control display to prevent the unit from starting/stopping improperly.

TEMP

TO SET TEMPERATURE

• For heat, cool and dry modes, the range of temperature for selection is 16°C \~ 30°C.
• Operating the unit within the recommended temperature could induce energy saving.
  HEAT mode: 20°C \~ 24°C.
  COOL mode : 26°C \~ 28°C.
  DRY mode: 1°C \~ 2°C lower than room temperature.

• Unit selects the operation mode according to the room temperature.
• Once auto mode is selected, the unit will operate at the standard setting temperature.
• To change the standard setting temperature, press △ for "HI" or ▽ for "LO".

Room temperature	Operation mode	Standard setting temperature	HI (+2°C)	LO (-2°C)
23°C & above	Cool 25°C 27°C	23°C
Below 23°C	Dry 22°C 24°C	20°C
Below 20°C	Heat 21°C 23°C	19°C

HEAT mode - To enjoy warm air

- In heat mode, it takes a while for the unit to warm up. The power indicator blinks during this operation.

COOL mode - To enjoy cool air

DRY mode - To dehumidify the environment

- Unit operates at low fan speed to give a gentle cooling operation.

FAN SPEED

TO SELECT FAN SPEED (3 OPTIONS)

- For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

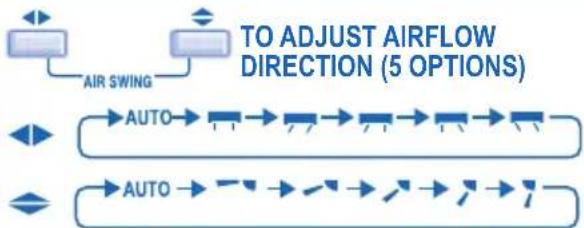


• Keeps the room ventilated.
• If AÜTO is set, the louvers swing left/right and up/down automatically.
• In heat mode, the air blows horizontally for a while, then starts to blow downwards and the airflow louver start to swing left/right after the temperature rises.

TO ENJOY CLEAN & FRESH AIR

- Generates negative ions to produce fresh air effect and attract dust which will then be captured at the positively charged e-ion filters.

TO MONITOR AIR QUALITY

• Patrol sensor detects air quality.
- When air quality is at dirty level, e-ion operation will start automatically.

Indicator	Air Quality
Blue	Clean
Orange	Moderate
Red	Dirty

TO ENJOY QUIET ENVIRONMENT

• This operation reduces airflow noise.

TO ACHIEVE TEMPERATURE QUICKLY

• This operation will stop automatically after 15 minutes.

in all modes and can be cancelled by pressing the respective button again.

• and or and can not be selected at the same time.

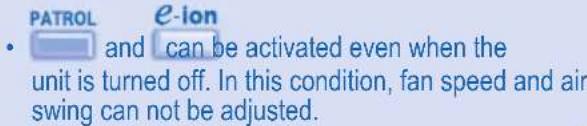

PATROL e-ion and can be activated even when the unit is turned off. In this condition, fan speed and air swing can not be adjusted.

TO SET THE TIMER

• To turn ON or OFF the unit at a preset time.

Select ON or OFF timer.

Set the time. Confi rm.

- To cancel ON or OFF timer, press ON or then press CANCEL

• When ON Timer is set, the unit may start earlier (up to 30 minutes) before the actual set time in order to achieve the desired temperature on time.
• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Remote Control Preparation at back cover.
• If timer is cancelled manually or due to power failure, you can restore the previous setting (once power is resumed) by pressing SET

OPTIONAL SETTINGS

Patrol starts automatically with the unit switched on with OFF/ON

Press and hold for 5 seconds, then release to disable or restore this setting.

Press and hold for 5 seconds to dim or restore the unit's indicator brightness.

Press and hold for approximately 10 seconds to show temperature setting in °C or °F.

Press and hold for approximately 5 seconds to show 12-hour (am/pm) or 24-hour time indication.

Press to restore the remote control's default setting.

Not used in normal operations.

Use curtains to screen off sunlight and outdoor heat to reduce power consumption during cool mode.

CARE & CLEANING CARE & CLEANING

CAUTION

• Switch off the power supply before cleaning.
• Do not touch the aluminium fin, sharp parts may cause injury.

WASHING INSTRUCTIONS

• Do not use benzene, thinner or scouring powder.
• Use only soap (≈ pH7) or neutral household detergent.
• Do not use water hotter than 40^ C .

HINT

- To ensure optimal performance of the unit, cleaning maintenance have to be carried out at regular intervals. Please consult authorized dealer.

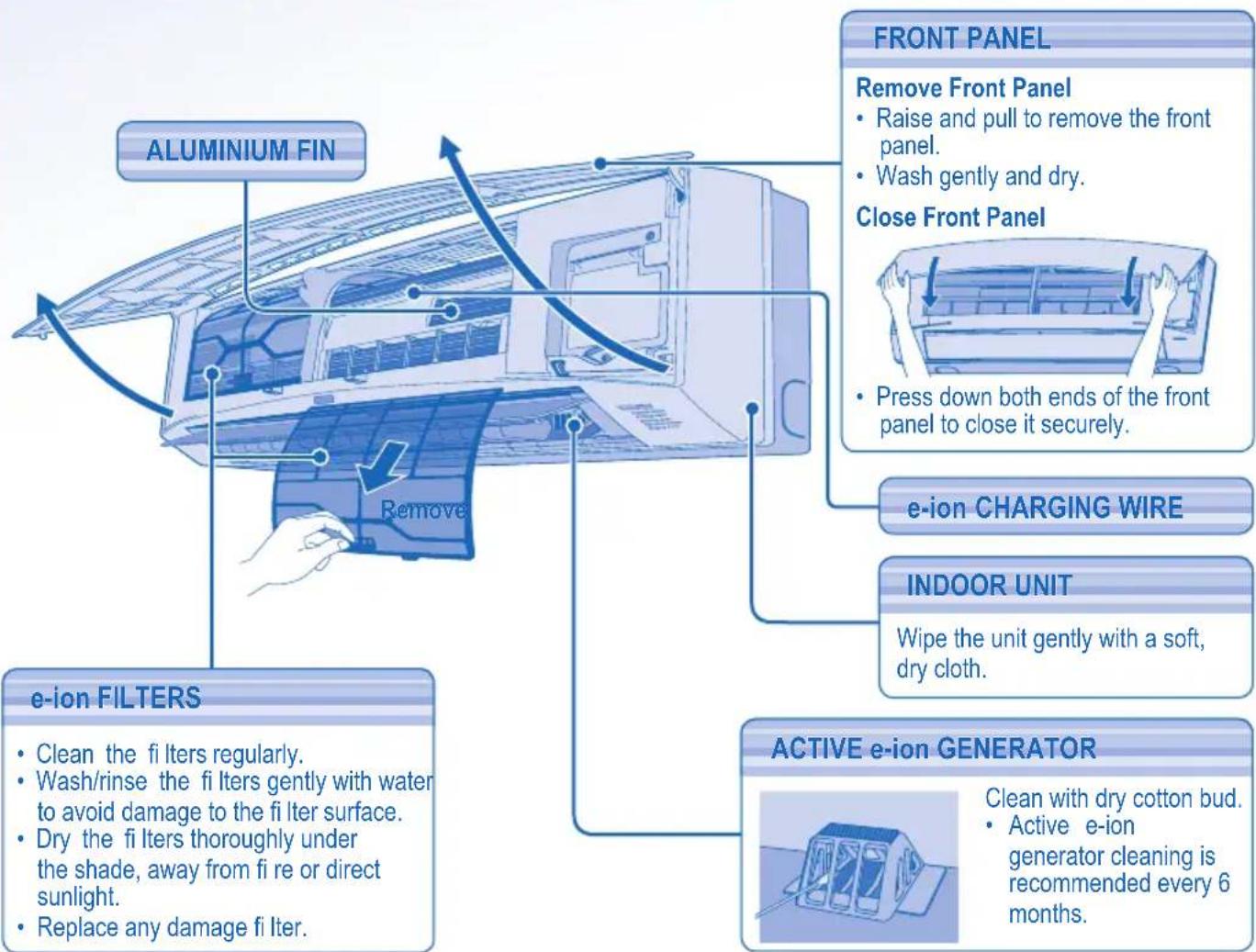


FOR SEASONAL INSPECTION AFTER EXTENDED NON-USE

• Checking of remote control batteries.
  • No obstruction at air inlet and air outlet vents.
  • After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents:
  Cooling: ≥ 8°C Heating: ≥ 14°C

FOR EXTENDED NON-USE

• Activate heat mode for 2\~3 hours to remove moisture left in the internal parts thoroughly.
  • Turn off the power supply.
• Remove the remote control batteries.

FRONT PANEL

Remove Front Panel

• Raise and pull to remove the front panel.
• Wash gently and dry.

Close Front Panel

Illustration of hands installing or adjusting a panel inside an air conditioner unit (no text or symbols visible)

- Press down both ends of the front panel to close it securely.

e-ion CHARGING WIRE

INDOOR UNIT

Wipe the unit gently with a soft, dry cloth.

ACTIVE e-ion GENERATOR

3D diagram of a modular device with blue panels and a diagonal line, no text or symbols present

Clean with dry cotton bud.

• Active e-ion generator cleaning is recommended every 6 months.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY then please consult authorized dealer under the following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
- Switches or buttons are not functioning properly.
- Timer indicator blinks.

TROUBLESHOOTING

The following symptoms do not indicate malfunction.

Symptom	Cause
Mist emerges from indoor unit. • Condensation effect due to cooling process.
Water flowing sound during operation.	• Refrigerant flow inside the unit.
The room has a peculiar odour. • This may due to damp smell emitted by the wall, carpet, furniture or clothing.
Indoor fan stops occasionally during automatic fan speed setting.	• This helps to remove the surrounding odours.
Operation is delayed a few minutes after restart.	• The delay is a protection to the unit's compressor.
Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
Timer indicator is always on. • The timer setting repeats daily once set.
Power indicator blinks during operation and the indoor fan is stopped.	• The unit is in defrost mode, and the melted frost is drained from the outdoor unit.
Indoor fan stops occasionally during heating operation.	• To avoid unintended cooling effect.
Cracking sound during operation. • Changes of temperature cause the expansion/contraction of the unit.
Inconsistent airflow during PATROL operation.	• Fan speed is adjusted automatically during patrol operation. Select QUIET operation to maintain the airflow consistency.

Check the following before calling for servicing.

Symptom	Check
Heating/Cooling operation is not working effi ciently.	Set the temperature correctly.Close all doors and windows.Clean or replace the fi Iters.Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation. Check if the unit has been installed at an incline. Close the front panel properly.
Remote control does not work. (Display is dim or transmission signal is weak.)	Insert the batteries correctly.Replace weak batteries.
The unit does not work. Check if the circuit breaker is tripped. Check if timers have been set.
The unit does not receive the signal from the remote control.	Make sure the receiver not obstructed.Certain fluorescent lights may interfere with signal transmitter. Please consult authorized dealer.
PATROL operation does not work.	Press and hold PATROL for 15 seconds until beep sound is heard, press PATROL again.
Patrol sensor or e-ion indicator on the indoor unit is blinking.	Press PATROL e-ion or twice. If the patrol sensor or e-ion indicator still blinking, please consult authorized dealer.

CONSIGNES DE SÉCURITÉ CONSIGNES DE SÉC

DÉFINITION

Three identical line-drawn icons of a trash bin with cross symbols, no text or labels present.

Pb

Illustration of hands installing or adjusting a wall-mounted air conditioner panel (no text or symbols visible)

Illustration of two hands installing or adjusting a car air conditioner panel (no text or symbols present)

Illustration of hands installing or adjusting a panel inside an air conditioner (no text or symbols present)

Illustration of a blue-roofed industrial or mechanical device with internal components and a pointer, no visible text or symbols.

Interior view of a modern office with cubicles, a coffee table, and a bed (no visible text or symbols)

© Panasonic HA Air-Conditioning (M) Sdn.

The image is too blurry to recognize any text content.

-

[Non-Text]

_TIMER

SET

。

-

2

3

OFF

↓

CANCEL

.

SET

CLOCK

RESET

Panasonic

OFF/ON①

Illustration of hands installing or adjusting a door panel with arrows indicating direction (no text or symbols)

Interior view of a modern office with cubicles, a coffee table, and patterned bedding (no visible text or symbols)

Illustration of hands installing or adjusting a panel inside an air conditioner (no text or symbols visible)

Illustration of hands installing or adjusting a wall-mounted air conditioner unit (no text or symbols visible)

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

4 5 6 TIMER ON 1 2 SET 3 OFF CANCEL SET CLOCK RESET

Select the desired mode.

Start/stop the operation.

Select the desired temperature.
