USER MANUAL imagePRESS C8000VP CANON

image PRESS C10000VP/C8000VP

Quick Guide

Read this guide first.

Please read this guide before operating this product. After you finish reading the guide, store it in a safe place for future reference.

Guide rapide

Auto Gradation Adjustment for Various Paper Types

The Auto Adjust Gradation function adjusts the gradation, density, and colour tone of images, and only requires you to scan the test page. This function can be used for various weights of paper so that a high quality print result can be obtained in different paper types.

"Adjustment for Image Quality and Finishing (Calibration)" in the User's Guide

Illustration of a paintbrush resting on an artist's palette with multiple paint blobs (no text or symbols)

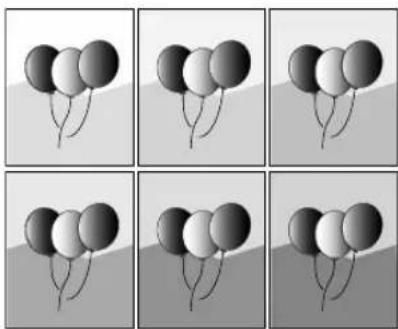

Achieve High Quality Colour Reproduction with Auto Colour Tone Correction

Compared to the Auto Adjust Gradation function, which adjusts CMYK, the Auto Correct Colour Tone function adjusts mixed colours that are expressed with multiple toner. By using these functions together, you can perform the precise colour adjustment.

"Adjustment for Image Quality and Finishing (Calibration)" in the User's Guide

Six-panel grid showing six identical panels of black balloons with varying shades and sizes, arranged in a 2x2 grid (no text or symbols)

Optimum Print Result for Each Paper Type

Paper information, which includes the basis weight, finish, fixing, and curl correction level, can be registered as the paper characteristics. As the detailed information can be specified for each different paper type, you can obtain the fine print result with considering the paper characteristics. This function is also effective for improving paper conveyance and print quality.

"Paper Type Management" in the User's Guide

Stack of five overlapping sheets of paper with distinct gray and white surfaces (no text or symbols)

Curl Correction for Stable Paper Conveyance

The machine constantly corrects the paper curl which occurs due to the pressure applied when toner is fixed. Moreover, by correcting the paper curl during outputting, the machine reduces the risk of a paper jam, and achieves the stable paper conveyance. The curl correction can be specified for each paper type you want to use.

"Adjustment for Image Quality and Finishing (Calibration)" in the User's Guide

"Paper Type Management" in the User's Guide

Diagram showing a curved stack of papers transforming into a single sheet of paper, with an arrow indicating the process (no text or symbols present)

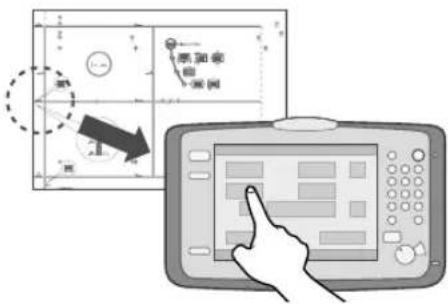

Easy Operation for Adjusting Image Position

You can adjust the image positions easily with this machine. All you need is measuring marks on the test page and then entering the measured values on the touch panel display. After that, the machine will automatically adjust the image positions. You can make the complicated adjustment easily by entering values for each edge of front and back sides on a single screen.

"Paper Type Management" in the User's Guide

添加数据 关闭

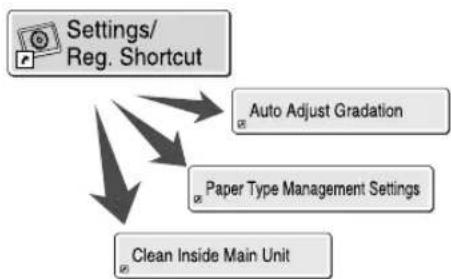

Quick Access to Frequently Used Settings

Different settings are required, depending on the printing purpose or paper types, but accessing setting items located in various menus every time is a quite complicated operation. In this case, register frequently used settings in "Settings/Registration Shortcut" button. You can directly access to the setting screen with this button and save the effort to search necessary setting items.

"Settings/Registration" in the User's Guide


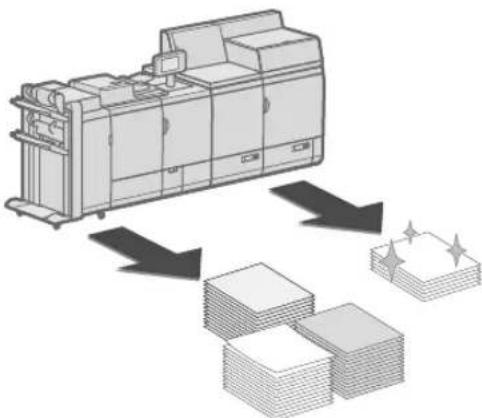

Alternative Settings for Your Needs, "Productivity" or "Quality"

You can set a priority to either print productivity or image quality. For instance, select "Productivity Priority" when printing a large number of documents to achieve speedy printing. On the other hands, select "Quality Priority" when printing documents which contain many pictures to obtain precisely printed images. This function can be set for each paper type to suit your various needs for printing.

"Settings/Registration" in the User's Guide

Contents

Thank you for purchasing this Canon product. Please read this manual thoroughly before operating the machine to familiarize yourself with its capabilities, and to make the most of its many functions. For more information on the detailed settings for the functions, see the User's Guide. After reading this manual, store it in a safe place for future reference.

Important Safety Instructions ....6

Installation 6

Power Supply 9

Handling....10

Maintenance and Inspections....14

Consumables....15

Safety-Related Symbols....16

Parts and Their Functions....17

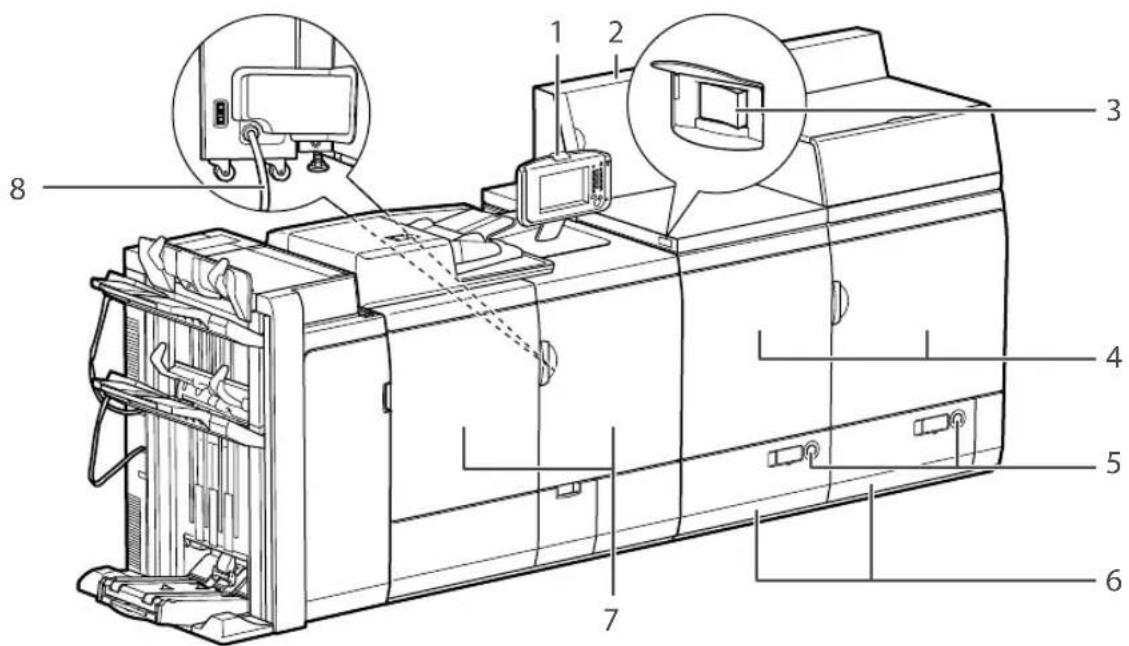

External View....17

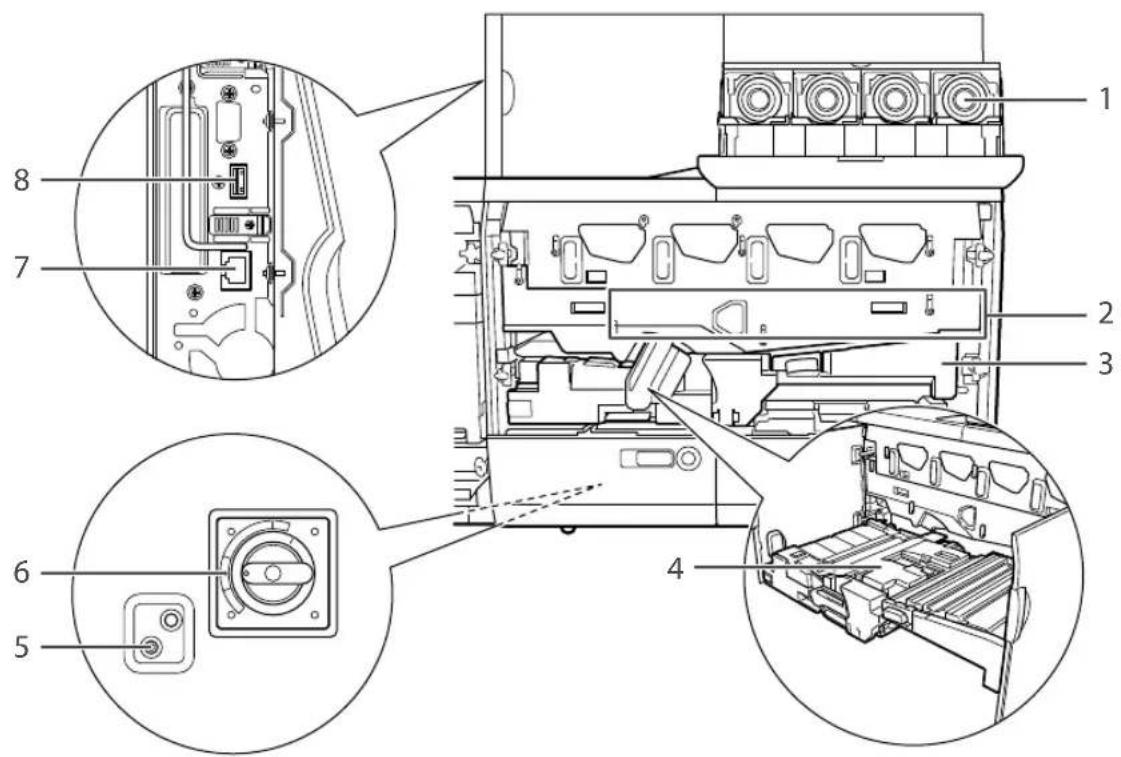

Internal View (Marking Engine)....18

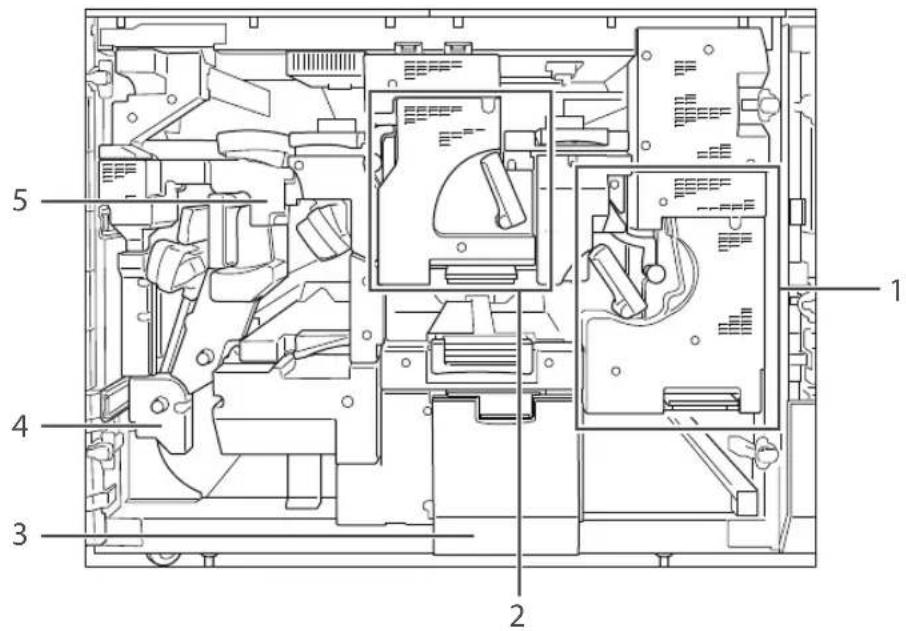

Internal View (Fixing Station)....19

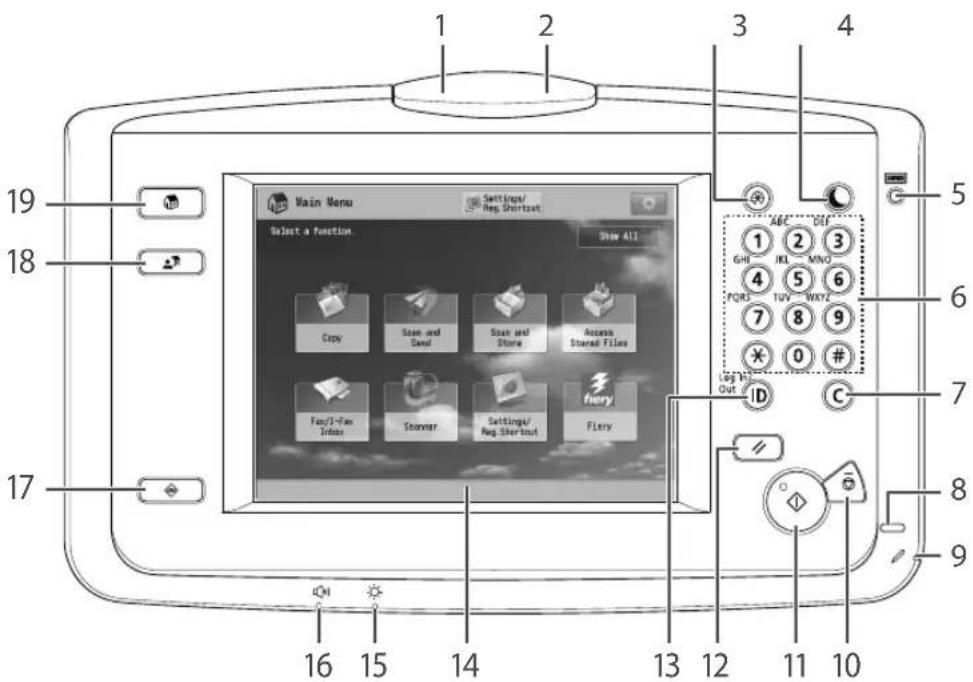

Control Panel (Upright Control Panel-F1) OPTION .....20

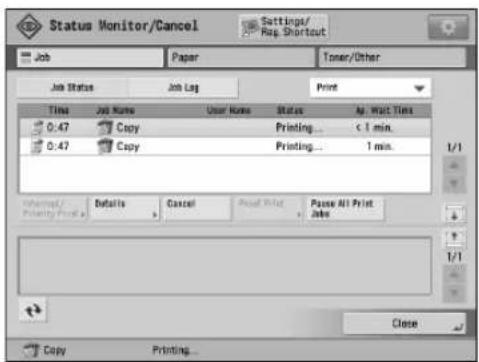

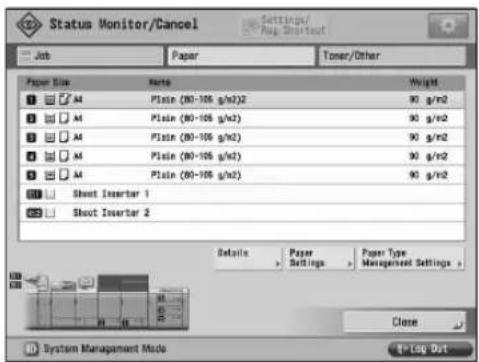

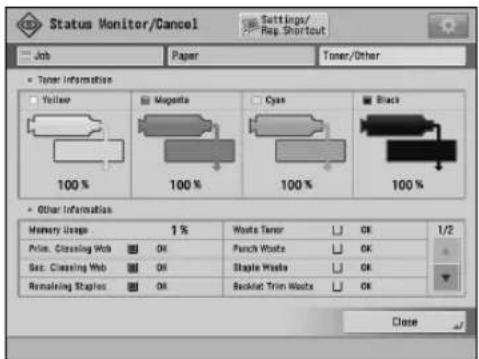

Status Monitor/Cancel Screen 22

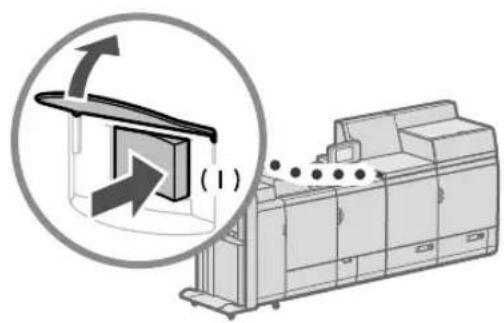

How to Turn ON the Main Power 23

Turning ON the Main Power 23

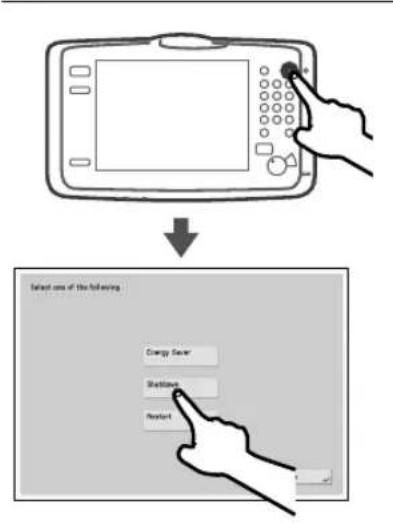

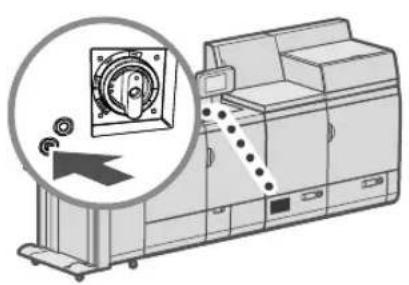

Shutting Down the Machine....24

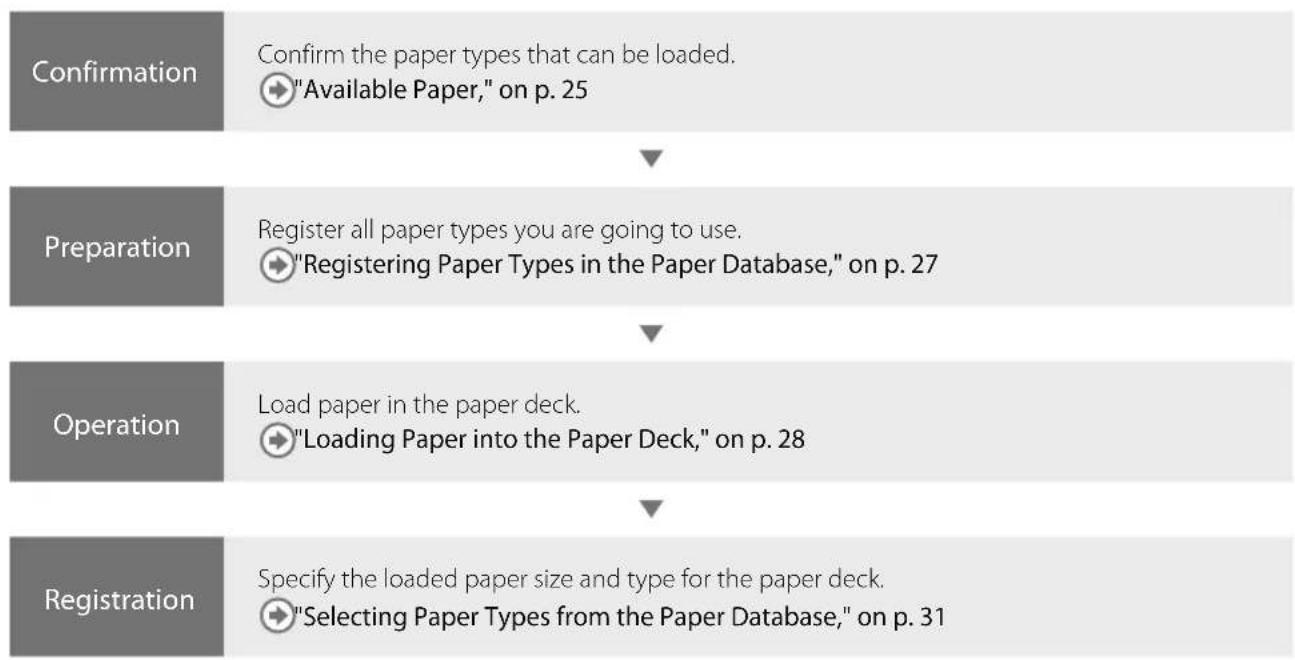

Loading Paper 25

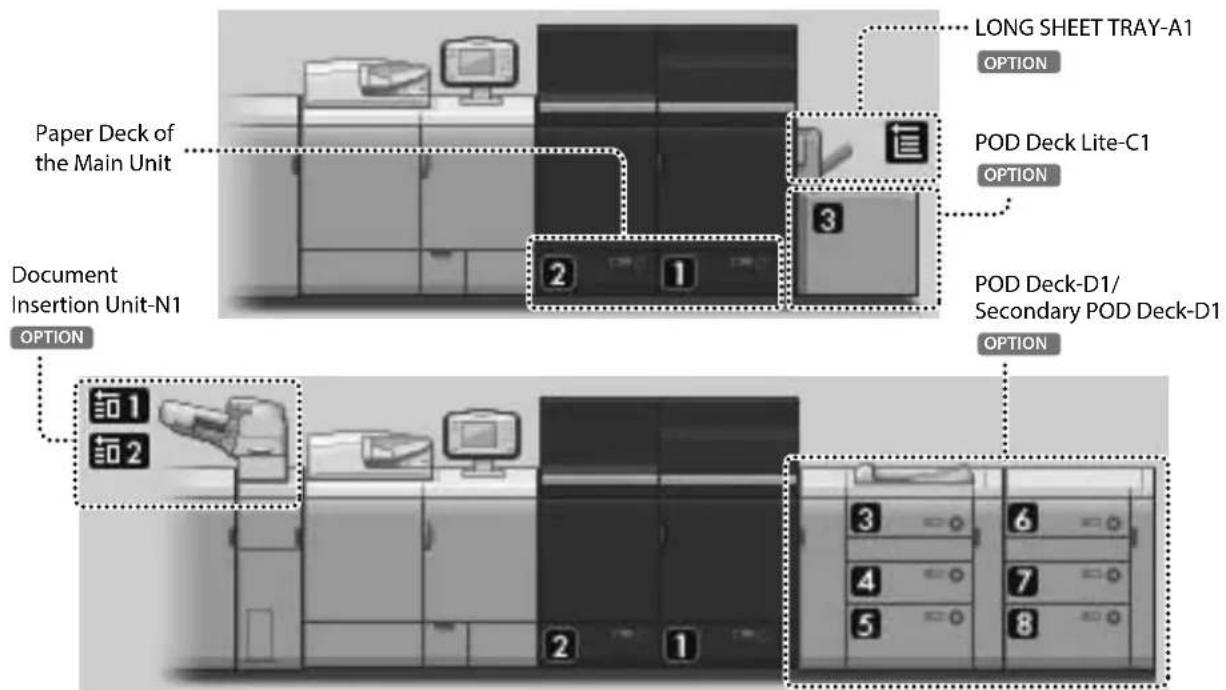

Available Paper 25

Registering Paper Types in the Paper Database....27

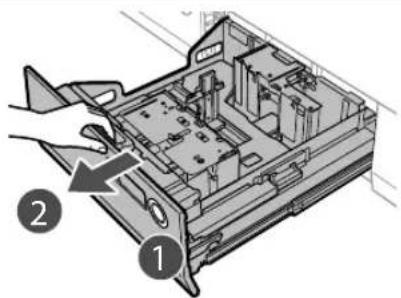

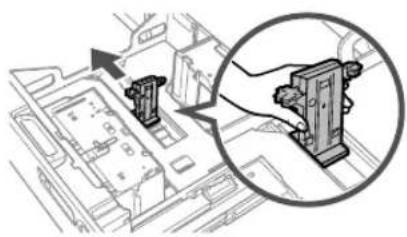

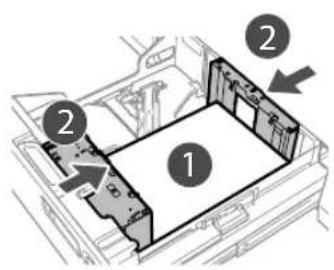

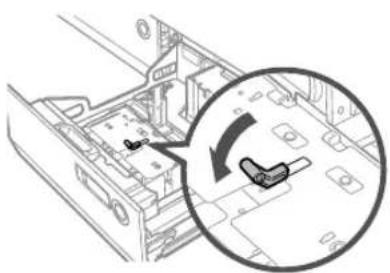

Loading Paper into the Paper Deck ....28

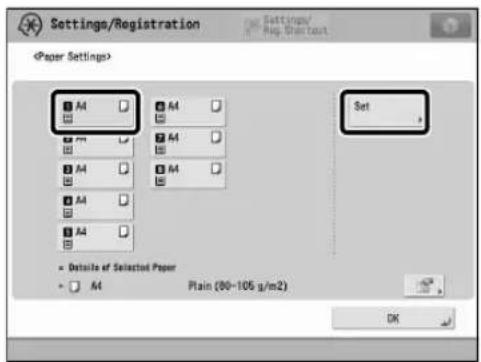

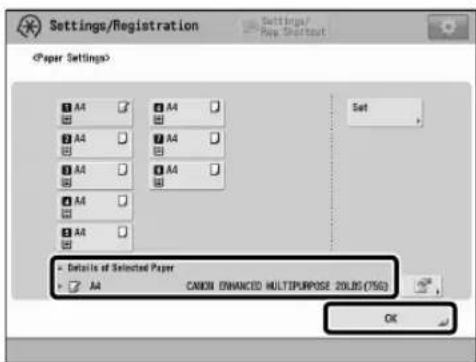

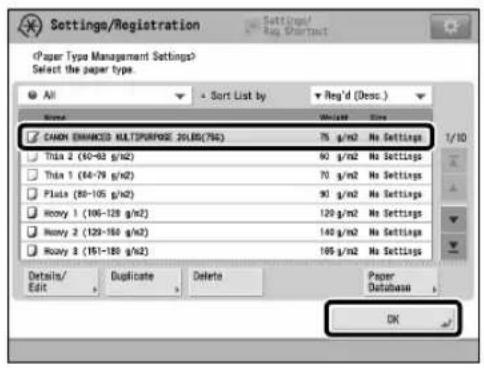

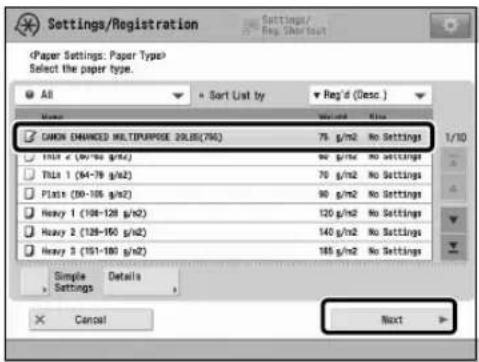

Selecting Paper Types from the Paper Database ....31

Cleaning and Maintenance 33

Cleaning the Platen Glass....33

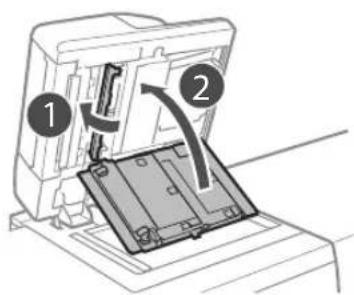

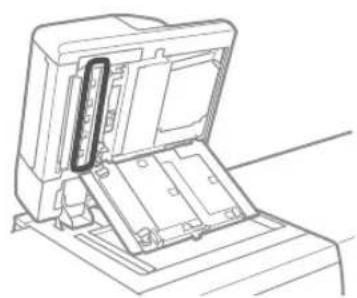

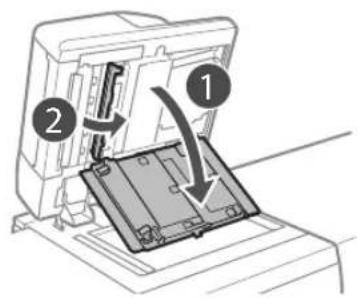

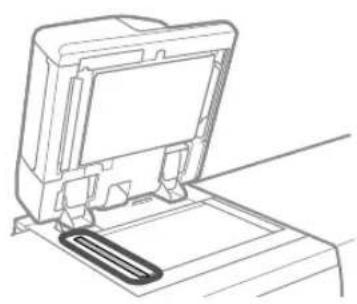

Cleaning the Original Scanning Area....33

Cleaning the Feeder 34

Automatic Feeder Cleaning 35

Cleaning the Inside of the Main Unit 35

Refreshing the Fixing Roller 36

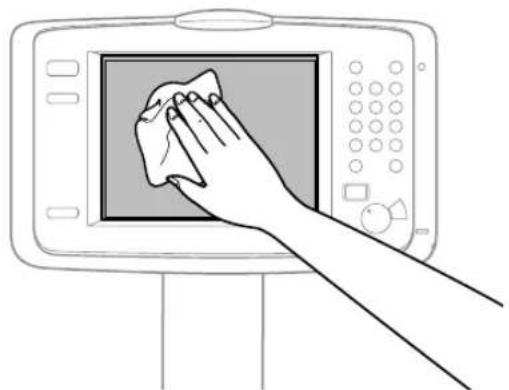

Cleaning the Touch Panel Display 36

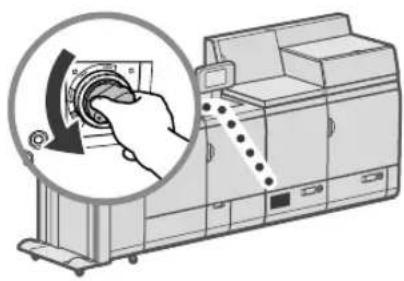

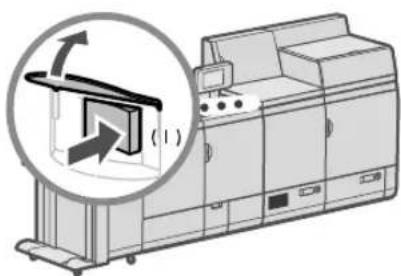

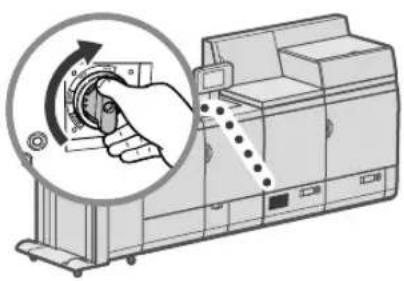

Inspection of the Breaker 37

Consumables 39

Troubleshooting....41

Clearing Paper Jams and Staple Jams ....41

Reducing the Frequency of Paper Jams ....41

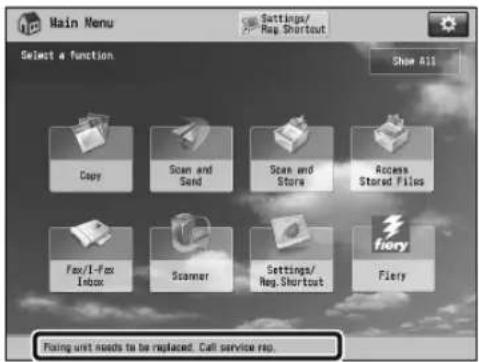

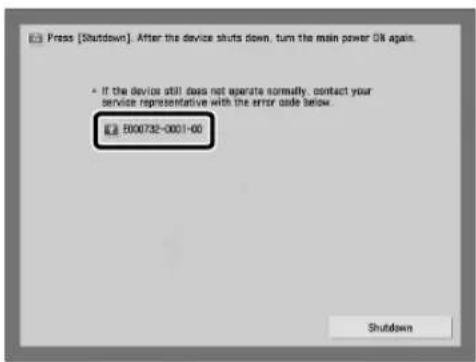

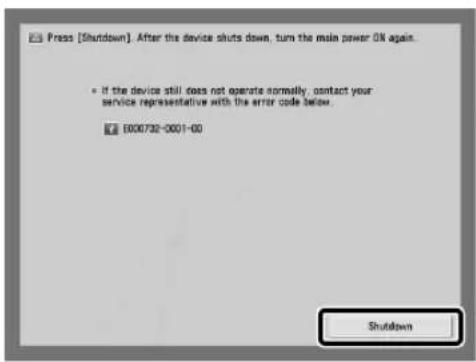

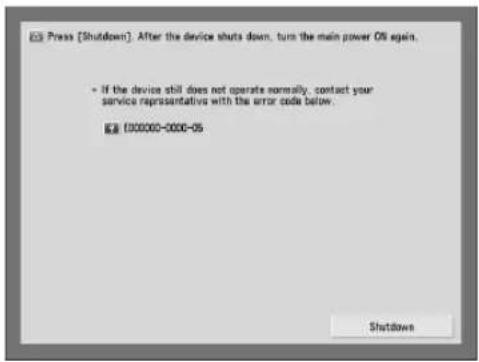

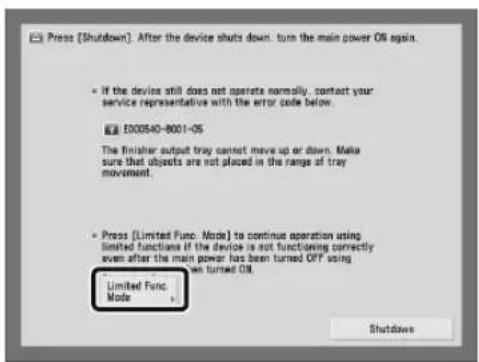

When an Error Message Is Displayed 42

Contacting Your Local Authorized Canon Dealer....43

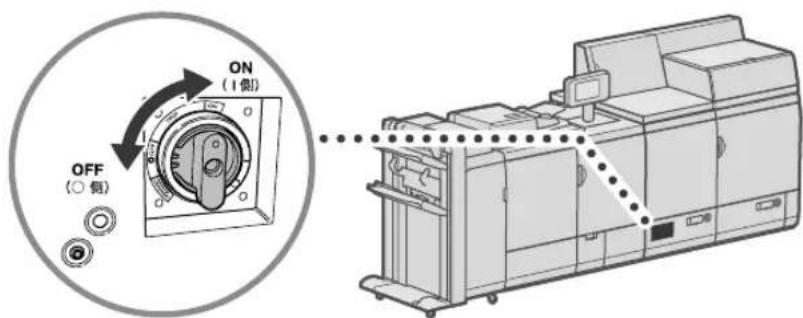

If the Main Power Does Not Turn ON 44

If Memory Becomes Full 44

Specifications....45

Symbols Used in This Manual

Indicates a warning concerning operations that may lead to death or injury to persons if not performed correctly. To use the machine safely, always pay attention to these warnings.

Indicates a caution concerning operations that may lead to injury to persons if not performed correctly. To use the machine safely, always pay attention to these cautions.

IMPORTANT

Indicates operational requirements and restrictions. Be sure to read these items carefully to operate the machine correctly, and avoid damage to the machine or property.

NOTE

Indicates a clarification of an operation, or contains additional explanations for a procedure. Reading these notes is highly recommended.

OPTION

Indicates an optional product which can be used with this machine.

Keys and Buttons Used in This Manual

The followings are examples of how keys and buttons are expressed in this manual.

- Touch Panel Display Keys: [Key Name]

→ [Copy]

• Control Panel Keys: Key Icon

- Buttons on Computer Operation Screens: [Button Name]

[OK], [Add], [Cancel]

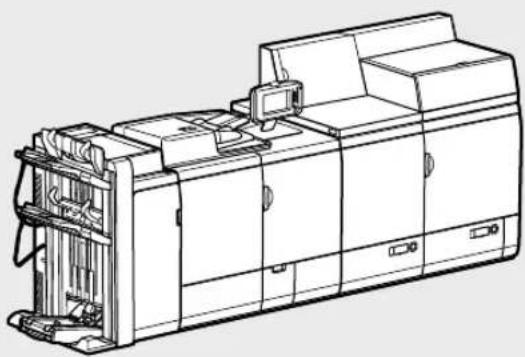

Illustrations Used in This Manual

Illustrations used in this manual are those displayed when the imagePRESS C10000VP has the following optional equipment attached to it: the Duplex Color Image Reader Unit-K1, Upright Control Panel-F1, and Saddle Finisher-AN2.

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

You can access canon.com/oip-manual to read the User's Guide that describes all functions of this machine.

Important Safety Instructions

These "Important Safety Instructions" are intended to prevent injury to user or other persons or destruction of property. Please read these instructions thoroughly before operating the machine. Also, since it may result in unexpected accidents or injuries, do not perform any operation unless otherwise specified in the manual. Improper operation or use of this machine could result in personal injury and/or damage requiring extensive repair that may not be covered under your Limited Warranty.

Installation

Read the following installation precautions thoroughly to maintain a comfortable and safe working environment, in areas of machine operation.

WARNING

Do not install the machine in locations where there are risks of a fire or electrical shock

• A location where the ventilation slots are blocked (i.e. by the walls, on the soft surface such as a bed, sofa, or rug)
  • A damp or dusty location
  • A location exposed to direct sunlight
  • A location subject to high temperatures
  • A location near open flames
• A location near alcohol, paint thinner, or other flammable substances

OtherWarnings

• Do not place jewelry and other metal objects, or containers filled with water or liquids on the machine. If these items come into contact with a high-voltage area inside the machine, it may result in a fire or electrical shock.
• Do not use the machine near any medical equipment. Electric waves emitted from the machine may interfere with medical equipment, which may result in a malfunction or personal injury.
• If objects are dropped or spilled inside the machine, immediately turn OFF the main power switch, and disconnect the power cord from the power outlet. Then, contact your local authorized Canon dealer.

CAUTION

Do not install the machine in unstable locations Installing the machine in the following locations my cause the machine to fall or tip over, resulting in personal injury.

• An unsteady platform
• A location subject to excessive vibrations

Do not remove the leveling feet

Do not remove the machine's leveling feet after the machine has been installed, as this may cause the machine to fall or tip over, resulting in personal injury.

Avoid installing the machine at high altitudes of about 3,000 metres above sea level, or higher.

Machines with a hard disk may not operate properly when used at high altitudes of about 3,000 metres above sea level, or higher.

Avoid installing the machine near computers or other precision electronic equipment.

Electrical interference and vibrations generated by the machine while printing can adversely affect the operation of such equipment.

Avoid installing the machine near televisions, radios, or similar electronic equipment.

The machine might interfere with sound and picture signal reception. Insert the power plug into a dedicated power outlet, and maintain as much space as possible between the machine and other electronic equipment.

IMPORTANT

Do not install the machine in the following locations

• A location subject to rapid changes in temperature and humidity
• A location near equipment that generates magnetic waves or electromagnetic waves
  • A location where chemical reactions occur, such as a laboratory
  • A location exposed to corrosive gas or toxic gas
• A location where the floor may be warped due to the weight of the machine, such as on a carpet

Avoid poorly ventilated locations

This machine generates a slight amount of ozone etc. during normal use. Although sensitivity to ozone etc. may vary, this amount is not harmful. Ozone etc. may be more noticeable during extended use or long production runs, especially in poorly ventilated rooms.

It is recommended that the room be appropriately ventilated, sufficient to maintain a comfortable working environment, in areas of machine operation. In addition, do not install this machine where it exhausts directly onto a person.

Do not install the machine in a location where condensation occurs

If the room where the machine is installed is heated rapidly, or the machine is moved from a cool, dry location to a hot, humid location, water droplets (condensation) may form inside the machine. This may result in paper jams, poor print quality, or a malfunction. To prevent these problems, wait at least two hours before using the machine in order to adapt the machine to the ambient temperature and humidity.

Provide Adequate Installation Space

Provide enough space on each side of the machine for unrestricted operation.

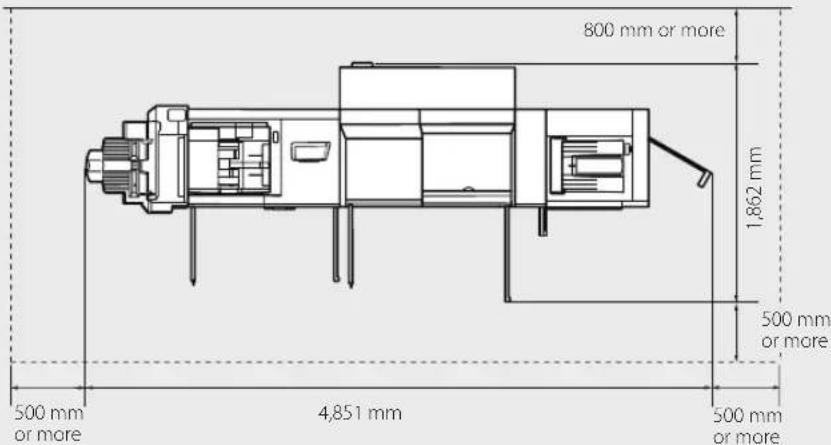

800 mm or more 1,862 mm 500 mm or more 500 mm or more 4,851 mm 500 mm or more

When the Finisher-AN1, Duplex Color Image Reader Unit-K1, Upright Control Panel-F1, and POD Deck-D1 are attached.

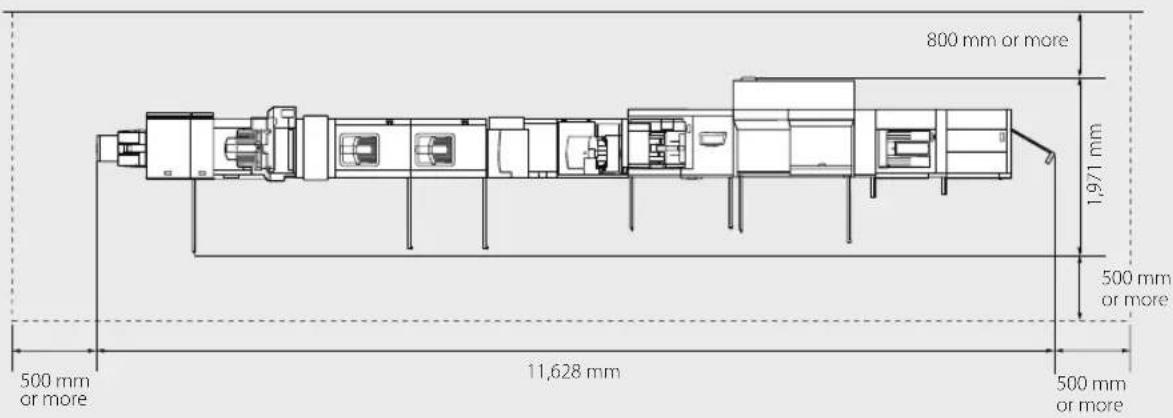

800 mm or more 1,971 mm 500 mm or more 500 mm or more 11,628 mm 500 mm or more

When the Two-Knife Booklet Trimmer-A1, Booklet Trimmer-D1, Saddle Finisher-AN2, Paper Folding Unit-J1, High Capacity Stacker-H1 x 2, Perfect Binder-E1, Multi Function Professional Puncher-A1, Document Insertion Unit-N1, Duplex Color Image Reader Unit-K1, Upright Control Panel-F1, and POD Deck-D1/Secondary POD Deck-D1 are attached.

PowerSupply

Plug the machine into an outlet that is 380 to 415 V AC 18 A or greater.

WARNING

• Do not use power supplies with voltages other than those specified herein, as this may result in a fire or electrical shock.
• Do not use power cords other than the provided power cord, as this may result in a fire or electrical shock.
• The provided power cord is intended for use with this machine. Do not connect the power cord to other devices.
• Do not damage, modify, pull on, or excessively bend the power cord. Also do not place heavy objects on the power cord, as this could cause electrical damage and result in a fire or electrical shock.

• Do not connect or disconnect the power plug with wet hands, as this may result in electrical shock.

• Do not connect the power cord to a multiplug power strip, or do not use extension cords, as this may cause a fire or electrical shock.

• Do not bundle up or tie the power cord in a knot, as this may result in a fire or electrical shock.
• Insert the power plug completely into the power outlet, as failure to do so may result in a fire or electrical shock.
• When there is thunder and lightning, disconnect the power plug from the power outlet, as failure to do so may result in a fire, malfunction, or electrical shock.

CAUTION

- Do not connect any unauthorized optional products to the outlet for connecting optional products, as this could result in a fire or smoke.

IMPORTANT

Power supply connection

• Do not connect the power cord to an uninterruptible power source.
• If the machine is connected to the power outlet with multiple sockets, do not use the remaining sockets to connect other devices.
• It is recommended that the power outlet wired to an indoor circuit breaker is used.
• When disconnecting the power cord, wait at least 5 seconds before connecting the power cord again.

• Install this machine near the power outlet and leave sufficient space around the power plug so that it can be unplugged easily in an emergency.

OtherPrecautions

Electrical noise and excessive voltage drop may cause a malfunction or loss of data in the machine and computers.

Handling

WARNING

• If the machine makes strange noises, or gives off smoke, heat, or strange smells, immediately turn OFF the main power switch, and disconnect the power cord from the power outlet. Then, contact your local authorized Canon dealer. Continued use of the machine in this condition may result in a fire or electrical shock.
• Do not attempt to disassemble or modify the machine. There are high-temperature and high-voltage components inside the machine, and contact with those components may result in a fire or electrical shock.

• If you are using a cardiac pacemaker and feel abnormalities, please move away from the product immediately. This product emits low level magnetic flux.

• Do not use highly flammable sprays near the machine. If gas from these sprays comes into contact with the electrical components inside the machine, it may result in a fire or electrical shock.

• When moving the machine, always turn OFF the main power switch, disconnect the power plug from the power outlet, and then unplug the interface cable. Otherwise, the power cord or interface cable may be damaged, resulting in a fire or electrical shock.

CAUTION

• Do not place heavy objects on the machine, as they may fall or tip over, resulting in personal injury.
• For your safety, disconnect the power cord when the machine will not be used for an extended period of time.
• When opening and closing covers, be careful not to get your hands caught, as this may result in personal injury.
• Keep your hands, hair, clothing, etc. away from the rollers in the output area, as your hand, hair, or clothing may get caught in the rollers which may result in personal injury.
• In order to prevent burns, do not touch the fixing transport unit and its surroundings and output area when using the machine, as these areas are very hot during use. Also, be careful when handling printed paper as it may be hot especially during continuous printing.

• Paper that has just been output from the machine may be hot. Be careful when removing or aligning paper from the output tray. Touching paper right after it is output may result in low-temperature burns.

• Do not press down the feeder forcefully when using the platen glass to make copies of thick books. Doing so may damage the platen glass and result in personal injury.

• Close the feeder gently to avoid catching your hands, as this may result in personal injury.
• Be careful not to put your hands or fingers into the feeder. Otherwise, you may be injured.

Illustration of a hand placing two cards into a box with a 'no' symbol nearby (no text or labels)

- Be careful not to drop heavy object, such as a dictionary, on the platen glass. Doing so may damage the platen glass and result in personal injury.

- There are high-voltage components inside the machine. Do not touch the labeled component and its surroundings when removing jammed paper or inspecting the inside of the machine, as doing so may result in an electrical shock.

Paper drawer (only for products with a paper drawer)

- Do not insert your hand into the machine while the paper drawer is removed, as this may result in personal injury.

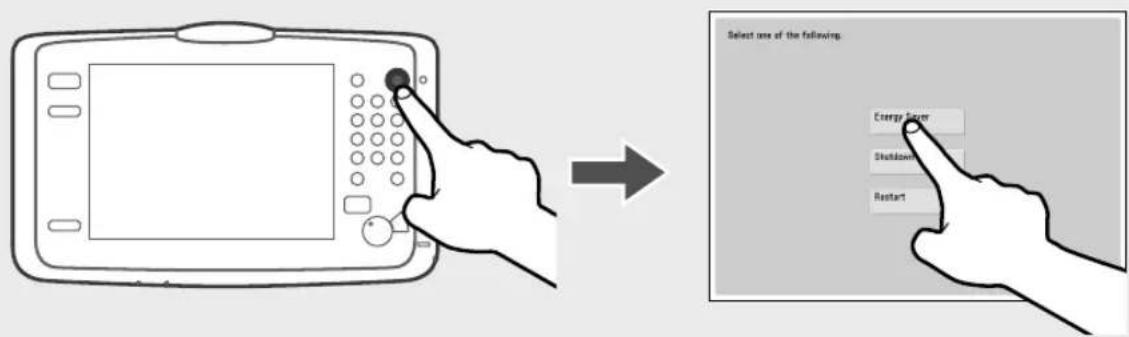

Energy Saver key (only for products with an Energy Saver key)

- Press (Energy Saver) for safety when the machine will not be used for a long period of time, such as overnight. Also, turn OFF the main power switch, and disconnect the power cord for safety when the machine will not be used for an extended period of time, such as during consecutive holidays.

Finisher (only for products with a finisher)

- Do not place your hands in the part of the tray where stapling is performed (near the rollers), especially pay careful attention to the sharp staples, as this may result in personal injury.

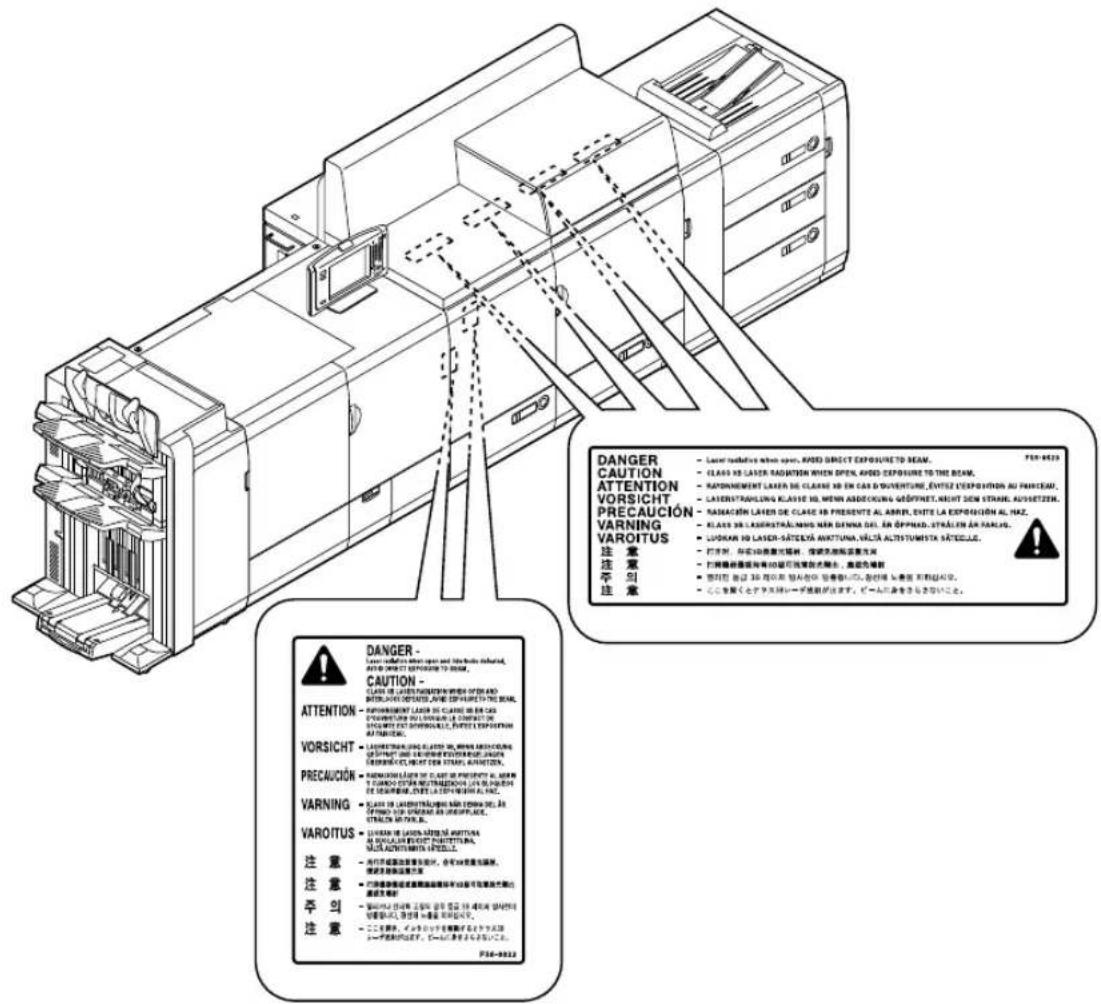

Laserbeam

The laser beam can be harmful to human bodies. Since radiation emitted inside the product is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation. Read the following remarks and instructions for safety.

- Never open covers other than those instructed in the manuals for this machine.

Controlling, adjusting, or operating the machine in ways not mentioned in the manuals for this machine may cause dangerous radiation to escape from the machine. If the laser beam escapes from the machine, exposure may cause serious damage to your eyes.

• Follow the instructions in the caution label attached to the machine.
• Do not shake the machine or do not apply shock to the machine.
• Do not forcibly open and close covers and other parts of the machine. Doing so may result in damage to the machine.
• During printing, do not turn OFF the main power, open and close covers, or load and remove paper, in order to prevent a paper jam.
• Do not use this product for uses other than as a colour digital multitasking machine.

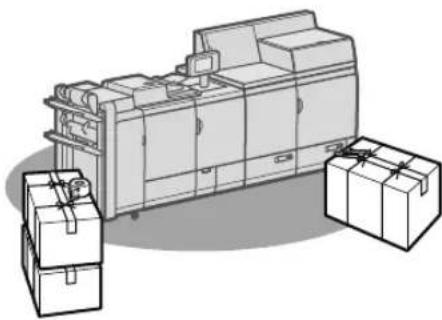

Transporting the machine

If you intend to move the machine over a long distance, contact your local authorized Canon dealer beforehand. Do not attempt to move the machine yourself.

Illustration of a large industrial machine with two smaller boxes and attached equipment (no text or symbols visible)

■Maintenance and Inspections

Clean this machine regularly. The machine may not operate properly if dust accumulates. Make sure to read the followings when cleaning the machine.

WARNING

• When cleaning the machine, first turn OFF the main power switch, then disconnect the power cord. Failure to observe these steps may result in a fire or electrical shock.
• Clean the machine using a cloth which is wrung after being damped in water. Do not use alcohol, benzene, paint thinner, or other flammable substances. Do not use tissue paper or paper towels. If these substances come into contact with a high-voltage area inside the machine, it may result in a fire, electrical shock, or generating of static electricity.
• Disconnect the power cord from the power outlet regularly, and clean the area around the base of the power plug's metal pins and the power outlet with a dry cloth to ensure that all dust and grime is

removed. If the power cord is connected for a long period of time in a damp, dusty, or smoky location, dust can build up around the power plug and become damp. This may cause a short circuit and result in a fire.

- Check the power cord and power plug regularly to see if there are any excessive heat generation, rust, deformation, scratches, or cracks. Using the power cord and power plug under these conditions may result in a fire or electrical shock.

CAUTION

- If a paper jam occurs, follow the instructions displayed on the touch panel display to remove any jammed paper from inside the machine. Make sure to remove any piece of paper inside the machine. Do not insert your fingers into any parts not indicated on the touch panel display, as doing so may result in personal injury or burns.

- When loading paper or removing jammed paper, take care not to cut your hands or injure yourself on the edges of the paper.

IMPORTANT

When removing jammed paper or replacing the toner cartridge, take care not to allow the toner to come into contact with your hands or clothing, as this will dirty your hands or clothing. If toner gets onto your hands or clothing, wash it off immediately with cold water. Washing it off with warm water will set the toner, and make it impossible to remove the toner stains.

Consumables

WARNING

- If you accidentally spill or scatter toner, carefully wipe up the loose toner with a damp, soft cloth and avoid inhaling any toner dust. Do not use a vacuum cleaner that is not equipped with safety measures to prevent dust explosions to clean up loose toner. Doing so may cause damage to the vacuum cleaner or result in a dust explosion due to static discharge.

- Do not burn or throw toner cartridges in open flames. Do not store toner cartridges in places exposed to open flames.

CAUTION

• Be careful not to inhale toner. If toner is inhaled, consult a physician immediately.
• Be careful not to allow toner to get into your eyes and mouth. If toner gets into your eyes or mouth, wash them immediately with cold water and consult a physician immediately.

• Be careful not to allow toner to directly touch your skin. If toner touches your skin, wash it away with soap and water. If your skin still feels irritated after washing it, consult a physician immediately.

• Keep toner and other consumables out of the reach of small children. If these items are ingested, consult a physician immediately.

• Do not dismantle the toner cartridge, as doing so may cause toner to fly out.

IMPORTANT

When discarding used toner cartridges

Put the used toner cartridges into a bag to prevent the toner remaining inside the cartridges from scattering, and dispose of them in a location away from open flames.

Safety-RelatedSymbols

Power switch: "ON" position

Power switch: "OFF" position

Power switch: "STAND - BY" position

① Push-push switch ON" "OFF

Protective earthing terminal

Dangerous voltage inside. Do not open covers other than instructed.

CAUTION: Hot surface. Do not touch.

Class II equipment

Moving parts: Keep body parts away from moving parts

NOTE

Some of symbols shown above may not be affixed depending on the product.

Parts and Their Functions

This section provides you with the names and functions of all the parts of the machine. The keys and display on the control panel are also described. Read this section to use the machine's various functions smoothly.

"optional Products" in the User's Guide

ExternalView

Technical diagram of an industrial machine with numbered components and close-up insets for detail

1 Upright Control Panel-F1

Includes the keys, touch panel display, and indicators required for operating the machine.

2Power Supply Unit

Provides power to the marking engine and fixing station.

3Main Power Switch

Press to the "|" side to turn the power ON.

4Marking Engine Front Right Cover/Front Left Cover

Open these covers to clear a paper jam inside the marking engine.

5 Open Button

Press to open the paper deck when you need to load paper or check for a paper jam.

The paper supply indicator enables you to check the amount of paper remaining in the paper deck.

6Right/Left Paper Deck

Holds up to 1,000 sheets of paper (80 g/m ^2 ) for each paper deck.

7Fixing Station Front Right Cover/Front Left Cover

Open these covers to clear a paper jam inside the fixing station.

8Power Cord

Supplies power from an AC outlet to the main unit and Duplex Color Image Reader Unit-K1 (option).

■Internal View (Marking Engine)

Technical diagram of a server rack with numbered components and exploded views

1Toner Cartridge

Open the cover to replace the toner cartridge.

2ITB (Intermediate Transfer Belt)

Transfers the toner to the paper.

3Feeding Unit

Delivers paper that is fed from the paper deck to the fixing station via the toner transfer position. Also, the Feeding Unit delivers paper from the fixing station when the 2nd side of 2-Sided page mode is set. Pull out this unit to clear a paper jam inside the unit.

4Skew Correction Roller

Compensates for paper skewing or dispersion of side edges.

5Test Button

Located on the back of the power supply unit. Press this button to periodically test the circuit breaker.

6Breaker

Located on the back of the power supply unit. Detects excess current or leakage current.

7Network Connector

Located on the upper left area of the marking engine. This port supports 1000/100/10 BASE-T. Use this port to connect the machine to the network (imagePRESS Server).

8USB Connector

Located on the upper left area of the marking engine. This connector is not normally used as it is for service representatives.

■Internal View (Fixing Station)

1 2 3 4 5

1 Primary Fixing Assembly

Fixes toner that has transferred to paper. Pull out the primary fixing unit to clear a paper jam inside the assembly.

2Secondary Fixing Assembly

Some paper types need to pass through the secondary fixing assembly after passing through the primary fixing assembly to fix the toner securely. Pull out the secondary fixing unit to clear a paper jam inside the assembly.

3Waste Toner Container Tray

Pull out this tray to replace the waste toner container.

4Reverse Unit

Reverses paper and returns it to the marking engine when performing two-sided printing. This unit also reverses paper to output the printed side face up or down according to the Face Up/Face Down mode settings.

Pull out the delivery/reverse unit to clear a paper jam inside the unit.

5Decurler Unit

Corrects paper curling caused by heat. Pull out this unit to clear a paper jam inside the unit.

Control Panel (Upright Control Panel-F1) OPTION

1 2 3 4 Main Menu Settings/ Reg.Shortset Select a function. Show All Copy Scan and Send Scan and Store Access Shared Files Fun/1-Fan Index Scanner Settings/Reg.Shortout Flery Log In Out 16 15 14 13 12 11 10 19 18 17 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 GHI 2 3 JKL MNO FOR 5 6 TUV WXY 0 # C

1Processing/Data Indicator

Blinks green when the machine is performing operations, and maintains a steady green light when received data is stored in memory.

2Error Indicator

Blinks or lights if there is an error in the machine. When the Error indicator blinks, follow the instructions that appear on the touch panel display. When the Error indicator maintains a steady red light, contact your local authorized Canon dealer.

3Settings/Registration key

Press to register and specify settings.

4Energy Saver key

Press to set the Energy Saver mode or Sleep mode. The mode activated after pressing the Energy Saver key can be selected beforehand. This key lights when the machine enters either mode. To reactivate the machine, press this key again.

5Counter Check key

Press to display the copy and print count totals.

6Numeric keys

Press to enter numerical values.

7Clear key

Press to clear entered values or characters.

8Main Power Indicator

Lights when the main power is turned ON.

9Edit Pen

Use when operating the touch panel display, such as to enter characters.

10 Stop key

Press to stop a job in progress.

11 Start key

Press to start an operation, such as scanning or copying.

12 Reset key

Press to restore the standard settings of the machine.

13 ID (Log In/Out) key

Press to log in/out when a login service such as Department ID Management has been set.

14 Touch Panel Display

The settings screen for each function is shown on this display.

15 Brightness Adjustment Dial

Use to adjust the brightness of the touch panel display.

16 Volume Settings key

Press to display the screen to specify the audible tones.

17 Status Monitor/Cancel key

Press to check the status of jobs or to cancel print jobs. Also, press to check status of the machine, such as checking the amount of paper remaining.

18 Quick Menu key

Press to retrieve favorite functions stored in Quick Menu. Also, if you are using authentication, Quick Menu set for each individual user can be displayed.

19 Main Menu key

Press to return to the Main Menu screen, such as when you want to switch functions.

Setting the Energy Saver mode/Sleep mode to minimize energy consumption

You can save energy consumption by using the Energy Saver mode/Sleep mode when the machine is not being used for a prolonged period of time, such as a lunch time. To use these modes, press [Energy Saver] after pressing Ⓐ on the control panel. If the machine is idle for a certain period of time, the machine will enter the Sleep mode (Auto Sleep mode). For more information on the mode which activates after Ⓞ is pressed, and detailed information on the Auto Sleep mode, see the User's Guide.

"Basic Operations" > "Energy Saving Features" in the User's Guide

Select use of the following: Energy Cover Shutdown Restart

Status Monitor/Cancel Screen

If you press, the Status Monitor/Cancel screen appears, and you can confirm the status of jobs and consumables on this screen. By obtaining information, such as the completion time of the current job or the amount of paper remaining, you can perform smooth printing operation without interruption.

Useful situations

• When you want to know the completion time of jobs
• When you want to check the amount of paper remaining for efficient paper loading
• When you want to cancel a job which is registered by mistake

[Job] screen

The [Job] screen enables you to check the status of jobs in the job list. On this screen, you can cancel a job in progress and change the order of waiting jobs to print your job prior to others.

Status Monitor/Cancel Settings/ Rep. Shortcut Job Paper Timer/Other Job Status Job Lag Print Time Job Name User Name Status Ap. Must Time 0:47 Copy Printing... < 1 min. 0:47 Copy Printing... 1 min. Infineal/ Priority Print Details Cancel Print All Print Jobs Close Copy Printing...

[Paper] screen

You can check the paper information and the remaining amount of paper in all paper sources. You can also specify the paper type for each paper source in [Paper Settings].

Status Monitor/Cancel Settings/ Page Shortcut Job Paper Toner/Other Paper Size Name Weight M A Plain (80-105 g/m2) 90 g/m2 M A Plain (80-105 g/m2) 90 g/m2 M A Plain (80-105 g/m2) 90 g/m2 M A Plain (80-105 g/m2) 90 g/m2 Sheet Inserter 1 Sheet Inserter 2 Details Paper Settings Paper Type Management Settings Close System Management Mode T-Log Dot

[Toner/Other] screen

The remaining amount of toner is displayed in illustrations. You can also check the remaining amount of staples, the amount of punch waste, and the percentage of memory usage.

Status Monitor/Cancel Settings/ Rep Shortcut Job Paper Toner/Other Timer Information Valuer Magenta Cyan Black 100% 100% 100% 100% Other Information Memory Usage 1% Waste Tumor OK 1/2 Prior. Clearing Web OK Punch Waste OK Set. Clearing Web OK Staple Waste OK Remaining Staples OK Backlet Trim Waste OK Close

How to Turn ON the Main Power

This section explains how to turn ON the main power.

■Turning ON the Main Power

Make sure that the power plug is firmly inserted into the power outlet, and the breaker is turned ON.

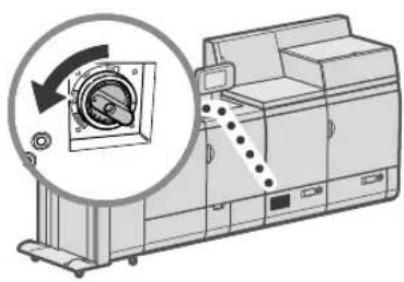

Illustration of a machine with a magnified inset showing directional arrows and dotted lines, no text or symbols present.

1 Open the main power switch cover.

2 Press the main power switch to the "|" side.

• The main power indicator on the control panel lights.

IMPORTANT

If you want to turn ON the main power again, wait for at least 10 seconds after the main power and the main power indicator are turned OFF.

NOTE

The response of the keys and buttons may not be optimal immediately after turning ON the main power of the machine.

■Shutting Down the Machine

Do not turn OFF the main power in the following situations

• When using the I-Fax function
• When the message is displayed
• When operating scan or print function

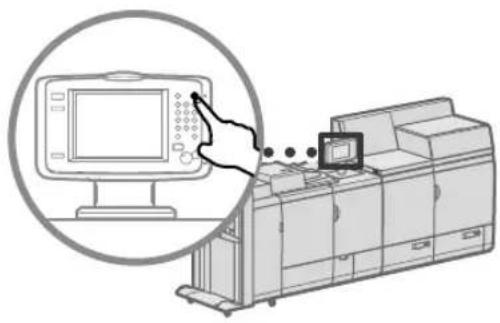

Illustration of a computer setup with a monitor and control panel, showing a hand interacting with the screen (no text or symbols present)

1

Press

Select one of the following. Energy Cover Shutdowns Feature use

2 Press [Shutdown].

- The main power indicator on the control panel turns OFF.

LoadingPaper

Load paper by following the procedure below. In this section, A4 custom size paper is used as an example.

AvailablePaper

This section describes the available paper for this machine. Paper that can be loaded differs, depending on the paper sources. The following description includes the optional products as well as the standard paper decks. The optional products are indicated with OPTION icon.

LONG SHEET TRAY-A1 OPTION POD Deck Lite-C1 OPTION Paper Deck of the Main Unit Document Insertion Unit-N1 OPTION 2 1 3 POD Deck-D1/ Secondary POD Deck-D1 OPTION 3 6 4 7 5 8 2 1

"Basic Operations" > "Available Paper Stock" in the User's Guide

Paper Deck of the Main Unit

Paper Capacity Left and right decks: 1,000 sheets (80 g/m ^2 ) each

Paper Type Thin 1 to 2, Plain, Heavy 1 to 8, Colour, Recycled 1 to 3, Pre-Punched 1 to 2, Transparency, Clear Film, Translucent Film, Labels, Tab 1 to 2, Bond, 1-Sided Coated Thin, 1-Sided Coated 1 to 9, 2-Sided Coated Thin, 2-Sided Coated 1 to 9, Matte Coated Thin, Matte Coated 1 to 9, Textured 1 to 7, and Vellum 1 to 2

Paper Size 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, A4, A4R, and Custom Size (182 mm x 182 mm to 330.2 mm x 487.7 mm)

POD Deck-D1/Secondary POD Deck-D1 OPTION

Paper Capacity Upper and middle decks: 1,000 sheets (80 g/m ^2 ) each, lower deck: 2,000 sheets (80 g/m ^2 )

Paper Type Thin 1 to 2, Plain, Heavy 1 to 8, Colour, Recycled 1 to 3, Pre-Punched 1 to 2, Transparency, Clear Film, Translucent Film, Labels, Tab 1 to 2, Bond, 1-Sided Coated Thin, 1-Sided Coated 1 to 9, 2-Sided Coated Thin, 2-Sided Coated 1 to 9, Matte Coated Thin, Matte Coated 1 to 9, Textured 1 to 7, and Vellum 1 to 2

Paper Size 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, A4, A4R, and Custom Size (182 mm x 182 mm to 330.2 mm x 487.7 mm)

Document Insertion Unit-N1 OPTION

Load paper you want to use as a cover of a booklet in the document insertion unit, such as coated paper.

Paper Capacity Upper and Lower trays: 200 sheets (80 g/m ^2 ) each

Paper Type Thin 1 to 2, Plain, Heavy 1 to 6, Colour, Recycled 1 to 3, Pre-Punched 1 to 2, Tab 1 to 2, Bond, 1-Sided Coated Thin, 1-Sided Coated 1 to 7, 2-Sided Coated Thin, 2-Sided Coated 1 to 7, Matte Coated Thin, Matte Coated 1 to 7, Textured 1 to 7, and Vellum 1 to 2

Paper Size 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, A4, A4R, and Custom Size (182 mm x 182 mm to 330.2 mm x 487.7 mm)

LONGSHEETTRAY-A1 OPTION

Paper Capacity 1 sheet (80 g/m ^2 )

Paper Type Thin 1 to 2, Plain, Heavy 1 to 5, Colour, Recycled 1 to 3, Bond, 1-Sided Coated Thin, 1-Sided Coated 1 to 6, 2-Sided Coated Thin, 2-Sided Coated 1 to 6, Matte Coated Thin, Matte Coated 1 to 6, and Textured 1 to 6

Paper Size Custom Size (210 mm x 487.8 mm to 330.2 mm x 762 mm)

POD Deck Lite-C1 OPTION

Paper Capacity 3,500 sheets (80 g/m ^-2 )

Paper Type Thin 1 to 2, Plain, Heavy 1 to 8, Colour, Recycled 1 to 3, Pre-Punched 1 to 2, Transparency, Clear Film, Translucent Film, Labels, Tab 1 to 2, Bond, 1-Sided Coated Thin, 1-Sided Coated 1 to 9, 2-Sided Coated Thin, 2-Sided Coated 1 to 9, Matte Coated Thin, Matte Coated 1 to 9, Textured 1 to 7, and Vellum 1 to 2

Paper Size 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, A4, A4R, A5R, and Custom Size (139.7 mm x 182 mm to 330.2 mm x 487.7 mm)

■ Registering Paper Types in the Paper Database

Register all paper types you are going to use with this machine. You can register paper types by selecting paper types from the Paper Database.

NOTE

If you load paper which is already registered in the machine, such as plain or recycled paper, this step is not necessary. Proceed to the next step "Loading Paper into the Paper Deck".

1 Press

2 Press [Preferences] → [Paper Settings] → [Paper Type Management Settings].
3 Press [Paper Database].
4 Select the paper type from the list → press [OK].
5 Confirm that the selected paper type is displayed in the screen → press [OK].

- If the desired paper type is not listed in the Paper Database, select and duplicate a paper type that closely matches the characteristics of the desired paper type, and then change the necessary settings.

"Paper Type Management" in the User's Guide

Settings/Registration Settings/ Reg Contract Paper Type Management Settings? Select the paper type. All Sort List by Reg'd (Desc.) Name Weight Size CANON ENHANCED MULTIPURPOSE 20LBS(75c) 75 g/m2 No Settings Thin 2 (90-93 g/m2) 90 g/m2 No Settings Thin 1 (44-78 g/m2) 70 g/m2 No Settings Pluto (80-105 g/m2) 90 g/m2 No Settings Moory 1 (105-128 g/m2) 120 g/m2 No Settings Moory 2 (129-156 g/m2) 140 g/m2 No Settings Moory 3 (151-180 g/m2) 165 g/m2 No Settings Details/ Edit Duplicate Delete Paper Database OK

■ Loading Paper into the Paper Deck

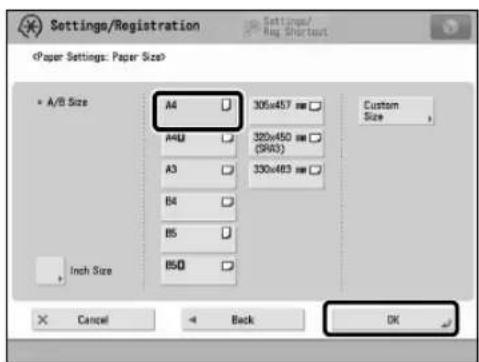

1 Register the paper size for the paper deck at [Paper Settings] in [Preferences] (Settings/Registration).

"Settings/Registration" > "Preferences" > "Paper Settings" > "Registering the Paper Size and Type for a Paper Source" in the User's Guide

Technical diagram of a computer chassis with labeled parts, showing internal components and a hand operating the frame.

2 Open the paper deck.

1 Press the button on the paper deck.
2 Pull out the paper deck until it stops.

- Check that the inside lifter descends to the paper loading position.

IMPORTANT

If the machine is in the Sleep mode (the touch panel is not displayed, and only Ⓞ is lit), you may be unable to open the paper deck. In this case, press Ⓞ to reactivate the machine, and then press the open button on the paper deck.

Diagram showing a hand inserting a component into an electronic device, with no visible text or symbols.

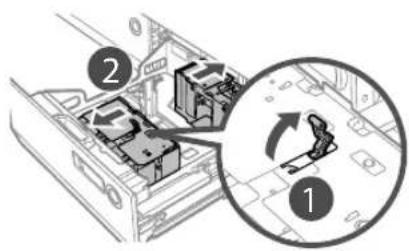

3 Squeeze the lever on the paper holder plate as shown below. Without releasing the lever, slide the paper holder plate until it does not catch on the paper to set.

Diagram showing a device interior with labeled components and a circular diagram highlighting a circular mechanism with rotational arrows.

4 Move the size change plates to a position where it does not catch on the paper.

1 Remove the size change plates lock.

② Slide the size change plates to a position where it does not catch on the set paper.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

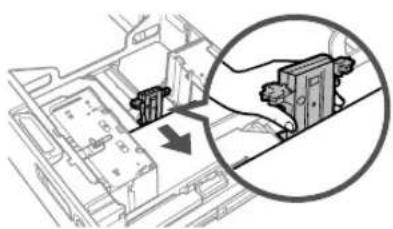

5 Adjust the position of the size change plates to align with paper.

1 Set the paper of the target size to approximately 10 mm high.
② Slide the size change plates (front) and size change plates (back) to match the paper size.

IMPORTANT

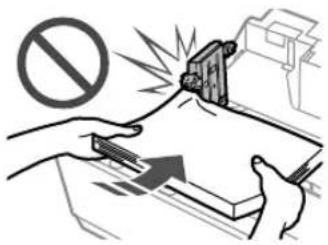

- Do not give a strong shock to the paper holder plate when loading paper into the paper deck, as this may result in a malfunction or damage to the machine.

Illustration of hands using a tool to press or install a document with a prohibition symbol (no text present)

- Adjust the guides correctly to avoid causing a paper jam, dirty prints, or making the inside of the machine dirty.

Line drawing of a mechanical assembly with a magnified inset showing a component being cut (no text or symbols)

6 Lock the lever of the size change plate and fix it.

Diagram of a mechanical assembly with a magnified inset showing a hand holding a component (no text or symbols present)

7 Squeeze the lever on the paper holder plate as shown below. Without releasing the lever, slide the paper holder plate to align it with the desired paper size.

8 Load all remaining paper into the paper deck.

Line drawing of a hand inserting a button into a device (no text or symbols)

9 Change the paper deck's size plate to match the new paper size.

10 Gently push the paper deck back into the machine until it clicks into place in the closed position.

- The inside lifter automatically rises, and prepares the paper deck for printing.

CAUTION

When returning the paper deck to its original position, be careful not to get your fingers caught, as this may result in personal injury.

NOTE

• Make sure to fan the paper stack, and align the edges before loading paper.
- Curled paper must be straightened out prior to use.
• Make sure that the height of the paper stack does not exceed the loading limit mark (###).
- When loading pre-punched paper, transparencies/clear film, and tab paper, make sure to load paper in an appropriate orientation as the paper orientation differs, depending on the paper source.
- If there are instructions on the package of paper about which side of the paper to load, follow those instructions.
- When the paper is loaded into the paper deck, the side facing down is the one printed on.
- If problems occur, such as poor print quality or paper jams, try turning the paper stack over, and reload it. However, you cannot turn the 1-Sided Coated paper over. Change to the new paper.
- For more information on the print direction of preprinted paper (paper which has logos or patterns already printed on it), see the User's Guide.
- When loading paper, make sure that the height of the paper stack does not exceed 20 mm. If the height of the paper stack exceeds 20 mm, the edges of the paper stack may become curled or creased, and poor print quality may result.

"Maintenance" > "Loading Paper" in the User's Guide

"Copy" > "Appendix" in the User's Guide

■ Selecting Paper Types from the Paper Database

Select the loaded paper type from the Paper Database.

1 Press Ⓞ

2 Press [Preferences] → [Paper Settings] → [Paper Settings].

3 Select the paper deck in which you loaded paper → press [Set].

Settings/Registration A4 M4 M4 M4 M4 M4 Set • Details of Selected Paper • A4 Plain (80-105 g/m2) OK

4 Select the same paper type as the one you loaded → press [Next].

Settings/Registration Select the paper type. All Sort List by Reg'd (Desc.) Name Width Size 1/10 GARON ENHANCED MULTIPURPOSE 20LBS(786) 75 g/m2 No Settings This x (94-78 g/m2) 94 g/m2 No Settings This 1 (94-78 g/m2) 70 g/m2 No Settings Plats (90-100 g/m2) 90 g/m2 No Settings Heavy 1 (100-120 g/m2) 120 g/m2 No Settings Heavy 2 (120-160 g/m2) 140 g/m2 No Settings Heavy 3 (151-180 g/m2) 185 g/m2 No Settings Simple Details Settings Cancel Next

5 Select the same paper size as the one you loaded → press [OK].

- If you load paper other than standard paper, select [Custom Size].

Settings/Registration Settings/ Reg Shortest Paper Settings: Paper Size> • A/B Size A4 305x457 mm A42 320x450 mm (SW43) A3 330x463 mm B4 B5 B60 Inch Size Custom Size Cancel Back OK

6 Confirm that the selected paper type and size are displayed in

→ press [OK].

Settings/Registration Settings/ New Shortcut A4 A4 A4 A4 A4 A4 A4 Set Details of Selected Paper A4 CANON ENVANCED MULTIPURPOSE 20LBS (TSG) OK

Cleaning and Maintenance

For optimum operation of the machine, we recommend to clean and check the machine regularly.

Cleaning the Platen Glass

If originals cannot be scanned properly, follow the cleaning procedure below. Clean with a cloth which is wrung after being dampened in water, and then clean with a soft and dry cloth. Use the provided glass cleaning cloth for simple cleaning.

Line drawing of a vintage desktop computer with an open screen and tray (no text or symbols)

1 Clean the Platen Glass.

- Clean the platen glass and the underside of the feeder.

■Cleaning the Original Scanning Area

If originals which are fed from the feeder cannot be scanned properly, follow the procedure below.

1 Press

2 Press [Adjustment/Maintenance] → [Maintenance] → [Original Scanning Area Cleaning Method].

3 Follow the cleaning instructions on the touch panel display.

Cleaning the Feeder

If originals which are fed from the feeder become dirty, follow the cleaning procedure below. Clean with a cloth which is wrung after being dampened in water, and then clean with a soft and dry cloth. Use the provided glass cleaning cloth for simple cleaning.

Line drawing of a computer monitor with a scroll wheel (no text or symbols)

1 Clean the original scanning area.

- Open the feeder and clean the original scanning area (thin glass strip).

Diagram showing a device with labeled parts, including numbered annotations 1 and 2 indicating specific components or functions.

2 Open the covers.

① Pull the lever above the feeder, and open the cover.
2 Open the inside cover.

Line drawing of a computer monitor with an open screen and drive base (no text or symbols)

3 Clean the original scanning area of the feeder.

Diagram showing a device with labeled parts, including numbered callouts 1 and 2 indicating specific components or functions.

4 Close the covers.

① Close the inside cover.
② Close the cover.

■Automatic Feeder Cleaning

If originals which are fed from the feeder become dirty, follow the procedure below.

1 Place 10 sheets of blank paper into the feeder.

- Use A4 plain paper.

2 Press

3 Press [Adjustment/Maintenance] → [Maintenance] → [Clean Feeder].

4 Press [Start].

■Cleaning the Inside of the Main Unit

If output paper becomes dirty, follow the procedure below.

1 Press

2 Press [Adjustment/Maintenance] → [Maintenance] → [Clean Inside Main Unit].

3 Press [Start].

NOTE

Similarly perform [Adjustment/Maintenance] → [Maintenance] → [Clean Wire] and [Adjustment/Maintenance] → [Maintenance] → [Clean Roller].

■Refreshing the Fixing Roller

If streaks appear on the output paper, or gloss unevenness occurs in the high density area of the printed heavy paper, follow the procedure below.

IMPORTANT

This function is displayed only if the settings are made available by your local authorized Canon dealer. Even if this function is displayed, do not allow anyone to change the settings except for the system manager. For more information on changing the settings, contact your local authorized Canon dealer.

1 Press

2 Press [Adjustment/Maintenance] → [Maintenance] → [Refresh Fixing Roller].

3 Press [Start].

NOTE

The fixing roller is refreshed automatically every several sheets of paper is printed. You can adjust the refresh frequency and time in [Fixing Roller Auto Refresh Level].

■Cleaning the Touch Panel Display

Wipe the touch panel display with a cloth dampened in water or a mild cleaning agent, and then wipe with a soft, dry cloth.

Line drawing of a hand cleaning a kitchen appliance with a cloth (no text or symbols)

■inspection of the Breaker

This machine has a breaker that detects excess current or leakage current. Make sure to test the breaker once a month by following the procedure below.

Select one of the following Energy Seer Shrinker Reset

1 Turn OFF the main power.

• Make sure that the main power is turned OFF, before inspecting the breaker.

Illustration of a machine with a magnified inset showing a circular component and mechanical parts (no text or symbols)

2 Push the test button located on the rear of the machine.

- Push the test button with the tip of a ball-point pen or a similar object. Briefly push the test button.

Illustration of a printer with a circular inset showing a rotary device (no text or symbols present)

3 Confirm that the breaker dial is in the OFF ("side) position.

- If the breaker dial does not turn to the OFF position, repeat step 2. If the breaker dial does not turn to the OFF position, despite carrying out the above procedure two or three times, contact your local authorized Canon dealer.

Illustration of a printer with a hand inserting a button into the print case, showing no text or symbols.

4 Turn the breaker dial all the way down until it stops.

Illustration of a printer with a hand operating the button, showing mechanical components and a magnified view of the device (no text or symbols present)

5 Turn the breaker dial to ON ( "|" side).

Illustration of a printer with a magnified inset showing a device with directional arrows (no text or symbols present)

6 Turn ON the main power.

Consumables

The following consumables are available for this machine. For more information, contact your local authorized Canon dealer. For information on using and storing consumables, see "Consumables," on p. 15.

RecommendedPaper

In addition to plain paper, other types of paper stock are available, such as recycled paper, colour paper, transparencies/clear film (recommended for this machine)/translucent film (recommended for this machine), and labels. For high-quality printouts, use paper recommended by Canon.

Toner

If a message prompting you to replace the toner cartridge appears on the touch panel display, replace the used toner cartridge with a new one. For information on how to replace the toner cartridge, see the User's Guide. For optimum print quality, using Canon genuine toner is recommended.

"Maintenance" > "Replacing the Toner Cartridge" in the User's Guide

Supported Canon Genuine Toner

Canon imagePRESS Toner T02 Black Canon imagePRESS Toner T02 Cyan Canon imagePRESS Toner T02 Magenta Canon imagePRESS Toner T02 Yellow

Line drawing of a cylindrical mechanical component with flanged ends and a tapered end (no text or symbols)

Be careful of counterfeit toners

Please be aware that there are counterfeit Canon toners in the marketplace. Use of counterfeit toner may result in poor print quality or machine performance. Canon is not responsible for any malfunction, accident or damage caused by the use of counterfeit toner. For more information, see canon.com/counterfeit.

Staple Cartridge for the Stapler Unit

The Staple-N1 can be attached to the Finisher-AN1/Saddle Finisher-AN2 for stapling. For information on how to replace the staple cartridge, see the User's Guide.

"Maintenance" > "Replacing the Staple Cartridge (For Optional Products)" > "Replacing the Staple Cartridge in the Stapler Unit (Finisher-AN1/Saddle Finisher-AN2)" in the User's Guide.

Technical line drawing of a mechanical bearing housing (no text or symbols)

Staple-N1

Staple Cartridge for the Saddle Stitcher Unit

The Staple-P1 can be attached to the Saddle Finisher-AN2 for saddle stitching. For information on how to replace the staple cartridge, see the User's Guide.

"Maintenance" > "Replacing the Staple Cartridge (For Optional Products)" > "Replacing the Staple Cartridge in the Saddle Stitcher Unit (Saddle Finisher-AN2)" in the User's Guide.

Technical line drawing of a mechanical component with internal channels and mounting brackets (no text or symbols)

Staple-P1

GenuineConsumables

Canon continuously develops technology innovations in Canon manufactured Toner, Cartridge, and Parts, specifically designed for use in Canon Multi-Functional machines.

Experience the benefits of optimal print performance, print volume and high quality outputs, achieved through Canon's new advanced technologies. Therefore, the use of Canon genuine consumables is recommended for your Canon Multi-Functional machines.

CANON GENUINE TONER, CARTRIDGE & PARTS

Troubleshooting

This section explains how to solve problems when paper jam occurs frequently or error messages are displayed. For information on the detailed procedures and precautions, see the User's Guide.

→ "Problem Solving" in the User's Guide

■Clearing Paper Jams and Staple Jams

If a paper jam or staple jam occurs, follow the instructions displayed on the touch panel display to clear the jam. If you press [Close], you can continue operations, such as scanning originals, even if the jammed paper is not removed.

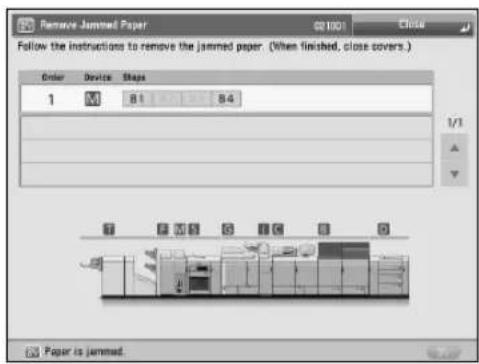

Remove Jammed Paper Follow the instructions to remove the jammed paper. (When finished, close covers.) Order Device Steps 1 8: 8: 8:4 1/1 Paper is jammed.

Paper Jam screen

The location of a paper jam is displayed with animations.

Remove Jammed Staples 021001 Close There is a staple jam in the saddle stitch unit. Open the front cover of the finisher. Staples are jammed

Staple Jam screen

The location of a staple jam and procedures for clearing the jam are displayed.

■Reducing the Frequency of Paper Jams

If paper jams occur frequently, the following reasons may be the cause.

There are torn pieces of paper left inside the machine.

As a result of pulling jammed paper out by force, torn pieces of paper may be left inside the machine.

Remove all of the torn pieces.

Paper which does not match with the setting is loaded.

Make sure that the paper loaded in the paper drawer matches the paper size and type registered in [Paper Settings] in [Preferences].

Selecting Paper Types from the Paper Database," on p. 31

Paper jams occur frequently only when using the specific custom paper.

The paper information may be registered incorrectly.

Confirm the paper information settings for the paper you are using.

"Paper Type Management" in the User's Guide

When an Error Message Is Displayed

If a malfunction occurs and the machine cannot operate normally, a screen shown on the right appears. If the machine cannot operate normally after turning the main power OFF and then ON, contact your local authorized Canon dealer.

"Contacting Your Local Authorized Canon Dealer," on p. 43

Press [Shutdown]. After the device shuts down, turn the main power ON again. • If the device still does not operate normally, contact your service representative with the error code below. 00000-000-05 Shutdowns

If a key for the Limited Functions mode is displayed:

If [Limited Functions Mode] is displayed, you can temporally set the Limited Functions mode to continue to use some functions.

"Problem Solving" > "Service Call Message" in the User's Guide

Press [Shutdown]. After the device shuts down. turn the main power ON again. • If the device still does not operate normally, contact your service representative with the error code below. E300540-8001-05 The finisher output tray cannot move up or down. Make sure that objects are not placed in the range of tray movement. • Press (Limited Func. Mode) to continue operation using limited functions if the device is not functioning correctly even after the main power has been turned OFF using the main power on turn. Off is turned ON. Limited Func. Mode Shutdowns

If a message is displayed on the bottom of the screen:

If an error message appears on the bottom of the screen, printing and scanning functions are restricted, but some functions may still be available.

"Problem Solving" > "Service Call Message" in the User's de

Main Menu Settings/ Rep Shortcut Select a function Show All Copy Scan and Send Scan and Store Access Stored Files Fax/1-fax Inbox Scanner Settings/ Reg.Shortout Fiery Fixing unit needs to be replaced. Call service rep.

■ Contacting Your Local Authorized Canon Dealer

If you cannot operate the machine normally after turning the main power OFF and then ON, contact your local authorized Canon dealer by following the procedure below.

1 Note the error code.

- Write down the error code "EXXXXX-XXXX".

Press [Shutdown]. After the device shuts down, turn the main power OK again. • If the device still does not operate normally, contact your service representative with the error code below. B000732-0001-00 Shutdown

2 Turn OFF the main power.

- Press [Shutdown] on the touch panel display.

Press [Shutdown]. After the device shuts down, turn the main power ON again. • If the device still does not operate normally, contact your service representative with the error code below. E000732-0001-60 Shutdown

3 Remove the power plug from the power outlet.

4 Confirm the product name, and contact your local authorized Canon dealer.

■f Memory Becomes Full

If memory becomes full during scanning, the following messages appear on the touch panel display. Follow the procedures on the screen, and then delete unnecessary files stored in the Mail Box and Fax/I-Fax Inbox to make more memory available.

Scanning will be canceled because the memory is full. Do you want to print (send, store)* the scanned pages?

* A part of the message differs, depending on the function used.

[Yes]: A job for the pages scanned into memory is processed. After processing the job, scan the remaining pages.

[No]: A job for the pages scanned into memory is cancelled. Scan the whole pages again.

Scanning will be canceled because the memory is full. Wait a moment, then try again.

[OK]: Scan the whole pages again after the current operation is complete.

Could not perform the operation because the memory is full.

[OK]: Delete unnecessary data from memory, and then scan the whole pages again.

■f the Main Power Does Not Turn ON

If the machine cannot operate when the main power is turned ON, check the breaker. If the breaker is switched to the OFF position, do not attempt to turn ON the breaker yourself, and be sure to contact your local authorized Canon dealer.

ON (1側) OFF (側)

Specifications

Specifications are subject to change without notice for product improvement or future release.

For more information on the specifications of the following optional equipment, consult the relevant guide.

• High Capacity Stacker-H1
- BookletTrimmer-D1
- Two-KnifeBookletTrimmer-A1
- PerfectBinder-E1
• Multi Function Professional Puncher-A1

MainUnit

Item Specifications

Name Canon imagePRESS C10000VP/C8000VP
Type Reader-Print	er Separated, Console type
Colour Supported Full Colour
Resolution for Writing 2400 dpi x 2400 dpi
Paper Weight / Type Right/Left Paper Deck:
	Weight:60 g/m2 to 350 g/m2Type:Thin 2 (60 g/m2 to 63 g/m2), Thin 1 (64 g/m2 to 79 g/m2), Plain (80 g/m2 to 105 g/m2), Heavy 1 (106 g/m2 to 128 g/m2), Heavy 2 (129 g/m2 to 150 g/m2), Heavy 3 (151 g/m2 to 180 g/m2), Heavy 4 (181 g/m2 to 209 g/m2), Heavy 5 (210 g/m2 to 256 g/m2), Heavy 6 (257 g/m2 to 300 g/m2), Heavy 7 (301 g/m2 to 325 g/m2), Heavy 8 (326 g/m2 to 350 g/m2), Colour, Recycled, Pre-Punched, Transparency, Tab *, Bond paper, Textured *, Vellum, Clear Film, Translucent Film, 1-Sided Coated, 2-Sided Coated, Matte Coated* The printing conditions may vary, depending on the paper type. For more information on paper types, see User's Guide > Basic Operations.*1Tab Feeding Attachment-F1 is needed for Tab Paper*2Textured paper that is 221 g/m2 or more in weight cannot be used.
Print Sizes Paper sizes:
	330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, A4, A4R, A5R, Custom Size (182.0 mm x 182.0 mm to 330.2 mm x 487.7 mm)
Warm-Up Time After powering ON
	7 minutes
First Copy Time	Full colour:25 seconds*Black-and-White:25 seconds*2*1When "Color Priority" is selected.*2When "Black & White Priority" is selected.

Item Specifications

Print Speed(Plain paper (80 g/m2))	Direct (sheet/minute)
		imagePRESSC10000VP	imagePRESSC8000VP
	330 mm x 483 mm 51 39
	320 mm x 450 mm(SRA3)	54 42
	305 mm x 457 mm 53 41
	A3 57 44
	A4 100 80
	A4R 77 61
	The print speed may vary, depending on the settings for paper type, paper size, and the sending method.When continuously printing, adjustments for machine temperature or image quality may cause machine operations to pause or become slow.
Margin Top: 2.5 mm ±0.5 mm	Left and Right: 2.5 mm ±0.5 mm (left side)/(2.5 mm) (right side)Bottom: 2.5 mm (reference value)
Paper Feeding System / Capacity Right/Left Paper Deck:1,000 sheets x 2 cassettes (80 g/m2)
Multiple Copies 1 to 9,999 sheets
Power Source 3-phase 5-wires 380-415 V AC, 50/60 Hz, 18 A
Power Consumption Maximum Power Consumption:13,000 W maximum
Memory Capacity Standard:System domainRAM: 1.5GBImage handling domainRAM: 2GB
Hard Disk Capacity* Standard: 250 GB* The hard disk capacity is subject to change in future release.
Dimensions (W x D x H) 2,586 mm x 1,152 mm x 1,456 mm(Marking Engine, Fixing Station, and Power Supply Unit)
Weight	Approximately 1,200 kg
Installation Space (W x D)	3,391 mm x 1,152 mm(When the Duplex Color Image Reader Unit-K1, the Upright Control Panel-F1, and the Finisher-AN1 (or the Saddle Finisher-AN2) are attached)

■Duplex Color Image Reader Unit-K1

Item Specifications
Type Printer separated, Stream feed (Feeder), No stream (Reader)
Resolution for Reading 600 dpi x 600 dpi
Number of Tones 256
Acceptable Originals Sheet, book, three dimensional object (up to 2 kg)
Size and Weight of Originals Size:
	A3, A4, A4R, A5, and A5RWeight:1-sided scanning:38 g/m ^2 to 220 g/m ^2 2-sided scanning:50 g/m ^2 to 220 g/m ^2 (Black and White Original)64 g/m ^2 to 220 g/m ^2 (Colour Original)
Magnification Regular paper size:
	Same Ratio:1 : 1Reduction:1 : 0.70 (A3 → A4R)1 : 0.50 (A3 → A5R)1 : 0.25Enlargement:1 : 1.41 (A4R → A3)1 : 2.00 (A5R → A3)1 : 4.00Copy Ratio:25 % to 400 % (in 1 % increments)
Original Feeding Mechanism Automatic Document Feeder
Original Tray Capacity 300 sheets (80 g/m ^2 )
Original Scanning Speed Copying:
	1-sided scanning:120 sheets/minute* (A4 in Black-and-White at 600 dpi)70 sheets/minute (A4 in Full Colour at 600 dpi)2-sided scanning:60 sheets/minute (120 pages) ^41 (A4 in Black-and White at 600 dpi)35 sheets/minute (70 pages) (A4 in Full Colour at 600 dpi)Scanning:1-sided scanning:120 sheets/minute (A4 in Black-and-White/Full Colour at 300 dpi)2-sided scanning:100 sheets/minute (200 pages) ^*1 (A4 in Black-and-White at 300 dpi)70 sheets/minute (140 pages) (A4 in Full Colour at 300 dpi) ^*1 When "Speed Priority" is selected. ^*1 The scanning speed may vary, depending on the scanning mode and original type.
Dimensions (W x D x H) 633 mm x 603 mm x 179 mm
Weight	Approximately 27.5 kg

POD Deck Lite-C1

Item Specifications
Paper Size / Weight / Type Size:
	A3, A4R, A4, A5, 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, Custom Size (139.7 mm x 182.0 mm to 330.2 mm x 487.7 mm)
	Weight:60 g/m2to 350 g/m2Type:Thin paper (60 g/m2to 79 g/m2), Plain paper (80 g/m2to 105 g/m2), Thick paper (106 g/m2to 350 g/m2), Recycled paper, Colour paper, Transparency, Label, Film, Post card, Coated paper (70 g/m2to 350 g/m2), Textured paper, Bond paper, Pre-punched paper, Vellum paper, Tab paper
Paper Deck Capacity 4,000 sheets (64 g/m	2; 385 mm)3,500 sheets (80 g/m2; 385 mm)
Power Source / Maximum Power Consumption	220-240 V AC, 50/60 Hz, 1.2 A/480 W or less
Dimensions (W x D x H) 656 mm x 686 mm x 570 mm
Weight Approximately 68 kg
Installation Space Including the Main Unit(W x D)	4,029 mm x 1,152 mm(When the Duplex Color Image Reader Unit-K1, the Upright Control Panel-F1, and the Finisher-AN1 (or the Saddle Finisher-AN2) are attached)

■ POD Deck-D1/Secondary POD Deck-D1

Item Specifications
Paper Size / Weight / Type Size:
	A3, A4R, A4, 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, Custom Size (182.0 mm x 182.0 mm to 330.2 mm x 487.7 mm)
	Weight:
	60 g/m2 to 350 g/m2
	Type:
	Uncoated Paper (60 g/m2 to 350 g/m2), Coated Paper (70 g/m2 to 350 g/m2), Emboss Paper, Tab Paper, Film
	* Tab Feeding Attachment-E1 is needed for Tab Paper
Paper Deck Capacity
	1,000 x 2 + 2,000 sheets (80 g/m2)
	150 sheets (80 g/m2; 15 mm)
Power Source / Maximum Power Consumption	220-240 V AC, 50/60 Hz, 5.0 A/1000 W or less
Dimensions (W x D x H) POD Deck-D1 only:
	982 mm x 792 mm x 1,095 mm
	POD Deck-D1 and Secondary POD deck-D1:
	1,793 mm x 792 mm x 1,095 mm
Weight POD Deck-D1 only:
	Approximately 250 kg
	POD Deck-D1 and Secondary POD deck-D1:
	Approximately 480 kg

Item Specifications

Installation Space Including the Main Unit(W x D)

4,378 mm x 1,152 mm(When the Duplex Color Image Reader Unit-K1, the Upright Control Panel-F1, and the Finisher-AN1 (or the Saddle Finisher-AN2) are attached)

LONGSHEETTRAY-A1

Item Specifications

Paper Size / Weight / Type Size:
	Custom Size (210.0 mm x 487.7 mm to 330.2 mm x 762.0 mm)
	Weight:
	60 g/m2to 256 g/m2
	Type:
	Thin paper (60 g/m2to 79 g/m2), Plain paper (80 g/m2to 105 g/m2), Thick paper (106 g/m2to 256 g/m2), Recycled paper, Colour paper, Coated paper (80 g/m2to 256 g/m2), Textured paper, Bond paper
Paper Capacity 1 sheet (60 g/m)	' to 256 g/m2)
Dimensions (W x D x H) 650 mm x 550 mm x 480 mm
Weight (including the Extension output tray) Approximately 8.6 kg

Tab Feeding Attachment-E1

Item Specifications

Paper Size A4 / LTR

Weight 0.1 kg

Document Insertion Unit-N1

Item Specifications

Paper Size / Weight / Type Size:
	Insert path:A3, A4R, A4, 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm,Custom Size (182.0 mm x 182.0 mm to 330.2 mm x 487.7 mm)Through path:All paper type engines supportsWeight:60 g/m2to 300 g/m2Type:Insert path:Thin paper (60 g/m2to 79 g/m2), Plain paper (80 g/m2to 105g/m2), Thick paper (106 g/m2to 300 g/m2), Recycled paper, Coated paper, Colour paper, Tab paper, Textured paper, Prepunched paper, Vellum, Bond paperThrough path:All paper type engines supports
Paper Capacity 200 sheets x 2 (80 g/m)	)

Item Specifications

Power Source / Maximum Power Consumption	100-240 V AC, 50/60 Hz, 1.0 A/120 W or less
Dimensions (W x D x H) 746 mm x 793 mm x 1,407 mm(Including the Inserter Option controller Kit-A1)
Weight Approximately 61 kg
Installation Space Including the Main Unit (W x D)	3,732 mm x 1,152 mm(When the Duplex Color Image Reader Unit-K1, the Upright Control Panel-F1, and the Finisher-AN1 (or the Saddle Finisher-AN2) are attached)

Paper Folding Unit-J1

Item Specifications

Paper Size / Weight / Type Size:
	Z fold: A3, A4RLetter fold in (C fold): A4RLetter fold out: A4Rdouble parallel fold: A4RHalf fold: A4RWeight:Z fold, Letter fold in (C fold), Letter fold out, Half fold: 60 g/m2 to 105 g/m2double parallel fold: 60 g/m2 to 90 g/m2Through path:All substrates engines supportsType:Thin paper (60 g/m2 to 79 g/m2), Plain paper (80 g/m2 to 105 g/m2), Recycled paper,Colour paper, Coated paper, Bond paper, Textured paperThrough path:All substrates engines supports
Power Source / Maximum Power Consumption	From the finisher/150 W or less
Dimensions (W x D x H) 336 mm x 793 mm x 1,190 mm
Weight Approximately 71 kg
Installation Space Including the Main Unit (W x D)	3,732 mm x 1,152 mm(When the Duplex Color Image Reader Unit-K1, the Upright Control Panel-F1, and the Finisher-AN1 (or the Saddle Finisher-AN2) are attached)

Finisher-AN1

Item Specifications

Paper Size / Weight / Type Size:
	A3, A4R, A4, A5, 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, Custom Size (148.0 mm x 182.0 mm to 330.2 x 762.0 mm)
	A3, A4R, A4, 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, Custom Size (182.0 mm x 182.0 mm to 330.2 mm x 487.7 mm) * No neat in case of shifting with width 178.5 mm or less
	Weight:
	Plain Paper: 60 g/m2 to 350 g/m2, Coated Paper: 70 g/m2 to 350 g/m2
	Plain Paper: 60 g/m2 to 350 g/m2, Coated Paper: 70 g/m2 to 350 g/m2
	Type:
	All paper type engines supports
	All paper type engines supports
Capacity Per Tray
	Non Staple
	Non Sort (Normal Stacking/Mixed Stacking)
	If it reaches either condition below, motion stops;
	All size: 147 mm (1,000 sheets) * No high volume stack mode
	Z-fold: A3: 10 sheets per 1 set or 30 sheets
	Half-fold: A4: 50 sheets
	Bunch Shift
	If it reaches either condition below, motion stops;
	All size (182.0 mm x 182.0 mm to 304.8 mm x 457.2 mm): 147 mm (1,000 sheets) * No high volume stack mode
	Z-fold: A3: 10 sheets per 1 set or 30 sheets
	Half-fold: A4: 50 sheets

Item Specifications

Capacity Per Tray

Non Staple

Non Sort (Normal Stacking/Mixed Stacking)

If it reaches either condition below, motion stops;

A4 size: 285 mm (2,000 sheets)

A4R/A3/330 mm x 483 mm/320 mm x 450 mm (SRA3) size: 147 mm (1,000 sheets)

Z-fold: A3: 10 sheets per 1 set or 30 sheets

Half-fold: A4: 50 sheets

* In case of high volume stack mode

A4: 490 mm (4,000 sheets; 80g/m² or less),

A4: 423 mm (3,000 sheets; 80.1g/m ^2 or more)

A4R: 285 mm (2,000 sheets)

A3: 216 mm (1,500 sheets*),

330 mm x 483 mm, 320 mm x 450 mm (SRA3): 147 mm (1,000 sheets)

* In case of coated paper, 147 mm (1,000 sheets)

In case of less than 64 g/m ^2 , 1,000 sheets

Bunch Shift

If it reaches either condition below, motion stops;

A4 size: 285 mm (2,000 sheets)

A4R/A3/330 mm x 483 mm, 320 mm x 450 mm (SRA3) size: 147 mm (1,000 sheets)

Z-fold: A3: 10 sheets per 1 set or 30 sheets

Half-fold: A4: 50 sheets

* In case of high volume stack mode,

A4: 490 mm (4,000 sheets; 80g/m ^2 or less),

A4: 423 mm (3,000 sheets; 80.1g/m ^2 or more),

A4R: 285 mm (2,000 sheets)

A3: 216 mm (1,500 sheets*)

330 mm x 483 mm/320 mm x 450 mm (SRA3): 147 mm (1,000 sheets)

* In case of coated paper, 147 mm (1,000 sheets)

In case of less than 64 g/m ^2 , 1,000 sheets

Staple

One point at front/One point at back (diagonal)

Two points in center (parallel)

If it reaches either condition below, motion stops;

A4 (Minimum size: 182 mm x 210 mm): 423 mm (3,000 sheets) or 200 sets

A4R: 285 mm (2,000 sheets) or 200 sets

A3: 216 mm (1,500 sheets ^*1 )

Z-folder: 10 sheets per 1 set or 30 sheets per 1 job

* In case of coated paper, 147 mm (1,000 sheets)

Item Specifications

Max. Stapling Capacity / Available Staple Size A4 Size:

Plain Paper;

60 g/m ^2 to 80 g/m ^2 : 100 Sheets

80.1 g/m² to 81.4 g/m²: 80 Sheets

81.5 g/m² to 105 g/m²: 60 Sheets

105.1 g/m² to 200 g/m²: 20 Sheets

Over 200 g/m ^4 : Front/Back Cover Sheet only

Coated Paper;

70 g/m ^2 to 200 g/m ^2 ; 15 Sheets

Over 200 g/m ^2 : Front/Back Cover Sheet only

A4R/A3 Size:

Plain Paper;

60 g/m ^2 to 80 g/m ^2 : 50 Sheets

80.1 g/m² to 81.4 g/m²: 50 Sheets

81.5 g/m² to 105 g/m²: 30 Sheets

105.1 g/m² to 200 g/m²: 10 Sheets

Over 200 g/m ^4 : Front/Back Cover Sheet only

Coated Paper;

70 g/m ^3 to 200g/m ^3 : 10 Sheets

Over 200g/m ^2 : Front/Back Cover Sheet only

If cover/back sheet is more than 300 g/m^2 or body is glossy coated paper on A4 size, number should be subtracted by 10.

Power Source / Maximum Power Consumption

120-240 V AC, 50/60 Hz, 8 A/500 W or less

Dimensions (W x D x H) 800 mm x 792 mm x 1,239 mm

Weight Approximately 132 kg (Including die)

Installation Space Including the Main Unit (W x D)

3,391 mm x 1,152 mm (When the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-F1 are attached)

Item Specifications

Paper Size / Weight / Type Finisher

Size:

<Upper Tray>

A3, A4R, A4, A5, 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, Custom Size (148.0 mm x 182.0 mm to 330.2 mm x 762.0 mm)

<Lower Tray>

A3, A4R, A4, 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, Custom Size (182.0 mm x 182.0 mm to 330.2 mm x 762.0 mm)

* No neat in case of shifting with width 178.5 mm or less

Weight:

<Upper Tray>

Plain Paper: 60 g/m2 to 350 g/m2, Coated Paper: 70 g/m2 to 350 g/m2

<Lower Tray>

Plain Paper: 60 g/m2 to 350 g/m2, Coated Paper: 70 g/m2 to 350 g/m2

Type:

<Upper Tray>

All paper type engines supports

<Lower Tray>

All paper type engines supports

Saddle Stitch

Size:

A3, A4, 330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, Custom Size (210.0 mm x 279.4 mm to 330.2 mm x 487.7 mm)

Weight:

<Plain Paper>

Body Paper: 60 g/m2 to 220 g/m2, Cover Paper: 64 g/m2 to 300 g/m2

<Coated Paper>

Body Paper: 70 g/m2 to 220 g/m2, Cover Paper: 70 g/m2 to 300 g/m2

Type:

High Quality Paper, Coated Paper, Plain Paper, Recycle Paper, Bond paper, Textured paper, Translucent Film (depending on types)

Capacity Per Tray Unlimited, or Max. 30 sets (Depends on size and bunch number)

Max. Stapling Capacity / Available Staple Size Plain Paper:

2 to 25 Sheets (60 g/m2to 63.9 g/m2)

2 to 25 Sheets (64 g/m2to 80 g/m2)

2 to 15 Sheets (80.1 g/m2to 105 g/m2)

2 to 5 Sheets (105.1 g/m2to 209 g/m2)

2 to 4 Sheets (209.1 g/m2to 220 g/m2) including cover sheet

Coated Paper:

2 to 10 Sheets (70 g/m2to 128 g/m2)

2 to 5 Sheets (128.1 g/m2to 209 g/m2)

2 to 4 Sheets (209.1 g/m2to 220 g/m2) including cover sheet

Use the paper whose weight is more than body paper's weight for cover sheet.

Item Specifications

Available Saddle Stitch Capacity / Size Saddle Stitch:
	25 sheets (80 g/m ^2 ) (including 1 cover sheet)
	Saddle Folding:
	5 sheets (80 g/m ^2 )
	Size:
	330 mm x 483 mm, 320 mm x 450 mm (SRA3), 305 mm x 457 mm, A3, A4R, and Custom Size (210.0 mm x 279.4 mm to 330.2 mm x 487.7 mm)
	Cover Weight:
	Requires the paper weight of the main document (more than 64 g/m ^2 ) or more.* Available Saddle Stitch capacity may vary, depending on the paper type and weight.
Power Source / Maximum Power Consumption	120-240 V AC, 50/60 Hz, 8 A/500 W or less
Dimensions (W x D x H) 800 mm x 792 mm x 1,239 mm
Weight Approximately 184 kg (Including die)
Installation Space Including the Main Unit (W x D)	3,391 mm x 1,152 mm(When the Duplex Color Image Reader Unit-K1 and the Upright Control Panel-F1 are attached)

SendFunction

- ScanFeatures

Item Specifications

Communication Protocol FTP (TCP/IP), SMB (TCP/IP), WebDAV
Data Format TIFF, JPEG, PDF, XPS, OO	XML (PowerPoint)
Resolution 100 x 100 dpi, 150 x 150 dpi, 200 x 100 dpi, 200 x 200 dpi, 200 x 400 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi
System Environment Windows Server 2003 R2 SP2, Windows Vista SP2, Windows Server 2008 R2, Windows 7,Windows 8, Windows 8.1, Windows Server 2012, Windows Server 2012 R2, Red Hat Linux 9*,Solaris10*1* Available on FTP and WebDAV
Interface 1000BASE-T, 100BASE-TX, 10BASE-T
Color Mode Automatic-Color Select (Full Color/Grayscale), Automatic-Color Select (Full Color/Black-and-White), Full Color, Grayscale, Black-and-White
Original Type Text, Text/Photo, Photo
Other Preview, Browse Windows (SMB) File Server
Optional PDF / XPS / OOXML Functions	PDFCompact, Trace and Smooth, Limited Color, Encryption, OCR, Device Signature, Optimization for Web*, PDF/A-1b, Policy AppliedXPSCompact, OCR, Device SignatureOOXMLPowerPoint, Word, OCR* PDF files optimized for Web viewing.

• E-Mail and I-Fax Features

Item Specifications

Communication Protocol SMTP, POP3
I-Fax Communication Mode	Simple, Full
Resolution For Sending E-mail
	100 x 100 dpi, 150 x 150 dpi, 200 x 100 dpi, 200 x 200 dpi, 200 x 400 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpiFor Sending I-Fax (Black-and-White)200 x 100 dpi, 200 x 200 dpi, 200 x 400 dpi*, 300 x 300 dpi*, 400 x 400 dpi*, 600 x 600 dpi*1For Sending I-Fax (Color)100 x 100 dpi*, 200 x 200 dpi*, 300 x 300 dpi*, 400 x 400 dpi*, 600 x 600 dpi*1
Format	E-mailTIFF, JPEG, PDF, XPS, OOXML (PowerPoint)I-Fax (Black-and-White)TIFF (MH, MR*, MMR*)I-Fax (Color)TIFF (Profile-C)*1

Item Specifications

Original Size E-mail
	A3, A4, A4R, A5, A5RI-FaxA3, A4, A4R, A5*2, A5R*2
Server Software Microsoft Exchange 2003 SP2, Microsoft Exchange 2007 SP3, Sendmail 8.14.4, MicrosoftExchange 2010, Lotus Domino R7.0
Other Searches a destination via the LDAP Server, Preview
Optional PDF / XPS / OOXML Functions (E-mail only)	PDFCompact, Trace and Smooth, Limited Color, Encryption, OCR, Device Signature, Optimization for Web*3, PDF/A-1b, Policy AppliedXPSCompact, OCR, Device SignatureOOXMLPowerPoint, Word, OCR

* Available after setting RX conditions of the destination.
* Sent as A4.
* PDF files optimized for Web viewing.

NetworkEnvironment

- HardwareSpecifications

Item Specifications

Network Interface 10Base-T/100Base-TX/1000Base-T (RJ-45)

ProductName

Safety regulations require the product's name to be registered. In some regions where this product is sold, the following name(s) in parenthesis may be registered instead. imagePRESS C10000VP/C8000VP (F164400)

EMC requirements of EC Directive

This equipment conforms with the essential EMC requirements of EC Directive. We declare that this product conforms with the EMC requirements of EC Directive at nominal mains input 400 V, 50 Hz although the rated input of the product is 380 to 415 V, 50/60 Hz. Use of shielded cable is necessary to comply with the technical EMC requirements of EC Directive.

• Equipment complying with IEC 61000-3-12

WARNING

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

LaserSafety

This product is confirmed as a Class 1 laser product in IEC60825-1:2014 and EN60825-1:2014.

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

The laser beam can be harmful to human bodies. Since radiation emitted inside the product is completely confined within protective housings and external covers, the laser beam cannot escape from the machine during any phase of user operation. Read the following remarks and instructions for safety.

• Never open covers other than those instructed in the manuals for this machine.
• If the laser beam should escape and enter your eyes, exposure may cause damage to your eyes.
• Use of controls, adjustments, or performance of procedures other than those specified in this manual may result in hazardous radiation exposure.

Only for European Union and EEA (Norway, Iceland and Liechtenstein)

These symbols indicate that this product is not to be disposed of with your household waste, according to the WEEE Directive (2012/19/EU), the Battery Directive (2006/66/EC) and/or national legislation implementing those Directives.

If a chemical symbol is printed beneath the symbol shown above, in accordance with the Battery Directive, this indicates that a heavy metal (Hg = Mercury, Cd = Cadmium, Pb = Lead) is present in this battery or accumulator at a concentration above an applicable threshold specified in the Battery Directive.

This product should be handed over to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (EEE) and batteries and accumulators. Improper handling of this type of waste could have a possible impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. Your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources.

For more information about the recycling of this product, please contact your local city office, waste authority, approved scheme or your household waste disposal service or visit www.canon-europe.com/weee, or www.canon-europe.com/battery.

WEEE Directive / Rule

-European Union (and EEA) only-

This symbol attached on the product is according to the WEEE Directive (2002/96/EC).

Prohibition sign showing a trash bin crossed out by a diagonal line, with a blank rectangular bar below.

-India only-

This product is not to be disposed of with your household waste, according to the E-Waste (Management) Rules, 2016. This product should be handed over to a designated collection point, e.g., to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information regarding return and recycling of WEEE products, please visit http://www.canon.co.in/environment or write to us at [e-mail].

Also, this product complies with the "E-Waste (Management) Rules, 2016" and prohibits use of lead, mercury,

hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations

exceeding 0.1 % by weight and 0.01 % by weight for Cadmium, except for the exemptions set in Schedule II of the Rule.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Copyright

Copyright CANON INC. 2015

No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, or by any information storage or retrieval system without the prior written permission of Canon Inc. This product includes software and/or software modules that are licensed by Canon Inc. or its licensors from third parties. Use and distribution of this software and/or software modules are subject to conditions (a) through (f) below.

(a)

Copyright (C) 1999, 2000, 2002 Aladdin Enterprises. All rights reserved.

(b)

UFST: Copyright © 1989 - 1996, 1997, 2003, 2004, 2008, all rights reserved, by Monotype Imaging Inc.

(c)

Copyright © Unpublished Work of Novell, Inc. All Rights Reserved.

(d)

Portions of this software are copyright © 2007 The FreeType Project (www.freetype.org). All rights reserved.

(e)

Copyright 2012 jQuery Foundation and other contributors http://jquery.com/

(f)

Copyright(C) 1995-2003 Adobe Systems Inc. All rights reserved.

Disclaimers

The information in this document is subject to change without notice.

CANON INC. MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, EITHER EXPRESS OR IMPLIED, EXCEPT AS PROVIDED HEREIN, INCLUDING WITHOUT LIMITATION, THEREOF, WARRANTIES AS TO MARKETABILITY, MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE, OR NON-INFRINGEMENT. CANON INC. SHALL NOT BE LIABLE FOR ANY DIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM THE USE OF THIS MATERIAL.

Legal Limitations on the Usage of Your Product and the Use of Images

Using your product to scan, print or otherwise reproduce certain documents, and the use of such images as scanned, printed or otherwise reproduced by your product, may be prohibited by law and may result in criminal and/or civil liability. A non-exhaustive list of these documents is set forth below. This list is intended to be a guide only. If you are uncertain about the legality of using your product to scan, print or otherwise reproduce any particular document, and/or of the use of the images scanned, printed or otherwise reproduced, you should consult in advance with your legal advisor for guidance.

• Paper Money
• Money Orders
  • Certificates of Deposit
  • Postage Stamps (cancelled or uncancelled)
  • Identifying Badges or Insignias
  • Selective Service or Draft Papers
  • Checks or Drafts Issued by Governmental Agencies
  • Motor Vehicle Licenses and Certificates of Title
• Travelers Checks
• Food Stamps
• Passports
• Immigration Papers
  • Internal Revenue Stamps (cancelled or uncancelled)
  • Bonds or Other Certificates of Indebtedness
• Stock Certificates
  • Copyrighted Works/Works of Art without Permission of Copyright Owner

Trademarks

"MEAP" is a trademark of CANON Inc., referring to an "application platform" for Canon multifunction and single function printers. This product contains the Universal Font Scaling Technology or UFST® under license from Monotype Imaging, Inc. UFST® is a trademark of Monotype Imaging, Inc. registered in the United States Patent and Trademark Office and may be registered in certain jurisdictions.

Apple, AppleTalk, EtherTalk, LocalTalk, Mac, Mac OS, and Safari are trademarks of Apple Inc.

Microsoft, Windows, Windows Vista, Windows Server, Internet Explorer, Excel and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Adobe® PostScript® 3™

Adobe, PostScript, and the PostScript logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Copyright © 2007 -08 Adobe Systems Incorporated. All rights reserved.

Protected by U.S. Patents 5,737,599; 5,781,785; 5,819,301; 5,929,866; 5,943,063; 6,073,148; 6,515,763; 6,639,593; 6,754,382; 7,046,403; 7,213,269; 7,242,415; Patents pending in the U.S. and other countries.

All instances of the name PostScript in the text are references to the PostScript language as defined by Adobe Systems Incorporated unless otherwise stated. The name PostScript also is used as a product trademark for Adobe Systems' implementation of the PostScript language interpreter.

Except as otherwise stated, any reference to a "PostScript printing device," "PostScript display device," or similar item refers to a printing device, display device or item (respectively) that contains PostScript technology created or licensed by Adobe Systems Incorporated and not to devices or items that purport to be merely compatible with the PostScript language.

Adobe, the Adobe logo, PostScript, the PostScript logo, and PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Linux is a registered trademark of Linus Torvalds. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

All other trademarks are the property of their respective owners.

Adobe® PDF

The PDF logo is a trademark or registered trademark of Adobe Systems Incorporated in the United States and other countries.

Copyright © 2008 Adobe Systems Incorporated. All rights reserved.

Protected by U.S. Patents 6,185,684; 6,205,549; 7,213,269; 7,272,628; 7,278,168; Patents pending in the U.S. and other countries.

All instances of the name PostScript in the text are references to the PostScript language as defined by Adobe Systems Incorporated unless otherwise stated. The name PostScript also is used as a product trademark for Adobe Systems' implementation of the PostScript language interpreter.

Except as otherwise stated, any reference to a "PostScript printing device," "PostScript display device," or similar item refers to a printing device, display device or item (respectively) that contains PostScript technology created or licensed by Adobe Systems Incorporated and not to devices or items that purport to be merely compatible with the PostScript language.

Adobe, the Adobe logo, PostScript, the PostScript Logo, and PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

All other trademarks are the property of their respective owners.

Other product and company names herein may be the trademarks of their respective owners.

Third Party Software

This Canon product (the "PRODUCT") includes third-party software modules. Use and distribution of these software modules, including any updates of such software modules (collectively, the "SOFTWARE") are subject to license conditions (1) through (9) below.

(1) You agree that you will comply with any applicable export control laws, restrictions or regulations of the countries involved in the event that this PRODUCT including the SOFTWARE is shipped, transferred or exported into any country.
(2) Rights holders of the SOFTWARE retain in all respects the title, ownership and intellectual property rights in and to the SOFTWARE.
Except as expressly provided herein, no license or right, expressed or implied, is hereby conveyed or granted by rights holders of the SOFTWARE to you for any intellectual property of rights holders of the SOFTWARE.
(3) You may use the SOFTWARE solely for use with the PRODUCT.
(4) You may not assign, sublicense, market, distribute, or transfer the SOFTWARE to any third party without prior written consent of rights holders of the SOFTWARE.
(5) Notwithstanding the foregoing, you may transfer the SOFTWARE only when (a) you assign all of your rights to the PRODUCT and all rights and obligations under the license conditions to transferee and (b) such transferee agrees to be bound by all these conditions.
(6) You may not decompile, reverse engineer, disassemble or otherwise reduce the code of the SOFTWARE to human readable form.
(7) You may not modify, adapt, translate, rent, lease or loan the SOFTWARE or create derivative works based on the SOFTWARE.
(8) You are not entitled to remove or make separate copies of the SOFTWARE from the PRODUCT.
(9) The human-readable portion (the source code) of the SOFTWARE is not licensed to you.

Notwithstanding (1) through (9) above, the PRODUCT includes third-party software modules accompanying the other license conditions, and these software modules are subject to the other license conditions.

Please refer to the other license conditions of third-party software modules described in Appendix of Manual for the corresponding the PRODUCT. This Manual is available at http://canon.com/oip-manual.

By using the PRODUCT, you shall be deemed to have agreed to all applicable license conditions. If you do not agree to these license conditions, please contact your service representative.

imagePRESSC10000VP/C8000VP

Fonctions pratiques

Illustration of a paintbrush resting on an artist's palette with four paint blobs (no text or symbols)

Six-panel grid showing six identical panels of black balloons with white centers, arranged in a 2x2 grid (no text or symbols)

Five overlapping sheets of paper with distinct gray, white, and dark gray surfaces (no text or symbols)

Diagram showing a curved stack of papers transforming into a single sheet of paper, with an arrow indicating the process (no text or symbols present)

Diagram showing a control panel with labeled buttons and a hand interacting with a touchscreen display, alongside a schematic diagram with Chinese annotations.

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

Illustration of a hand placing a card into a box with a 'no' symbol nearby (no text or labels)

Illustration of a mechanical machine with two boxes and a rack, no text or symbols present

Technical diagram of an industrial machine with numbered components and close-up insets for detail

1 Panneau de configuration-F1

Technical diagram of a server rack with numbered components and exploded views

1Cartouche de toner

Illustration of a machine with a magnified inset showing a rotating component (no text or symbols)

Illustration of a computer monitor connected to a machine with a hand pointing at the screen (no text or symbols present)

1 Appuyer sur

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Illustration of hands using a device to remove debris, with no visible text or symbols

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset view of a component (no text or symbols present)

Line drawing of a hand inserting a button into a device panel (no text or symbols)

Line drawing of a vintage desktop computer with monitor and screen (no text or symbols)

Line drawing of a computer monitor with a paper clip inserted into the base (no text or symbols)

Diagram showing a device with labeled parts, including numbered annotations 1 and 2 indicating specific components or states.

Line drawing of a computer monitor with an open screen and drive base (no text or symbols)

Diagram showing a device with labeled parts, including numbered callouts 1 and 2 indicating specific components or functions.

4 Fermer les capots.

Line drawing of a hand cleaning a clean appliance on a kitchen appliance (no text or symbols)

Illustration of a machine with a magnified inset showing a circular component and mechanical parts (no text or symbols)

Illustration of a printer with a circular inset showing a rotary switch and a magnified view of the device (no text or symbols present)

Illustration of a printer with a hand inserting a button into the print case, showing no text or symbols.

Illustration of a printer with a hand operating the button, showing mechanical components and a magnified view of the device (no text or symbols present)

Illustration of a printer with a magnified inset showing a device with directional arrows (no text or symbols present)

Line drawing of a cylindrical mechanical component with flanges and a pointed end (no text or symbols)

Technical line drawing of a mechanical bearing housing (no text or symbols)

Agrafes-N1

Technical line drawing of a mechanical component or housing (no text or symbols)

Agrafes-P1

ConsommablesCanon

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

www.canon-europe.com/battery.

Copyright

Copyright CANON INC. 2015

Copyright (C) 1999, 2000, 2002 Aladdin Enterprises. All rights reserved.

(b)

UFST: Copyright © 1989 - 1996, 1997, 2003, 2004, 2008, all rights reserved, by Monotype Imaging Inc.

(C)

Copyright © Unpublished Work of Novell, Inc. All Rights Reserved.

(d)

Portions of this software are copyright © 2007 The FreeType Project (www.freetype.org). All rights reserved.

(e)

Copyright 2012 jQuery Foundation and other contributors http://jquery.com/

(f)

Copyright(C) 1995-2003 Adobe Systems Inc. All rights reserved.

Copyright © 2007 -08 Adobe Systems Incorporated. All rights reserved.

Protected by U.S. Patents 5,737,599; 5,781,785; 5,819,301; 5,929,866; 5,943,063; 6,073,148; 6,515,763; 6,639,593; 6,754,382; 7,046,403; 7,213,269; 7,242,415; Patents pending in the U.S. and other countries.

All instances of the name PostScript in the text are references to the PostScript language as defined by Adobe Systems Incorporated unless otherwise stated. The name PostScript also is used as a product trademark for Adobe Systems' implementation of the PostScript language interpreter.

Except as otherwise stated, any reference to a "PostScript printing device," "PostScript display device," or similar item refers to a printing device, display device or item (respectively) that contains PostScript technology created or licensed by Adobe Systems Incorporated and not to devices or items that purport to be merely compatible with the PostScript language.

Adobe, the Adobe logo, PostScript, the PostScript logo, and PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Linux is a registered trademark of LinusTorvalds. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

All other trademarks are the property of their respective owners.

Adobe® PDF

Copyright © 2008 Adobe Systems Incorporated. All rights reserved.

Protected by U.S. Patents 6,185,684; 6,205,549; 7,213,269; 7,272,628; 7,278,168; Patents pending in the U.S. and other countries.

All instances of the name PostScript in the text are references to the PostScript language as defined by Adobe Systems Incorporated unless otherwise stated. The name PostScript also is used as a product trademark for Adobe Systems' implementation of the PostScript language interpreter.

Except as otherwise stated, any reference to a "PostScript printing device," "PostScript display device," or similar item refers to a printing device, display device or item (respectively) that contains PostScript technology created or licensed by Adobe Systems Incorporated and not to devices or items that purport to be merely compatible with the PostScript language.

Adobe, the Adobe logo, PostScript, the PostScript Logo, and PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

All other trademarks are the property of their respective owners.

Illustration of a paintbrush resting on an artist's palette with paint blobs (no text or symbols)

Six-panel grid showing six identical panels of black balloons with white centers, arranged in a 2x2 grid (no text or symbols)

Five overlapping diamond-shaped panels in grayscale shades, no text or symbols visible

Diagram showing a curved stack of papers transforming into a single sheet of paper, with an arrow indicating the process (no text or symbols present)

Diagram showing a control panel with labeled components and a hand interacting with a screen displaying a grid interface.

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

Diagram showing a hand pressing a device with a warning symbol indicating no hazard or absence.

Illustration of a large industrial machine with multiple boxes and a separate storage unit (no text or symbols visible)

Druckschalter "LIN" "AUS"

Technical diagram of an industrial machine with numbered components and close-up insets for assembly or inspection.

1Control Panel F1

Technical diagram of a server rack with numbered components and exploded views

1Tonerpatrone

2ITB (Intermediate Transfer Belt)

Illustration of a machine with a magnified inset showing directional arrows and a control panel (no text or symbols)

Illustration of a computer setup with a monitor and control panel, showing a hand interacting with the screen (no text or symbols present)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of the frame.

Illustration of hands using a tool to mark a barrier with a no-smoking symbol (no text or labels present)

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Diagram showing a mechanical component inside a vehicle chassis with an arrow indicating direction (no text or symbols present)

Hand inserting a card into a device panel (no text or symbols visible)

Line drawing of a desktop computer with monitor and screen (no text or symbols)

Line drawing of a computer monitor with a clip attached to the base (no text or symbols)

Diagram showing a device with labeled parts and directional arrow, likely illustrating a process or assembly step.

Line drawing of a computer monitor with an open screen and drive mechanism (no text or symbols)

Diagram showing a device with labeled parts, including numbered callouts 1 and 2 indicating specific components or functions.

Line drawing of a hand cleaning a clean appliance on a microwave oven (no text or symbols)

Illustration of a machine with a magnified inset showing a circular component and mechanical parts (no text or symbols)

Illustration of a machine with a rotary dial and mechanical components, no text or symbols present

Illustration of a printer with a hand operating the print device, showing a circular inset view of the printer's handle (no text or symbols present)

Illustration of a printer with a hand operating the button, showing mechanical components and a magnified view of the device (no text or symbols present)

Illustration of a printer with a magnified inset showing a device with arrows indicating rotation (no text or symbols present)

Line drawing of a cylindrical mechanical component with flanged ends and a tapered end (no text or symbols)

Technical line drawing of a mechanical bearing housing (no text or symbols)

Heftklammern N1

Technical line drawing of a mechanical component or housing (no text or symbols)

Heftklammern P1

ON (1側) OFF (○ 気)

TechnischeDaten

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

Copyright CANON INC. 2015

Copyright (C) 1999, 2000, 2002 Aladdin Enterprises. All rights reserved.

(b)

UFST: Copyright © 1989 - 1996, 1997, 2003, 2004, 2008, all rights reserved, by Monotype Imaging Inc.

(c)

Copyright © Unpublished Work of Novell, Inc. All Rights Reserved.

(d)

Portions of this software are copyright © 2007 The FreeType Project (www.freetype.org). All rights reserved.

(e)

Copyright 2012 jQuery Foundation and other contributors http://jquery.com/

(f)

Copyright(C) 1995-2003 Adobe Systems Inc. All rights reserved.

Copyright © 2007 -08 Adobe Systems Incorporated. All rights reserved.

Protected by U.S. Patents 5,737,599; 5,781,785; 5,819,301; 5,929,866; 5,943,063; 6,073,148; 6,515,763; 6,639,593; 6,754,382; 7,046,403; 7,213,269; 7,242,415; Patents pending in the U.S. and other countries.

All instances of the name PostScript in the text are references to the PostScript language as defined by Adobe Systems Incorporated unless otherwise stated. The name PostScript also is used as a product trademark for Adobe Systems' implementation of the PostScript language interpreter.

Except as otherwise stated, any reference to a "PostScript printing device," "PostScript display device," or similar item refers to a printing device, display device or item (respectively) that contains PostScript technology created or licensed by Adobe Systems Incorporated and not to devices or items that purport to be merely compatible with the PostScript language.

Adobe, the Adobe logo, PostScript, the PostScript logo, and PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Linux is a registered trademark of Linus Torvalds. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

All other trademarks are the property of their respective owners.

Adobe® PDF

Copyright © 2008 Adobe Systems Incorporated. All rights reserved.

Protected by U.S. Patents 6,185,684; 6,205,549; 7,213,269; 7,272,628; 7,278,168; Patents pending in the U.S. and other countries.

All instances of the name PostScript in the text are references to the PostScript language as defined by Adobe Systems Incorporated unless otherwise stated. The name PostScript also is used as a product trademark for Adobe Systems' implementation of the PostScript language interpreter.

Except as otherwise stated, any reference to a "PostScript printing device," "PostScript display device," or similar item refers to a printing device, display device or item (respectively) that contains PostScript technology created or licensed by Adobe Systems Incorporated and not to devices or items that purport to be merely compatible with the PostScript language.

Adobe, the Adobe logo, PostScript, the PostScript Logo, and PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

All other trademarks are the property of their respective owners.

Illustration of a paintbrush resting on an artist's palette with five paint blobs (no text or symbols)

Six-panel grid showing six identical panels of black balloons with white centers, arranged in a 2x2 grid (no text or symbols)

Stack of five overlapping sheets of paper or document, showing different shades of gray and white, with no visible text or symbols.

Diagram showing a curved stack of papers transforming into a single sheet of paper, with an arrow indicating the process (no text or symbols present)

Diagram showing a control panel with labeled buttons and a hand interacting with a touchscreen display, accompanied by Chinese annotations.

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

Illustration of a hand placing two small electronic devices into a box with a prohibition symbol (no text or labels)

Illustration of a large industrial machine with multiple boxes and internal components, no visible text or symbols.

Technical diagram of an industrial machine with numbered components and close-up insets for detail

1 Upright Control Panel-F1

Technical diagram of a server rack with numbered components and exploded views

1Cartuccia del toner

Illustration of a printing machine with a magnified inset showing a rotating component (no text or symbols)

Illustration of a computer monitor with a hand pointing at it, next to an open lab machine (no text or symbols visible)

1 Premere

Dialogues on data packets segment. Ropamide expiration Arresta Runoff

2 Premere [Arresto].

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating parts of each section.

Safety warning illustration showing a hand holding a device with a prohibition symbol and warning arrow

Diagram of a computer monitor with an open screen and a magnified inset showing the internal components (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a component (no text or symbols visible)

Hand inserting a card into a control panel (no text or symbols visible)

Line drawing of a desktop computer with an open screen and tray (no text or symbols)

Line drawing of a computer monitor with a scroll wheel (no text or symbols)

Diagram showing a device with labeled parts, including numbered annotations 1 and 2 indicating specific components or functions.

Line drawing of a computer monitor with an open screen and internal components (no text or symbols)

Diagram showing a device with labeled parts, including numbered callouts 1 and 2 indicating specific components or functions.

Line drawing of a hand cleaning a clean appliance on a microwave oven (no text or symbols)

Subsequently use data access segment. Package error Error Error

Illustration of a machine with a circular inset showing a mechanical component (no text or symbols present)

Illustration of a machine with a rotary dial and mechanical components, no text or symbols present

Illustration of a printer with a hand operating the print device, showing a circular inset view of the printer's rotary dial (no text or symbols present)

Illustration of a printer with a hand operating the button, showing mechanical components and a magnified view of the device (no text or symbols present)

Illustration of a printer with a magnified inset showing a device with arrows indicating rotation (no text or symbols present)

Line drawing of a cylindrical mechanical component with flanged ends and a tapered end (no text or symbols)

Technical line drawing of a mechanical bearing housing (no text or symbols)

Staple-N1

Technical line drawing of a mechanical component or housing (no text or symbols)

Staple-P1

TONER, CARTRIDGE & PARTS

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

DANGER CAUTION ATTENTION WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING WARNING Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning: Warning:

DirettivaWEEE

www.canon-europe.com/battery.

Copyright

Copyright CANON INC. 2015

Copyright (C) 1999, 2000, 2002 Aladdin Enterprises. All rights reserved.

(b)

UFST: Copyright © 1989 - 1996, 1997, 2003, 2004, 2008, all rights reserved, by Monotype Imaging Inc.

(c)

Copyright © Unpublished Work of Novell, Inc. All Rights Reserved.

(d)

Portions of this software are copyright © 2007 The FreeType Project (www.freetype.org). All rights reserved.

(e)

Copyright 2012 jQuery Foundation and other contributors http://jquery.com/

(f)

Copyright(C) 1995-2003 Adobe Systems Inc. All rights reserved.

Copyright © 2007 -08 Adobe Systems Incorporated. All rights reserved.

Protected by U.S. Patents 5,737,599; 5,781,785; 5,819,301; 5,929,866; 5,943,063; 6,073,148; 6,515,763; 6,639,593; 6,754,382; 7,046,403; 7,213,269; 7,242,415; Patents pending in the U.S. and other countries.

All instances of the name PostScript in the text are references to the PostScript language as defined by Adobe Systems Incorporated unless otherwise stated. The name PostScript also is used as a product trademark for Adobe Systems' implementation of the PostScript language interpreter.

Except as otherwise stated, any reference to a "PostScript printing device," "PostScript display device," or similar item refers to a printing device, display device or item (respectively) that contains PostScript technology created or licensed by Adobe Systems Incorporated and not to devices or items that purport to be merely compatible with the PostScript language.

Adobe, the Adobe logo, PostScript, the PostScript logo, and PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Linux is a registered trademark of Linus Torvalds. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

All other trademarks are the property of their respective owners.

Adobe® PDF

Copyright © 2008 Adobe Systems Incorporated. All rights reserved.

Protected by U.S. Patents 6,185,684; 6,205,549; 7,213,269; 7,272,628; 7,278,168; Patents pending in the U.S. and other countries.

All instances of the name PostScript in the text are references to the PostScript language as defined by Adobe Systems Incorporated unless otherwise stated. The name PostScript also is used as a product trademark for Adobe Systems' implementation of the PostScript language interpreter.

Except as otherwise stated, any reference to a "PostScript printing device," "PostScript display device," or similar item refers to a printing device, display device or item (respectively) that contains PostScript technology created or licensed by Adobe Systems Incorporated and not to devices or items that purport to be merely compatible with the PostScript language.

Adobe, the Adobe logo, PostScript, the PostScript Logo, and PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

All other trademarks are the property of their respective owners.

Illustration of a paintbrush resting on an artist's palette with five paint blobs (no text or symbols)

Six-panel grid showing black balloons with white centers and black bodies, arranged in two rows (no text or symbols)

Stack of five overlapping sheets of paper or document, showing distinct color and texture variations (no text or symbols)

Diagram showing a curved stack of papers transforming into a single sheet of paper, with an arrow indicating the process (no text or symbols present)

Diagram showing a hand interacting with a touchscreen display, labeled in Chinese with annotations and directional arrows.

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

Illustration of a hand pressing a stack of cards into a box with a prohibition symbol (no text or labels)

Illustration of a large industrial machine with two smaller boxes and a stack of boxes beside it (no text or symbols visible)

Technical diagram of an industrial machine with numbered components and close-up insets for detail

1 Panel de Control Vertical F1

Technical diagram of a server rack with numbered components and exploded views

1Cartucho de tóner

Illustration of a machine with a magnified inset showing directional arrows and dotted lines, no text or symbols present.

Illustration of a computer setup with a monitor and control panel, showing a hand interacting with the screen (no text or symbols present)

1 Pulse

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Safety warning illustration showing a hand holding a document with a 'No' symbol and explosion effect

Diagram of a computer motherboard with a magnified inset showing a mechanical component (no text or symbols present)

Diagram showing a hand inserting a component into an engine compartment, with no visible text or symbols.

Line drawing of a hand inserting a button into a door panel (no text or symbols)

Line drawing of a desktop computer with monitor and keyboard (no text or symbols)

Line drawing of a computer monitor mounted on a stand, showing front panel and base (no text or symbols)

Diagram showing a device with labeled parts and directional arrow indicating movement or change

2 Abra las tapas.

Line drawing of a mechanical device with a clamped component (no text or symbols)

Diagram showing a device with labeled parts, including numbered annotations 1 and 2 indicating specific components or functions.

4 Cierre las tapas.

Line drawing of a hand cleaning a clean appliance on a microwave (no text or symbols)

Illustration of a machine with a magnified inset showing a circular component and mechanical parts (no text or symbols)

Illustration of a printer with a circular inset showing a rotary switch and mechanical components (no text or symbols)

Illustration of a printer with a hand inserting a button into the print case, showing no text or symbols.

Illustration of a printer with a hand operating the print case, showing mechanical components and a magnified view of the device (no text or symbols present)

Illustration of a printing machine with a magnified inset showing the blade and arrow (no text or symbols)

Line drawing of a cylindrical mechanical component with flanged ends and a tapered end (no text or symbols)

Technical line drawing of a mechanical bearing housing (no text or symbols)

Grapas N1

Line drawing of a mechanical component with internal ribs and mounting brackets (no text or symbols)

Grapas P1

Consumiblesgenuinos

CLASS 1 LASER PRODUCT

LASER KLASSE 1

APPAREIL À LASER DE CLASSE 1

APPARECCHIO LASER DI CLASSE 1

PRODUCTO LÁSER DE CLASE 1

APARELHO A LASER DE CLASSE 1

LUOKAN 1 LASER-TUOTE

LASERPRODUKT KLASS 1

www.canon-europe.com/battery.

Copyright

Copyright CANON INC. 2015

Copyright (C) 1999, 2000, 2002 Aladdin Enterprises. All rights reserved.

(b)

UFST: Copyright © 1989 - 1996, 1997, 2003, 2004, 2008, all rights reserved, by Monotype Imaging Inc.

(c)

Copyright © Unpublished Work of Novell, Inc. All Rights Reserved.

(d)

Portions of this software are copyright © 2007 The FreeType Project (www.freetype.org). All rights reserved.

(e)

Copyright 2012 jQuery Foundation and other contributors http://jquery.com/

(f)

Copyright(C) 1995-2003 Adobe Systems Inc. All rights reserved.

Copyright © 2007 -08 Adobe Systems Incorporated. All rights reserved.

Protected by U.S. Patents 5,737,599; 5,781,785; 5,819,301; 5,929,866; 5,943,063; 6,073,148; 6,515,763; 6,639,593; 6,754,382; 7,046,403; 7,213,269; 7,242,415; Patents pending in the U.S. and other countries.

All instances of the name PostScript in the text are references to the PostScript language as defined by Adobe Systems Incorporated unless otherwise stated. The name PostScript also is used as a product trademark for Adobe Systems' implementation of the PostScript language interpreter.

Except as otherwise stated, any reference to a "PostScript printing device," "PostScript display device," or similar item refers to a printing device, display device or item (respectively) that contains PostScript technology created or licensed by Adobe Systems Incorporated and not to devices or items that purport to be merely compatible with the PostScript language.

Adobe, the Adobe logo, PostScript, the PostScript logo, and PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Linux is a registered trademark of Linus Torvalds. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

All other trademarks are the property of their respective owners.

Adobe® PDF

Copyright © 2008 Adobe Systems Incorporated. All rights reserved.

Protected by U.S. Patents 6,185,684; 6,205,549; 7,213,269; 7,272,628; 7,278,168; Patents pending in the U.S. and other countries.

All instances of the name PostScript in the text are references to the PostScript language as defined by Adobe Systems Incorporated unless otherwise stated. The name PostScript also is used as a product trademark for Adobe Systems' implementation of the PostScript language interpreter.

Except as otherwise stated, any reference to a "PostScript printing device," "PostScript display device," or similar item refers to a printing device, display device or item (respectively) that contains PostScript technology created or licensed by Adobe Systems Incorporated and not to devices or items that purport to be merely compatible with the PostScript language.

Adobe, the Adobe logo, PostScript, the PostScript Logo, and PostScript 3 are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

All other trademarks are the property of their respective owners.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

CANON U.S.A., INC.

One Canon Park, Melville, NY 11747, U.S.A.

CANON CANADA INC.

8000 Mississauga Road Brampton ON L6Y 5Z7, Canada

CANON EUROPA N.V.

Bovenkerkerweg 59,1185 XB Amstelveen,The Netherlands

(See http://www.canon-europe.com/ for details on your regional dealer)

CANON AUSTRALIA PTY. LTD

Building A, The Park Estate, 5 Talavera Road, Macquarie Park, NSW 2113, Australia

CANON CHINA CO., LTD

2F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005, China

CANON SINGAPORE PTE. LTD.

1 Fusionopolis Place, #15-10, Galaxis, Singapore 138522
