USER MANUAL iZi Turn i-Size BESAFE

USER MANUAL Rear & Forward height RT stature height: 65-105 cm FF size height: 88-105 cm Max. weight: 18 kg Age approx. 6m - 4 yrs UK regulation no R22P - Size

BeSafe®
Scandinavian Safety

8 112 14 118 20 124 26 130 32 136 39 142 45 148 51 154 57 160 63 166 69 172 75 178 81 184 87 195 93 201 99 207 105

Technical diagram of a car seat assembly with labeled parts and exploded views

Diagram illustrating car seatbelt usage and safety instructions, showing step-by-step instructions for seating and safety controls.

Diagram illustrating seatbelt usage and safety symbols for car comfort, showing steps from seatbelt to seatbelt seatbelt with icons and warning signs.

+2 yrs >2 yrs X

Thank you for choosing BeSafe IZI Turn I-Size

It is important that you read this user marva. DOONE installing your seat, incorrect installation on could undergo your choice.

! Vital Information

• The child sea MUST NOT be installed in a front

passenger seat WITH AN ACTIVATED AIRDAG.

• This seat can only be installed in a car equipped with

Sofia anchorage points approved to

No.14 or other equivalent standards.

For the suitable positions in the case, we see the possible

• These the car list to find out whether your car makes it improved for

the best updates of the best can be found on the website www.bosafe.com. Europe can is my country in the world.

Chinese text: EnEs's for (or information

• 17. Low-Sier was approved res-Being for children with a Senior

- Signal from 81 to 105 cm, with > maximum weight up to 18 kg and

forward facing for children with a size, are height from 30 to 105 cm

with a max time weight set to 18 kg.

• Important. Do not use forward feeding before the child is over

15 mo-12s

- When driving with a child sitting in the seat, the seat must always be

to the first starting driving direction of the vehicle, however, driven

The seat, related to the side when a slot is shung in the seat. It is recommended out to drive into the seat located to the side when

The 5075-6098

- Be-Sate recommendations to use the seat for as long as possible in "the

ca- farina positio.

• The harness scraps must always be locked when the child is in

the sea.

- The harness straps must be tightened without slack and not twisted.

• The shoulder pass certain magnets. Magnets can influence

electronic equipment such as pacemakers.

- Protect any part of the child's body which is exposed to the sun

• The most superficial must always be used. They are the "solar" source, so together down until, however, there are a vehicle

Subject: 5.0% pushed down from, it pushed 5.0% hit of the vehicle, a foot of the seat and that the seat is open forward horizontal in the

The 1980s in the sea and the 1984s to post-stall historical war first was vehicle won the spirit, well in the middle. The indicators at the floor

support should always show green

• We recommend that this seal is used only for children who can sit

upight, usually for younger than a more.

- What are the best, cashier when this child is over 2 years. - Remove the side of sight when the child is over 2 years or earlier.

when the child does not fit between these side supports answers.

• After an accident, the seat must be replaced. Although it may look

undamaged if you were to have another accident, the seat may not

be able to protect your child to the level to which it was designed.

• Prevent the sea, from becoming trapped or weighed down by

luggage, seats and/or slimming doors

• Make sure to light on the harness extremely well, so that, you can no

large made a ring in the cells. When you achieved the thickness, inside

sure that the child is published well against the backrest.

Vivengan pi, he said if non-reinatal rate is otherwise unusual.

(1) 2017, Mr. 65, 2018, 31: High port of accessories are used.

• Make sure all spectators are injured, but have a worse way.

child in essential emergency

• Make sure luggage or other objects are properly secured. Unsecured

Language may cause severe injuries to children and adults - increase

o'accienis.

• More use the best without the worst. The more is easily positive.

and may only be replaced by an original bottle tower.

- 115 sec. Low and aggressive mining products, these may have the production value of the end

Conelouc on 1-atef at the seat.

• US MOI use the seat for large than 7 years. Due to aging, the

quality of the material may change

- DC NUT use at home. It has not been designed for home use and car

only he used on a vehicle

- "When the child test is mounted in the car check at the cross where

the cold seat might touch the interior. We recommend using a

Ibesats, protection cover in these places to avoid cuts marks or

at first time the letter of the vehicle, especially in vehicles with leather or horse interiors.

- It is done, so our other the 65 part structure or the regular

Preparing to install

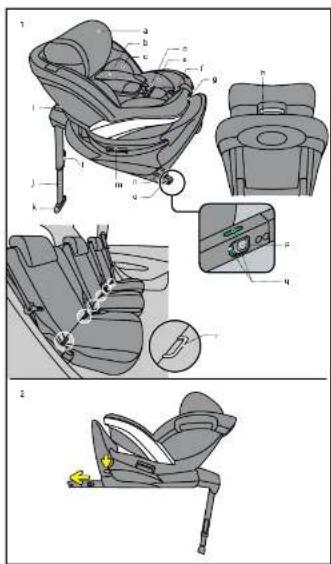

• Adjustable headrest	(1a)
• Shoulder straps	(1b)
• Seat cushion	(1c)
• Harness buckle	(1d)
• Side support	(1e)
• Central adjuster	(1f)
• Reclining handle	(1g)
• Release handle headrest	(1h)
• Spirit level	(1i)
• Floor support	(1j)
• Floor support height indicator	(1k)
• Height adjuster floor support	(1l)
• Rotation release handle	(1m)
• Switch for ISOfix connectors (2x)	(1n)
• ISOfix connectors (2x)	(1o)
• ISOfix release switch	(1p)
• ISOfix indicators (2x)	(1q)
• ISOfix car anchorage (2x)	(1r)

Installation

1. When installing in the back seat of the vehicle, push the front seat of the vehicle forward as far as possible and adjust the back rest into an upright position (if it can be adjusted).
2. When installing in the front seat of the vehicle, adjust the back rest into an upright position.
3. Position the vehicle on a horizontal surface when installing the seat.
4. When the base is lifted the floor support should fall downwards from underneath the base. Do this outside the car.
5. Push down the switch for the ISOfix connectors at both sides to release the ISOfix connectors. (2)

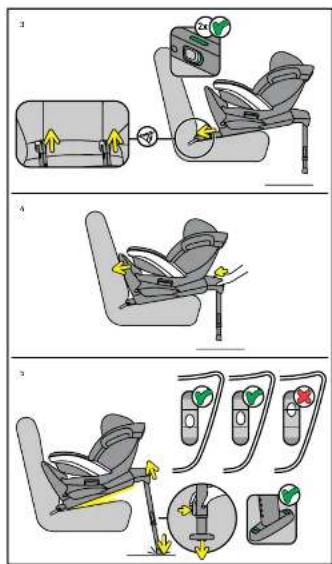

6. Position the base on the vehicle seat. Click the ISOfix connectors on to the ISOfix anchorages on the vehicle seat. Make sure that both ISOfix indicators are green. (3)
7. Push the seat towards the backrest of the vehicle seat until it touches the backrest. (4)

8. The ISOfix connectors will have resistance sliding in, in the most outward positions, before they are connected with the ISOfix anchorage of the vehicle.

9. Tip: once the ISOfix connectors are installed, the seat can be turned towards the door of the vehicle to get a better view on the installation display.

10. Remove the yellow cap from the floor support. Adjust the floor support, so it is in contact with the floor of the vehicle. (5)
11. The height indicator of the floor support shows green when the floor support is in contact with the floor. (5)
12. Lift the base at the front side (near the spirit level) and extend the floor support till the spirit level is in the middle, indicating a horizontal position of the base. (5)
13. Tip: place one foot onto the bottom end of the floor support while lifting the base to make adjusting the length at this step easier.
14. The alarm sound stops when the floor support indicators show green and it is in contact with the floor and (not for all models) when the spirit level shows a horizontal position of the seat. (5)
15. When having the child seat installed rear facing in the back, it is recommended to position the front vehicle seat in a way that it is close to the touchpoint with the child seat. Make sure that the child seat can still rotate freely. When having the child seat installed rear facing on the passenger seat in the front, it is recommended to position the passenger seat in a way that the dashboard is close to the touchpoint with the child seat. Make sure that the child seat can still rotate freely.
16. Tip: If you feel like the base has too much side movement, you can install the seat tighter against the vehicle seat backrest. Make the support leg short, grab the base and push it against the vehicle backrest with more force. Move it side to side until you hear one more 'click' per side, then lift the base into horizontal position again (see step xx-xx)
17. The seat is delivered with removable SIP+ (side impact protection +). This extra side impact protection should be used on the door side of the vehicle. It can be connected by slotting between the seat shell and the fabric. The seat already offers high level integrated side impact protection. This extra side impact protection improves the protection in the side impact still further. (Not on all models) (6)
18. Tip: For an optimal height of the SIP+, position it between the two raised dots on the side of the seat shell.
19. Do not use the SIP+ on the seat when the space between seat and door of the vehicle is too small, which might lead to a situation where the seat is not positioned correctly on the vehicle seat. (6)

Removal of the seat from the vehicle

1. To remove the seat from the vehicle, turn the seat rear facing and push the seat upwards while adjusting the floor support to its shortest length.
2. Release the ISOfix connectors out of the seat by pushing down the switch for the ISOfix connectors on both sides. Pull the ISOfix release switch on both sides to disconnect from the ISOfix car anchorage.

Positioning of the child

1. Turn the seat towards the door while you pull the rotation release handle upwards.

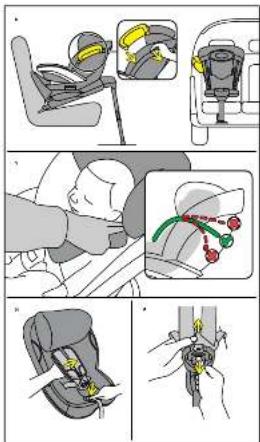

2. Check that the shoulder strap slots are level with your child's shoulders. (7)
3. While pressing the button of the central adjuster, pull the shoulder straps away from the seat with a flat hand. Make sure to pull the straps evenly so that they stay at the same length. (8)
4. Open the harness buckle. (9)

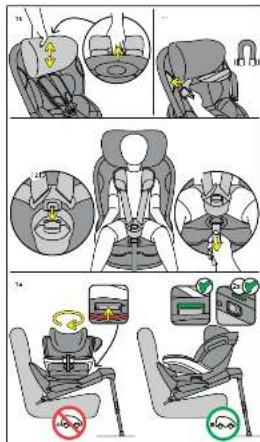

5. The height of the shoulder straps and the headrest can be adjusted by pulling the release handle upwards at the back of the headrest and pulling the headrest up or down. (10)
6. Position the shoulder straps over the marking at the sides of the seat to use the magnets to keep the harness open while you position the child. (11)
7. When the child is positioned, place the shoulder straps over the child's shoulders and close the buckle: CLICK! (12)
8. Pull the harness strap through the central adjuster in the direction of the arrow straight up/forwards. Continue pulling until the harness is a comfortable but a firm fit. (13)
9. Turn the seat against or with the driving direction before driving and check if the release handles show green and the seat is locked into the driving direction. (14)

Removing and refitting the cover

• Do take care when you remove the cover, as re-fitting the cover is done in reverse.
• The cover of the headrest can be taken off separately by disconnecting the beads at the back and pulling off the fabric towards the front.

! Warning: potential misuse

• The child seat MUST NOT be installed in a front passenger seat WITH AN ACTIVATED AIRBAG.
• The floor support must always be used. Make sure that the floor support is fully pushed down and that the seat is positioned horizontal with the spirit level in the middle.
• Never drive with a child in the seat if the seat is rotated to the side.
  • Make sure the indicators are green before you drive.

Guarantee

• Should this product prove faulty within 24 months of purchase due to materials or manufacturing fault, except covers and harness straps, please return it to the original place of purchase.
• The guarantee is only valid when you use your seat appropriately and with care. Please contact your retailer, they will decide if the seat will be returned to the manufacturer for repair. Replacement or return cannot be claimed. The guarantee is not extended through repair.
• The guarantee expires: when there is no receipt, when defects are caused by incorrect and improper use, when defects are caused by abuse, misuse or negligence.
