USER MANUAL N5008AC2 HiKOKI

Instruction and safety manual

Technical line drawing of a fastener with no visible text or symbols

DANGER

Improper use of this Stapler can result in death or serious injury!

This Manual contains important information about product safety.

Read and understand this Manual before operating the Stapler.

Never allow anyone who has not reviewed this manual to use the tool.

This manual should be stored in safe place.

DANGER

IMPORTANT SAFETY INFORMATION ....3

DEFINITIONS OF SIGNAL WORDS ....3

EXPLANATION OF THE STAPLING ACTION OF THE HITACHI STAPLER ....3

SAFETY

IMPORTANT SAFETY INSTRUCTIONS - FOR USING STAPLERS ....4

RESPONSIBILITIES OF EMPLOYER, TOOL OWNER AND TOOL OPERATOR ....8

OPERATION

NAME OF PARTS 9

SPECIFICATIONS....10

STAPLE SELECTION 10

ACCESSORIES....11 STANDARD ACCESSORIES....11 OPTIONAL ACCESSORIES....11

APPLICATIONS 11

BEFORE OPERATION 11

WORKING ENVIRONMENT 11

AIR SUPPLY 11

LUBRICATION....12

COLD WEATHER CARE ....12

TESTING THE STAPLER 12

ADJUSTING AIR PRESSURE 13

LOADING STAPLES 14

ADJUSTING THE STAPLING DEPTH 16

MAINTENANCE

MAINTENANCE AND INSPECTION 17

SERVICE AND REPAIRS 18

PARTS LIST 56

TABLE DES MATIÈRES

Français

Page Page

INFORMATION IMPORTANTE DE SÉCURITÉ .....20

DEFINITION DES MOTS DE SIGNALISATION .....20

EXPLICATION DE L'ACTION D'AGRAFAGEDE L'AGRAFEUSE HITACHI ....20

SECURITE

CONSIGNES DE SECURITE IMPORTANTES POUR L'UTILISATION DE L'AGRAFEUSE ...... 21

RESPONSABILITÉS DE L'EMPLOYEUR, DU PROPRIÉTAIRE DE L'OUTIL ET DE L'OPÉRATEUR DE L'OUTIL ....25

UTILISATION

NOM DES PIECES 26

SPECIFICATIONS....27

SELECTION DES AGRAFES ......27

ACCESSOIRES....28

ACCESSOIRES STANDARD....28 ACCESSOIRES EN OPTION ....28

APPLICATIONS 28

IMPORTANT SAFETY INFORMATION

Read and understand tool labels and all of the operating instructions, safety precautions and warnings in this manual before operating or maintaining this Stapler.

Failure to follow warnings could result in DEATH or SERIOUS INJURY.

Most accidents that result from the operation and maintenance of Staplers are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.

Basic safety precautions are outlined in the “SAFETY” section of this Manual and in the sections which contain the operation and maintenance instructions.

Hazards that must be avoided to prevent bodily injury or machine damage are identified by DANGERS and WARNINGS on the Stapler and in this Manual.

NEVER use this Stapler for applications other than those specified in this Manual.

DEFINITIONS OF SIGNAL WORDS

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, or may cause machine damage.

NOTE emphasizes essential information.

EXPLANATION OF THE STAPLING ACTION OF THE HITACHI STAPLER

O CONTACT ACTUATION MECHANISM:

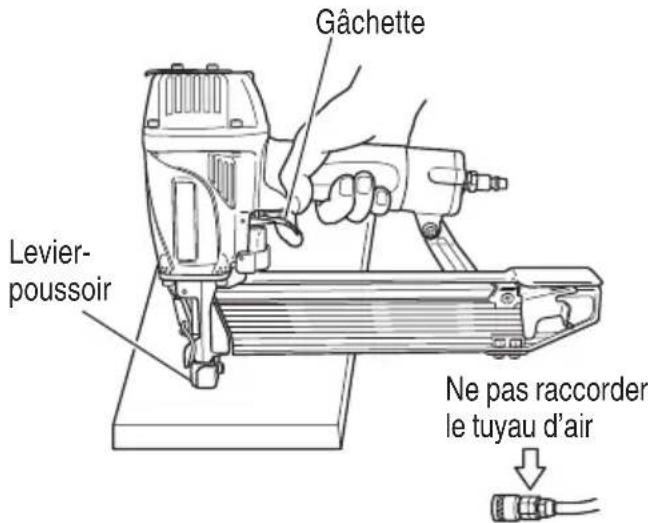

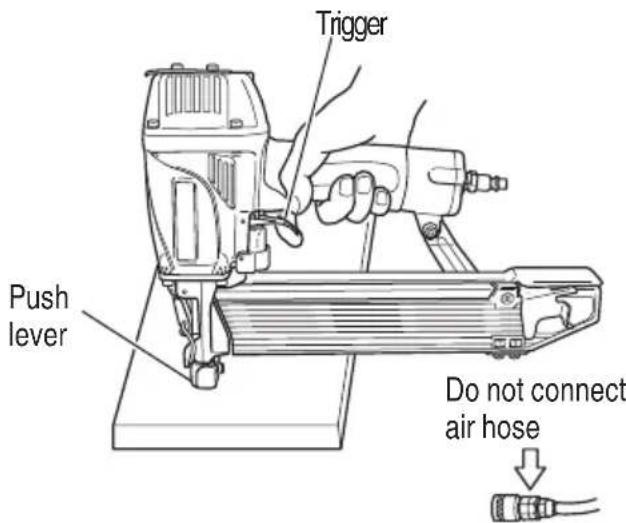

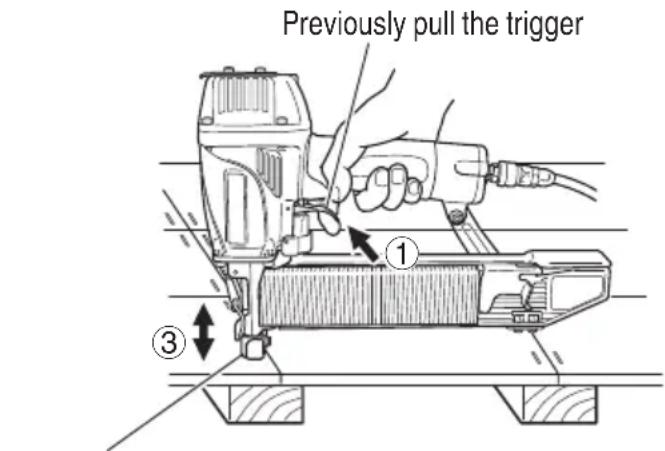

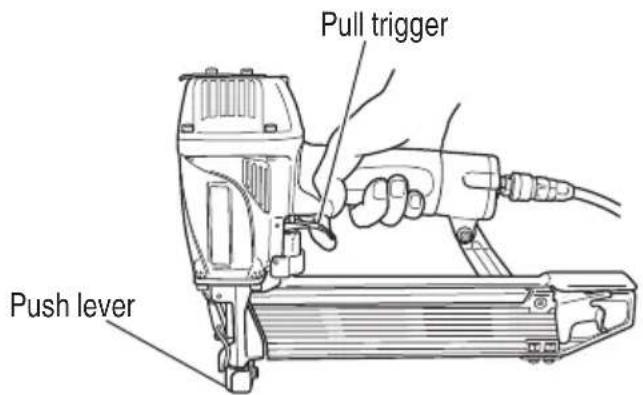

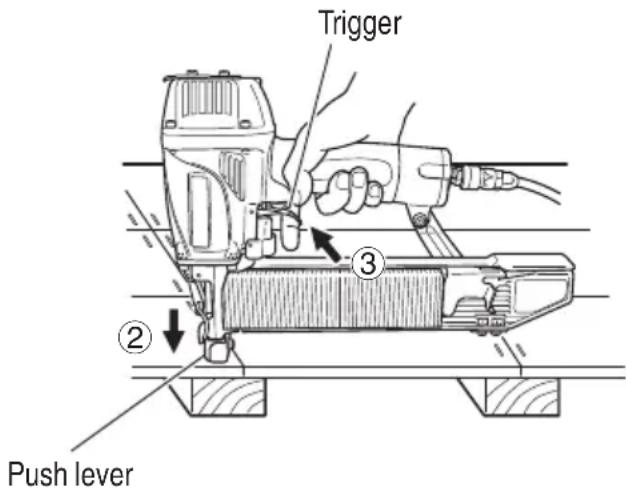

First, press the push lever against the wood; next, pull the trigger to drive the fastener.

First, pull the trigger; next, press the push lever against the wood to drive the fastener.

If the Trigger is held back, a fastener will be driven each time the Push Lever is pressed against the wood.

SAFETY

IMPORTANT SAFETY INSTRUCTIONS-FOR USING STAPLERS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

General

To reduce the risks of electric shock, fire, and injury to persons, READ ALL THE INSTRUCTIONS BEFORE USING THE TOOL.

⚠️ DANGER

1. OPERATORS AND OTHERS IN WORK AREA MUST WEAR EYE PROTECTION (SAFETY GLASSES WITH SIDE SHIELDS).

When operating the Stapler, always wear safety glasses with side shields, and make sure others in work area wear safety glasses, too.

Safety glasses must conform to the requirements of American National Standards Institute, ANSI Z87.1 and provide protection against fl ying particles both from the front and side.

Ordinary eyeglasses do not provide adequate protection.

The employer must enforce the use of safety glasses by the Stapler operator and others in work area.

2. NEVER USE REACTIVE GASES OR OTHER BOTTLED GASES. EXPLOSION MAY OCCUR.

Never use reactive gases such as oxygen, combustible gases or any other bottled gases as a power source for the Stapler.

Use of the above gases is dangerous, as the Stapler will explode.

Use only clean, dry, regulated compressed air.

WARNING

3. NEVER POINT TOOL AT YOURSELF OR OTHERS IN WORK AREA.

Always assume that the Stapler contains fasteners.

Never point the Stapler toward yourself or others, whether it contains fasteners or not.

If fasteners are mistakenly driven, it can lead to severe injuries.

Never engage in horseplay with the Stapler.

Respect the Stapler as a working implement.

4. DO NOT PLACE FINGER ON TRIGGER AND KEEP FINGERS AWAY FROM TRIGGER WHEN NOT DRIVING FASTENERS TO AVOID ACCIDENTAL DISCHARGE.

Never carry the Stapler with finger on Trigger since you could drive a fastener unintentionally and injure yourself or someone else.

Always carry the Stapler by the handle only.

5. KNOW AND UNDERSTAND WHAT TRIGGER SYSTEM YOU ARE USING.

Read and understand section titled "METHODS OF OPERATION." (pages 15 – 16)

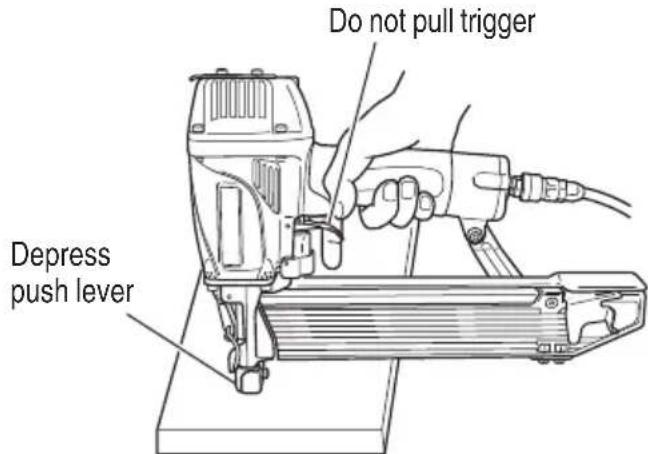

6. DO NOT MAKE CONTACT WITH SAFETY TIP (PUSH LEVER) WHEN NOT DRIVING FASTENERS.

SAFETY — Continued

WARNING

When using tools, basic precautions should always be followed, Including the following:

1. Work area

(1) Keep the work area clean and well lighted.

Cluttered benches and dark areas increase the risks of electric shock, fire, and injury to persons.

(2) Do not operate the Stapler in explosive atmospheres, such as in the presence of fl ammable liquids, gases, or combustible dust.

The Stapler is able to create sparks resulting in the ignition of the dust or fumes.

(3) Keep bystanders, children, and visitors away while operating the Stapler. Distractions are able to result in the loss of control of the Stapler.

2. Personal safety

(1) Stay alert. Focus on your work and use common sense when working with the Stapler. Do not use the Stapler while tired, after having consumed drugs or alcohol, or while under the influence of medication.

A moment of inattention while operating the Stapler increases the risk of injury to persons.

(2) Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep hair, clothing, and gloves away from moving parts.

Loose clothes, jewelry, or long hair increases the risk of injury to persons as a result of being caught in moving parts.

(3) Avoid unintentional starting. Be sure the switch is off before connecting to the air supply. Do not carry the Stapler with your finger on the switch or connect the Stapler to the air supply with the switch on.

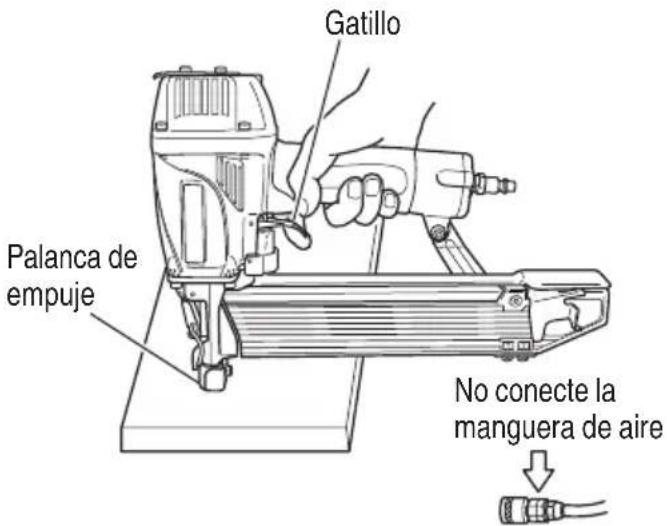

(4) WARNING - Disconnect the Stapler from the air source before making adjustments, doing Stapler maintenance, clearing jams, touching the Push Lever, when not in use, leaving work area, leaving the Stapler outside of the operator's supervision or control, loading, or unloading the Stapler, handing it to another person, elevating, lowering or otherwise moving the Stapler to a new location. Never attempt to clear a jam or repair the Stapler unless you have disconnected air hose from the Stapler and removed all remaining fasteners from the Stapler. The Stapler

should never be left unattended since people who are not familiar with the Stapler might handle it and injure the themselves.

Such precautionary measures reduce the risk of injury to persons.

(5) Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enables better control of the Stapler in unexpected situations.

(6) Use safety equipment. A dust mask, non-skid safety shoes and a hard hat must be used for the applicable conditions.

(7) ⚠️WARNING – Risk of hearing loss. Wear hearing protection. Hearing protection shall have a Noise Reduction Rating (NRR) determined in accordance with US Environmental Protection Agency rules that is appropriate for noise exposure.

(8) Always wear head protection. Always wear head protection to protect your head from fl ying objects.

(9) Do not attach the hose or Stapler to your body. Attach the hose to the structure to reduce the risk of loss of balance if the hose shifts.

(10) WARNING - Drive Staples into proper work surface only. Do not drive staple into other staples. This is able to cause the fastener to be deflected and hit someone, or cause the Stapler to react and result in a risk of injury to persons.

3. Stapler use and care

(1) Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against the body is unstable and is able to lead to loss of control.

(2) Do not force the Stapler. Use the correct Stapler for the application. The correct Stapler will do the job better and safer at the rate for which the Stapler is designed.

SAFETY — Continued

WARNING

(3) Do not use the Stapler if the switch does not turn 4. the Stapler on or off. Any Stapler that cannot be controlled with the switch is dangerous and must be repaired. (1)

Never use Stapler which is defective or operating abnormally. If the Stapler appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

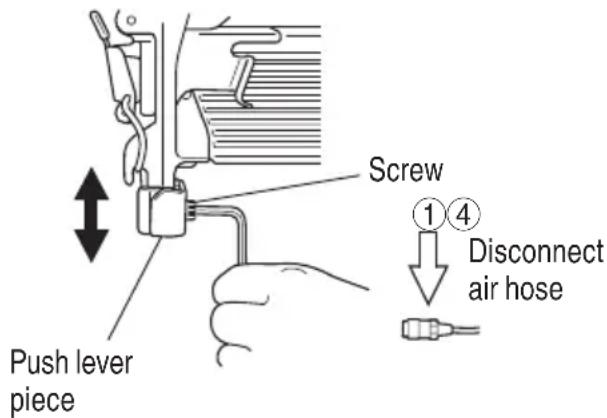

(4) Disconnect the Stapler from the air source before making any adjustments, changing accessories, or storing the Stapler. Such preventive safety measures reduce the risk of starting the Stapler unintentionally.
(5) Store the Stapler when it is idle out of reach of children and other untrained persons. A Stapler is dangerous in the hands of untrained users.
(6) Maintain the Stapler with care. Keep the Stapler Clean and lubricated for better and safer performance.
(7) Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the Stapler's operation.

If damaged, have the Stapler serviced before using.

Because of high air pressure in the Stapler, cracks in the surface are dangerous. To avoid this, do not drop the Stapler or strike the Stapler against hard surfaces; and do not scratch or engrave signs on the Stapler. Many accidents are caused by poorly maintained Staplers. There is a risk of bursting if the Stapler is damaged.

(8) Do not use the Stapler that is not in proper working order. Tags and physical segregation shall be used for control.
(9) Use only accessories that are identified by Hitachi for the specific Stapler. Use of an accessory not intended for use with the specific Stapler, increases the risk of injury to persons.
(10) Use only those fasteners listed in the Accessories section of this manual. Fasteners not identified for use with this Stapler by Hitachi are able to result in a risk of injury to persons or Stapler damage when used in this Stapler.

4. Service

(1) Tool service must be performed only by qualified repair personnel.
(2) When servicing a Stapler, use only identical replacement parts. Use only authorized parts.
(3) Use only the lubricants supplied with the Stapler or specified by Hitachi.

5. Air source

(1) Never connect to an air source that is capable of exceeding 200 psi (13.7 bar 14 kgf/cm ^2 ) if a regulator fails.

Over pressurizing the Stapler is able to result in bursting, abnormal operation, breakage of the Stapler or serious injury to persons.

120 psi 120 psi

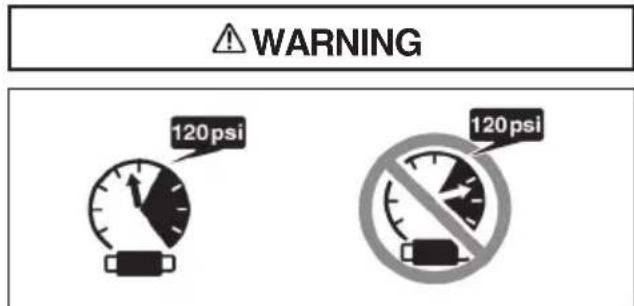

DO NOT EXCEED 120 psi (8.3 bar 8.5 kgf/cm2).

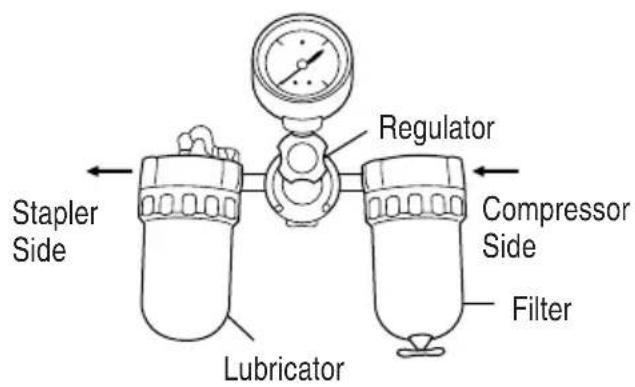

Use only clean, dry, regulated compressed air at the rated pressure or within the rated pressure range as marked on the Stapler.

Always verify prior to using the Stapler that the air source has been adjusted to the rated air pressure or within the rated air-pressure range.

(2) Never use reactive gases such as oxygen, carbon dioxide, combustible gases or any bottled gas as an air source for the Stapler. Such gases are capable of explosion and serious injury to persons.

6. Others

(1) Be careful of double fire and being hit by the Stapler due to spring back ("recoil").

After driving a staple, the Stapler may recoil causing it to move away from the work surface.

To reduce risk of injury always manage recoil by:

1) always maintaining control of the Stapler.
2) allowing recoil to move the Staple work surface.

SAFETY — Continued

WARNING

3) not resisting recoil such that the Stapler will be forced back into the work surface. In "CONTACT ACTUATION MECHANISM", if push lever is allowed to re-contact work surface before the trigger is released, an unintended discharge of a staple will occur. In order to avoid this undesirable double fire, (6)

○ Intermittent operation (Trigger fi re)

① Pull the trigger rapidly and firmly.

② Release the trigger QUICKLY.

○ Continuous operation (Push lever fire)

① Do not press the Stapler against the wood with excessive force.

② Separate the Stapler from the wood as it recoils after stapling

4) keeping face and body parts away from the Stapler.

(2) Never Use NON relieving coupler on Stapler. If a non relieving coupler is used on the Stapler, the Stapler can remain charged with air after disconnecting and thus will be able to drive a fastener even after disconnecting. The Stapler and air hose must have a hose coupling such that all pressure removed from the Stapler when the coupling joint is disconnected. (11)

(3) Check Push Lever before use. Make sure Push Lever operates properly, and is not inoperable, disconnected, or altered. (The Push Lever may be called "Safety".) Never use the Stapler unless the Push Lever is operating properly, otherwise the Stapler could drive a fastener unexpectedly. Do not tamper with or remove the Push Lever, or otherwise cause the Push Lever to become inoperable.

(4) Keep all screws and covers tightly in place. Keep all screws and covers tightly mounted.

Check their condition periodically. Never use the Stapler if parts are missing or damaged.

(5) Do not load fasteners with Trigger or Push Lever depressed. When loading fasteners into the Stapler or when connecting the air hose,

1) do not depress the Trigger;

2) do not depress the Push Lever; and

3) keep the Stapler pointed downward.

(6) Keep hands and body away from fi ring head ACT during use. Never place your hands or feet closer than 8 inches (200 mm) from the fi ring head. A serious injury can result if the fasteners are deflected by the workpiece, or are driven away from the point of entry.

(7) When working close to an edge of a workpiece or at steep angles, or driving fasteners into thin workpiece use care to minimize chipping, splitting or splintering, or free fl ight, ricochet or piercing of fasteners, which may cause injury.

(8) Never drive fasteners from both sides of a wall at the same time. The fasteners can be driven into and through the wall and hit a person on the opposite side.

(9) Use extra caution when driving the Stapler into existing walls or other blind areas to prevent contact with hidden objects or persons on other side (eg., wires, pipes).

(10) Check for live wires. Avoid the risk of severe electrical shock by checking for live electrical wires that may be hidden by walls, floors or ceilings. Turnure off the breaker switch to ensure there are no live wires.

(11) Do not lift, pull or lower the Stapler by the hose.

t(12) Do not disconnect air hose from Stapler with finger on Trigger. The Stapler can fire when reconnected to An air supply.

(13) Handle Stapler correctly. Operate the Stapler according to this Manual. Never allow the Stapler to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

(14) Never use Stapler for applications other than those specified in this manual.

(15) Never modify or alter a Stapler. Doing so may cause it to malfunction and personal injuries may result.

SAFETY — Continued

RESPONSIBILITIES OF EMPLOYER, TOOL OWNER AND TOOL OPERATOR

1. Ensure that this MANUAL is available to operators and personnel performing maintenance.
2. Train the operator in the safe use of the Stapler as described in this MANUAL.
3. Ensure that only persons who have read and understand this MANUAL operate the Stapler.

4. Ensure that Staplers are used only when operators and others in work area are wearing EYE PROTECTION, and other appropriate personal protective equipment such as HEAD, HEARING, FOOT PROTECTION.

5. Enforce the use of EYE PROTECTION by operators and others in work area.

6. Ensure that Staplers are kept in safe working order as described in this MANUAL.
7. Maintain Staplers properly.
8. Ensure that only qualified personnel Staplers.
9. Ensure that Staplers that require repair are removed from service and that tags and physical segregation are used as a means of control.

SAVE THIS MANUAL AND KEEP IT AVAILABLE FOR OTHERS!

OPERATION

NOTE: The information contained in this Manual is designed to assist you in the safe operation of the Stapler.

Some illustrations in this Manual may show details or attachments that differ from those on your own Stapler.

NAME OF PARTS

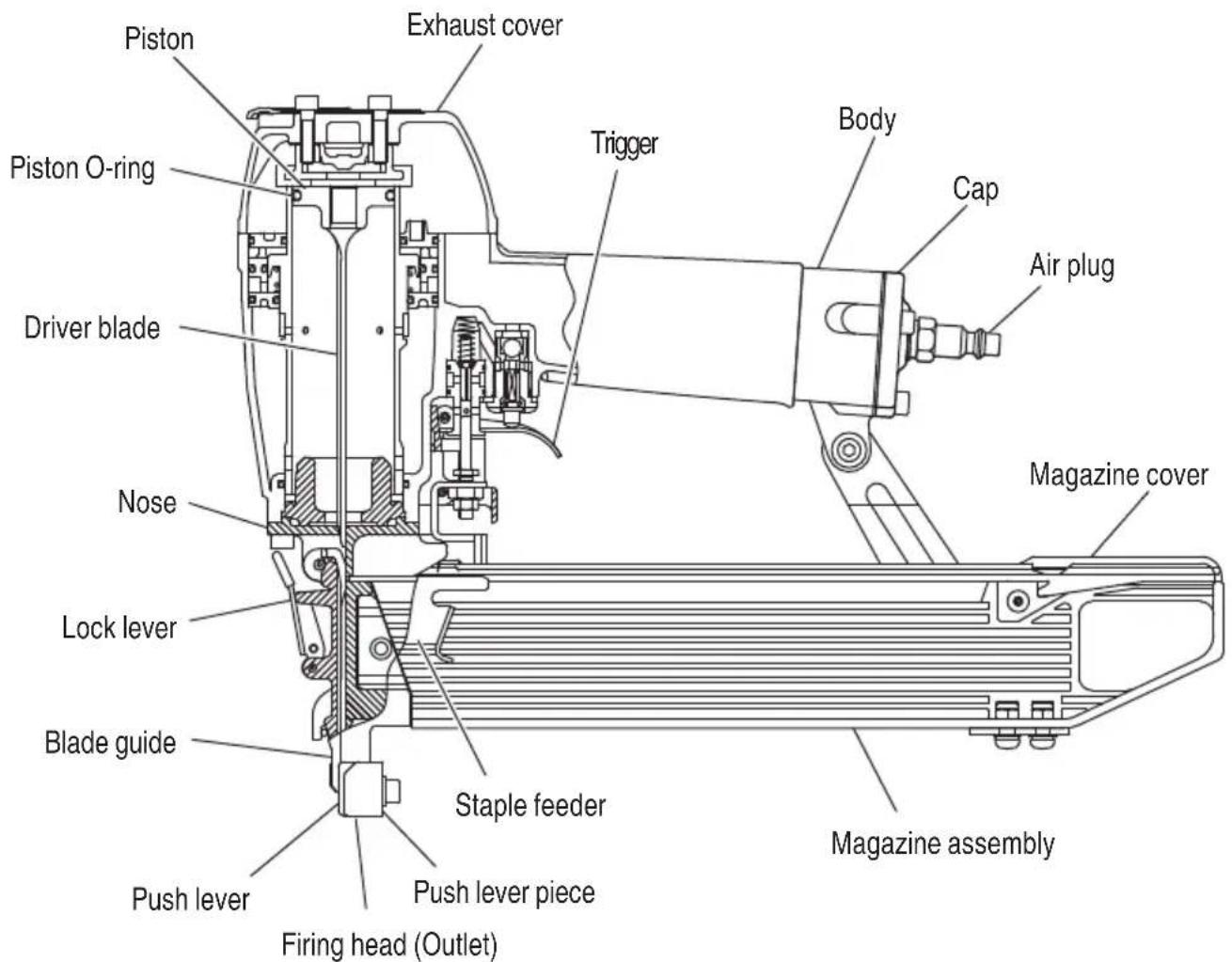

Piston Exhaust cover Trigger Body Cap Air plug Magazine cover Piston O-ring Driver blade Nose Lock lever Blade guide Push lever Push lever piece Firing head (Outlet) Staple feeder Magazine assembly

SPECIFICATIONS

Operating pressure 70 – 120 psi (4.9 – 8.3 bar 5 – 8.5 kgf/cm)
DimensionsLength × Height × Width	14-3/8" × 10-5/32" × 3"(365 mm × 258 mm × 76 mm)
Weight 4.4 lbs. (2.0 kg)
Staple capacity 150 Staples
Air consumption	.040 ft3/cycle at 100 psi(1.1 ltr/cycle at 6.9 bar)(1.1 ltr/cycle at 7 kgf/cm2)

STAPLE SELECTION

WARNING

- Be sure to use only the genuine HITACHI staples for the N5008AC2, N5010A. The use of any other staples can result in tool malfunction and/or staple breakdown, leading to serious injuries.

Only staples shown in the Table below can be driven with this Stapler.

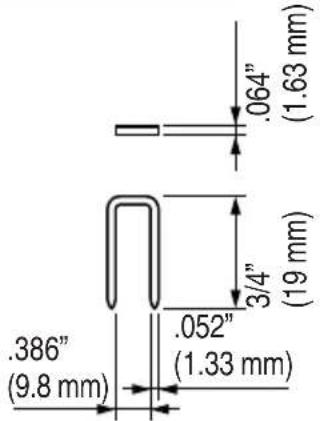

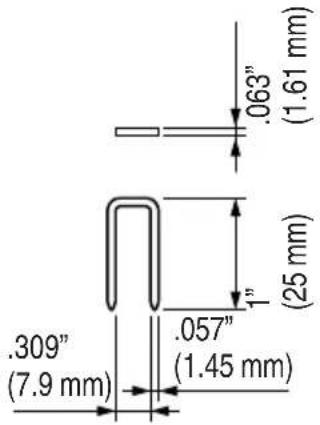

Dimensions of staples for N5008AC2

16 Gauge 7/16” Crown staple Min.	Max.

Dimensions of staples for N5010A

16 Gauge 1/2” Crown staple Min. Max.

ACCESSORIES

WARNING

● Accessories other than those shown below can lead to malfunction and resulting injuries.

STANDARD ACCESSORIES

Technical diagram showing two types of safety goggles labeled with numbers ① and ②, alongside a tool-like bracket.

① Eye protection ....1
② Allen wrench for M5 screw .... 1

OPTIONAL ACCESSORIES ... sold separately

Sequential Trip Mechanism Kit (Single Shot Parts) (Code No. 876762)
○ Pneumatic Tool Lubricant 1 oz. (30 cc) oil feeder (Code No. 877153) 4 oz. (120 cc) oil feeder (Code No. 874042) 1 quart (1 ltr) can (Code No. 876212)

NOTE: Accessories are subject to change without any obligation on the part of HITACHI.

APPLICATIONS

○ Construction work such as wall sheathing, roof decking, subflooring.
○ Mobile and modular home construction.
○ Making wooden boxes, and expendable pallets.

BEFORE OPERATION

Read section titled "SAFETY" (pages 4 – 8).

Make sure of the following before operation.

WORKING ENVIRONMENT

WARNING

● No flammable gas, liquid or other flammable objects at worksite.
● Clear the area of children or unauthorized personnel.

AIR SUPPLY

DANGER

● NEVER use reactive gases or other bottled gases. Explosion may occur.

WARNING

● Never connect Stapler to pressure which potentially exceeds 200 psi (13.7 bar 14 kgf/cm ^2 ) if a regulator fails.
● Never use non relieving coupler on Stapler.

1. Power source

○ Use only clean, dry, regulated compressed air as a power source for this Stapler.
Air compressors used to supply compressed air to this Stapler must comply with the requirements of the latest version of ANSI Standard B 19.3 "Safety Standard For Compressors For Process Industries."

○ Moisture or oil in the air compressor may accelerate wear and corrosion in the Stapler. Drain daily.

1. Filter-Regulator-Lubricator

○ Use a regulator with a pressure range of 0 – 120 psi (0 – 8.3 bar 0 – 8.5 kgf/cm ^2 ).
○ Filter-regulator-lubricator units supply an optimum condition for the Stapler and extend the Stapler life. These units should always be used.

Filter ....The filter removes moisture and dirt mixed in compressed air.

Drain daily unless fitted with an automatic drain.

Keep the filter clean by regular maintenance.

Regulator.....The regulator controls the operating pressure for safe operation of the Stapler. Inspect the regulator before operation to be sure it operates properly.

Lubricator .....The lubricator supplies an oil mist to the Stapler.

Inspect the lubricator before operation to be sure the supply of lubricant is adequate.

Use Hitachi pneumatic tool lubricant.

Regulator Stapler Side Compressor Side Lubricator Filter

3. Air hose

Compressed air supply hoses shall have a minimum working pressure rating equal to or greater than the pressure from the power source if a regulator fails, or 150 psi (10.4 bar 10.6 kgf/cm ^2 ), whichever is greater.

4. Air consumption

Using the Air consumption table and the Air compressor size formula, find a correct compressor size.

Air consumption table

Operating pressure	psi(bar)(kgf/cm2)	80(5.5)(5.6)	90(6.2)(6.3)	100(6.9)(7)
Air consumption	ft^3 /cycle(ltr/cycle)	.028(.8)	.032(.9)	.039(1.1)

Air compressor size formula

Amount of air required

=number of Staplers

× average staples driven each minute per Stapler
× air consumption at given air pressure
× safety factor (always 1.2)

Example: 3 Staplers (N5010A) operating at 100 psi driving 30 staples per minute

Amount of air required

$$ = 3 \times 3 0 \times . 0 3 9 (1. 1) \times 1. 2 $$

=4.2 CFM (ft³/min) (119 ltr/min)

After making the calculations as shown above, you should find a compressor providing 4.2 CFM of air that is required.

LUBRICATION

It is important that the Stapler be properly lubricated.

Without proper lubrication, the Stapler will not work properly and parts will wear prematurely.

○ Use Hitachi pneumatic tool lubricant.

Do not use detergent oil or additives. These lubricants will harm the O-rings and other rubber parts. This will cause the Stapler to malfunction.

○ Filter-regulator-lubricator units should always be used.

Keep the lubricator filled with Hitachi pneumatic tool lubricant.

☐ If a lubricator is not available, supply 5 – 10 drops of Hitachi pneumatic tool lubricant into the air plug on the Stapler twice a day.

COLD WEATHER CARE

○ Do not store the Stapler in a cold weather environment.

Keep the Stapler in a warm area until beginning the work.

○ If the Stapler is already cold, bring it in a warm area and allow the Stapler to warm up before use.

① Reduce the air pressure to 64 psi (4.4 bar 4.5 kgf/cm²).
② Remove all staples from the Stapler.
③ Connect the air hose and free-fire (blank-fire) the Stapler.

The lowered air pressure will be enough to free-fire the Stapler.

Slow speed operation tends to warm up the moving part.

CAUTION

- Do not free-fi re the Stapler at high pressure.

TESTING THE STAPLER

DANGER

● Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifications.

Ordinary eyeglasses provide adequate protection.

WARNING

● Never use Stapler unless push lever is operating properly.

Before actually beginning the stapling work, test the Stapler by using the checklist below. Conduct the tests in the following order.

If abnormal operation occurs, stop using the Stapler and contact a Hitachi authorized service center immediately.

(1) DISCONNECT AIR HOSE FROM STAPLER. REMOVE ALL STAPLES FROM STAPLER.

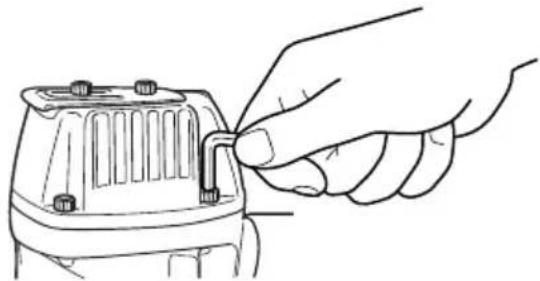

☐ ALL SCREWS MUST BE TIGHTENED. If any screws are loose, tighten them.

Line drawing of a hand inserting a small component into a device (no text or symbols)

☐ THE PUSH LEVER AND TRIGGER MUST MOVE SMOOTHLY.

Trigger Push lever Do not connect air hose

(2) Adjust the air pressure to 70 psi (4.9 bar 5 kgf/cm ^2 ). Connect the air hose.

Do not load any staples in the Stapler.

☐ THE STAPLER MUST NOT LEAK AIR.

Hold the Stapler downward and pull the trigger.

☐ THE STAPLER MUST NOT OPERATE.

Pull trigger Push lever

(3) With finger off the trigger, depress the push lever against the workpiece.

☐ THE STAPLER MUST NOT OPERATE.

Do not pull trigger Depress push lever

(4) Without touching the trigger, depress the push lever against the workpiece. Pull the trigger.

(5) With the Stapler off the workpiece, pull the trigger. Depress the push lever against the workpiece.

(6) If no abnormal operation is observed, you may load staples in the Stapler. Drive staples into the workpiece that is the same type to be used in the actual application.

☐ THE STAPLER MUST OPERATE PROPERLY.

ADJUSTING AIR PRESSURE

WARNING 120 psi 120 psi

● Do not exceed 120 psi (8.3 bar 8.5 kgf/cm ^4 ).

Adjust the air pressure at recommended operating pressure 70 - 120 psi (4.9 - 8.3 bar 5 - 8.5 kgf/cm ^2 ) according to the length of staples and the hardness of workpiece.

The correct air pressure is the lowest pressure which will do the job. Using the Stapler at a higher than required air pressure unnecessarily over stresses the Stapler.

LOADING STAPLES

WARNING

● When loading staples into Stapler,

1) do not pull trigger;
2) do not depress push lever; and
3) keep Stapler pointed downward.

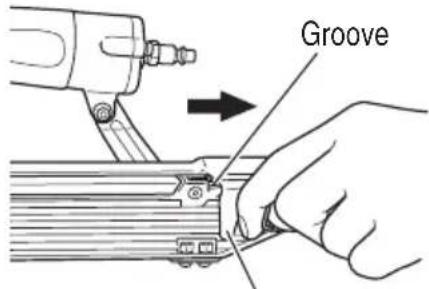

(1) Pull the staple feeder backward and attach it securely to a groove of the magazine.

Groove

Staple feeder

(2) Place the staple strip over the magazine.

Make sure that the staple strip slides freely on the magazine.

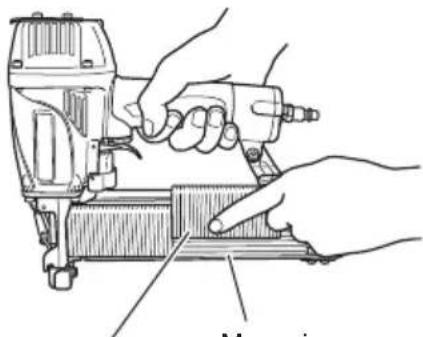

Illustration of hands operating a precision machine with a tool, labeled 'Maserio' at the base (no other text or symbols)

Staple
Magazine

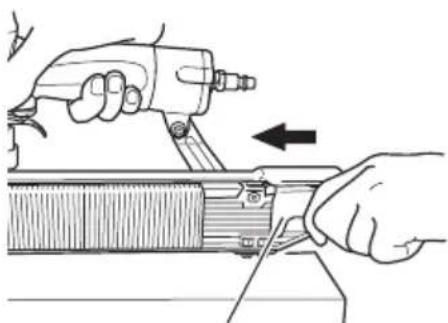

(3) Pull the staple feeder backward. Then, detach it from the groove of magazine and softly bring the staple back as if it were being gently pushed, avoiding any impact.

Illustration of a hand using a precision tool to adjust or install a mechanical component, with an arrow indicating the process (no text or symbols present)

Staple feeder

The Stapler is now ready to operate.

CAUTION

If the staple feeder is released all of a sudden, it can return abruptly, causing deformation and/or scatter, eventually ending up in clogged staples.

Be absolutely sure to bring bac feeder, avoiding any impact.

STAPLER OPERATION

Read section titled "SAFETY"(pages 4 – 8).

⚠️ DANGER

- Operators and others in work area MUST wear safety glasses with side shields which conforms to ANSI Z87.1 specifications. Ordinary eyeglasses provide adequate protection.

WARNING

- Only person who have I and understand this MANUAL should operate the Stapler. - NEVER point tool at yourself or others in work area.

• Keep fi ngers AWAY from trigger when not driving staples to avoid accidental discharge.
  ● Know and understand what trigger system you are using.

Please read and understand "METHODS OF OPERATION" found below.

● Never place your hands or body closer than 8 inches (200 mm) from fi ring head when using.
- Do not drive staples into other staples; staples can ricochet and hurt someone.
- Do not actuate Stapler unless Stapler is placed firmly against the workpiece.
- In order to avoid double fire or unwanted ejection of a staple due to bouncing of the Stapler,

1) do not push Stapler on workpiece with strong force;
2) take Stapler away from workpiece using recoil;
3) release trigger quickly when performing trigger fi re.

• When working close to an edge of a workpiece or at steep angles, or driving fasteners into thin workpiece use care to minimize chipping, splitting or splintering, or free fl ight, ricochet or piercing of fasteners, which may cause injury.
  ● Never drive staples from both sides of a wall at the same time. Staples can be driven into and through the wall and hit a person on the opposite side.
  ● Never use Stapler which is defective or operating abnormally.
  ● Do not use Stapler as hammer.
  ● Disconnect air hose from Stapler when:

1) it is not in use;
2) leaving work area;
3) elevating, lowering or otherwise moving it to another location;
4) handing it to another person;
5) performing any maintenance or repairs;
6) clearing a jam;
7) Stapler is outside of the operator's supervision or control;
8) removing staples from the magazine; and
9) adjusting stapling depth;

This Hitachi Stapler has a STANDARD CONTACT TRIP MECHANISM (Bounce Fire). An OPTIONAL SEQUENTIAL TRIP MECHANISM kit (SINGLE SHOT) is available as order part number 876762.

THE STANDARD CONTACT TRIP MECHANISM (Bounce

Fire) is for use where rapid fastener placement is desired and must be operated in accordance with the "Methods of Operation".

METHODS OF OPERATION

This Stapler is equipped with the push lever and does not operate unless the push lever is depressed (upward position).

There are two methods of operation to drive staples with this Stapler.

They are:

1. Intermittent operation (Trigger fire):
2. Continuous operation (Push lever fire):

(1) Intermittent operation (Trigger fire)

① Position the staple outlet on the workpiece with finger off the trigger.
②Depress the push lever firmly until it is completely depressed.
③ Pull the trigger to drive a staple.
④ Remove finger from the trigger.

To drive another staple, move the Stapler along the workpiece and repeat this procedure.

Trigger ③ ② Push lever

(2) Continuous operation (Push lever fi re)

WARNING

● To avoid double firing or accidental firing due to recoil.

1) Do not press the stapler against the workpiece with excessive force.
2) Separate the stapler from the workpiece as it recoils after stapling.

① Pull the trigger with the Stapler off the workpiece.
② Depress the push lever against the workpiece to drive a staple.
③ Move the Stapler along the workpiece with a bouncing motion.

Each depression of the push lever will drive a staple.

As soon as the desired number of staples have been driven, remove finger from the trigger.

Previously pull the trigger ① ③

Push lever

WARNING

• Keep your finger off the trigger except during fastening operation, because serious injury could result if the push lever accidentally contacts you or others in work area.
• Keep hands and body away from the discharge area. The Stapler with contact trip mechanism may bounce from the recoil of driving a fastener and unwanted subsequent fastener may be driven, possibly causing injury.
  ● Some types of loaded staples can spark out of the muzzle during a staple driving operation. Exercise caution!

THE OPTIONAL SEQUENTIAL TRIP MECHANISM (SINGLE SHOT PARTS) is for use where precision fastener placement is desired and must be operated in accordance with the following "Method of Operation".

You must first depress the push lever (upward position) where you want to drive a staple and then pull the trigger. After the each staple is driven, completely release the trigger and lift the tool off the work surface. An OPTIONAL SEQUENTIAL TRIP MECHANISM may reduce the possibility of bodily injury to you or others in the work area. This is because it is less likely to drive an unwanted staple if you keep the trigger pulled and accidentally bump the push lever against yourself or others. An OPTIONAL SEQUENTIAL TRIP MECHANISM may also reduce the speed of operation compared to the standard contact trip mechanism.

NOTE:

● Both STANDARD CONTACT TRIP MECHANISM and OPTIONAL SEQUENTIAL TRIP MECHANISM are safe if used as described above and according to all warnings and instructions.
● Always handle staples and package carefully. If staples are dropped, collating bond may be broken.
● After stapling:

1) disconnect air hose from the Stapler;
2) remove all staples from the Stapler;
3) supply 5 - 10 drops of Hitachi pneumatic tool lubricant into the air plug on the Stapler; and
4) open the petcock on the air compressor tank to drain any moisture.

ADJUSTING THE STAPLING DEPTH

WARNING

- When adjusting the Adjuster, be sure to remove your finger from the trigger and disconnect the air hose from the stapler.

To assure that each staple penetrates to the same depth, be sure that:

1) the air pressure to the Stapler remains constant (regulator is installed and working properly), and
2) the Stapler is always held firmly against the workpiece.

If staples are driven too deep or shallow into the workpiece, adjust the stapling in the following order.

① DISCONNECT AIR HOSE FROM STAPLER.

Push lever piece Screw ①④ Disconnect air hose

② To adjust the driven-in depth of a staple, loosen the screw that secures a push lever piece.

If the staple is driven in deeply, adjust the push lever piece to "down", and if it's driven in shallowly, adjust the push lever piece to "up".

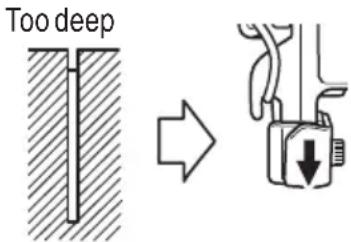

Too deep

Too shallow

Diagram illustrating a mechanical or electrical process with a vertical rod and directional arrow, likely illustrating a step-by-step assembly or operation.

③ Tighten the screw to fasten the push lever piece when a suitable position is reached for a stapling test.
④ Connect the air hose. ALWAYS WEAR EYE PROTECTOR. Perform a stapling test.
⑤ DISCONNECT AIR HOSE FROM STAPLER.
⑥ Choose a suitable position for the push lever piece.

MAINTENANCE

NOTE:

The information contained in this Manual is designed to assist you in the safe maintenance of the Stapler.

Some illustrations in this Manual may show details or attachments that differ from those on your own Stapler.

MAINTENANCE AND INSPECTION

Read section titled "SAFETY" (pages 4 – 8).

WARNING

● Disconnect air hose and remove all staples from Stapler when:

1) doing maintenance and inspection; and 2) clearing a jam.

1. Clearing a jam

Remove a jammed staple in the following order:

① DISCONNECT AIR HOSE.
②Remove all staples.

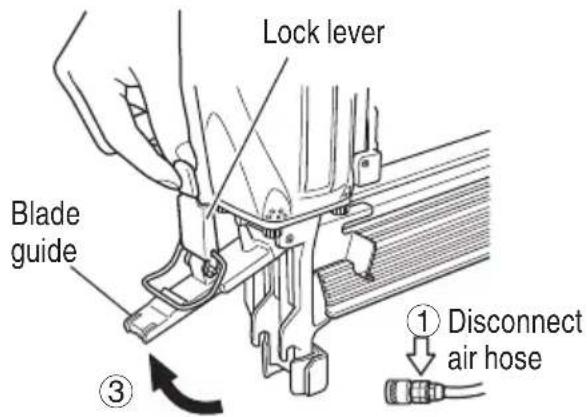

③ Release the lock lever and open the blade guide.

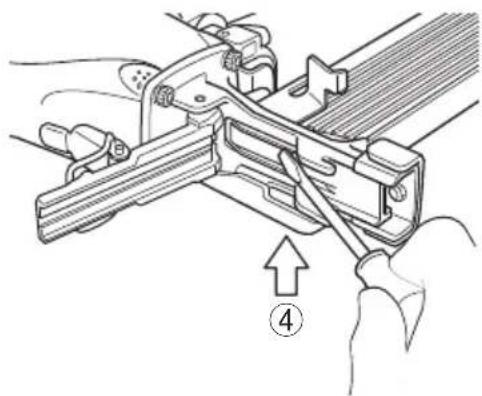

④ Remove the jammed staple with a slotted-head screwdriver.
⑤Close the blade guide and latch.
⑥ In case of frequent jam, contact a Hitachi authorized service center.

Lock lever Blade guide ① Disconnect air hose ③

Technical diagram showing a mechanical assembly with labeled component 4 and directional arrow

1. Storing

When not in use for an extended period, apply a thin coat of the lubricant to the steel parts to avoid rust.
○ Do not store the Stapler in a cold weather environment.

Keep the Stapler in a warm area.

When not in use, the Stapler should be stored in a warm and dry place.

Keep out of reach of children.

1. WARNING LABEL

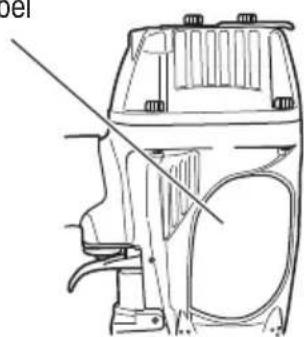

Do not use the Stapler with missing or damaged WARNING LABEL.

A new WARNING LABEL is available from a Hitachi authorized service center.

Warning label

Technical line drawing of a mechanical component with no visible text or symbols

1. Maintenance chart (Page 18)
2. Operator troubleshooting (Page 19)
3. Service parts list

A: Item No.
B: Code No.
C: No. Used
D: Remarks

CAUTION

● Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center.

This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.

MODIFICATIONS:

Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements.

Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.

SERVICE AND REPAIRS

⚠ WARNING

• Only service personnel trained by Hitachi, distributor or employer shall repair the Stapler.
  ● Use only parts supplied or recommended by Hitachi for repair.

All quality Staplers will eventually require servicing or replacement of parts because of wear from normal use.

NOTE:

Specifications are subject to change without any obligation on the part of HITACHI.

Maintenance chart

ACTION WHY HOW
Drain air line filter daily.	Prevent accumulation of moisture and dirt.	Open manual petcock.
Keep lubricator filled.	Keep the Stapler lubricated.	Fill with Hitachi pneumatic tool lubricant.
Clean fi lter element and blow air through fi lter in direction opposite to normal flow daily.	Prevent clogging of filter with dirt.	Follow manufacturer's instructions.
Clean magazine and feeder mechanism.	Prevent a jam.	Blow clean daily.
Keep push lever working properly.	Promote operator safety and efficient Stapler operation.	Blow clean daily.
Lubricate the Stapler after stapling.	Extend the Stapler life.	Supply 5 – 10 drops of lubricant into the Stapler.
Drain air compressor daily.	Keep the Stapler operated properly.	Open petcock on air compressor tank.

Operator troubleshooting

Most minor problems can be resolved quickly and easily using the table below.

If problems persist, contact a Hitachi authorized service center for assistance.

PROBLEM CHECK ME	METHOD CORRECTION
Stapler operates but no staple is driven.	Check for a jam. Clean jam per page 17.
	Staple feeder damaged? Replace staple feeder.
	Ribbon spring weakened or damaged? Replace ribbon spring.
	Check for proper staples. Use only recommended staples.
Weak drive.Slow to cycle.	Check air pressure. Increase air pressure.	(Do not exceed 120 psi (8.3 bar 8.5 kgf/cm2))
	Check position of stapling depth adjuster.	Readjust per page 16 – 17.
	——Use Hitachi pneumatic tool lubricant.
	Driver blade worn? Contact Hitachi for replacement.
	Piston O-ring worn or damaged?
Drives too deep. Check air pressure.	Reduce air pressure.	(Adjust 70 – 120 psi (4.9 – 8.3 bar 5 – 8.5 kgf/cm2))
	Check position of stapling depth adjuster.	Readjust per page 16 – 17.
Skipping staples.Intermittent feed.	Check for proper staples. Use only recommended staples.
	Staple feeder damaged? Replace staple feeder.
	Ribbon spring weakened or damaged? Replace ribbon spring.
	Piston O-ring worn or damaged?	Contact Hitachi for replacement.
Staples jam.Driven staple is bent.	Check for proper staples. Use only recommended staples.
	Driven blade worn?	Contact Hitachi for replacement.
Drives properly during normal operation, but does not drive fully at faster stapling speeds.	Check inside diameter of air hose.	Use larger air hose.

INFORMATIONS IMPORTANTES DE SÉCURITÉ

Technical diagram showing two types of safety goggles with labeled parts: one for clear safety and one for a tool.

Line drawing of a hand inserting a plug into a small electronic device (no text or symbols)

□ LE LEVIER-POUSSOIR ET LA GACHETTE DOIVENT FONCTIONNER AVEC SOUPLESSE.

Illustration of hands using a tool to adjust or install a mechanical component, with an arrow indicating the process (no text or symbols present)

Technical diagram of a sewing machine with labeled parts and directional arrows indicating assembly steps

Levier-poussoir

AVERTISSEMENT

Diagram illustrating a mechanical or electrical process with a vertical rod inserted into a surface and a device with an upward arrow indicating motion.

Technical line drawing of a mechanical assembly with hands and a numbered arrow indicating step 4 (no text or symbols present)

1. Remisage

Technical diagram showing two types of safety goggles labeled ① and ②, with a separate view of the eyepiece.

Line drawing of a hand inserting a plug into a small electronic device (no text or symbols)

□ LA PALANCA DE EMPUJE Y EL GATILLO DEBERÁN PODER ACCIONARSE SIN DIFICULTAD.

Gatillo Palanca de empuje No conecte la manguera de aire

Illustration of hands using a tool to adjust or install a mechanical component, with an arrow indicating the process (no text or symbols present)

Technical line drawing of a mechanical assembly with hands and a numbered arrow indicating a step (no text or symbols present)

1. Almacenamiento

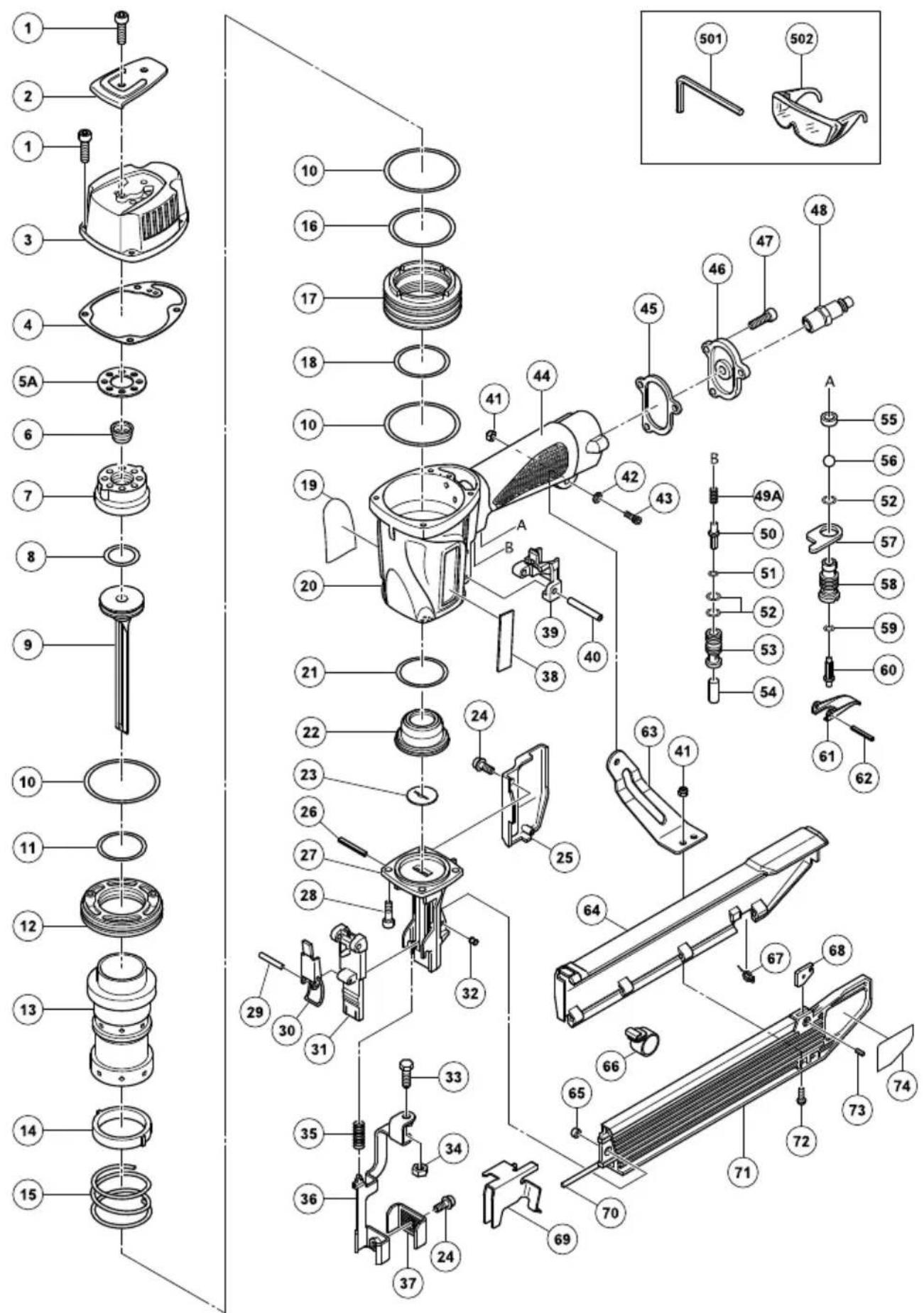

Exploded view diagram of a mechanical assembly with numbered parts and component labels

A B C D

1	949757	6	M5 × 20
2	876179		1
3	886444		1
5	883892		1
6	886466		1
7	878539		1
8	878026		1
9	876174		1
10	883716		1
11	885793	3	I.D. 64.5
12	877126		1
13	876168		1
14	885792		1
15	876167		1
16	876172		1
17	877123		1
18	877122		1
19	877124		1
20	——		1
21	886443		1 “33”
22	877125		1
23	886434		1
24	883712		1
25	949547		1 D4 × 36
26	886717		1
27	878181	4	M5 × 16
28	886718		1
29	886441		1
30	949685		1 D3 × 20
31	877873		1
32	883714		1
33	——		1
34	877371	3	M5
35	886719		1
36	885795		1
37	949821	3	M5 × 16
38	——		1
39	884356		1
40	884025		1 D3 × 45

A B C D

41	886342	1
42	878540	2	M5 × 8
43	883724	1
44	883723	1
46	883718	1
47	876205	1
48	949658	1	M5 × 18
49	886725	1
50	878542	1
51	877705	1
52	875638	3	S-12
53	877880	1
54	877882	1
55	878734	1
56	875645	1	D7.14
57	875644	1
58	877335	1
59	874820	1
60	878121	1
61	876203	1
62	949866	1	D3 × 30
63	881044	1
64	875650	1
65	949555	1	M5
66	881045	1
67	881047	1
68	881043	1
69	881039	1
70	883715	1
71	886724	1
72	883719	1
73	883717	1	“69, 75”
74	678653	2	M5 × 14
75	881040	1	D3 × 6
76	——	1
501	944458	1	4MM
502	875769	1

N5010A

Exploded view diagram of a mechanical assembly with numbered parts and component labels

A B C D

1	949757	6	M5 × 20
2	876179		1
3	886444		1
4	883892		1
5A	886466	1
6	878539		1
7	878026		1
8	876174		1
9	886437		1
10	885793	3	I.D. 64.5
11	877126		1
12	876168		1
13	885792		1
14	876167		1
15	876172		1
16	877123		1
17	877122		1
18	877124		1
19	——		1
20	886443	1	INCLUD.44
21	877125		1
22	886434		1
23	886435		1
24	878540	2	M5 × 8
25	883724		1
26	949547	1	D4 × 36
27	886436		1
28	878181	4	M5 × 16
29	949685	1	D3 × 20
30	886441		1
31	886440		1
32	881044		1
33	875650		1
34	949555		1 M5
35	877873		1
36	883714		1
37	883715		1
38	886342		1
39	884356		1
40	884025	1	D3 × 45

A B C D

41	877371	3	M5
42	876205	1
43	949658	1	M5 × 18
44	——	1
45	877131	1
46	885795	1
47	949821	3	M5 × 16
48	——	1
49A	886725	1
50	878542	1
51	877705	1
52	875638	3	S-12
53	877880	1
54	877882	1
55	878734	1
56	875645	1	D7.14
57	875644	1
58	877335	1
59	874820	1
60	878121	1
61	876203	1
62	949866	1	D3 × 30
63	886442	1
64	883718	1
65	881045	1
66	881047	1
67	881043	1
68	881039	1
69	886439	1
70	883719	1
71	886438	1	“68, 73”
72	678653	2	M5 × 14
73	949749	1	D3 × 8
74	——	1
501	944458	1	4MM
502	875769	1

Issued by

Koki Holdings Co., Ltd.

Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo 108-6020, Japan

Distributed by

Koki Holdings America Ltd.

1111 Broadway Ave, Braselton, Georgia, 30517

Koki Holdings America Ltd. Canadian Branch

3405 American Drive, Units 9-10, Mississauga, ON, L4V 1T6
