ScanTemp 485 31.1124 - Thermometer TFA - Free user manual and instructions

Product type	Non-contact infrared thermometer with thermocouple probe
Brand	TFA
Model	ScanTemp 485 31.1124 (ScanTemp 450)
Measuring range (infrared)	-60 to +500 °C (-76 to +932 °F)
Measuring range (type K thermocouple)	-64 to +1400 °C (-83.2 to +1900 °F)
Accuracy	Not specified in the manual
Optical resolution (distance/spot)	12:1
Adjustable emissivity	0.10 to 1.00 in steps of 0.01
Functions	MAX, MIN, DIF, AVG, high/low alarm (HAL/LAL), probe mode (PRB), continuous lock (LOCK)
Display	LCD screen with backlight
Power supply	2 AAA 1.5 V batteries (included)
Battery life	Approximately 140 hours (without laser or backlight)
Dimensions (L x W x H)	141 x 134 x 42 mm
Weight	Approximately 200 g (with batteries)
Operating temperature	0 to +50 °C (32 to 122 °F)
Storage temperature	-20 to +65 °C (-4 to 149 °F)
Automatic shut-off	After 60 seconds (IR mode) or 12 minutes (probe mode)
Aiming laser	Yes, class not specified (do not direct into eyes)
Maintenance and cleaning	Clean the lens with a cotton cloth moistened with water or medical alcohol
Repairability	Do not disassemble. Contact technical service in case of defect
Spare parts	Not specified. Use only AAA type batteries
General information	Compliant with CE and WEEE standards

Frequently Asked Questions - ScanTemp 485 31.1124 TFA

How to use the infrared thermometer?

Point the device at the object to be measured and press the measurement key. The temperature displays in one second. Ensure the target is larger than the measured spot (distance/spot ratio 12:1).

How to adjust emissivity?

Press the Mode key until "E" is displayed. Use the arrow keys to adjust emissivity from 0.10 to 1.00 in steps of 0.01. The default value is 0.95.

How to use the thermocouple probe?

Press the Mode key until "PRB" is displayed. Connect a type K probe into the socket on the side. The measuring range is -64 to +1400 °C.

What does the display "Hi" or "Lo" mean?

These messages indicate that the measured temperature exceeds the set alarm thresholds (HAL for high, LAL for low). Change the alarm values in the corresponding mode.

How to change the batteries?

Open the battery compartment at the back of the device. Replace the two used AAA batteries with new ones, respecting polarity. Use batteries of the same type and brand.

Why does the device not turn on?

Check that the batteries are installed correctly and that they are not discharged. If the problem persists, remove the batteries for one minute, then reinsert them to perform a reset.

How to activate the laser or backlight?

Hold down the measurement key to access settings. Use the Lock arrow key to turn the backlight on/off, and the °C/°F arrow key for the laser.

What is the accuracy of the device?

The manual does not specify the exact tolerance, but for infrared measurements, typical accuracy is about ±1.5°C or ±1.5% of reading (according to manufacturer standards). Refer to the complete documentation.

How to clean the lens?

Use a soft cotton cloth slightly moistened with water or medical alcohol. Wipe gently without scratching. Do not use abrasive products.

What to do in case of malfunction?

Perform a reset by removing the batteries for one minute. If the problem persists, contact TFA technical service. Do not attempt to repair or disassemble the device yourself.

USER MANUAL ScanTemp 485 31.1124 TFA

Infrared thermometer with circle laser

Operating Instruction 9

Mode d'emploi 16

Istruzioni 23

Distance(D) to Spot size(S)

3. Ausstattung

1. LCD

2. Taste Messen

3. Taste Up

4. Infrarotlinse

5. Taste Down

6. Laser

7. Taste Mode

8. Batteriefach

9. Thermoelementeingang

Explanation of symbols

CE

This sign certifies that the product meets the requirements of the EEC directive and has been tested according to the specified test methods.

Mode: MAX, MIN, dIF, AVG, HAL, LAL, PRB, Lock)

1. Before you start using it

• Please make sure to read the instruction manual carefully.
• Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use. We shall not be liable for any damage occurring as a result of non-following of these instructions.
• Likewise, we take no responsibility for any incorrect readings and for any consequences which may result from them.
• Please take particular note of the safety advice!
• Please keep this instruction manual for future reference.

2. Field of operation and all the benefits

- The ScanTemp 450 infrared thermometer is a non-contact infrared thermometer with Thermocouple connector. For the infrared part, simply aim the thermometer at the target and press the measurement button to display the surface temperature in less than a second. Plug in the specific thermocouple (not included), ScanTemp 450 may take contact temperature as high as 1400^ .

- The distance to target diameter ratio (field of view) is 12:1. For accurate reading, please make sure the target size is smaller than the spot size.

3. Features

• 2 x 1,5 Volt AAA batteries included
• Large LCD screen, with backlight
- Friendly user interface: 3-Key with trigger
- With high-end arithmetic: Max; Min and DIF; AVG mode
• Auto Power Off in 1 minute
• Precision K type thermocouple thermometer inside

GB

4. For your safety

• The device should only be used as described within these instructions.
• Unauthorized repairs, modifications or changes to the product are prohibited.

Caution! Risk of injury:

• Never point the device towards anyone's eyes.
• Keep this device and the battery out of the reach of children.
• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!
• Batteries contain harmful acids. Low batteries should be changed as soon as possible to prevent damage caused by leaking.

- Never use a combination of old and new batteries together, or batteries of different types. Wear chemical resistant protective gloves and safety glasses when handling leaking batteries.

- Remove the battery if you do not use the device for a long period of time.

Important information on product safety!

EMC/RFI

• Readings may be affected if the device is operated with in radio frequency electromagnetic field strength of approximately 3 volts per meter, but the performance of the instrument will not be permanently affected.
• Do not place your device near extreme temperatures, vibrations or shocks.
• The ScanTemp 450 should be stored at room temperature between -20 to +65^ .
  • The lens should be kept clean at all times.
• The sensor lens is the most delicate part of the ScanTemp. The lens should be kept clean at all times, care should be taken when cleaning the lens using only a soft cloth or cotton swab with water or medical alcohol, allowing the lens to fully dry before using the ScanTemp 450.
• Do not leave the device near objects of high temperature.

GB

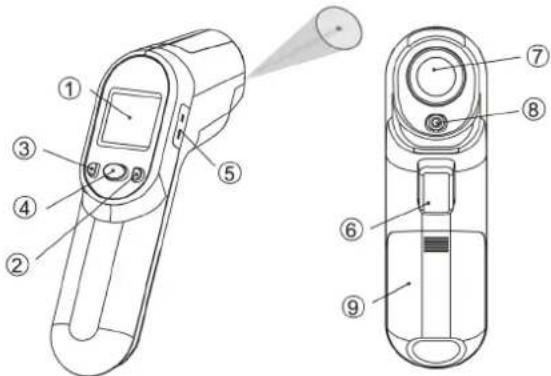

5. Parts description

Simply aim the ScanTemp450 at the measure target and press the Meas. key 6 to display the surface temperature.

1. LCD
2. Up key
3. Down key
4. Mode key

5. Thermocouple socket

6. Measuring key

7. Infrared Lens

8. Laser

9. Battery cover

Default Screen

Infrared function

ScanTemp 450 is supplied with a default emissivity of 0.95.

GB

→ Press Mode key 4 for scrolling more display function as follows:

„E“	Press emissivity key 4 key to adjust the emissivity. The emissivity can be changed from 0.10 to 1.00.
tMAX	Press the Meas. key 6 to display the surface temperature.Keep pressing Mode key 4 for the Maximum (MAX), Minimum (MIN), Different between MAX and MIN (DIF) and Average (AVG) readings during the last measurement period.
tMIN
dif
AVS
HAL	Press Down key 2 or Up key 3 to change the High Alarm (HAL) or Lo Alarm (LAL). F. e.: When the reading 27 °C < LAL 27.1 °C, the Low icon will flash and you will hear a beep sound.
LAL
The measurement range: -60 .. +500 °C.

→ ScanTemp will automatically shut off if left idle for more than 60 sec, unless in PRB mode.

Thermocouple probe scan function:

Press the mode key 4 until PRB appears: on the LCD.

Connect the thermocouple with Scan Temp 450's thermocouple socket 5 and put the probe in or on the target, the temperature will be displayed beside the "PRB" icon.

→ ScanTemp 450 will automatically shut off if left idle for more than 12 min in PRB mode.

→ The measurement range: -64 to +1400 °C.

⚠️ After measure high temp, the probe may remain HOT for a while.

GB

Key pad:

In Default:Max, Min, DIF, AVG,HAL, LAL, PRB	Press Lock key for infrared LOCK mode ON/OFF.
	Press °C/°F key for °C or °F transferred.
In all modes: Hold the Measuring key 6	Press Lock key for backlight function ON/OFF.
	Press °C/°F key for Laser function ON/OFF.

Batterie:

Battery OK Battery Low Battery Exhausted
Measurements are possible	Battery needs to be replaced, measurements are still possible	Measurements are not possible

When the 'Low Battery' icon indicates the battery is low, the battery should be replaced immediately with two AAA, 1.5V batteries.

Please note: It is important to turn the instrument off before replacing the battery otherwise the ScanTemp 450 may malfunction..

GB

1. Trouble shooting

	→ 'Low Battery' icon indicates the battery is low.→ The battery should be replaced with 2x AAA (LR6), 1.5V batteries immediately.
	→ Please check the model with/without this function.→ Replace the batteries
don't work
	→ 'Hi' is displayed when the temperature being measured is outside of the settings of HAL.→ Please reset the HAL or select target within specifications.
	→ 'Lo' is displayed when the temperature being measured is outside of the settings of LAL.→ Please reset the LAL or select target within specifications.
	→ For all other error messages it is necessary to reset the ScanTemp 450.→ To reset the ScanTemp 450, please wait the instrument automatic off, remove the battery and wait for a minimum of one minute, reinsert the battery and turn on.→ If the error message remains please contact the Service, Department for further assistance.

GB

7. Waste disposal

This product has been manufactured using high-grade materials and components which can be recycled and reused.

Never dispose of empty batteries and rechargeable batteries in household waste. As a consumer, you are legally required to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment

The symbols for the heavy metals contained are: Cd=cadmium, Hg = mercury, Pb=lead

This instrument is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE).

Please do not dispose of this instrument in household waste. The user is obligated to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible disposal.

Explanation of symbols

CE

This sign certifies that the product meets the requirements of the EEC directive and has been tested according to the specified test methods.

8. Specifications:

Measurement range Infrared: -60 .. +500 °C (-76 .. +932 °F)

Temperature range Thermocouple: -64 to +1400 °C (-83.2 to +1999 °F)

Operating environment: 0 .. +50 °C (32 .. 122°F)

Storing conditions: -20 .. +65 °C (-4 .. 149°F)

Response time: 1 second

Optical resolution: 12:1

Emissivity: 0.10\~1.00 step 0.01

Mode : MAX, MIN, dIF, AVG, HAL, LAL, PRB, Lock)

Battery life: min 140 hours continuous use (without laser and backlight).

Dimension:

141 x 134 x 42 mm

Weight:

186 grams including batteries

Note: Subject to change without notice.

For a table of emissivity values of common materials please see page 37/38..

F

Distance(D) to Spot size(S)

3. Equipement

Mode: MAX, MIN, dIF, AVG, HAL, LAL, PRB, Lock

Poids: 186 g (batteries inclues)

Distance(D) to Spot size(S)

3. Dotazione

Modo: MAX, MIN, dIF, AVG, HAL, LAL, PRB, Lock)

Explanation of symbols

Modos: MAX, MIN, dIF, AVG, HAL, LAL, PRB, Lock)

Table of emissivity values of common materials:

Aluminum* 0,30
Asbestos 0,95
Asphalt 0,95
Basalt 0,70
Brass* 0,50
Brick 0,90
Carbon 0,85
Ceramic 0,95
Concrete 0,95
Copper* 0,95
Dirt 0,94
Frozen food 0,90
Hot food 0,93
Glass (plate) 0,85
Ice 0,98
Iron*	0,70
Lead*	0,50
Limestone	0,98
Oil	0,94
Paint	0,93
Paper	0,95

Plastic** 0,95

Rubber 0,95
Sand	0,90
Skin	0,98
Snow	0,90
Steel*	0,80
Textiles 0,94
Water	0,93

Wood*** 0,94

* oxidized

** opaque; over 20 mils

*** natural

No part of this manual may be reproduced without written consent of Dostmann-Electronic. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about your product can be found by entering your product number on our homepage.

LASER RADIATION DO NOT STARE INTO BEAM! CLASS IIIR LASER PRODUCT

MAX. OUTPUT < 5 mW, WAVELENGTH 635 - 660 NM

RAYONNEMENT LASER NE VOYEZ PAS DIRECTEMENT AU RAYON LASER! PRODUIT LASER CLASSE IIIR

MAX. OUTPUT < 5 MW, LONGUEUR ONDES 635 - 660 NM

RADIAZIONE LASER NON GUARDARE IL RAGGIO LASER! PRODOTTO LASER CLASSE IIIR

MAX. OUTPUT < 5 mW, LUNGHEZZA DI ONDA 635 - 660 NM
