81100 - Fan KORONA - Free user manual and instructions

Product type	Pedestal fan with remote control
Blade diameter	40 cm
Power supply	220-240 V ~ 50 Hz
Rated power	40 W
Protection class	II
Number of speeds	3 (Low, Medium, High)
Operating modes	Normal, Natural Wind, Night
Timer	Countdown up to 7.5 h (0.5 / 1 / 2 / 4 h)
Oscillation	Yes, controlled by remote
Tilt	Manually adjustable
Remote control	Yes, with CR2025 button cell
Control panel	On pole with LED indicators
Blade material	Plastic
Protection grille	Front and rear, with safety screw
Base	Cross-shaped, with anti-slip caps
Adjustable height	Yes, by adjustment ring
Cleaning	Unplug, remove grilles and blades, wipe with damp cloth
Safety	Do not immerse, do not use outdoors, keep out of reach of children under 8 years
Warranty	2 years against material and manufacturing defects
Repairability	Contact customer service or a qualified professional
Weight	Approx. 5 kg (estimate)
Dimensions (H x W x D)	Adjustable height from 110 to 140 cm, base 60 x 60 cm (approx.)

Frequently Asked Questions - 81100 KORONA

How to assemble the Korona 81100 fan?

Place the cross-shaped base on a flat surface. Unscrew the height adjustment ring to release the inner tube. Attach the pole to the base with the 4 provided screws, then insert the base cover. Attach the control panel onto the inner tube. Mount the rear grille against the motor by aligning the tabs, tighten the clamping screw. Push the fan blade onto the motor shaft and tighten the blade clamping screw. Finally, attach the front grille using the decorative plate and 3 screws, not forgetting the safety screw.

How to use the fan remote control?

The remote control operates with a CR2025 button cell. Point it towards the sensor on the control panel. Use the On/Off, Speed, Mode, Timer, and OSC (oscillation) buttons. Note that oscillation can only be controlled via the remote.

What to do if the remote control does not work?

First check the battery: replace it with a new CR2025. Make sure there is no obstacle between the remote and the sensor. If the problem persists, the receiver may be defective: contact customer service.

How to set the auto-off timer?

Press the Timer button repeatedly to select 0.5 h, 1 h, 2 h, or 4 h. The countdown can reach up to 7.5 hours in total. The corresponding indicator lights up on the control panel. The fan will turn off automatically at the end of the countdown.

How to clean the fan?

Turn off and unplug the appliance. Remove the front grille by unscrewing the safety screw, then the decorative plate. Clean the grilles and blades with a soft, damp cloth. Never spray liquid directly. Ensure all parts are dry before reassembling. Be careful of the sharp edges of the blade.

Can the fan be used outdoors?

No, intended use is exclusively domestic and indoor. Do not use outdoors, near open windows, or in damp rooms to avoid any risk of electric shock.

What ventilation modes are available?

Three modes: Normal (constant speed), Natural Wind (simulates wind variations), and Night (quiet and progressive operation). Press the Mode button to switch between them. The NA (natural wind) and SL (night) indicators light up.

How to adjust the fan tilt angle?

Manually tilt the motor unit up or down until it clicks into place. Do not force beyond the intended positions.

What to do in case of malfunction?

Immediately unplug the appliance. Do not attempt any repairs yourself. Contact Korona customer service by phone [phone]) or by email ([e-mail]) for assistance.

How to dispose of the fan at end of life?

Do not dispose of it with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) in accordance with local regulations. The cardboard packaging is recyclable. Used batteries (CR2025) must be deposited at a designated collection point.

USER MANUAL 81100 KORONA

40cm Stand Fan with remote control

Nederlands

Handleiding

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Bedienungsanleitung

Technical diagram of a fan and power supply unit with numbered parts and labeled function buttons

Read these instructions carefully before assembling and/or operating the appliance. Keep these instructions including receipt and, if possible, the box with the internal packing. When passing on the appliance to a third party, make sure to include these instructions for use.

INTENDED USE

This appliance is intended for household use only and not for commercial, industrial or outdoor use. Other use not recommended may cause fire, electric shock or injury.

Safety:

This symbol identifies hazards which may cause injuries!

This symbol identifies electric shock hazards!

This symbol identifies tips and information.

IMPORTANT SAFETY INSTRUCTIONS

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of fire.

Danger of injury and damage to the appliance!

• Manufacturer takes no responsibility for any damage caused by incorrect use.

• Incorrect or improper use can damage the appliance and cause injuries to the user.

• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

• Do avoid contact with all moving parts. Always wait until all moving parts have come to stand still before touching them.
• Do not insert fingers or allow foreign objects to enter the grill.
• Do not operate without the fan grills properly in place or if the gril becomes damaged or loose.
• Make sure the fan is not placed near drapes, curtains, or any objects that may be drawn (including hair and clothes) into the fan.
• Never place or operate the unit where it could be subject to:
• Heat sources such as radiators, heat registers, stoves or other products that produce heat
• Direct sunlight
• Excessive dust
• Mechanical vibration or shock
• Lack of ventilation
• Uneven surfaces, to avoid the tipping of the fan during use
• Always turn OFF (0) and unplug the fan when not in use and/or when moving it from one location to another.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

- Do not place the appliance close to an open window. Rain splashing on the fan could cause an electric shock hazard.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
  • Always pull the plug – not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Do not run cord under carpeting. Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use.
• Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
• if the appliance was dropped or is damaged otherwise.

Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

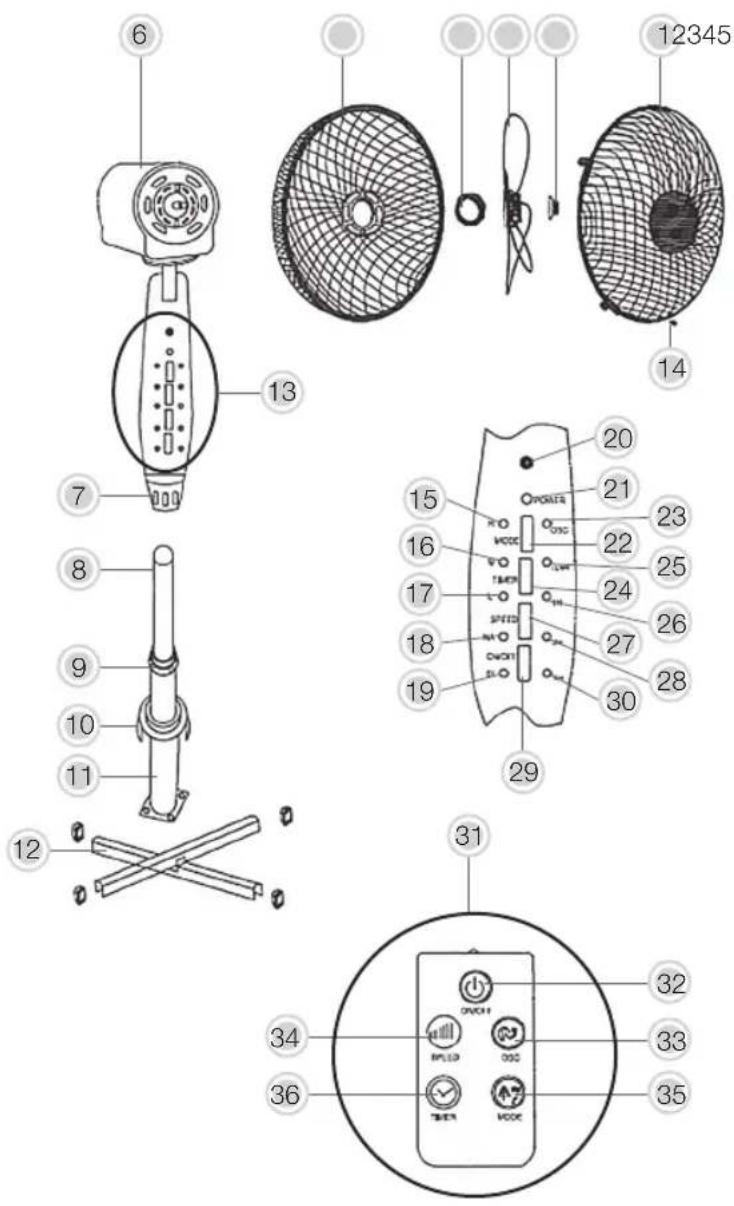

Technical diagram of a fan assembly with numbered parts and labeled controls

DESCRIPTION OF PARTS

1. Front Grill
   (incl. decorative plate + 3 screws)
2. Blade fastener
3. Blade
4. Rear Grill fasterner
5. Rear grill
6. Motor housing
7. Extension pole tigthen ring
8. Adjustable pole inner tube

9. Height adjustment ring

10. Base cover

11. Adjustable pole outer tube

12. Cross base

13. Control panel

14. Safety screw

15. High speed indicator

16. Mid speed indicator

17. Lo speed indicator

18. NA (Natural wind) indicator

19. SL (Sleep) indicator

20. Remote sensor

21. Power indicator

22. Mode button

23. OSC (Oscillation) indicator

24. Timer button

25. Timer 0.5hr indicator

26. Timer 1hr indicator

27. Speed button

28. Timer 2hr indicator

29. ON/OFF button

30. Timer 4hr indicator

31. Remote control Note: Remote control operated by CR2025 button cell

32. ON/OFF button

33. OSC (Oscillation button) Note: OSC function control by remote control ONLY

34. Speed button

35. Mode button

36. Timer button

BEFORE FIRST USE

• Remove all packaging material and check whether the appliance is complete and that all accessories are included.
  • Fully unwind the power cord.
• Clean the appliance as described under Cleaning and Care.

If any items are damaged or missing, contact your dealer or customer service.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away oid suffocation.

ASSEMBLY

Always ensure that the fan is unplugged from the power supply and turned off re commencing with the assembly process.

1. Place the cross base (12) with end cap on dry, flat surface
2. Release the adjustable pole inner tube (8) by loosening the height adjustment ring (9).
3. Attach the adjustable pole (8,9,10) to the cross base (12) by 4 screws. Insert the base cover (10) to cover
4. Attach the control panel (13) to the adjustable pole inner tube (8) by tightening the ring (9)
5. Unscrew the rear grill fastener (4) by rotating it anticlockwise
6. Position the rear grill (5) against the front of the motor with its handle at the top, ensuring that the locating peds on the motor are correctly inserted into the hole on the grill
7. Screw the grill fastener (4) onto the projecting thread on the motor front cover by rotating it clockwise until it is firmly tightened.
8. Push the fan blade (3) onto the motor shaft. Then firmly screw on the blade fastener (2).
9. Attach the logo plate to the front grill by 3 screw (1). Then position the front grill against the read grill (5) and join them together.

Note: Always attach the safety screw (14) to ensure that the grill is properly assembled!

Always make sure that the fan is properly assembled and unplugged before operation, changing the tilting angle and changing the direction of the air current (oscillation).

OPERATION

1. Place your fan on an even, dry and stable surface.
2. Ensure the fan is set to 0 (OFF) before plugging it into a power socket.

Make sure your local voltage matches the technical data of the appliance. Otherwise the chance may overheat and get damaged.

1. Switch on the appliance by pressing ON/OFF button on the unit or remote control.

2. Press mode button to switch between normal, natural wind, sleep mode.

Note: Corresponding indicator will light up.

1. Press speed button to switch the fan speed between L / M / H.

Note: Corresponding indicator will light up.

1. Press timer button continuously to preset auto switch off timer.

Indicator light up according to the desire timerCount down timer up to 7.5hrs with indicator light on the control panel.

ADJUST TILT ANGLE

To adjust the desired fan angle, tilt the motor housing up or down until it clicks into place.

OSCILLATION

Changing the direction of the air current!

- Press the OSC button on remote control, to start/stop the oscillation mode.

CLEANING AND CARE

Before cleaning, always switch off the appliance and disconnect it from the mains. Never immerse the appliance in water. Danger! Electric Shock!

• Clean the appliance using a soft damp cloth.
• Never spray the appliance with liquids or submerge it in water or other liquid.
• For cleaning purpose, front and back grill as well as the fan blade can be removed.

After the cleaning process is finished make sure that all parts are dry and that the front/back grill incl. fan blade are properly reassembled.

Never use alcohol, gasoline, and/or any other aggressive cleaning agents/hard objects.

CAUTION: The Fan Blade may have sharp edges. Handle with extreme care.

STORAGE

Keep the appliance away from children and store it in a clean and dry place, best in its original box or cover it to protect it from dust.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Stand Fan 81100 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Disposal Instruction For Batteries

Standard and rechargeable batteries should not be thrown into regular household waste. As a consumer, you are legally obliged to return used batteries for proper disposal. You can hand in your used batteries at public collection points in your district or sales outlets where batteries of this type are sold.

Note: The codes below are printed on batteries containing harmful substances:

Pb = Battery contains lead

Cd = Battery contains cadmium

Hg = Battery contains mercury

TECHNICAL DATA

Voltage: 220 - 240 V \~ 50 Hz

Power: 40 W

Protection class: II

Technical data subject to change!

CE

Description Symbol Value Unit
Maximum fan flow rate F 41.1 m3/min
Fan power input P 40.28 W
Service value SV 1.02 (m3/min)/W
Standby power consumption P	SB 0.42 W
Seasonal electricity consumption Q 13.4 kWh/a
Fan sound power level	LWA	54.20 dB(A)
Maximum air velocity	c 3.54 meter/sec
Measurement standard for service value	EN 50564:2011IEC 60879:1986 +cor1:1992EN 60704-2-7:1998

NOTE: As a result of continual improvements, the design and specifications of the act within may differ slightly to the unit illustrated on the packaging.

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a customer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
