USER MANUAL 81502 KORONA

Read these instructions carefully before assembling and/or operating the appliance. Keep these instructions including warranty, receipt and, if possible, the box with the internal packing.

When passing on the appliance to a third party, make sure to include these instructions for use.

Intended Use

This appliance is intended for household use only and not for commercial, industrial or outdoor use. Other use not recommended may cause fire, electric shock or injury.

Safety:

This symbol identifies hazards which may cause injuries!

This symbol identifies electric shock hazards!

This symbol identifies tips and information.

IMPORTANT SAFETY INSTRUCTIONS

S 4

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of fire.

Danger of injury and damage to the appliance!

• Manufacturer takes no responsibility for any damage caused by incorrect use.
  Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.
• Do avoid contact with all moving parts. Always wait until all moving parts have come to stand still before touching them.
• Do not insert fingers or allow foreign objects to enter the grill/ air outlet.
• Make sure the fan is not placed near drapes, curtains, or any objects that may be drawn (including hair and clothes) into the fan.

• Never place or operate the unit where it could be subject to:

• Heat sources such as radiators, heat registers, stoves or other products that produce heat

• Direct sunlight
• Excessive dust
• Mechanical vibration or shock

• Lack of ventilation
  -Uneven surfaces,to avoid the tipping of the fan during use

• Always turn OFF and unplug the fan when not in use and/or when moving it from one location to another.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Always unplug your appliance when it is not in use, and before cleaning.
  Always pull the plug - not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Do not run cord under carpeting. Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use.
• Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.

• if the appliance was dropped or is damaged otherwise. Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.

• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Notes on handling batteries

Warning:

• Swallowing batteries can be extremely dangerous. Keep the batteries out of the reach of small children. Should a child swallow a battery, seek medical assistance, immediately.
• Batteries must not be recharged, taken apart, thrown into an open fire or short circuited. Risk of fire/explosions!
• Always replace all batteries at the same time and always use the same battery type.
• Batteries can contain toxins that are harmful to your health and the environment. Always dispose of batteries in accordance with applicable legal regulations. Do not dispose of batteries with the normal household waste.

SCOpe OF DelVeRY

1 Tower fan
1 Remote control
1 Instruction manual

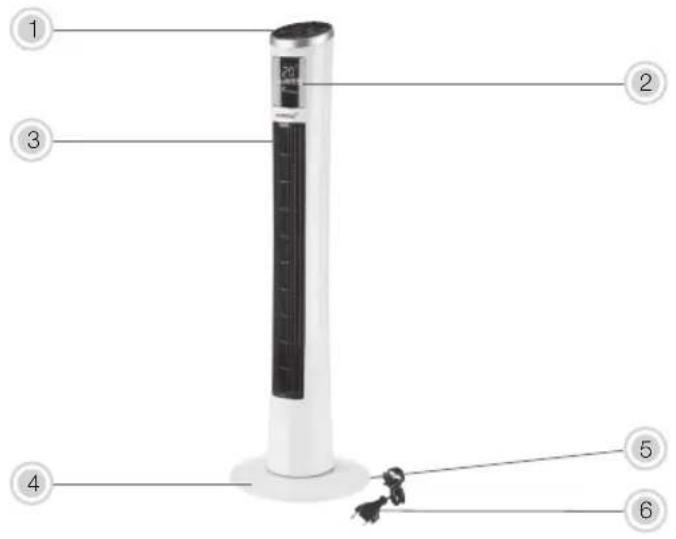

DeSCRIPTION OF pARTS

1. Control Panel
2. LED Monitor
3. Air Outlet
4. Base (2 parts)
5. Cable guide (underneath base)
6. Power cord and plug
7. Remote control

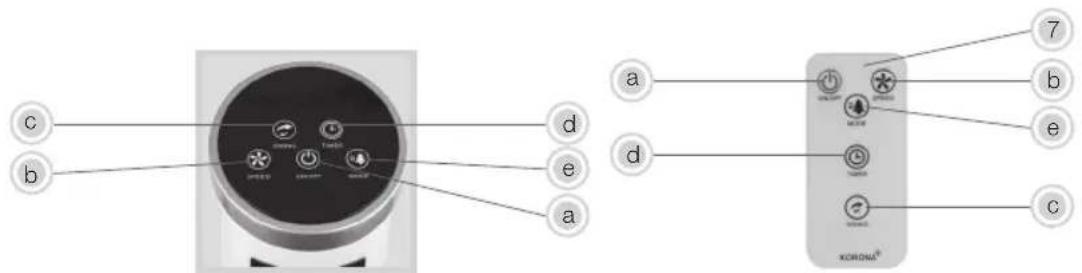

Control Panel / Remote Control Settings

a. On/Off button

• Allows 3 different speed level selectios. Low - Medium - High

c. Swing button

• Turns oscillation on / off

d. Timer button

• Allows for automatic shut off. Time increases by one hour with each push of the button, up to 12 hours.

e.Mode button

• Allows for up to 3 wind modes.

Normal: The fan runs according to the set speed setting (Low - Medium - High)

Natural: The fan runs according to a pre-determined program which varies according to which speed is selected. This setting will enable you to enjoy a nice, natural breeze.

Sleep: The fan runs according to a pre-determined program; the fan will gradually slow down and remain at low setting.

Before first use of the remote control, remove the protective sheet from the button cell.

BEFORE FIRST USE

• Remove all packaging material and check whether the appliance is complete and that all accessories are included.
  Fully unwind the power cord.
  Clean the appliance as described under Cleaning and Care.

If any items are damaged or missing, contact your dealer or customer service.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid

suffocation.

Assembly

1. Turn the two parts of the base upside down and attach part 1 to part 2 by aligning the holes onto the posts. Make sure that the two base parts are securely attached.

1. Pass the power cord through the center hole of the base.

Align the base and insert the fan body into the wholes of the top of the base, turn it anti clockwise and make sure that it is securely attached.

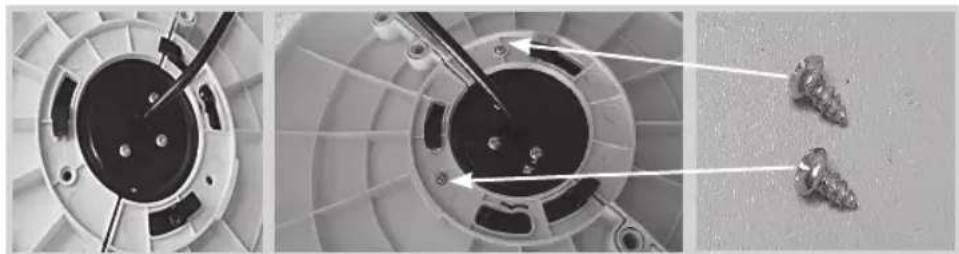

In addition, to fully secure the fan body to the base, insert the two screws into the holes of the base and tighten them.

1. Fasten the cord to the base by running it through the cable guide.

Set the fan upright on the base and it is ready to use.

Operation

Make sure that the fan is properly assembled before operation.

The appliance can be operated via the control panel as well as by remote control.

1. Place your fan on an even, dry and stable surface and plug it into a proper power socket.

Make sure your local voltage matches the technical data of the appliance. Otherwise the appliance heat and get damaged.

Adhere to a safety distance to walls and other objects.

When first switched on the appliance will operate in low speed in normal mode and the LED display the current room temperature.

1. Choose your desired settings by pressing the respective buttons.
2. After use, switch off the the appliance and unplug it.

Never leave the appliance unattended during use.

Always remove the battery from the remote control if it will not be used for a longer period

of time.

Replacing the battery of the remote control

Only use 3V CR2025 button cell!

1. To open the battery compartment, press onto the battery compartment lock and pull out the battery holder.
2. Insert a new CR2025 battery with the + sign at the top.
3. Re-insert the battery holder into the remote control. Make sure that the battery holder is properly inserted into the remote control.

CLEANING AND CARE

Before cleaning, always switch off the appliance and disconnect it from the mains.

Never immerse the appliance in water. Danger! Electric Shock!

• Clean the appliance using a soft damp cloth.
• Never spray the appliance with liquids or submerge it in water or other liquids.

After the cleaning process is finished, make sure that all parts are dry.

Never use alcohol, gasoline, and/or any other aggressive cleaning agents/hard objects.

STORAGE

Keep the appliance away from children and store it in a clean and dry place, best in its original box or cover it to protect it from dust.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Tower Fan 81502 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

DISPOSAL INSTRUCTIONS FOR BATTERIES

Standard and rechargeable batteries should not be thrown into regular household waste. As a matter of fact, you are legally obliged to return used batteries for proper disposal. You can hand in your used batteries at your local recycling centre in your district or sales outlets where batteries of this type are sold.

Note: The codes below are printed on batteries containing harmful substances:

Pb = Battery contains lead

Cd = Battery contains cadmium

Hg = Battery contains mercury

TeCHNICAL DATA

Voltage: 220 - 240 V ~ 50 - 60 Hz

Power: 40 W

Protection class: II

Technical data subject to change!

Description Symbol Value Unit
Maximum fan flow rate F 4.98 m3/min
Fan power input P 45.5 W
Service value SV 0.109 (m3/min)/W
Standby power consumption	Psb	0.3	W
Seasonal electricity consumption	Q	14.896 kWh/a
Fan sound power level	Lwa	53.9 dB(A)
Maximum air velocity	C	4.7	meter/sec
Measurement standard for service value	ISO 5801:2007(E)

NOTE: As a result of continual improvements, the design and specifications of the product within may differ slightly to the unit illustrated on the packaging.

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
• for damages due to wear and tear (batteries, etc.)
• for damages known by customer at time of purchase
  for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a customer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
